Clear view fence
Product Name: Clear View Fence/358 anti climb fence /358 rigid mesh fencing system
Material: Pre galv (50g/m2)+ powder coated (100microns)
Brand: BONKFC Fence
Origin: China (BONKFC Factory)
Colors Available: Black RAL9005, Green RAL6005
Height(mm):1200,1800,2100,2400
Width(mm):2900
Horiz (mm):2.5±0.2，2.7±0.2
Vertical (mm):3.5±0.2，3.7±0.2
Aperture(mm):78 x 50，78 x 25，78 x 13
Post:
T post :80x50x50x50x1.45x2400/3000mm
I post:44x70x1.45/2.35x3000mm
Teck screw:M6.3 x 32
Spider Clip:35x45x3
According to the shape of structure, our clear view fences can be divided into two types as shown below.
clear view fence
3D clear view fence
4 V bends + 45 deg top and bottom
According to the surface treatment, our clear view fence can be divided into three types as shown below. Hot-dip galvanized = strongest corrosion resistance. Powder coated = best balance of protection + aesthetics. PVC coated = economical option with good weather resistance.
Galvanized+Powder coating
Galvanized+PVC
Hot dip galvanized+powder coated
According to the mesh opening direction, our high security fence can be divided into two types as shown below.
Vertical 358 high security fence
Horizontal 358 high security fence
Production is the top priority of BONKFC's development,and quality is the core criterion for BONKFC's progress. Production Process (Strict Quality Control) Our BONKFC Fence factory is equipped with Swiss Schlatter welding machines and 32 ITW GEMA automatic powder coating guns to guarantee precision and durability. Each step is monitored by professional quality inspectors:
raw material
cut into scratch-free wires
mesh welding(flat panel, strong welding points)
bending with V-curves for extra rigidity
sandblasting process:removing impurities
nanoceramic technology:removing grease
Equipped with 32 guns of swiss ITW Gema spray to ensurespaying evenly
Using ISO-certified AkzoNobel powder
Quality and details at a reasonable price are our philosophy. Quality Control Raw Material: High-strength steel wires (Q195/Q235) only. After Welding: Panels tested for flatness and strong joints. After Powder Coating: Thickness measured, adhesion tested. Final Check: All panels packed with protective film, pallets, or cartons as per customer’s request. BONKFC ensures 100% inspection before delivery, complying with EN10244 and EN10346 standards.
Test whether the tensile strength of the wire reaches 500-600Mpa.
No scratches after cutting, zinc coating remains fully intact, significantly enhancing corrosion resistance.
Test whether the tensile strength of the welds can reach over 50% of the wire's tensile strength
Confirm the bent angle is 45degrees.
Inspect the welds for spatter and foreign impurities.
Check the neatness of the mesh sheets and verify if a protective film has adhered to the surface.
Check whether the PVC coating thickness reaches more than 500 microns.
Check whether the double-sided spray coating thickness is more than 120 microns.

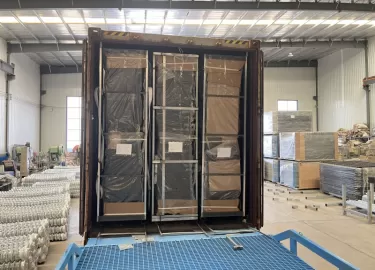

Customize exclusive container loading plans,maximize the use of container space,load more goods and save more money!
packaged in a vertical support
packaged in flat support mode
The main components and connection methods of our 358 clear view fence are as shown below.
Clamp bar connection
Spider clip connection
Big spider clip connection
square post
H beam
I post
razor wires
wall spikes
Barbed wires
warning signs
Features & Advantages
Anti-climbing design: Mesh apertures are too small for fingers and toes.
Anti-cutting security: Heavy gauge wires prevent cutting with hand tools.
High corrosion resistance: EN10244 compliant hot dip galvanized coating + AkzoNobel powder.
Long lifespan: Over 15–20 years under normal outdoor conditions.
Rigid structure: Multiple “V” curves add strength without increasing weight.
Customizable: Panel size, post type, and colors available according to project needs.
Prisons & Correctional Facilities Military Bases Airports & Railway Stations Power Plants & Oil/Gas Facilities Government Buildings Border Security Solar Farms & Warehouses Residential & Industrial Sites requiring maximum security
Airports and railway perimeters
High-security commercial or industrial zones
Power stations and critical infrastructure
Military bases
Prisons and correctional facilities
Provide 500 sets of highly secure fences to the farms in South Africa
Supplying 220 sets of High-Security Clear-View Fences to Johannesburg Airport
Provide a 358 anti-climbing fence of 1 kilometer in length to Sydney
