3D reinforced mesh fence
Material:galvanized wire+flat steel
Size: 2.6m high and 2.6m wide General specifications or customized on request
Certificate:SGS, BV, ISO9001,ISO14001,ISO45001
Brand:BONKFC FENCE
Manufacturer:BONKFC
Origin:China
| Height | wire diameter | Mesh opening | Bending mesh | Panel Width |
| 830mm | 3.0mm-6.0mm | 50*100mm 55*100mm 50*200mm 55*200mm | 50*100mm 55*100mm 50*200mm 55*200mm | 2.5m or 3.0mm |
| 1030mm | ||||
| 1230mm | ||||
| 1530mm | ||||
| 1730mm | ||||
| 1830mm | ||||
| 2030mm | ||||
| 2430mm | ||||
| 2530mm | ||||
| Surface treatment: 1: hot dipped galvanized after welding 2: powder coated after galvanized wire welding 3: PVC coated after galvanized wire welding | ||||
| V type mesh panel | height(m) | 0.5 |
| length(m) | 2.3 or 3 | |
| post type with V arm | square post(mm) | 60*60*2 60*60*3 |
| rectangular post(mm) | 60*80*3 | |
| length(m) | normal 2.8-3 | |
| finished | material | low carbon steel wire,galvanized wire |
| clamps | steel or plastic | |
| pvc coated | ||

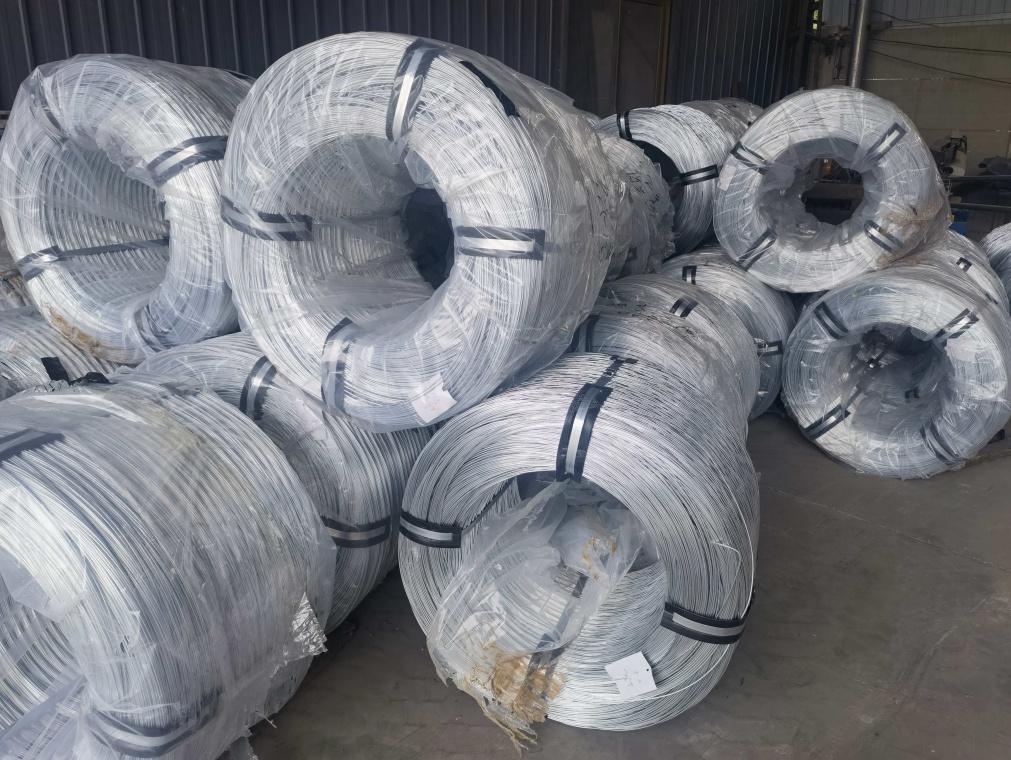

Raw material

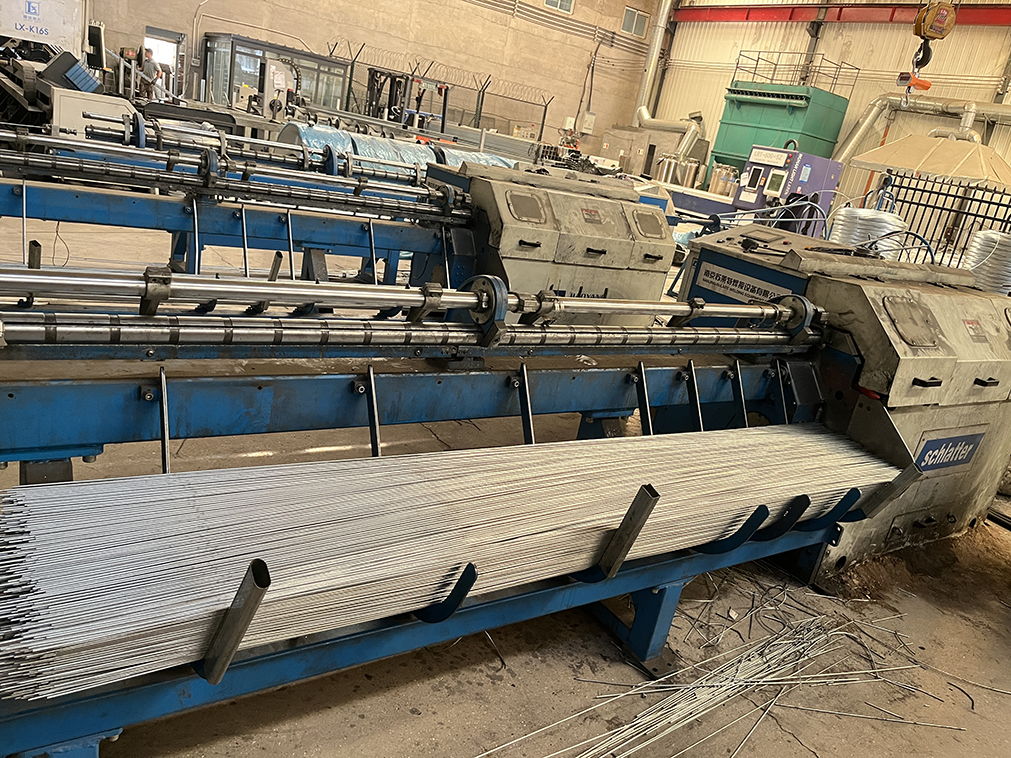

Cut into scratch-free wires

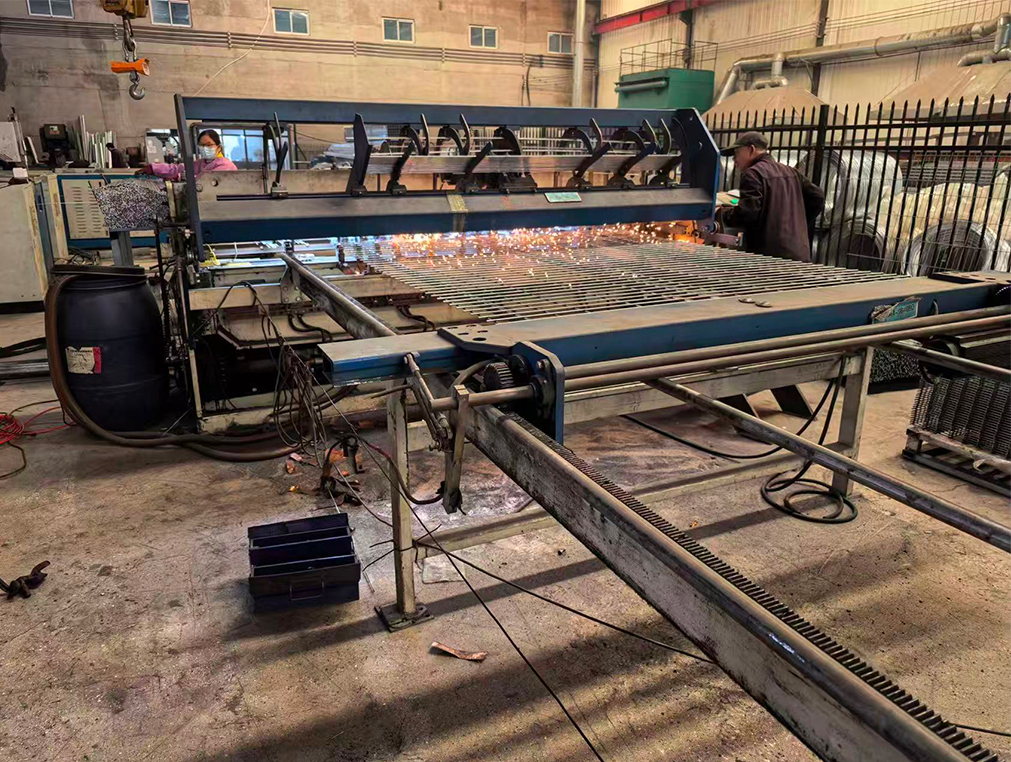

Automatic welded mesh machine

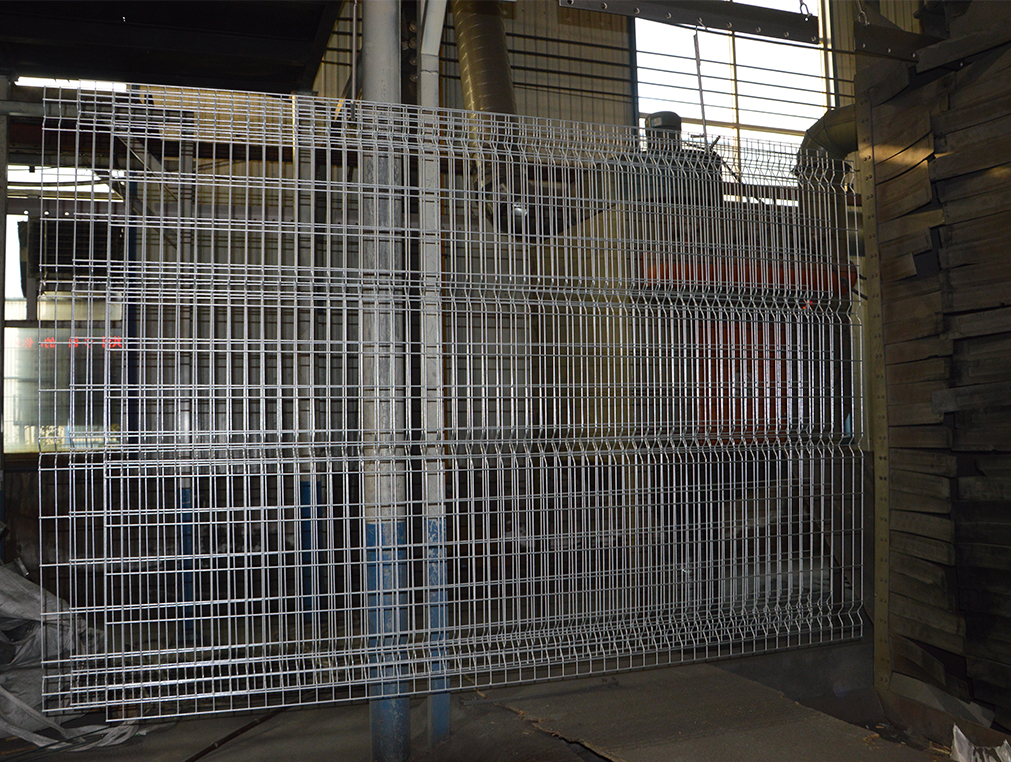

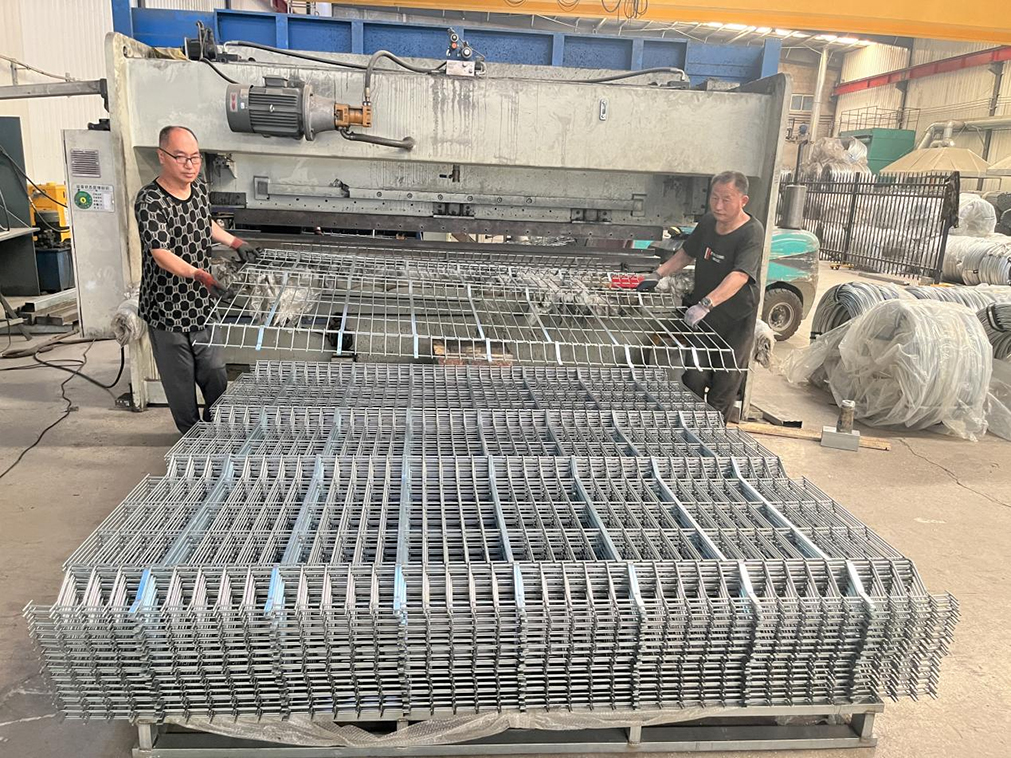

Bending with V-curves for extra rigidity
Sand blasting
Nanoceramic technology:removing grease

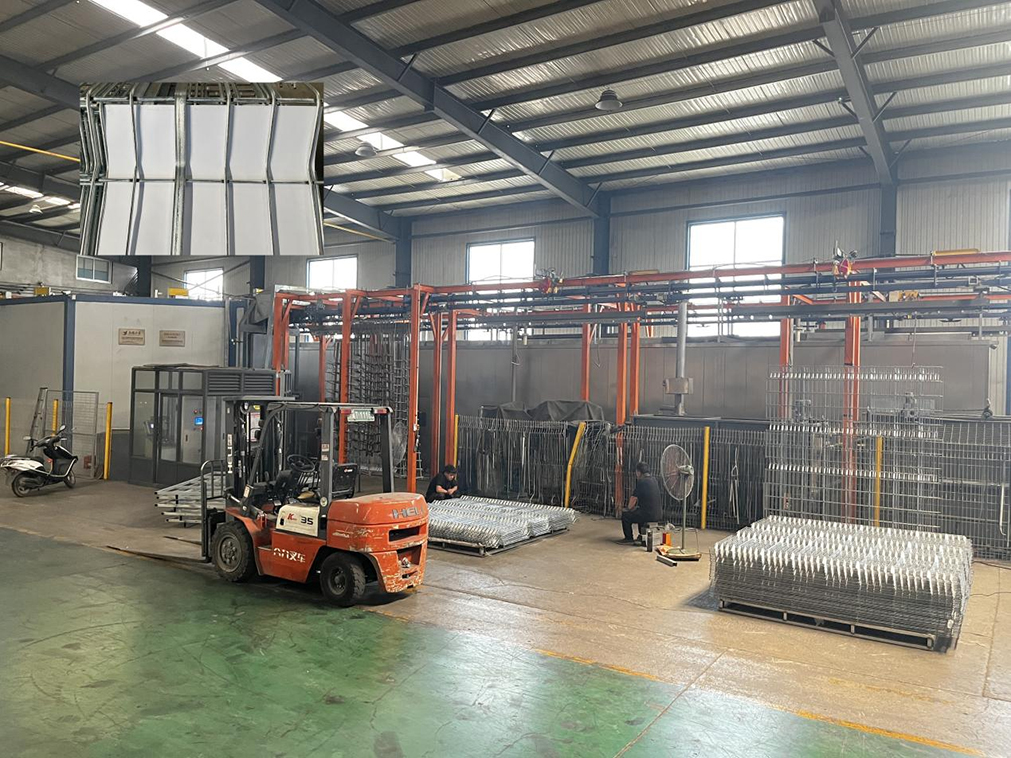

Powder coating application

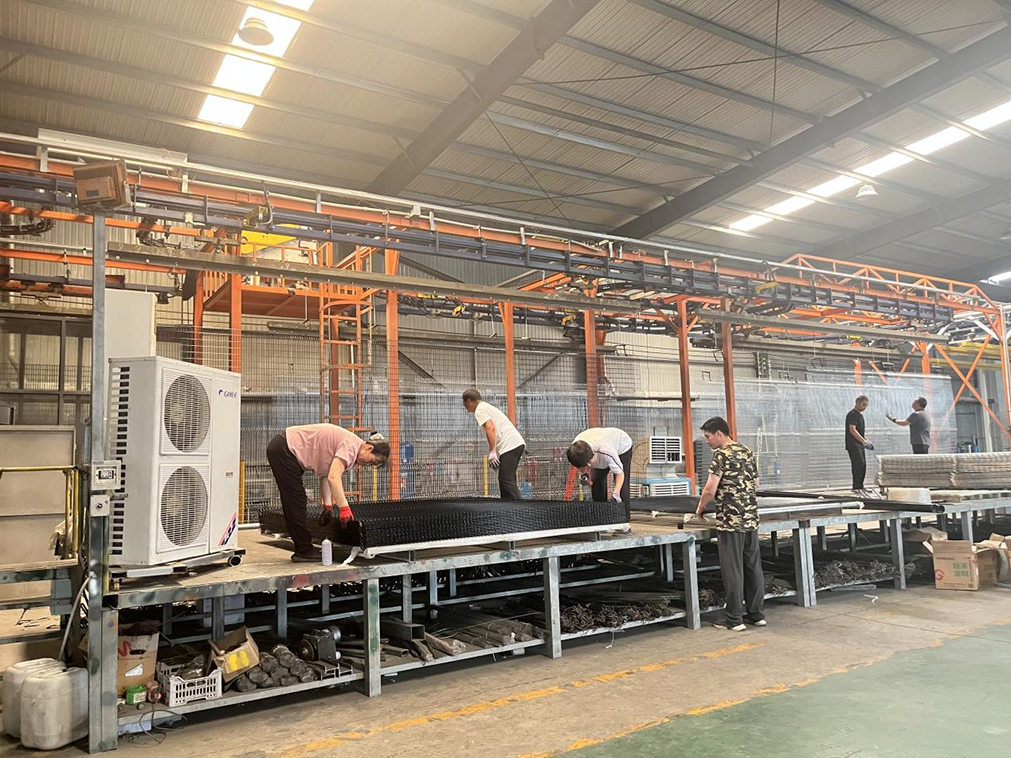

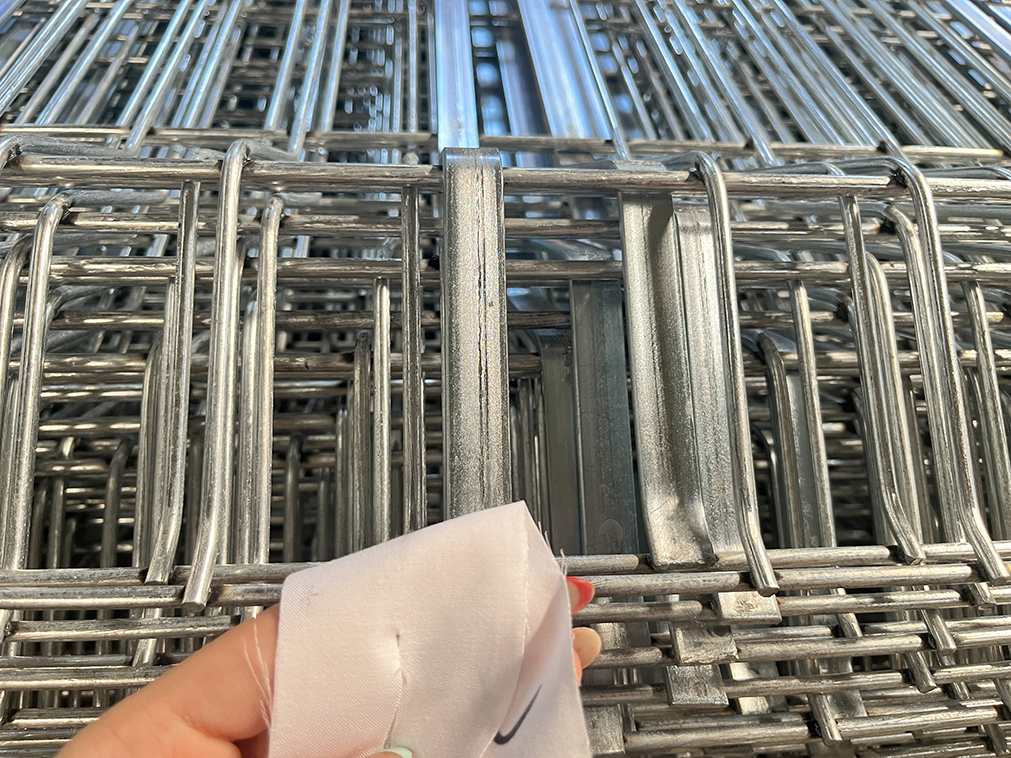

Every 3D reinforced mesh fence panel undergoes strict quality control at each stage: Raw Material Inspection: Wire diameter and coating quality are tested before welding. First Article Inspection: Panel dimensions, flatness, and bending angle verified against drawings. Process Inspection: Coating adhesion tested with a white-cloth wipe test after nano-ceramic pretreatment. Final Inspection: Coating thickness, color uniformity, and packing integrity checked before shipment. Third-party inspections (SGS, CCIC) are also accepted.

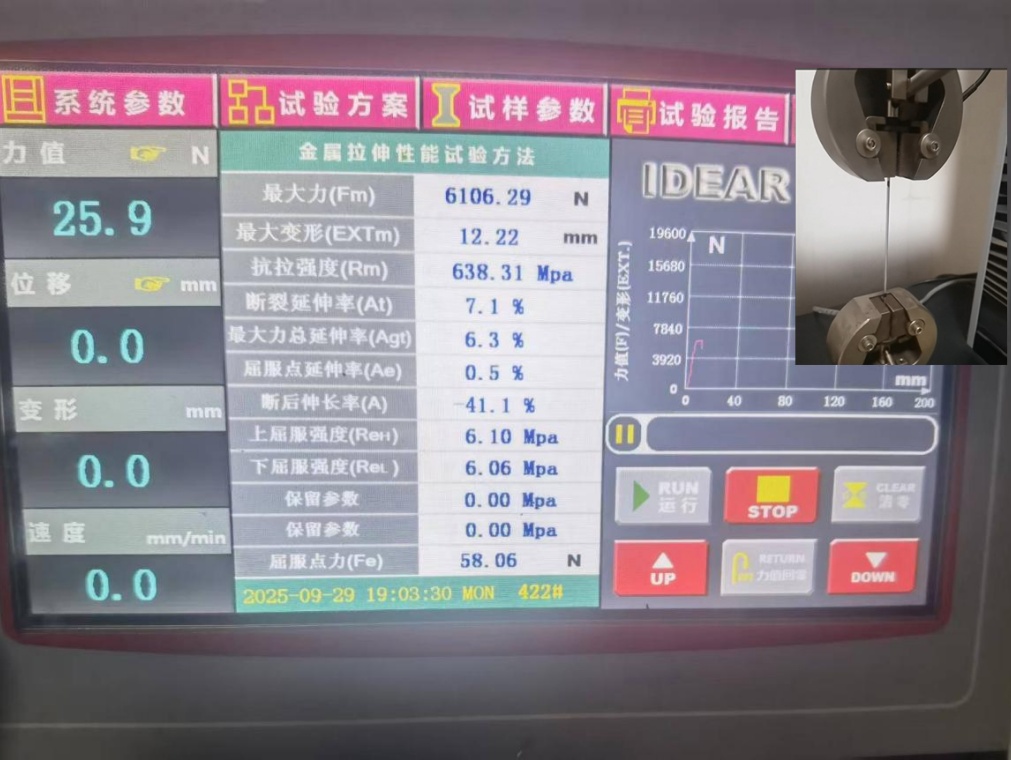

Test whether the tensile strength of the wire reaches 500-600Mpa.

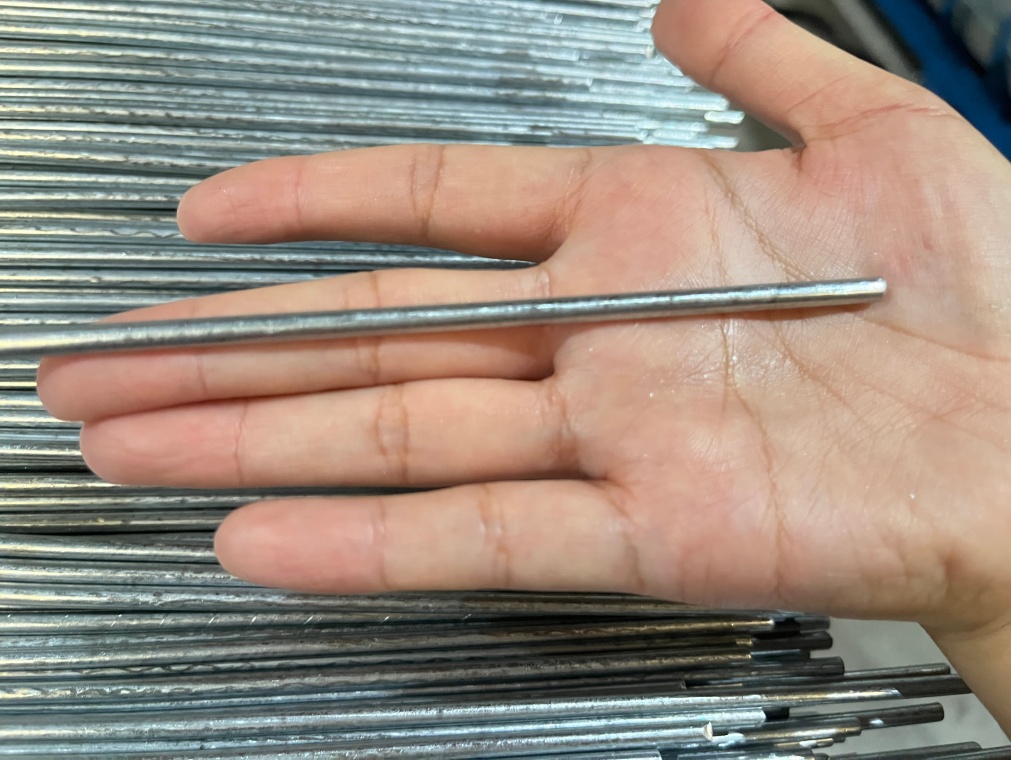

No scratches after cutting, zinc coating remains fully intact, significantly enhancing corrosion resistance.

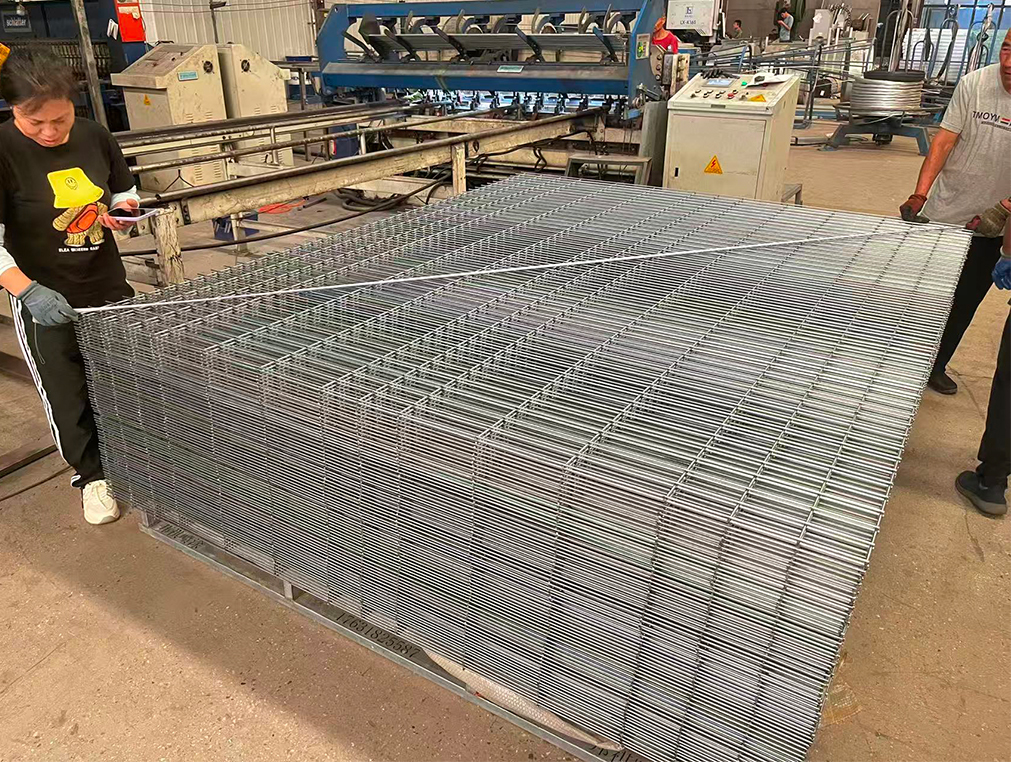

The diagonal measurement error shall not exceed 2mm.
Check the neatness of the mesh sheets and verify if a protective film has adhered to the surface.
Check whether the double-sided spray coating thickness is more than 120 microns.
The customer only requested three large samples,each of which needs to be packaged separately.Please ensure there is no damage during transportation.
1. The unique design of BONKFC;
2. Reinforced with unique high-strength steel, it boasts extremely high protective performance;
3.Strict use of intemational standards of galvanized steel wire;
4.All the connectors are made of stainless steel, anticorrosive without blind spots;
5.The industry's leading anti-corrosion technology and layer technology, using the intemationaladvanced nano ceramics and electrostatic powder spraying technology;
6.Optional configuration: elbow, small mesh, wire, bayonet ring...
7.To provide customers with 10 years of anti-corrosion coating warranty.
All peach shape posts are the same .why ours is different with others？
Firstly, the function of stiffeners is to enhance structral strength and rigidity.
Secondly, post the cup .BONKFC has a special design. After you install the cup ,it wouldn't come off directly. The most important thing is the material.The product is made of PP,which is best for UV resistance,and the lifetime more than 10 years.
The fence is a kind of fence that is widely used as residential fence, park fence, factory fence, road fence, etc.
