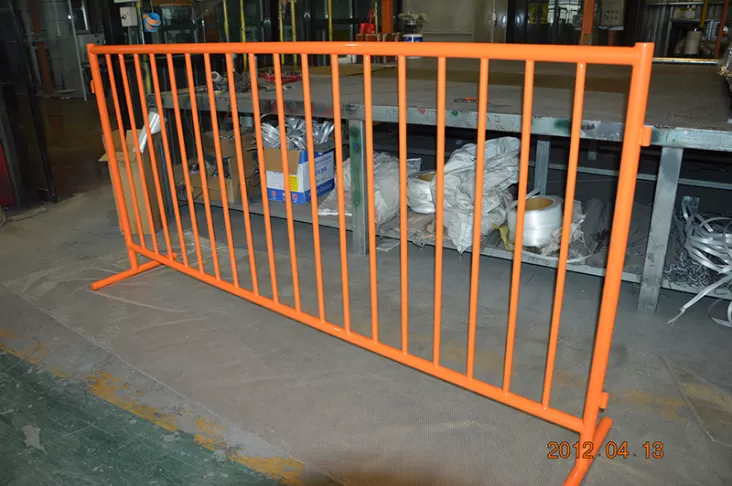

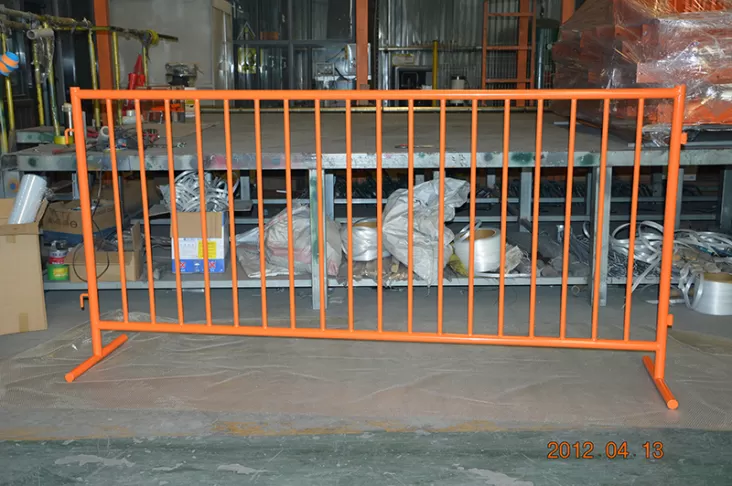

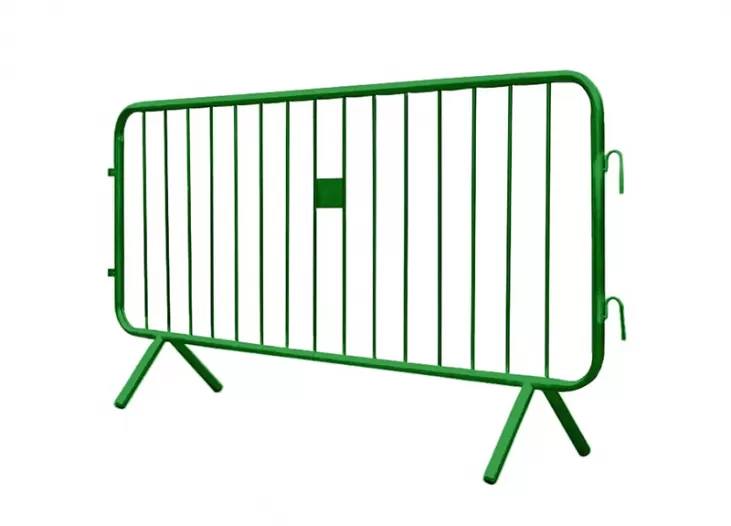

Crowd Control Barrier
Name: Crowd Control Barrier
Material: Q195/Q235 wire and pipe
Brand : BONKFC Fence
From: China BONKFC

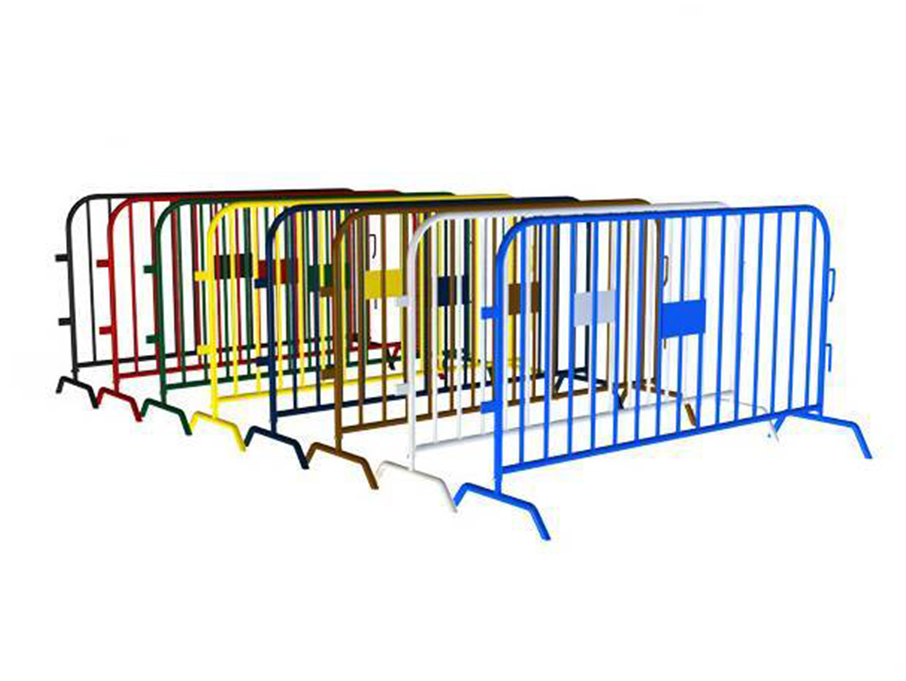

Color: Black9005, Black Green 6005, Grey7016

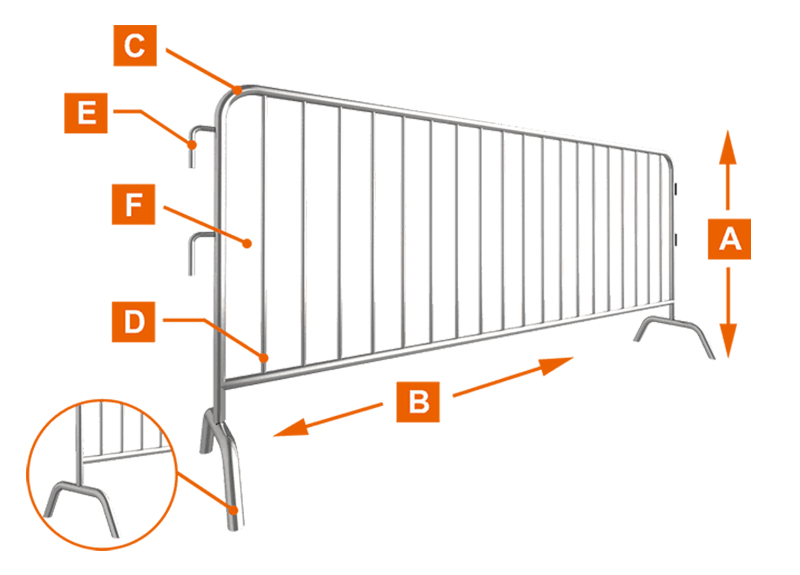

A: Height: 1.1 m, 1.25 m, 1.5 m
B: Width: 2.0 m, 2.1 m, 2.2 m, 2.4 m, 2.5 m
C: Frame: 32 × 1.2/1.5/2.0 mm, 38 × 1.2/1.5/2.0 mm, 42 × 1.2/1.5/2.0 mm, 48 × 1.2/1.5/2.0 mm
D: Inner pipe: 12 × 0.7 mm, 14 × 1.0 mm, 16×1.0 mm, 20 × 1.2 mm, 25 × 1.2 mm
E: Connection: metal hook
F: Spacing: 60 mm, 100 mm, 120 mm, 150 mm, 200 mm
Surface treatment: Galvanized and powder coating treatment;
All colors are available in Ral;
Other specifications are available upon request.

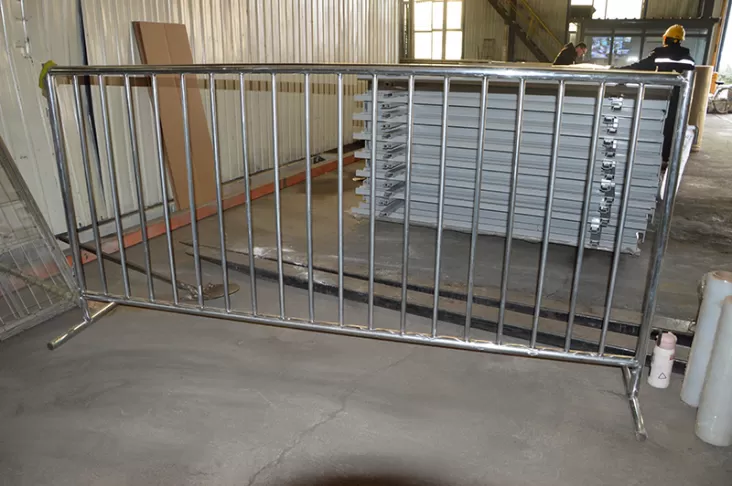

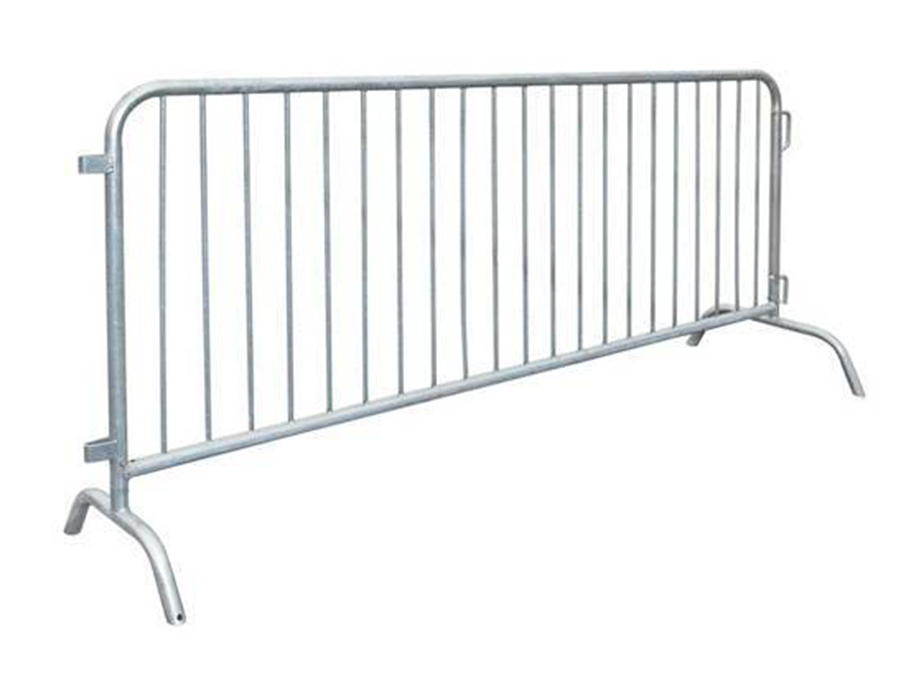

Galvanized

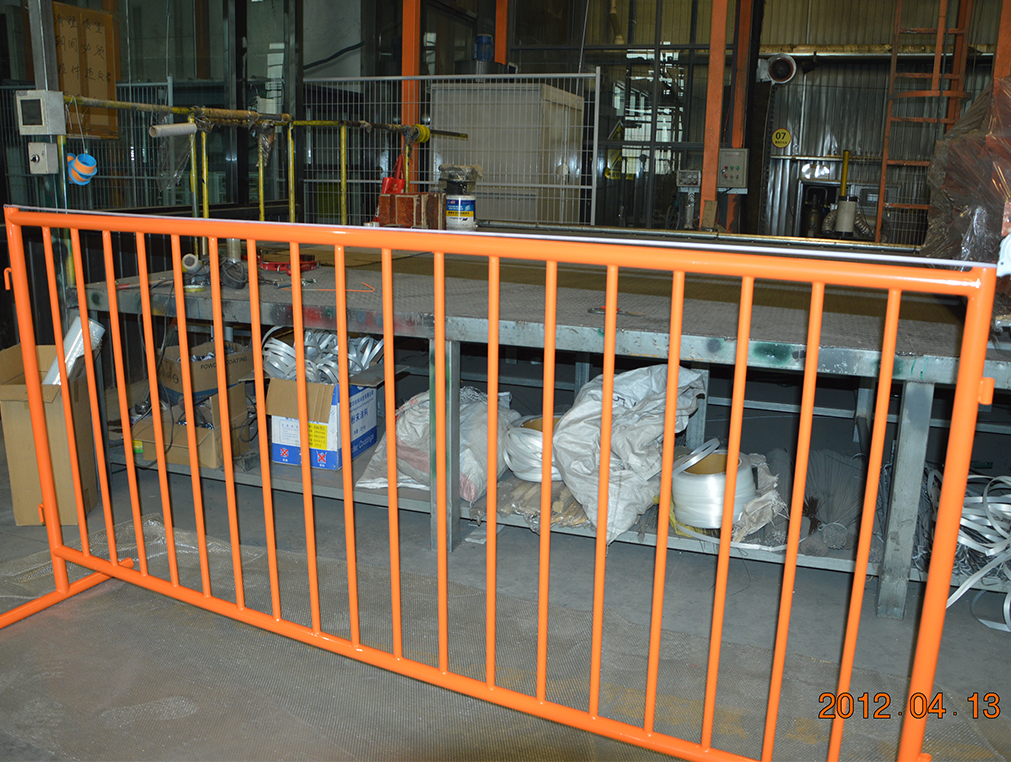

Powder coating

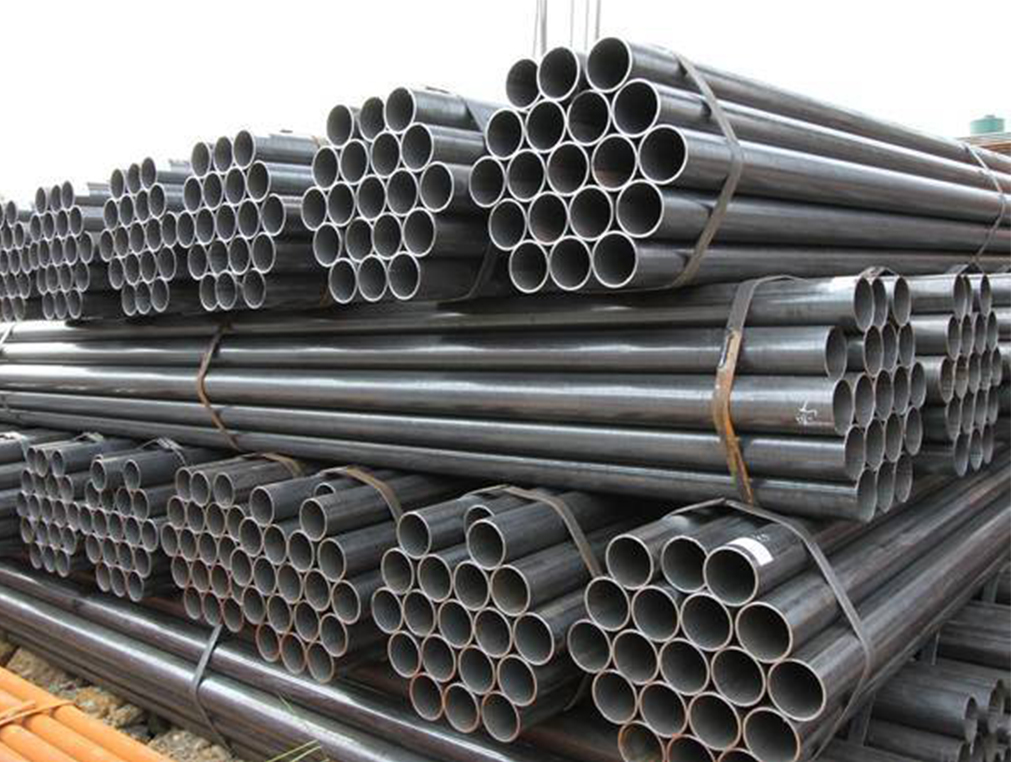

raw materials (galvanized steel pipes)

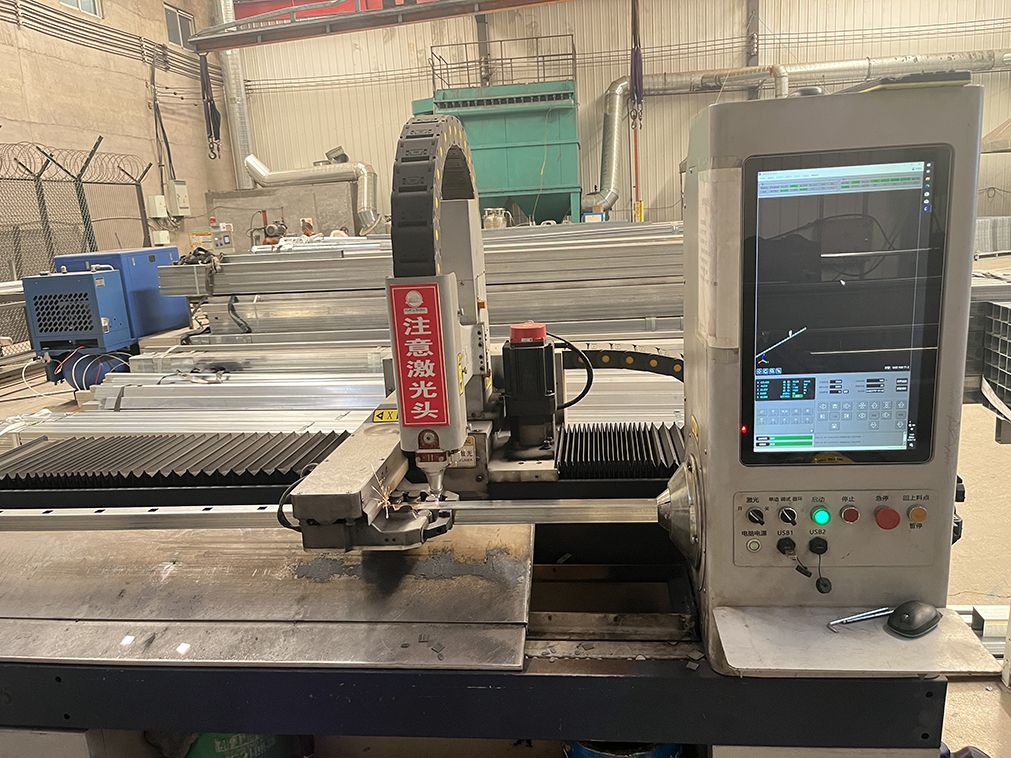

laster cutting

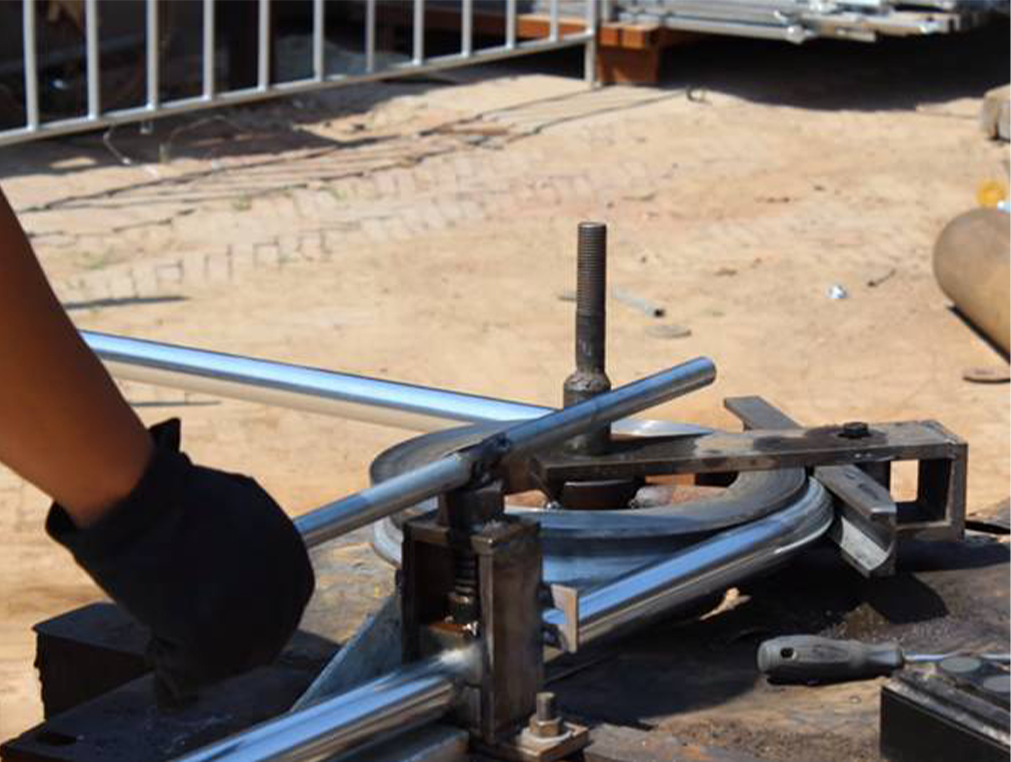

pipe bending

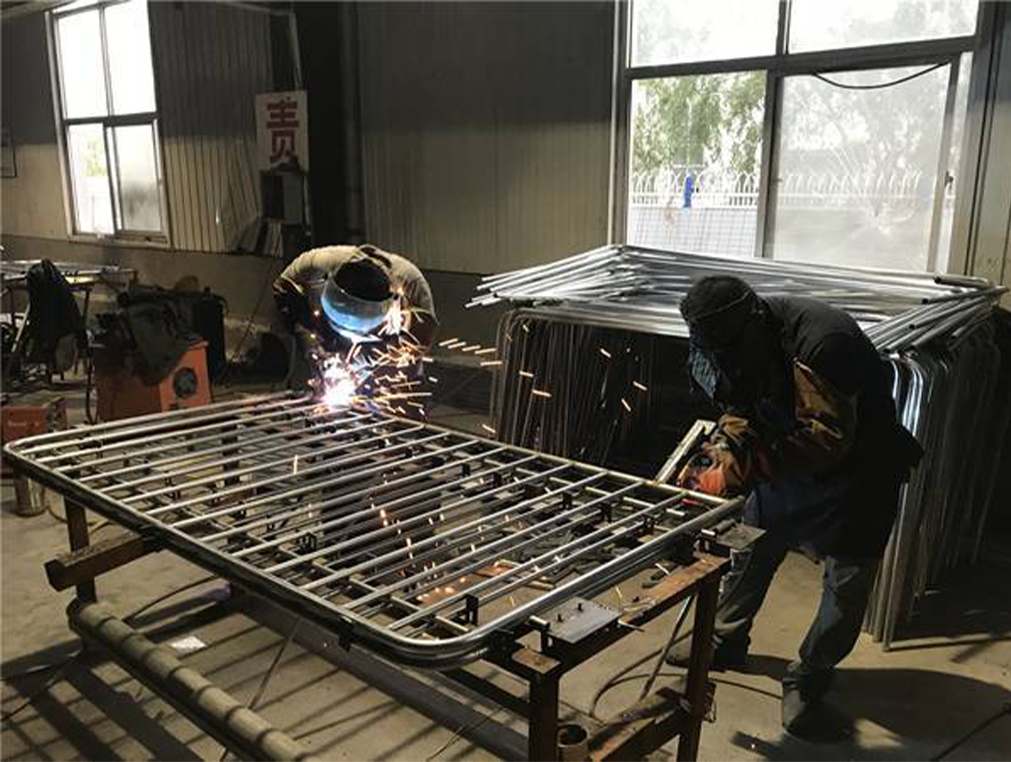

crowd control panel welding

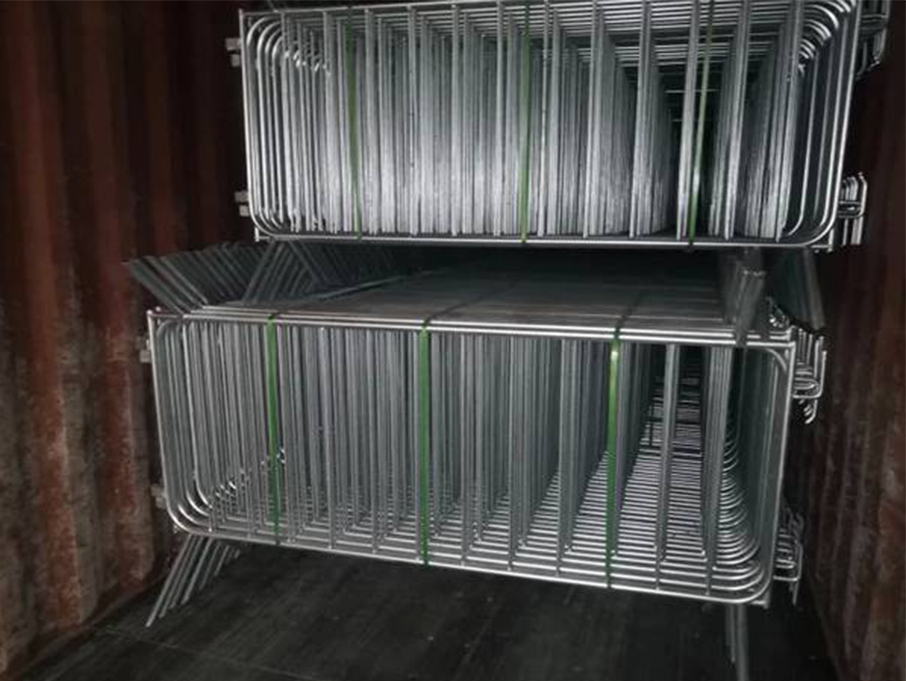

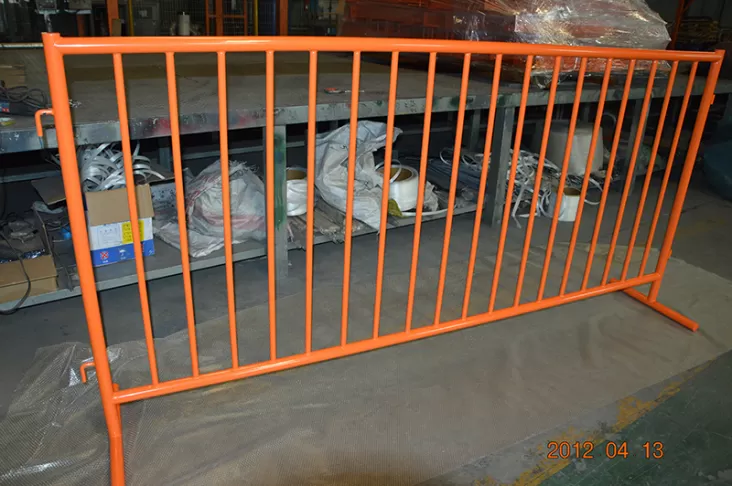

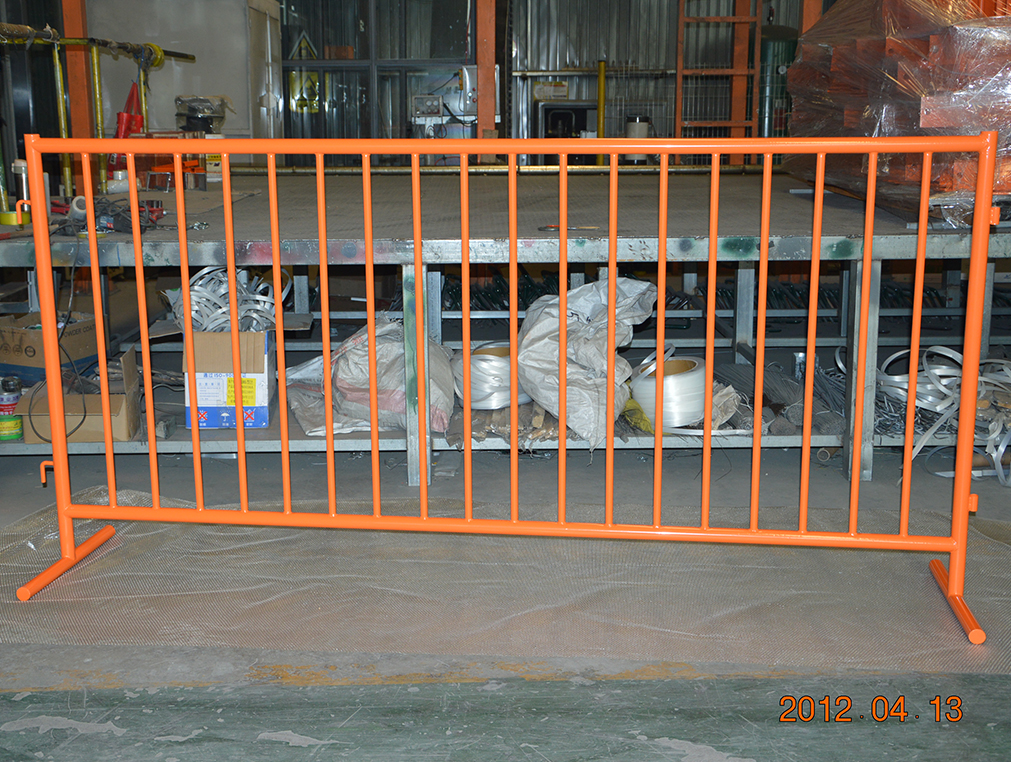

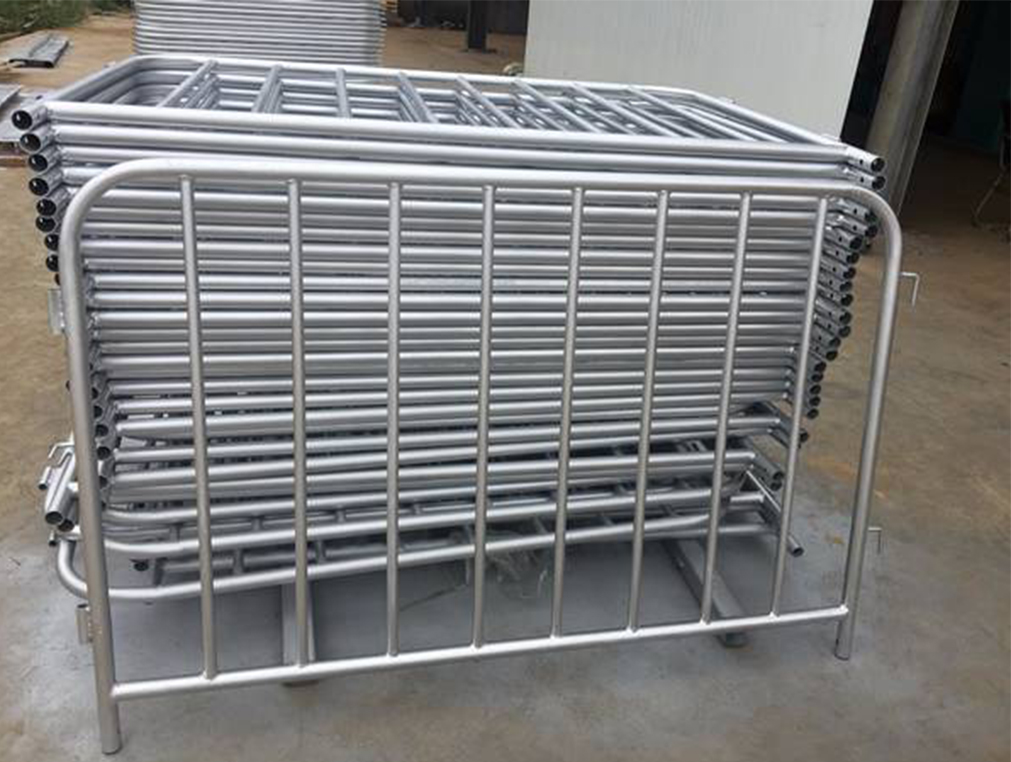

finished crowd control barrier panels
powder coating

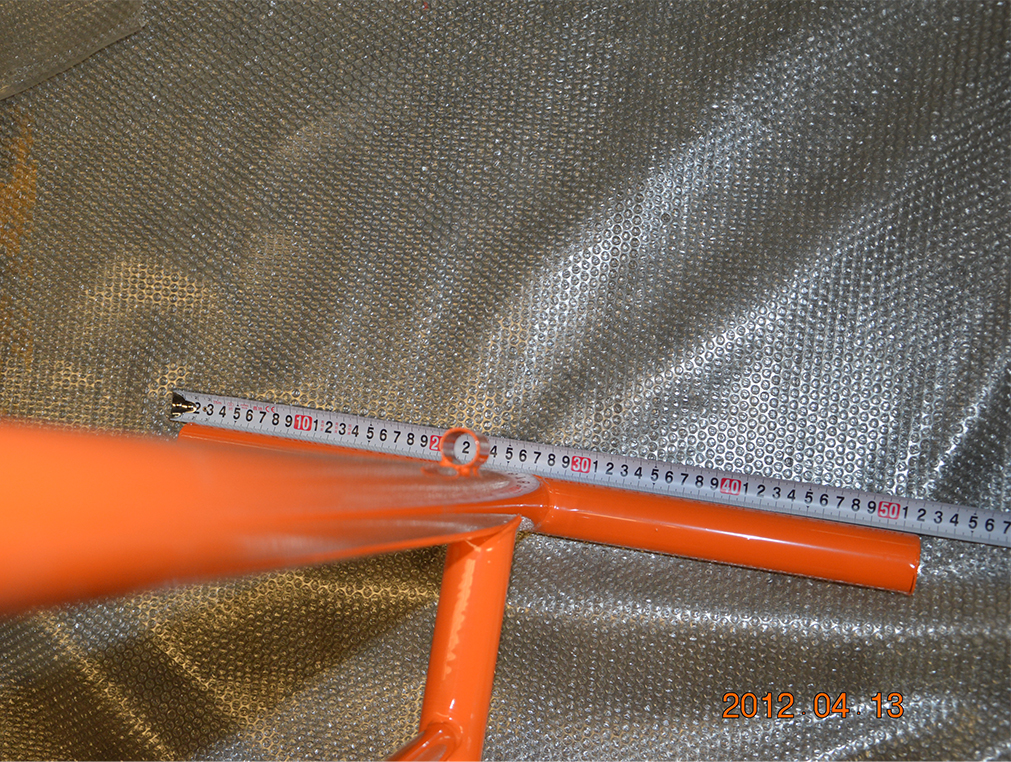

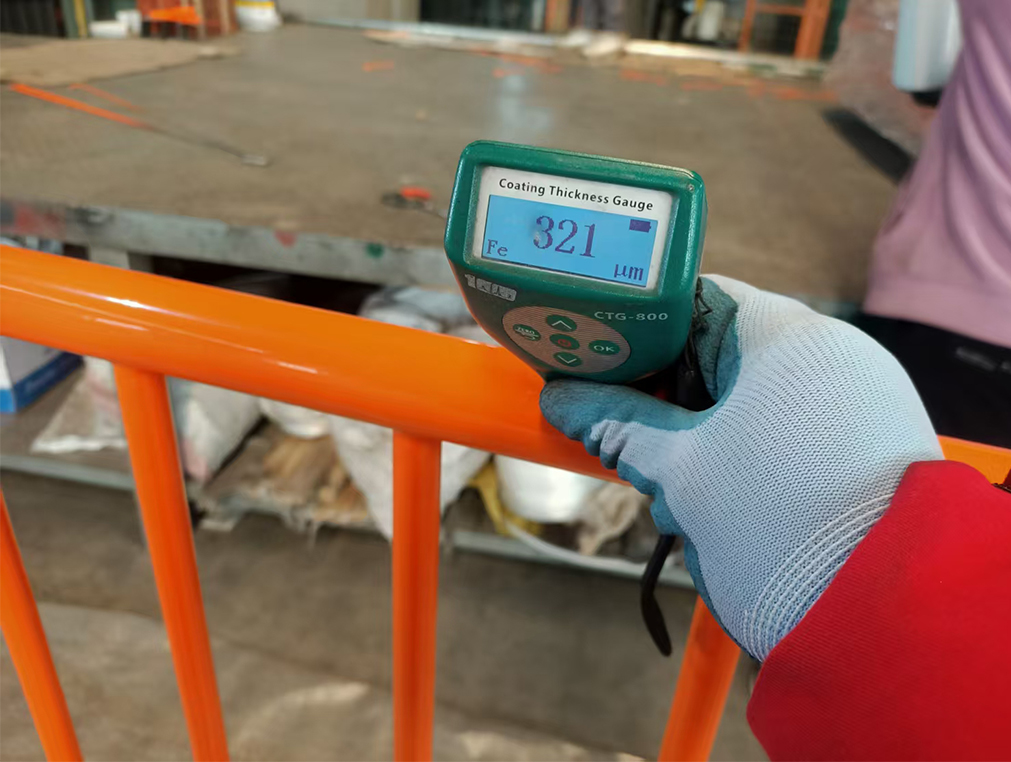

The coating thickness exceeds 120 microns
The main components of the crowd control panel are fence panels and bases. We have three kind of bases. Of which, fixed bases are welded to the bottom of the fence panel directly while the flat base and bridge base are bolted to the panel frame. Their specific features are as shown below.

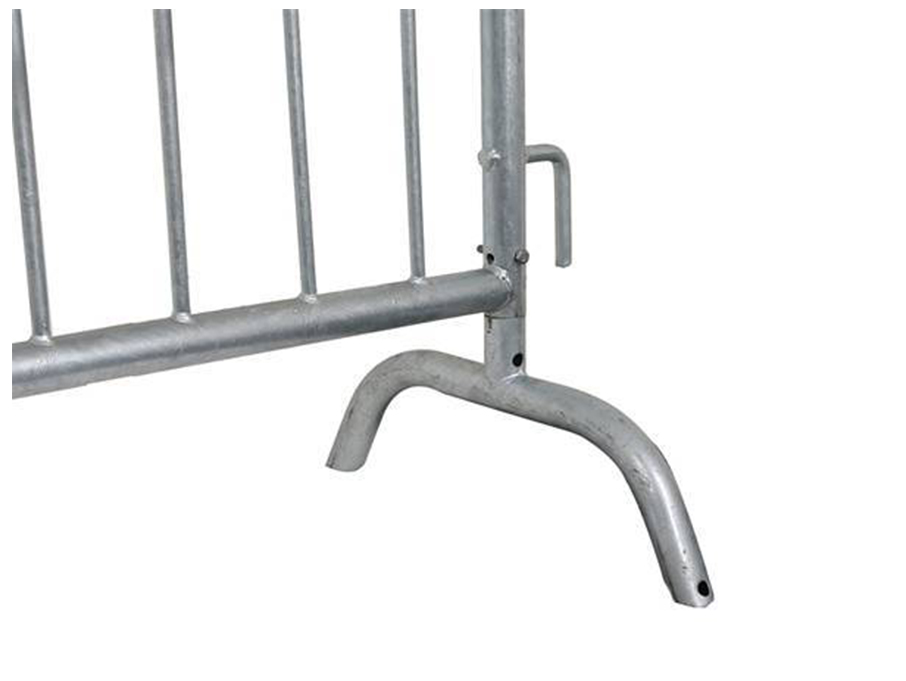

Bridge base

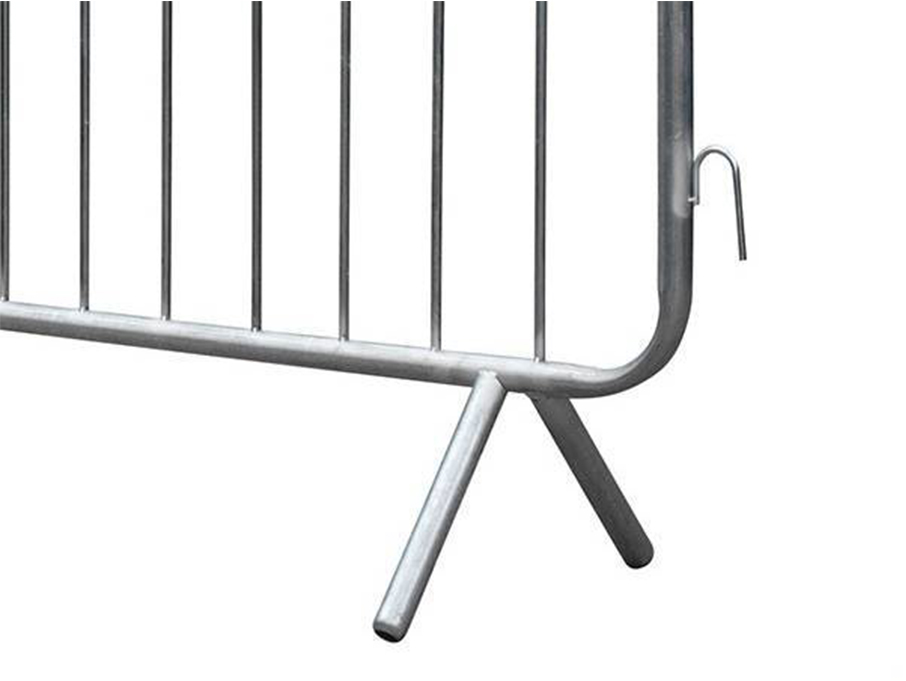

Fixed base

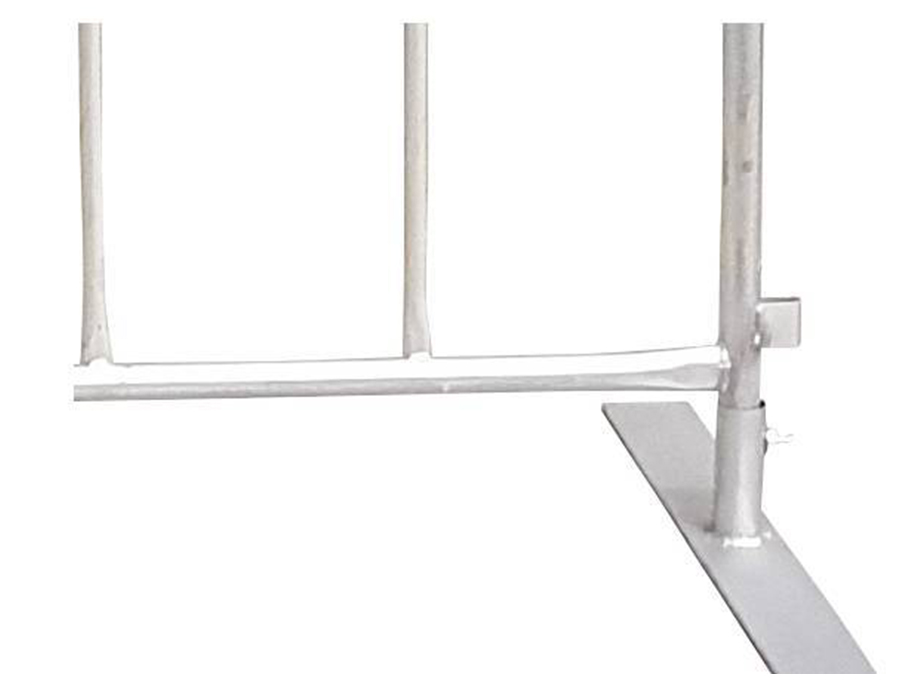

Flat base
Customized logos
Shade cloth

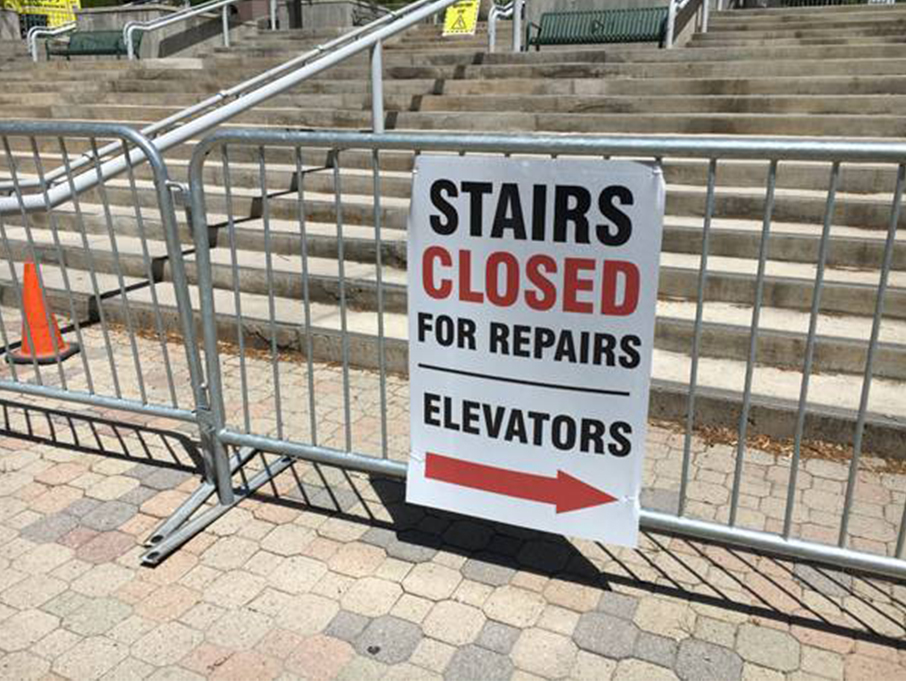

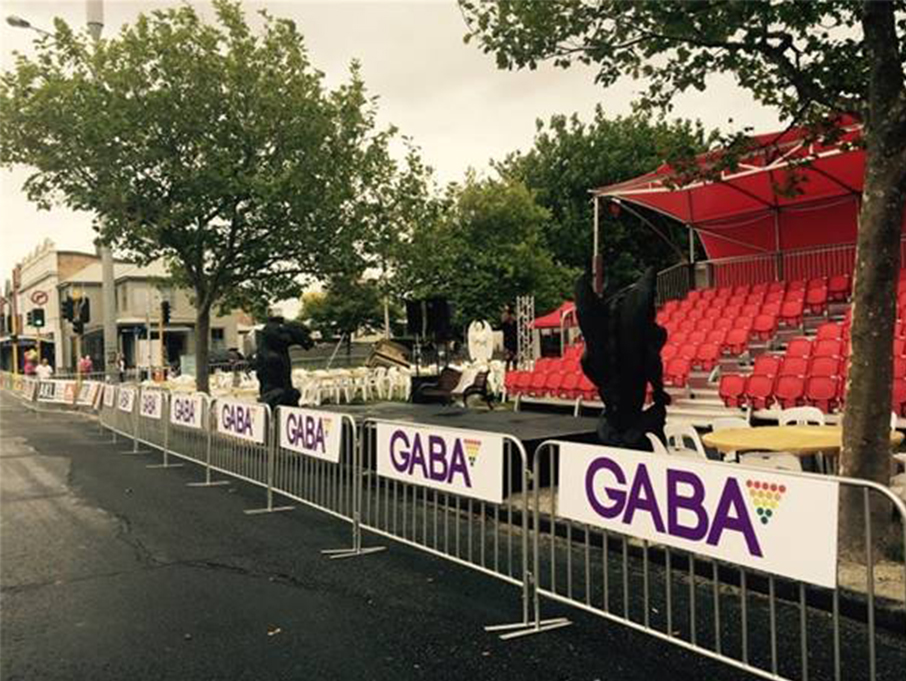

Signboards
All Crowd Control Panel are made of superior steel pipes for high strength and a long service life.
Full welding design is employed to make the barrier strong and durable.
Galvanized or power coated surface treatment makes it corrosion and rust resistance and work perfectly in harsh environments.
Crowd control barriers are provided with detachable bases, easy to handle and transport.
It adopts an interlocking system, which makes two panel are connected easily and firmly.
A variety of base types are available for you to choose from and are perfect for all ground surfaces.
Easy installation and removal. Through the interlocking system, the crowd control barrier can be installed and removed easily and be stored in warehouse for future uses.

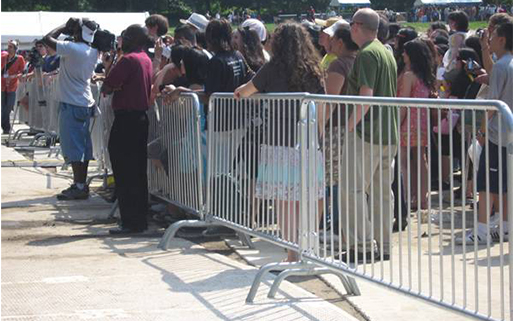

Crowd control barrier for crowd control
Crowd Control Panel for cycling race

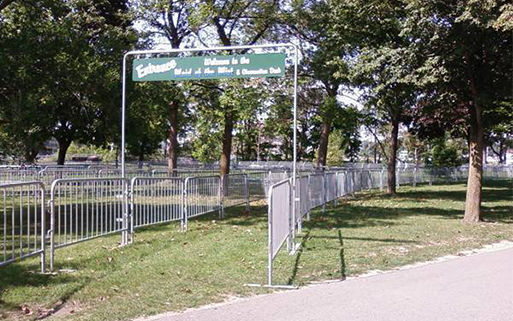

Crowd control barrier for park entrance

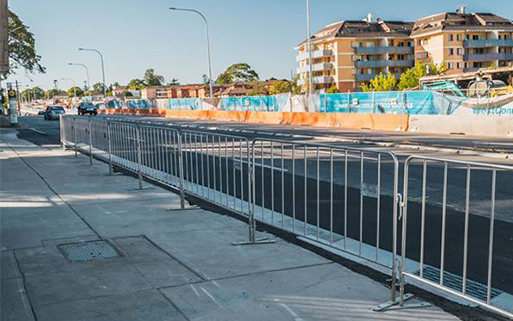

Crowd control barrier for roads.
