Double Wire Fence

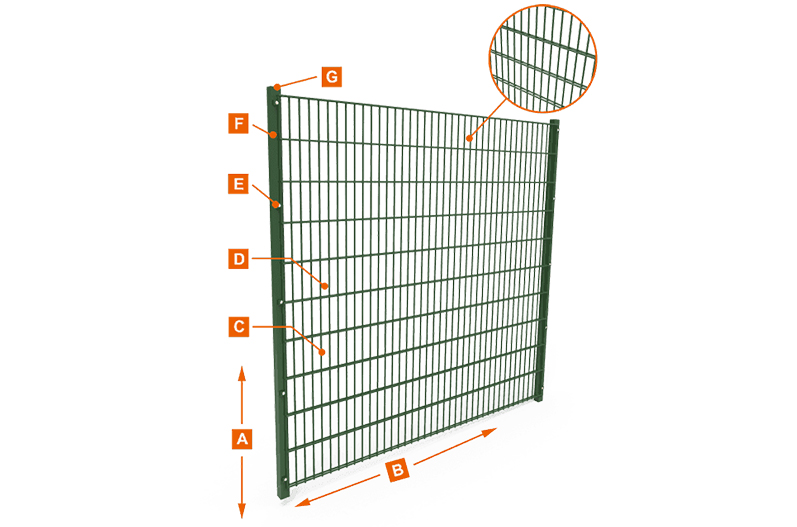

A:Panel Height: 1500mm,1800mm,2000mm,2200mm,2400mm,2800mm

B:Panel Width:2000 mm, 2200mm,2500 mm, 3000 mm

C:Wire Diameter: 6/5/6 mm, 8/6/8 mm

D:Mesh Opening: 50 x100 mm, 50 x 150 mm, 50 x 200 mm, mm, 55 x 200 mm, 75 x 100

mm,75x150mm,100x200mm

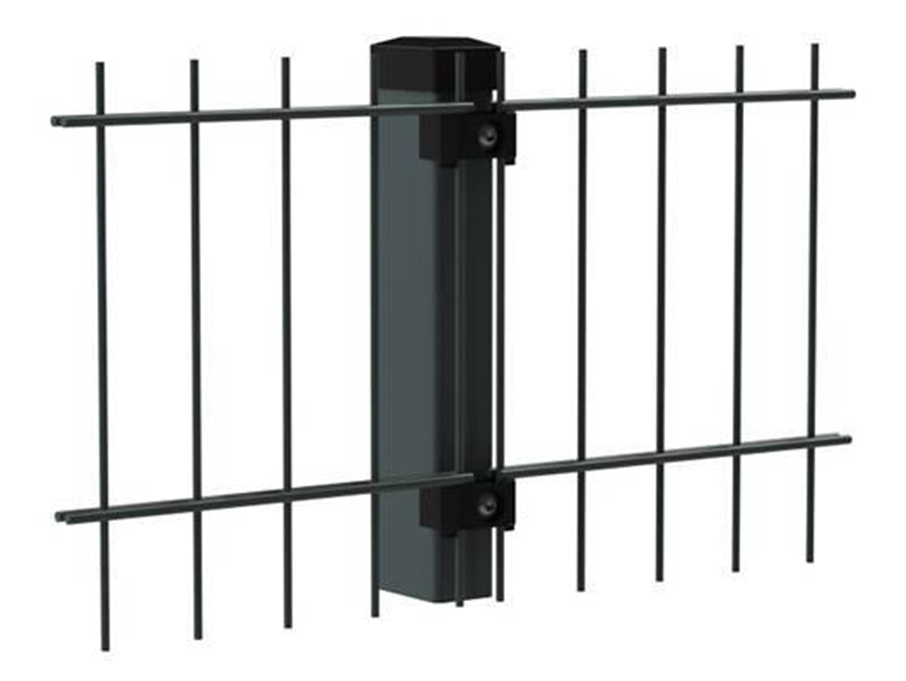

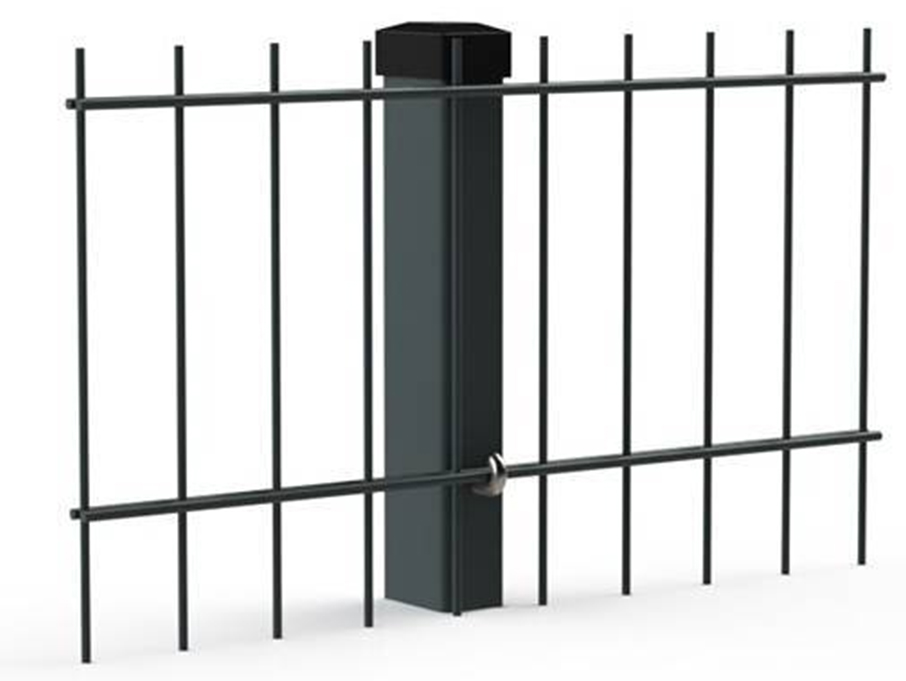

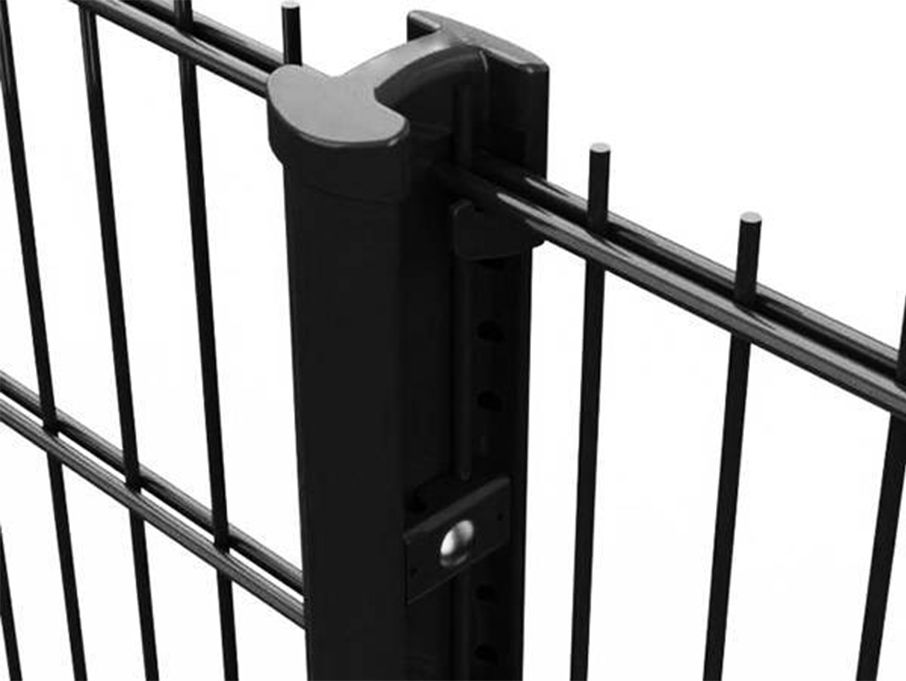

E:Clamp:metal clamp

F:Post:

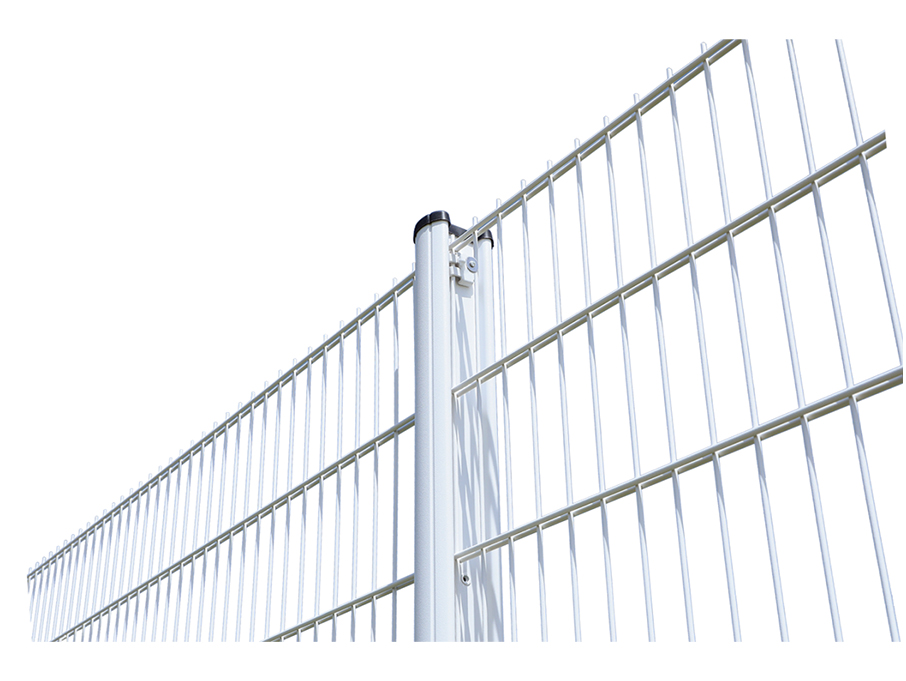

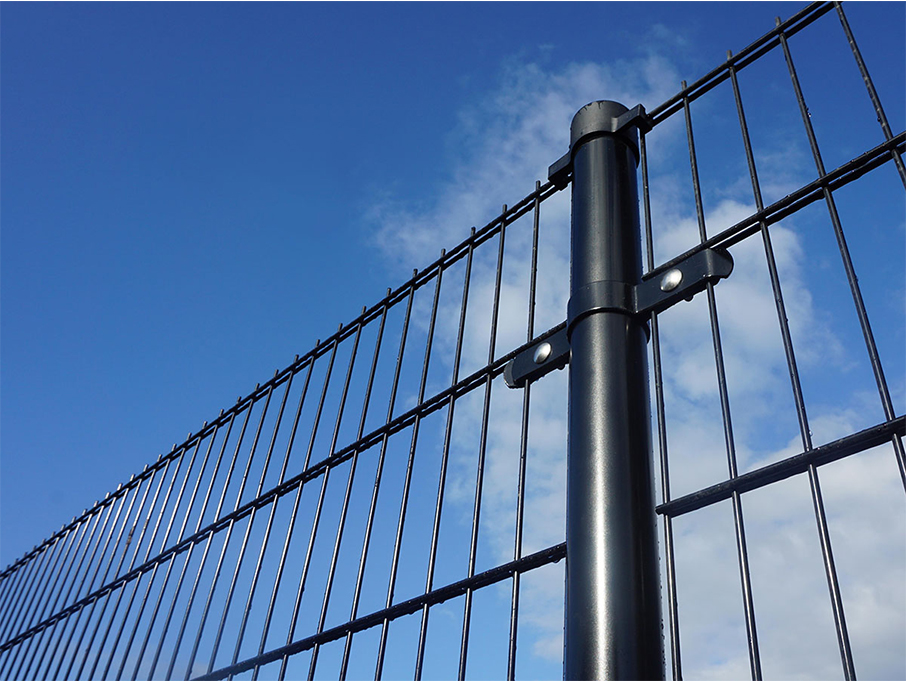

Round post (48 0D x1.5/2.0 mm, 60 0D x 1.5/2.0 mm);

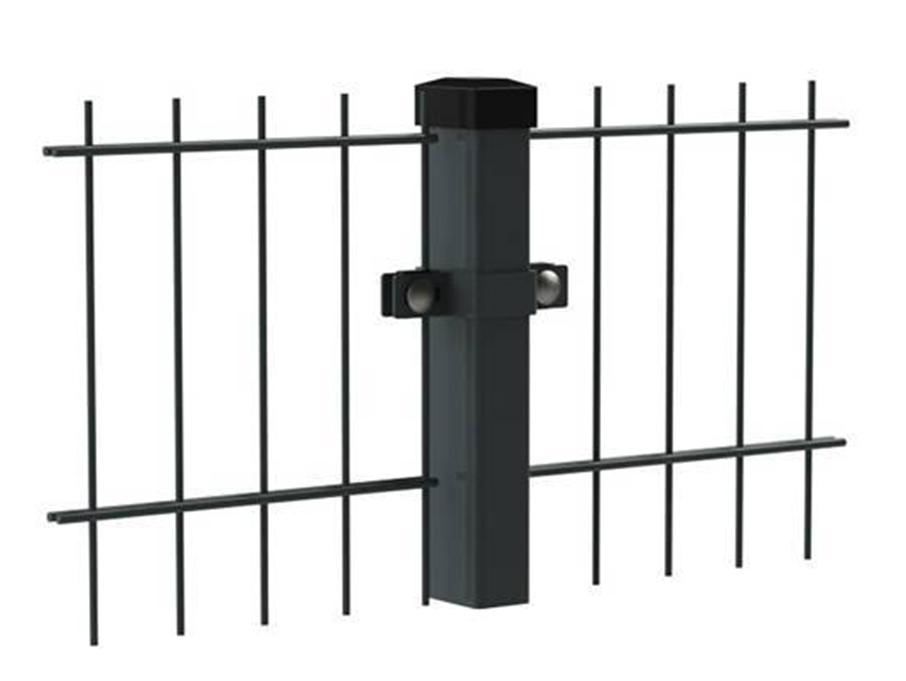

Square post (50 x50 x1.5/2.0 mm,60 x60 x1.5/2.0 mm, 80 x80 x 1.5/2.0 mm);

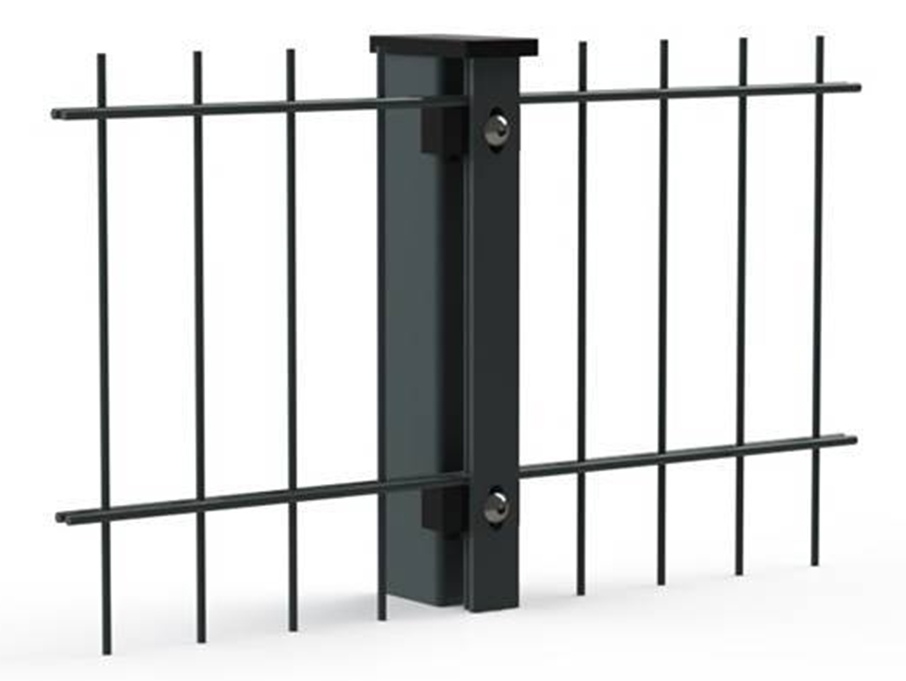

Rectangular post (40 x60 x1.5/2.0 mm,40 x80 x1.5/2.0 mm, 60 x 80 x 1.5/2.0mm,80x100 x1.5/2.0 mm)

Doubel post (55x100mm/1.5mm)

G:Post Cap: metal cap/anti-UV plastic cap

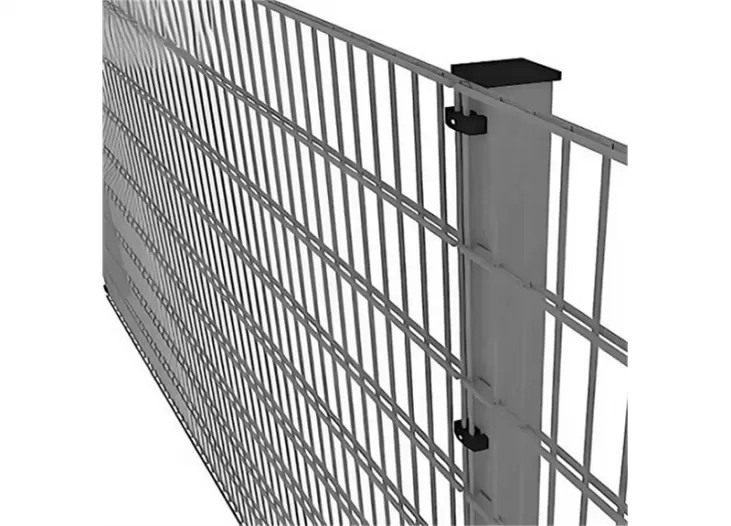

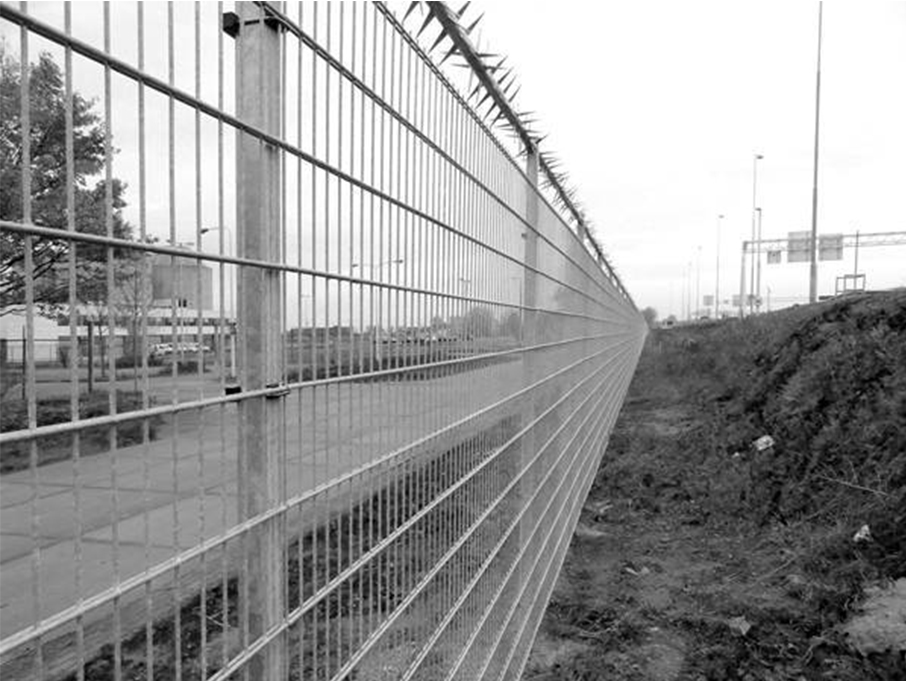

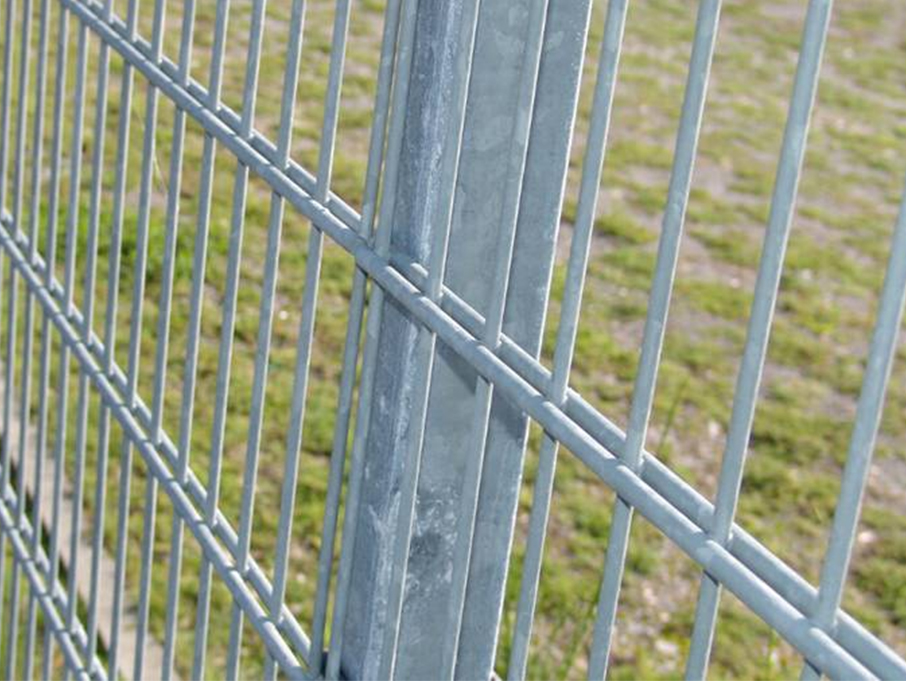

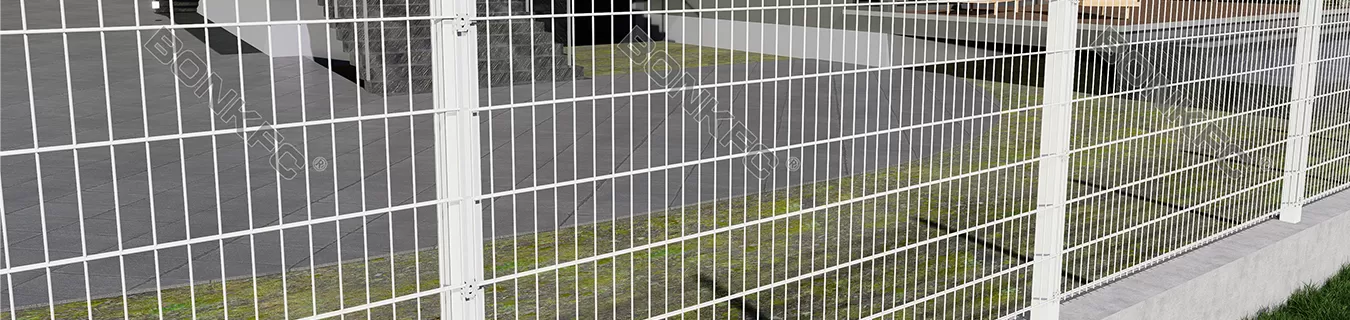

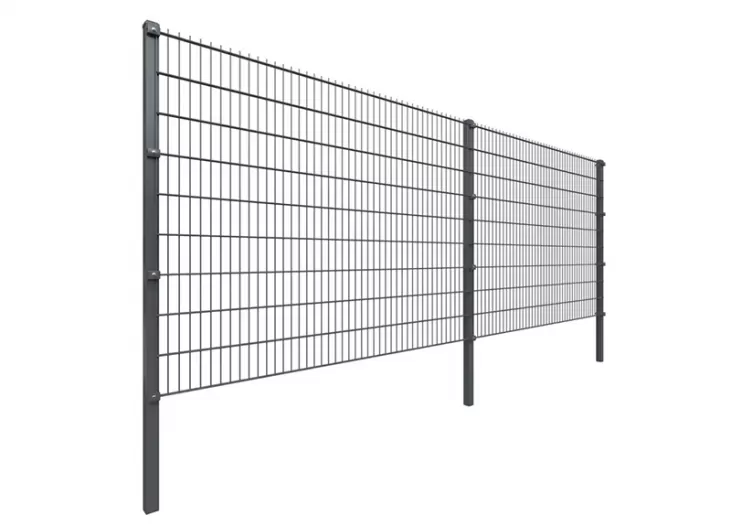

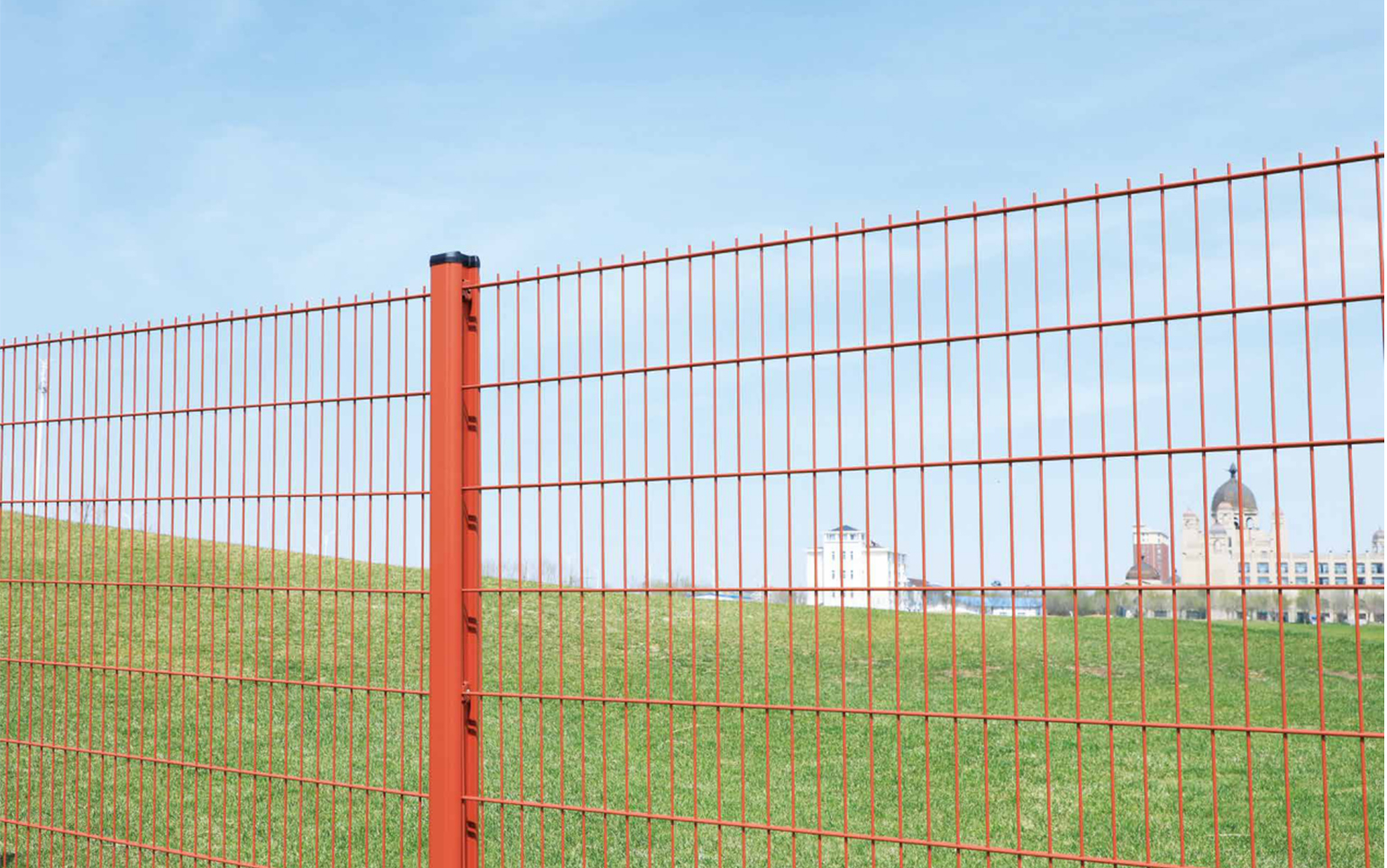

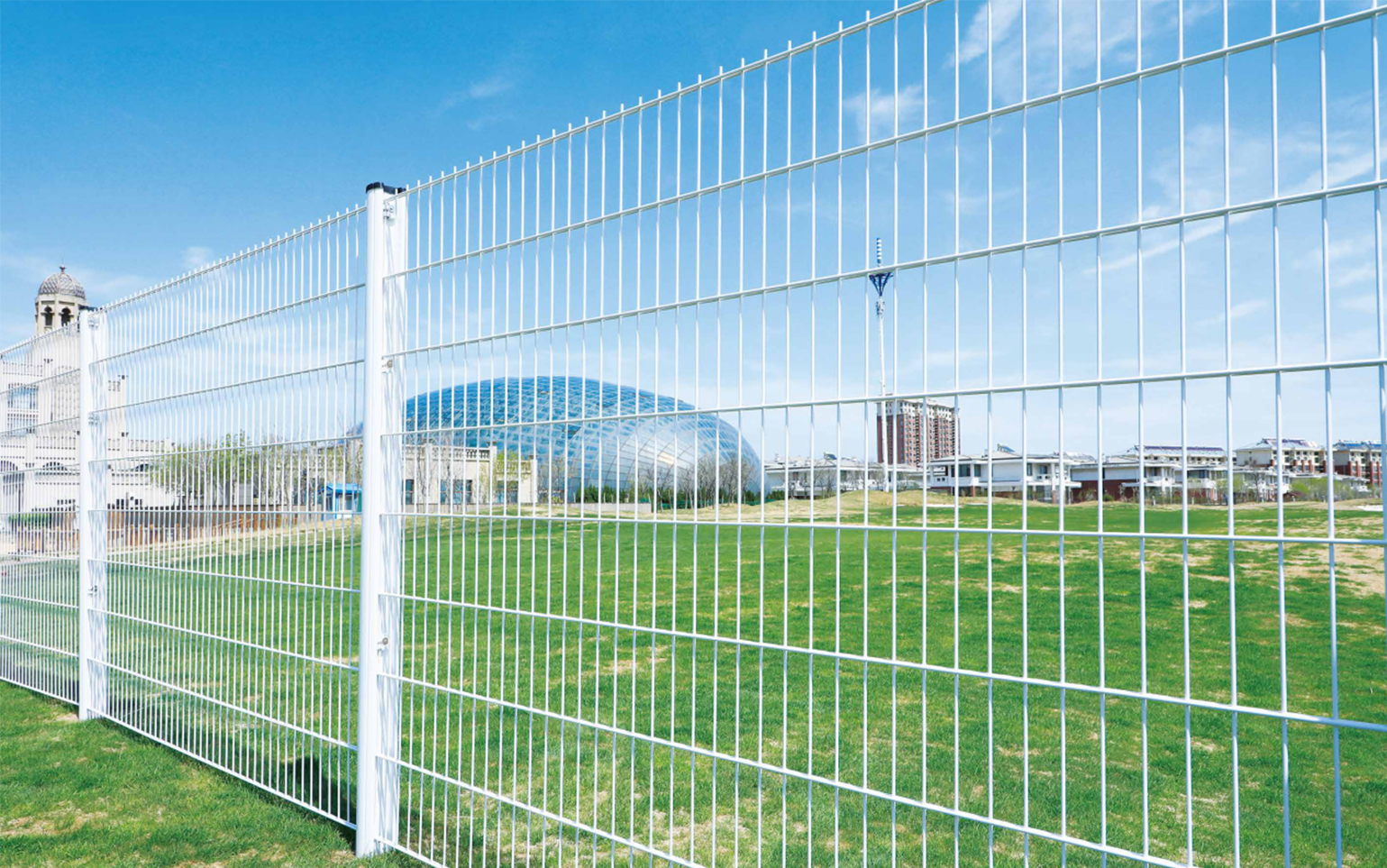

The Double Wire Fence, also known as twin wire fence, 2D panel fence, or double wire mesh fence, is a heavy-duty welded fence system designed for long-term perimeter protection. Each mesh panel is composed of one vertical wire welded between two horizontal wires, offering outstanding rigidity and impact resistance. Compared with ordinary welded mesh fences, the double wire fence provides higher strength, improved anti-damage capability, and a clean, modern appearance suitable for both residential and industrial use.

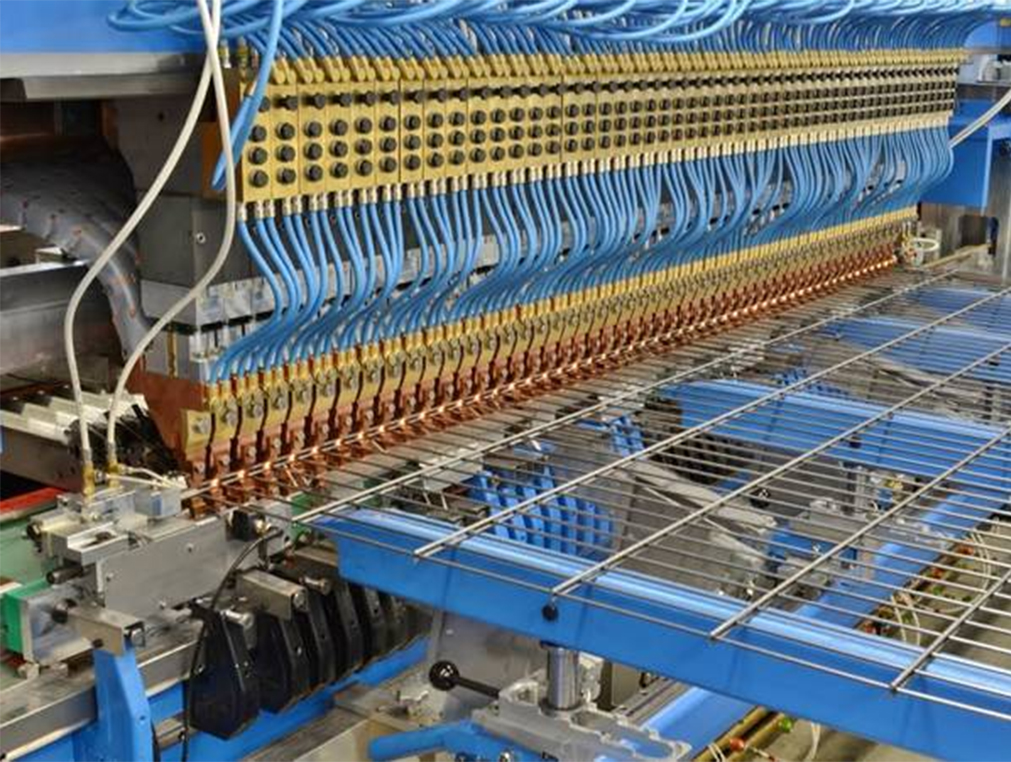

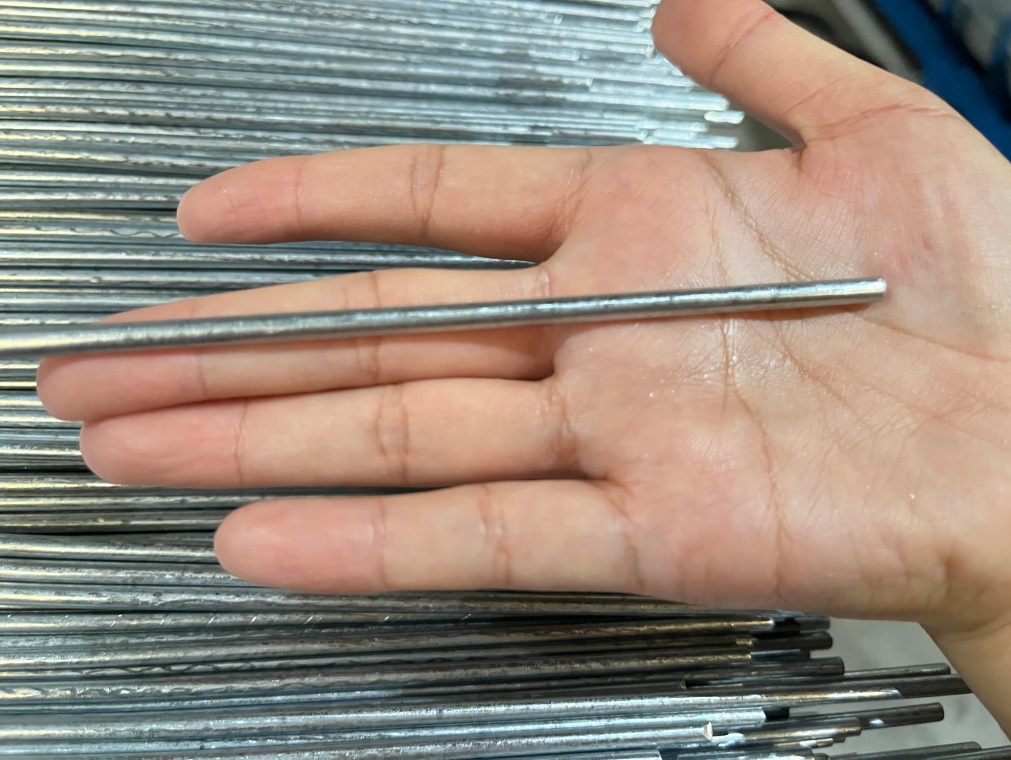

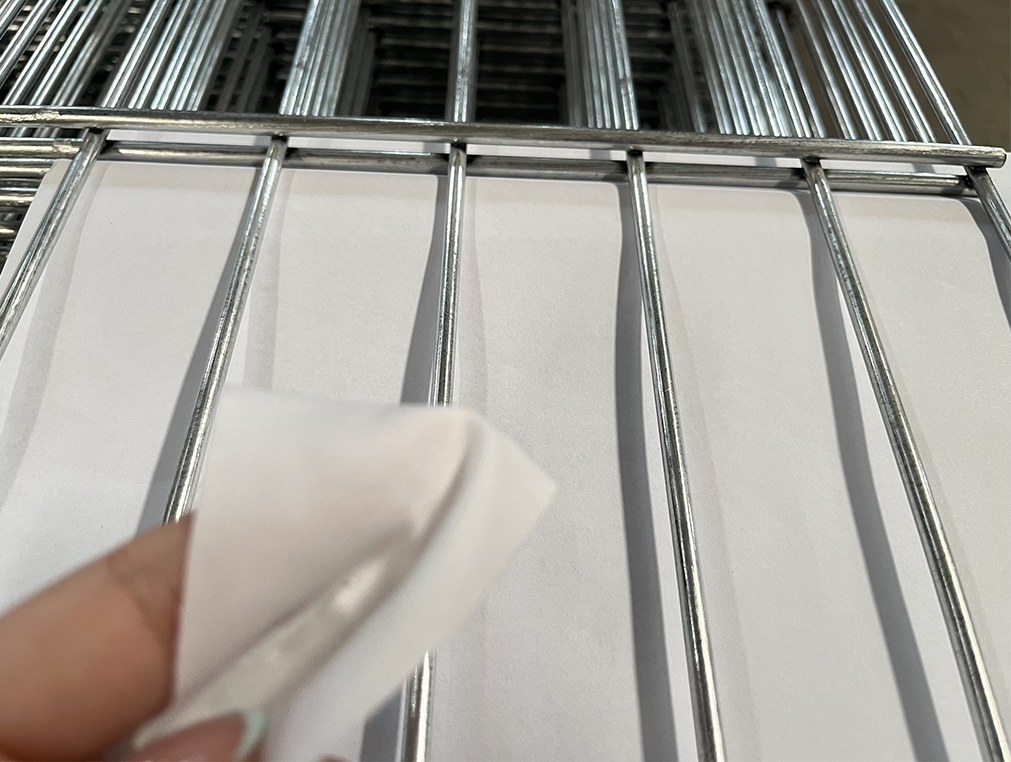

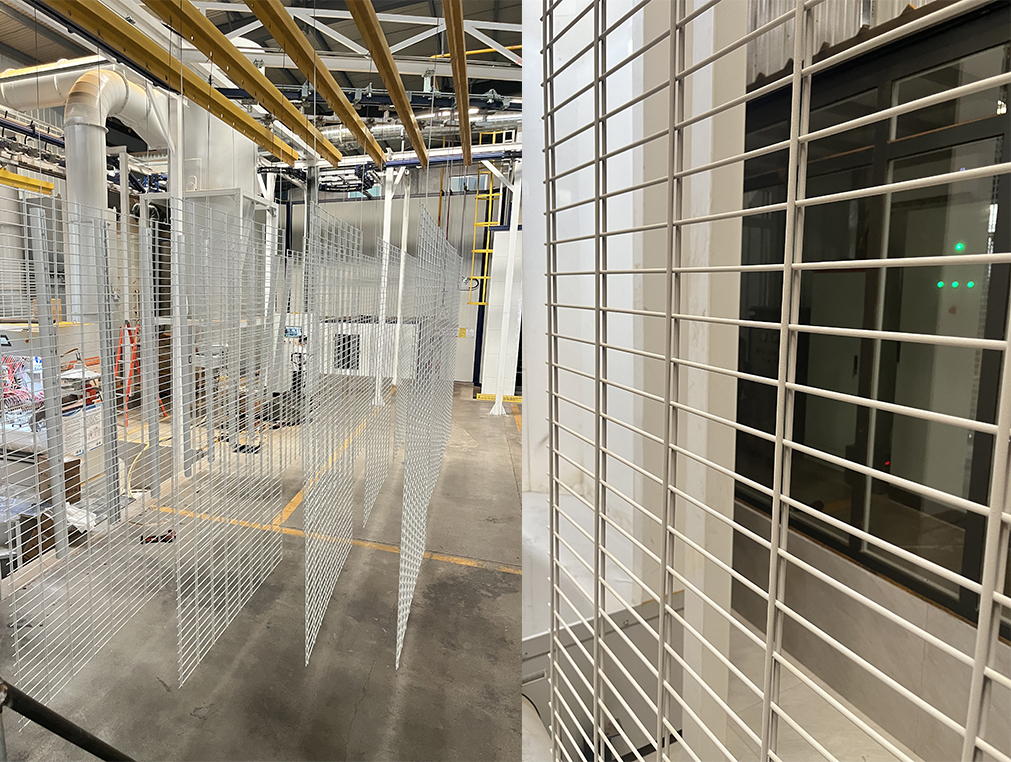

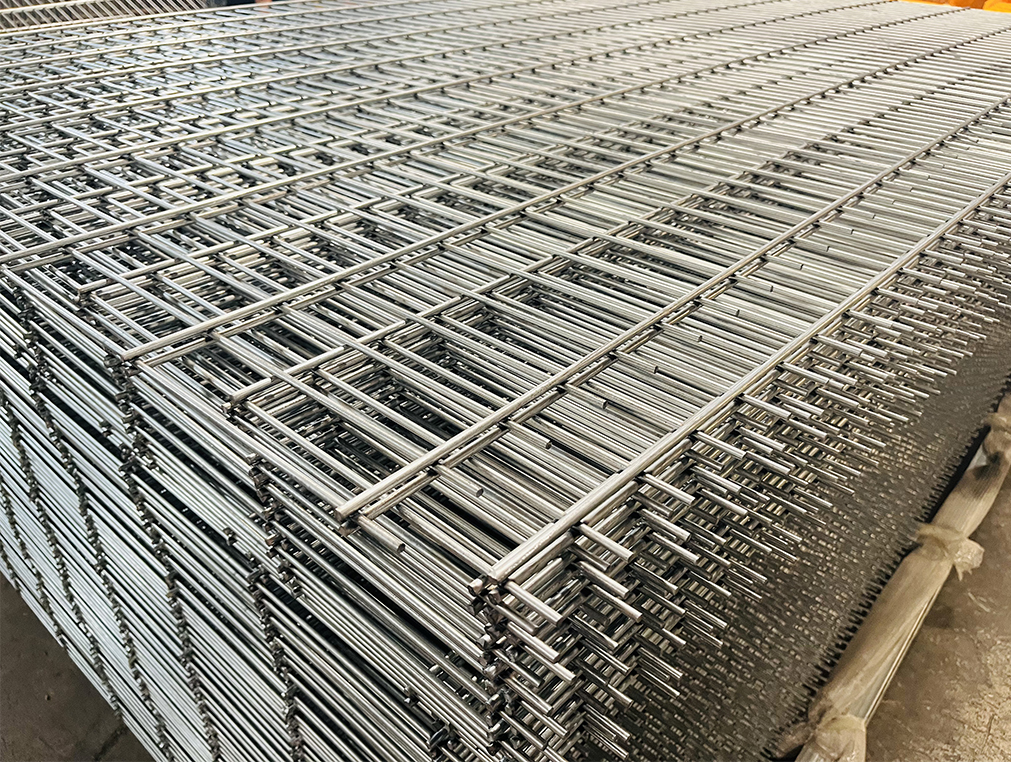

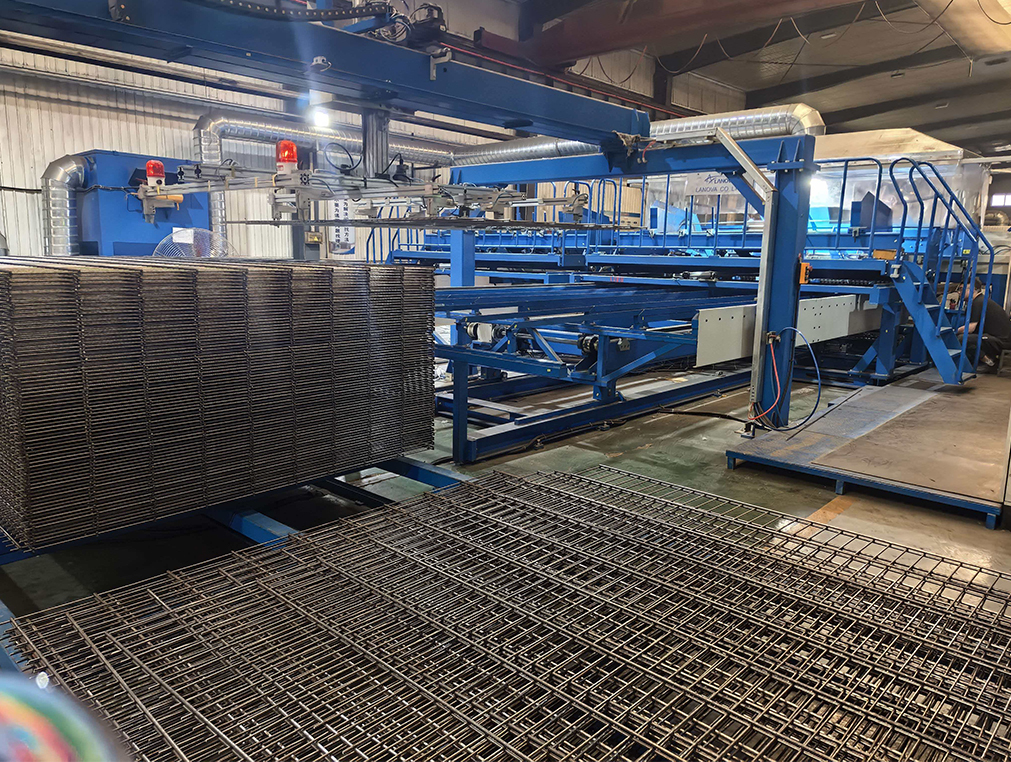

BONKFC Double Wire Fence is manufactured from high-quality Q195/Q235 low-carbon steel wire, processed with precise welding technology to ensure firm solder joints and flat panel surfaces.

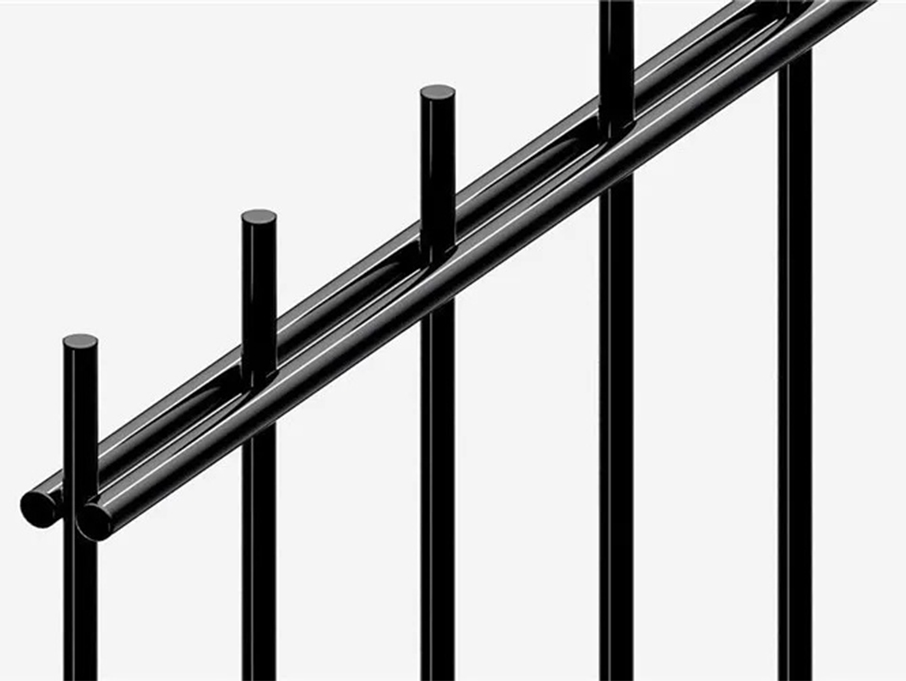

The fence is commonly made with 6/5/6 mm or 8/6/8 mm wire combinations — meaning the vertical wire is 5 mm or 6 mm, and the two horizontal wires are 6 mm or 8 mm respectively. This configuration significantly increases structural strength and resistance to bending or cutting.

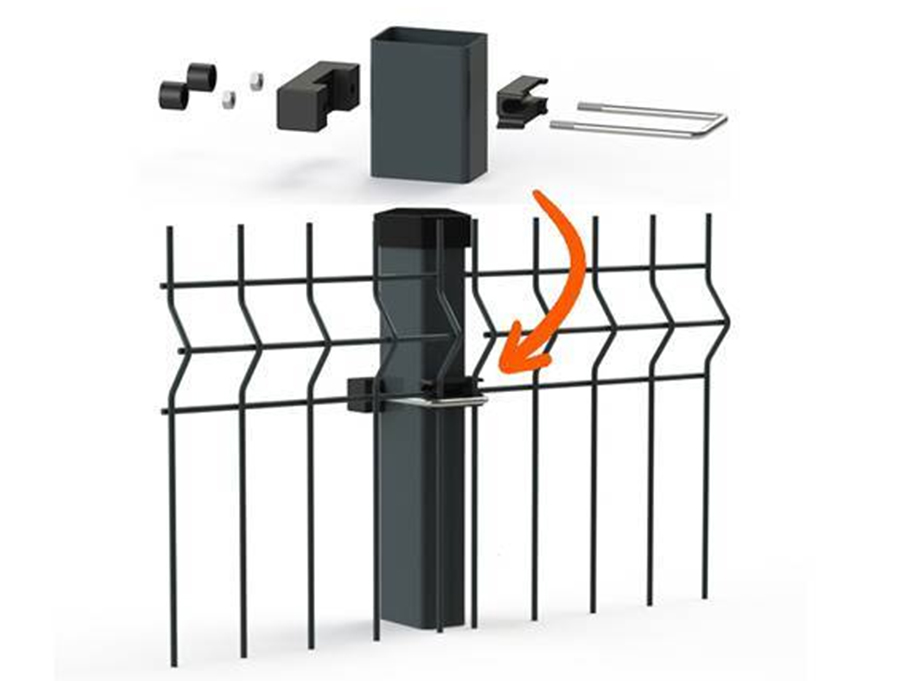

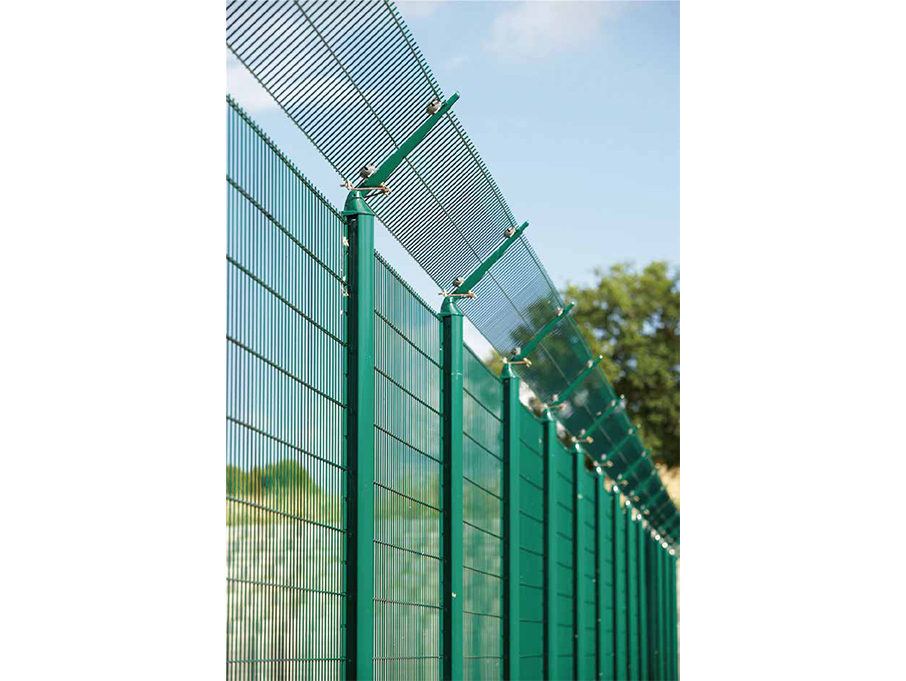

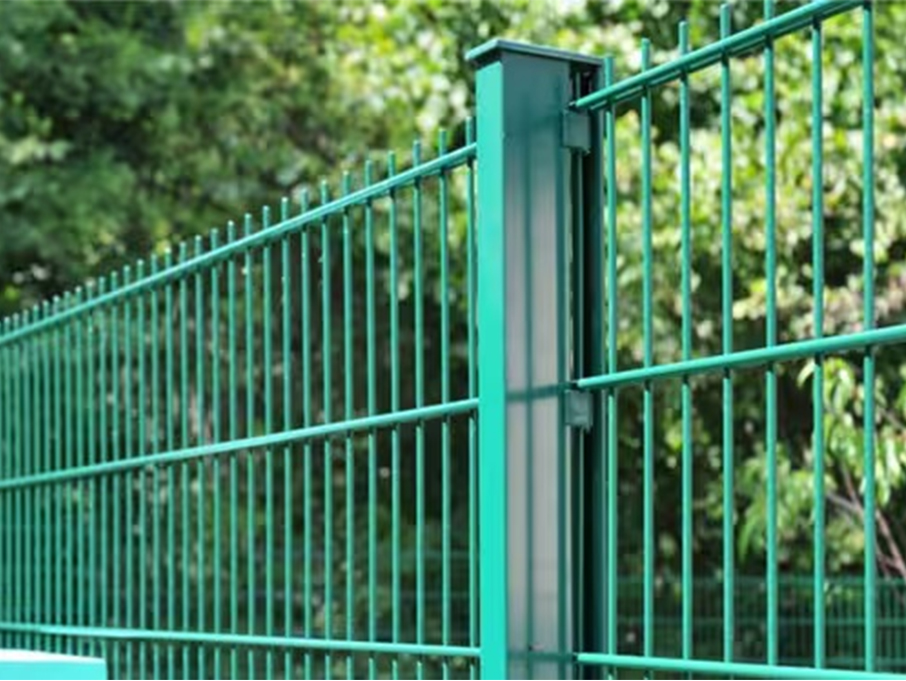

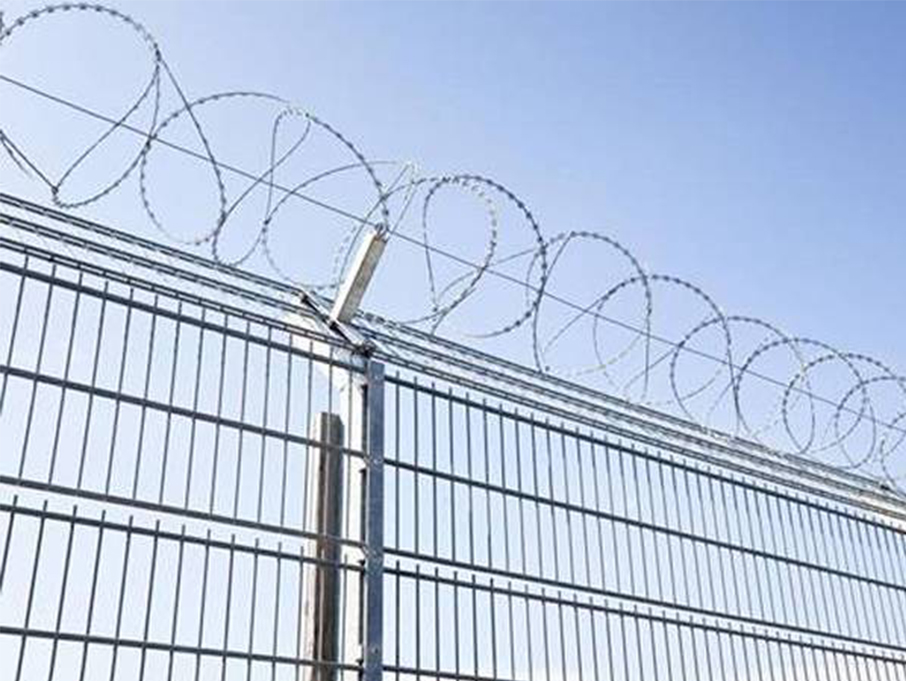

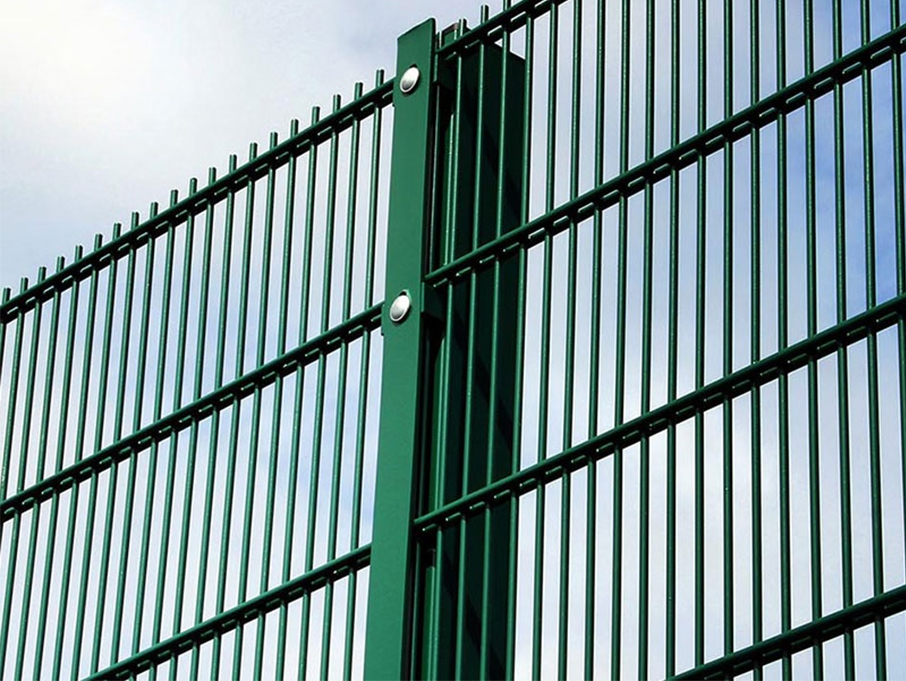

Double Wire Fences are compatible with double-peach posts,I-type posts ,and Y-type posts (which can be equipped with barbed wire).
