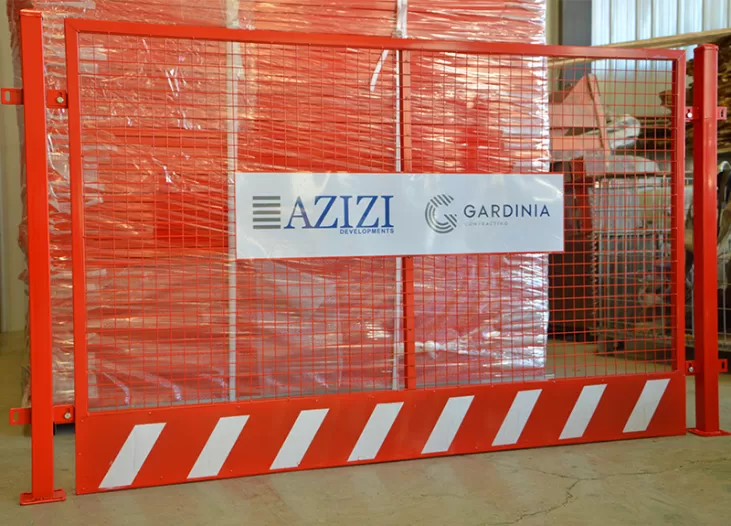

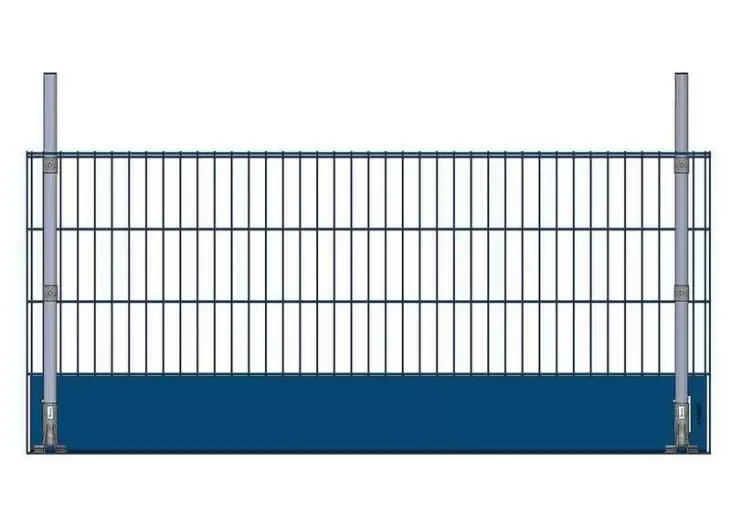

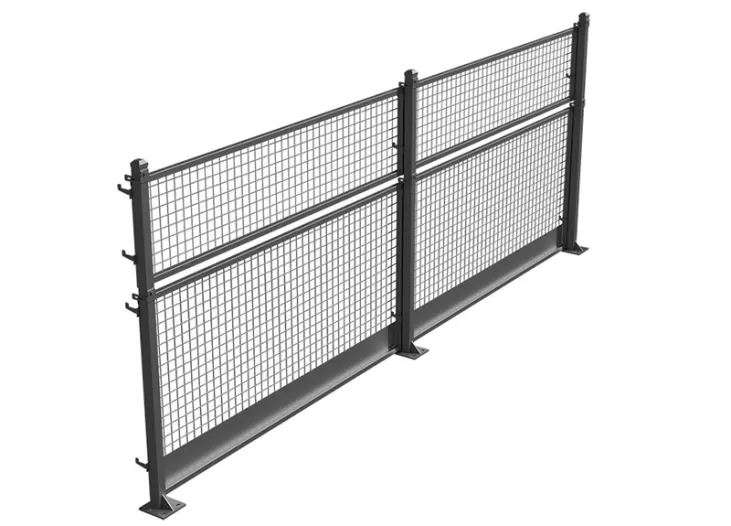

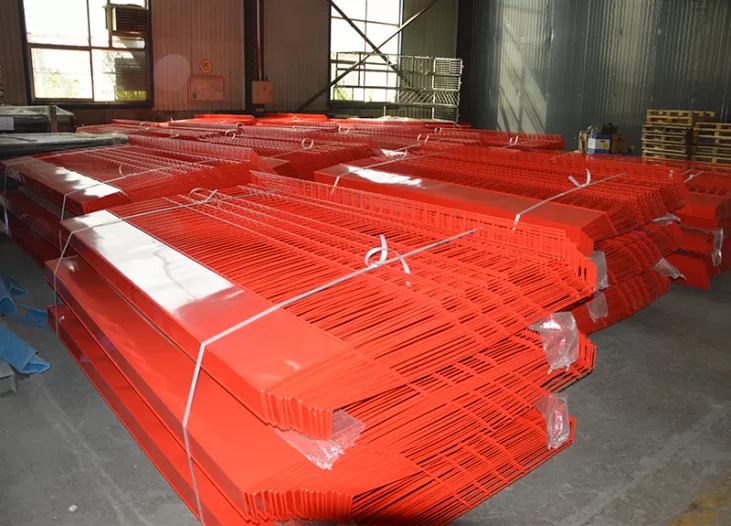

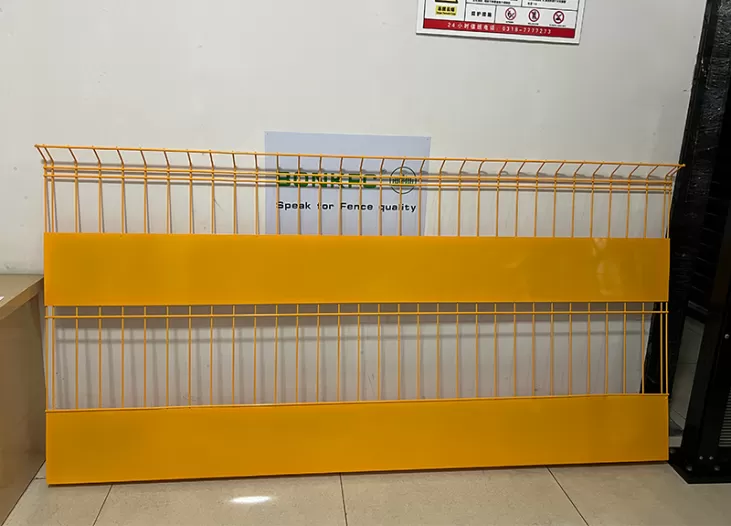

Edge Protection Fence
Name: Edge Protection Fence
Material: Q195/Q235 wire and pipe
Brand : BONKFC Fence
From: China BONKFC
Color: Black9005, Black Green 6005, Grey7016

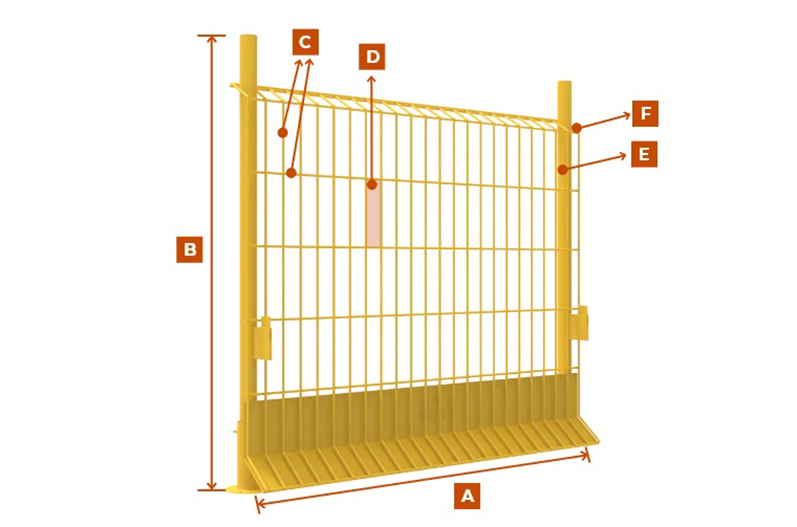

APanel Width: 1.5 m / 2.0 m / 2.3 m / 2.5 m
BPanel Height: 1.05 m / 1.2 m / 1.3 m / 1.4 m / 1.5 m
C
Single Wire Type: 5.0 × 4.0 mm, 6.0 × 5.0 mm, 8.0 × 6.0 mm
Double Wire Type: 5/4/5 mm, 6/5/6 mm, 8/6/8 mm
DHole Size: 75 × 75 mm, 50 × 100 mm, 50 × 200 mm, 75 × 150 mm
EPost: ɸ48 × 2 mm, ɸ60 × 2 mm
FBending Degree: 60°, 90°

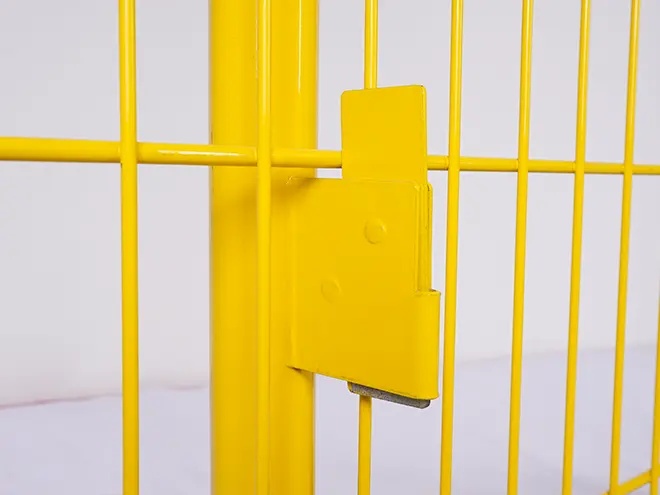

Latch

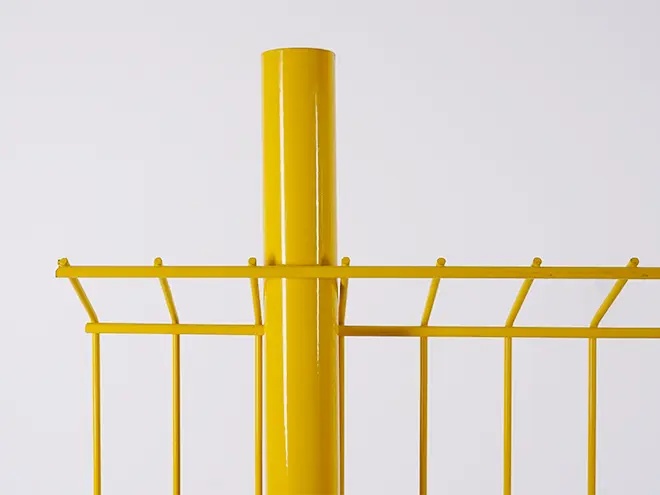

Round Post

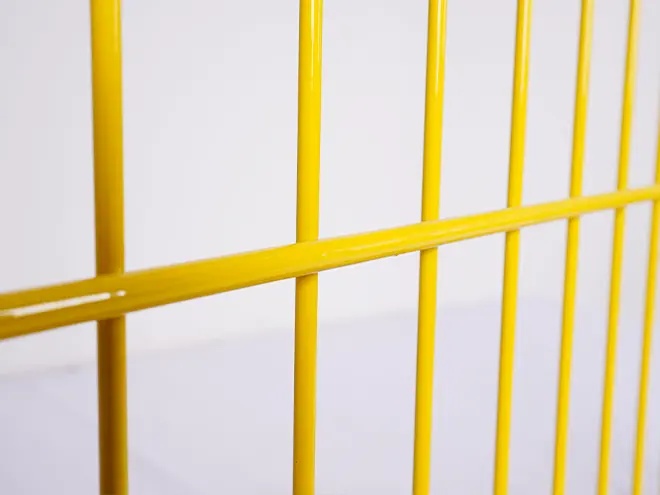

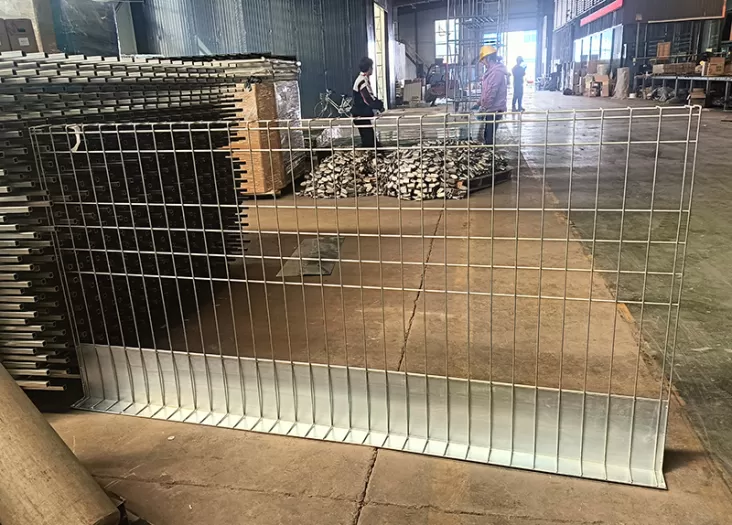

Fence Panel

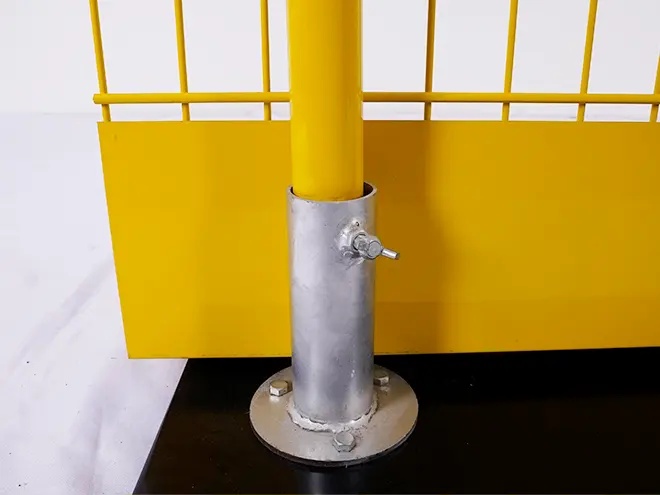

Sleeve Base

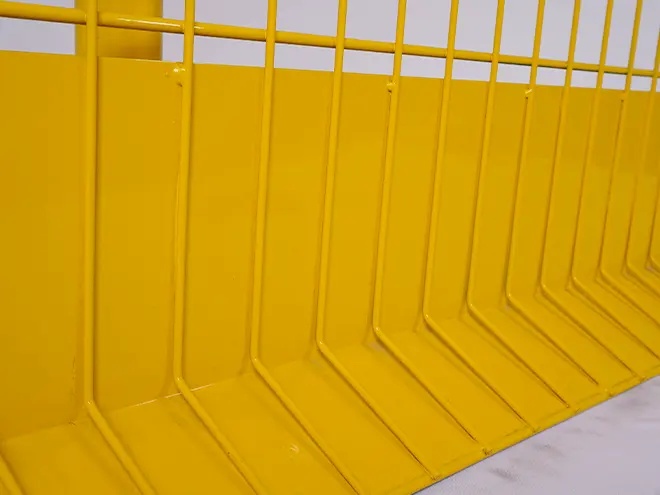

Toe Plate

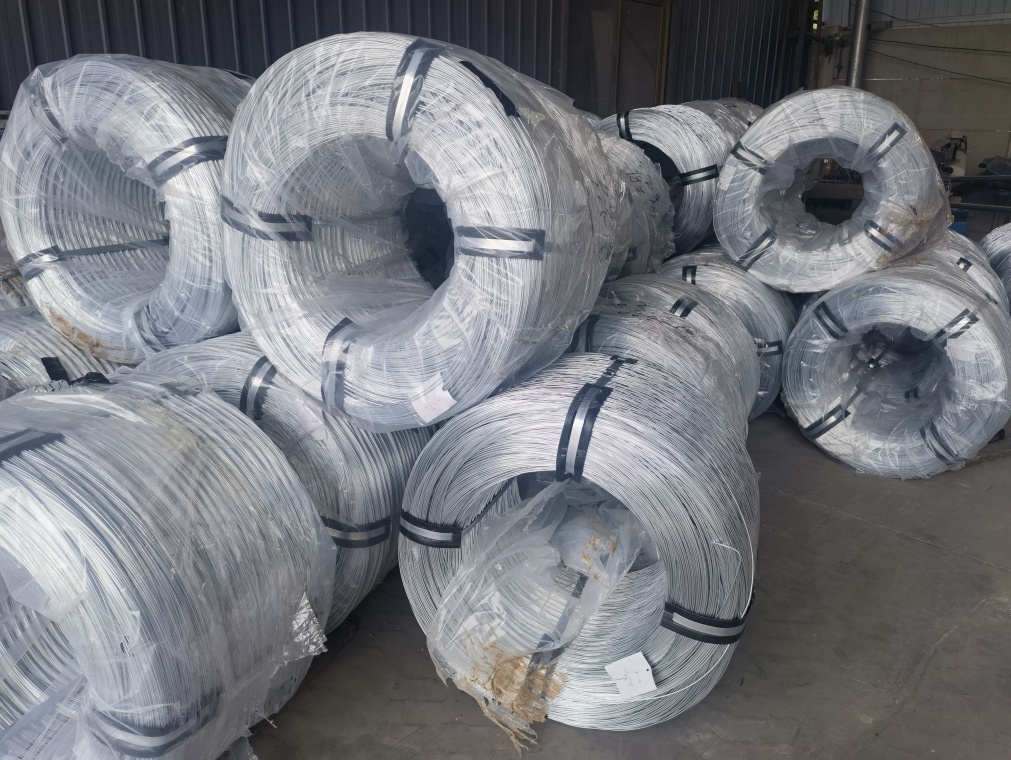

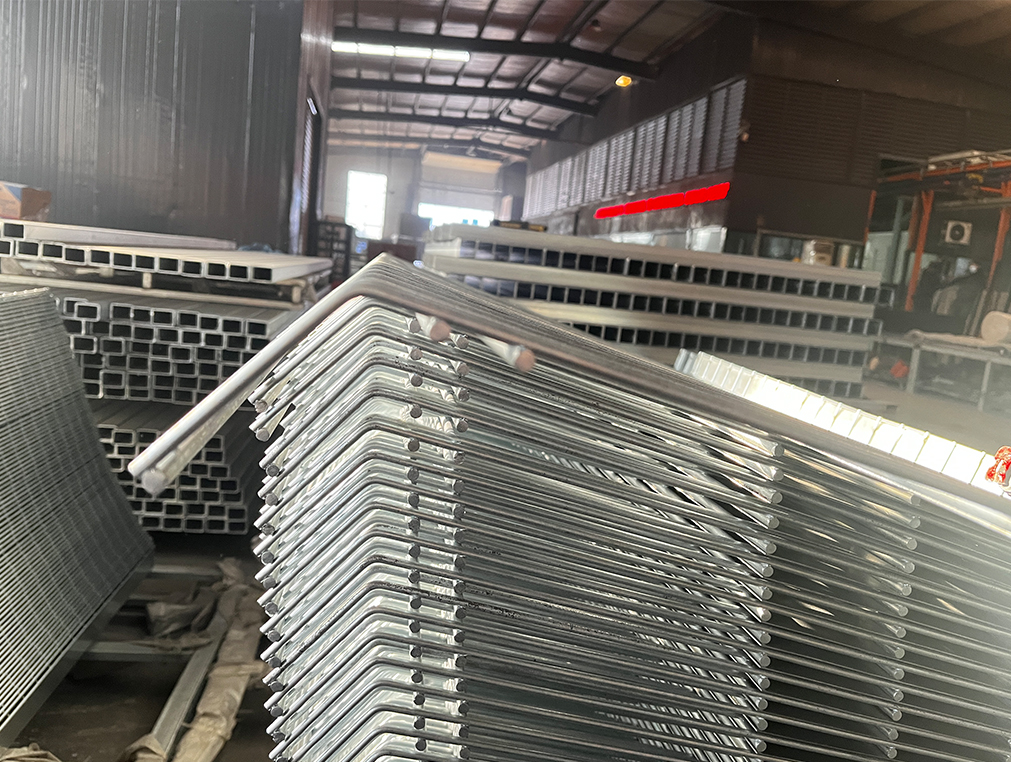

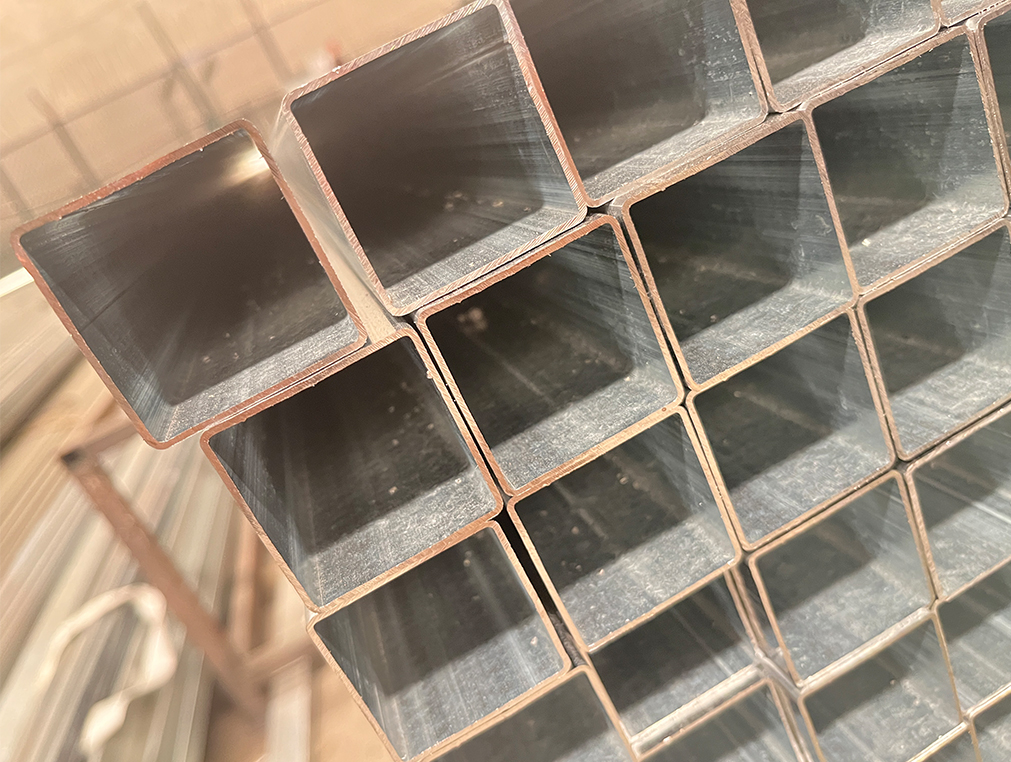

raw material

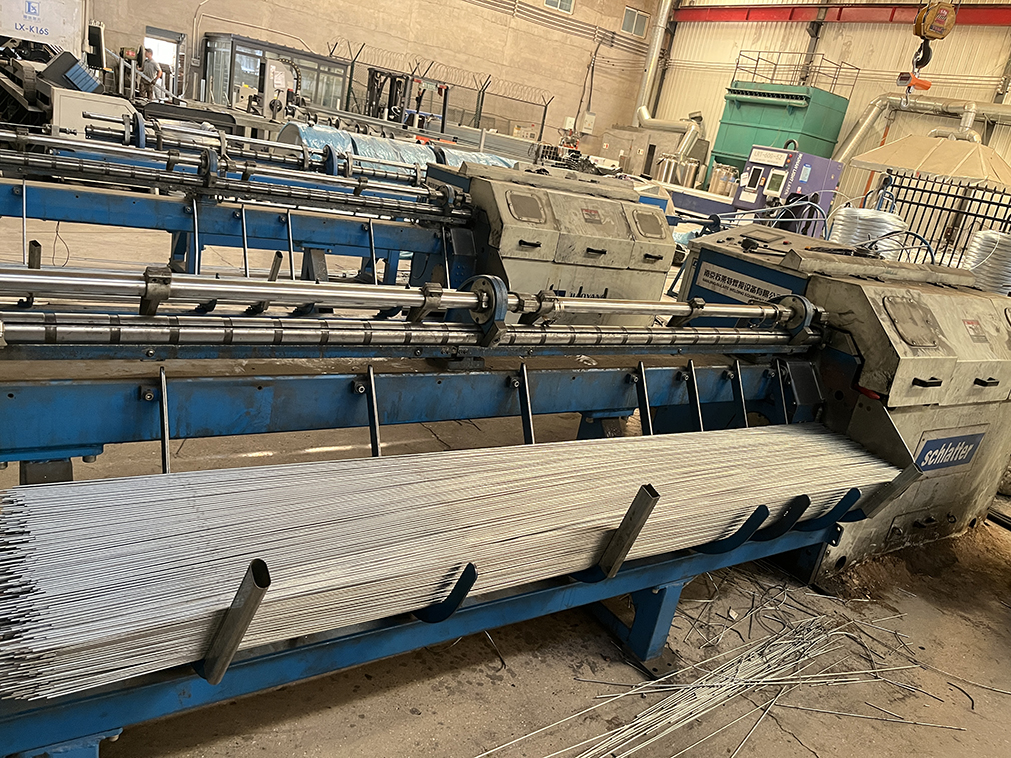

cut into scratch-free wires
Material Preparation

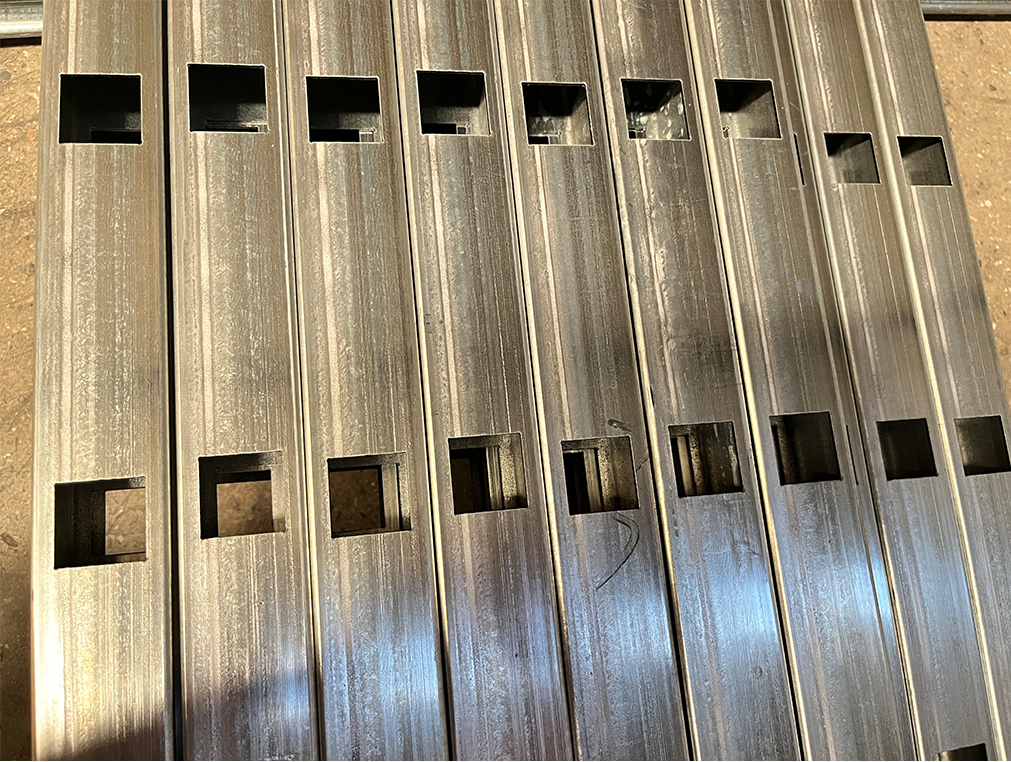

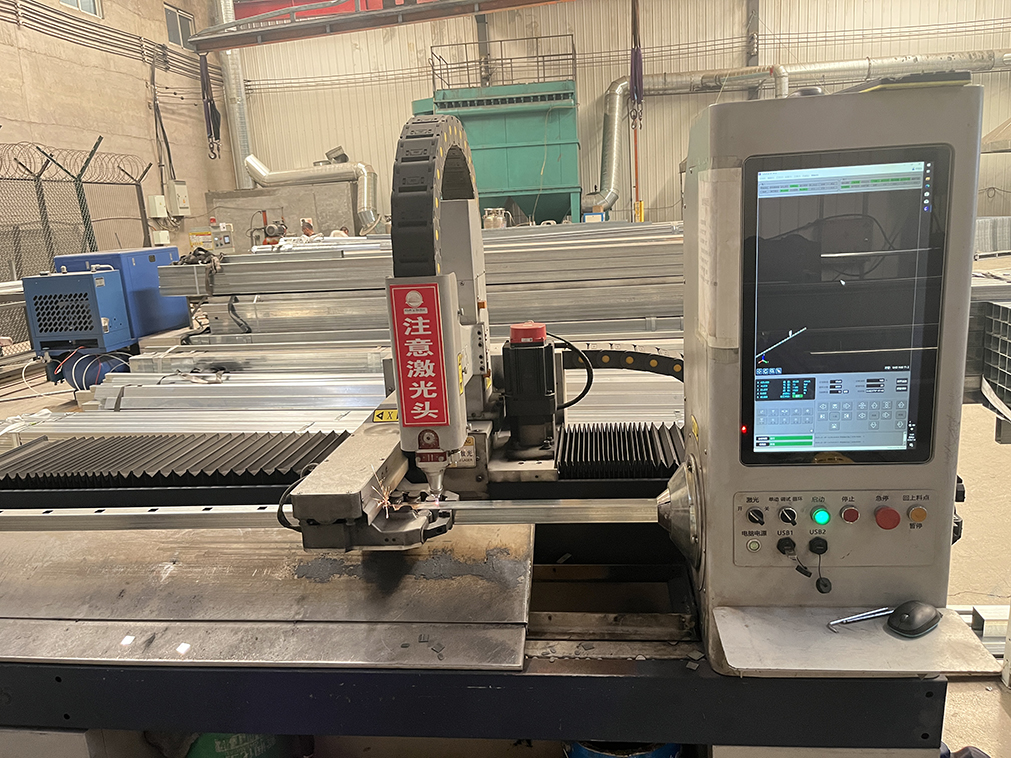

Laser cutting
Pre-treatment for longevity

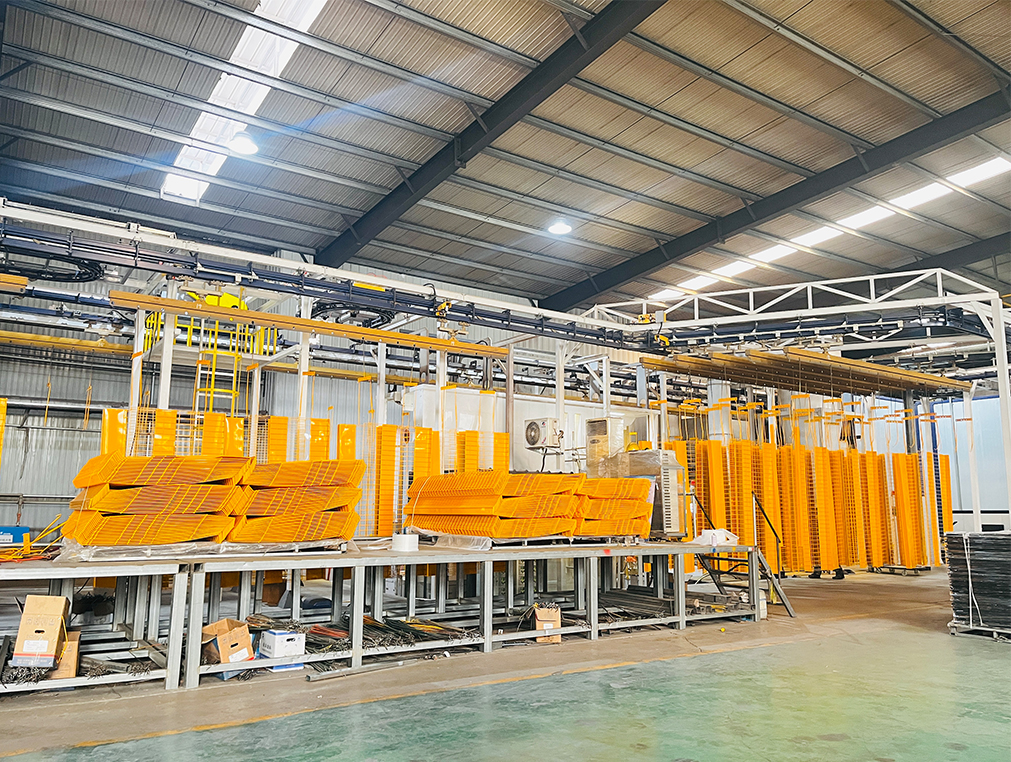

powder coating

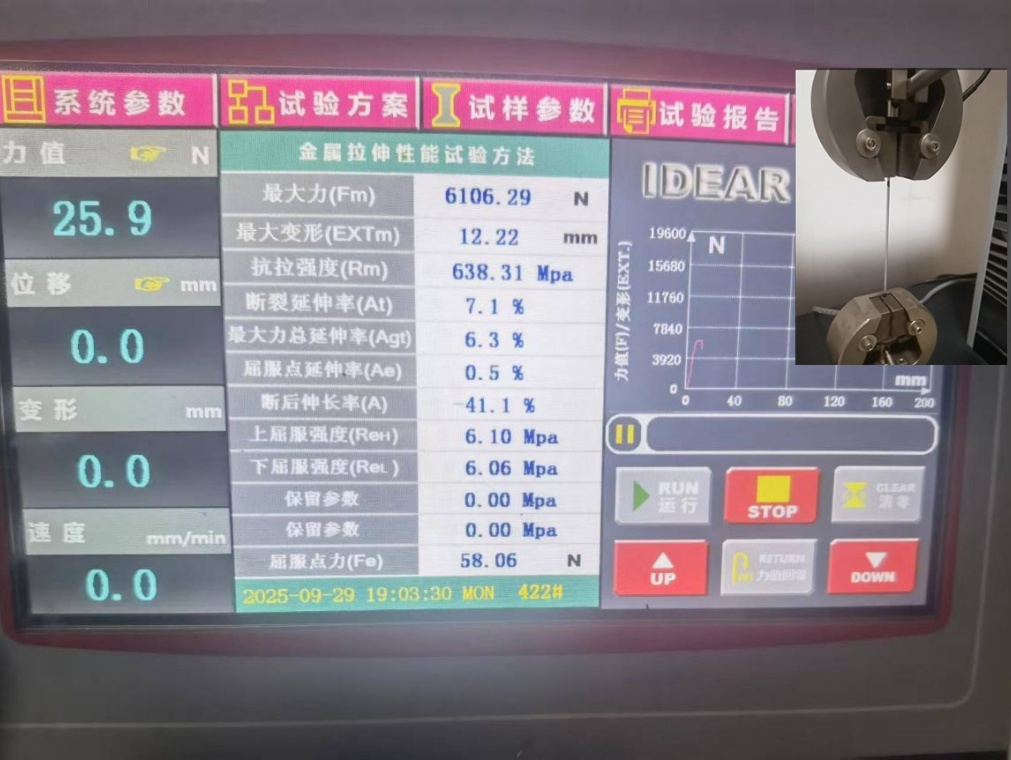

Test whether the tensile strength of the wire reaches 500-600Mpa.
Check if the quality inspection wire has scratches

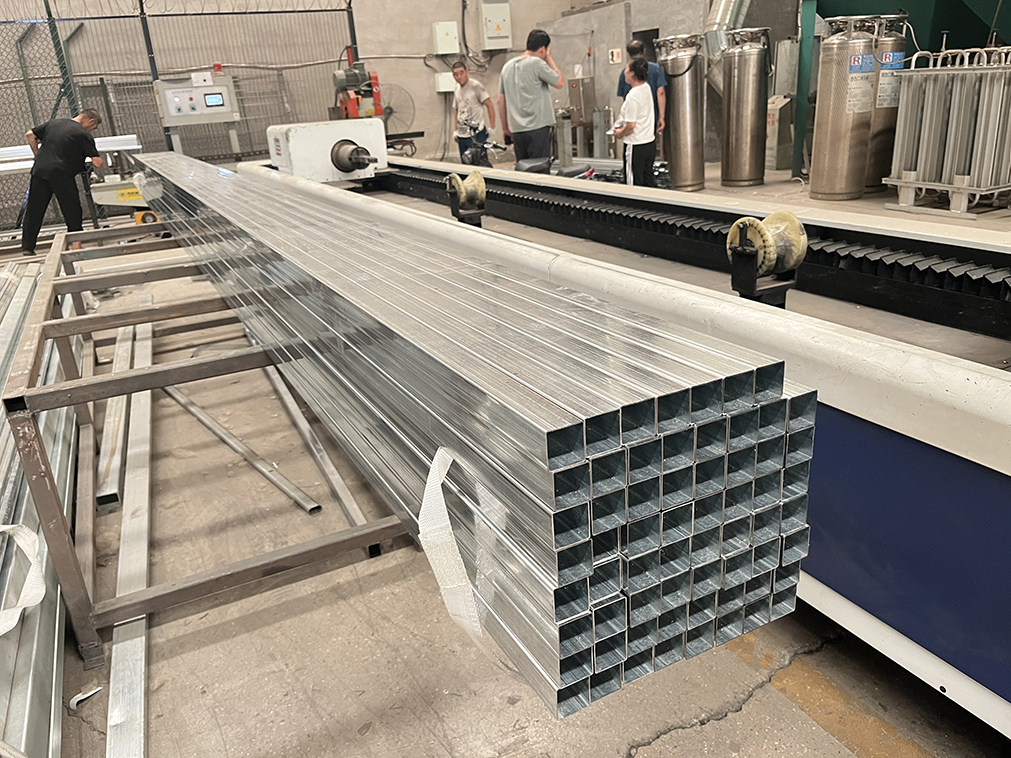

Check the qualification of raw material pipes
Check that laser cutting meets the requirement of zero error with no burrs
welding technology

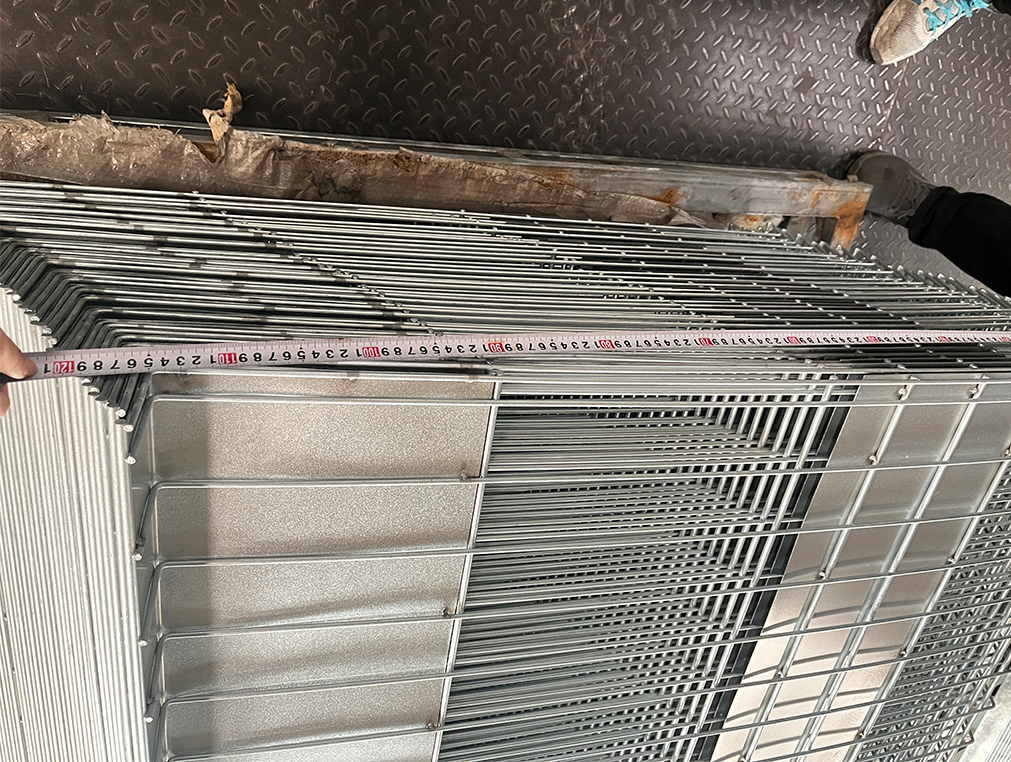

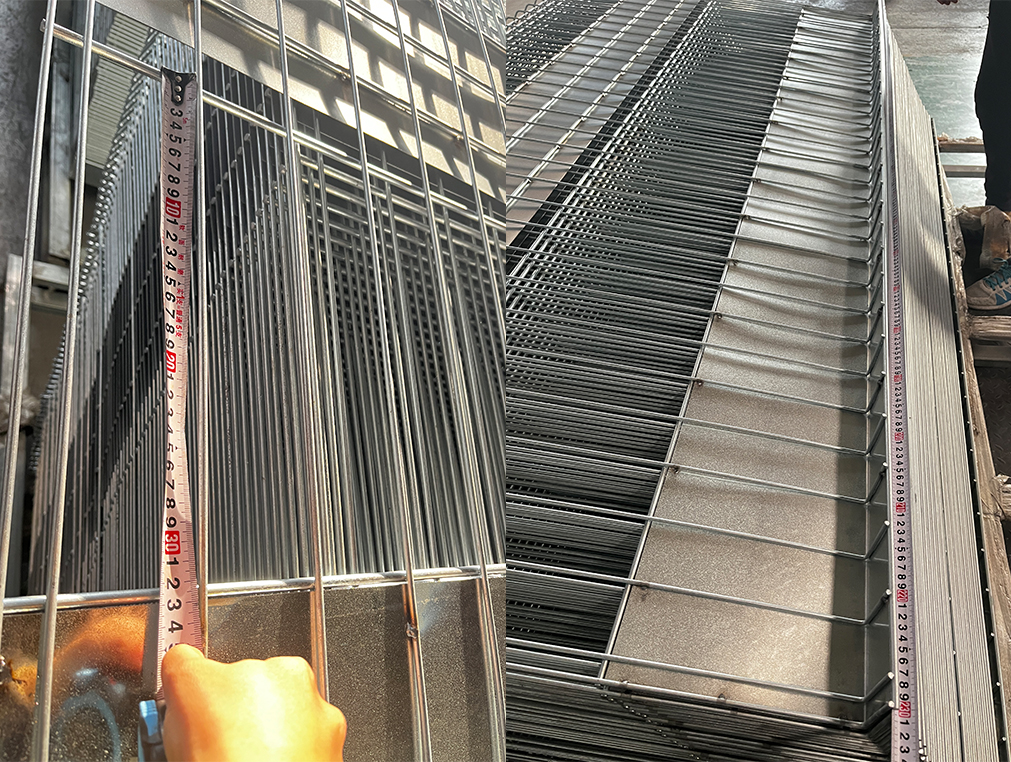

Width and mesh size measurement
height measurement

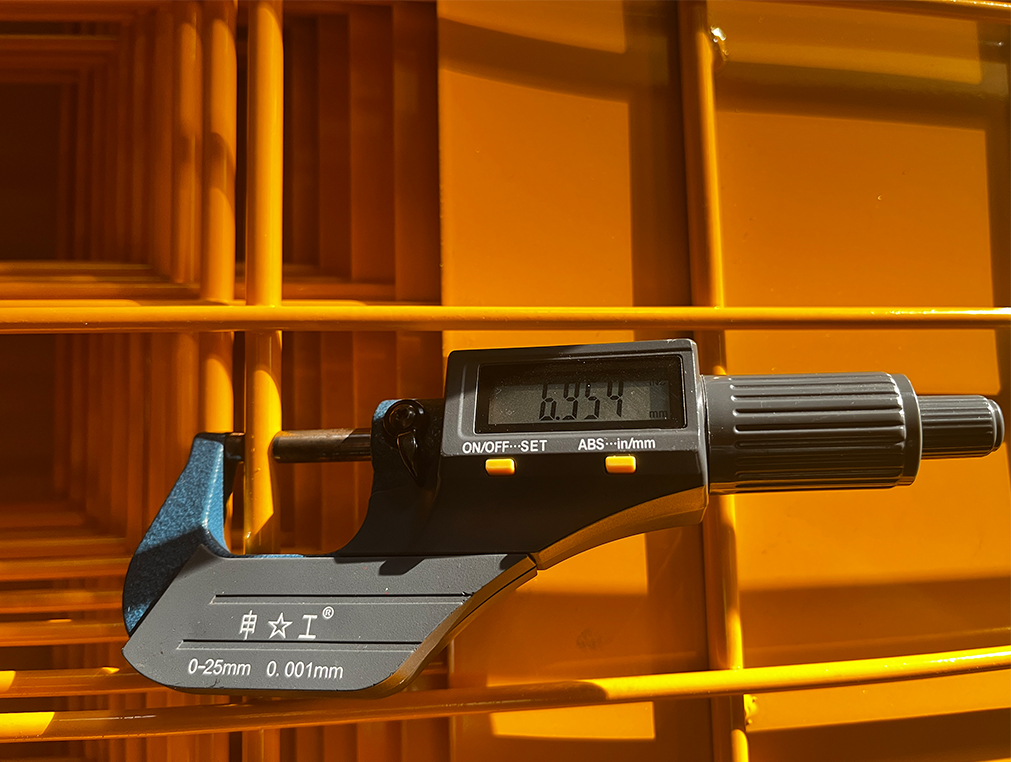

wire powder coating
angle measurement

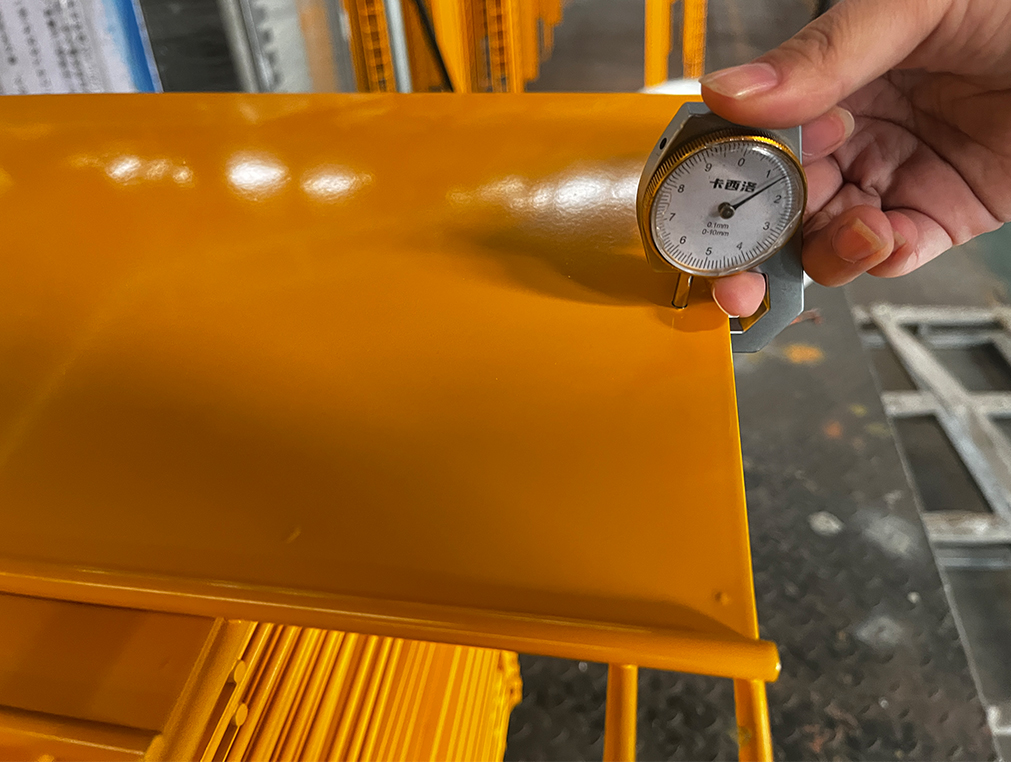

Panel coating thickness
In accordance with EN 13374, OSHA 1926 and AS/NZS 4994
Made of 100% carbon steel material for recycling.
Robust structure and firm connection ensures excellent wind resistance.
Powder coating for rust and corrosion resisting.
Toe plates prevent tiny tools or particles falling.
Modular structure for faster installation, dismantle, carrying and maintaining.
Shorten project time limit and enhance safety grade.
Available in various colors (yellow, red, orange, etc.) to improve visibility on site.
Safety signs can be added to enhance hazard awareness and site management.

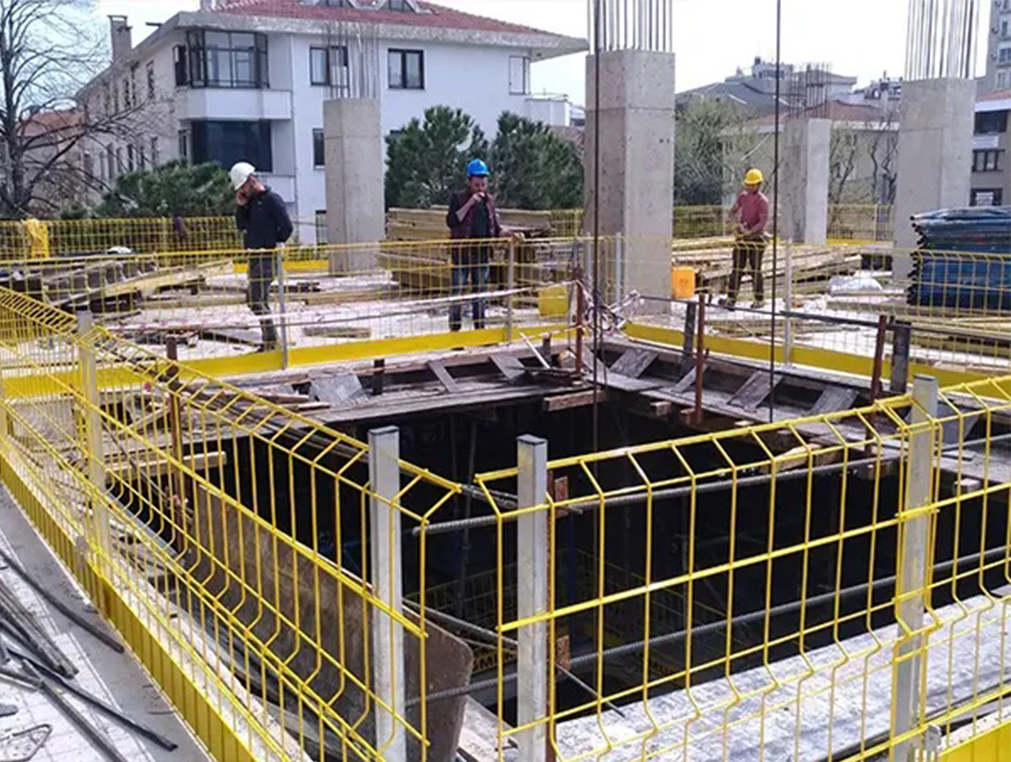

High-Rise Building Construction Protection
Roadbed Construction Safety Protection

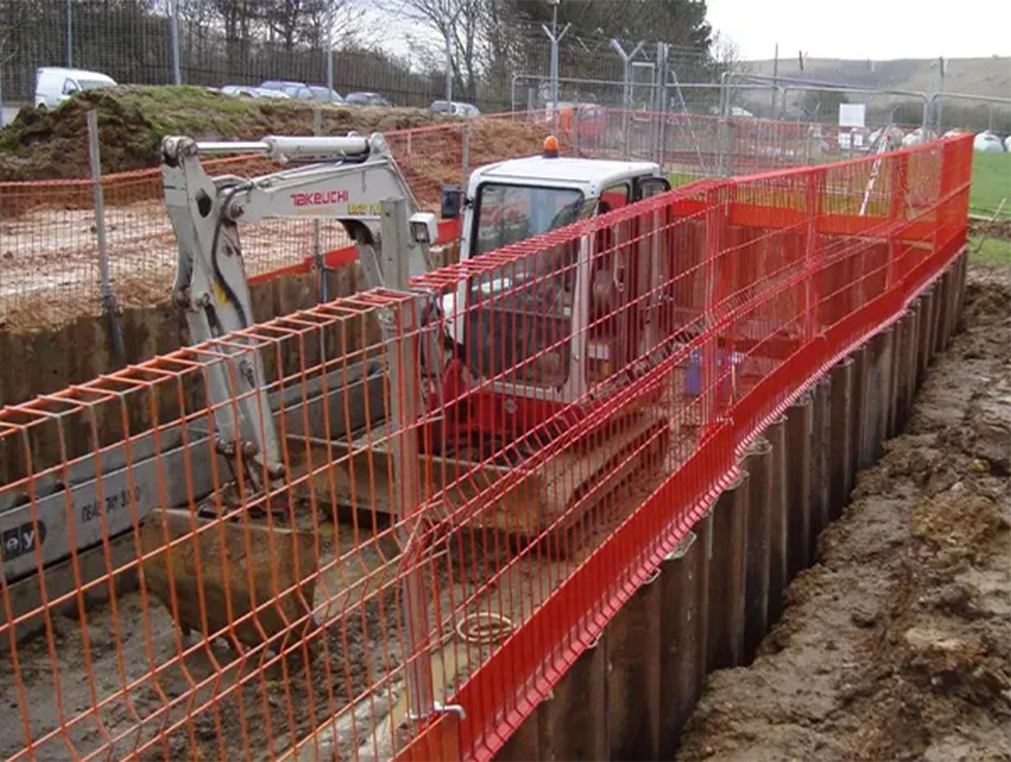

Deep Excavation Pit Protection

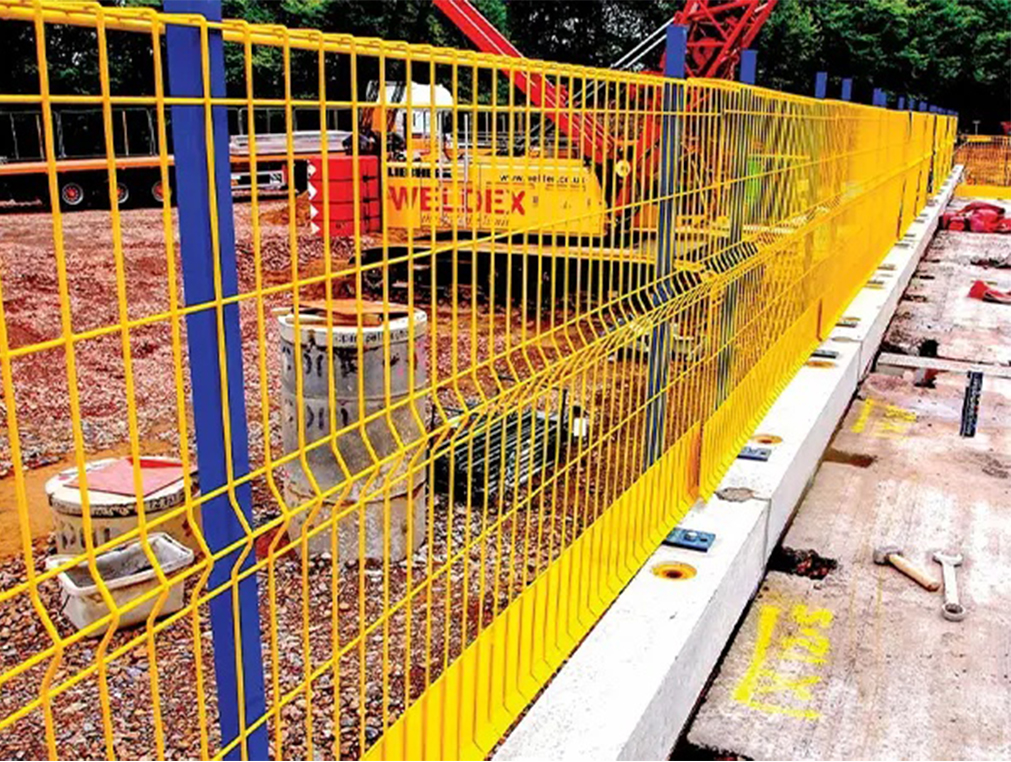

Dock and Elevated Platform Protection

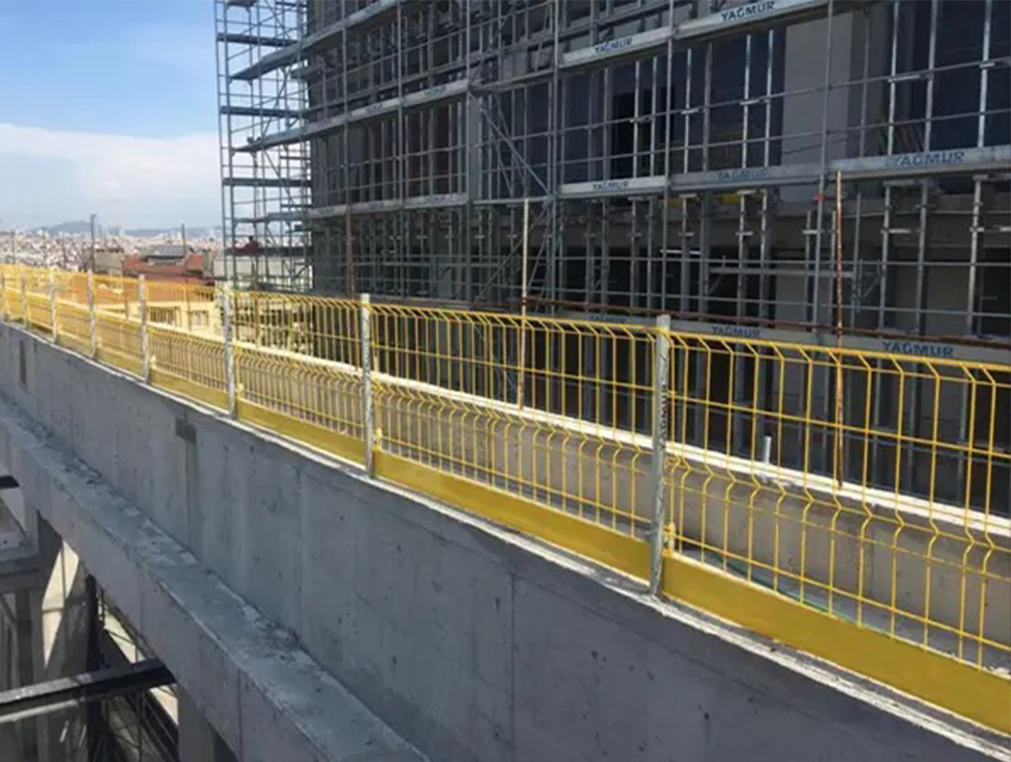

Steel Structure Construction Protection

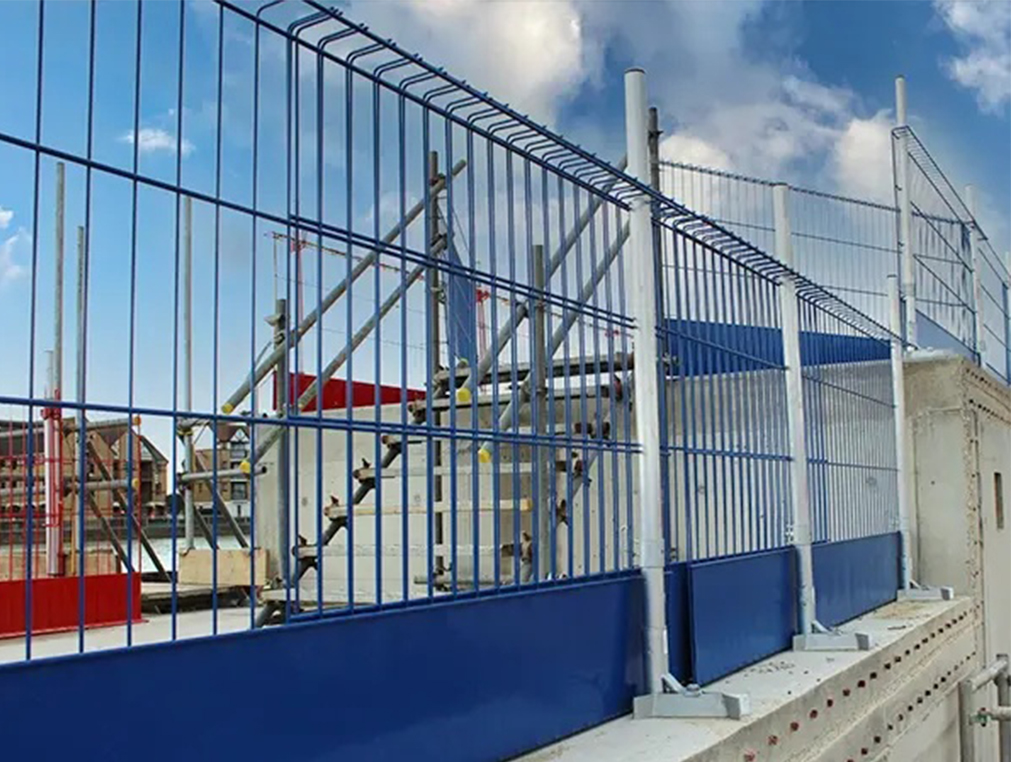

Bridge Construction Protection
