Gate

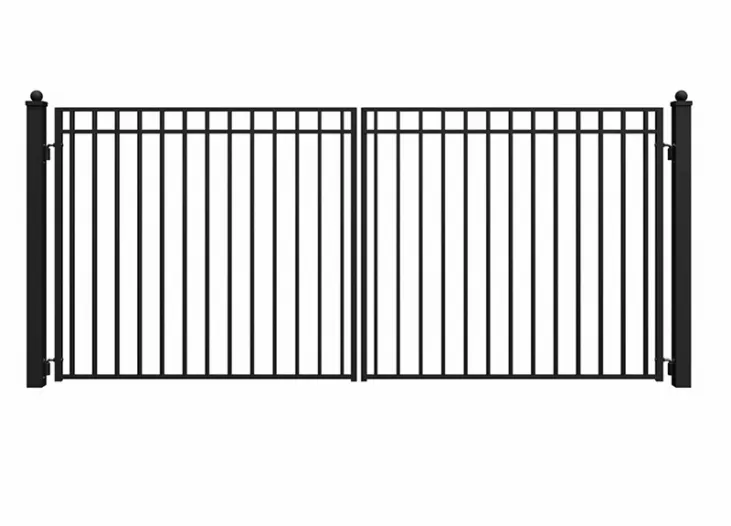

Name: Double Swing Steel Gate
Material: Q195/Q235 wire and pipe
Brand: BONKFC Fence
From: China BONKFC
Color: Black9005, Black Green 6005, Grey7016 or as customized
AkzoNobel Polyester Finish Powder Coating realize exceptional weather resistance and surface self-cleaning performance(rain wash or spray-wash can resume bright and clean surface).

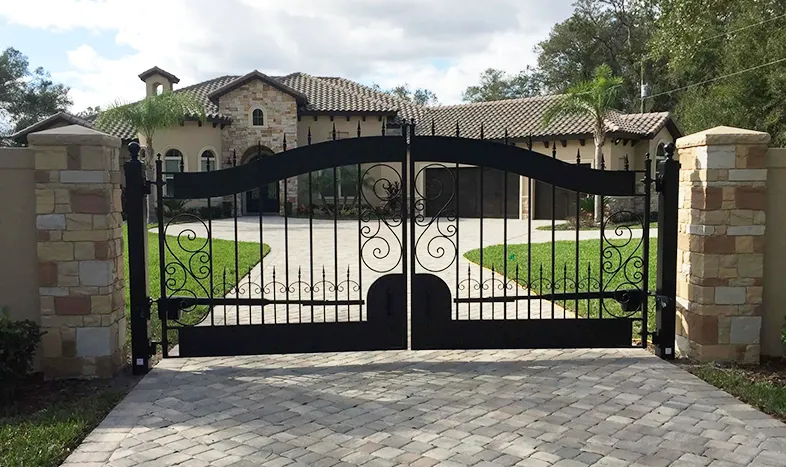

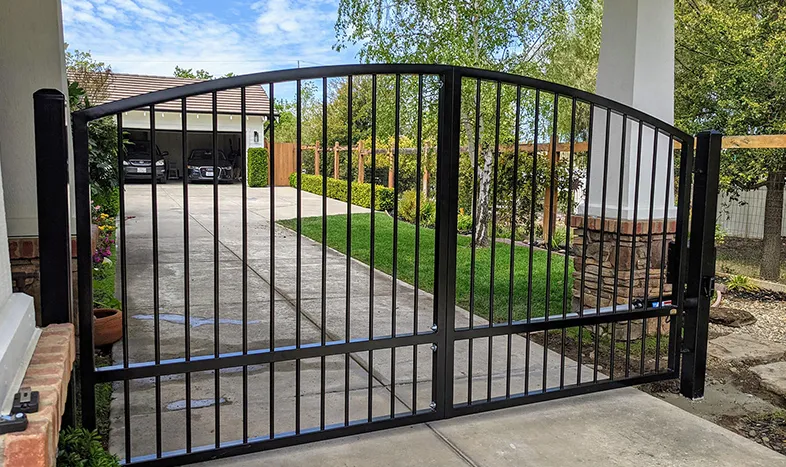

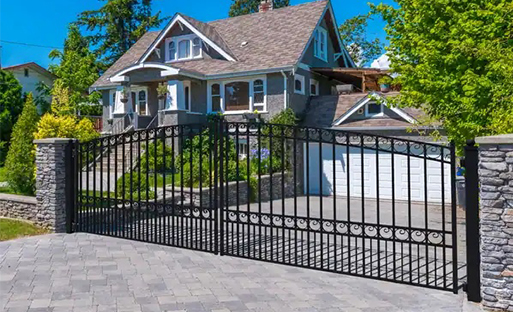

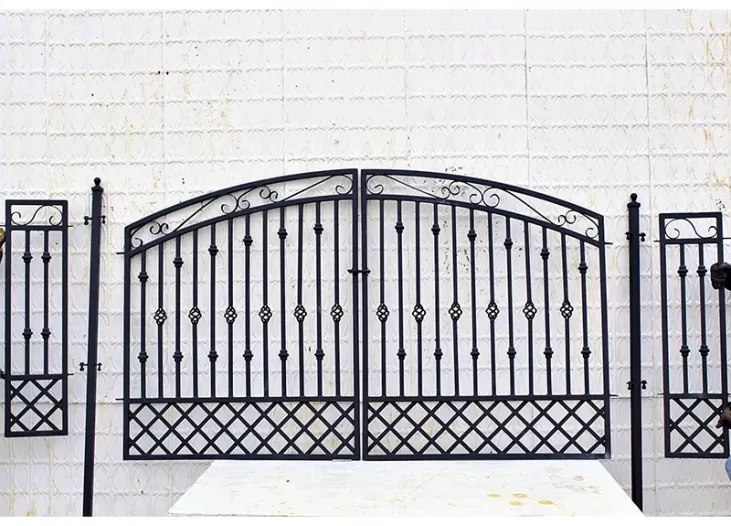

BONKFC offers a complete range of double swing steel gates designed for both residential driveways and industrial fence systems. Manufactured from high-strength Q195/Q235 galvanized steel, our gates provide long-lasting durability, excellent corrosion resistance, and a refined appearance suitable for modern and traditional properties alike.
Our double leaf swing gates feature a dual-panel design that allows a smooth 180° opening angle. With standard widths up to 10 meters and heights up to 3 meters, these gates provide easy access for both pedestrians and vehicles.
All gates are compatible with manual operation or automated gate opener systems, offering flexibility for different project requirements.
Material: Galvanized steel (Q195/Q235)
Surface Finish: AkzoNobel Polyester Powder Coating
Available Colors: RAL 9005 Black, RAL 6005 Green, RAL 7016 Grey, or customized
Warranty: 10 years against corrosion and coating defects

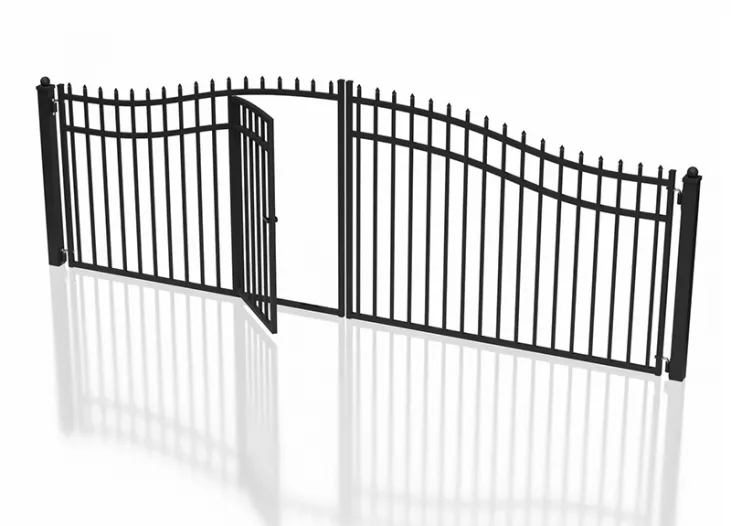

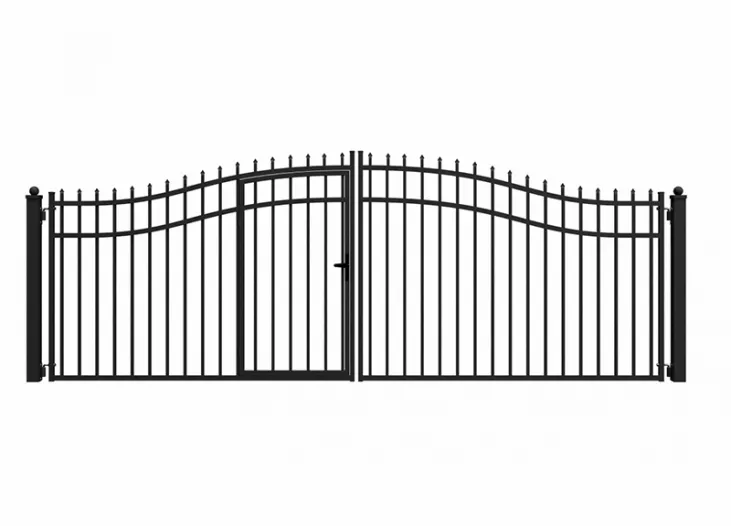

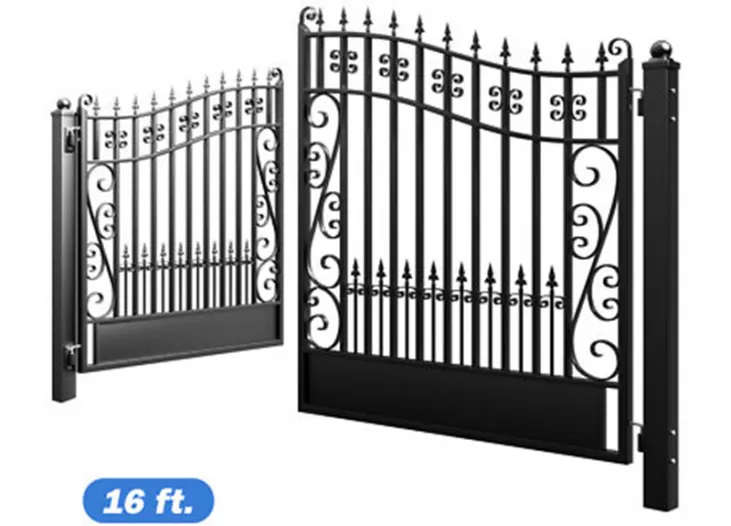

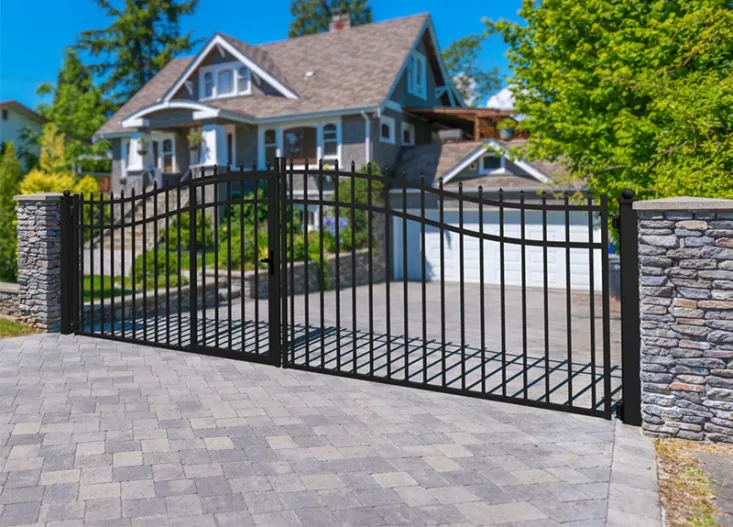

Venice Style Dual Swing Driveway Gate with 10-Year Warranty
Gate Package Includes: (2) driveway gate panels, (2) gate posts - 8 feet by 3.5 x 3.5 inches each, (4) LM114 0.75 inch regular hinge J-bolts
Material: Galvanized steel gate with a powder paint coating; protected against rust and weather damage
Compatible With: Venice-style pedestrian gate and dual swing gate openers
Gate Dimensions: 14 x 6 feet; gate weight: 375 pounds
Color: Black
Fence Gates / Double Swing Gate
Double swing gate is a popular choice when enough space is available for entrypurpose.
lts double leaf design allows its opening angle up to 180° while its standardwidths up to 10 m and heights up to 3 m ensure pedestrians and vehicles canpass through the fence easily.
Generally, it is attached to round or square post and then connected withadjustable hinges.
Besides, it can work with either manual or automation system to secure yourproperty from unauthorized access.We have a variety of double swing gates for chain link fence, curvy weldedfence, 358 high security fence, steel fence, palisade fencing and Australiatemporary fence for you to choose from.

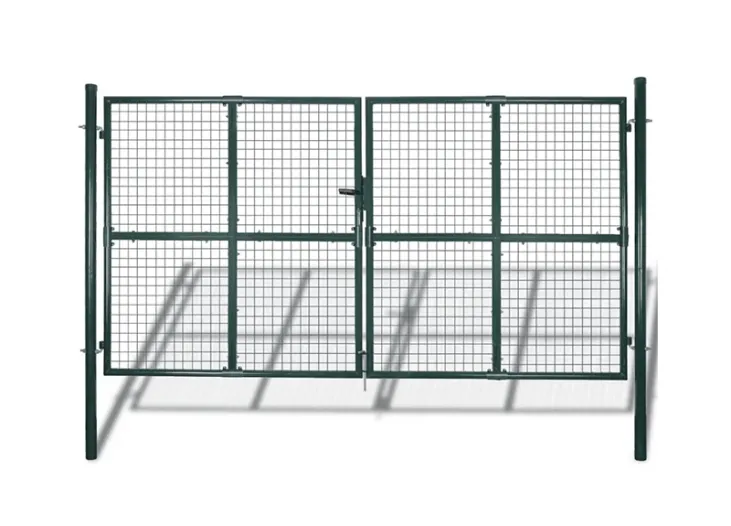

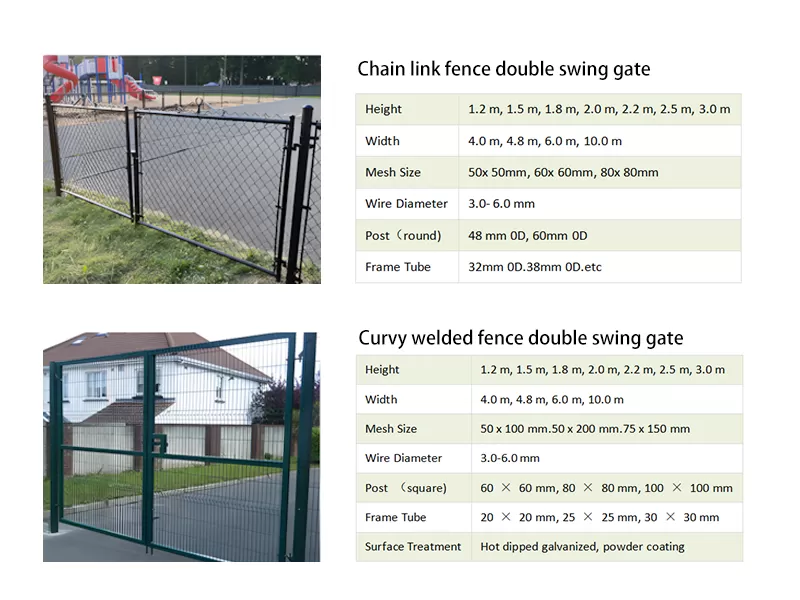

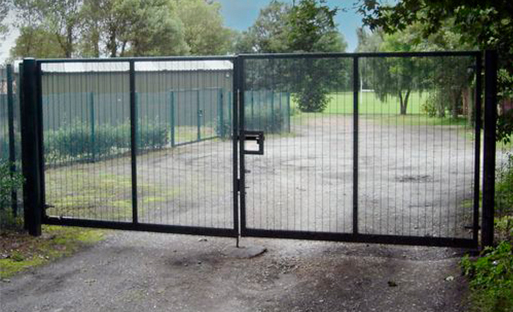

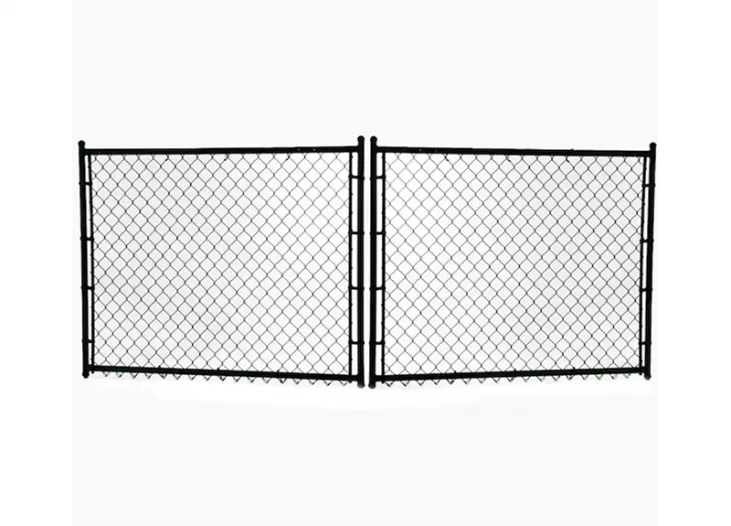

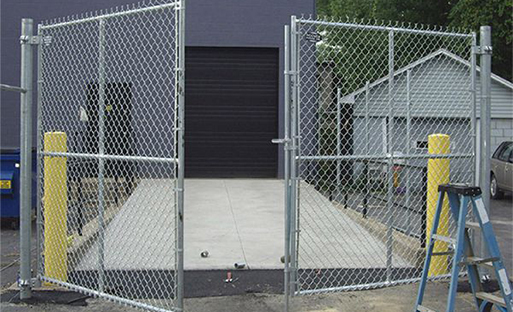

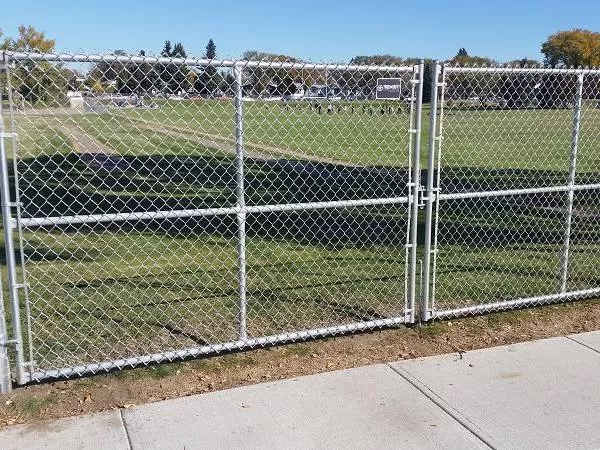

Chain link fence double swing gate / Match with chain link fence
| Height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m |
| Width | 4.0 m, 4.8 m, 6.0 m, 10.0 m |
| Mesh Size | 50 × 50 mm, 60 × 60 mm, 80 × 80 mm |
| Wire Diameter | 3.0–6.0 mm |
| Post (round) | 48 mm OD, 60 mm OD(外径） |
| Frame Tube | 32 mm OD, 38 mm OD, etc |

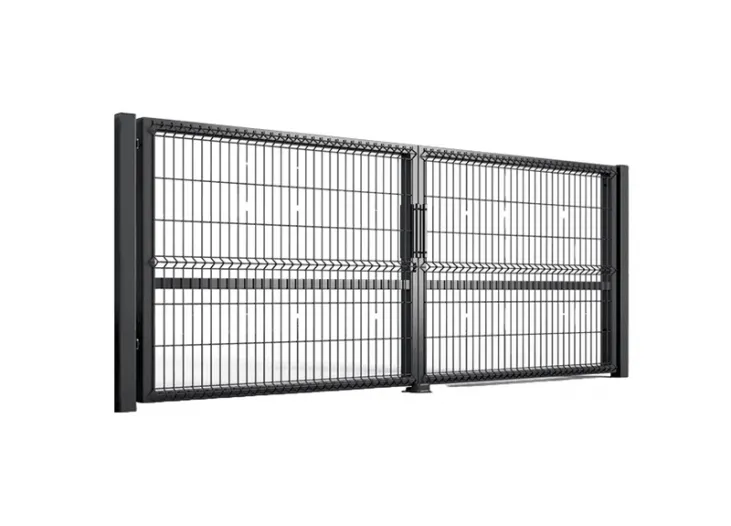

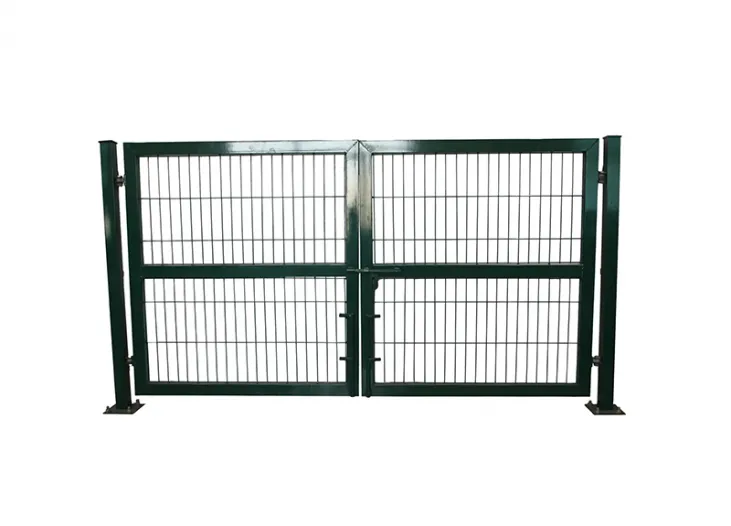

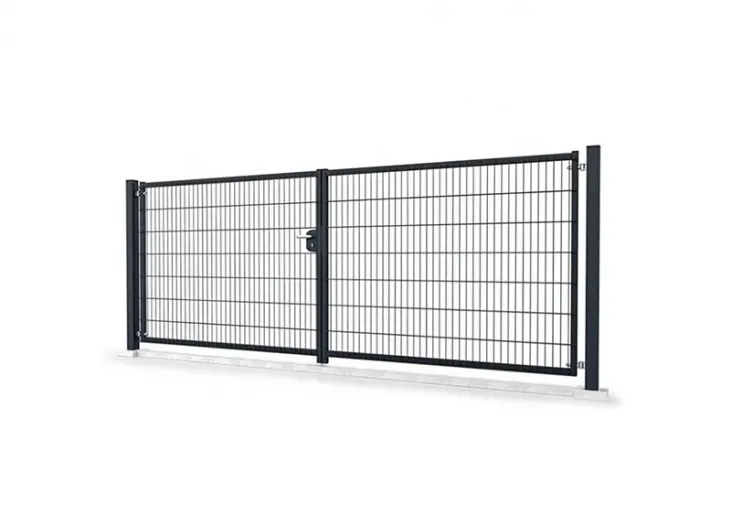

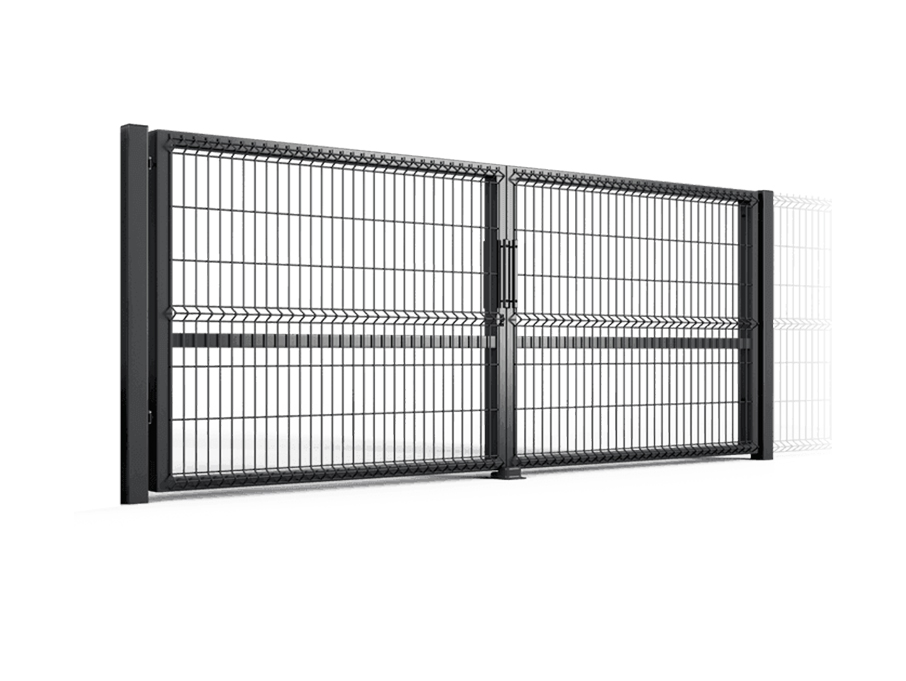

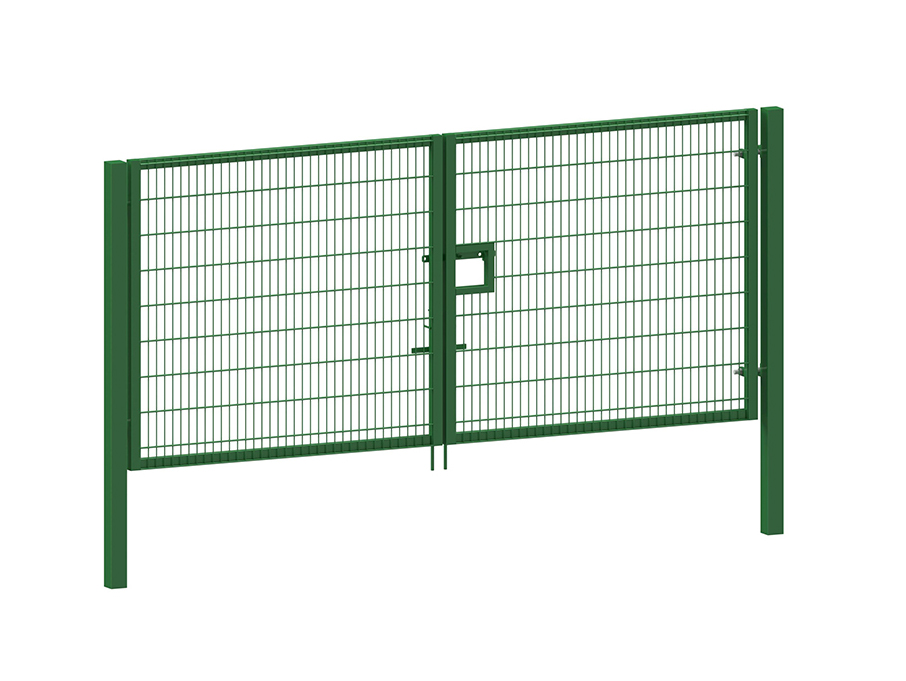

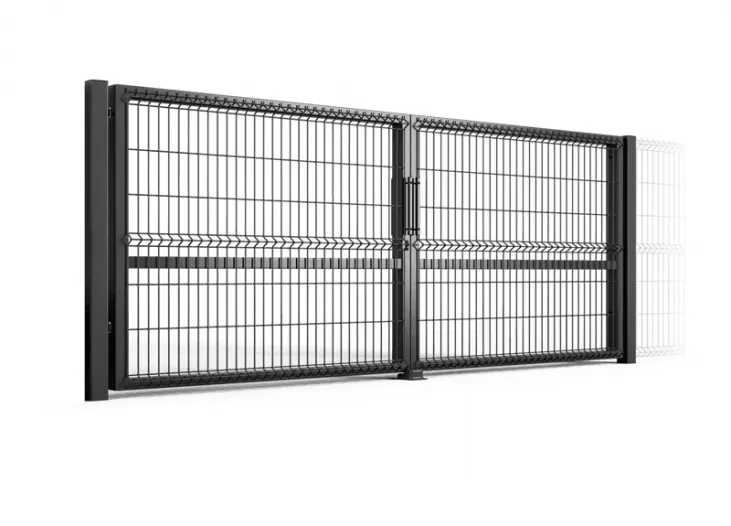

Curvy welded fence double swing gate / Match with curvy welded fence
| Height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m |
| Width | 4.0 m, 4.8 m, 6.0 m, 10.0 m |
| Mesh Size | 50 × 100 mm, 50 × 200 mm, 75 × 150 mm |
| Wire Diameter | 3.0–6.0 mm |
| Post (square) | 60 × 60 mm, 80 × 80 mm, 100 × 100 mm |
| Frame Tube | 20× 20 mm, 25× 25 mm, 30 × 30 mm |
| Surface Treatment | Hot dipped galvanized, powder coating |

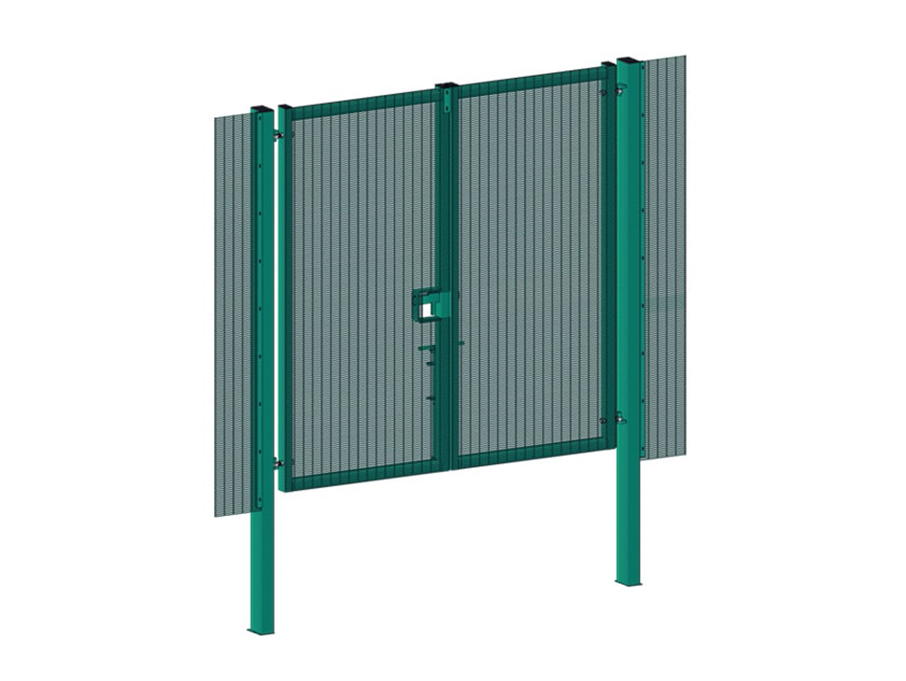

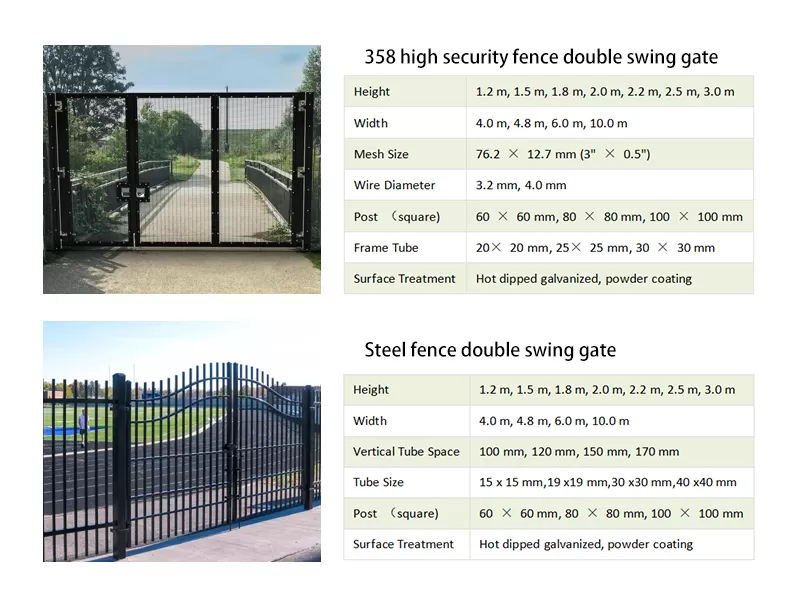

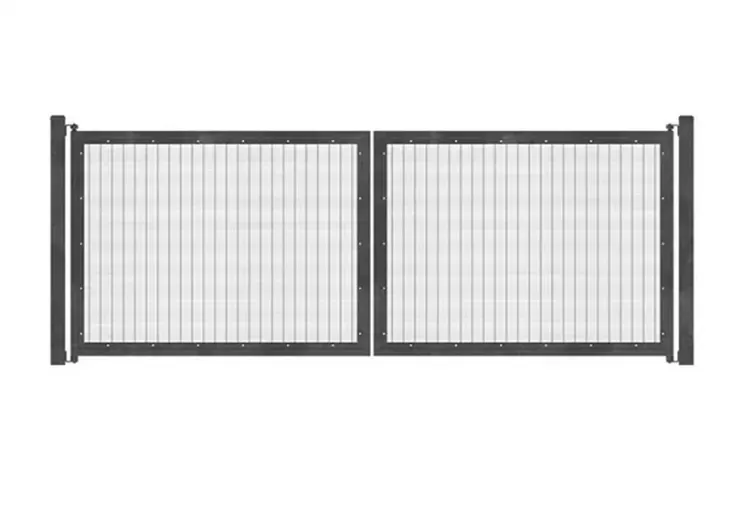

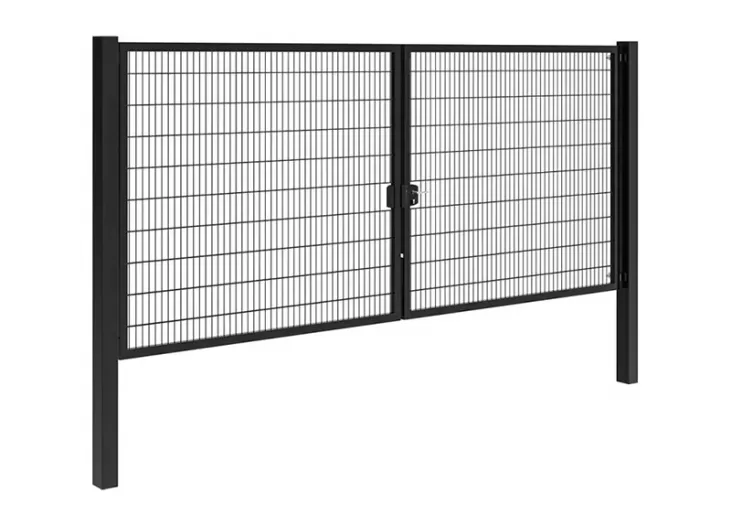

358 high security fence double swing gate / Match with 358 high security fence
| Height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m |
| Width | 4.0 m, 4.8 m, 6.0 m, 10.0 m |
| Mesh Size | 76.2 × 12.7 mm (3" × 0.5") |
| Wire Diameter | 3.2 mm, 4.0 mm |
| Post square) | 60 × 60 mm, 80 × 80 mm, 100 × 100 mm |
| Frame Tube | 20× 20 mm, 25× 25 mm, 30 × 30 mm |
| Surface Treatment | Hot dipped galvanized, powder coating |

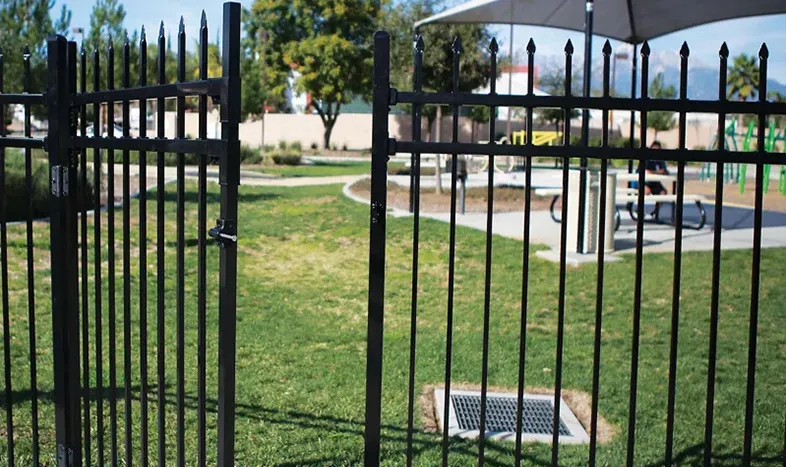

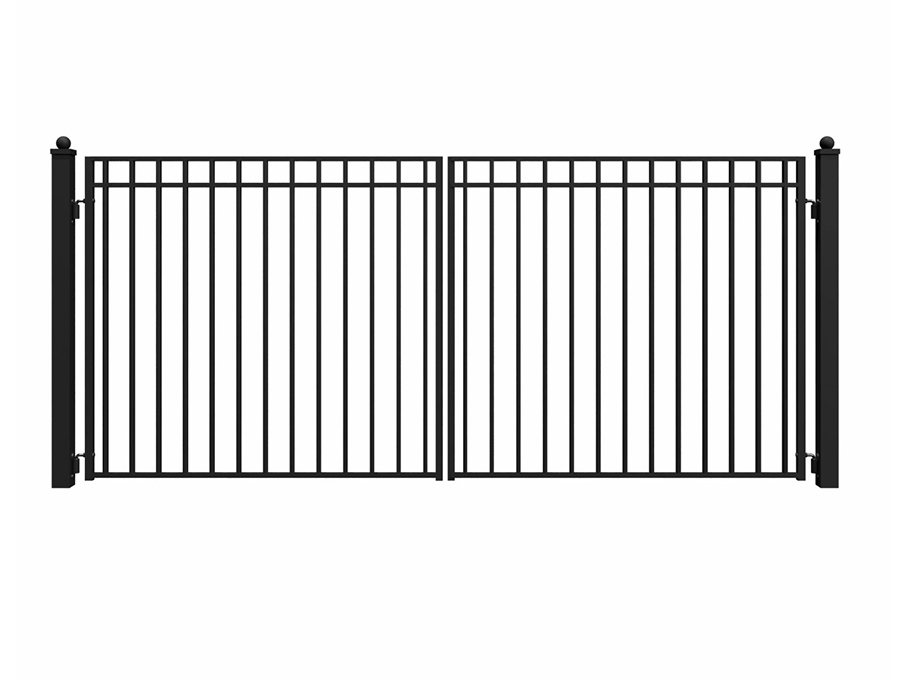

Steel fence double swing gate / Match with steel fence
| Height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m |
| Width | 4.0 m, 4.8 m, 6.0 m, 10.0 m |
| Vertical Tube Space | 100 mm, 120 mm, 150 mm, 170 mm |
| Tube Size | 15 × 15 mm, 19 × 19 mm, 30 × 30 mm, 40 × 40 mm |
| Post（square) | 60 × 60 mm, 80 × 80 mm, 100 × 100 mm |
| Surface Treatment | Hot dipped galvanized, powder coating |

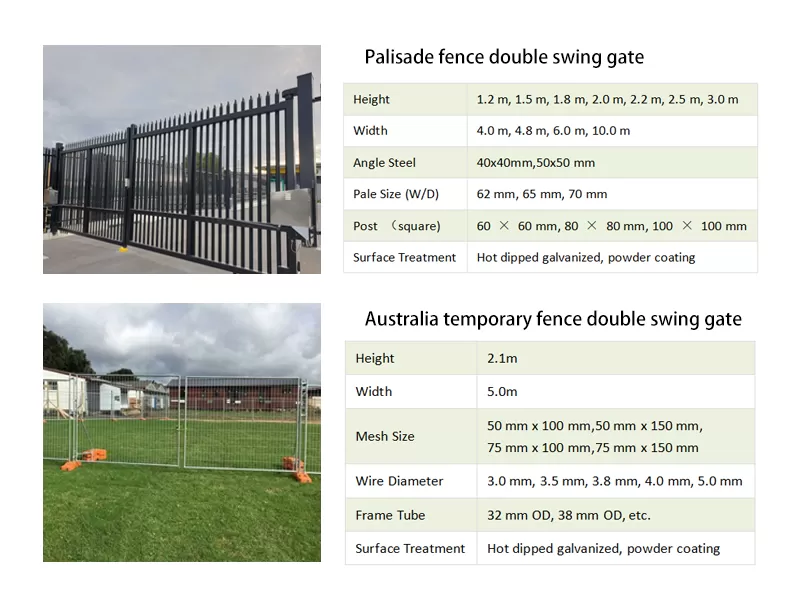

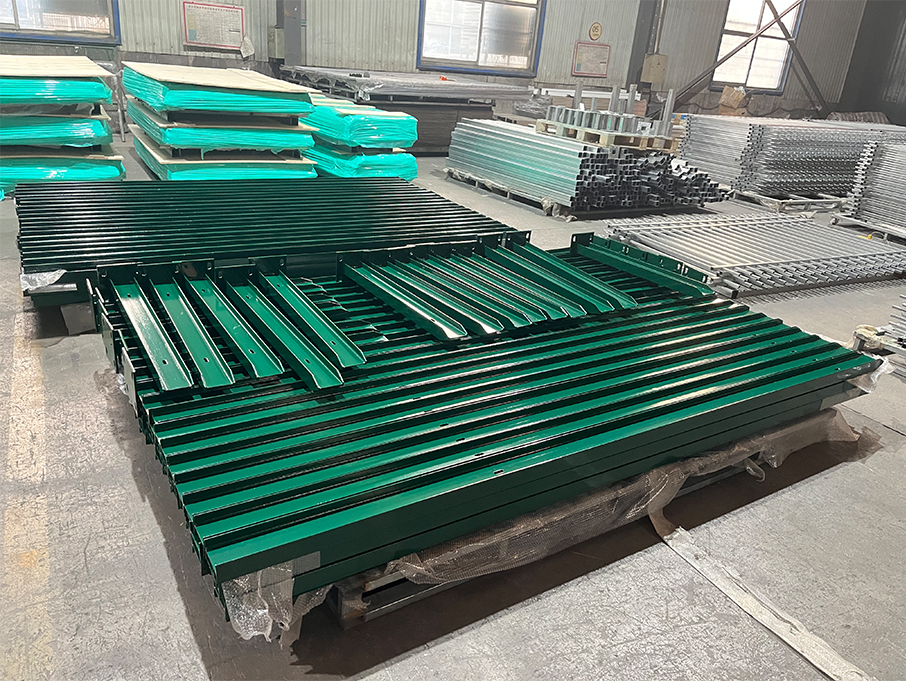

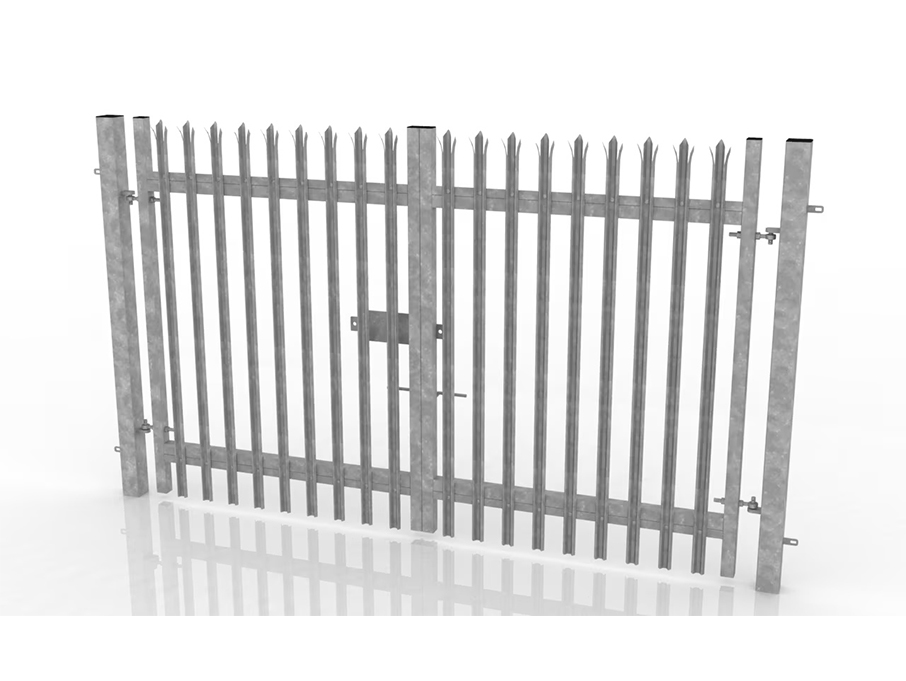

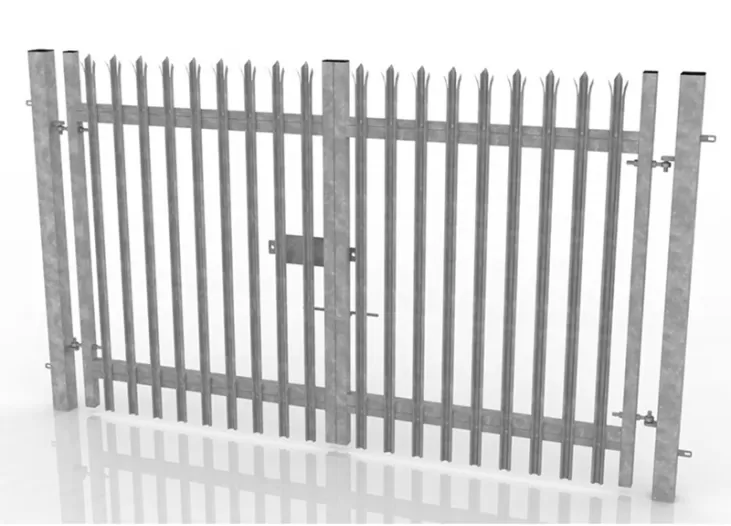

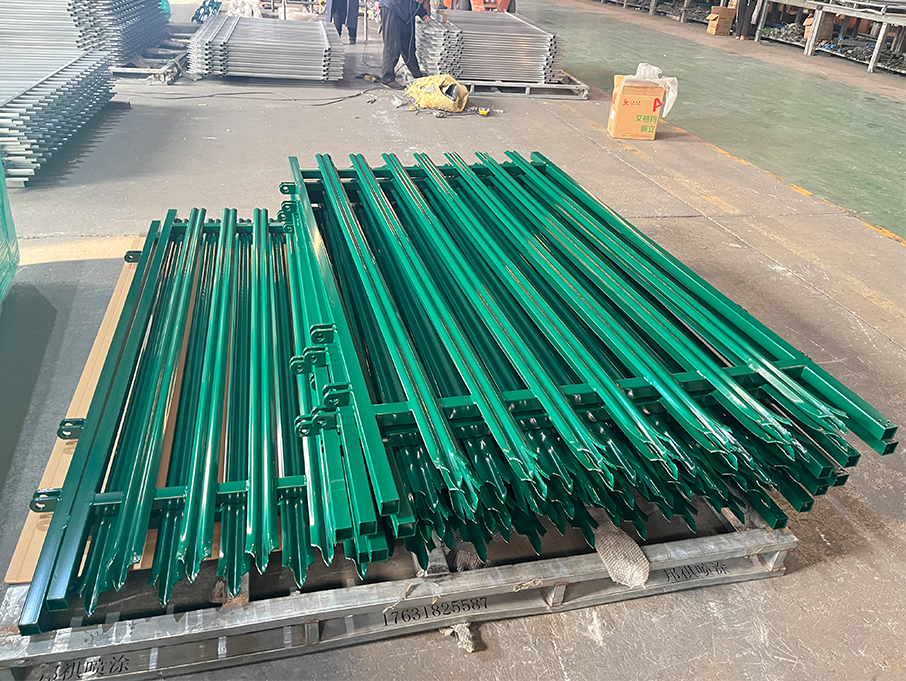

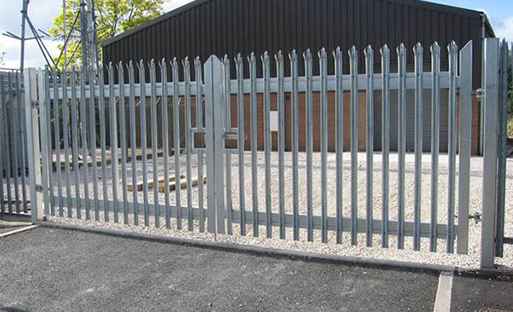

Palisade fence double swing gate / Match with palisade fencing
| Height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m |
| Width | 4.0 m, 4.8 m, 6.0 m, 10.0 m |
| Angle Steel | 40 × 40 mm, 50 × 50 mm |
| Pale Size (W/D) | 62 mm, 65 mm, 70 mm |
| Post（square) | 60 × 60 mm, 80 × 80 mm, 100 × 100 mm |
| Surface Treatment | Hot dipped galvanized, powder coating |

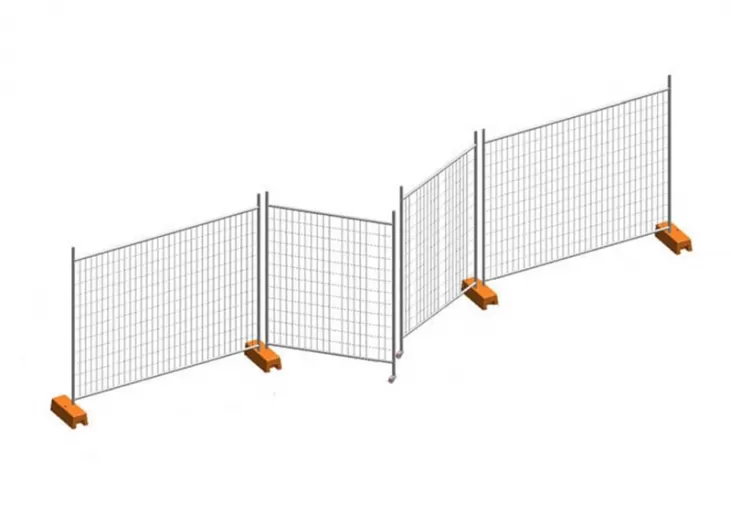

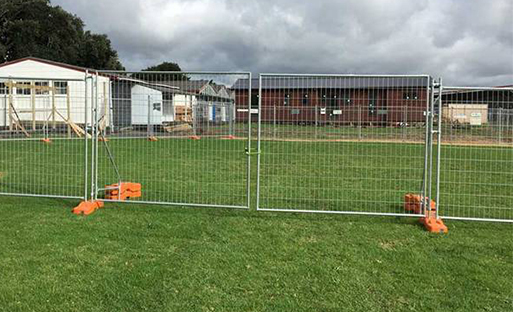

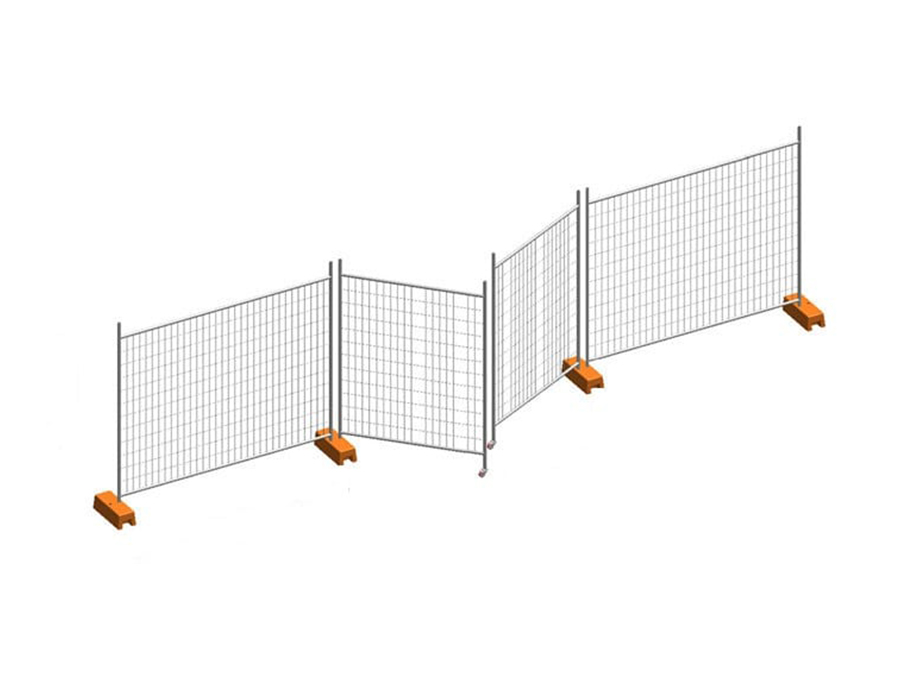

Australia temporary fence double swing gate / Match with Australia temporary fence
| Height | 2.1m |
| Width | 5.0m |
| Mesh Size | 50 mm × 100 mm, 50 mm × 150 mm, 75 mm × 100 mm,75 mm × 150 mm |
| Wire Diameter | 3.0 mm, 3.5 mm, 3.8 mm, 4.0 mm, 5.0 mm |
| Frame Tube | 32 mm OD, 38 mm OD, etc. |
| Surface Treatment | Hot dipped galvanized |

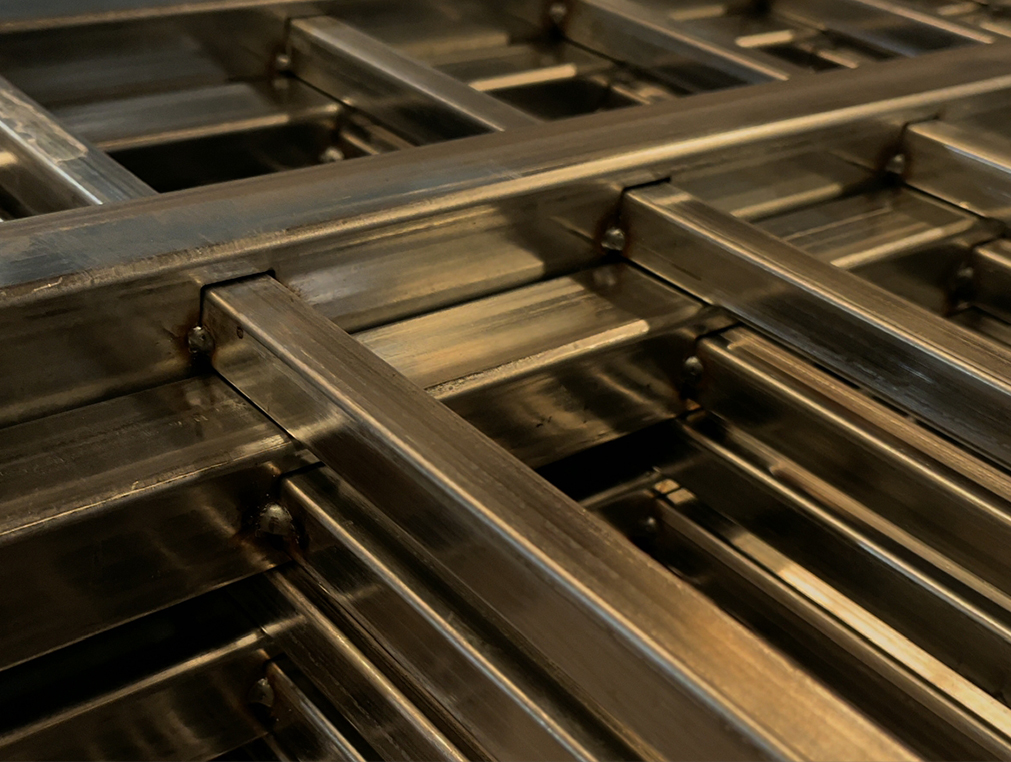

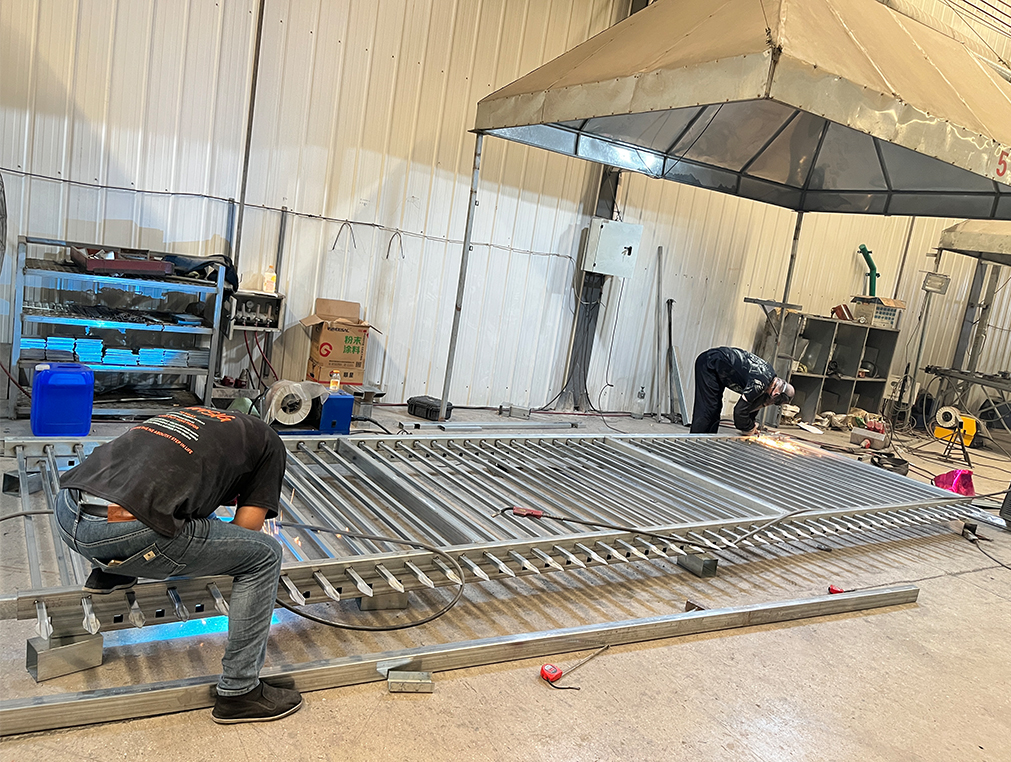

Durable Construction: Fully welded galvanized steel frame with superior strength.
Corrosion Protection: Hot-dip galvanizing and powder coating ensure 20+ years of outdoor performance.
Custom Dimensions: Available in 8 ft, 10 ft, 12 ft, or custom widths.

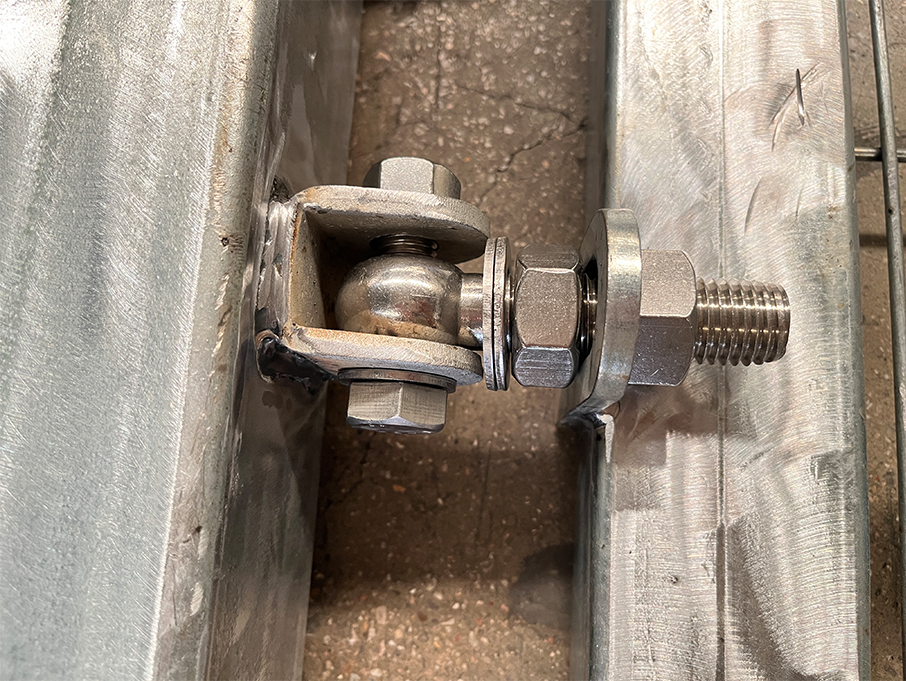

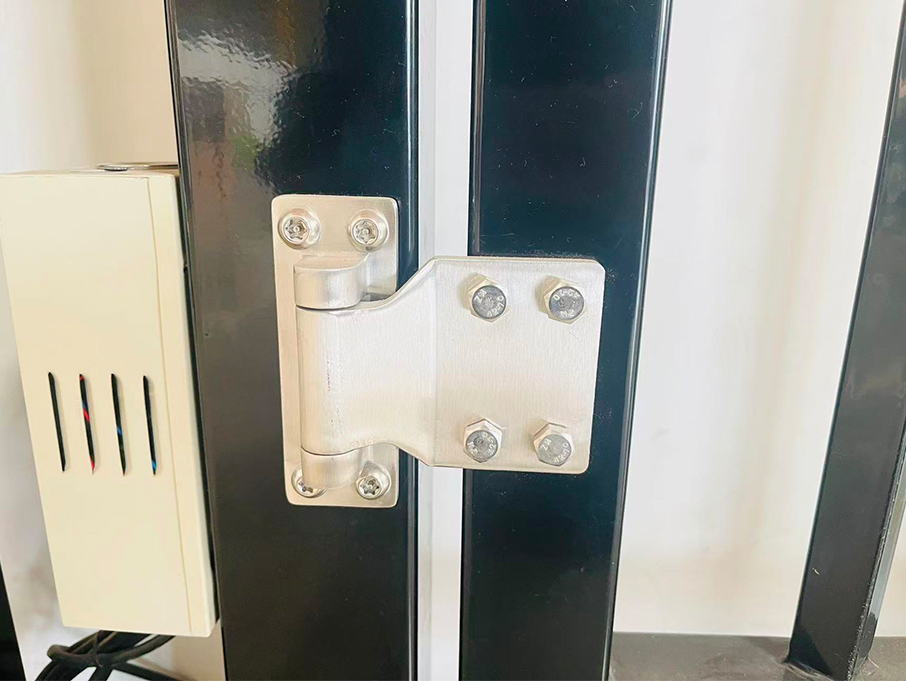

Smooth Operation: Adjustable hinges and precision alignment for stable performance.
Automation Ready: Compatible with electric or hydraulic dual swing gate openers.

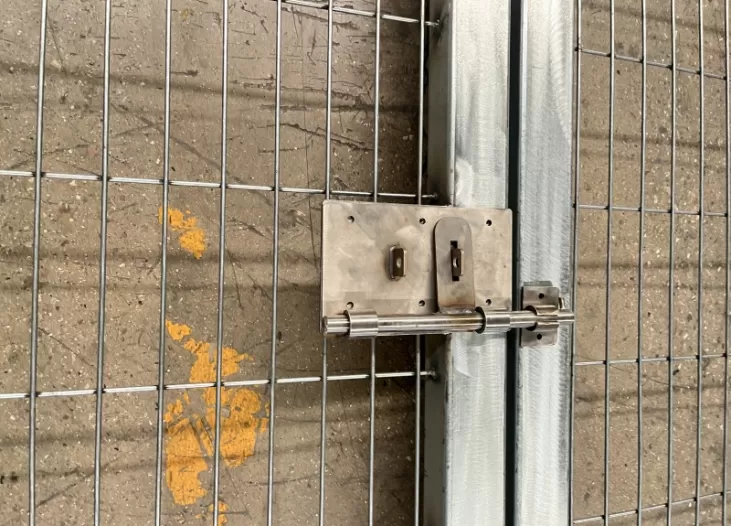

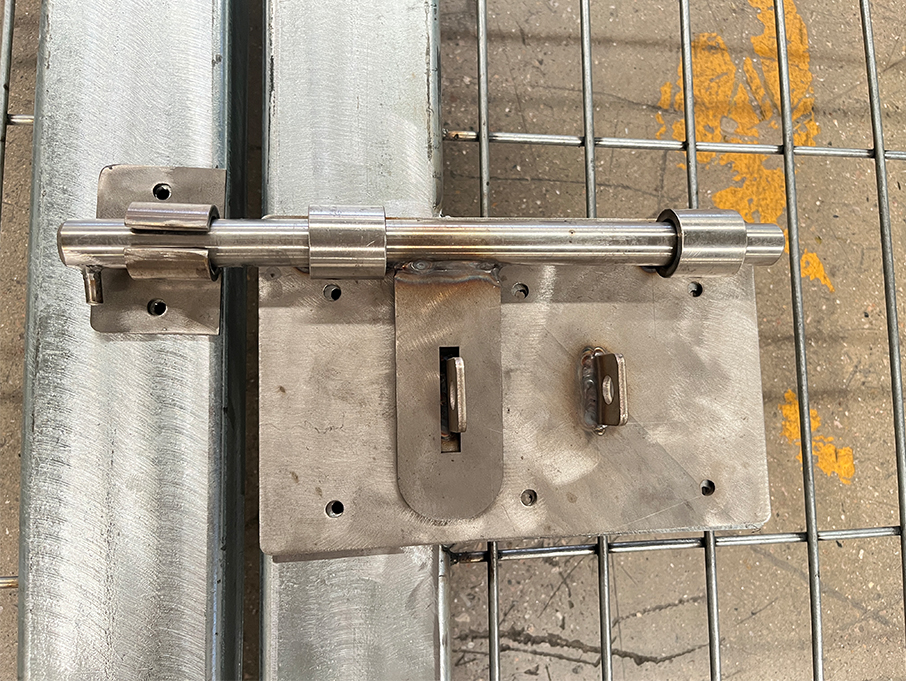

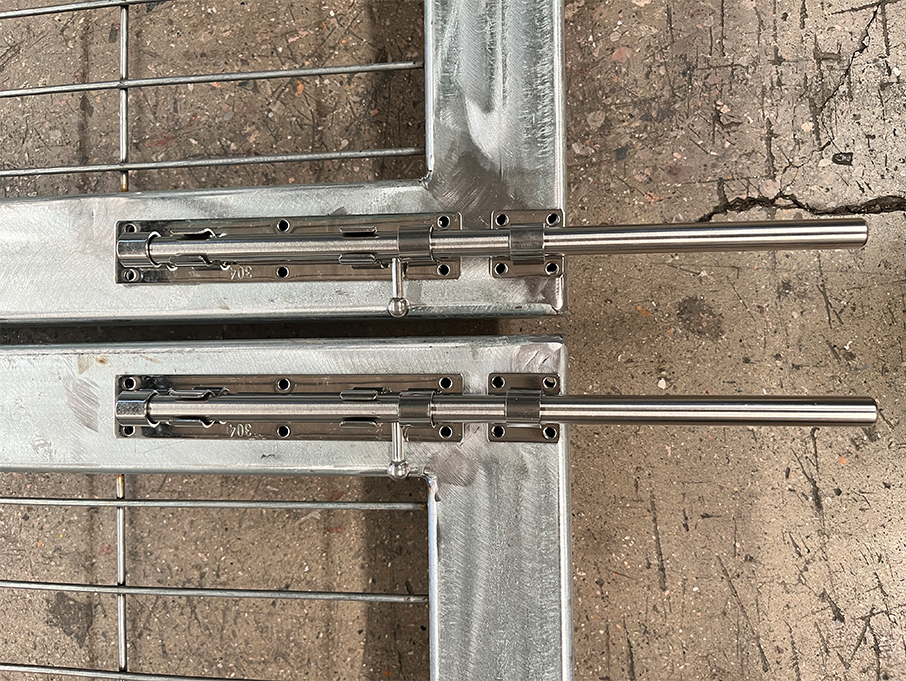

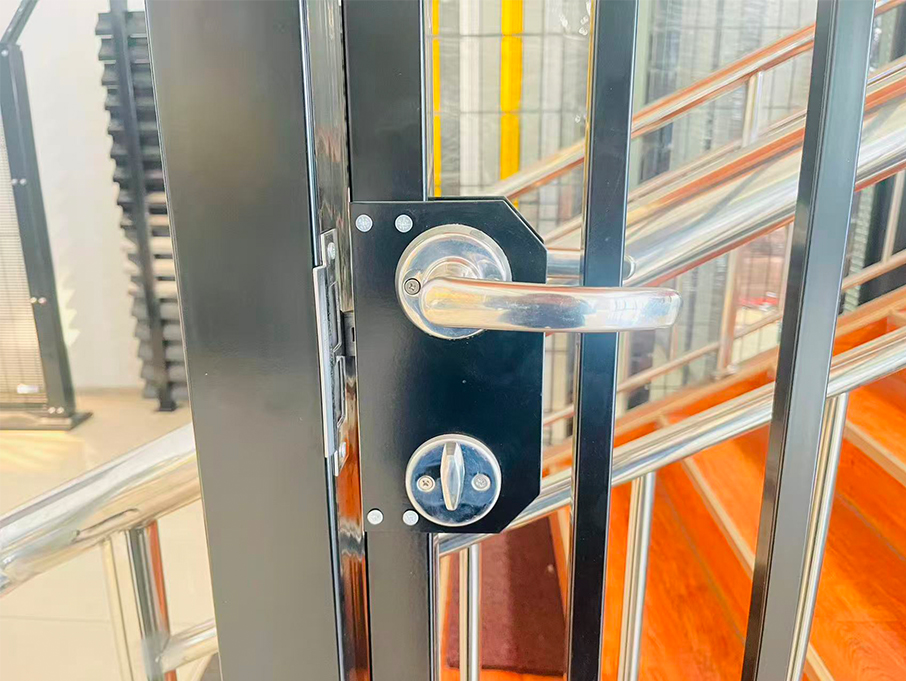

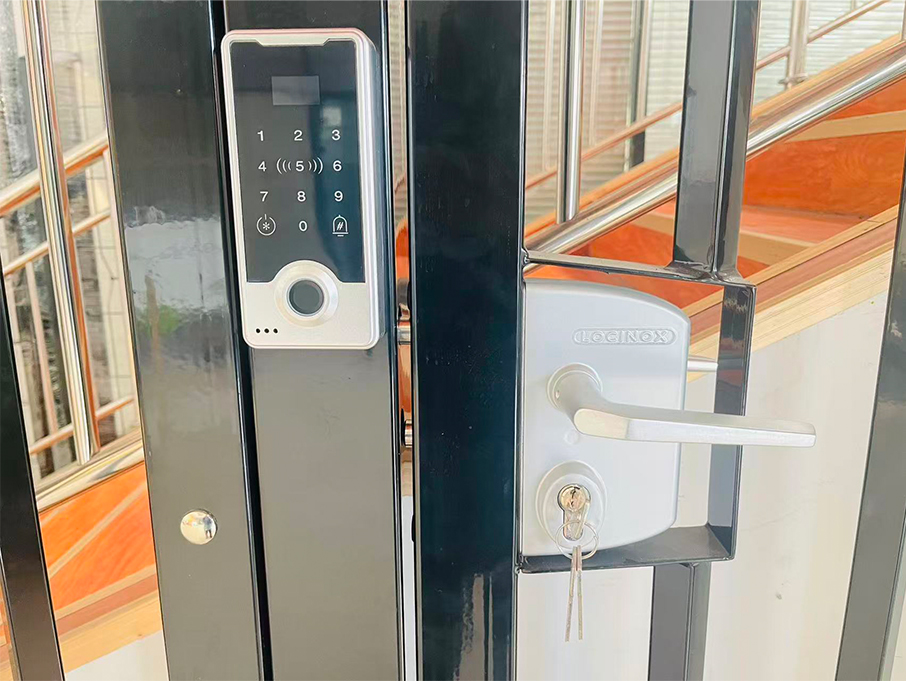

Secure Design: Optional lock system, anti-climb mesh, or reinforced bar infill.
Factory-direct manufacturing in China
Advanced Swiss powder coating line
OEM / ODM design service available
Strong R&D capability and strict inspection standards
Over 10 years of export experience serving Europe, Australia, and Asia
Embedded Post Installation: Secure posts directly into concrete foundations.
Base Plate Type: For bolted installation on solid ground surfaces.

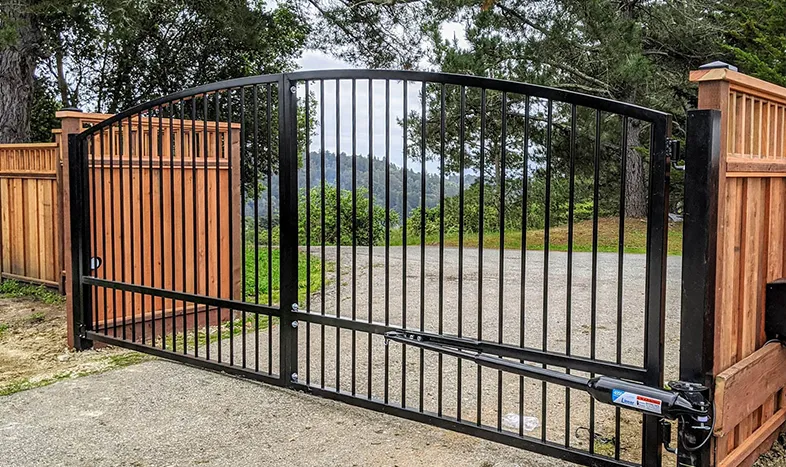

Gate Automation: Optional actuator system for automatic opening and closing.
Pedestrian Gate Matching: Combine with single gate for easy pedestrian access.

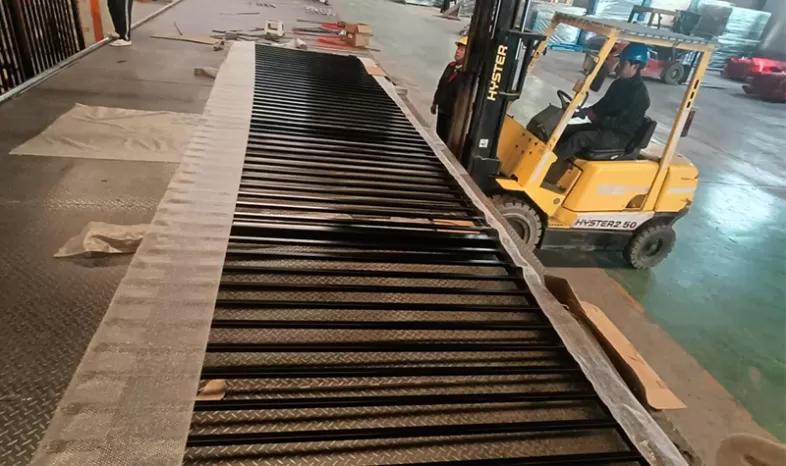

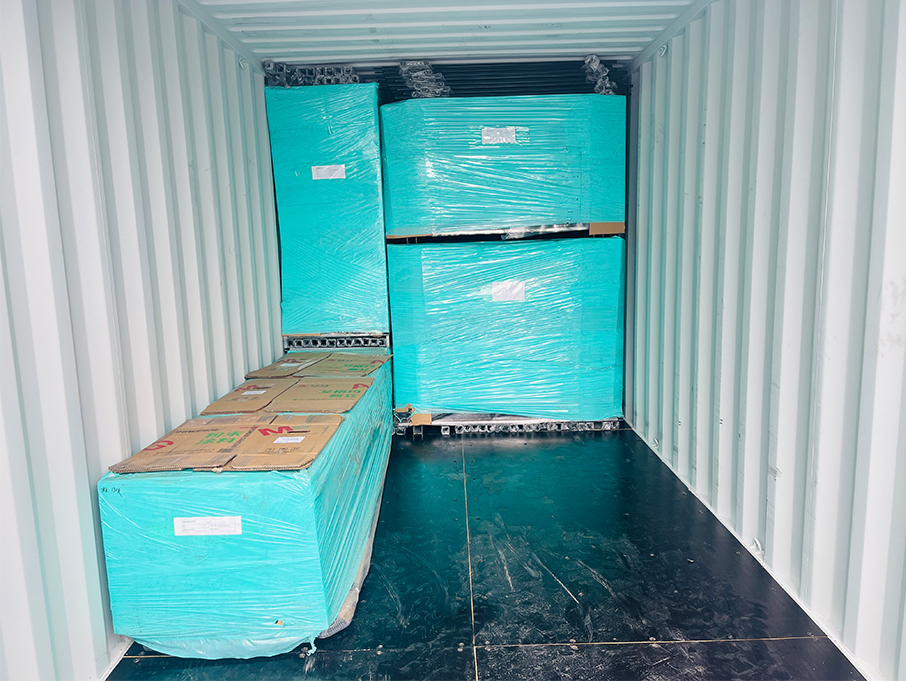

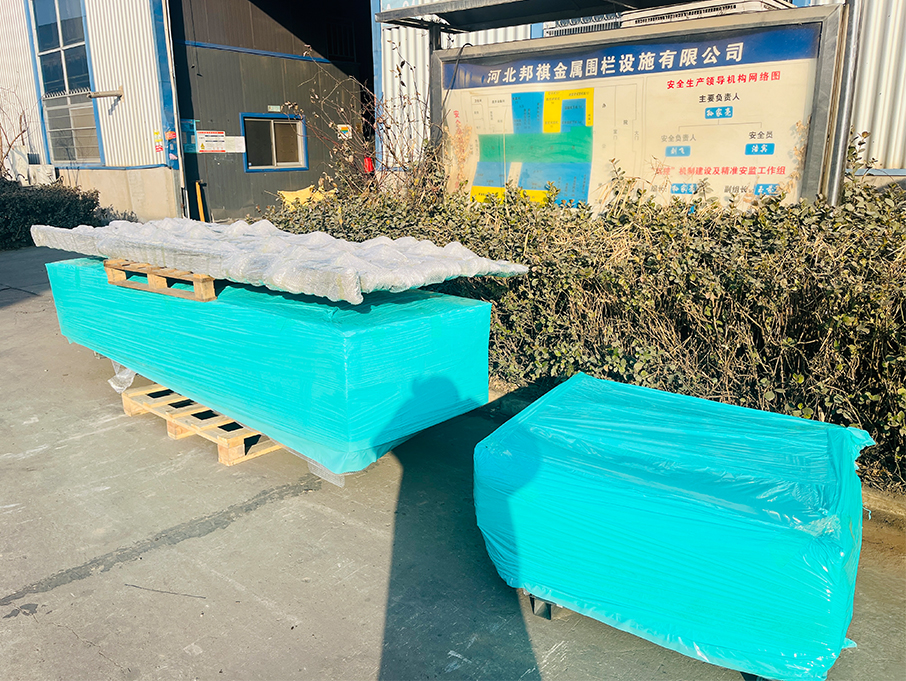

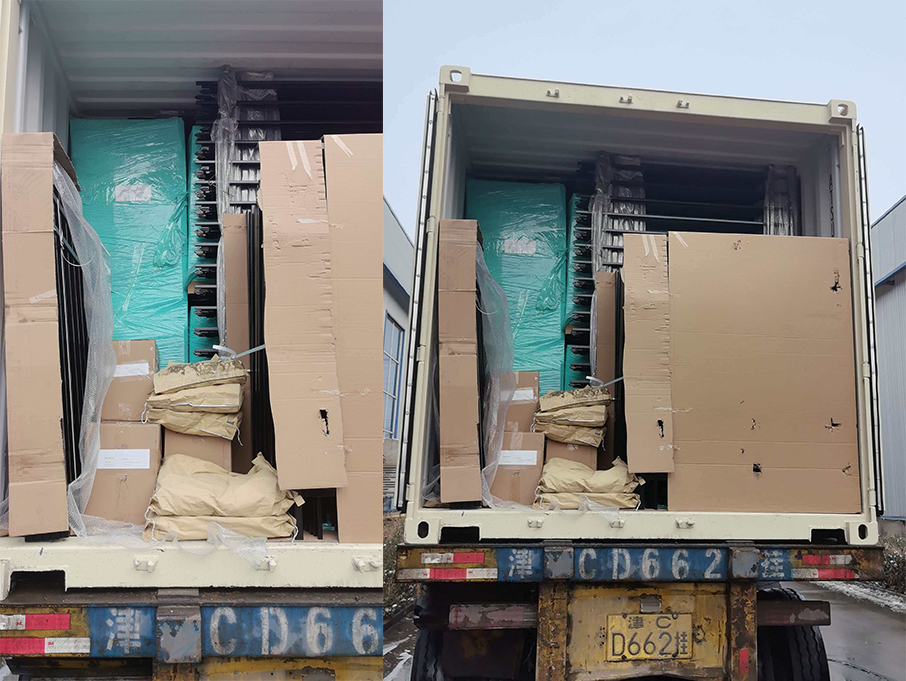

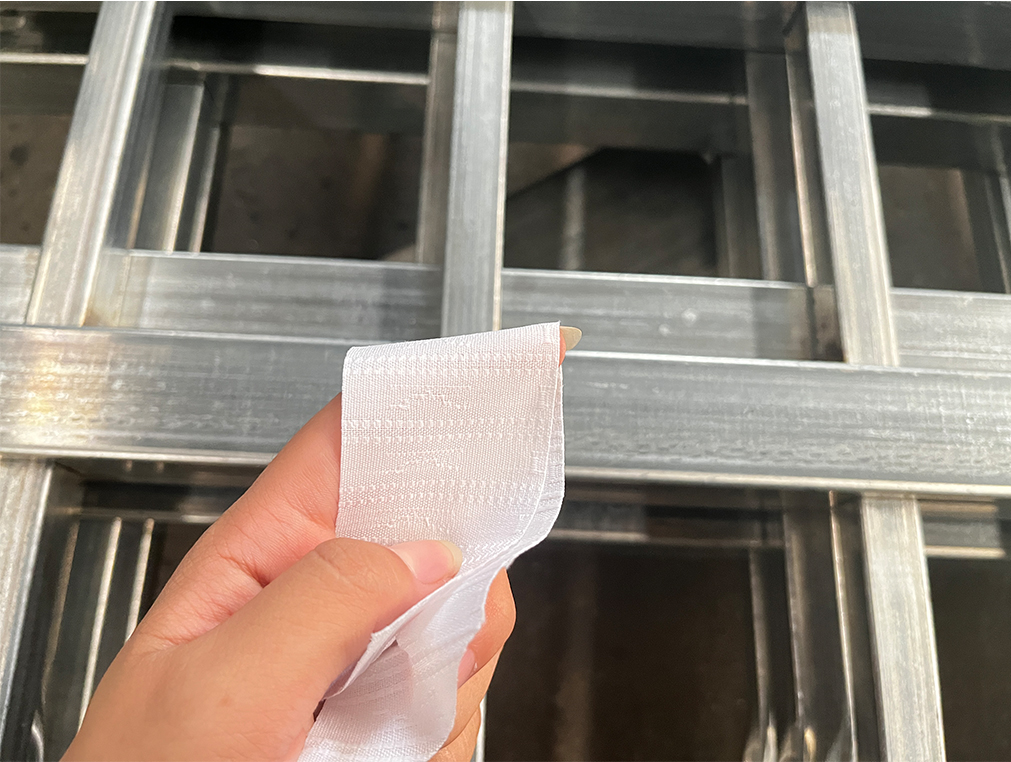

Depending on the surface treatment of the triangle bending mesh panels, there can be two different types of packing.
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence

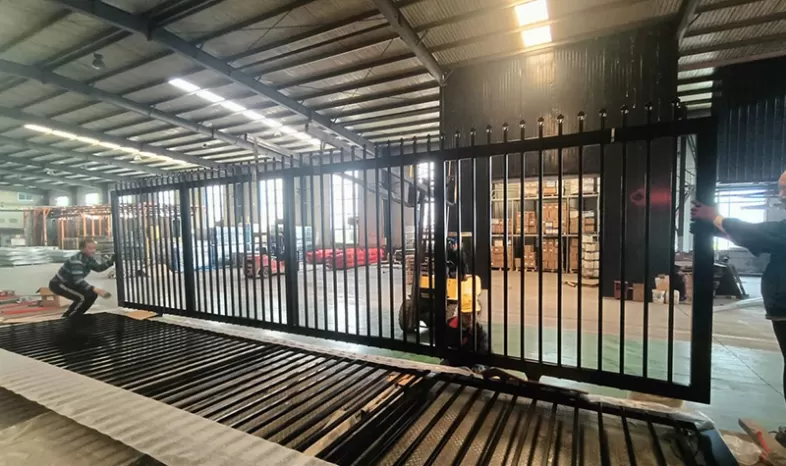

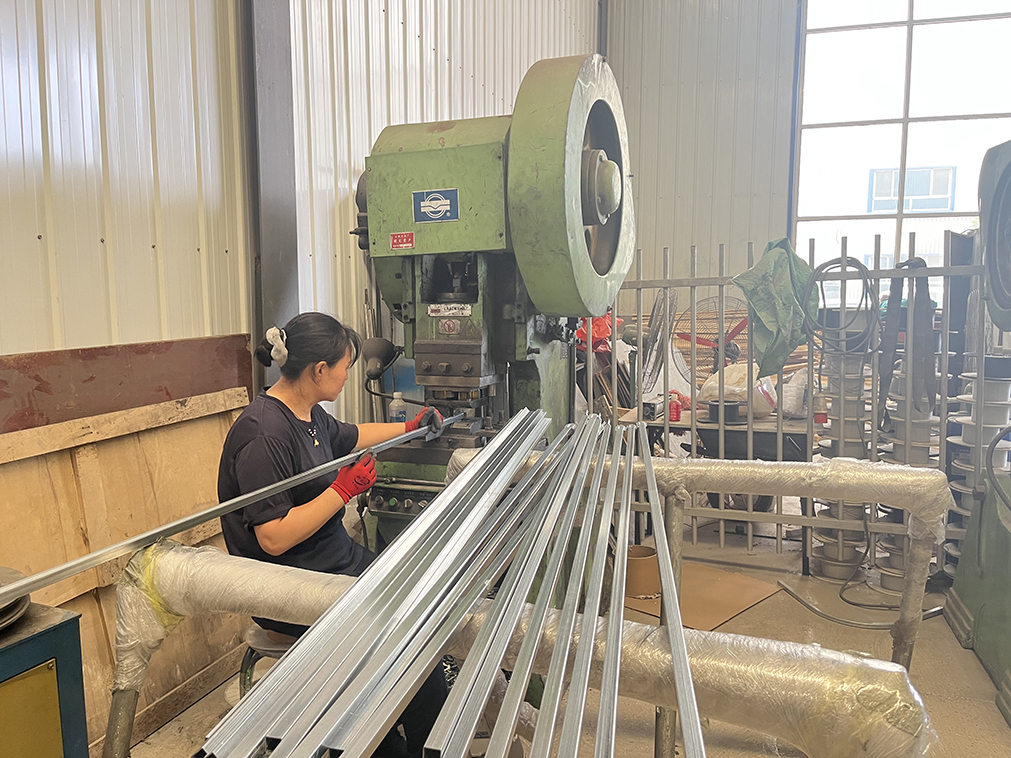

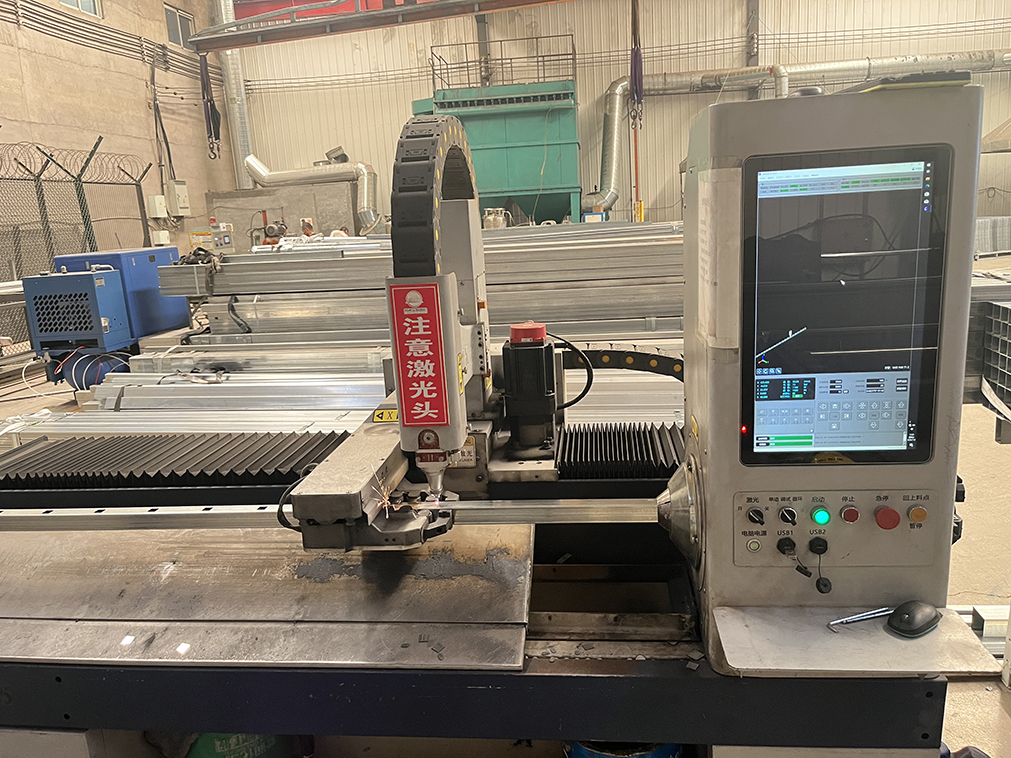

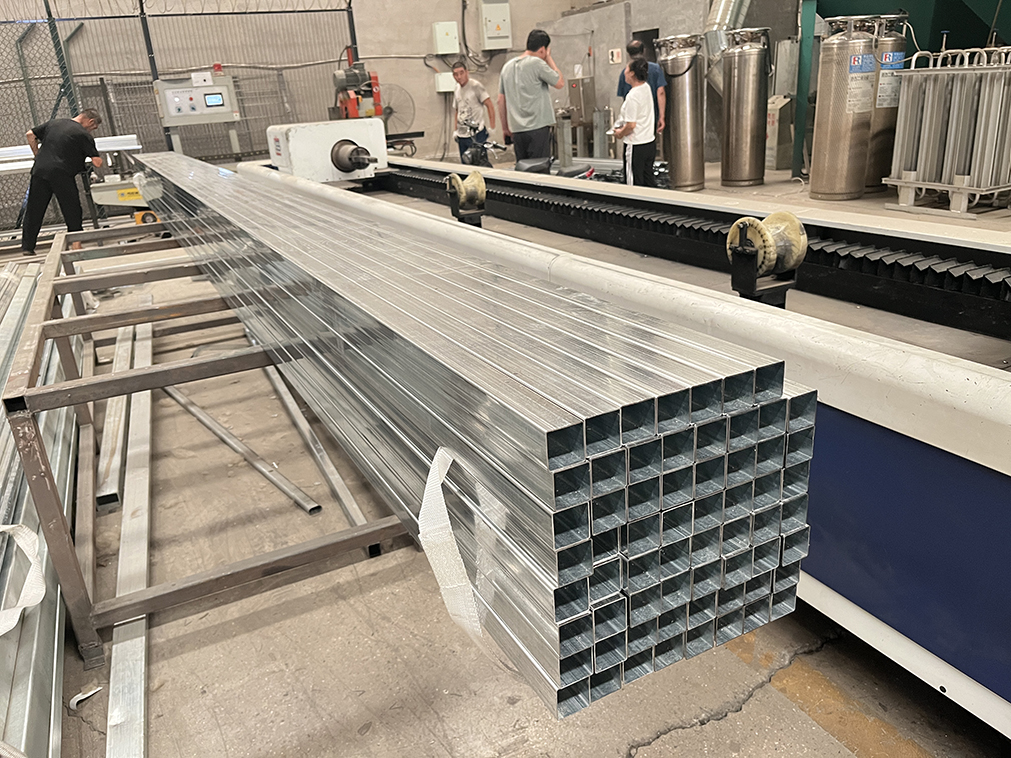

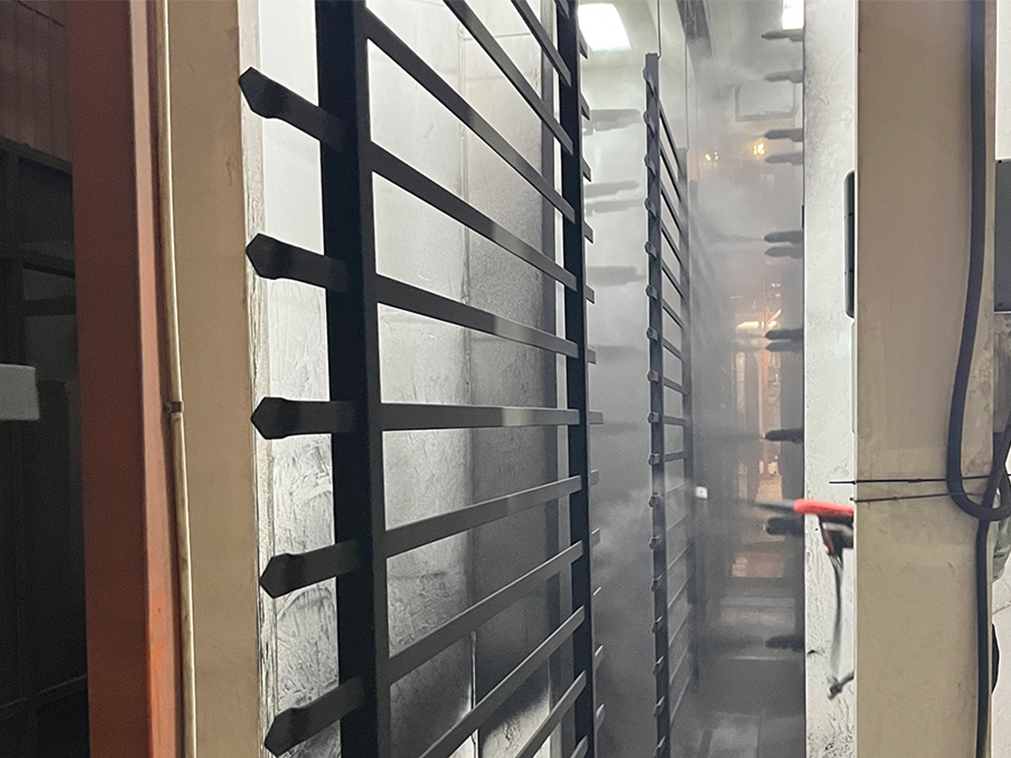

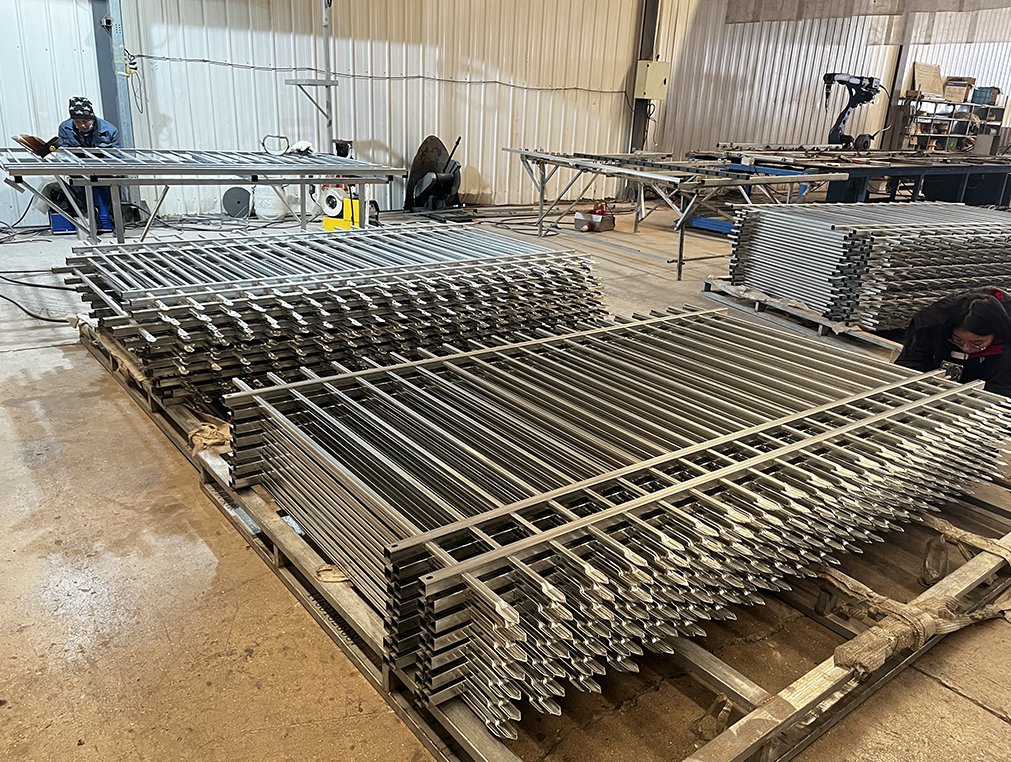

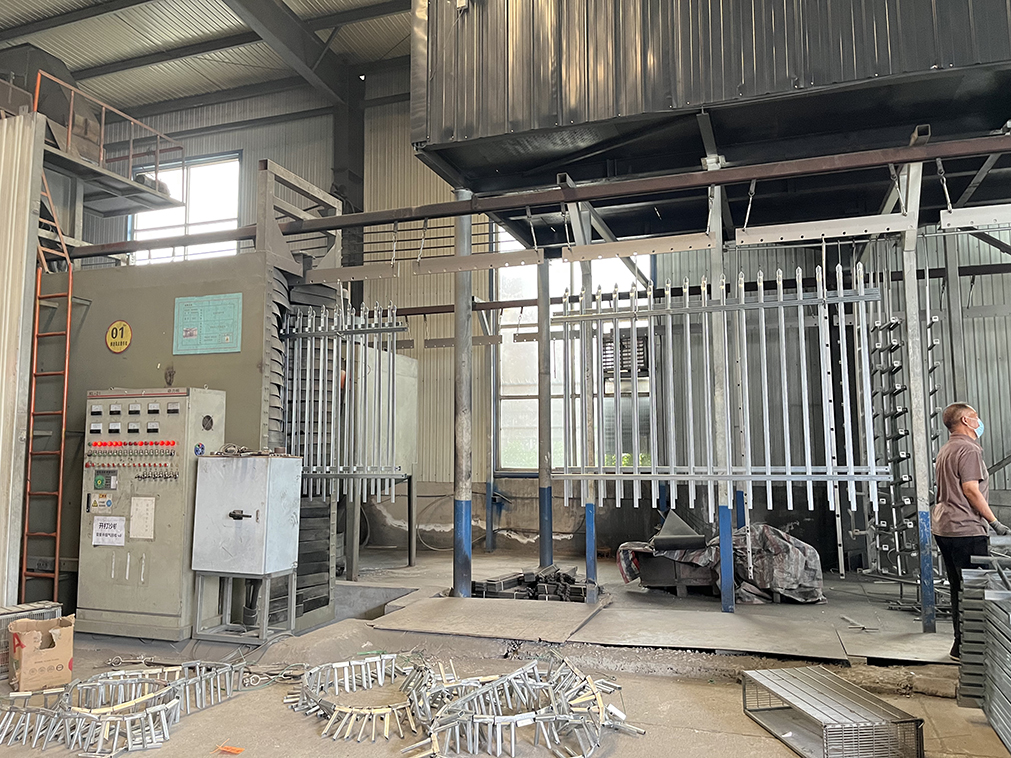

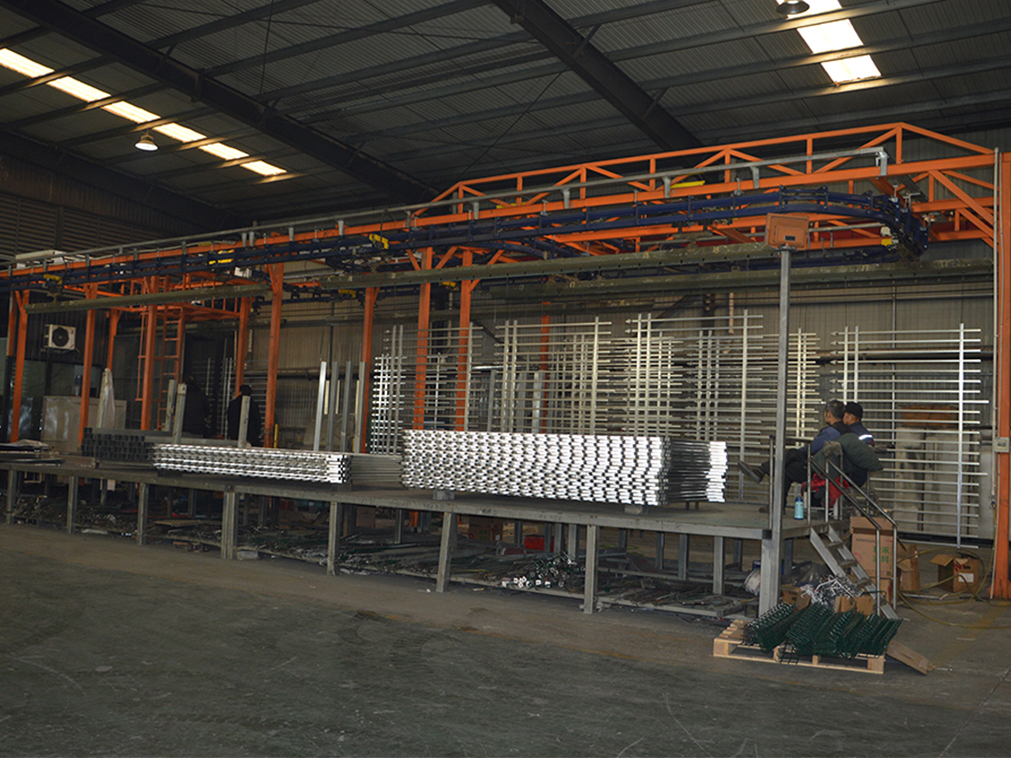

BONKFC has the advanced auto production line: laser cutting machine, welding robot automobiles machine, automatic dense mesh welding machine, double wire mesh welding machine, CNC bending machine, peach pipe machine, square steel pipe, shaped pipe production line, we have the environmental production line for phosphorization ,automatic spraying.
