Gate

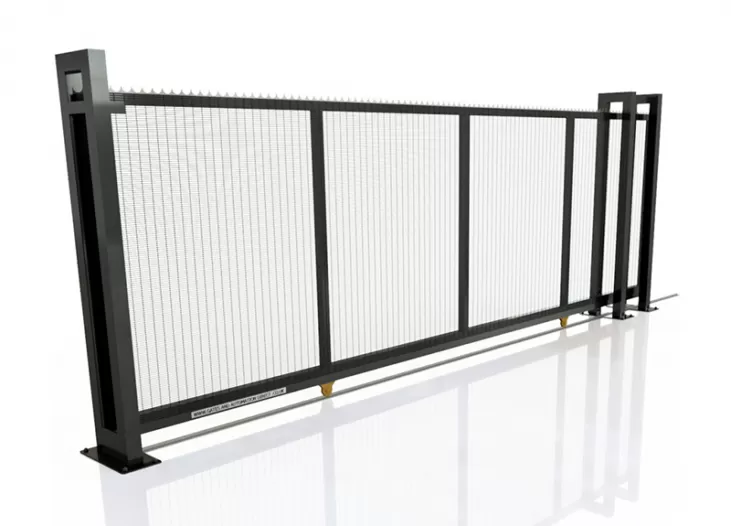

Name: Sliding Gate
Material: Q195/Q235 wire and pipe
Brand: BONKFC Fence
From: China BONKFC
Color: Black9005, Black Green 6005, Grey7016
AkzoNobel Polyester Finish Powder Coating realize exceptional weather resistance and surface self-cleaning performance(rain wash or spray-wash can resume bright and clean surface).

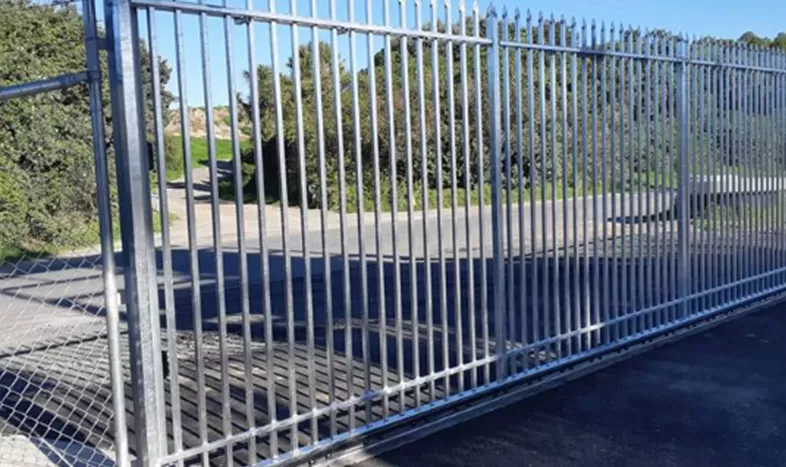

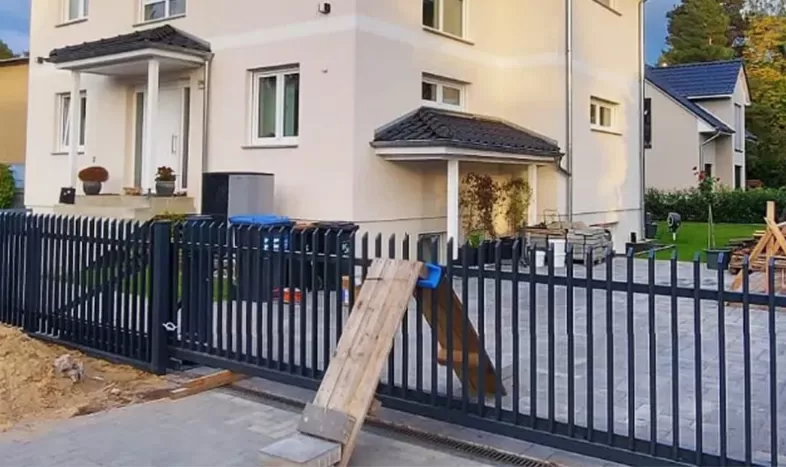

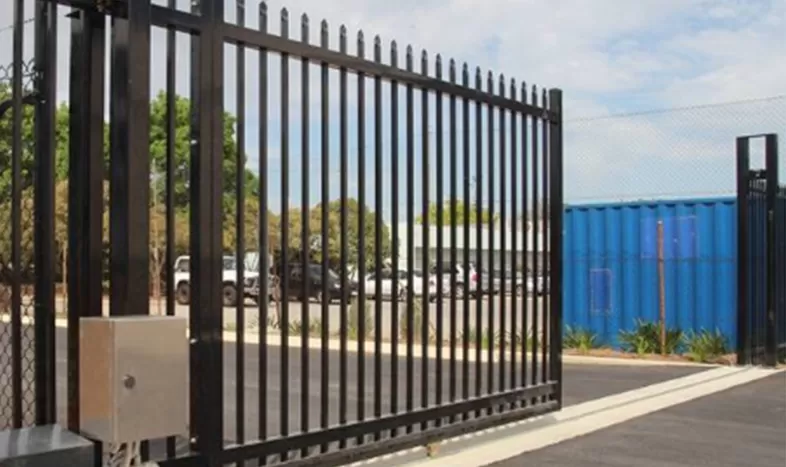

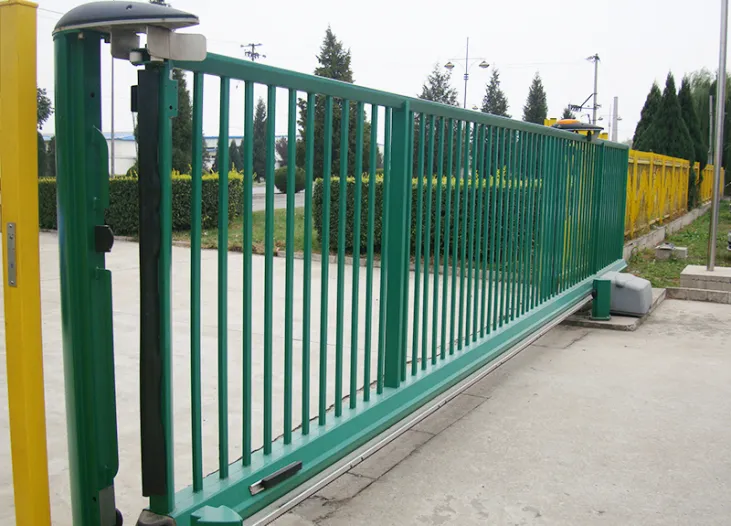

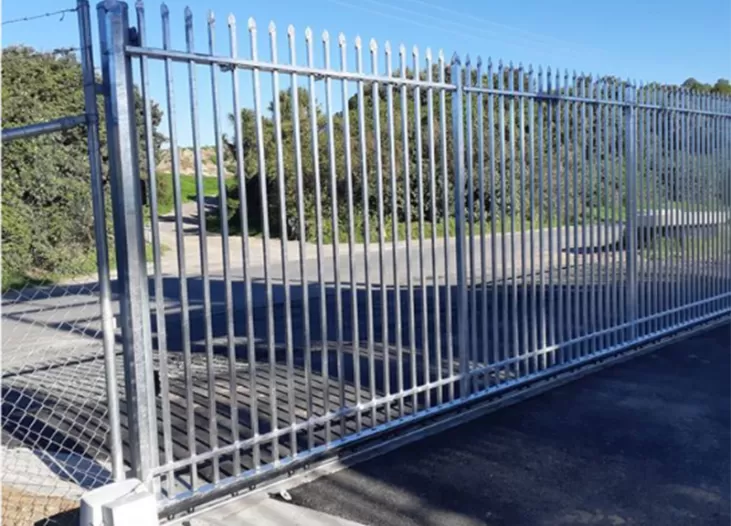

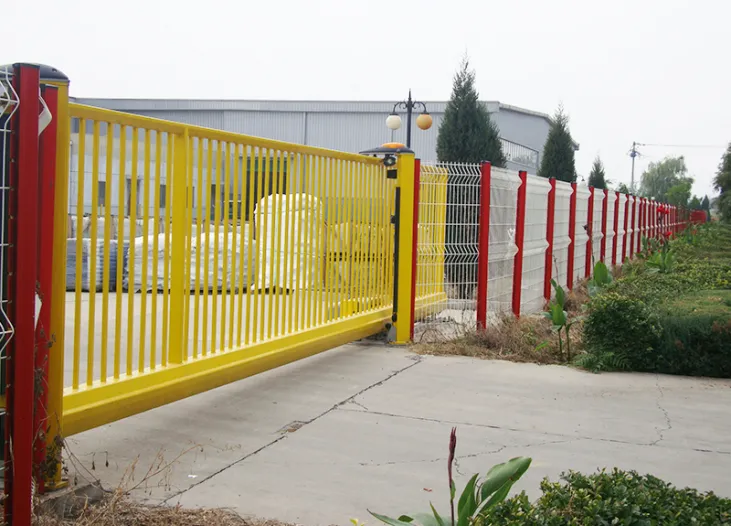

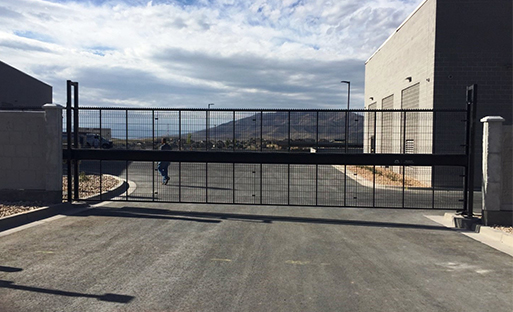

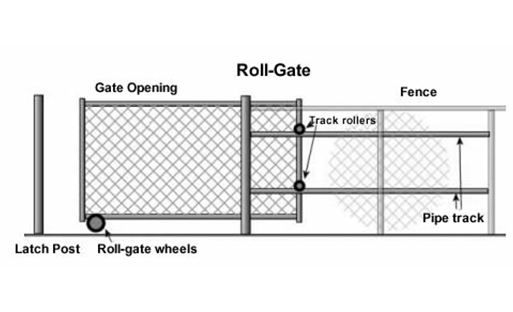

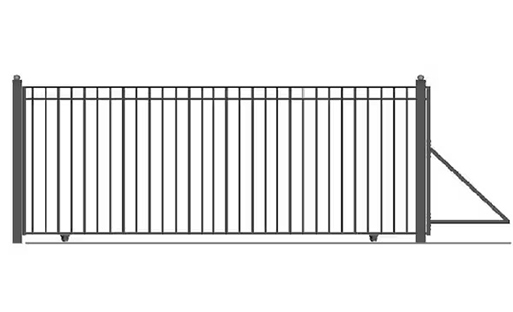

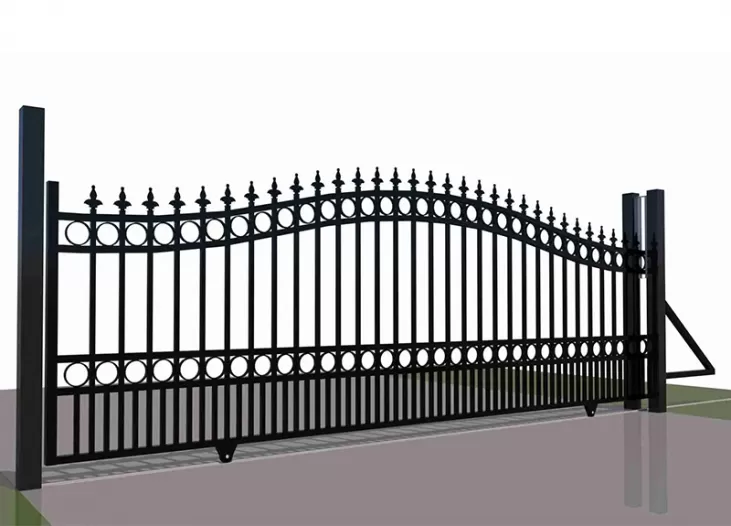

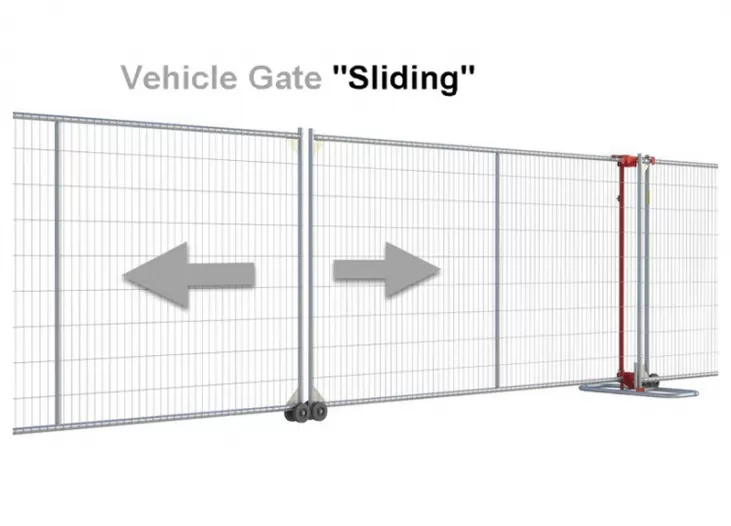

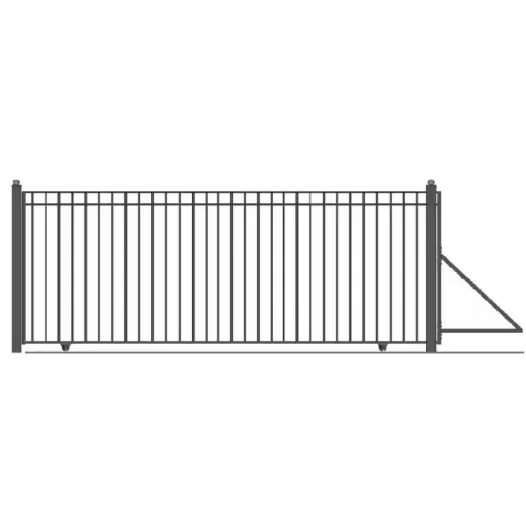

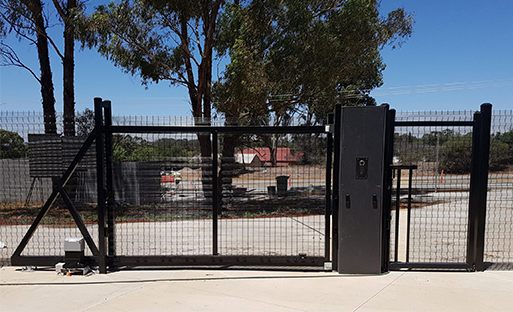

Sliding gate is generally used for both vehicle and pedestrian entry purpose. It adopts a ground mounted track for the gate wheel to move on. Besides, its line movement makes it do not require large operating space and is perfect for space limited locations. Its tracked sliding can also have larger opening widths. It can work with both manual operating systems and automation systems to allow authorized vehicle & pedestrian access to the fence more easily. We have a variety of sliding gates for chain link fence, curvy welded fence, 358 high security fence, steel fence and palisade fencing for you to choose from.

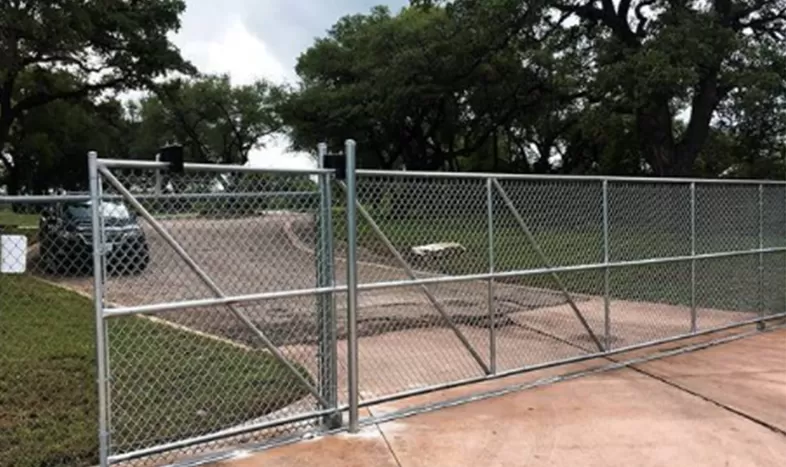

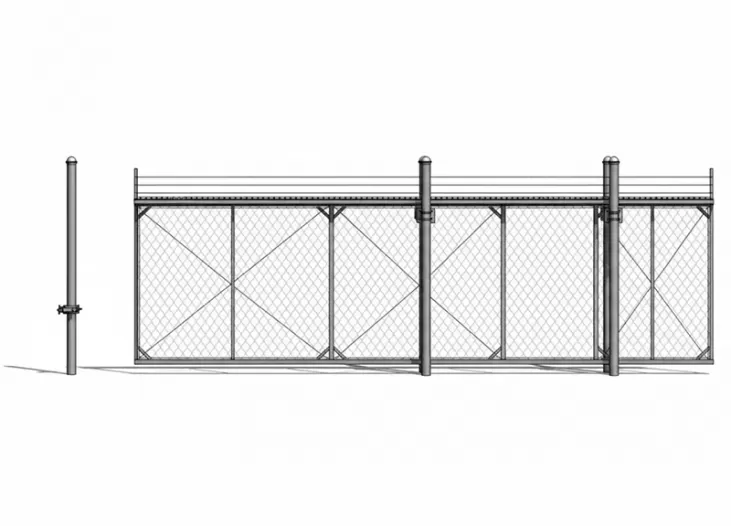

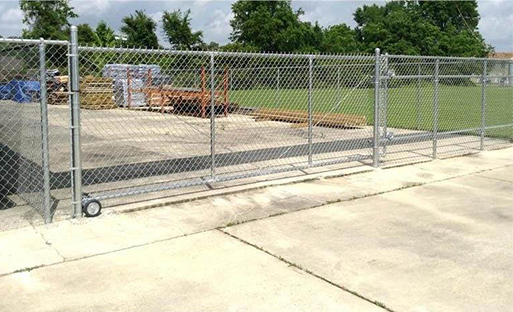

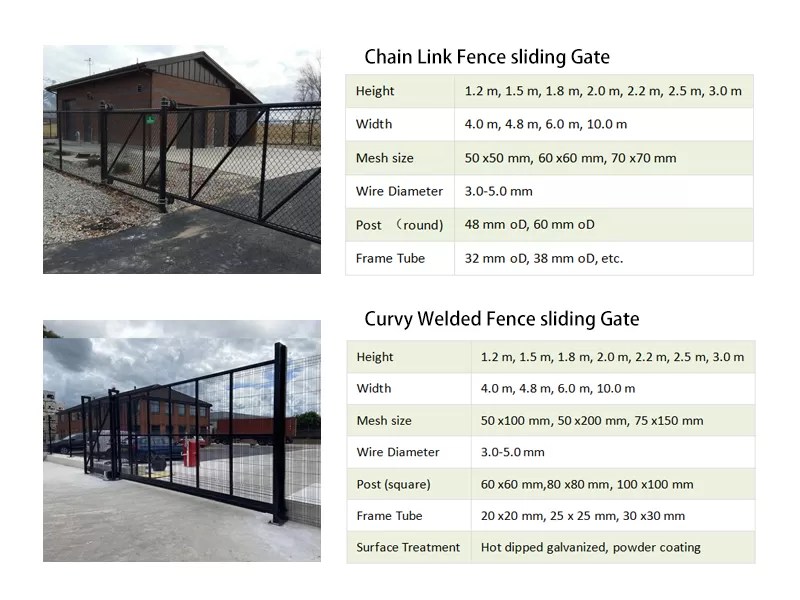

Chain Link Fence Sliding Gate
| Height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m |
| Width | 4.0 m, 4.8 m, 6.0 m, 10.0 m |
| Mesh Size | 50 x 50 mm, 60 x 60 mm, 70 x 70 mm |
| Wire Diameter | 3.0-5.0 mm |
| Post (round) | 48 mm OD, 60 mm OD |
| Frame Tube | 32 mm OD, 38 mm OD, etc. |

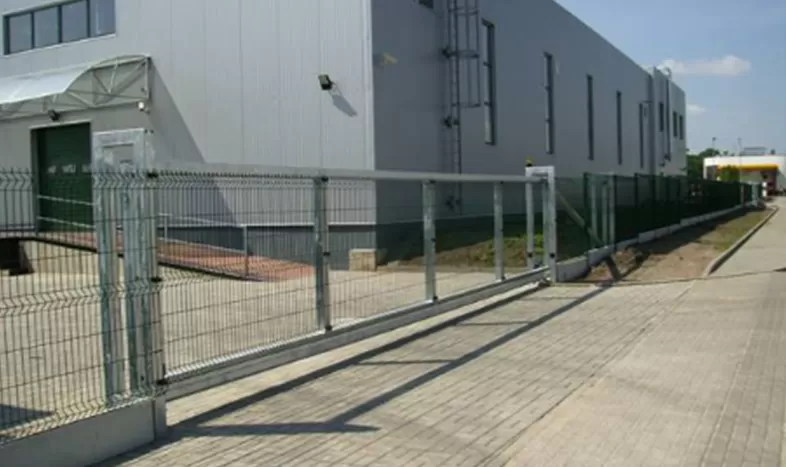

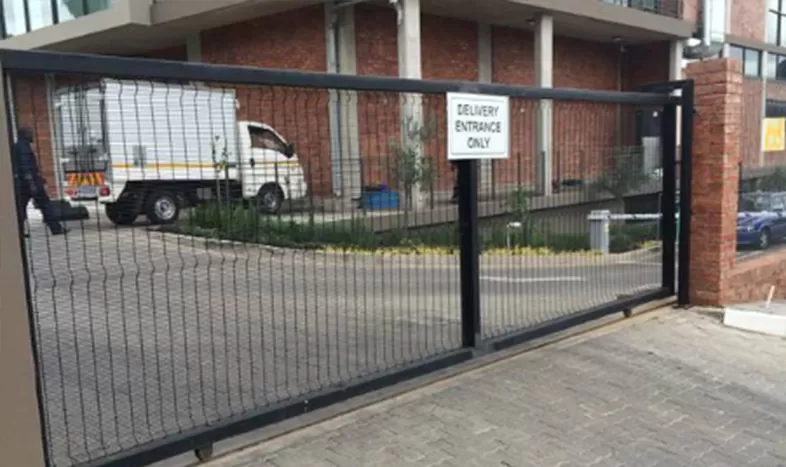

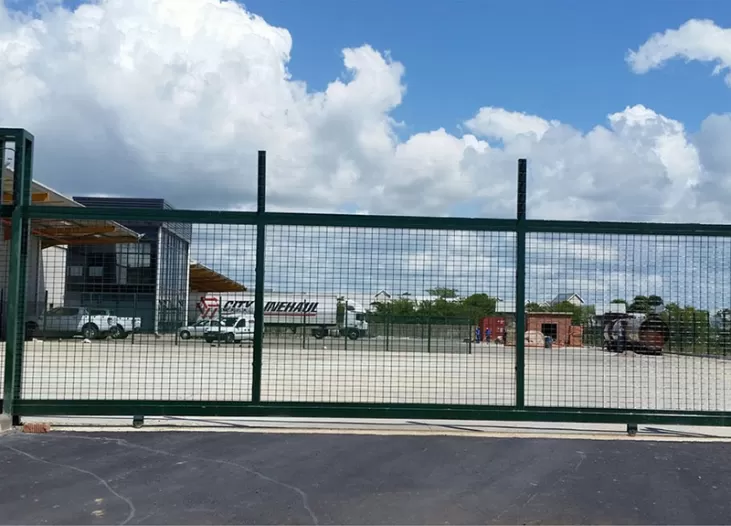

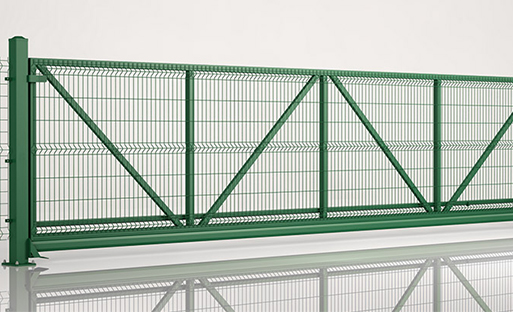

Curvy Welded Fence Sliding Gate
| Height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m |
| Width | 4.0 m, 4.8 m, 6.0 m, 10.0 m |
| Mesh Size | 50 x 100 mm, 50 x 200 mm, 75 x 150 mm |
| Wire Diameter | 3.0-5.0 mm |
| Post (square) | 60 x 60 mm, 80 x 80 mm, 100 x 100 mm |
| Frame Tube | 20 x 20 mm, 25 x 25 mm, 30 x 30 mm |
| Surface Treatment | Hot dipped galvanized, powder coating |

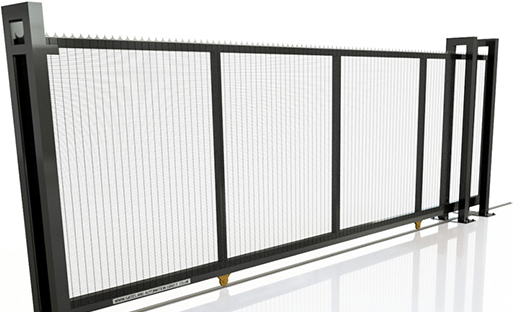

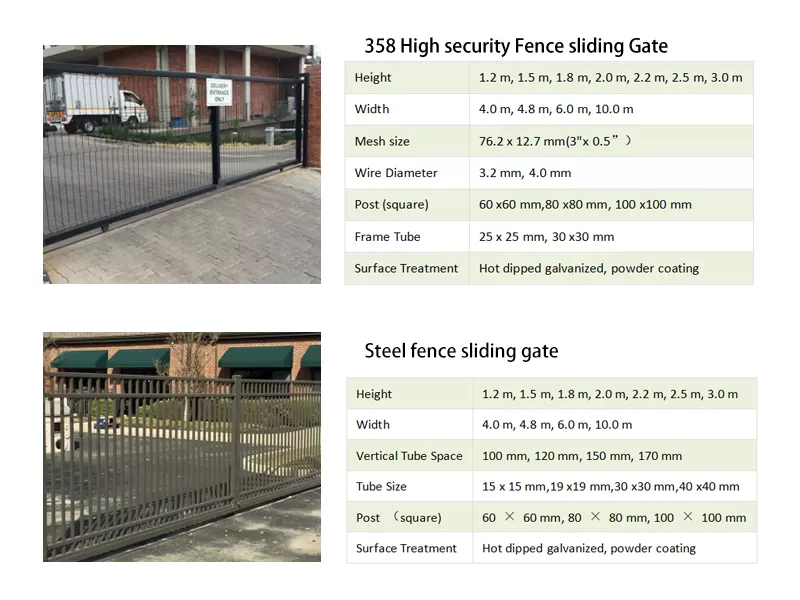

358 High Security Fence Sliding Gate
| Height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m |
| Width | 4.0 m, 4.8 m, 6.0 m, 10.0 m |
| Mesh Size | 76.2 x 12.7 mm (3" x 0.5") |
| Wire Diameter | 3.2 mm, 4.0 mm |
| Post (square) | 60 x 60 mm, 80 x 80 mm, 100 x 100 mm |
| Frame Tube | 25 x 25 mm, 30 x 30 mm |
| Surface Treatment | Hot dipped galvanized, powder coating |

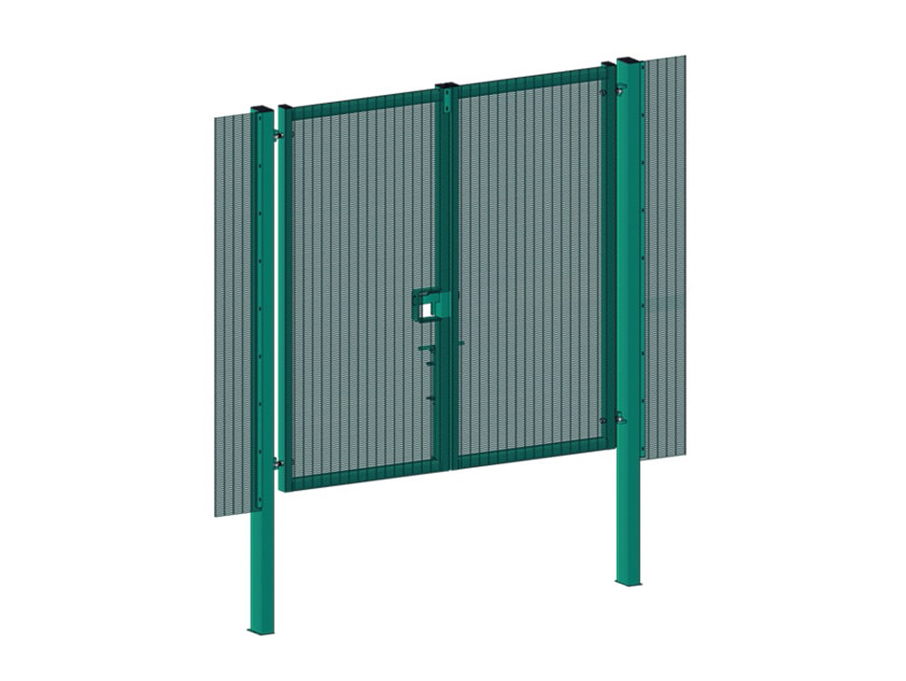

Steel Fence Double Swing Gate
| Height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m |
| Width | 4.0 m, 4.8 m, 6.0 m, 10.0 m |
| Vertical Tube Space | 100 mm, 120 mm, 150 mm, 170 mm |
| Tube Size | 15 x 15 mm, 19 x 19 mm, 30 x 30 mm, 40 x 40 mm |
| Post (square) | 60 x 60 mm, 80 x 80 mm, 100 x 100 mm |
| Surface Treatment | Hot dipped galvanized, powder coating |

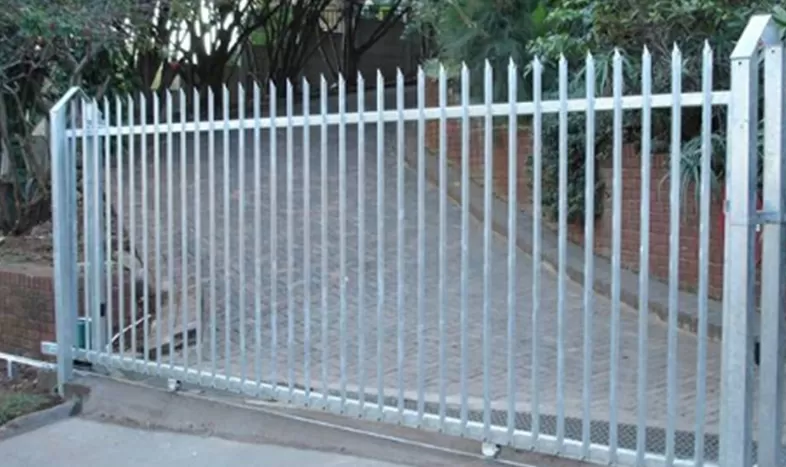

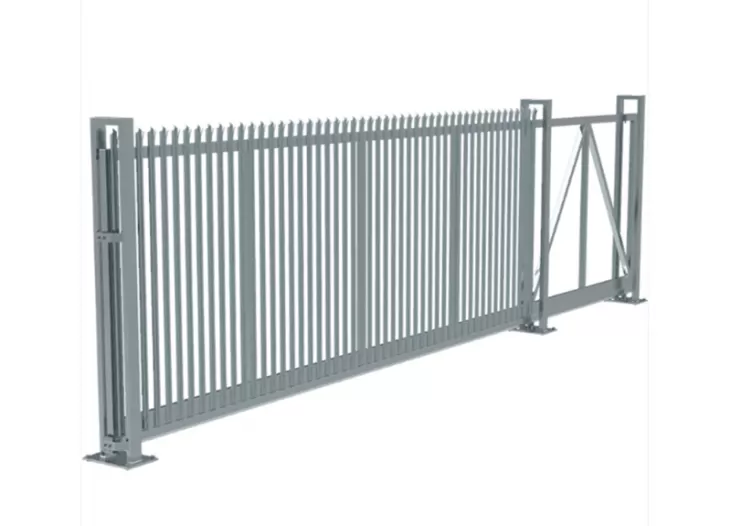

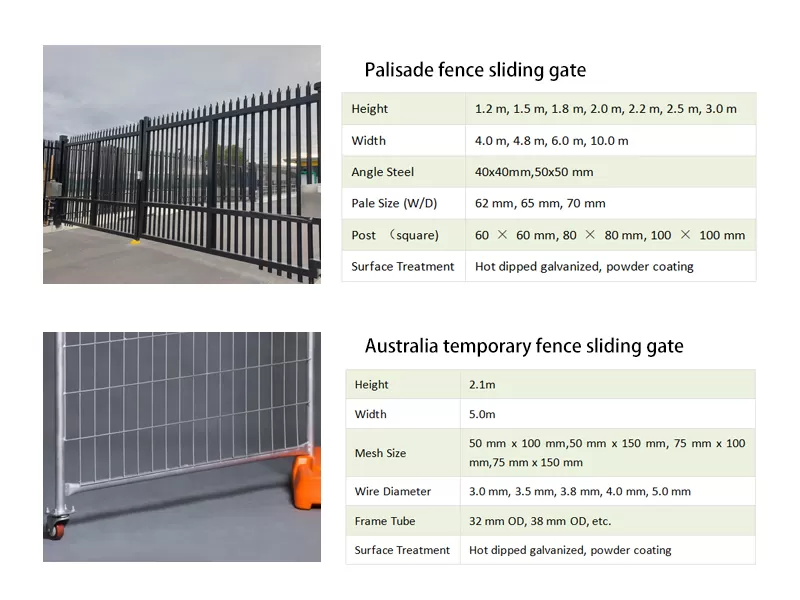

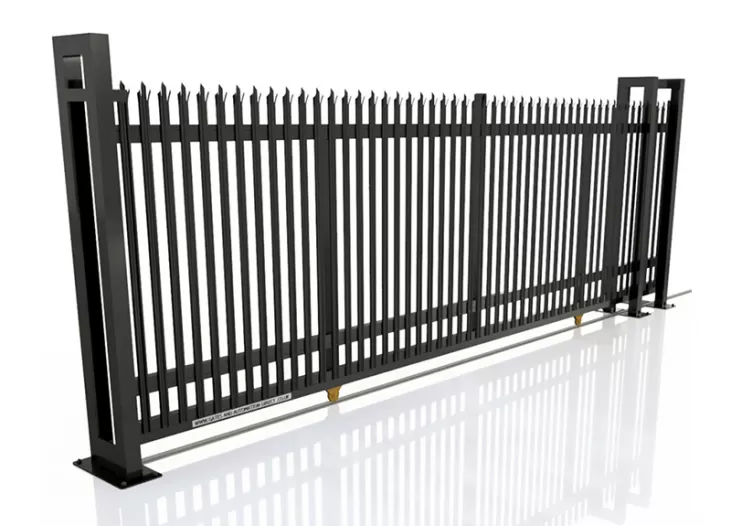

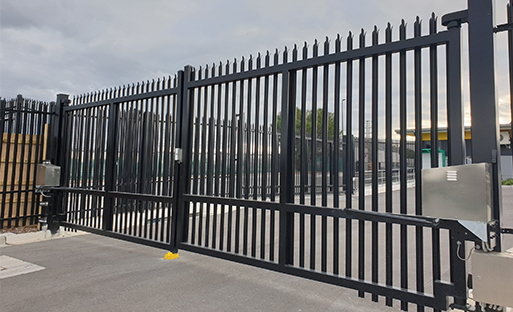

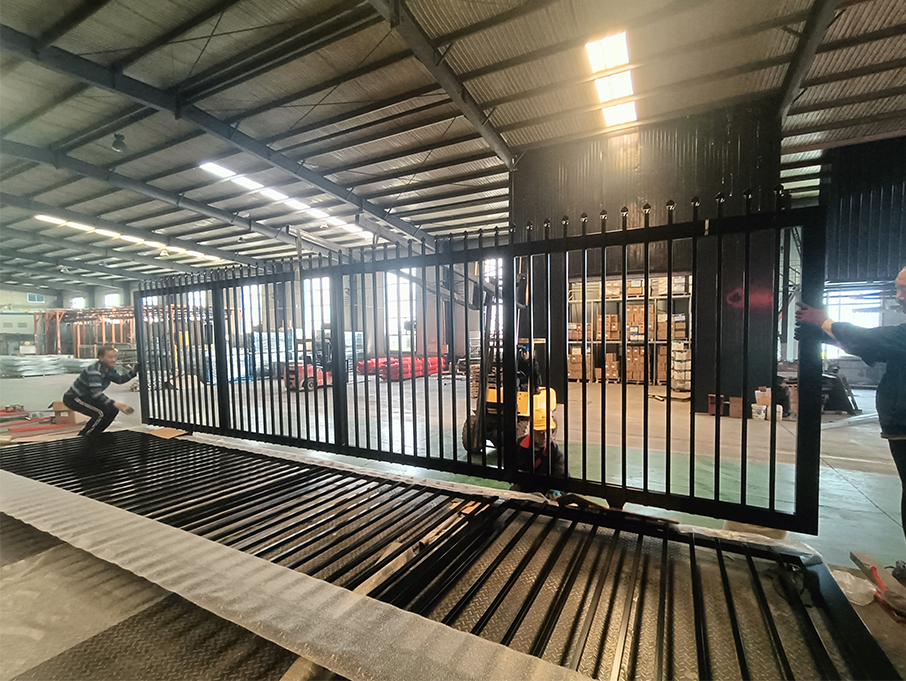

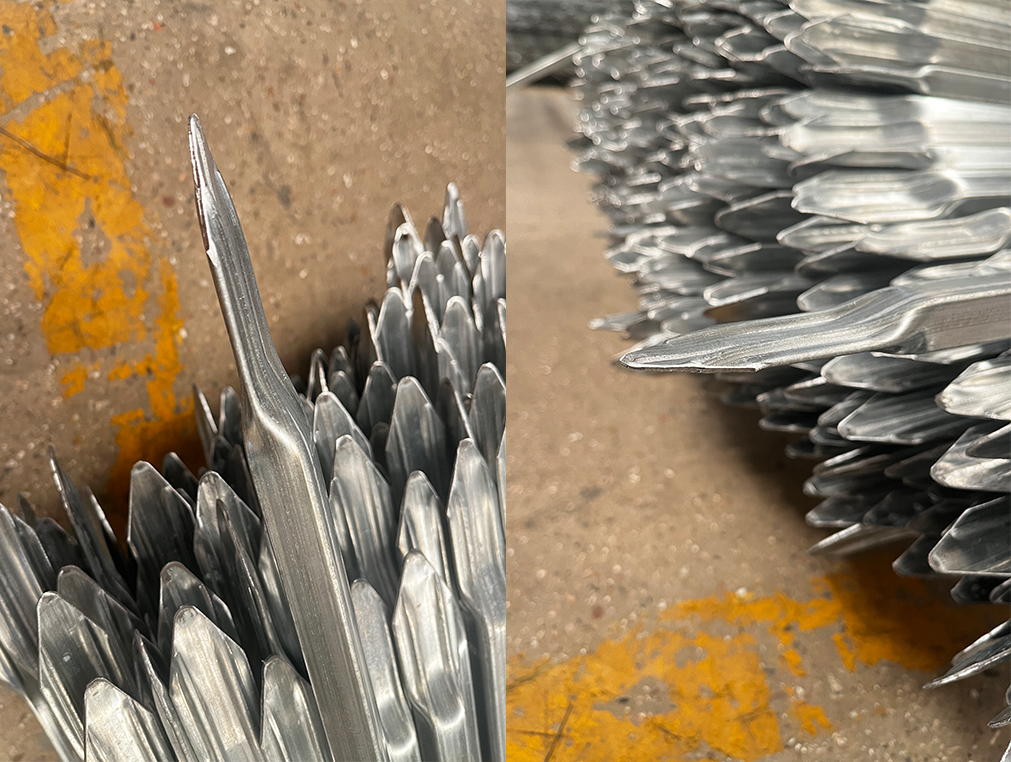

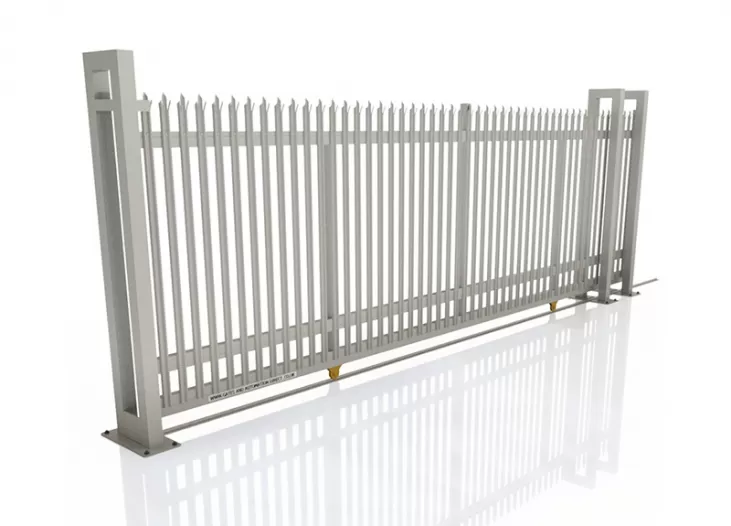

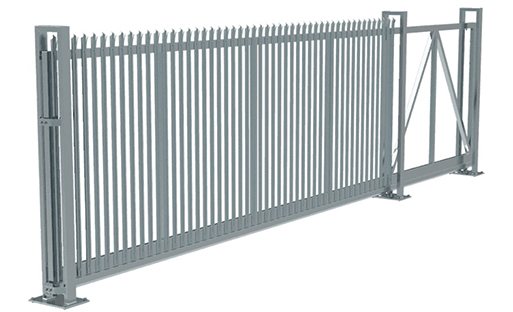

Palisade Fencing Sliding Gate
| Height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m |
| Width | 4.0 m, 4.8 m, 6.0 m, 10.0 m |
| Angle Steel | 40 x 40 mm, 50 x 50 mm |
| Pale Size (W/D) | 62 mm, 65 mm, 70 mm |
| Post (square) | 60 x 60 mm, 80 x 80 mm, 100 x 100 mm |
| Surface Treatment | Hot dipped galvanized, powder coating |

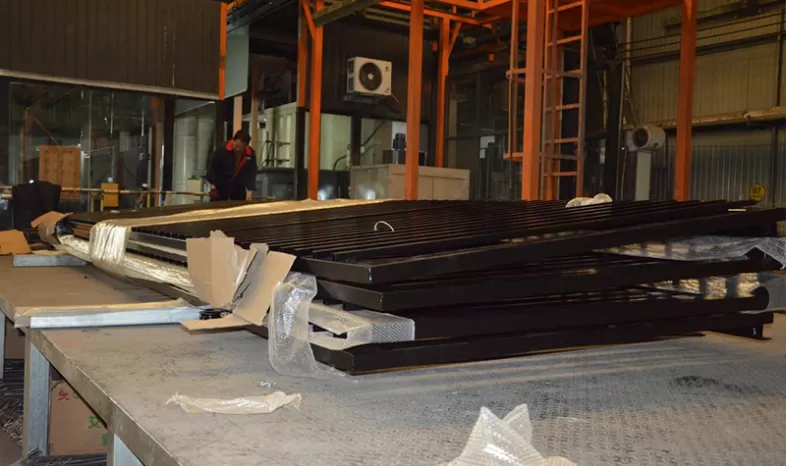

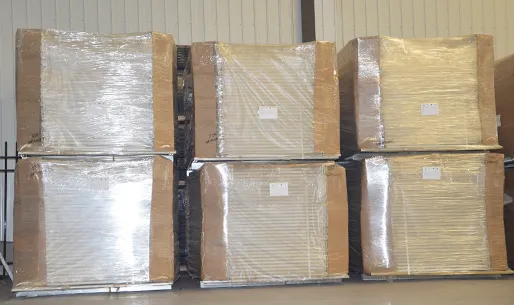

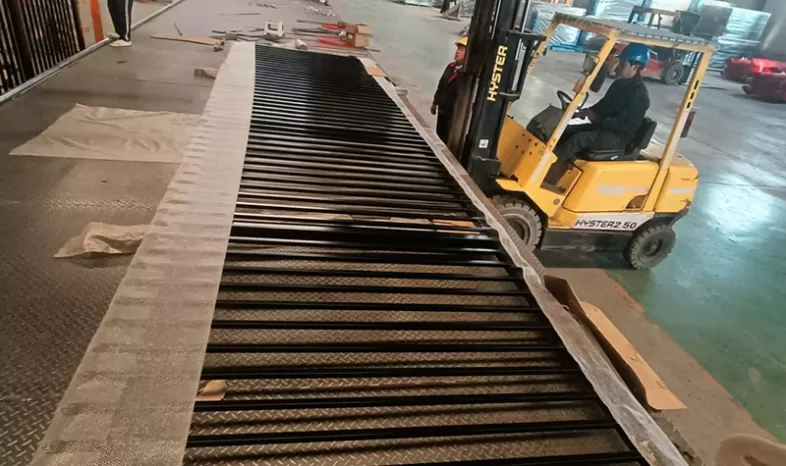

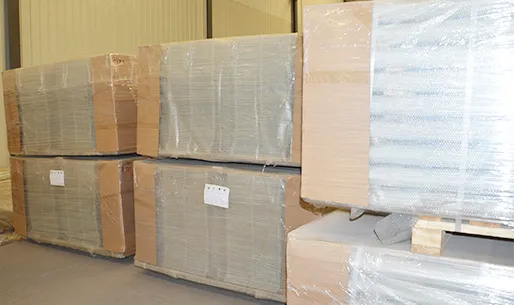

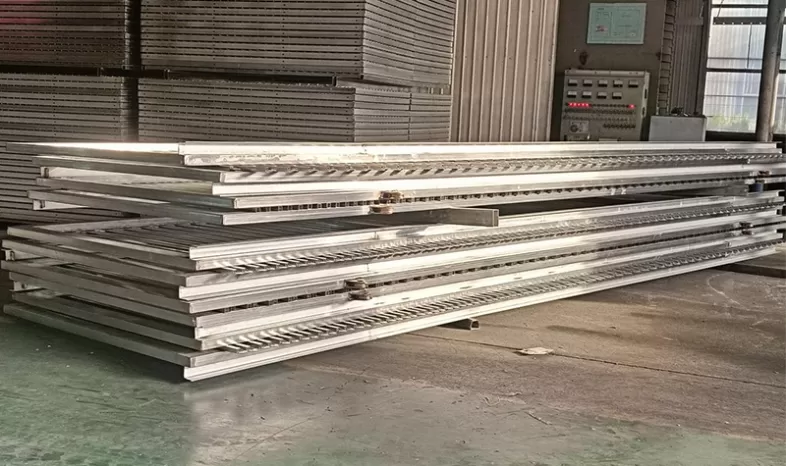

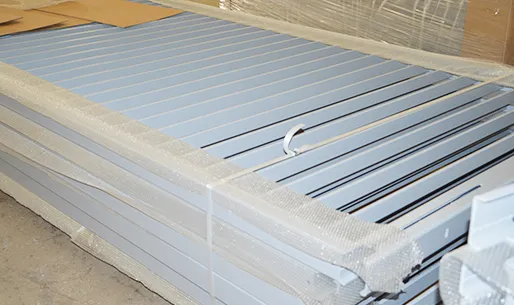

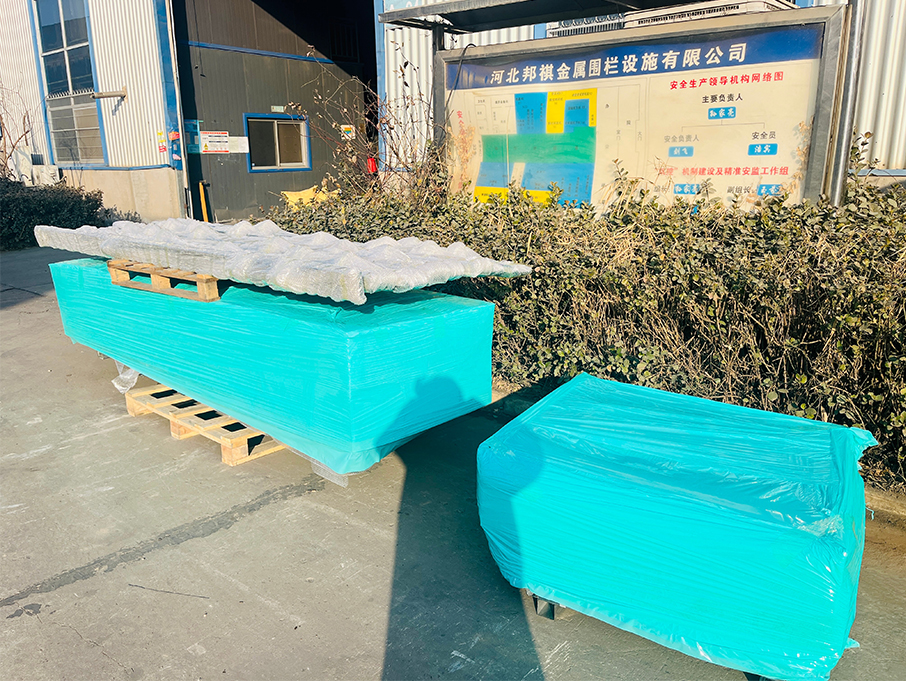

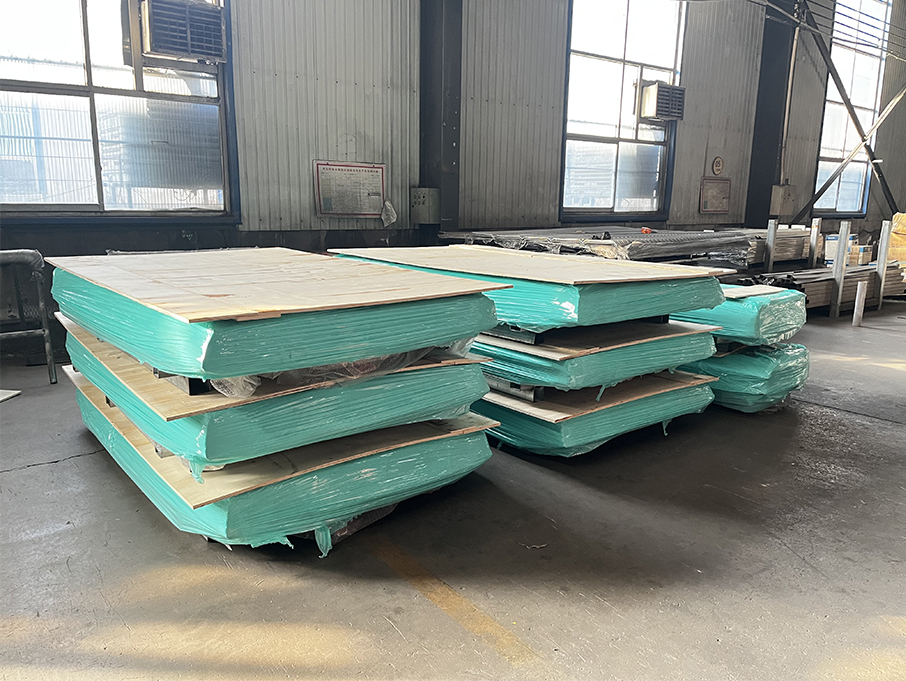

Depending on the surface treatment of the triangle bending mesh panels, there can be two different types of packing.
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence

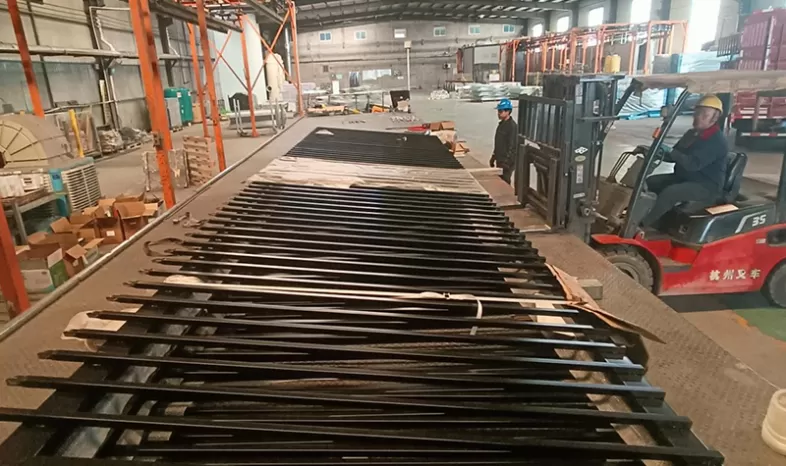

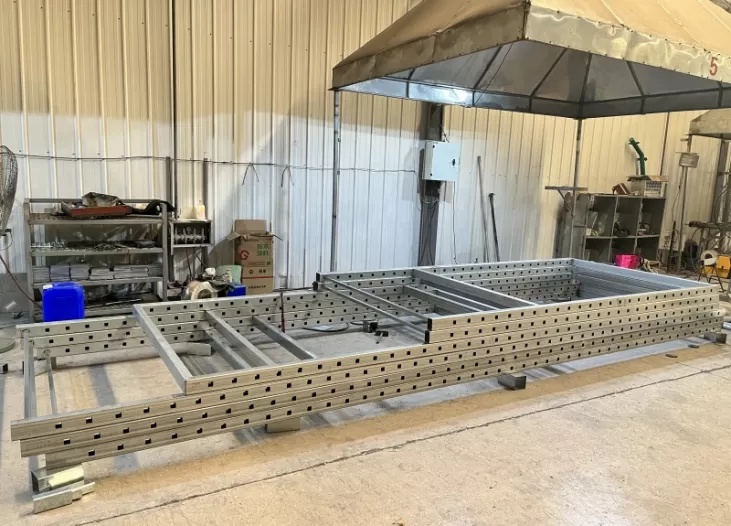

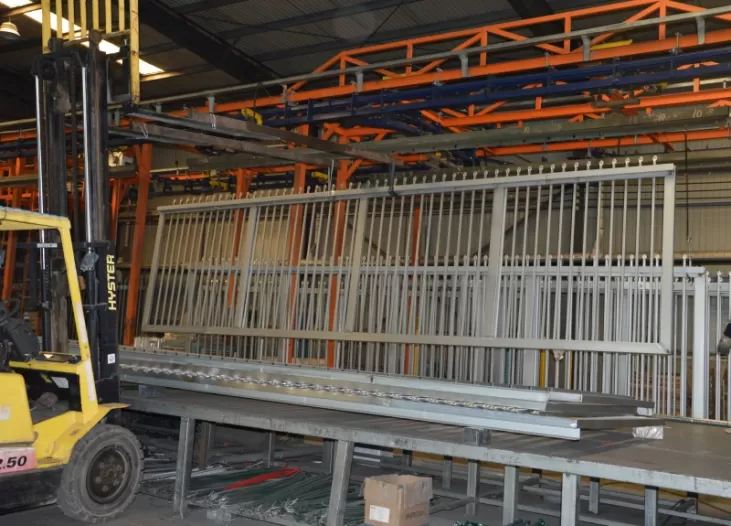

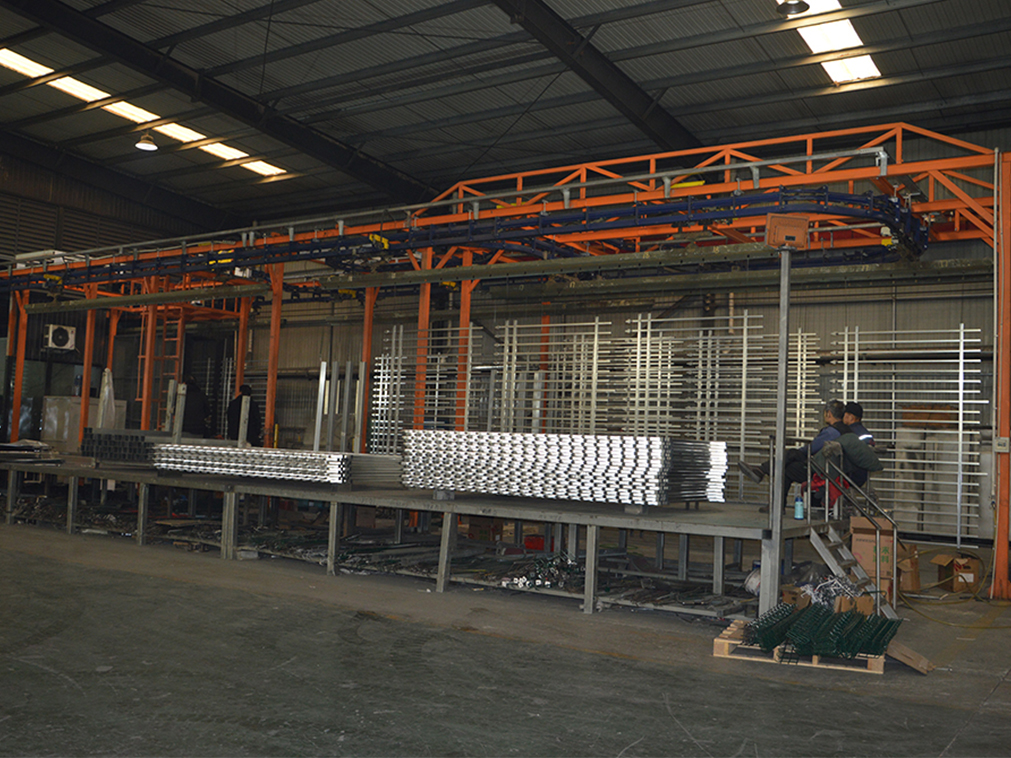

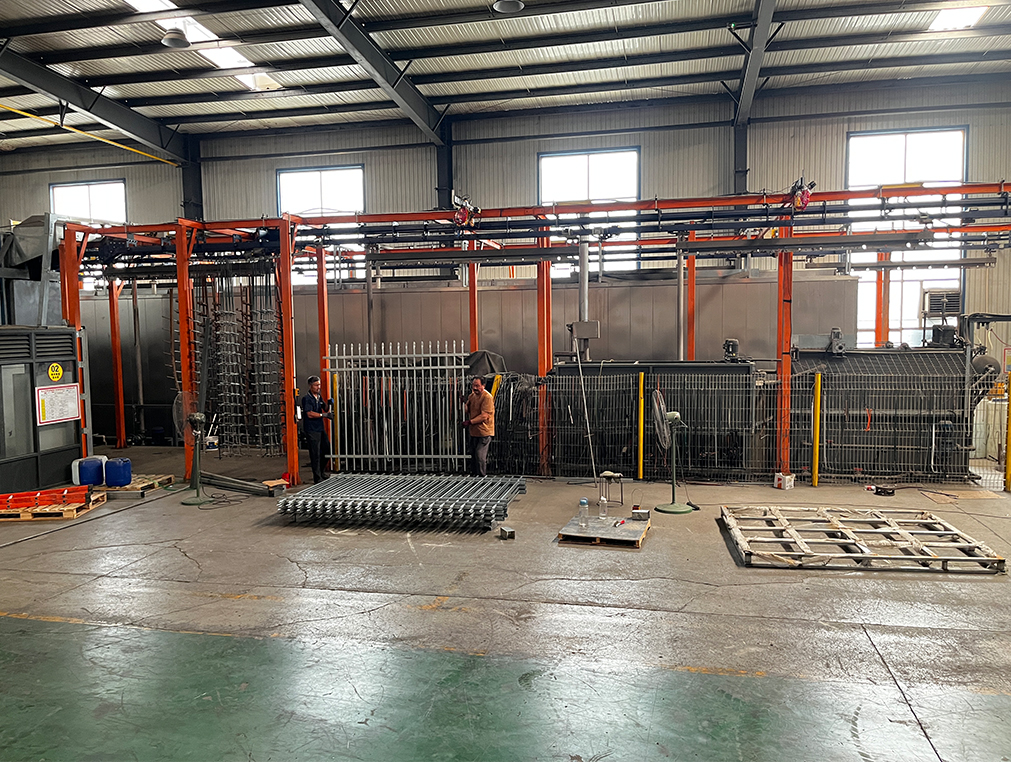

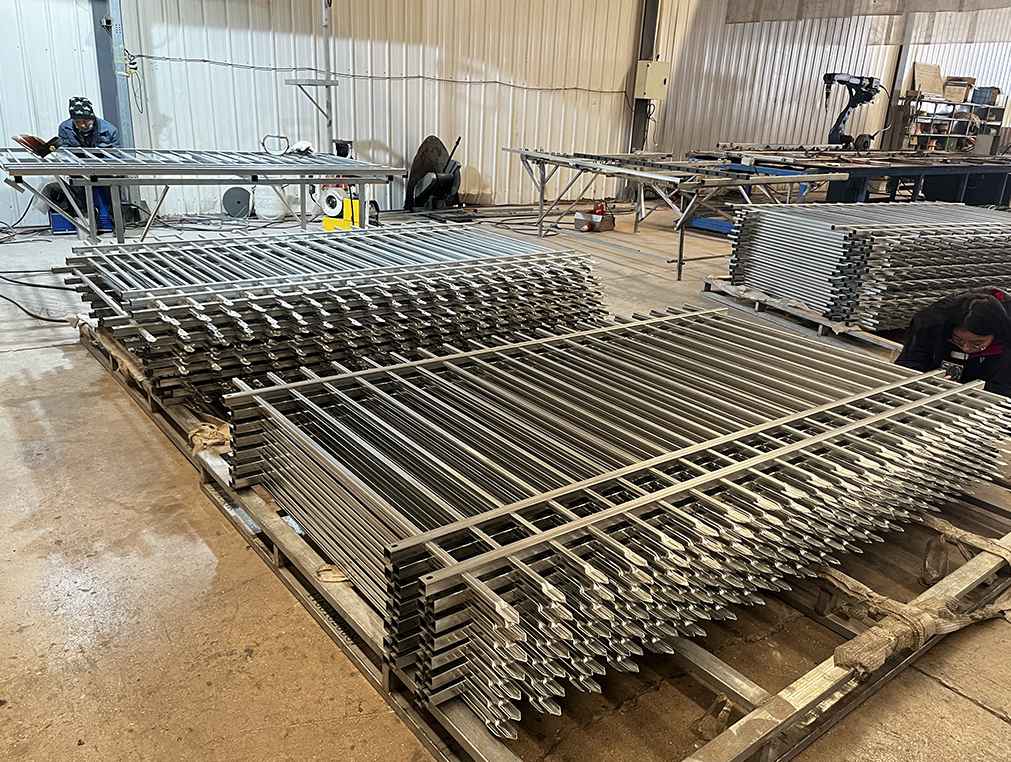

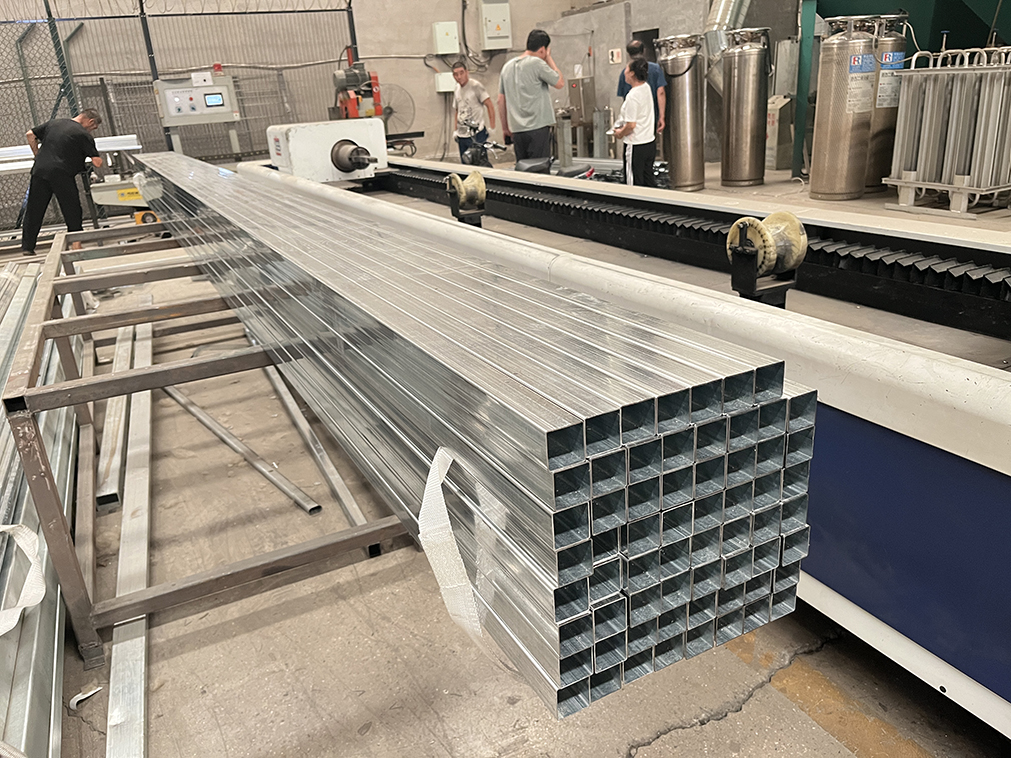

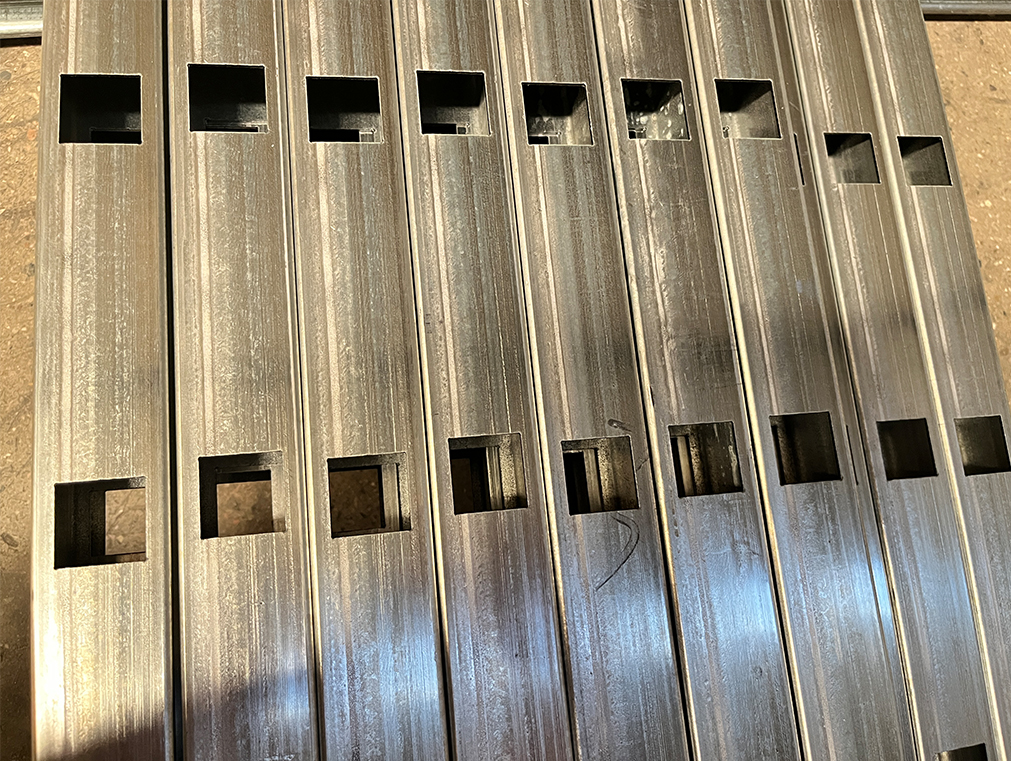

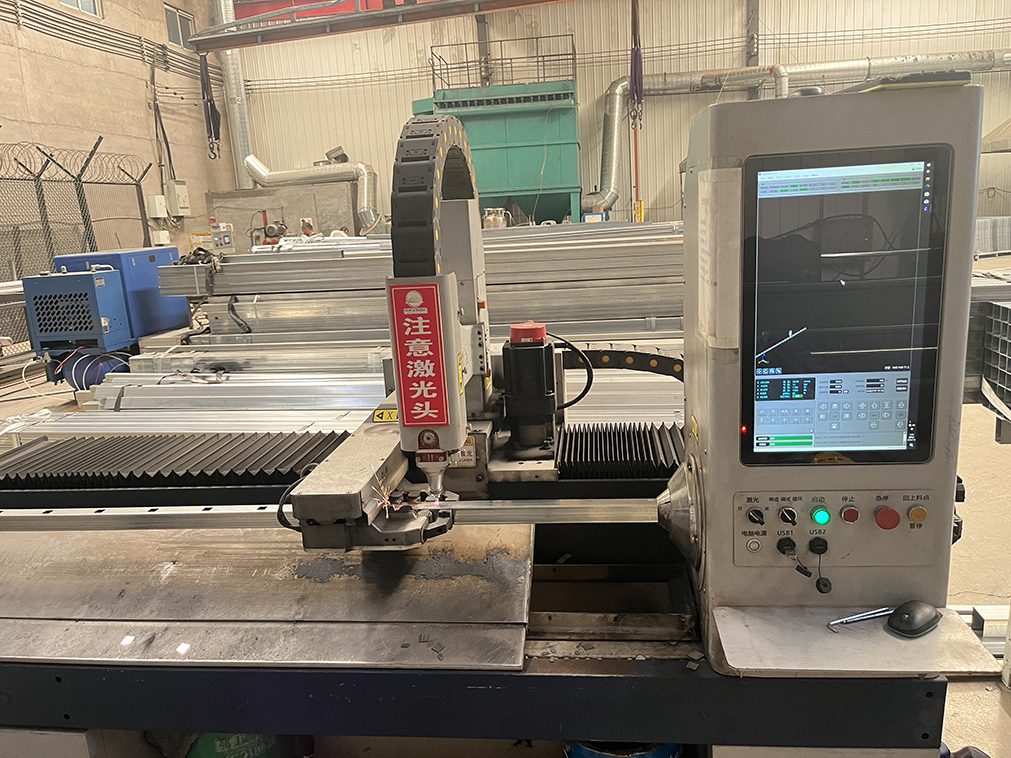

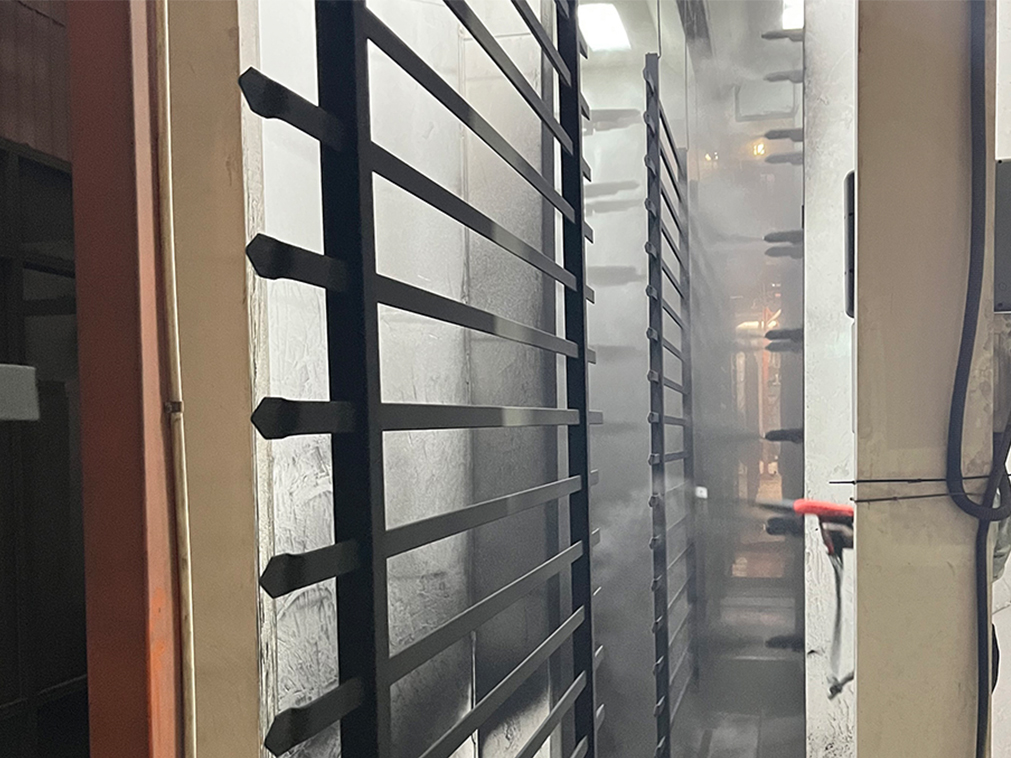

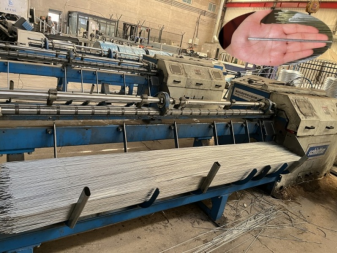

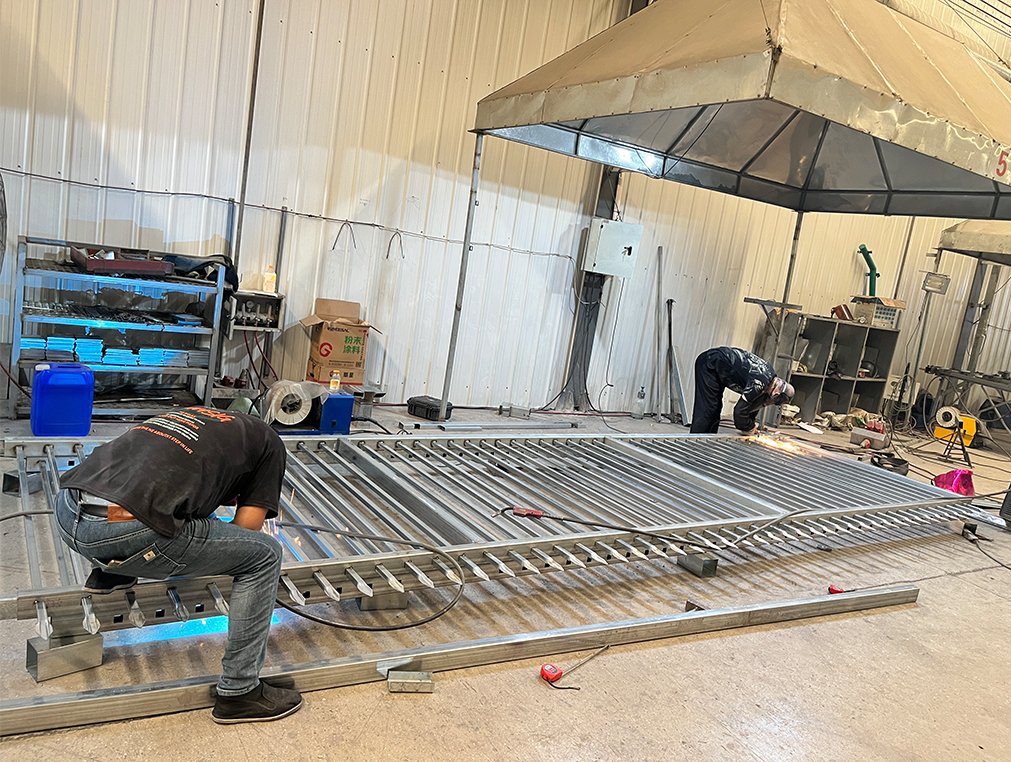

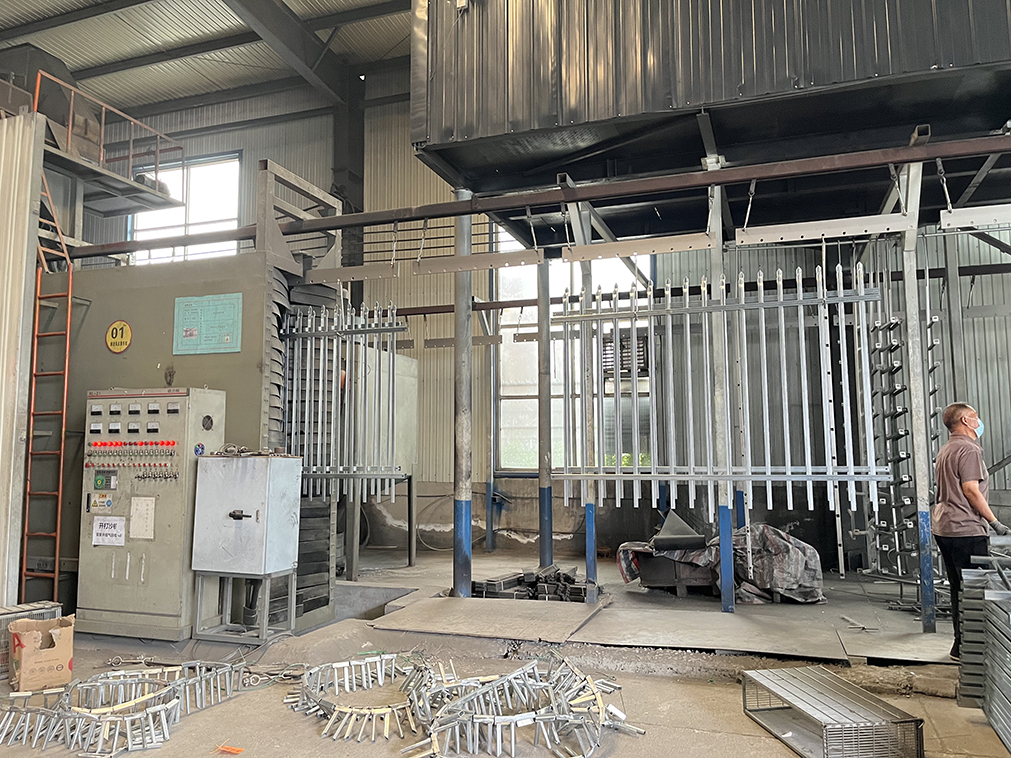

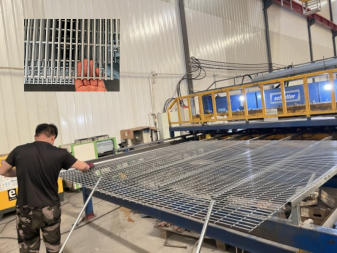

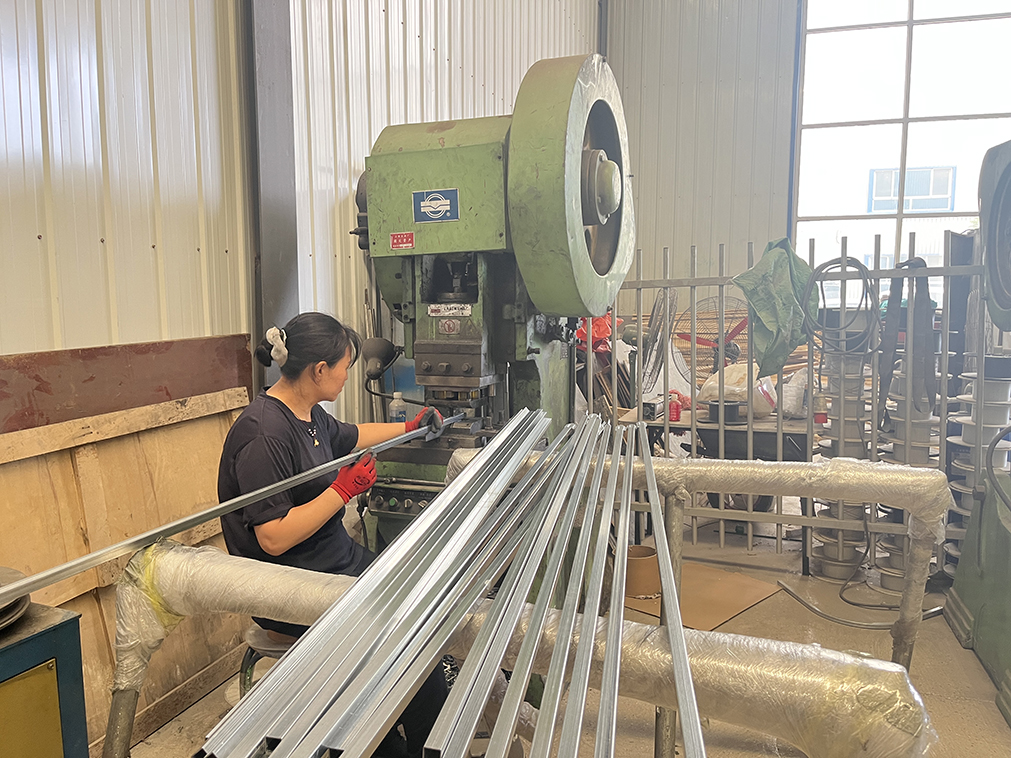

BONKFC has the advanced auto production line: laser cutting machine, welding robot automobiles machine, automatic dense mesh welding machine, double wire mesh welding machine, CNC bending machine, peach pipe machine, square steel pipe, shaped pipe production line, we have the environmental production line for phosphorization ,automatic spraying.
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence
Depending on the surface treatment of the triangle bending mesh panels, there can be two different types of packing.
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence

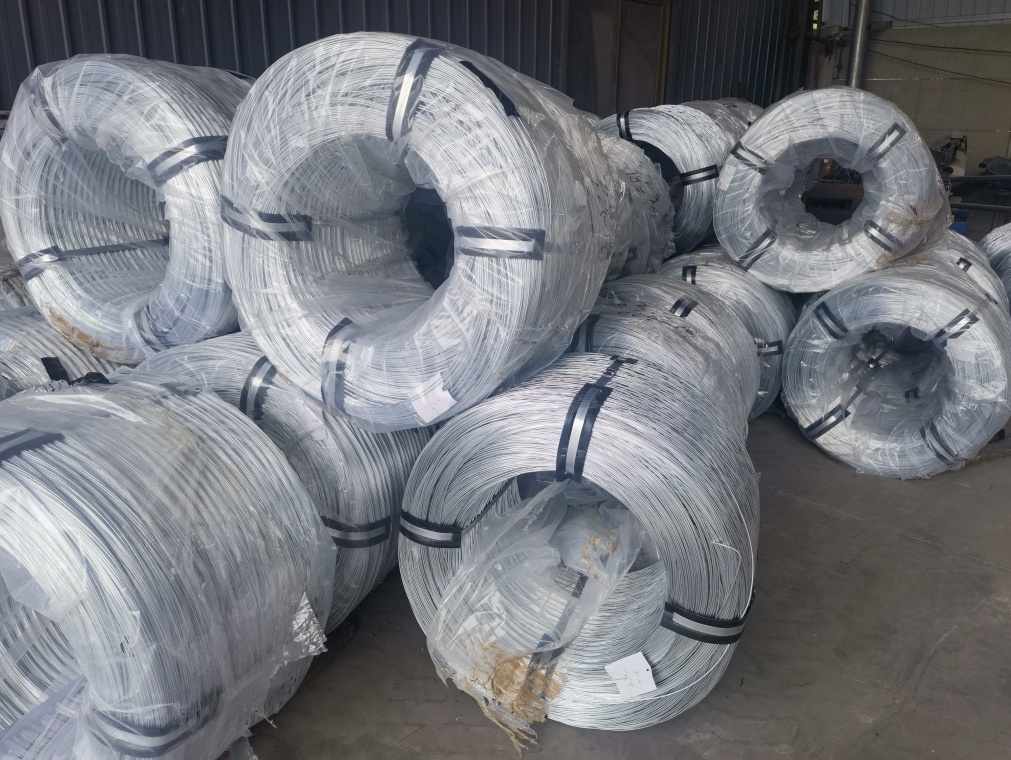

raw materials (galvanized steel wires)
