Metal Fence

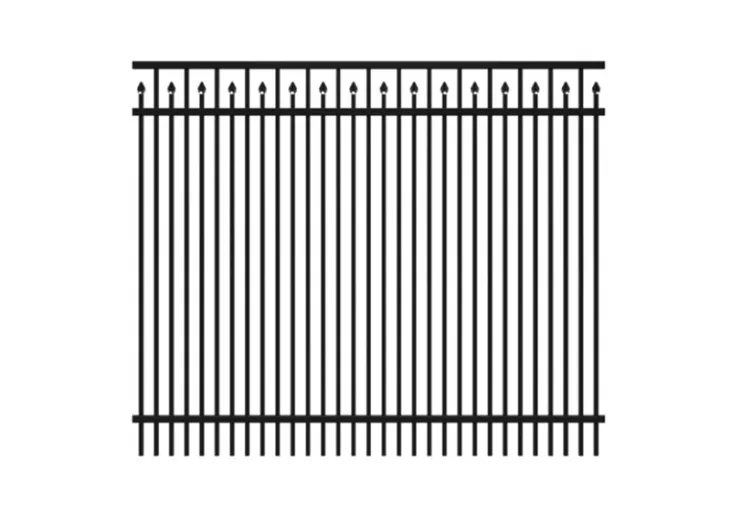

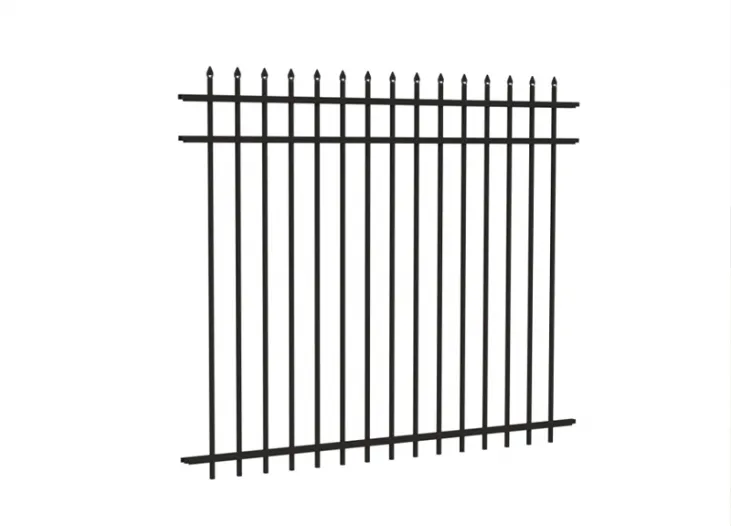

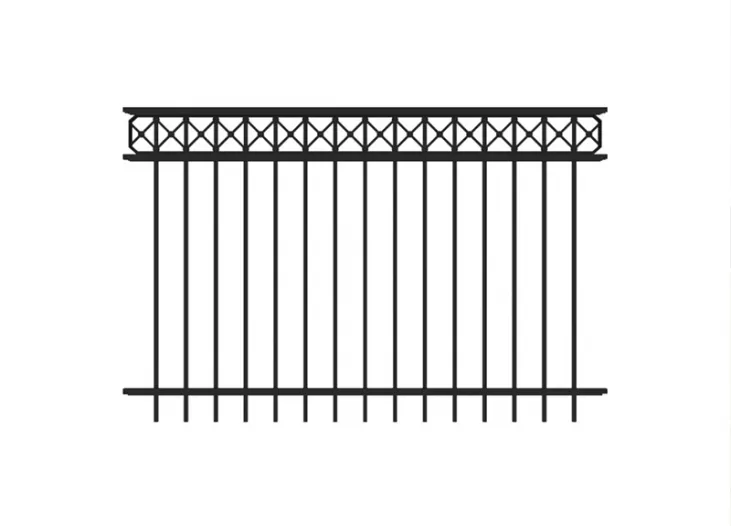

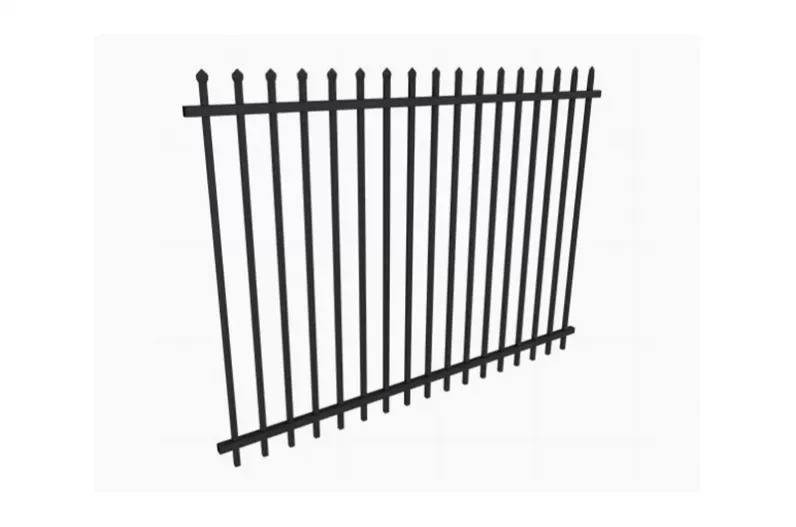

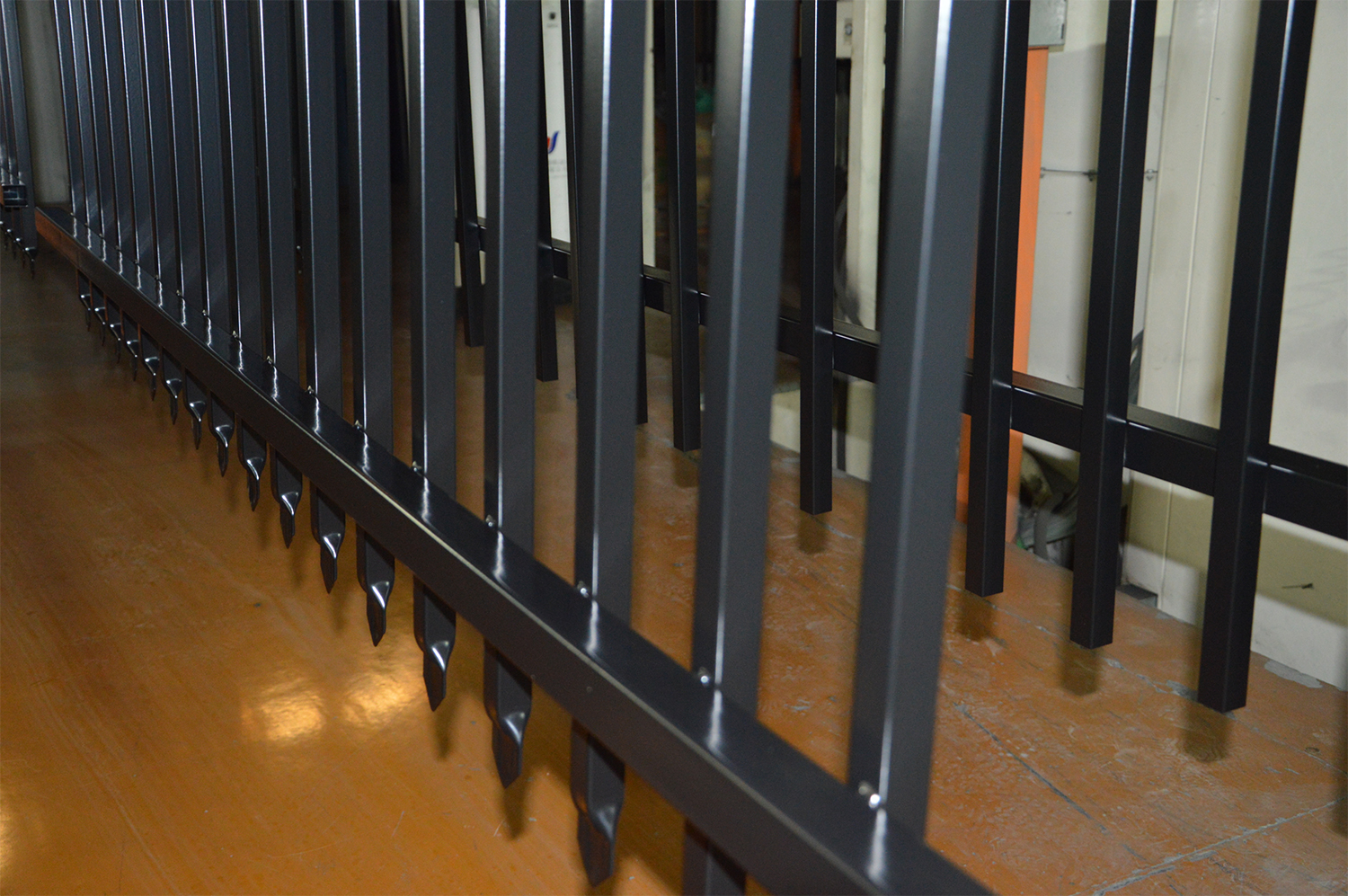

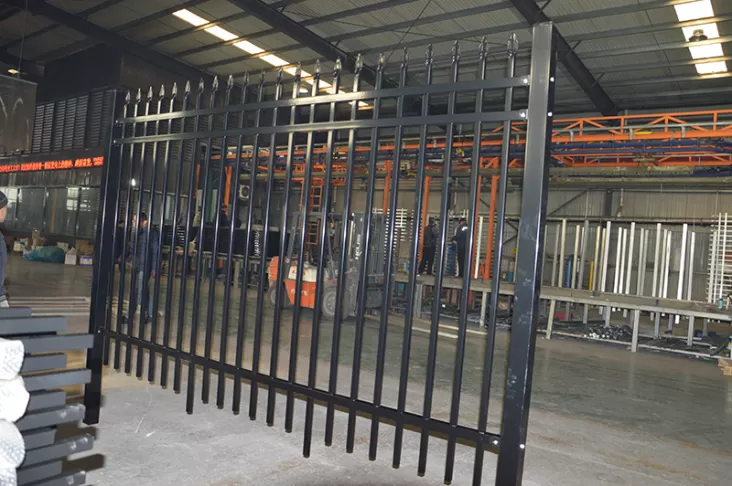

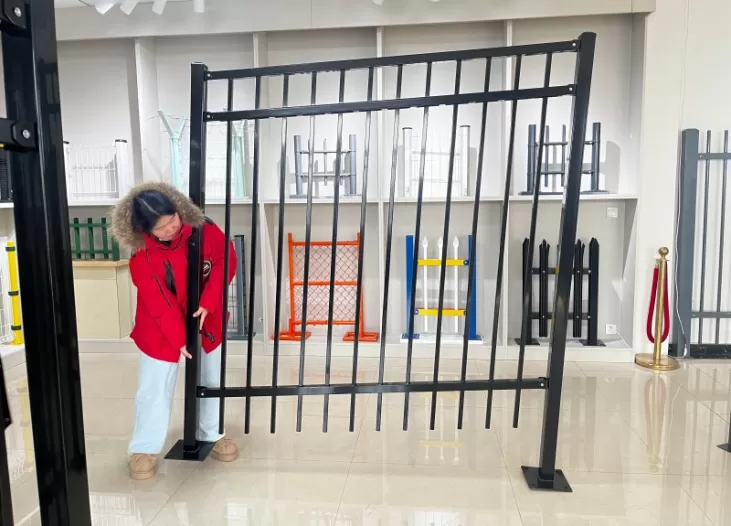

Name: Picket Fence
Material: Q195/Q235 wire and pipe
Brand : BONKFC Fence
From: China BONKFC
Color: Black9005, Black Green 6005, Grey7016 or as customized
AkzoNobel Polyester Finish Powder Coating realize exceptional weather resistance and surface self-cleaning performance(rain wash or spray-wash can resume bright and clean surface).
Picket Fence Manufacturing Process:

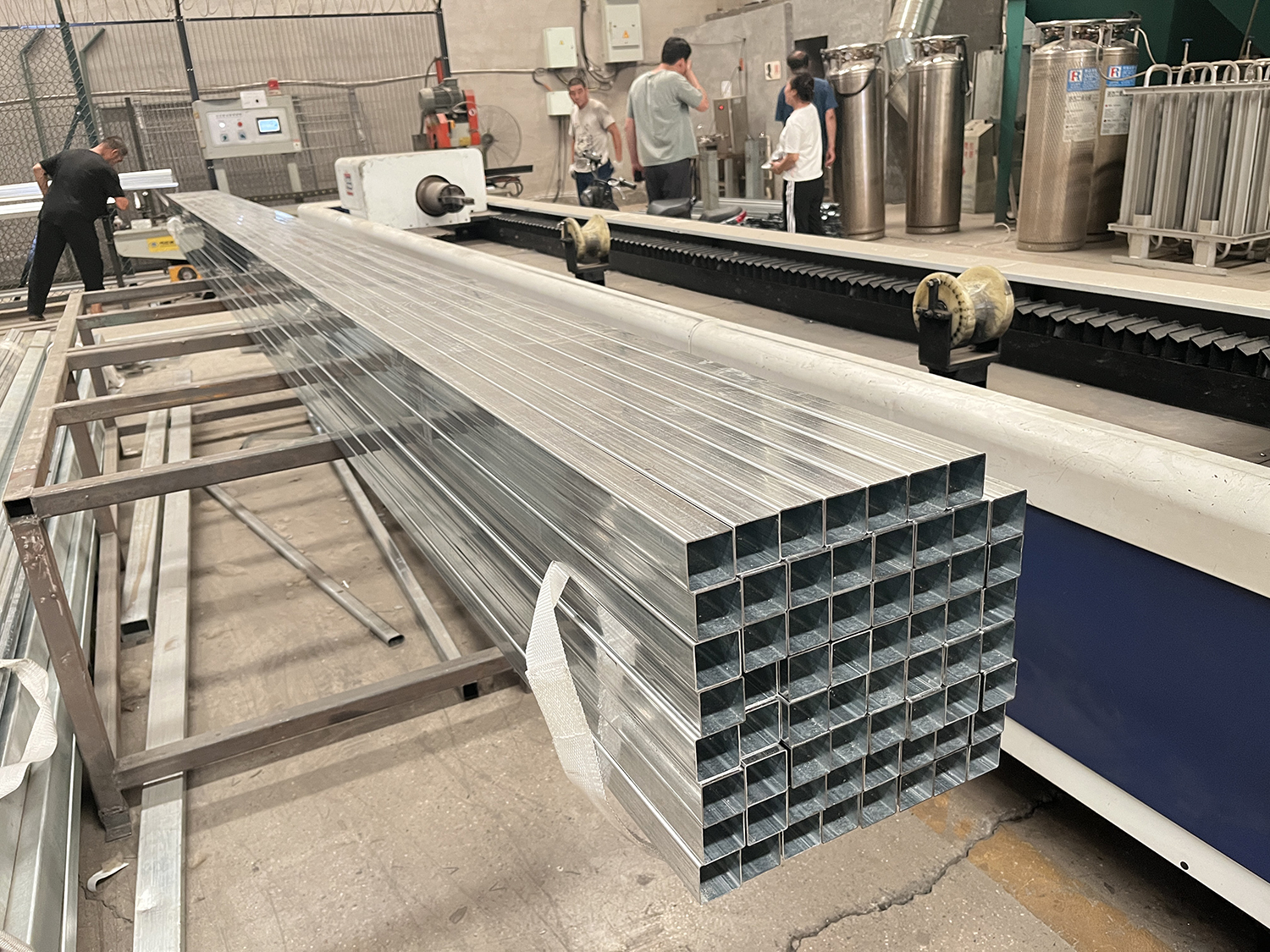

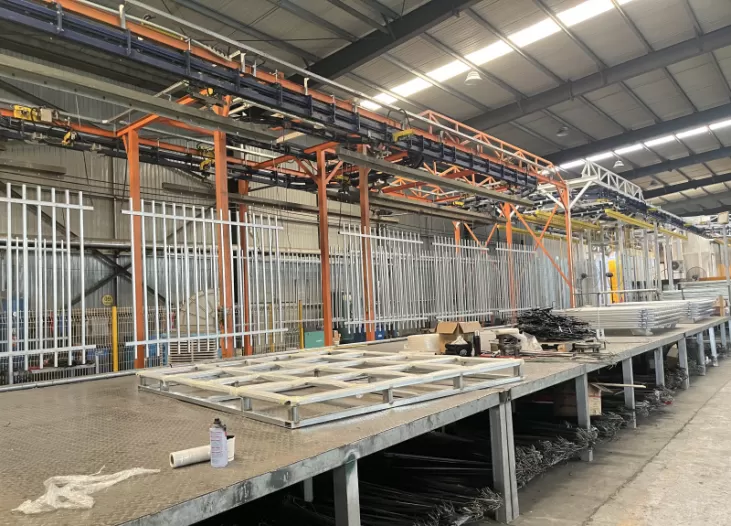

Galvanized pipes (raw materials) are delivered to the factory.

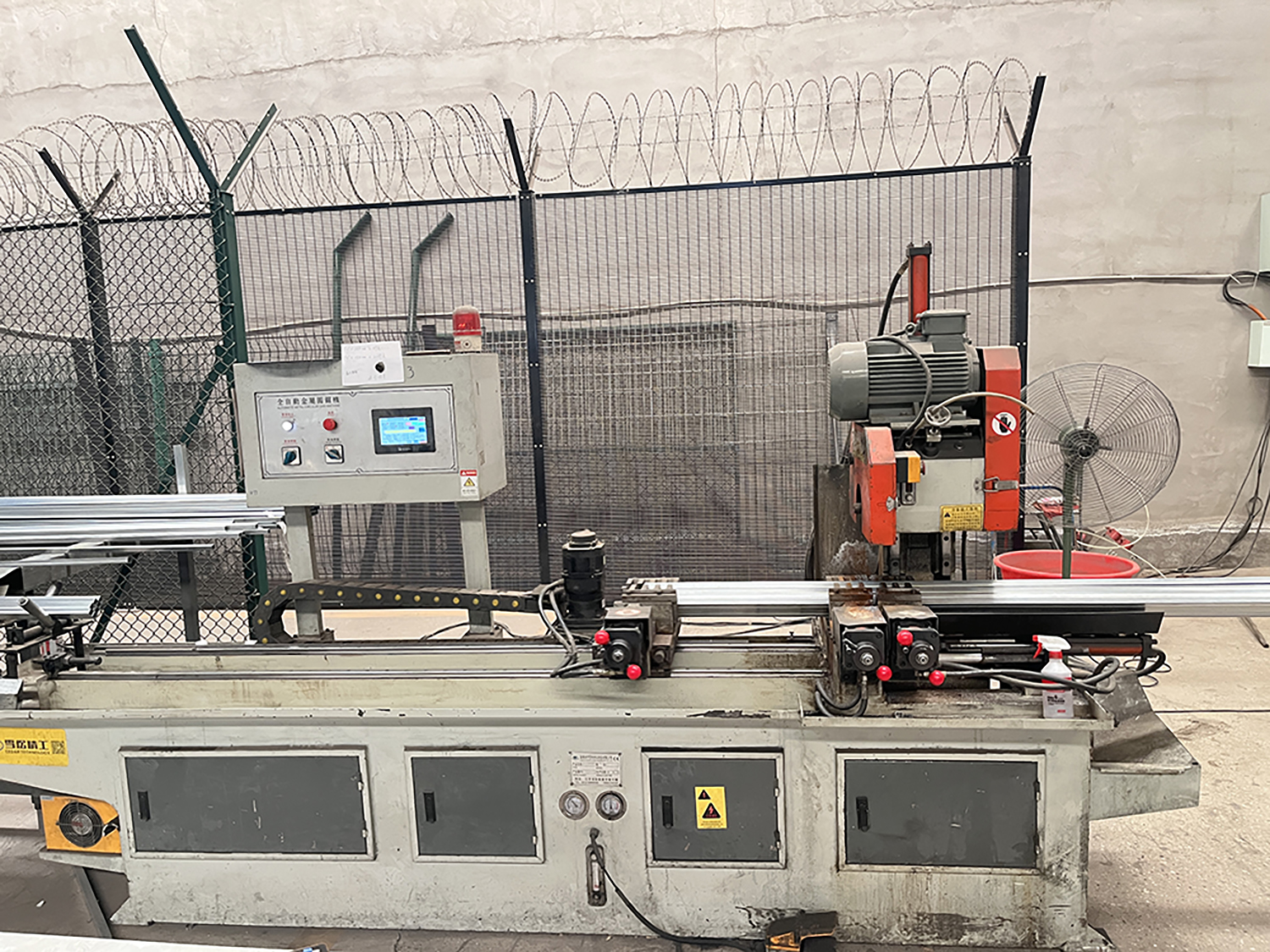

2. The raw material pipes are cut.

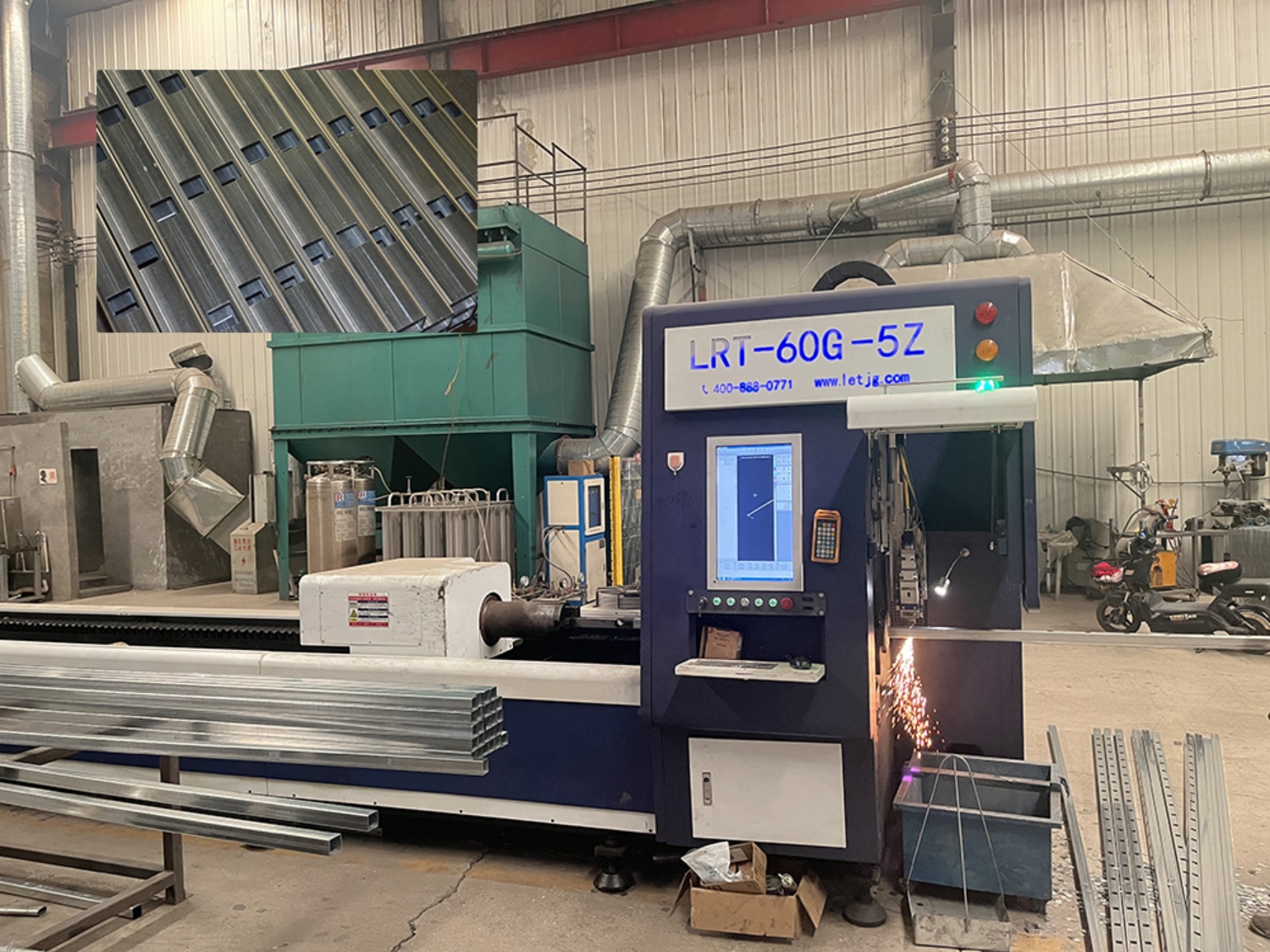

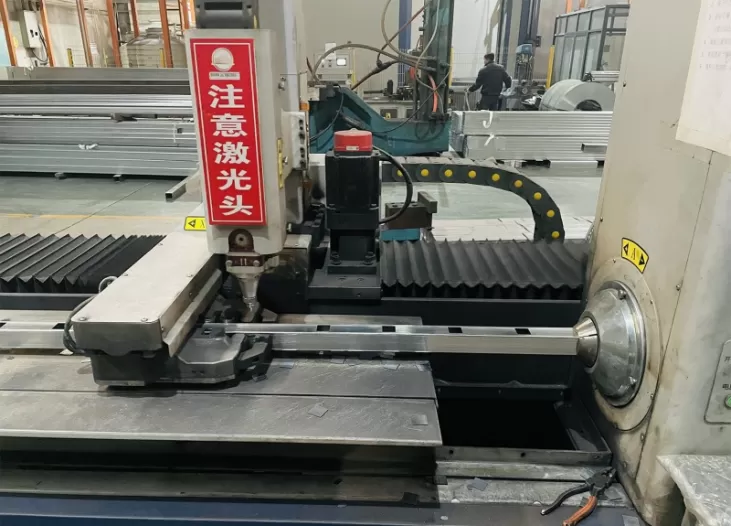

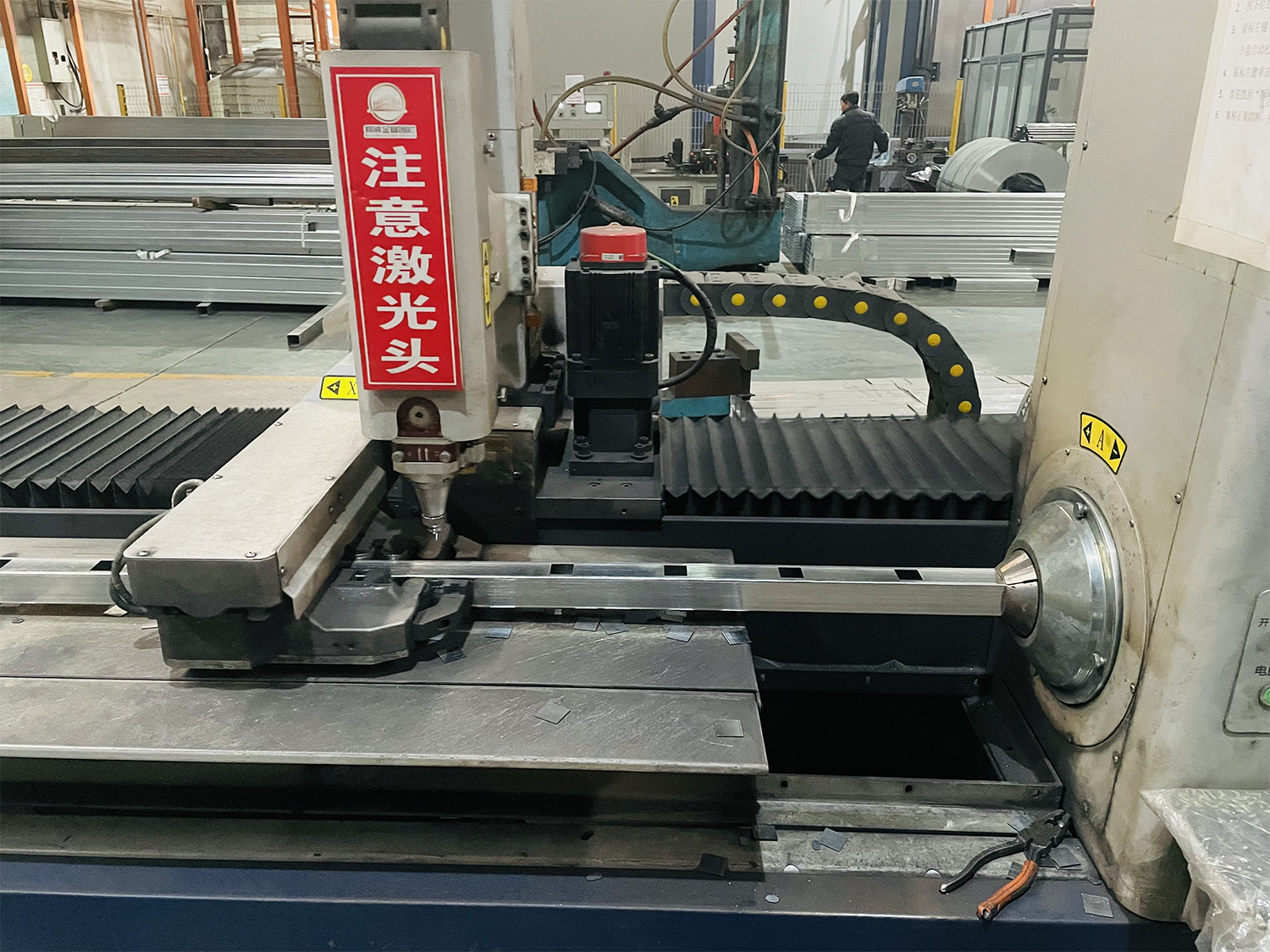

3. Laser cutting is performed using Japanese and Swiss YASKAWA equipment, which offers the advantages of zero error, as well as smooth and burr-free cut edges.

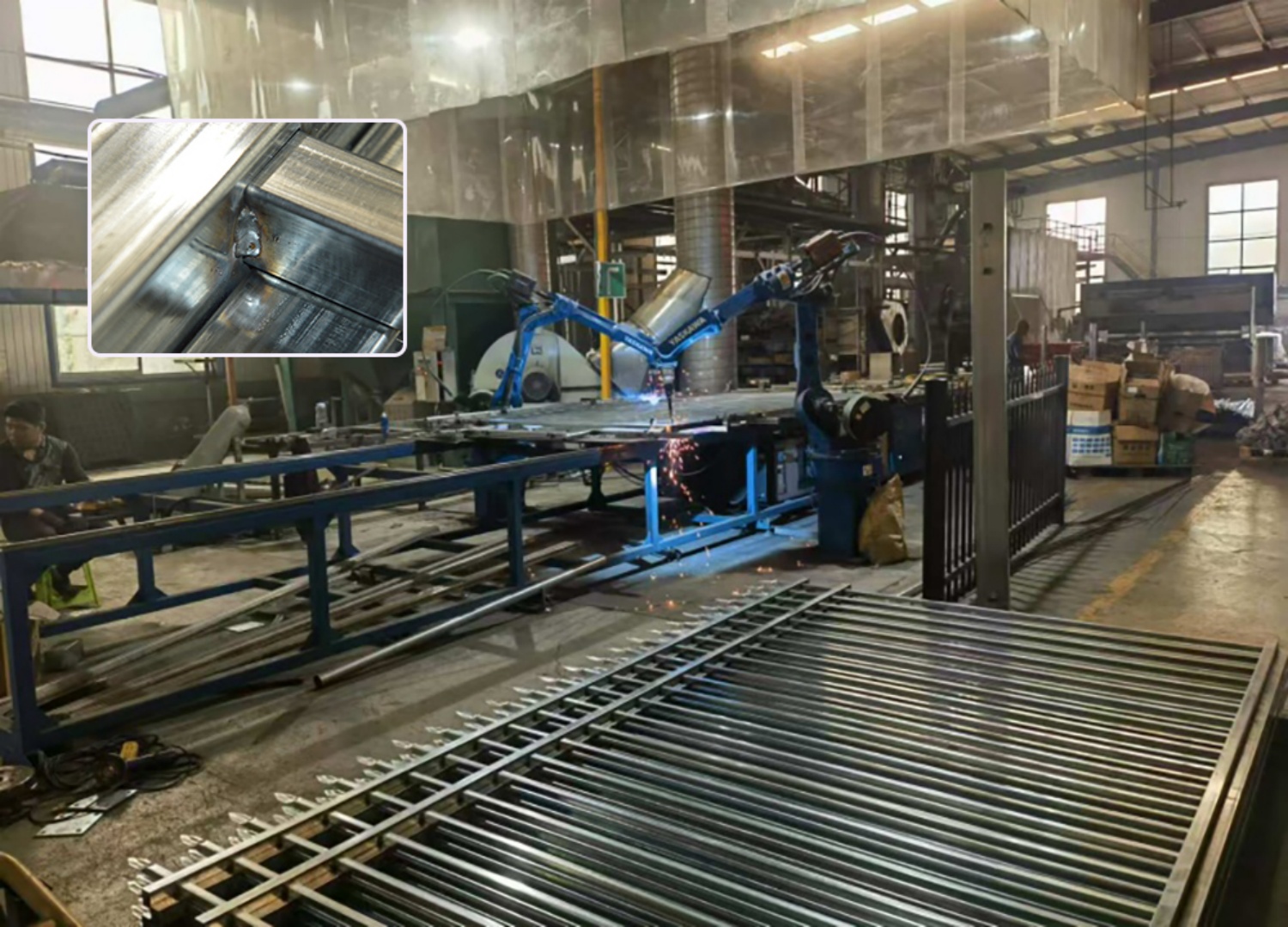

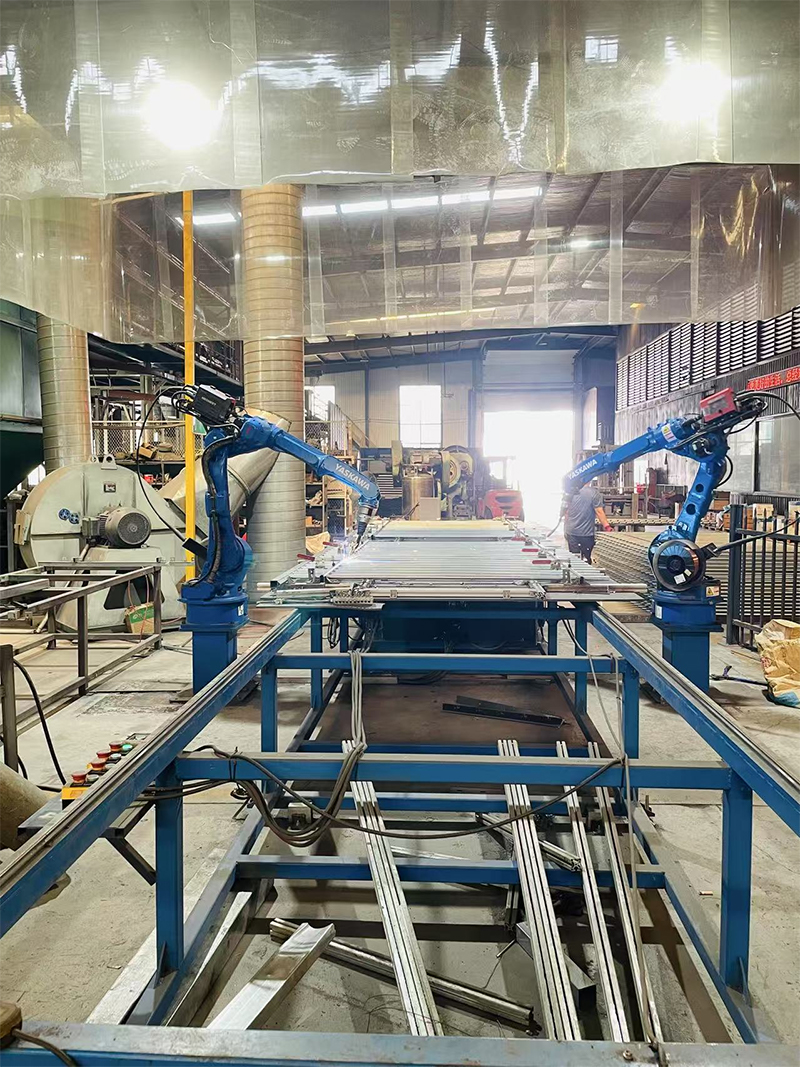

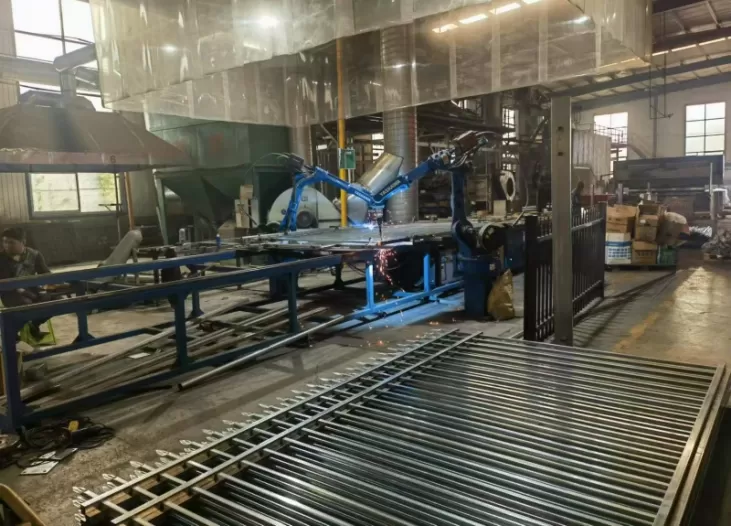

4. Welding is done with Japanese and YASKAWA robot welding equipment, a key feature of BONKFC. Compared to manual welding, it is more efficient, with a higher daily output. The welds are strong, durable, and aesthetically pleasing.

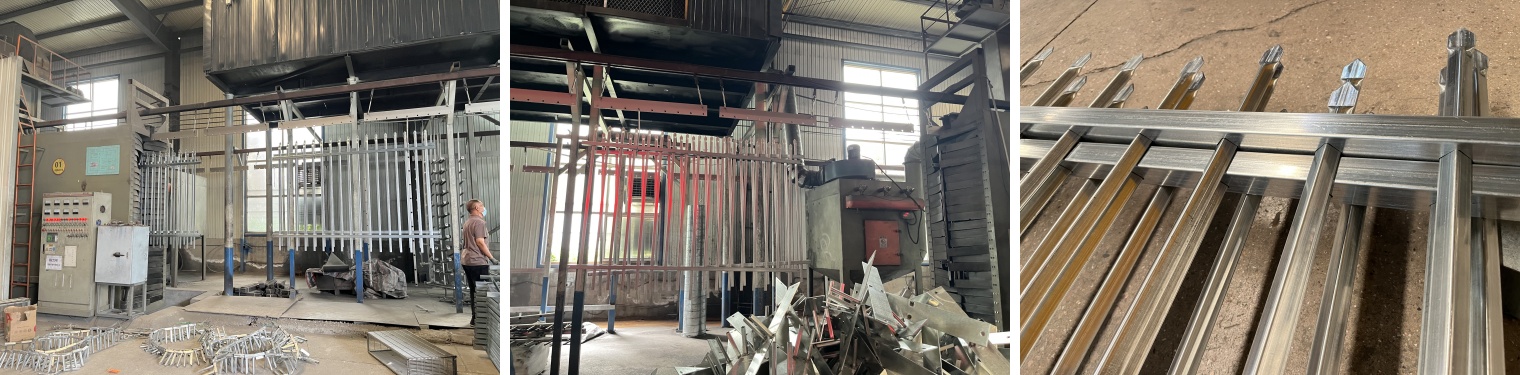

5. To get a longer life for your product ,following a number of pre-treatment processes tp remove arease and impurities .

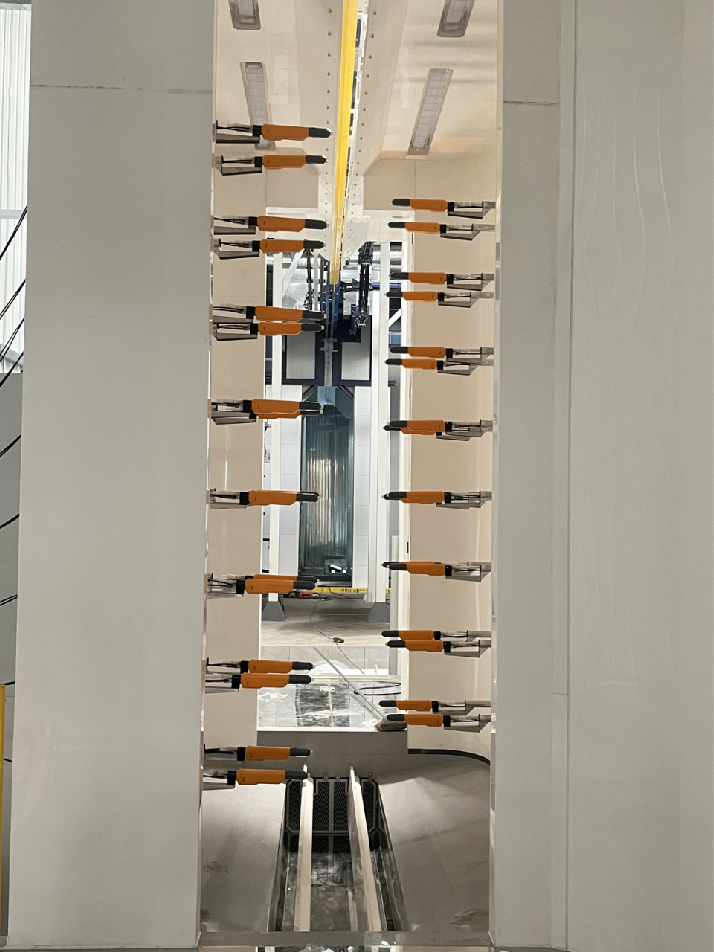

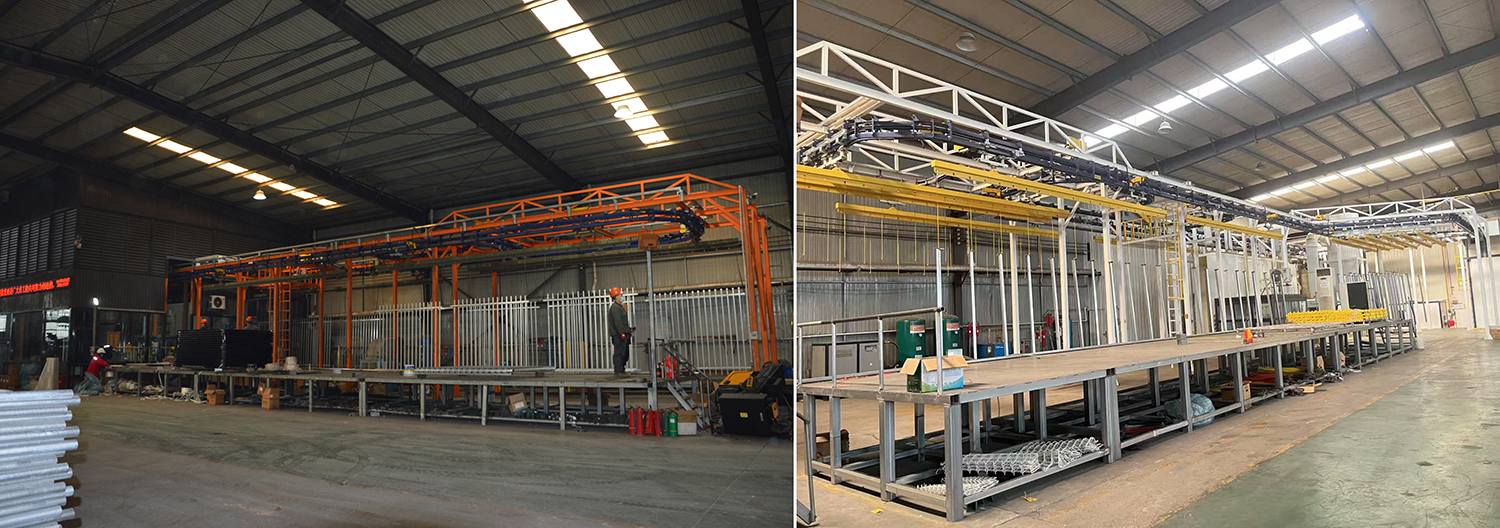

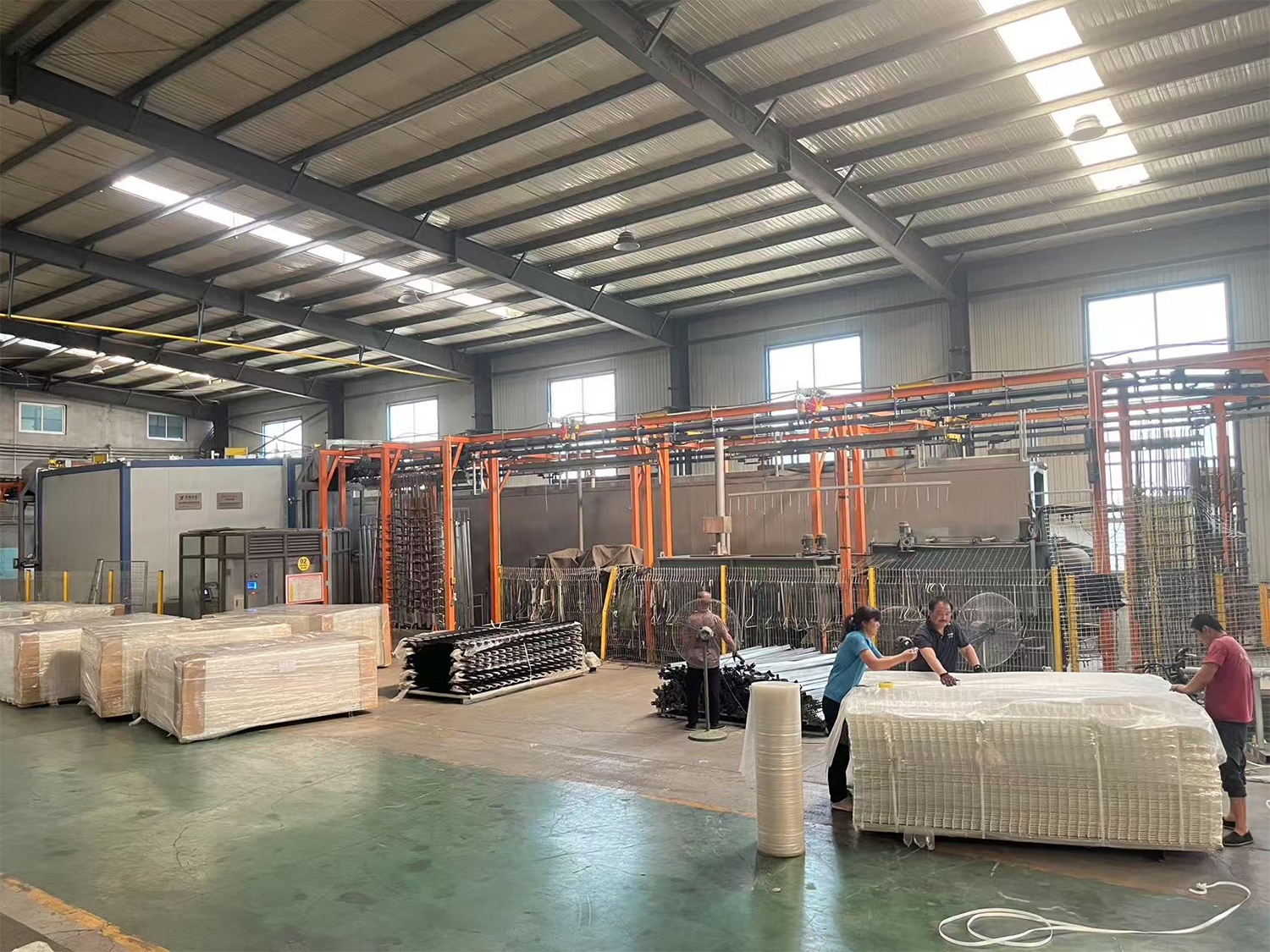

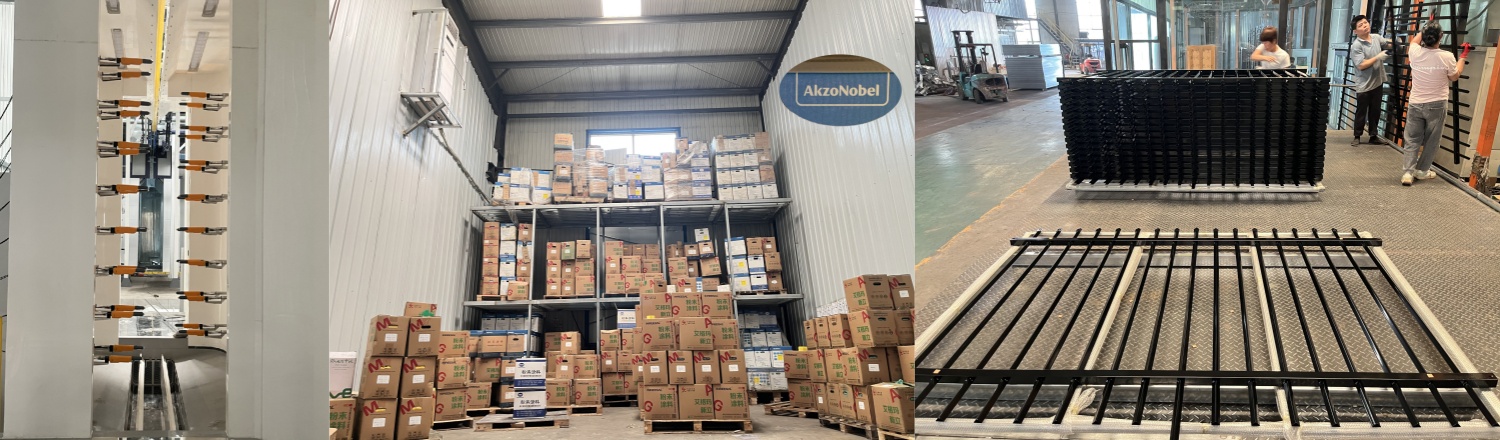

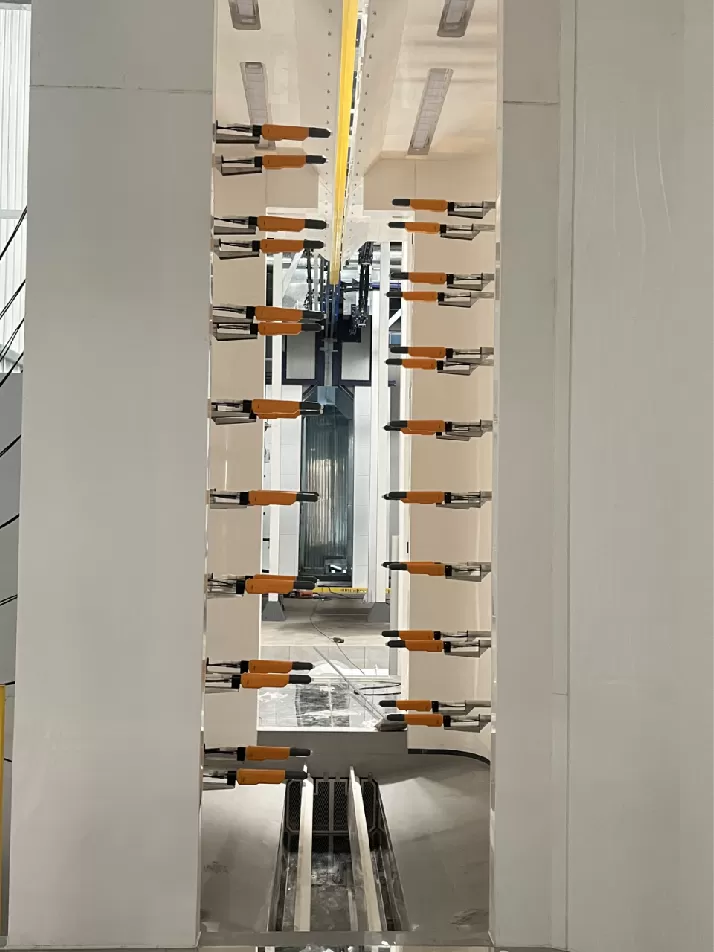

6. BONKFC has 2 top-tier spraying lines in the industry: each line is equipped with 32 Swiss ITW Gema spray guns to ensure uniform spraying; and it uses Akzo Nobel powder with ISO certification.

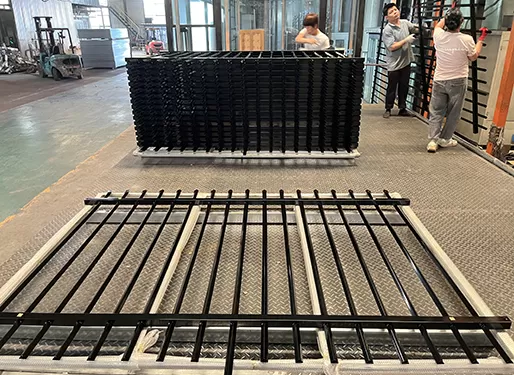

7. From raw materials to finished products, BONKFC conducts comprehensive quality inspections to ensure that every process meets high standards.

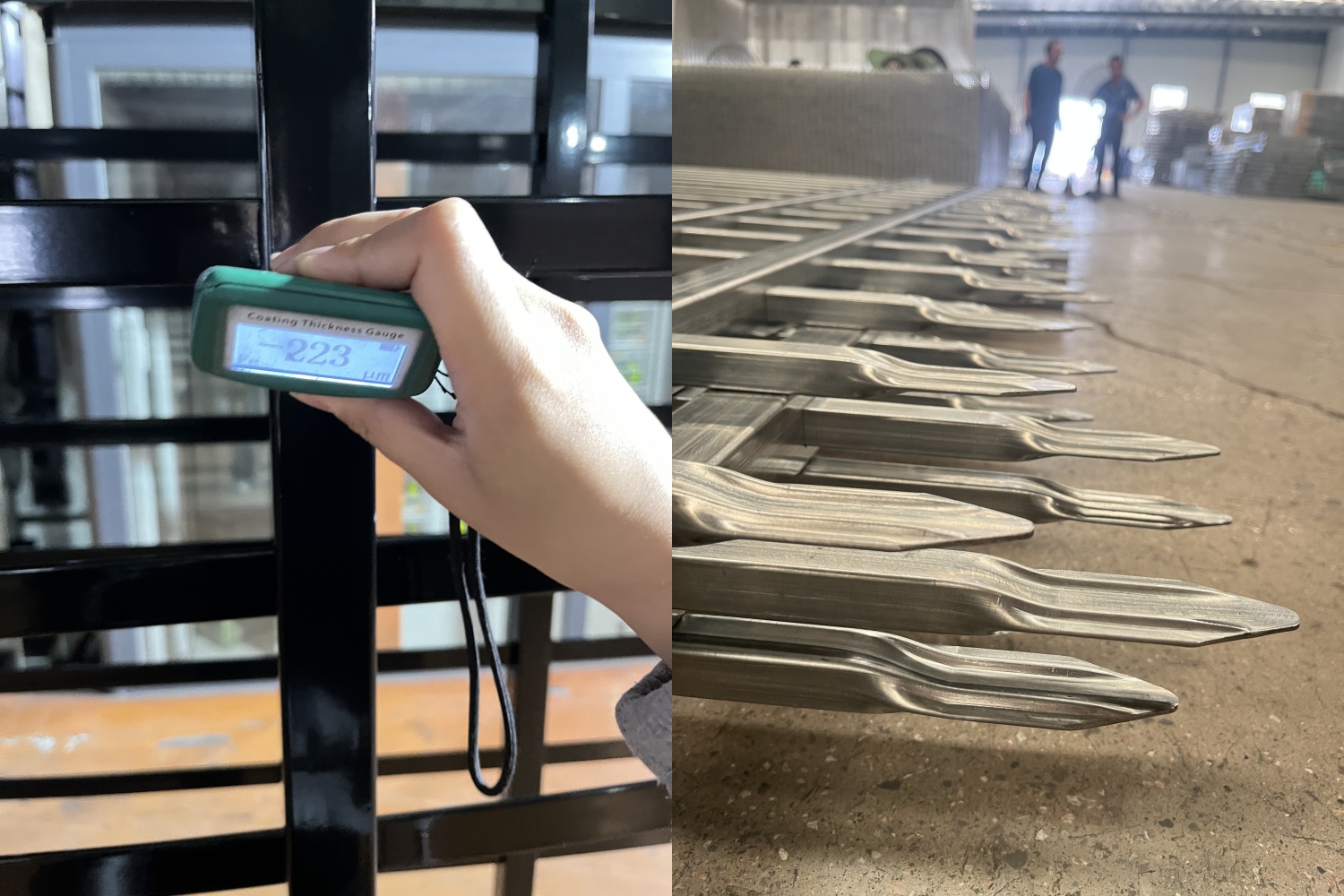

*Check whether the thickness of the powder coating reaches above 120um.

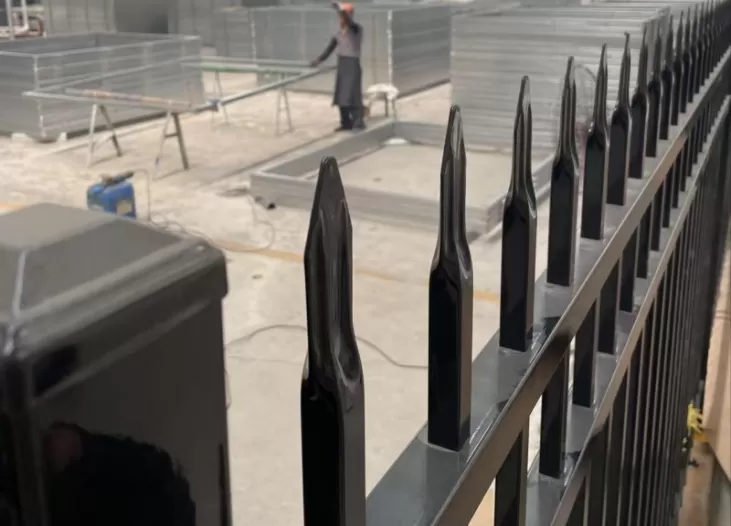

*Check whether there is a gap at the pointed position.

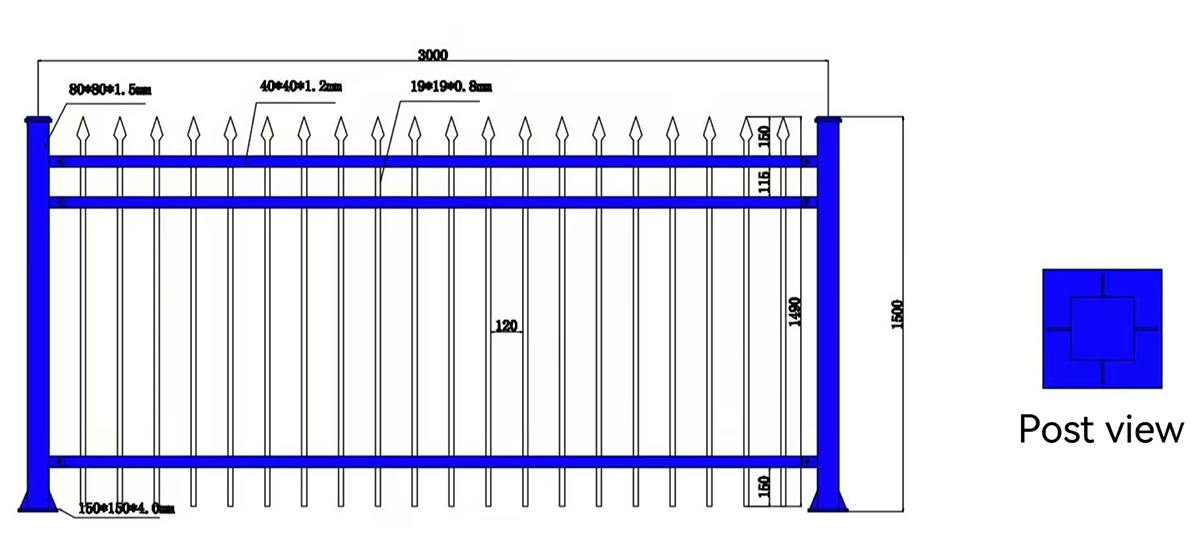

| Material | iron or material |
| Frame Finishing | Powder coated or Galvanzied |
| Square Post size | 50*50 60*60 75*75mm 80*80mm 100*100mm 55*100mm etc |
| transom size | 32*32mm 35*35mm 40*40mm 35*40mm etc |
| standpipe size | 15*15mm 16*16mm 19*19mm 25*25mmetc |
| aluminum psot size | 55*100mm 75*100mm etc |
| I Post size | 75*100mm 65*95mm 54*100mmetc |
| D Post size | 80*66mm etc |
| Psot size | 50*75mm 65*100mm 60*90mm etc |
| Other specifications, width, length can be customized | |
Product Features
1. Strict use of galvanzied square steel pipe in line with international standards
2. The industry's lending anti-corrosin technology and layer technology,useing the international advanced nano ceramics and electrostatic powder spraying technology;
3. The link between the fence and the column has two options :C or C;

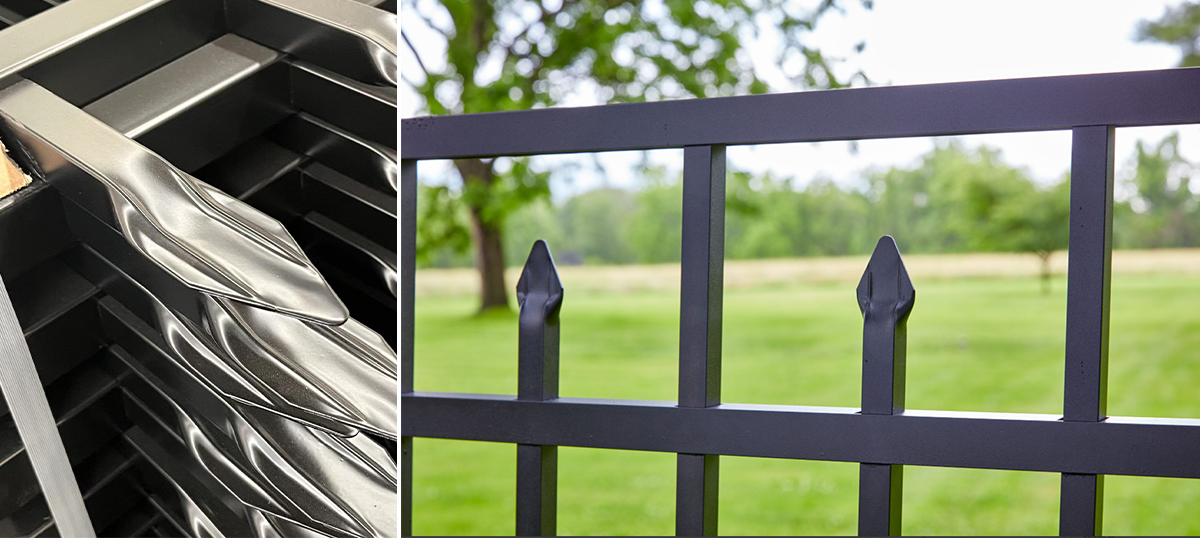

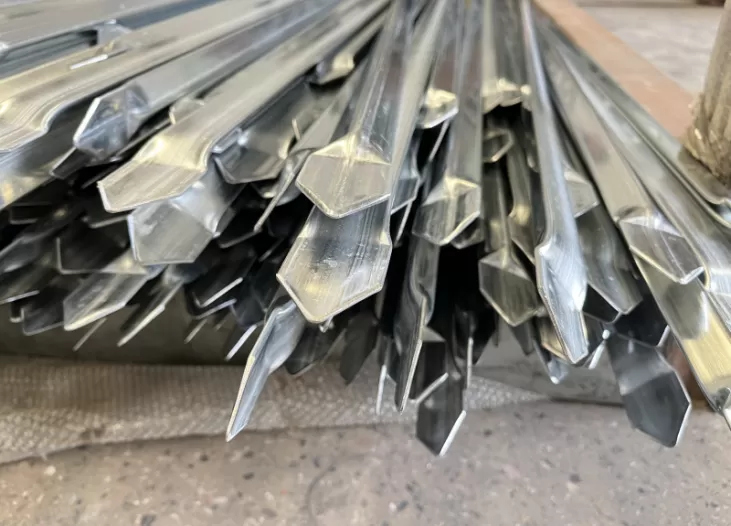

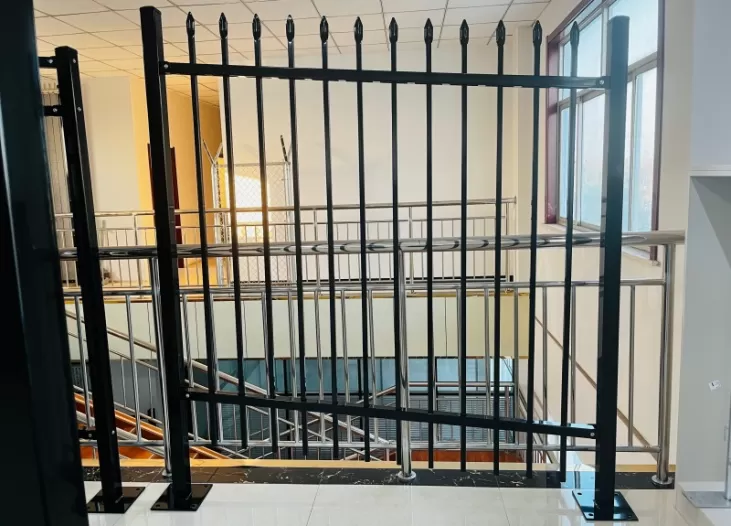

4. The fence plate filling vertical rod is available with flat or pointed head
5. All the connecting bolts are made of stainless steel

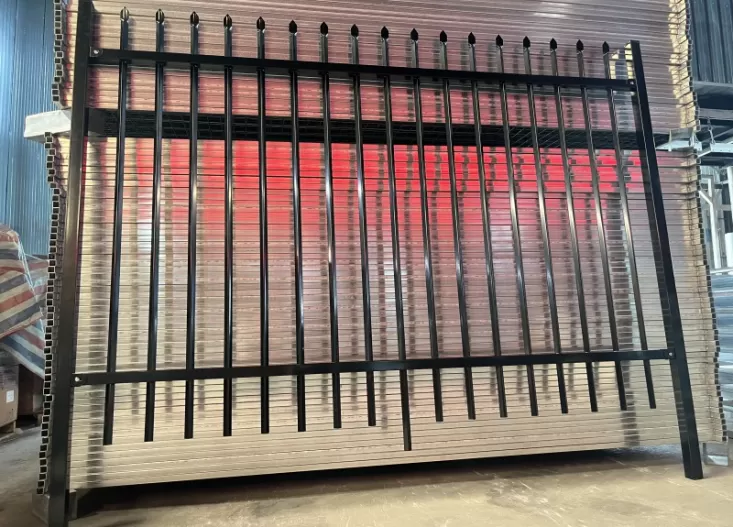

1. Hot dipped galvanized steel picket fence
After welding, a protective layer is formed on the surface of the steel through the hot dip galvanising process. This coatingcan efectively prevent oxidative corrosion and prolong the service life of steel picket fence.
2. Plastic Coating (PVC Coating) or Powder Coating after galvanized steel picket fence.We use high quality powder for spraying, which combines with the galvanised layer on the steel surface to form a moreeffecive protective layer. t provides better protection against oxidisation and corrosion of the steel and this treatment willmake the steel picket fence more aesthetically pleasing

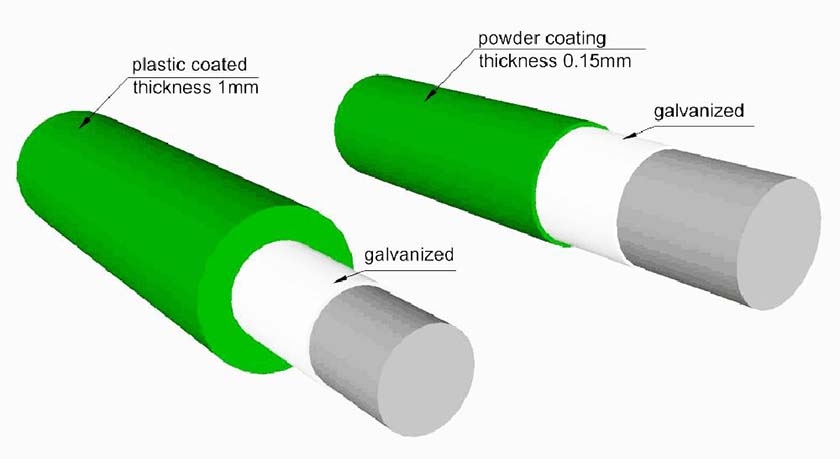

The difference between Plastic Coating and Powder Coating after galvanized steel picket fence.
1. Since 2008,17 year’s production experience.

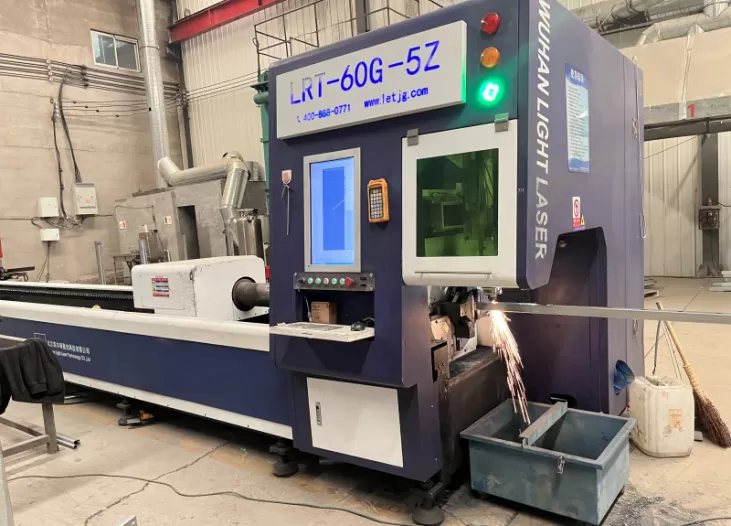

2. CNC laser cutting ensures no tolerance, resulting in a smooth surface.
3. Robot welding is used, producing welding points that are full and strong.

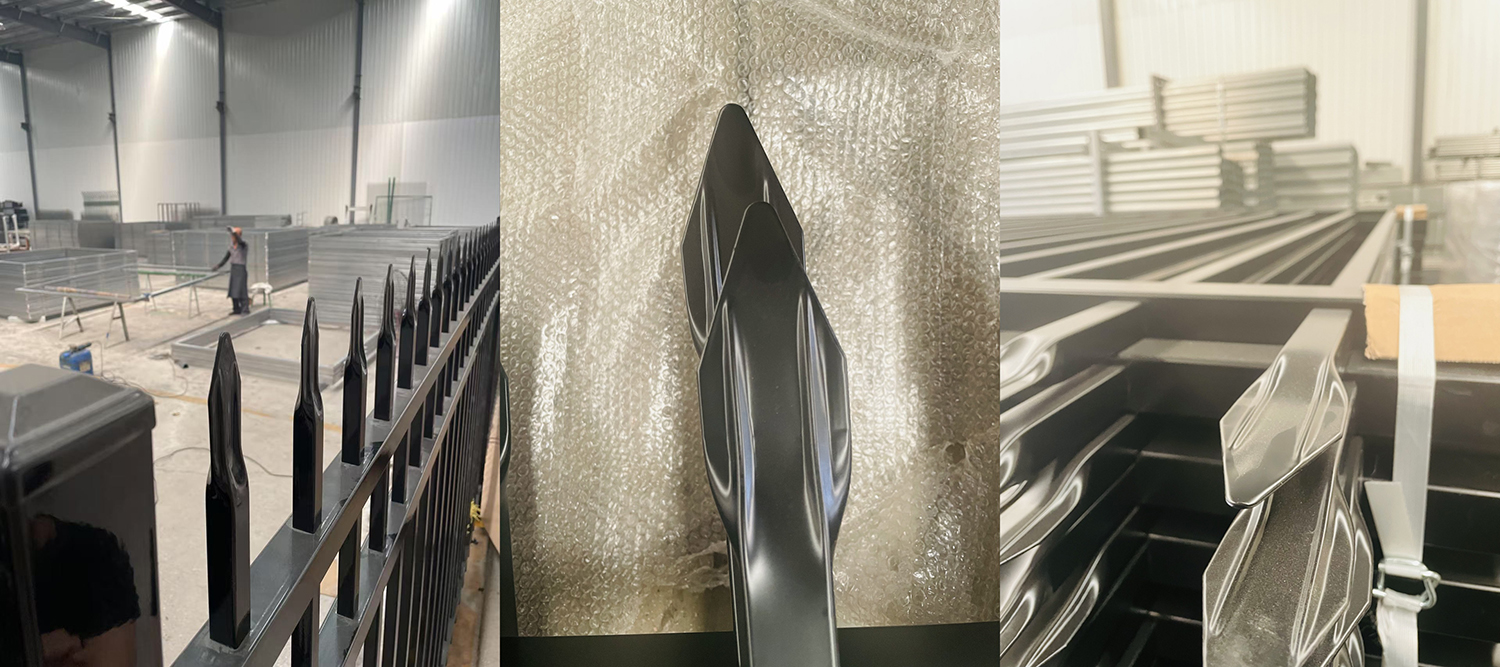

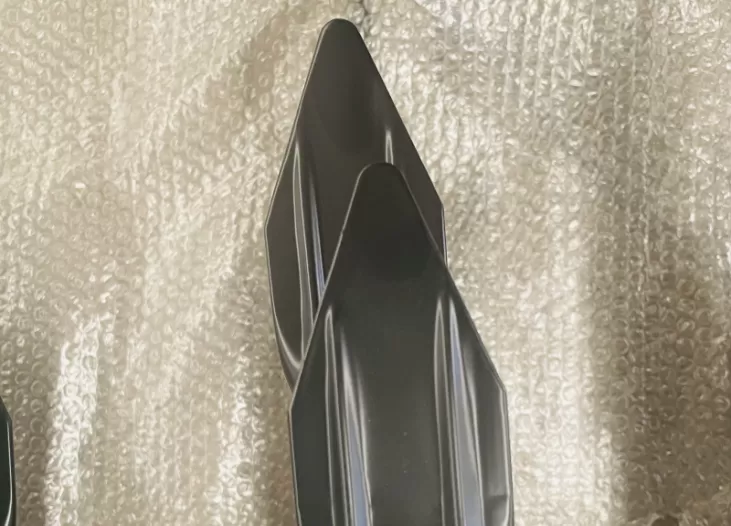

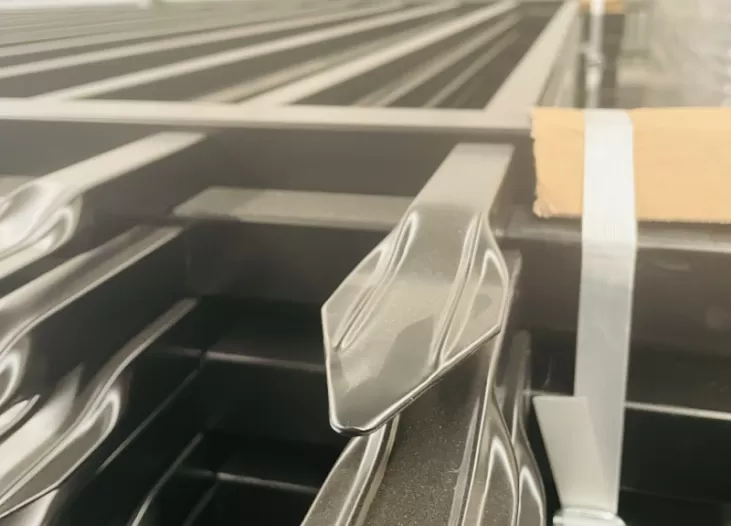

4. Tips should be produced without any burrs or gaps.
5. To get a longer life for your product ,following a number of pre-treatment processes to remove arease and impurities ，then zirconium layer

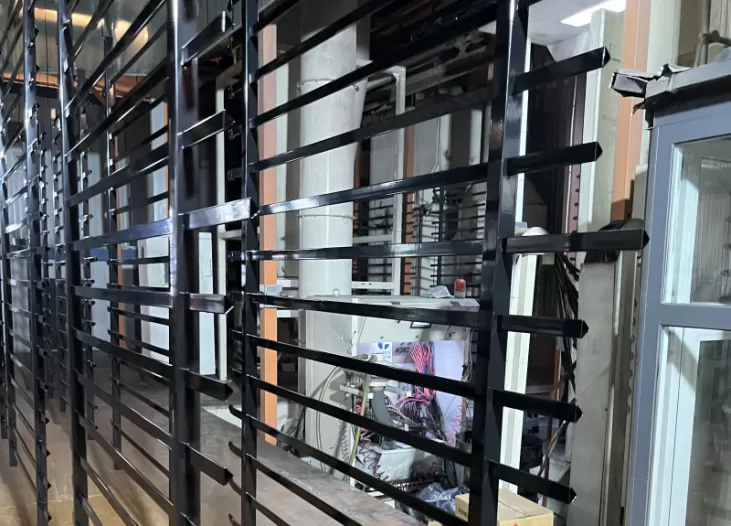

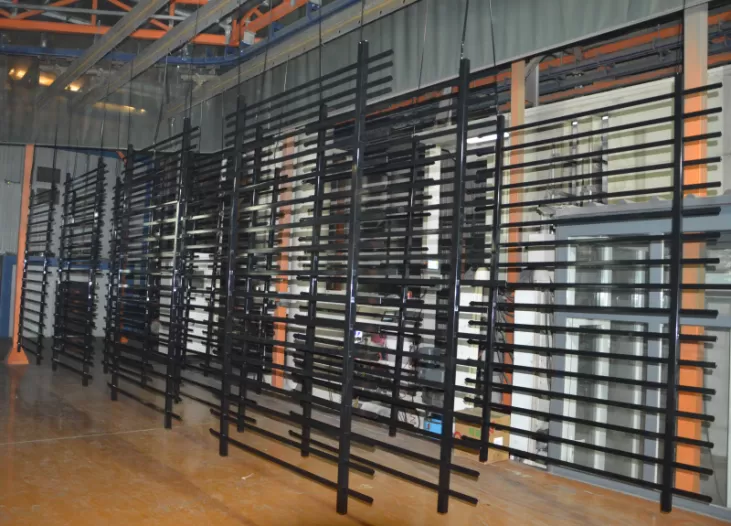

6. Inverted spraying allows the welding point to fully absorb the powder, making it less prone to corrosion and increasing its life time.
7. BONKFC has 2 powder coated production lines that ensure fast delivery and effectively meet customer requirement.
8. We use 32 imported ITW GEMA guns from Switzerland to guarantee surface quality, achieving a powder coating thickness of 120 microns.
In short,the steel fence is one of the best-selling products of BONKFC.
