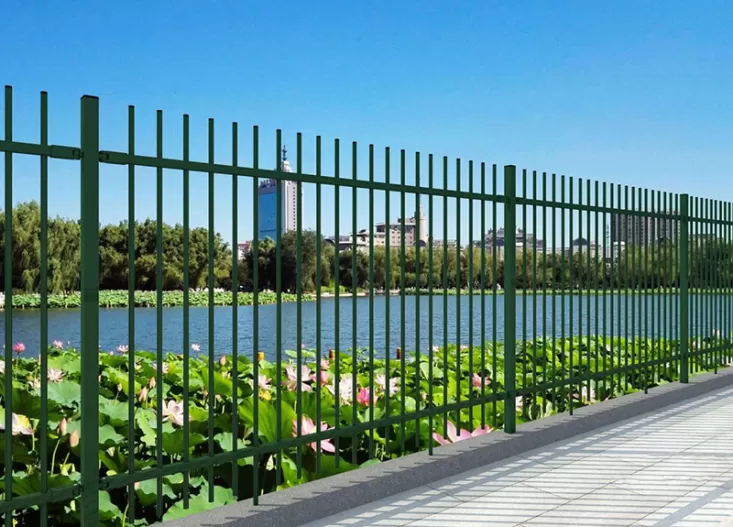

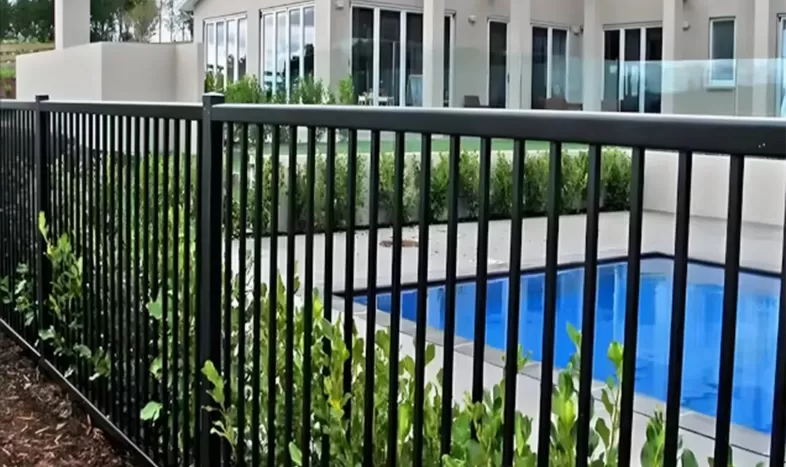

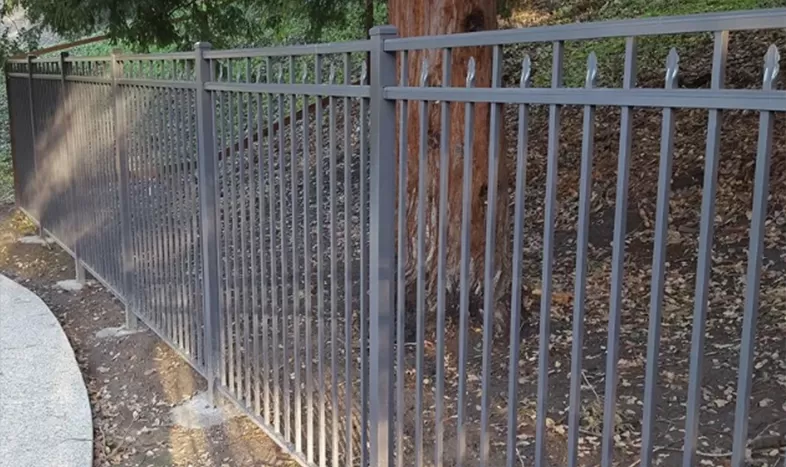

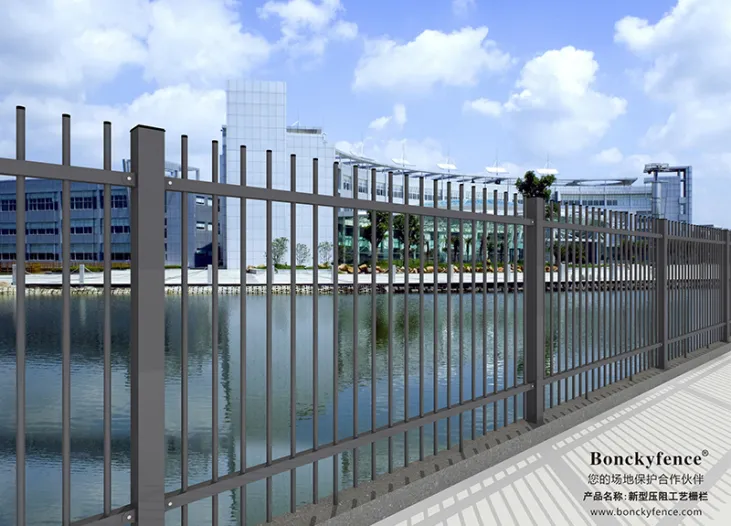

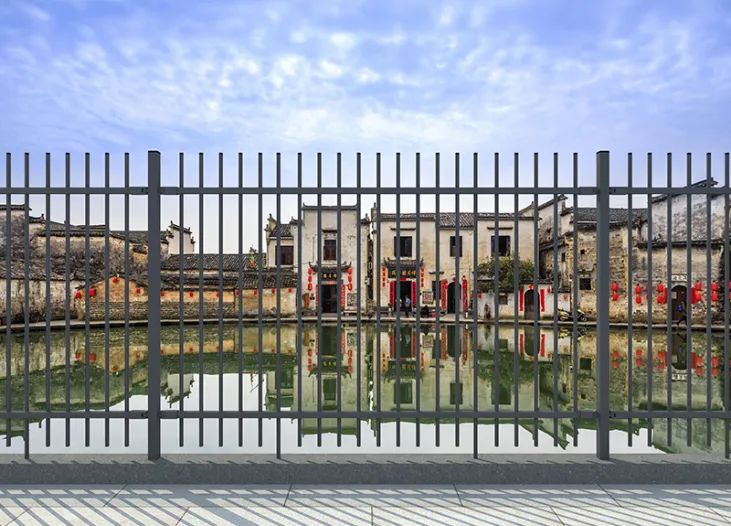

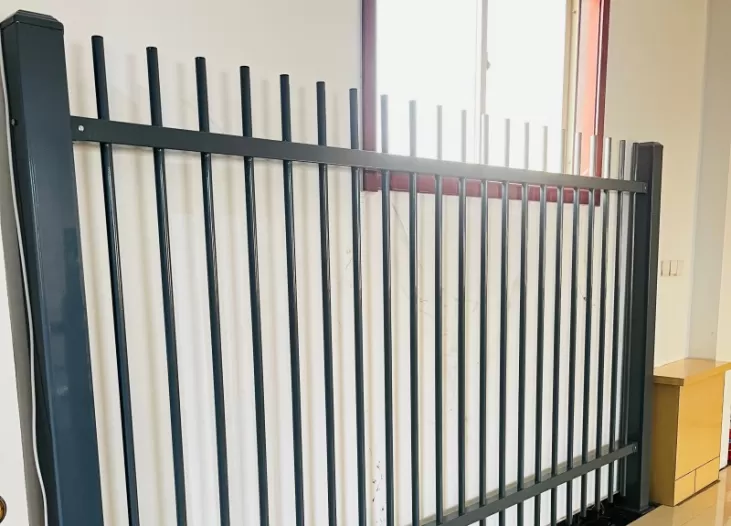

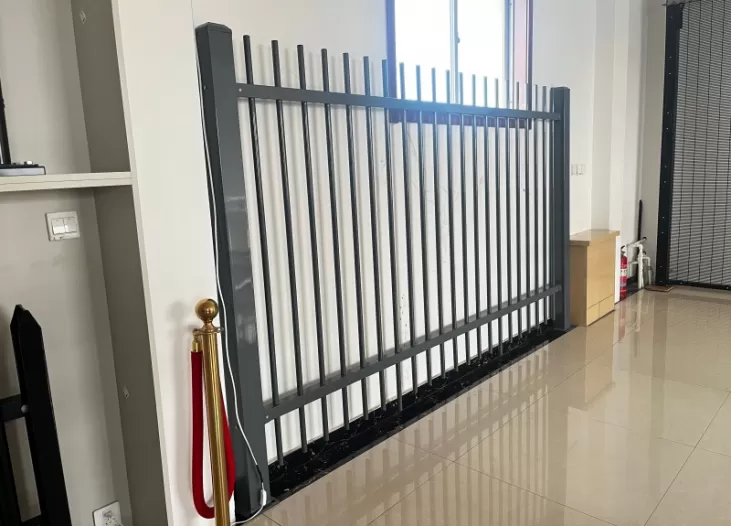

Metal Fence
Name: Tubular Fence
Material: Q195/Q235 wire and pipe
Brand : BONKFC Fence
From: China BONKFC
Color: Black9005, Black Green 6005, Grey7016 or as customized
AkzoNobel Polyester Finish Powder Coating realize exceptional weather resistance and surface self-cleaning performance(rain wash or spray-wash can resume bright and clean surface).

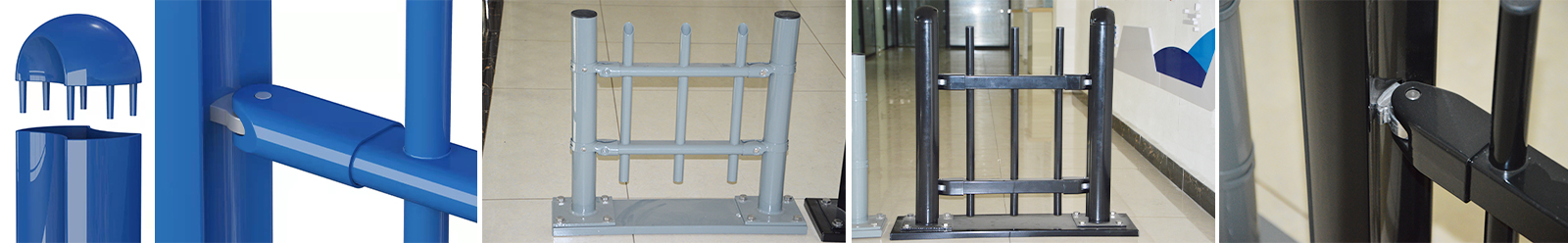

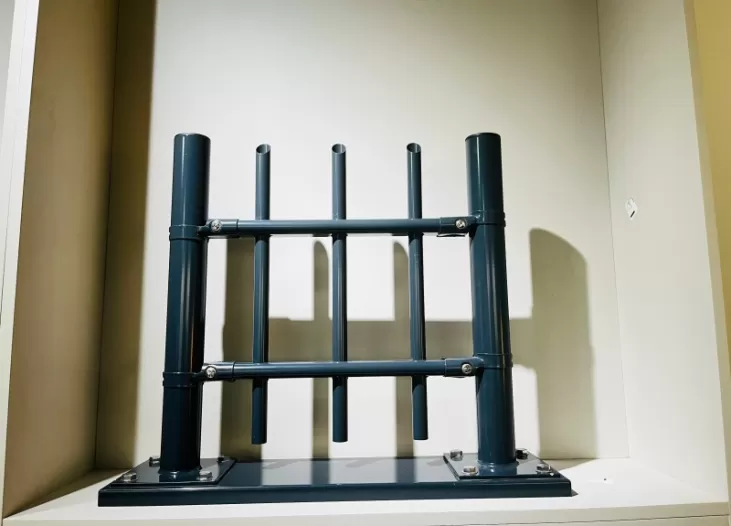

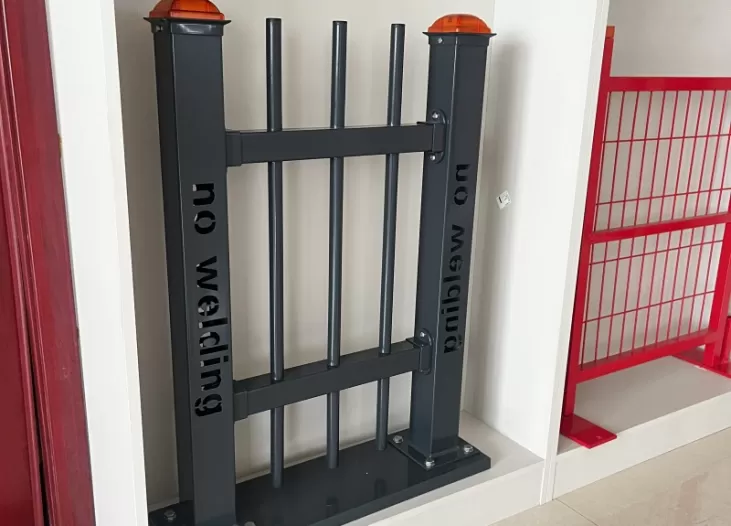

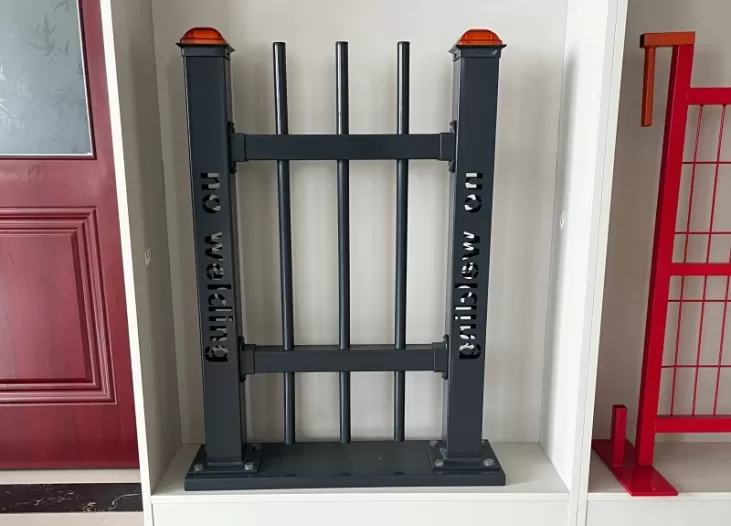

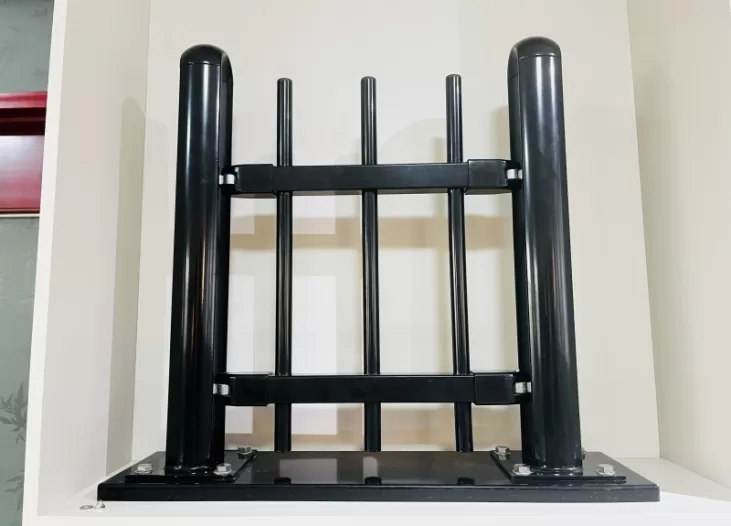

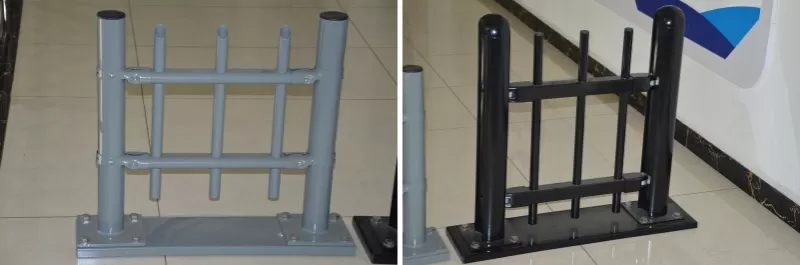

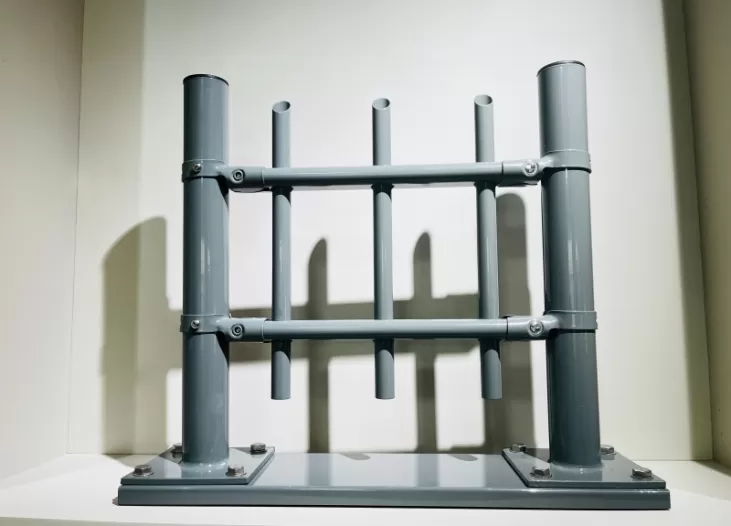

Introduction to no welding fence
no welding fences are safety barrier systems designed and installed without the use of welding techniques during assembly. Instead, they utilize mechanical fastening methods such as bolts, screws, clamps, or interlocking components to connect posts, rails, and other parts. This construction approach offers several advantages, including easier and faster installation, reduced labor costs, minimal site disruption, and the ability to disassemble and reposition the system if needed. Common materials include galvanized steel, aluminum, and vinyl, which are often pre-fabricated for precision and consistency. Weld-free fences are widely used in various settings, including highways, warehouses, commercial buildings, and residential areas, providing durable and reliable fall protection and safety demarcation while maintaining flexibility and aesthetic appeal.
Fence Manufacturing Process:

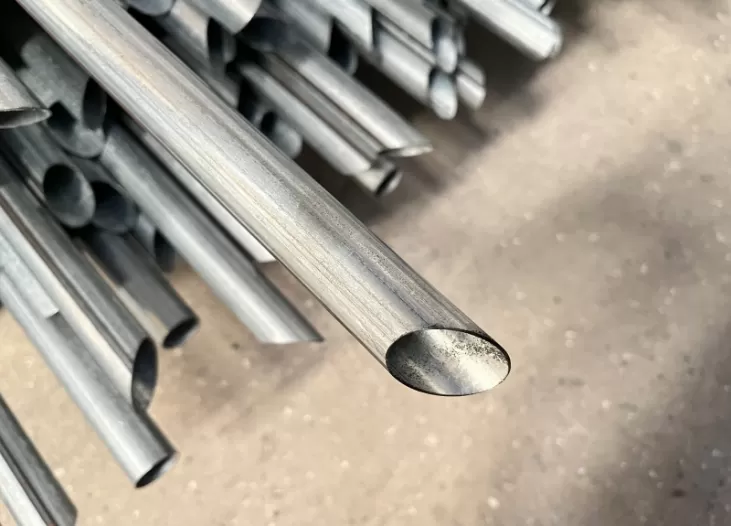

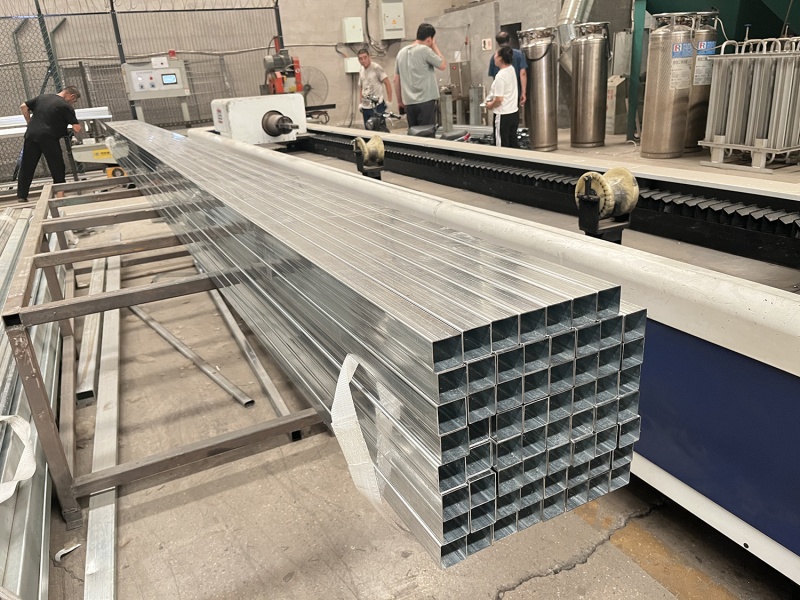

1. Galvanized pipes (raw materials) are delivered to the factory.

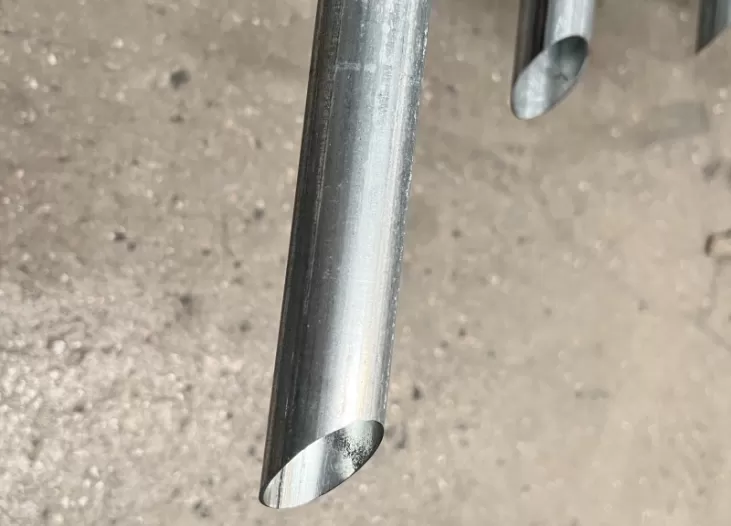

2. The raw material pipes are cut.

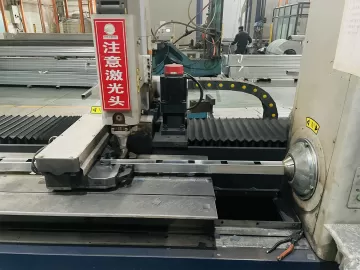

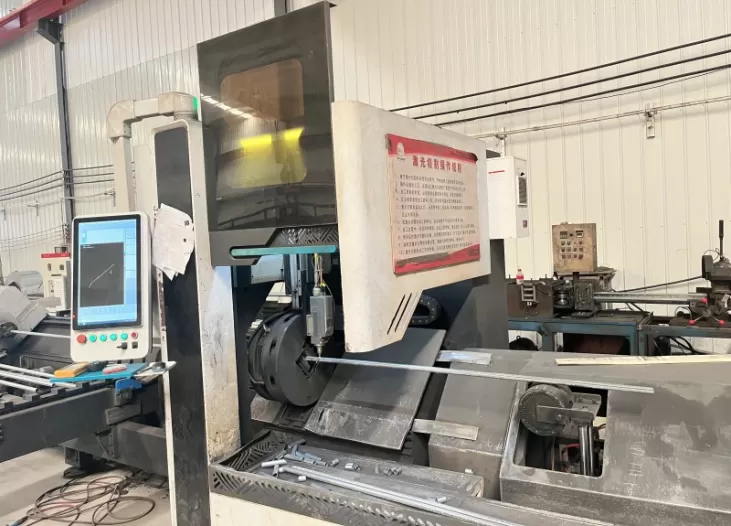

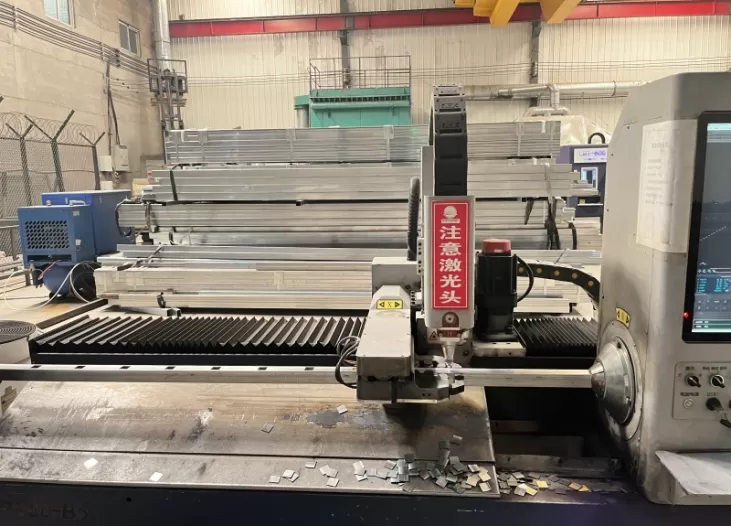

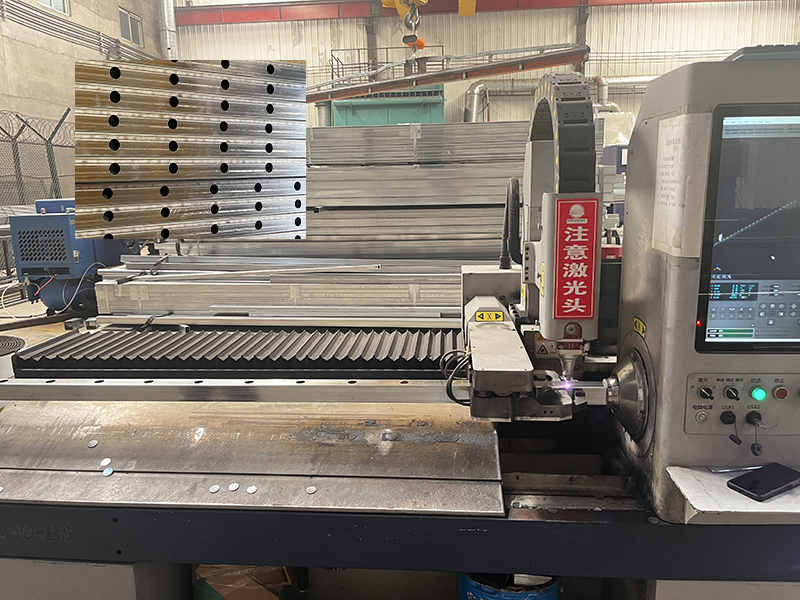

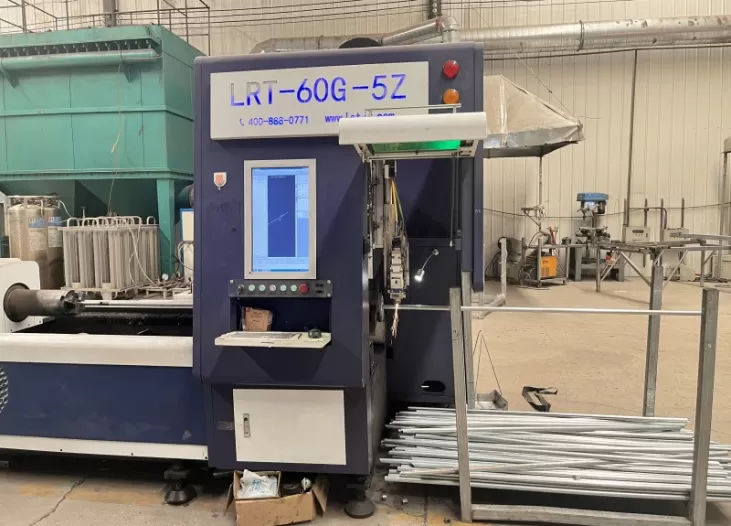

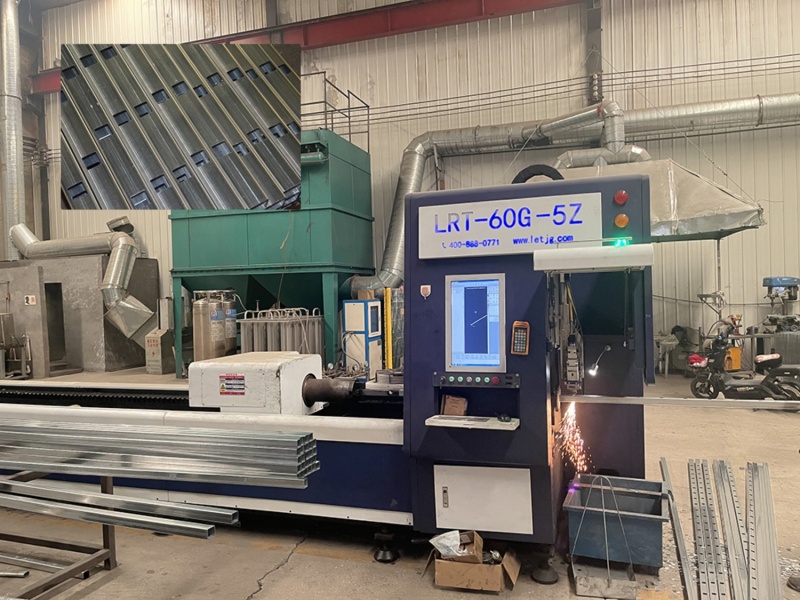

3. Laser hole cutting is performed using Japanese and Swiss YASKAWA equipment, which offers the advantages of zero error, as well as smooth and burr-free cut edges.

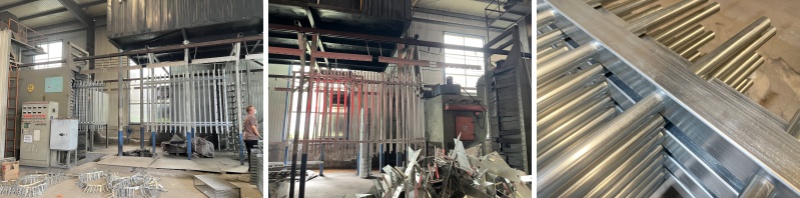

4. To get a longer life for your product ,following a number of pre-treatment processes tp remove arease and impurities .

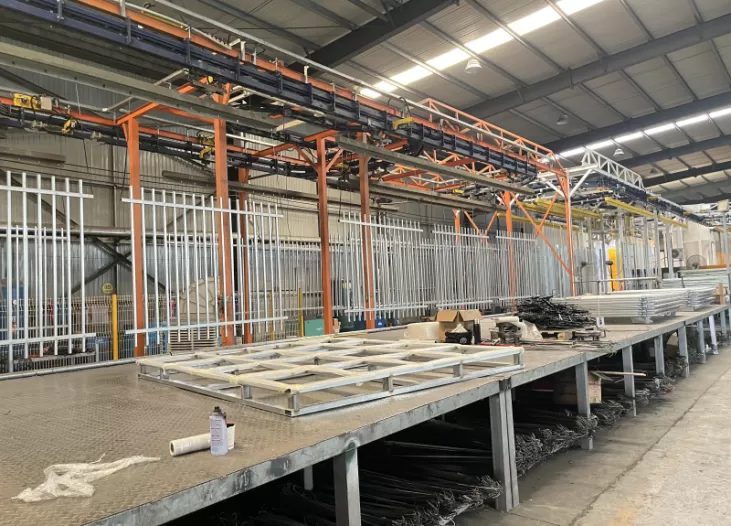

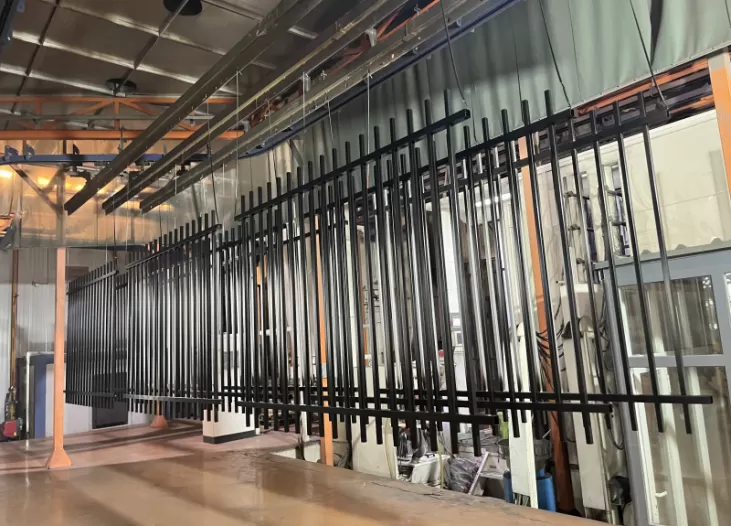

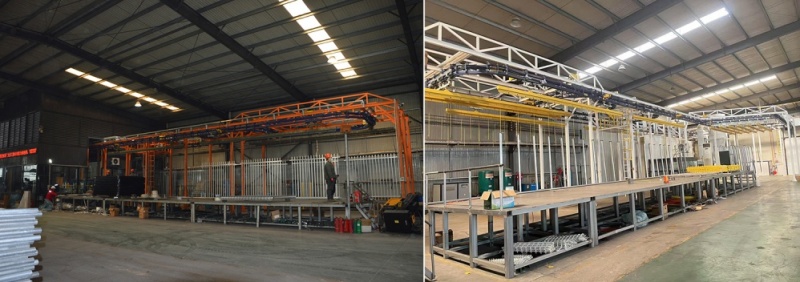

6. BONKFC has 2 top-tier spraying lines in the industry: each line is equipped with 32 Swiss ITW Gema spray guns to ensure uniform spraying; and it uses Akzo Nobel powder with ISO certification.
7. From raw materials to finished products, BONKFC conducts comprehensive quality inspections to ensure that every process meets high standards.

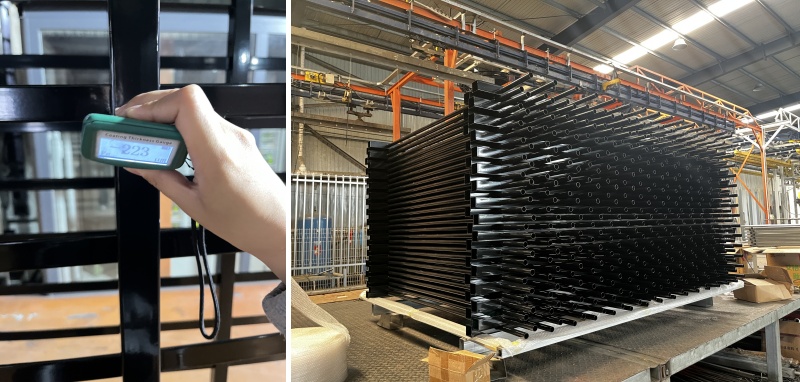

*Check whether the thickness of the powder coating reaches above 120um.
*Check whether there is a gap at the pointed position.
| Panel size | 1.8x2.4m (6x8ft), 2.1x2.4m (7x8ft), etc. |
| Rail size | 25x*1.2mm, |
| Horizontal tube size | square tube: 40x40x1.5mm, The distance between pickets can not be more than 4 inches. (USA) |
| Post size | 80x80x2.0mm/ 60x60x1.5mm(65/75mm square tube needs to be customized) |
| Flange plate | 150x150x5mm |
| The top and bottom of the steel fence exceed rail 150/200mm. | |
| Accessories | Bolts&nuts, screws |
| Surface treatment | Pre-galvanized + Powder coating black |
The Advantage and Features:
1. The pre-assembled door ensure it can be finished within one hour
2. Easy to assemble with quick connect frame and roll out chain link
3. Galvanized protection for durability and anti-rust for years.
4. Lock design ensure convenience and safety.
5. Spacious room is a happy home for your dogs.
6. With roof to protect pets from bad weather, Scorching sun and rain
1. Hot dipped galvanized tubular fence
After welding, a protective laver is formed on the surface of the steel through the hot dip galvanising process. This coating can effectively preven oxidative corrosion and prolong the service life of tubular fence.
2. Plastic Coating (PVC Coating) or Powder Coating after galvanized tubular fence.We use high quality powder for spraying, which combines with the galvanised layer on the steel surface to form a more efective protective layer. itprovides beter protecion against oxidisation and corrosion of the steel and this treatment will make the tubular fence more aesthetically pleasing.

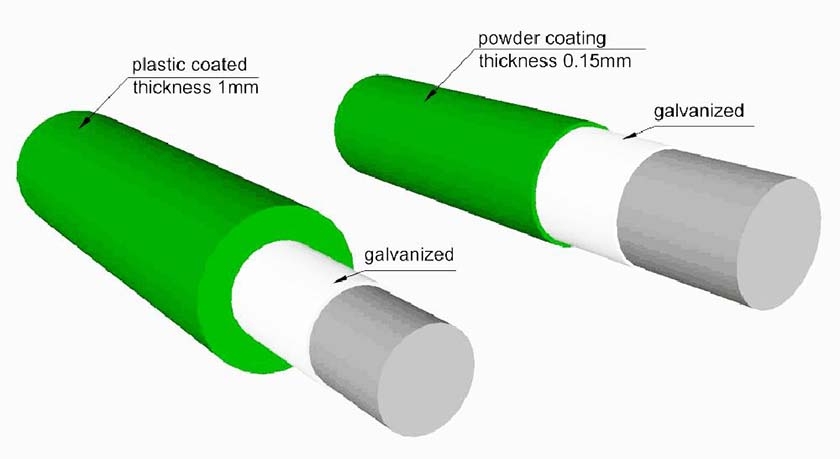

The difference between Plastic Coating and Powder Coating after galvanized tubular fence.
