Metal Mesh Fence
Name: BRC Fence
Material: High-quality Q195/Q235 wire and pipe
Brand: BONKFC Fence
Origin: China BONKFC Factory
Available Colors: RAL 9005 Black, RAL 6005 Green, RAL 7016 Grey, or customized RAL colors

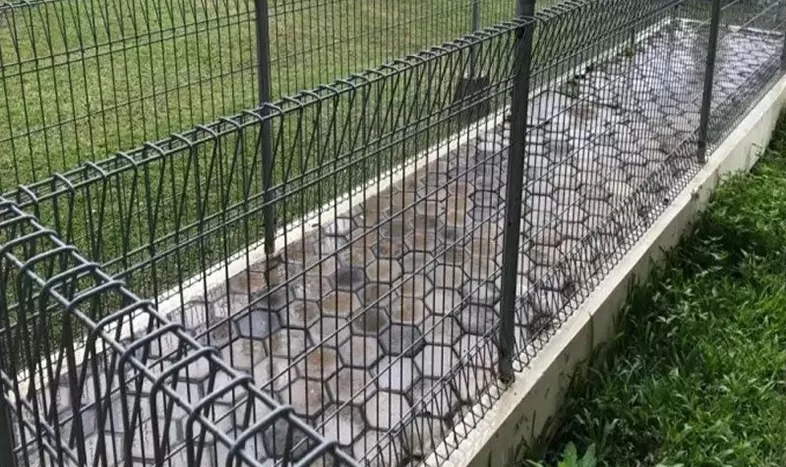

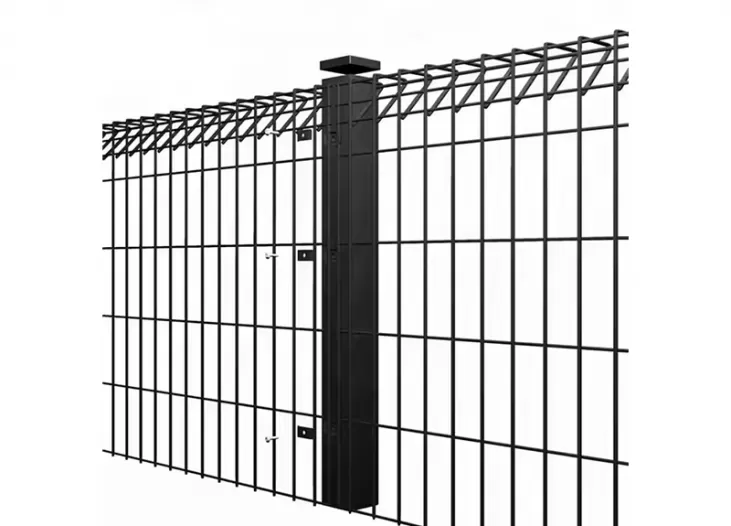

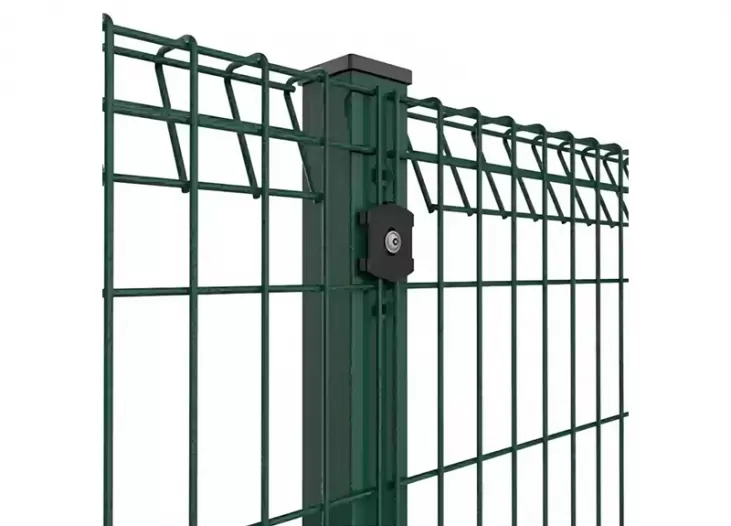

BRC Fence, also called roll-top fence, is a welded mesh fence with unique rolled edges at the top and bottom for enhanced safety and strength. It is widely popular in Southeast Asia, Australia, and Japan due to its durability, modern appearance, and easy installation. BONKFC Fence is a professional BRC fence supplier and manufacturer in China, offering both standard and customized solutions to meet project requirements.
Features of BRC Fence
Safety Design: The rolled top and bottom edges eliminate sharp ends, making the fence safer for residential and public areas.
Anti-Corrosion Performance: Panels are welded first, then hot-dip galvanized, and finished with Akzo Nobel polyester powder coating. This ensures excellent weather resistance and a service life of over 20 years.
Strong Structure: The welding is done with Swiss-imported Schlatter equipment to ensure uniform mesh size and strength.

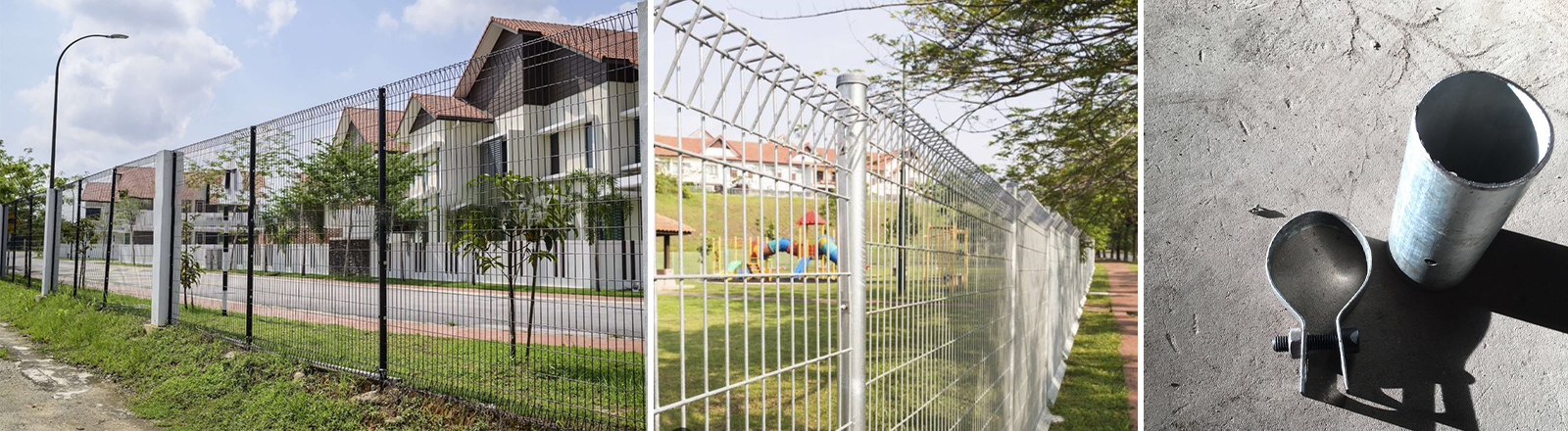

Flexible Installation: Posts can be embedded in concrete or bolted to a concrete base plate for secure and versatile installation.
BONKFC Production Capability
BONKFC Fence owns 2 automatic powder coating lines and Swiss Schlatter welding equipment, ensuring a monthly output of over 20,000 meters of BRC fencing. With more than 10 years of export experience, we supply clients in Australia, Singapore, Malaysia, Japan, and the Middle East. Our fences are ISO9001 certified, ensuring stable quality and fast delivery.
Why Choose BONKFC as Your BRC Fence Manufacturer
Factory-direct supply with competitive prices
Over 15 years of experience in fence manufacturing
Custom design and OEM/ODM service available
Fast delivery: standard BRC panels ship within 15–20 days
Full quality guarantee: 10 years for galvanized finish, 20 years for powder-coated finish
| BRC fence Roll top fence | Mesh Spacing (mm) | Wire Diameter(mm) | |
| Vertical wire space | Horizontal wires pace | ||
| Type 1 | 50 | 150 | 4mm,5mm,6mm,7mm,8mm |
| Type 2 | 75 | 300 | 4mm,5mm,6mm,7mm,8mm |
| Panel Size Height x Width (mm) | 900x 2400 | ||
| 1200x2400 | |||
| 1500x2400 | |||
| 1800x2400 | |||
| 2100x2400 | |||
| 2400x2400 | |||
| Post Specification (mm) | Round post ● Size:48mm,60mm ● Thickness:1.5mm,2.0mm,2.5mm,30mm ●Accessories:Stainless Steel U-clip &M6 Bolt 7 Nut | ||
| Square Post ●Size:50x50mm,60x60mm,80x80mm ● Thickness:1.5mm,2.0mm,2.5mm,3.0mm ●Accessories:U-Clip,Bolt &Nuts,Flat Bar etc | |||
| Surface Treatment | ● Hot dipped galvanized after welding ●Plastic coating(PVC Coating)after galvanized wire &tube welded ● Power coating after galvanized wire &tube welded | ||
| Materials and specifications can be made according to customers'detailed requirements. | |||

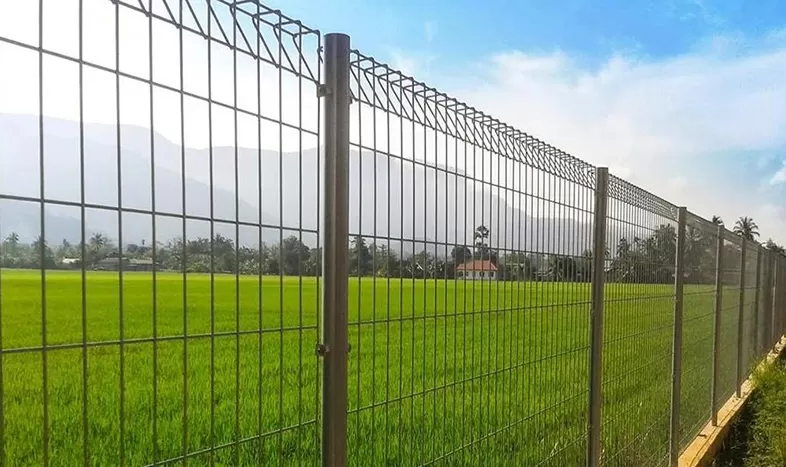

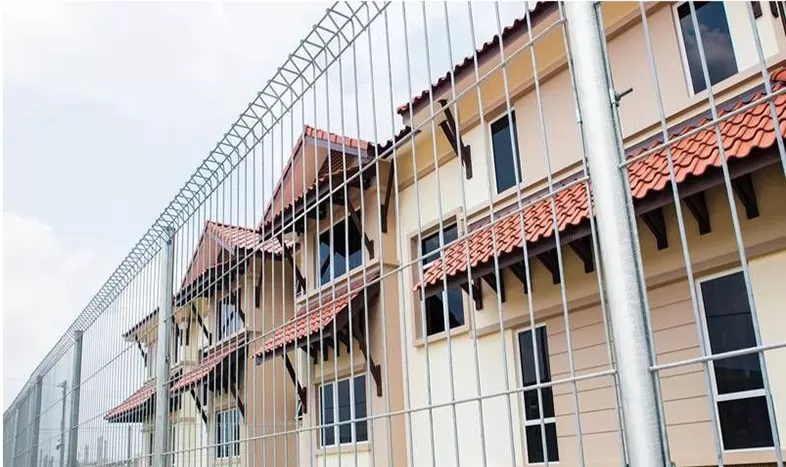

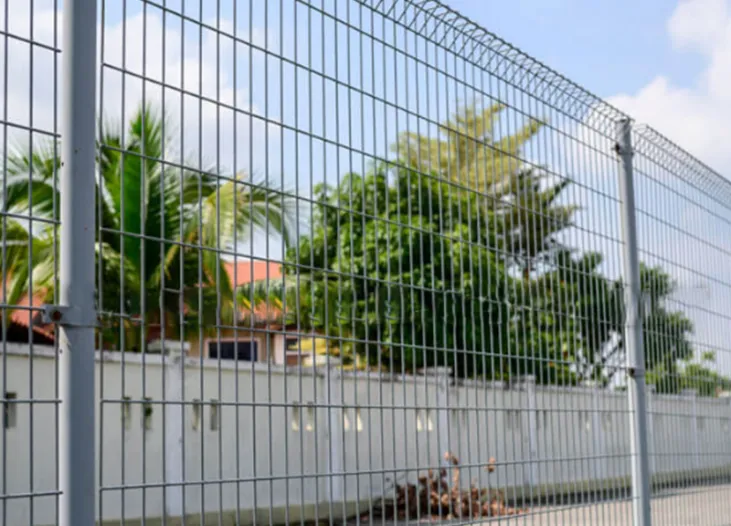

BRC fences are widely used in:
Residential communities and gardens
Public parks and municipal projects
Schools, playgrounds, and swimming pools
Factories, warehouses, and construction sites

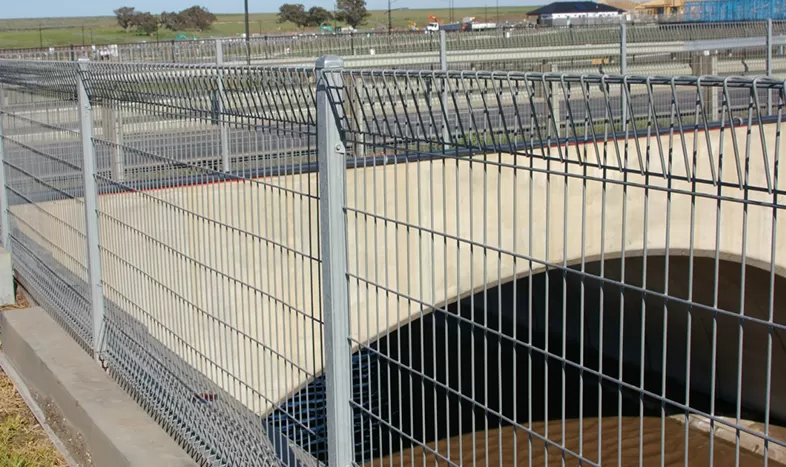

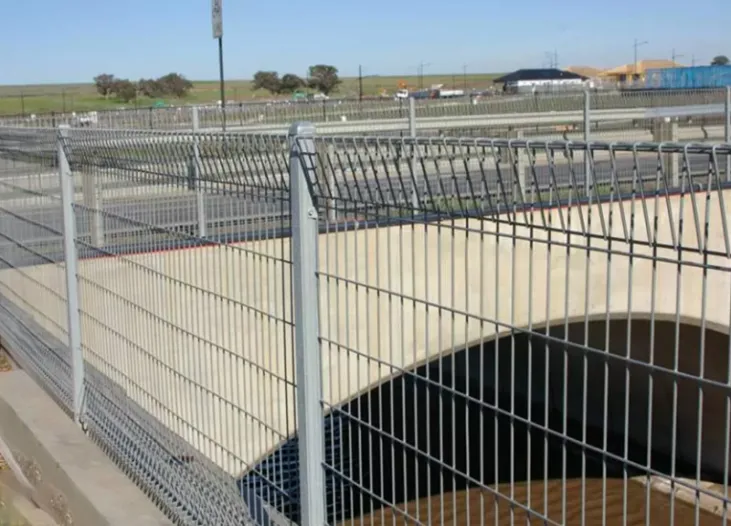

Roadside and railway protection
Hot-dip galvanized to BS EN ISO 1461 standard
Powder coating thickness: 80–120 microns using Akzo Nobel Powder
32 imported ITW GEMA spray guns ensure smooth surface and strong adhesion
All panels pass adhesion cross-cut testing before shipment

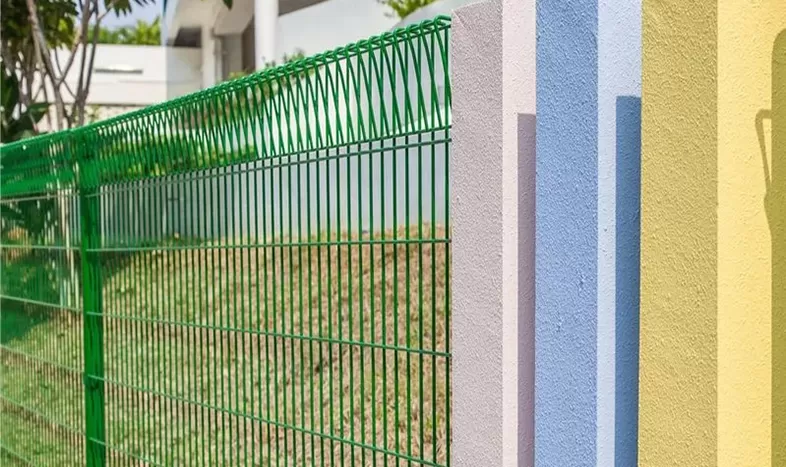

Popular Colors
Most common colors include RAL 6005 Green, RAL 7016 Grey, and RAL 9005 Black. Customized RAL colors are available upon request.

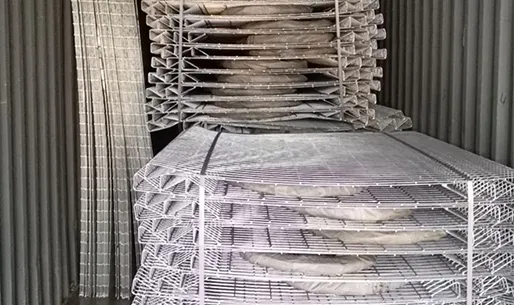

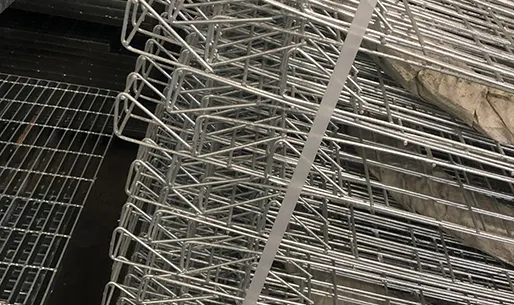

Depending on the surface treatment of the triangle bending mesh panels, there can be two different types of packing.
