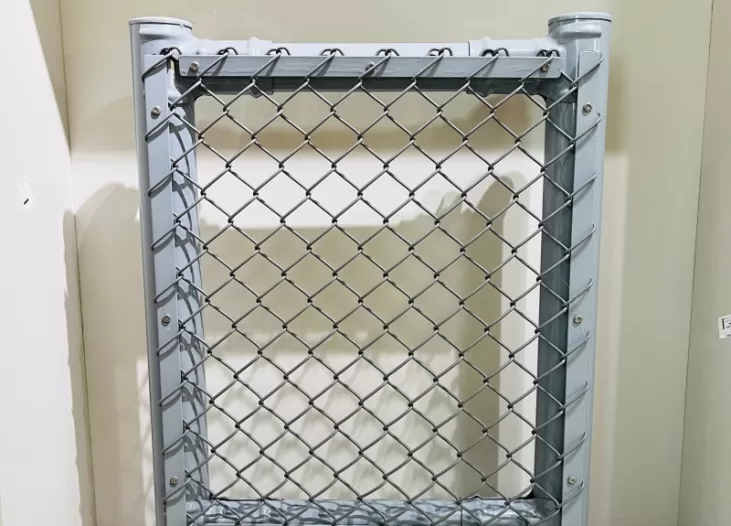

Chain link fence
Name: Chain Link Fence
Material: S235JR Grade wire and pipe
Tensile Strength:350-550 Mpa
Brand : BONKFC Fence
From: China BONKFC
Color: Green RAL 6005,
All metals are as per BS EN Std.
A:Wire Diameter: 2.5 mm/3.0 mm/3.5 mm/4.0 mm/4.5 mm
B;Mesh Size: 40 x40 mm（1.5"), 50 x 50 mm(2"), 60 x 60 mm(2.4"), 75 x 75 mm(3"), 100 x 100 mm(4")
C:Roll Height:1.2m/1.5m/1.8 m/2.0 m/2.4 m/2.8 m/3.0 m
D:Roll Length:9m/10 m/15m/18 m/20 m/25 m/30 m
E:Post:
*Round post size: Ф40 mm, Ф48 mm, Ф60 mm, Ф75 mm
*Round post thickness: 1.5 mm/1.8 mm/2.0 mm/2.5 mm
*Angle iron size: 40 x40 mm, 50 x 50 mm, 60 x 60 mm, 70 x 70 mm
*Angle iron thickness: 4.0 mm/5.0 mm/6.0 mm
F:Rails: round pipes,Ф32 mm,Ф40 mm,Ф42 mm,Ф48 mm,Ф60 mm,Ф76 mm

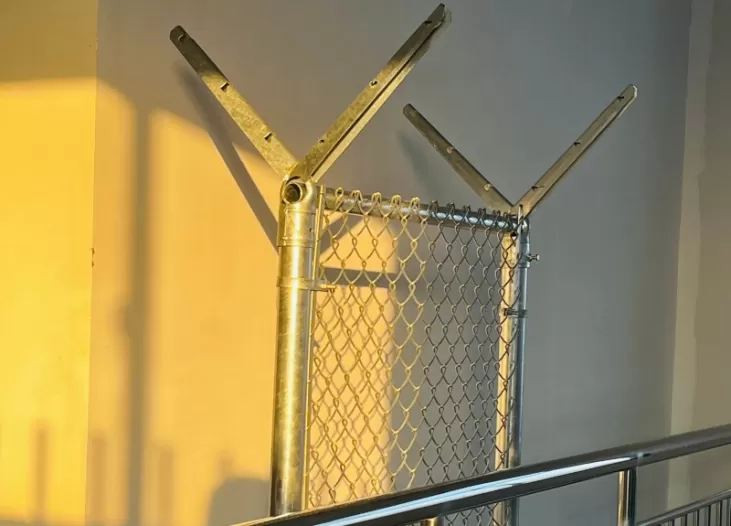

G:Accessories: Barb arms, razor wires, barbed wires,hog ring,
double clamp,corner clamp,wire fasteners,brace band,eyebolt
Need a specification outside these ranges? Send BONKFC your drawing or technical data sheet for production feasibility review.
Chain Link Fence is also named diamond wire mesh with the diamond opening. It is made with various metal wires weaving by chain link fence machine. BONKFC chain link fence materials are available in stainless steel, galvanized, and PVC coated wire. BONKFC chain link fence can be used for more than 10 years for rust-corrosion，especially for sea side place.
BONKFC chain link mesh wire diameter can reach 4mm,
BONKFC the pvc surface:high viscosity /Hot compress coating thickness>=250um
All components are manufactured from S235JR carbon steel complying with standard BS EN 1387:1985, finished with thermoplastic powder coating at a minimum thickness of 250 microns.
normally used pvc thick can be 1mm-2mm even more.
Industrial buyers generally prioritize boundary visibility, controlled access, durability and reasonable project cost.
Recommended selection direction:
Medium or heavy wire according to the required security level
Fence height matched to the site risk
Reinforced corner, terminal and gate posts
Top rail and tension system
Optional barbed wire or razor wire
Matching vehicle and pedestrian gates
Commercial projects often require a balance between appearance, perimeter control and maintenance cost.
Recommended selection direction:
PVC-coated chain link fencing
Color coordinated with the surrounding property
Knuckle–knuckle edges in accessible areas

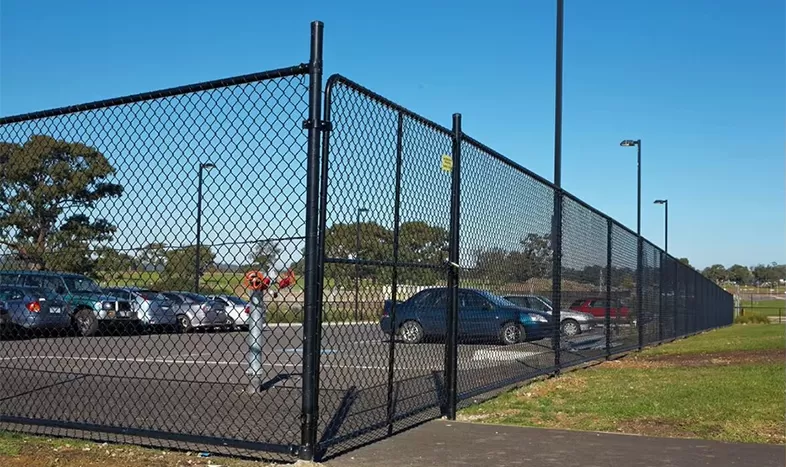

Matching swing or sliding gates
Privacy slats where visual screening is required
Sports fencing should maintain visibility while helping contain balls and control access.
Recommended selection direction:
Fence height based on the sport and boundary position
Wire diameter suitable for repeated impact
Reinforced framework around gates and corners
Smooth knuckled edges in player-accessible areas
PVC-coated finish for a coordinated appearance
Long-distance infrastructure projects require consistent roll dimensions, efficient transportation and reliable outdoor protection.
Recommended selection direction:
Galvanized or hot-dip galvanized fence fabric
Standardized roll lengths for installation planning
Consistent post spacing and component packages
Clearly labeled fittings and accessories
Project-based container loading and delivery planning
The mesh opening, wire diameter and fence height should be selected according to the animal type, expected pressure on the fence and total boundary length.
For large livestock or agricultural projects, compare chain link fencing with a field fence or cattle panel. Chain link fencing is generally more suitable for smaller enclosures, controlled-access areas and applications requiring a clearly defined boundary.
Residential and commercial screening projects may require both boundary protection and privacy.
Recommended selection direction:
PVC-coated mesh
Knuckle–knuckle edges
Coordinated fence and gate colors
Optional privacy inserts
Framework designed for the additional wind load created by privacy materials
BONKFC manufactures metal fencing products including chain link fence, welded mesh fence, steel fence, gates and perimeter security accessories. Learn more about BONKFC and its manufacturing capabilities.
Instead of supplying only chain link mesh rolls, BONKFC can coordinate fence fabric, posts, rails, gates, clamps, tension components and optional security toppings.
Wire diameter, mesh opening, height, roll length, finish, color, framework, accessories and packaging can be adjusted according to confirmed project requirements.

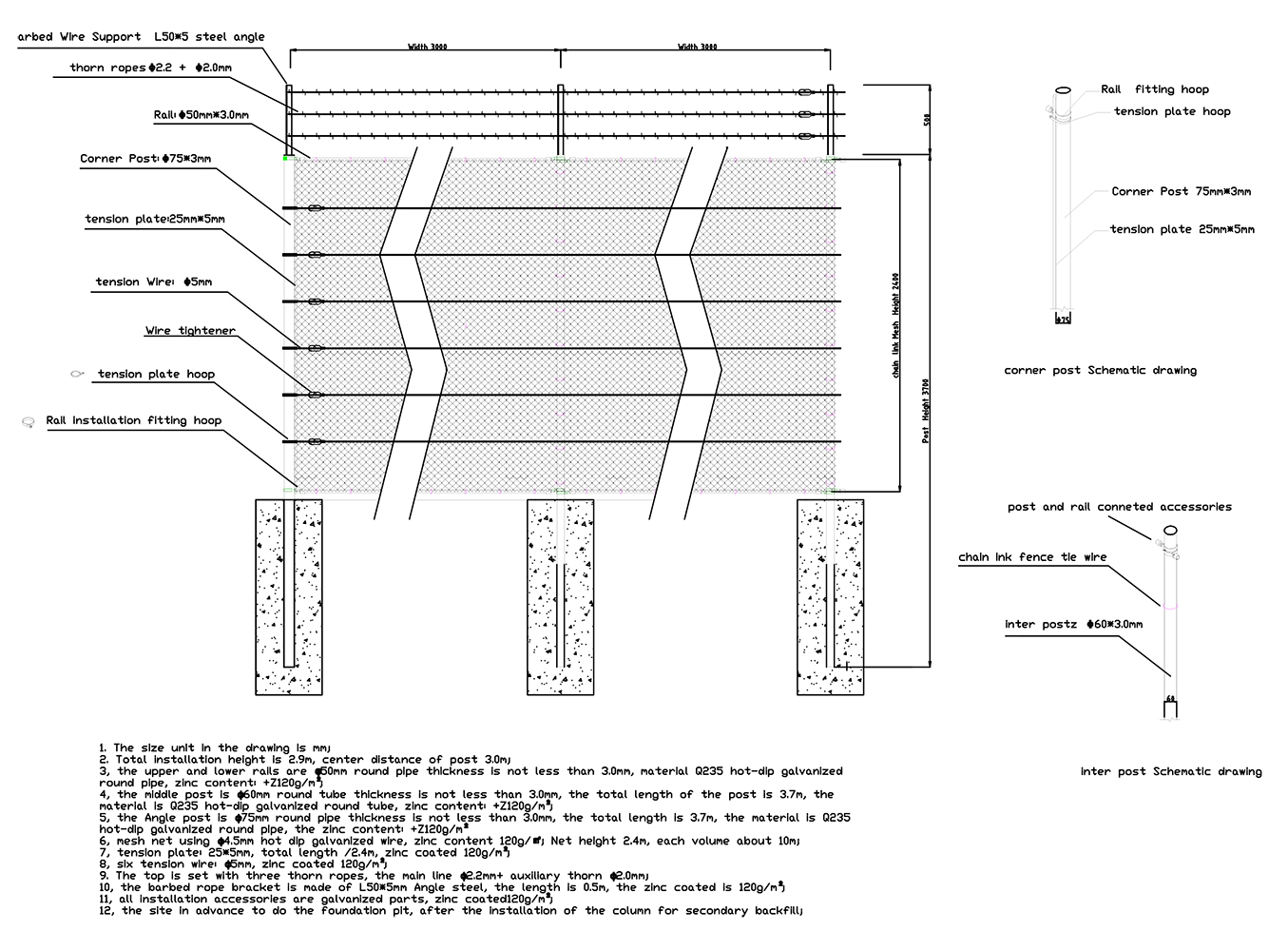

BONKFC can review drawings, BOQs and installation requirements before production. Technical drawings help buyers confirm system dimensions and component quantities before shipment.
Key dimensions, roll measurements, mesh openings, surface condition and accessory quantities can be checked against the confirmed order specification.
Packaging can be arranged according to product dimensions, container loading requirements and customer shipping marks.
Yes. Chain link fence rolls can be supplied separately, or you can request a complete system with framework, gates and fittings.
The selection depends on fence height, required security, expected impact, installation environment and budget. Heavier wire generally provides greater resistance to deformation, while a smaller mesh opening makes climbing and reaching through the fence more difficult.
Galvanized chain link fencing has a metallic zinc-protected surface and is commonly selected for functional or budget-controlled projects. PVC-coated fencing adds a colored protective layer and is often selected where appearance and additional surface protection are important.
Chain link fence can provide economical perimeter control and can be upgraded with heavier wire, smaller mesh, greater height and security toppings. For stronger anti-climb performance, compare it with clear view fencing or palisade fencing.
Provide the exact standard number and technical requirements with the inquiry. BONKFC will review the material, dimensions, coating, inspection and documentation requirements before confirming production feasibility.
MOQ depends on the wire diameter, mesh opening, finish, roll dimensions, custom color and required system components. Contact BONKFC with your specifications for confirmation.
Production lead time is confirmed after the product specifications, order quantity, finish, packing and documentation requirements have been finalized.
The loading quantity varies according to wire diameter, mesh opening, roll height, roll length, compression and whether posts or accessories are shipped in the same container. A loading calculation can be prepared for the confirmed order.
Send BONKFC your project specification, drawing or BOQ to receive a quotation for chain link fence rolls or a complete perimeter fencing system.
Get a Complete Fence System Quote
Send Your Drawing for Technical Review
galvanized chain link fence
pvc coated chain link fence
powder coated chain link fence
hot dipped galvanized chain link fence
We have twist-twist, knuckle-knuckle and knuckle-twist selvages for you to choose from.
Twist-twist
Knuckle-knuckle
Knuckle-twist
raw materials
Chain Link Fence production
rolling up
finished galvanized chain link fence

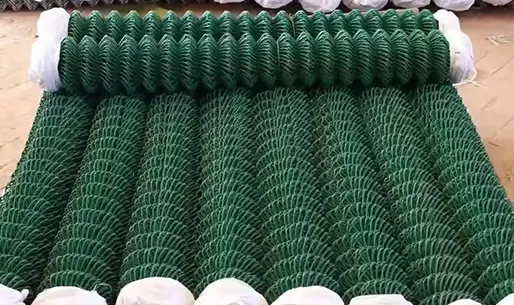

finished PVC chain link fence
Inspect the wire thickness
Check if the mesh size complies with the specifications
Carry out weighing for coiled chain link fence
Length per roll when laid flat on ground
Measure the height when standing upright on the ground
Each set is wrapped with plastic film absorbed. Carton packing, pallet packing or packing as per the customers' request.

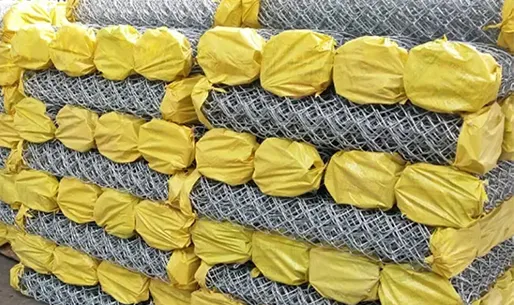

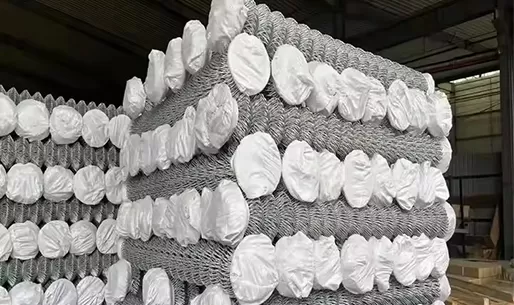

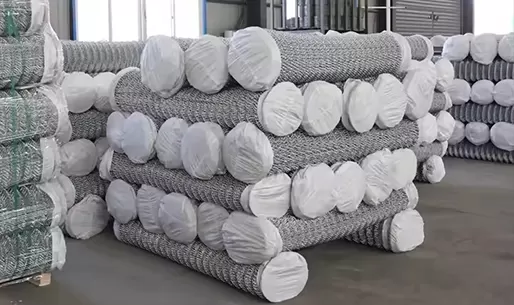

Bulk rolls
Bulk rolls

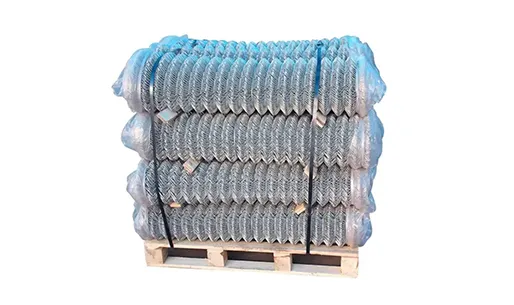

Pallet packed

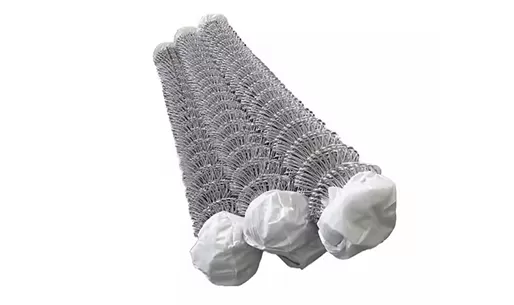

Bulk rolls

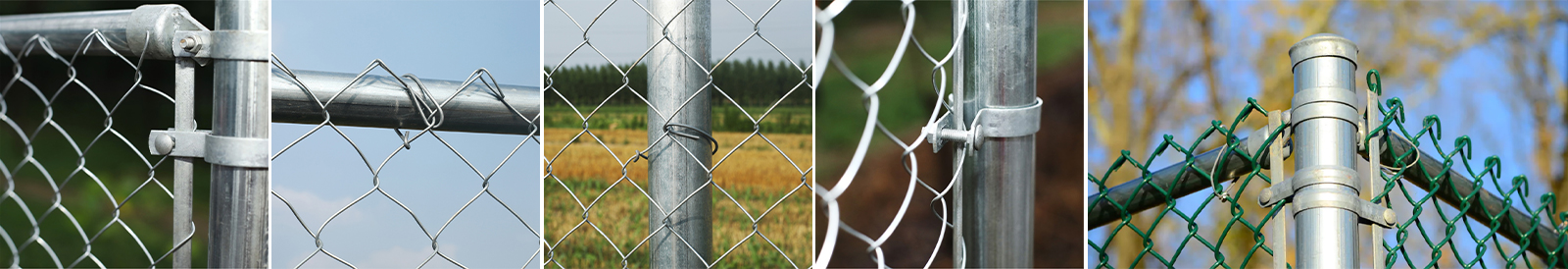

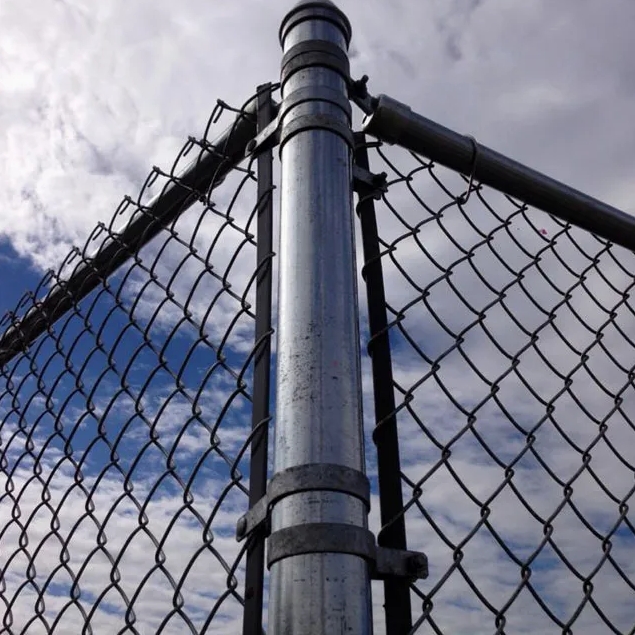

Post of Chain Link Fence
Post of Chain Link Fence

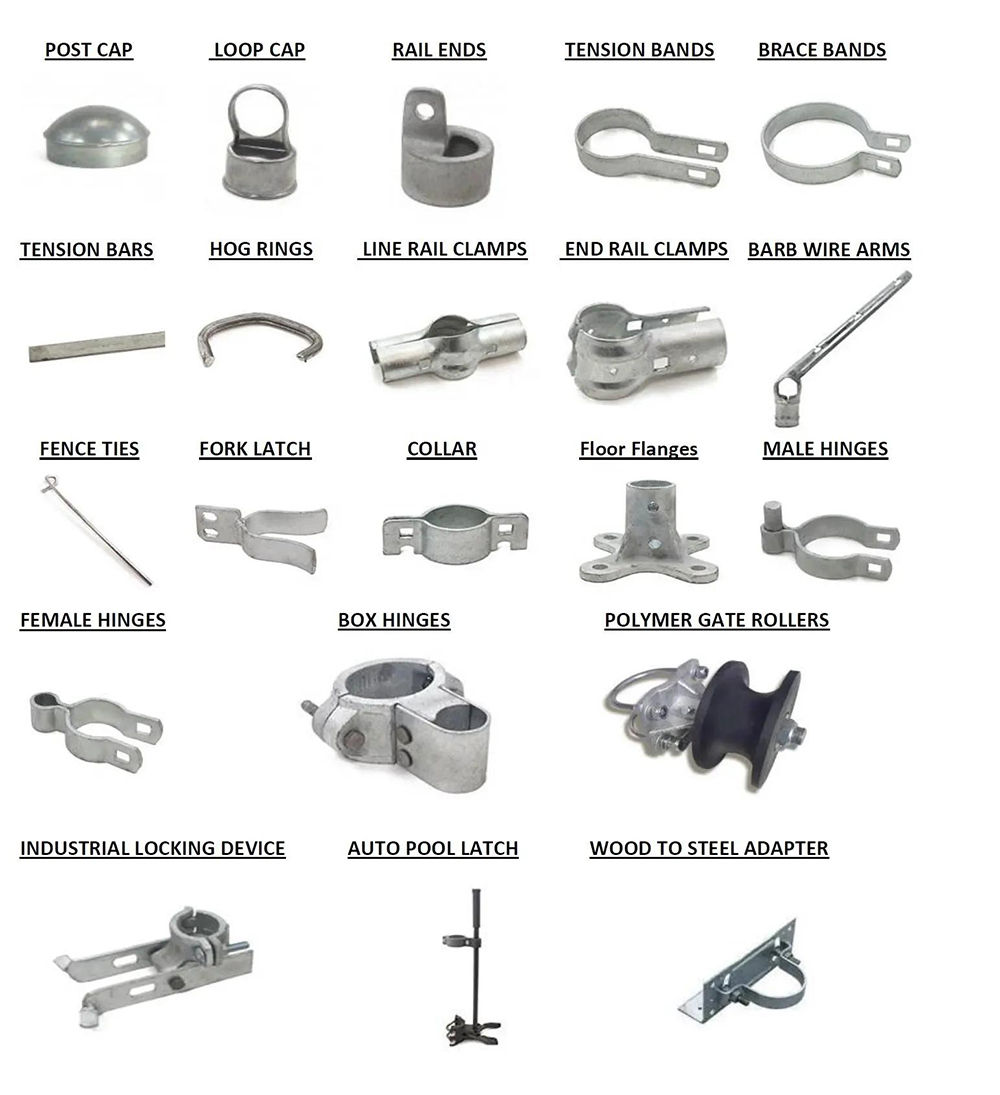

chain link fence components accessories
barbed wires
rzaor wires
*Durable Structure-Made from high-tensile steelwire with strong weaving, ensuring stability andlong service life.
*Corrosion Resistance-Galvanized or pVC-coatedfor excellent rust protection in outdoorenvironments.
*Good Visibility & Ventilation-Open mesh designallows airflow and light penetration withoutcompromising security.
*Flexible Applications-Can be installed on flat orsloped terrain, and easily customized in height andmesh size.
*Cost-Effective-Affordable option with lowmaintenance requirements.
The chain link fences are easy to transport and can be unrolled smoothly after the user receives them. The chain link mesh is most ofen usedin factory fences, park fences, airort fences, border fences, etc. t can also be used for slope protection to prevent rocks from roling down,landslides, etc.

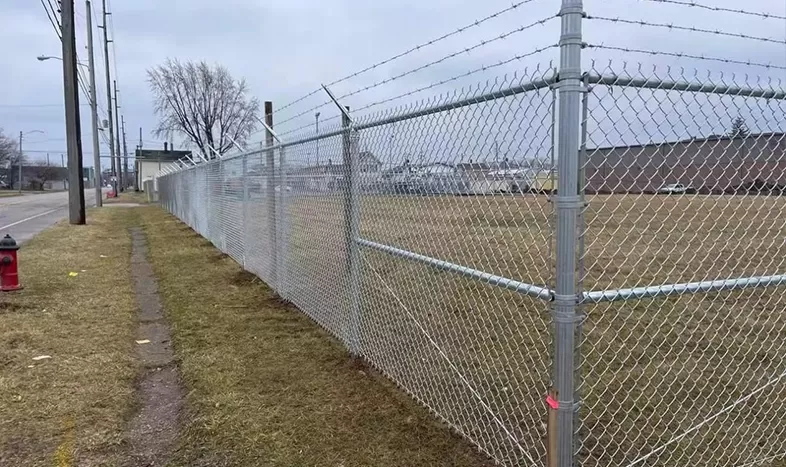

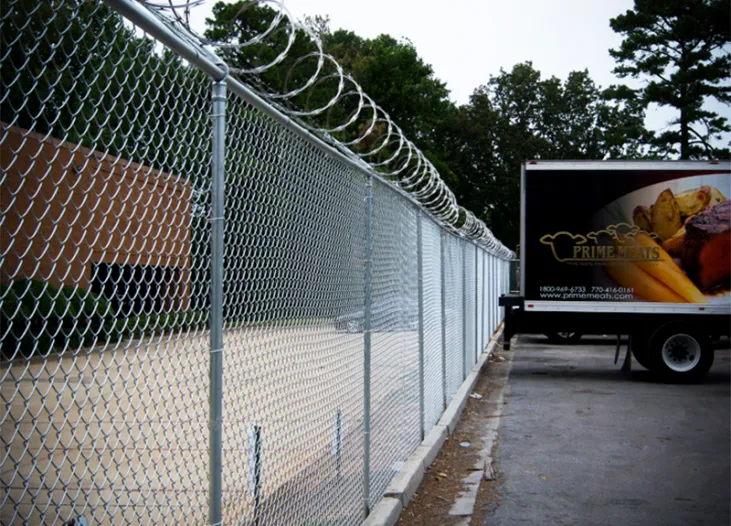

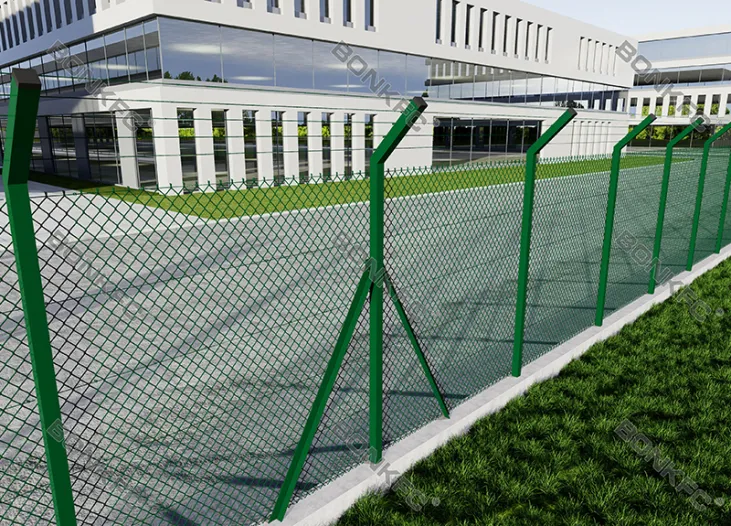

Industrial facility security

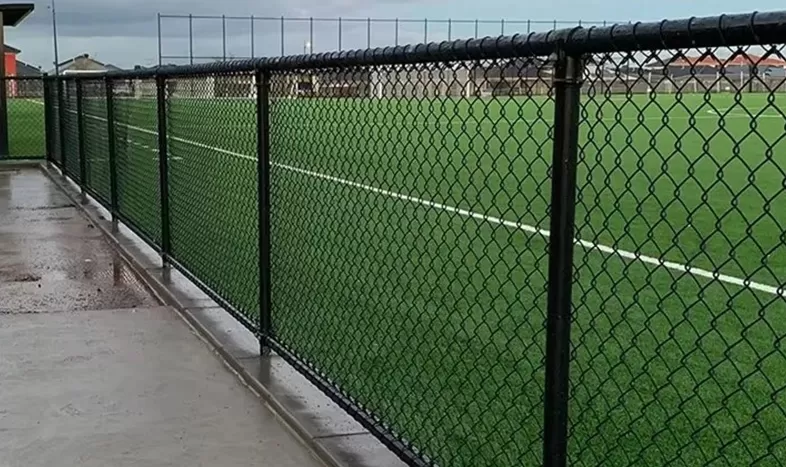

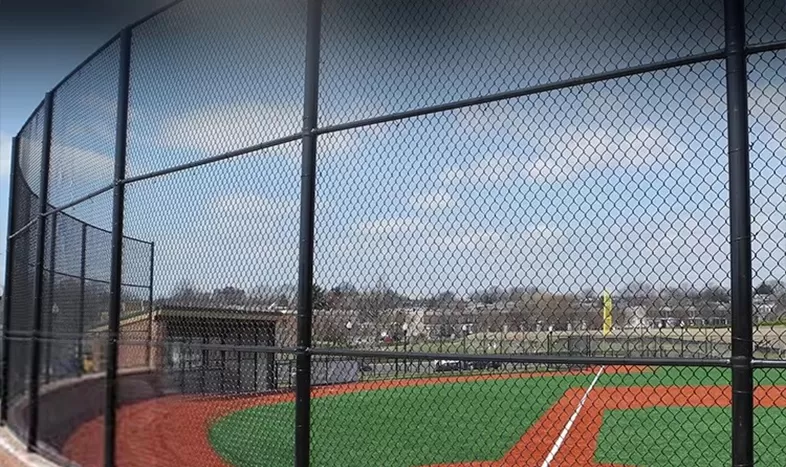

Sports field perimeter fencing

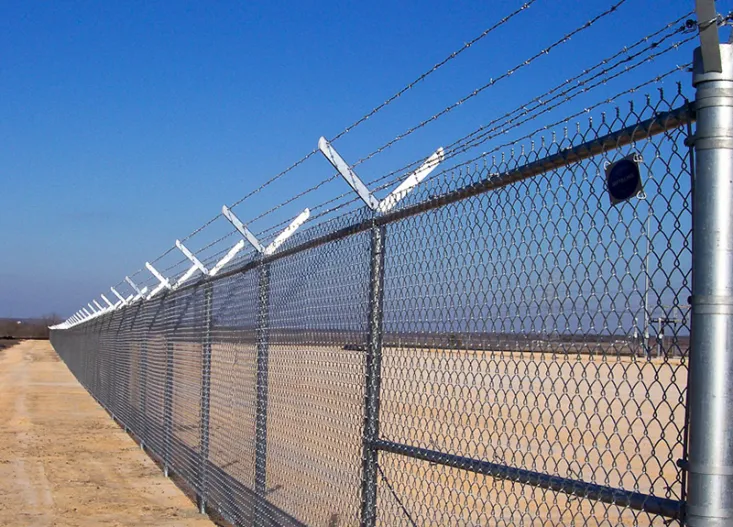

Highway and railway fencing
Animal enclosures and farm use
Highway and railway fencing
Industrial facility security

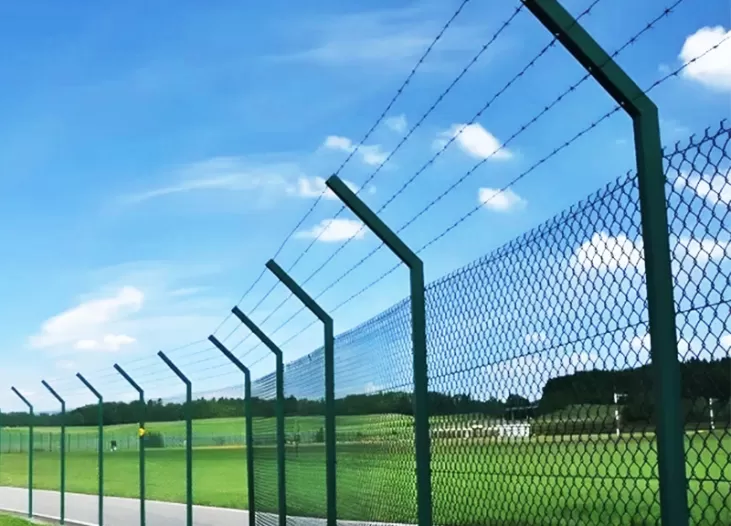

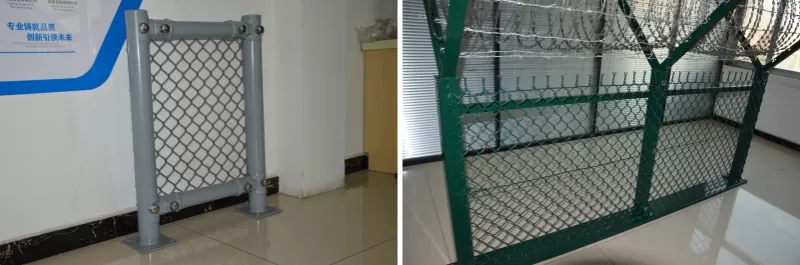

High Security Fence
