Metal Mesh Fence
Name: Double Wire Fence
Material: Q195/Q235
Brand: BONKFC Fence
Origin: China BONKFC
Color: White9005, Dark Green6005, Grey7016 or as customized
AkzoNobel Polyester Finish Powder Coating realize exceptional weather resistance and surface self-cleaning performance(rain wash or spray-wash can resume bright and clean surface).

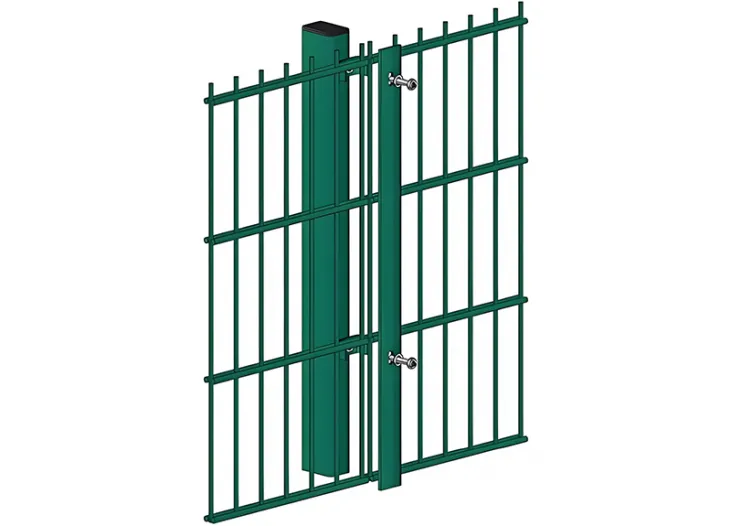

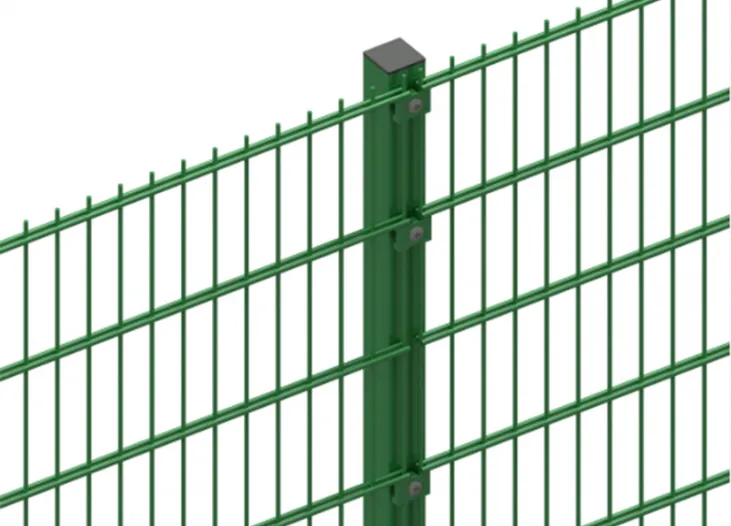

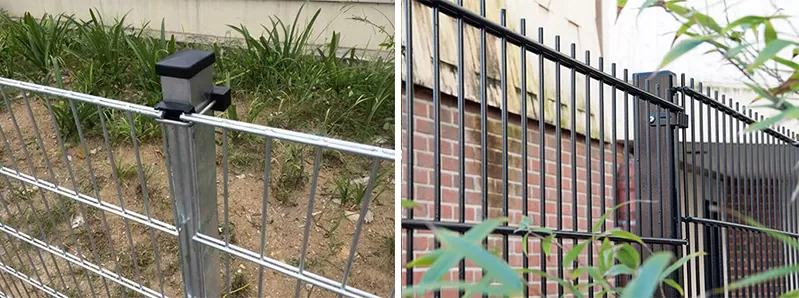

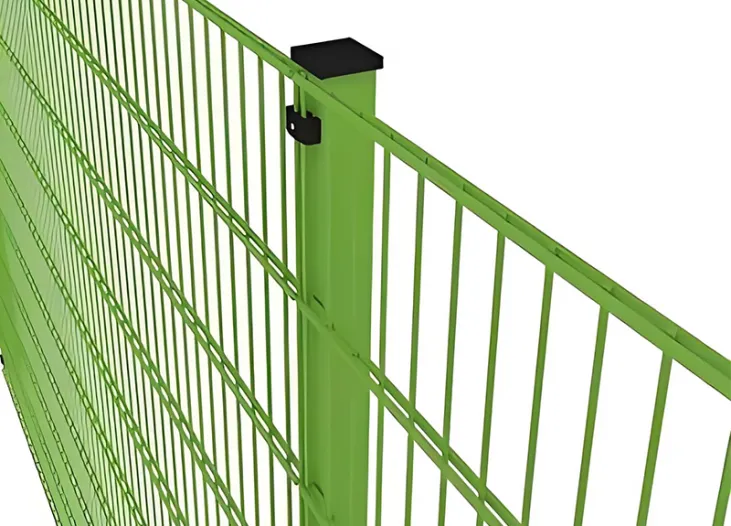

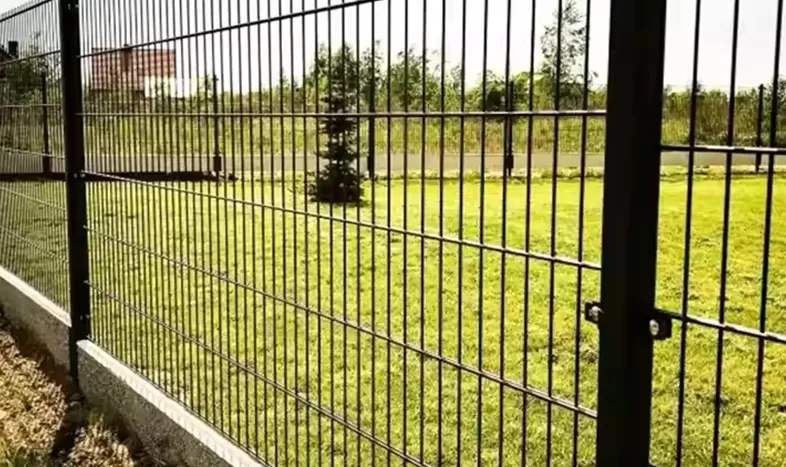

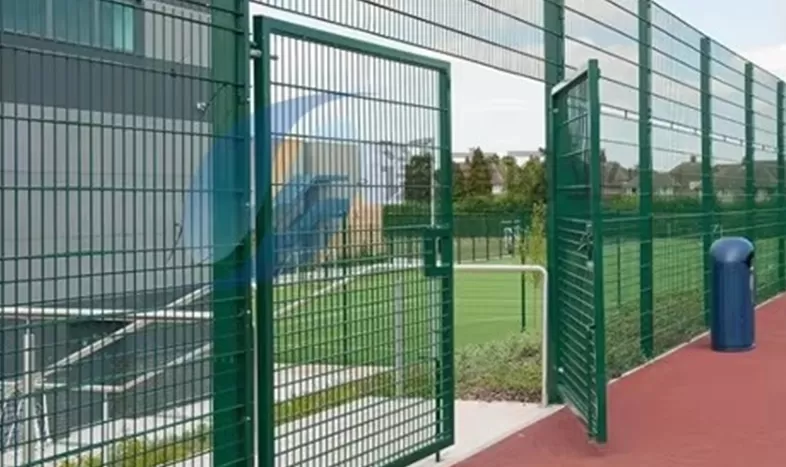

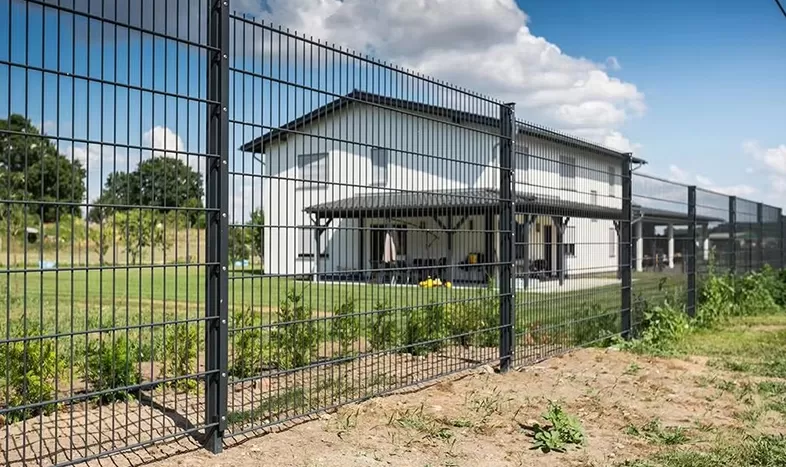

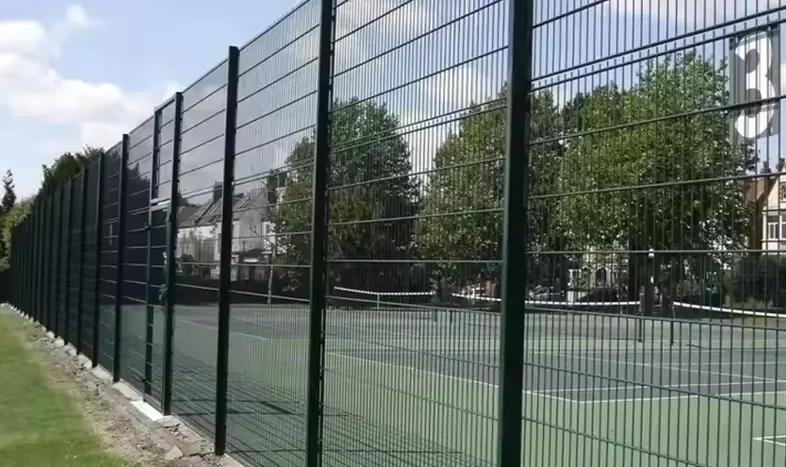

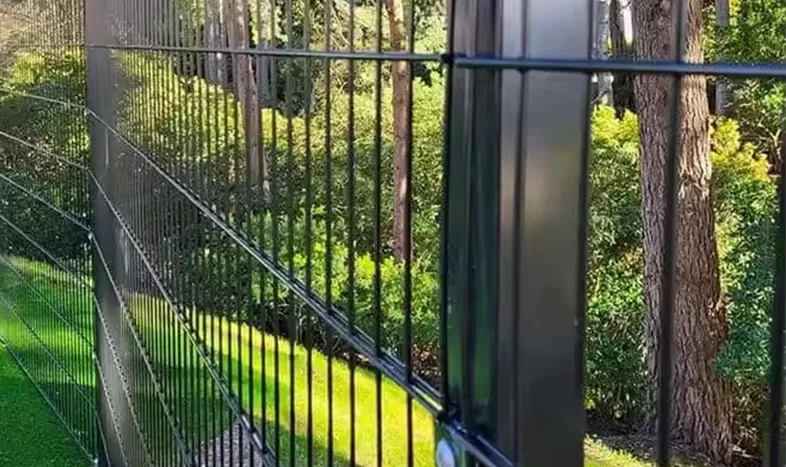

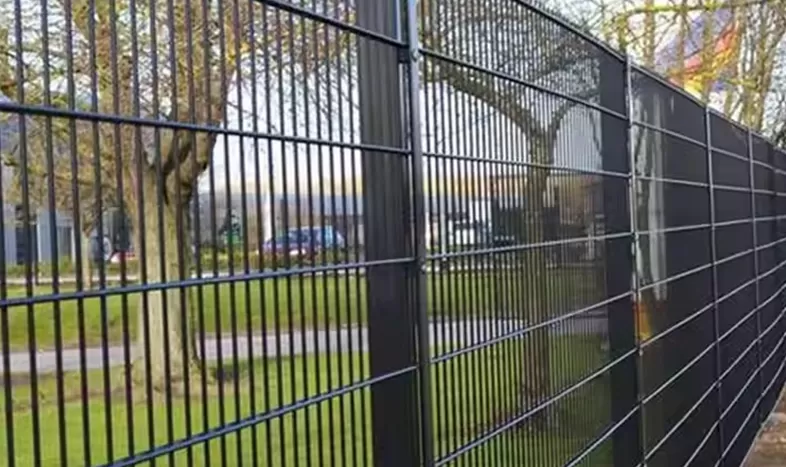

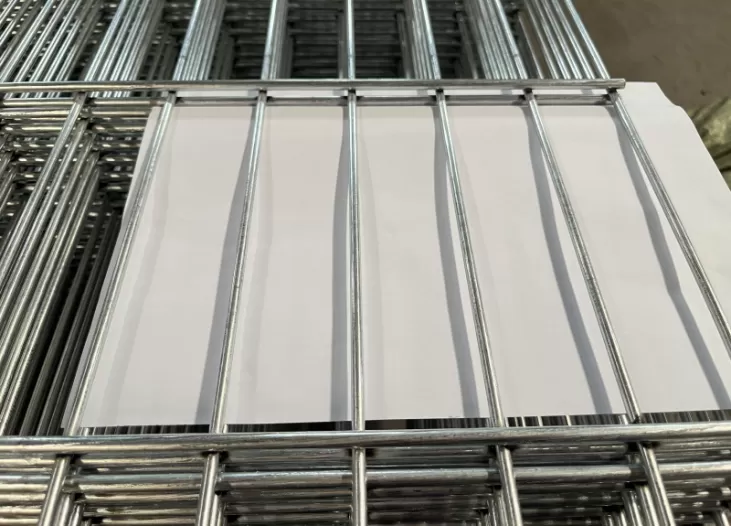

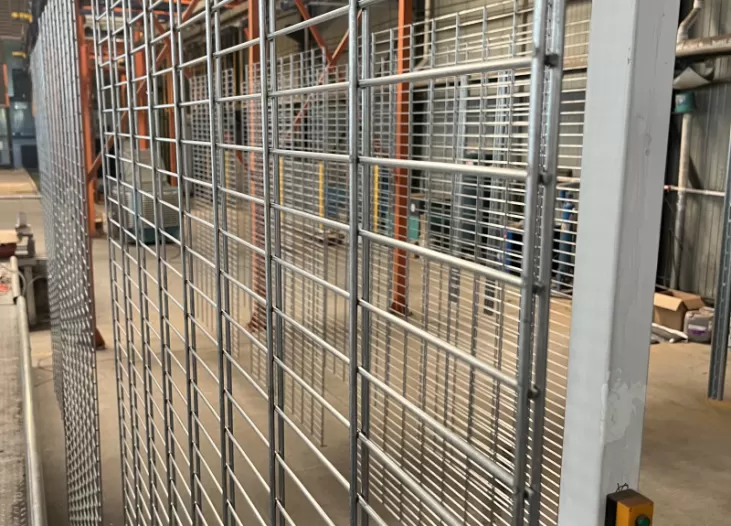

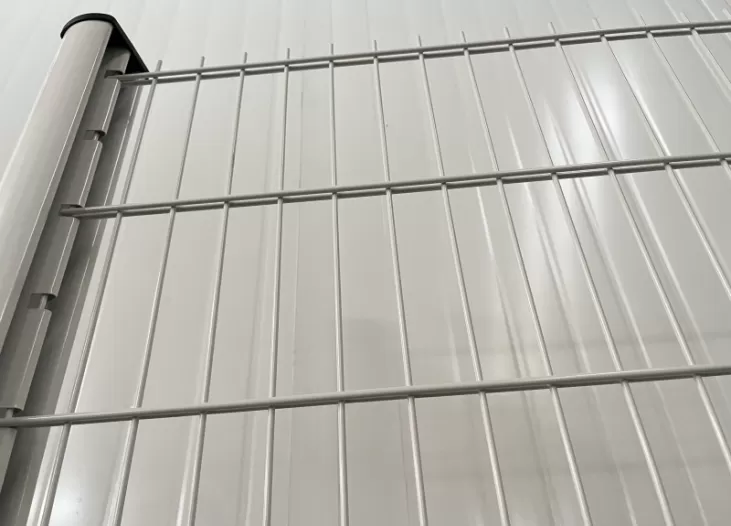

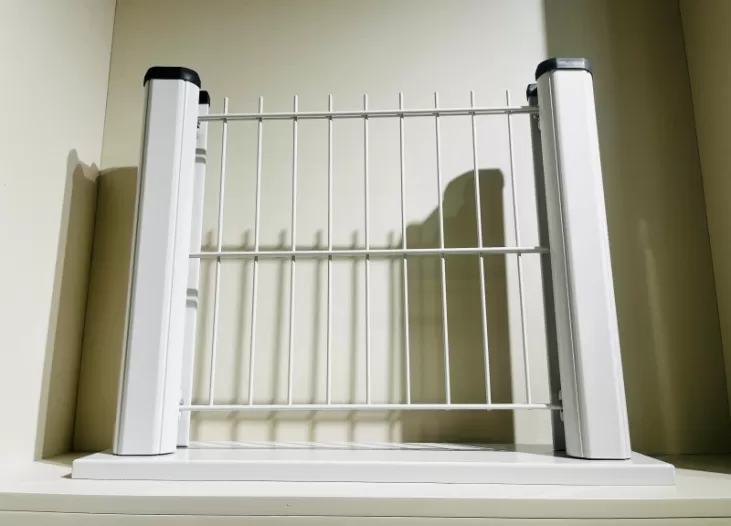

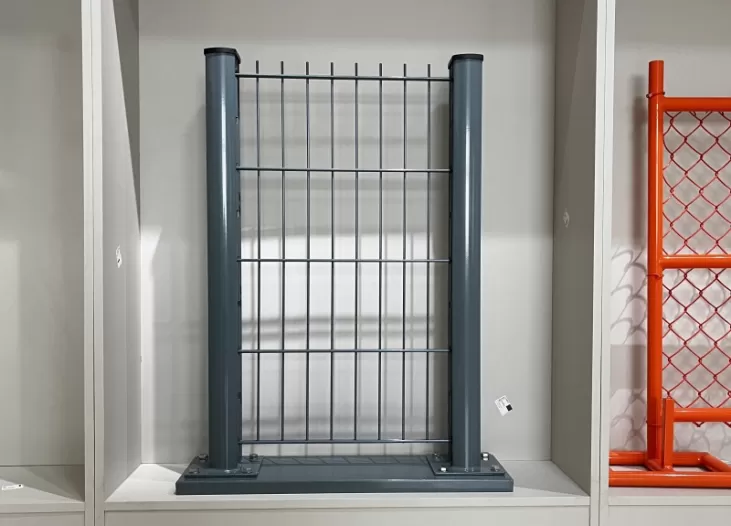

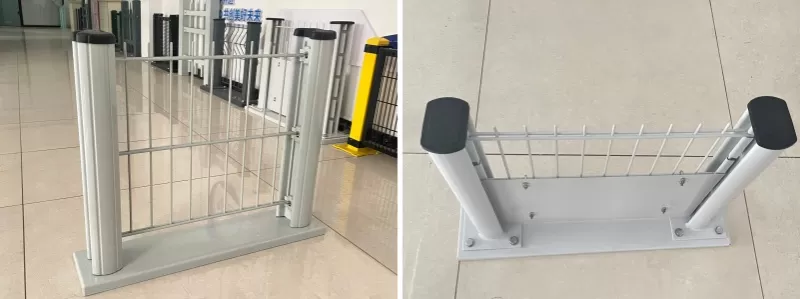

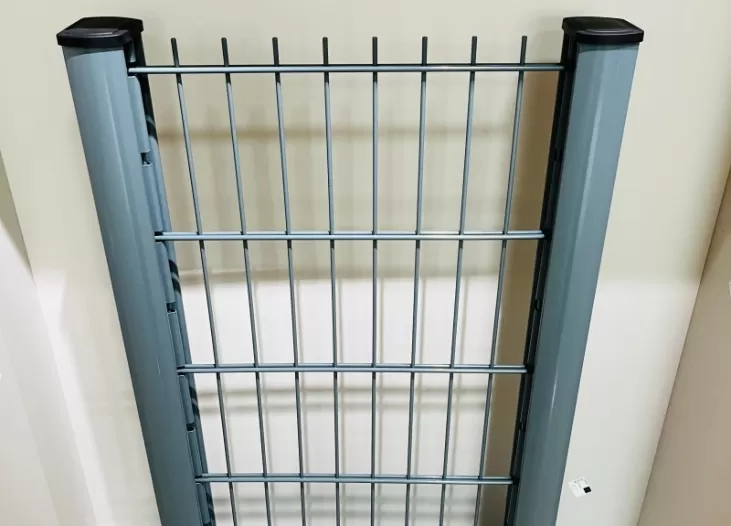

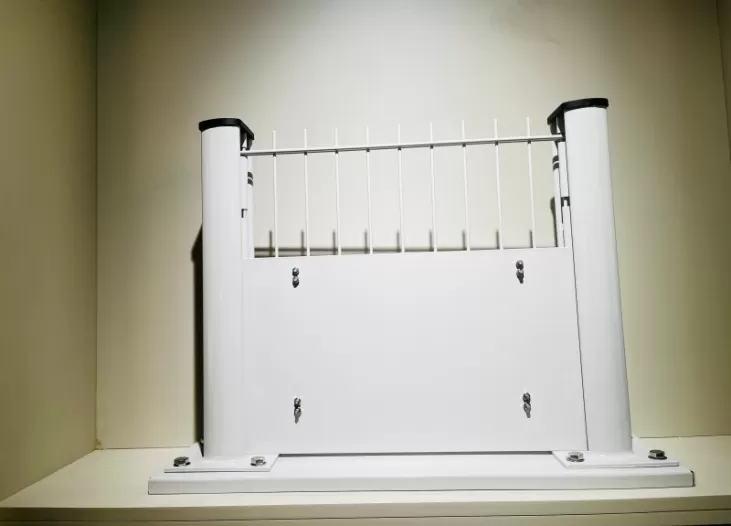

The Double Wire Fence, also known as twin wire fence, 2D panel fence, or double wire mesh fence, is a heavy-duty welded fence system designed for long-term perimeter protection. Each mesh panel is composed of one vertical wire welded between two horizontal wires, offering outstanding rigidity and impact resistance. Compared with ordinary welded mesh fences, the double wire fence provides higher strength, improved anti-damage capability, and a clean, modern appearance suitable for both residential and industrial use.
BONKFC Double Wire Fence is manufactured from high-quality Q195/Q235 low-carbon steel wire, processed with precise welding technology to ensure firm solder joints and flat panel surfaces.

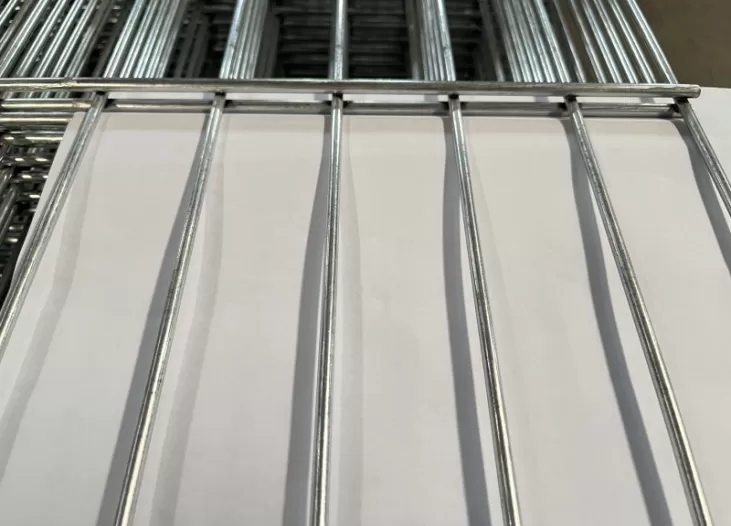

The fence is commonly made with 6/5/6 mm or 8/6/8 mm wire combinations — meaning the vertical wire is 5 mm or 6 mm, and the two horizontal wires are 6 mm or 8 mm respectively. This configuration significantly increases structural strength and resistance to bending or cutting.

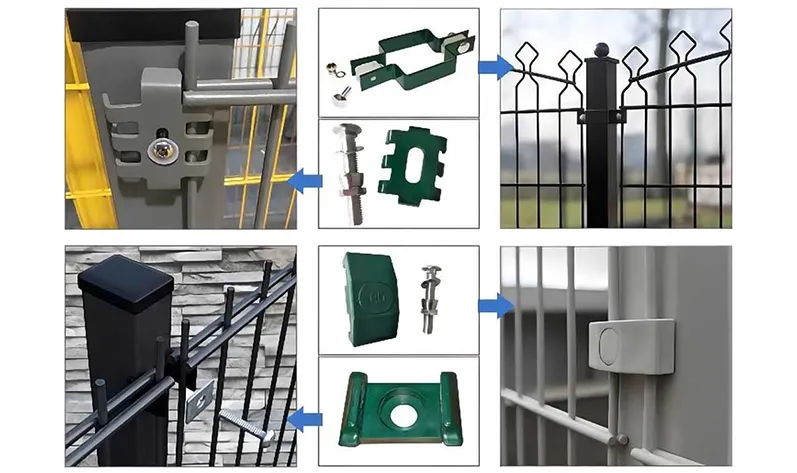

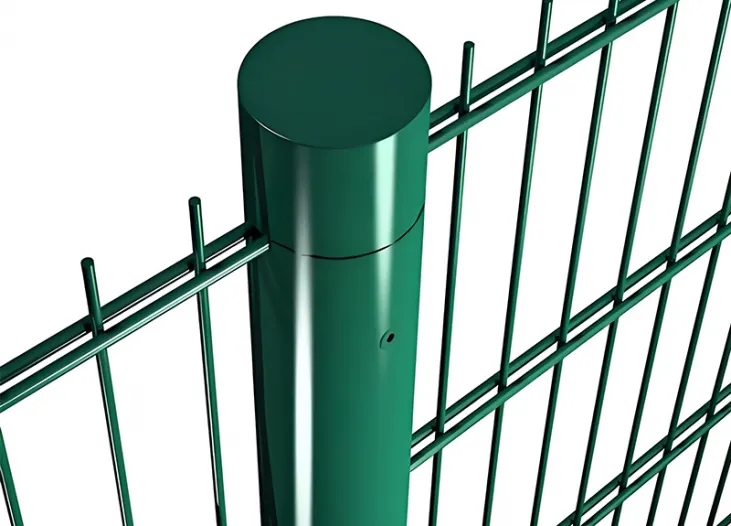

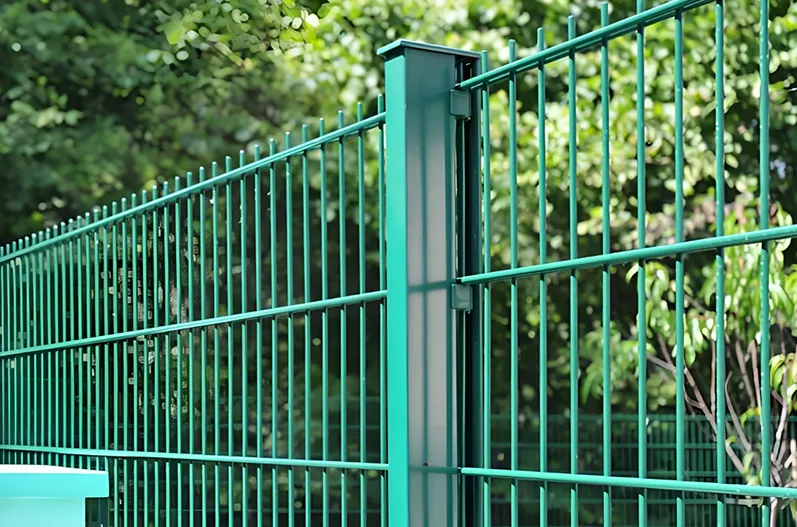

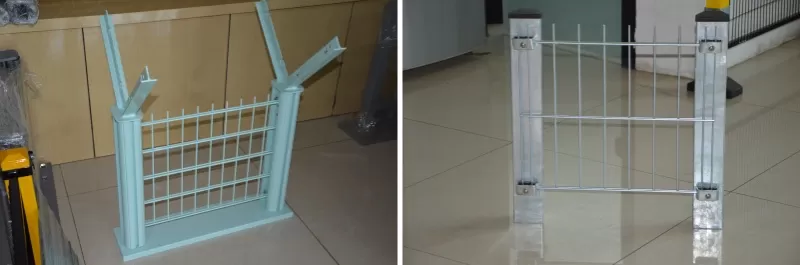

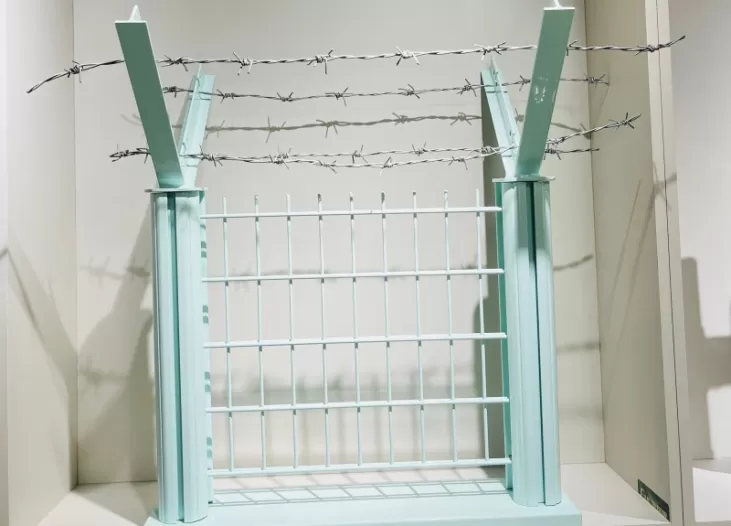

Double Wire Fences are compatible with double-peach posts,I-type posts ,and Y-type posts (which can be equipped with barbed wire).
High Strength & Stability: The twin horizontal wire design doubles the rigidity and effectively resists deformation and external impact.
Corrosion & Weather Resistance: Hot-dip galvanizing and AkzoNobel polyester powder coating offer long-lasting rust prevention, with a service life of over 10–15 years.
Easy Installation: Modular structure allows quick installation on both flat and sloped terrain.
Customizable Sizes & Colors: Available in common RAL colors such as Black 9005, Green 6005, and Grey 7016, or fully customized shades.
Attractive Appearance: The symmetrical twin wire design gives a modern and clean visual effect ideal for public areas.
Low Maintenance: Smooth surface coating minimizes dust accumulation and is easy to clean.
Industrial Designs
| Height*Width（mm） | Diameter（mm） | Mesh Hole（mm） | Post Size（mm） | Post Height |
| 630*2500 | 6/5/6 6/6/6 8/6/8 | 65*200 50*200 76.2*12.7 | Square post: 40*60 40*80 60*60 60*80 | Can be customized according to the height of the mesh and the special requirements of customers |
| 830*2500 | ||||
| 1030*2500 | ||||
| 1230*2500 | Round Post: 60 Round 75Round | |||
| 1430*2500 | ||||
| 1630*2500 | H Post:55*100Peach Post: 70*100 I Type Al post: 55*100 75*100 | |||
| 1830*2500 | ||||
| 2030*2500 | ||||
| 2230*2500 | ||||
| 2430*2500 | ||||
Surface treatment: | ||||
| Application: house fence, park fence, factory fence, road fence, school fence, high-risk area fence, bridge fence, farm fence, etc. | ||||
1. Pre-Treatment for Longevity
To get a longer life foryour product ,following anumber of pre-treatment processes to remove arease and impurities then zirconium layer.

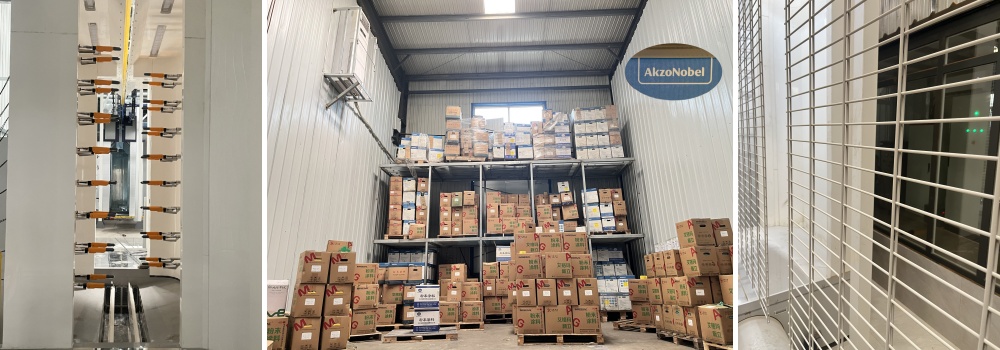

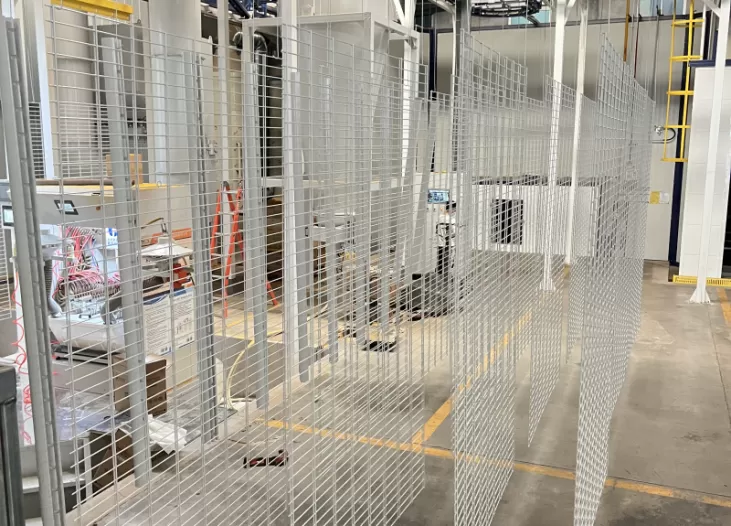

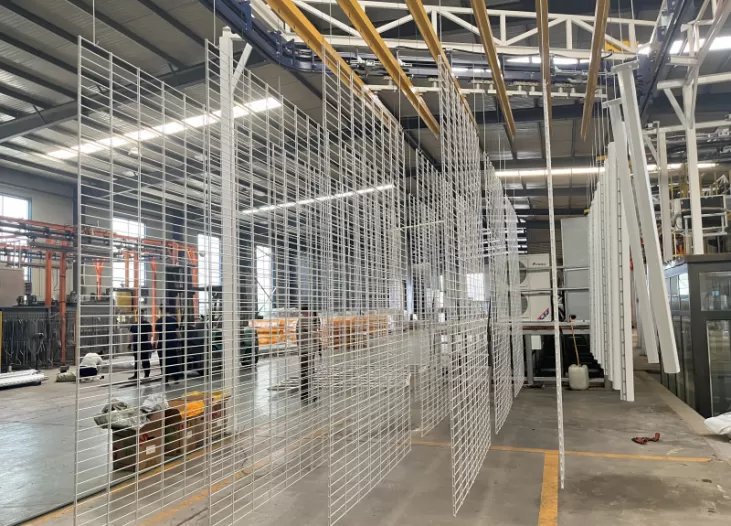

2. Powder Coating Application
BONKFC has 2 powder coated production lines that ensure fast delivery and effectively meet customer requirement.
3. We use 32 imported ITW GEMA guns from Switzerland to guarantee surface quality, achieving a powder coating thickness of 120 microns;using ISO-certified AkzoNobel powder.

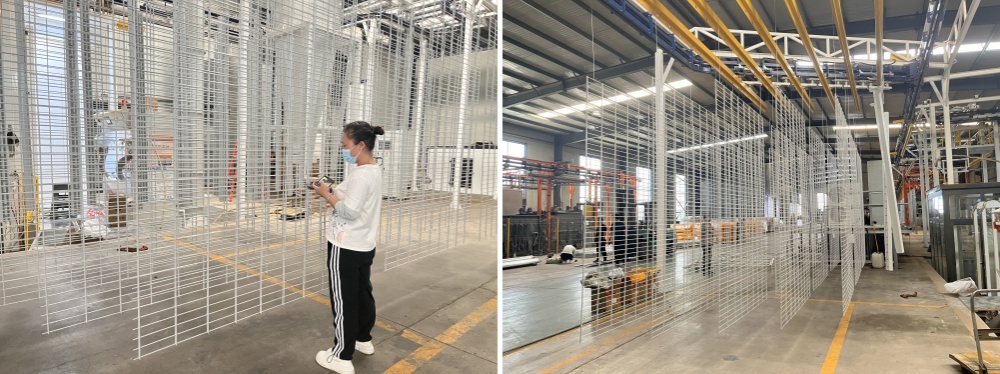

4. Quality Inspection
We have a professional quality inspection team to check whether the products meet the customers'requirements.
Double wire mesh fence is divided into:
1. Ordinary double wire mesh fence
2. 358 high security double wire mesh fence
358 high security double wire mesh fence:
Raw materials: low carbon steel wire or stainless steel wire
Mesh opening: 76.2mm*12.7mm
Wire diameter: 4.0/6.0/4.0 mm
Can be customized according to customer requirements

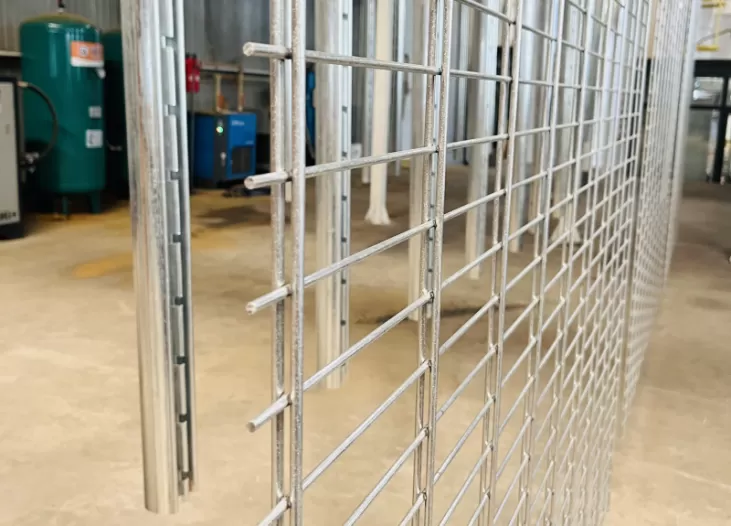

Hot Dipped Galvanized: Through the hot-dipped galvanizing process after welding, a protective layer is formed on the steel surface. This coating can effectively prevent oxidation corrosion and prolong the service life of steel.

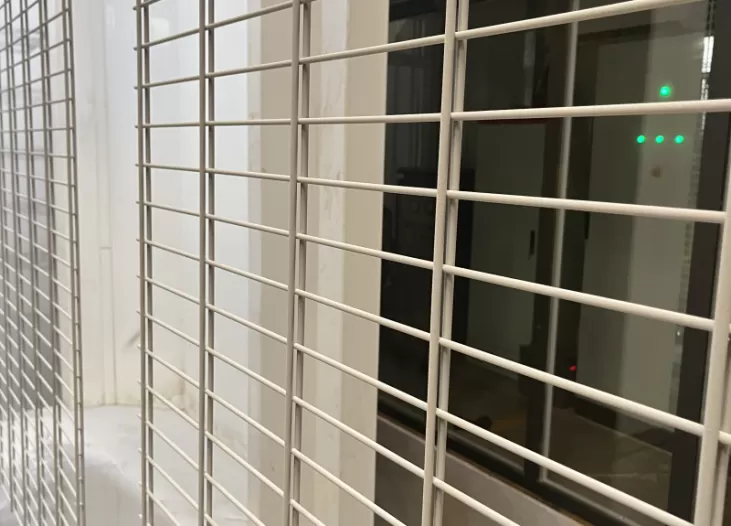

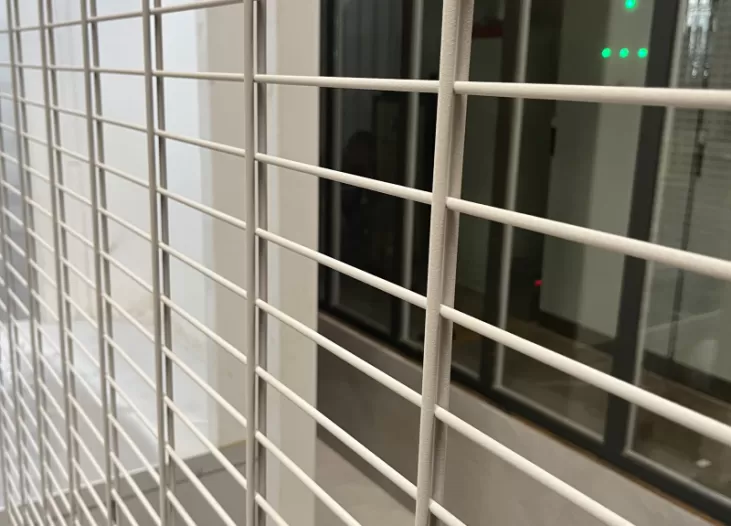

PVc Coating (Plastic Coating) or Powder Coating after galvanized. We choose hioh gualty powder for spraving, which combines with the qalvanized laver on the steel surface to form a more effective protective layer. it can better prevent the steel from oxidation and corrosion, Therefore, our fencing system can stay beautiful and strong for a longer time.and this treatment will make the fence more beautiful.

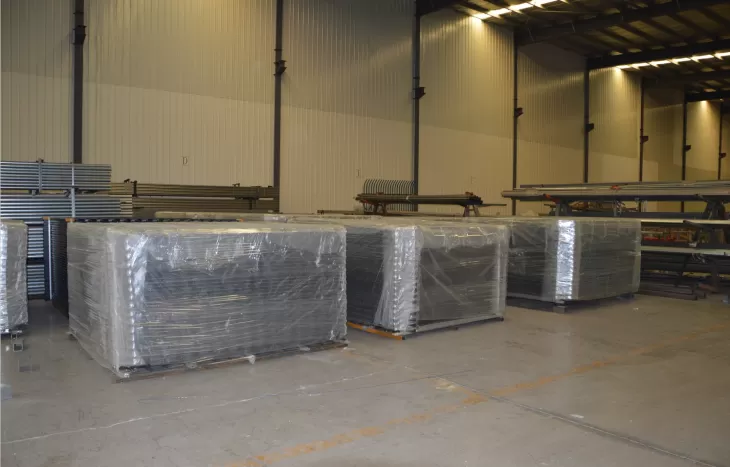

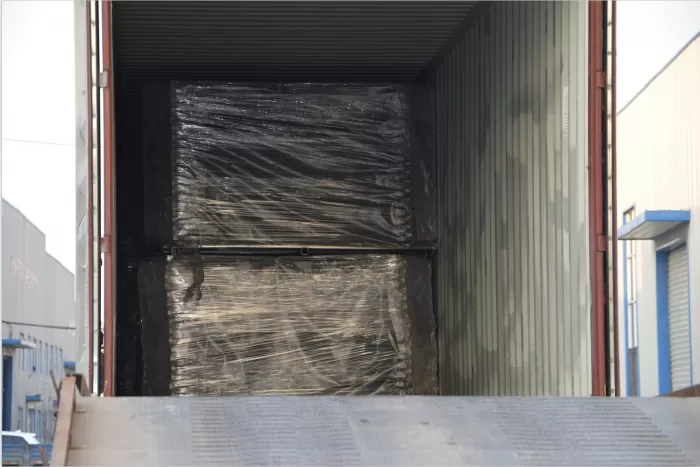

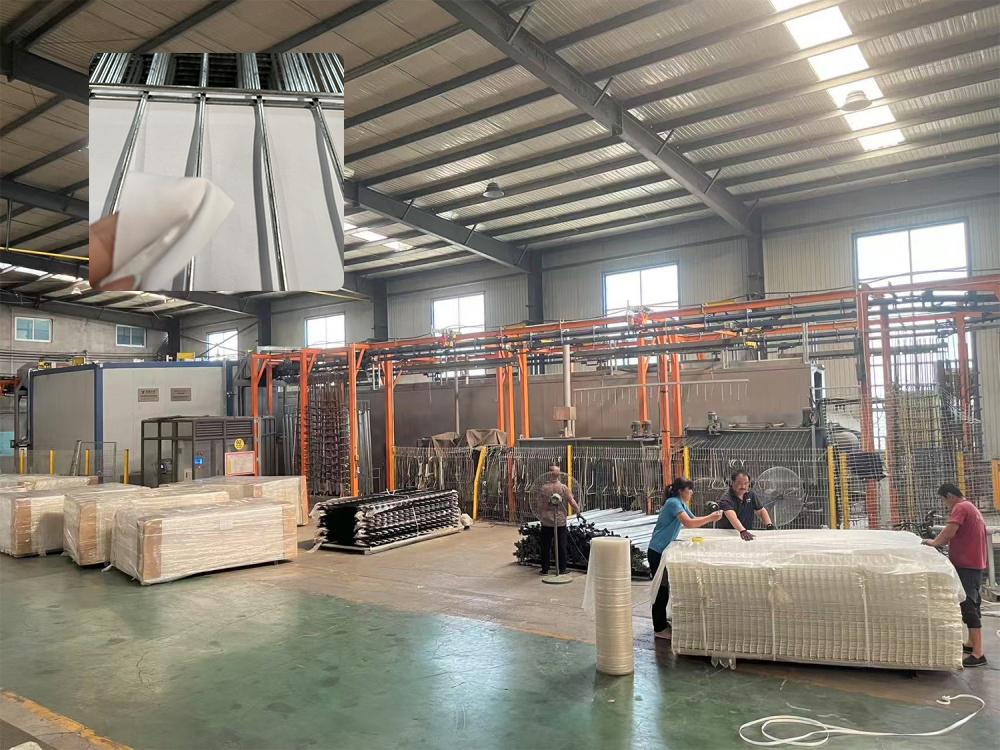

Depending on the surface treatment of the triangle bending mesh panels, there can be two different types of packing.
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence

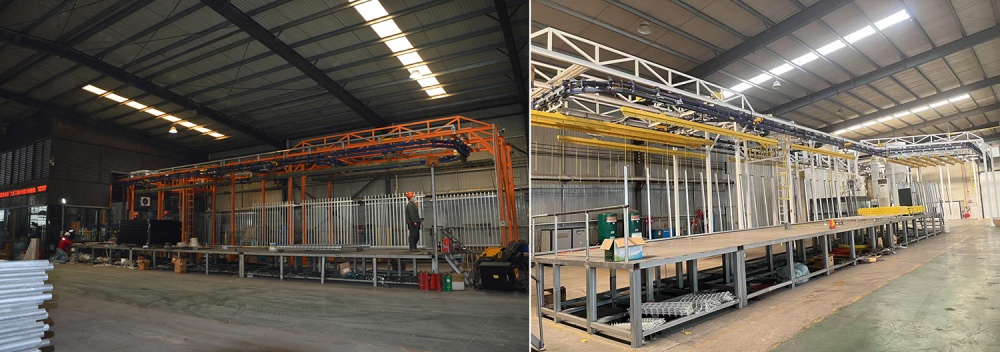

BONKFC has the advanced auto production line: laser cutting machine, welding robot automobiles machine, automatic dense mesh welding machine, double wire mesh welding machine, CNC bending machine, peach pipe machine, square steel pipe, shaped pipe production line, we have the environmental production line for phosphorization ,automatic spraying.
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence
2D 358 high security fence
Depending on the surface treatment of the triangle bending mesh panels, there can be two different types of packing.
