Introduction of I-shape post fence

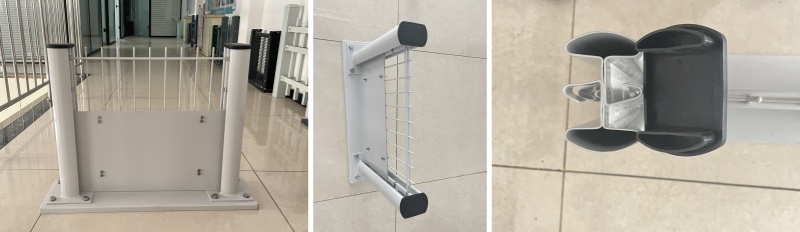

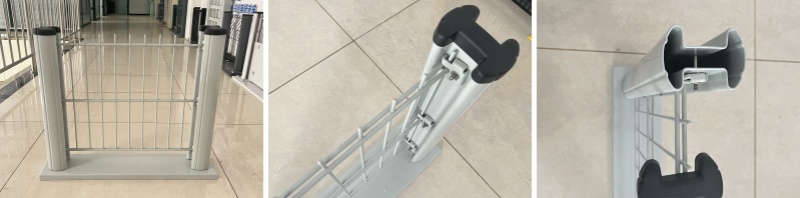

The I-shape post fence is a type of fence post that features the high strength og H-section steel and a reasonable structure. Its external dimensions are 100mm X 55mm with a thickness of 1.8mm/1.5mm.It is connected to the mesh panel using speciailized sixclaw clamps and M6 X 50mm stainless steel screws.

Advantages

1. It has a strong three-dimensional effect.No screws are visible when viewed from the front.

2. The mesh panel is just clamped in the middle of the post ,ensuring that a stright line is formed after installation,which looks very neat.

Structral innovation

Previously,this type of post could only be matched with small reinforced curved sections of 80mm with a depth of 35mm. Now, through the innovation of the mesh panel structure,it can be connected with mesh panels of various bending radians and depths.

Hebei BONKFC currently produces the I-shape post as a third-generation product manufactured with advan

ced technology.The shape and size ratio are more precise,which enhances the product’s competitiveness and development potential in the market.This post has become the structural product with the highest strength among the company’s post products-the strength of the 1.8mm thick wall is comparable to that of square or circular tubes with a 4mm thick wall.

Application scenarios

This post is usually matched with bent mesh panels,zinc-steel fence panels,double wire fence ，and stadium chain link fence posts,and is suitable for high-strength application sites.

Regular recommendations

*Post:two specifications are available-55mm 100mm 1.8mm and 55mm 100mm 1.5mm.The length can be customized freely.

*Mesh panel:The wire diameter is 4.8mm (5.0mm after spraying),and the mesh size is 55mm200mm.It is equipped with reinforced curves of 55mm100mm.

*reinforced curve :produced using equipment with the patent number 201820405947.4 of Hebei bonkfc ,with a curve depth of 50mm.

*Fence:the standard width is 2560mm.reinforced curves are installed at the top,middle,and bottom positions,making the mesh fence extremely firm.

Color options

Customized color options are provided to meet customer needs,with recommended colors including RAL6005,RAL7045,RAL9010,RAL3002,RAL9005,and RAL5002.
