Palisade Fence
Name: Galvanized Palisade Fence
Material: Q195/Q235 steel
Brand: BONKFC Fence
From: China (BONKFC Factory)

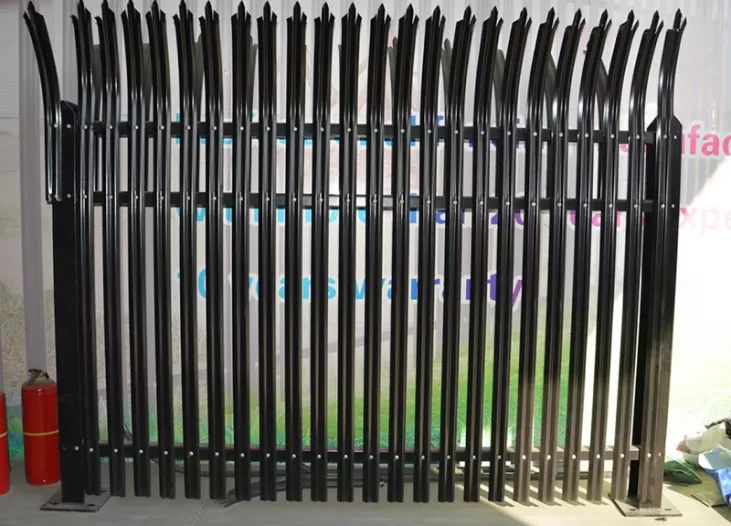

Color: Black RAL9005, Green RAL6005, Grey RAL7016, or customized RAL colors

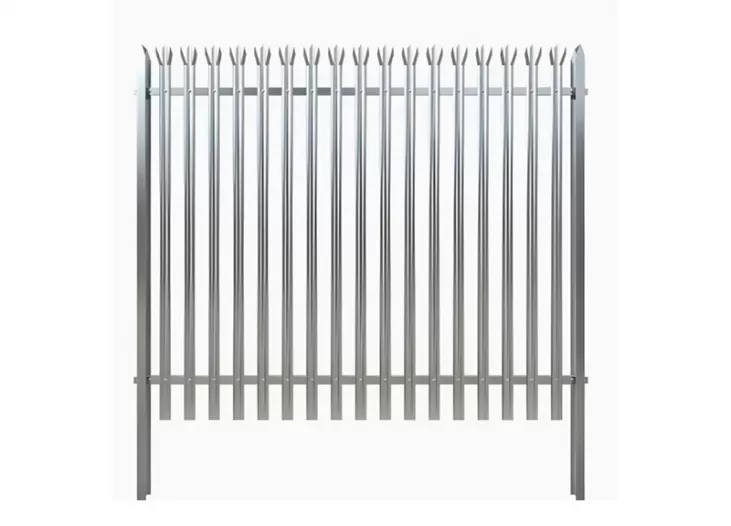

Galvanized palisade fencing is a high-security steel fence system designed to provide long-lasting protection for industrial, commercial, and residential properties. It is manufactured from strong Q195/Q235 steel, hot-dip galvanized to BS EN ISO 1461:2009 standard, ensuring superior corrosion resistance and durability even in harsh outdoor conditions.
Compared with welded mesh fences, palisade fencing offers a more intimidating physical barrier, with sharp pale tops that effectively deter intruders and provide reliable perimeter security.
Technical Details & Options

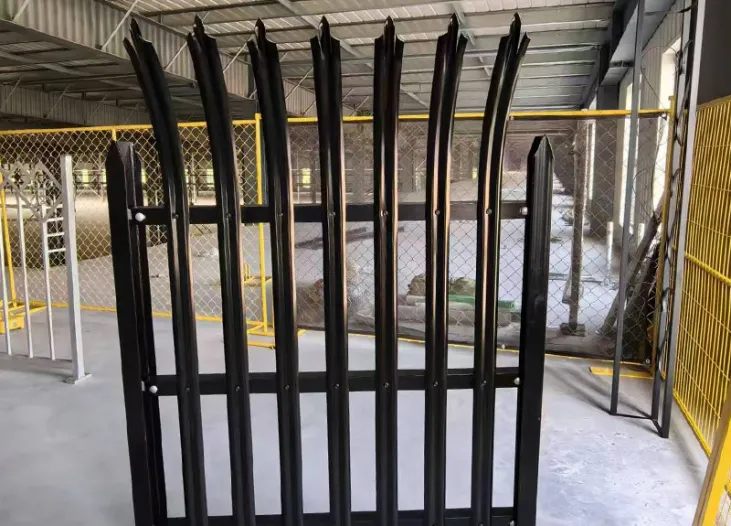

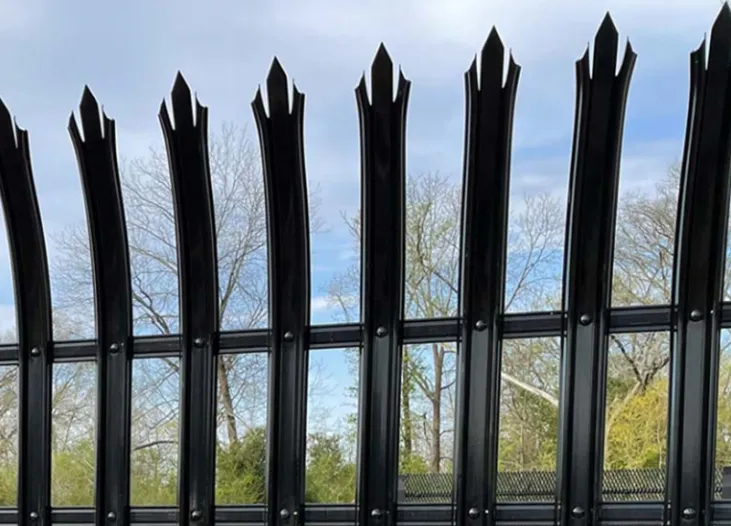

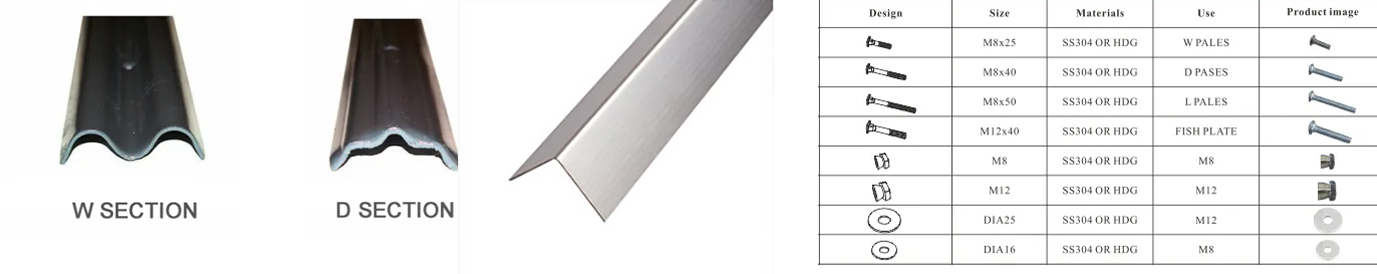

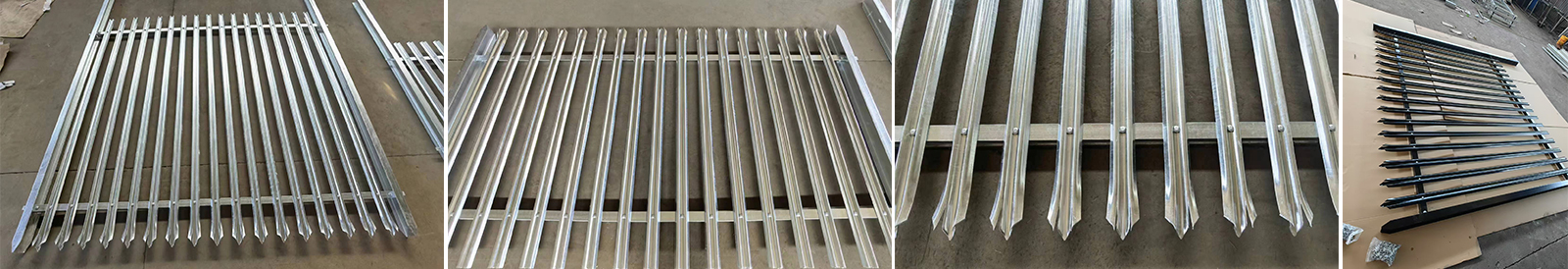

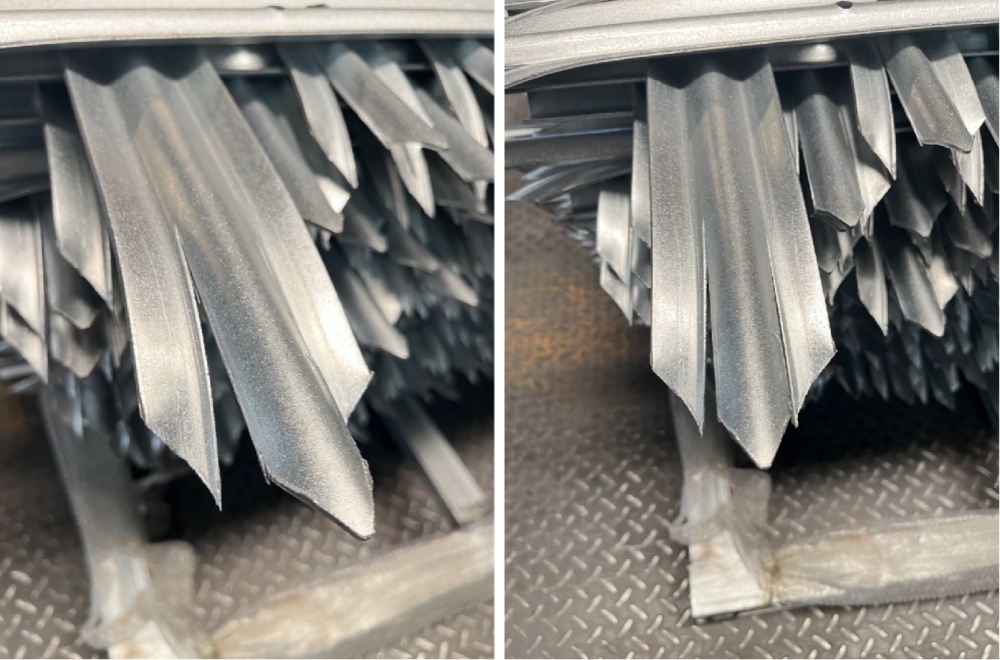

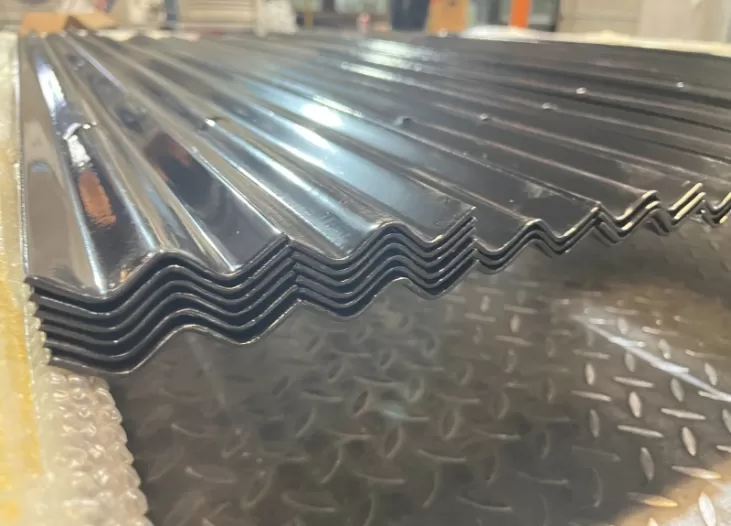

Pales: Available in both “D” section and “W” section, with options of single-pointed, rounded, or rounded & notched tops.
Heights: From 1.8m up to 3.6m or custom specifications.
Rails & Fixings: Pales fixed to horizontal rails using M8 bolts and cone nuts, with optional anti-vandal rivets and collars.
Surface Finish: Hot-dip galvanized, powder-coated, or PVC coated.

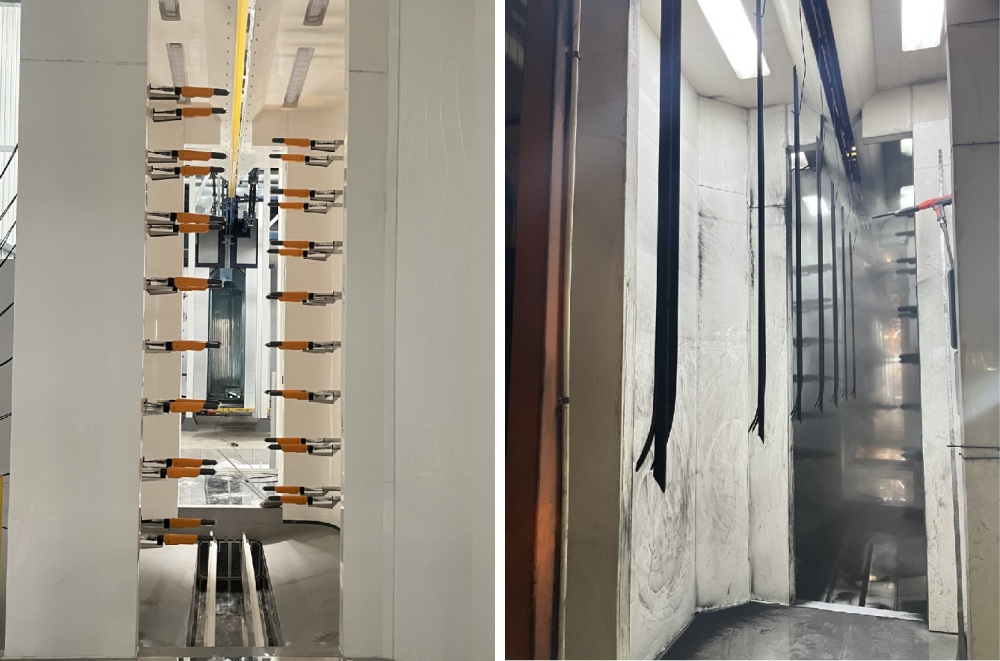

Powder Coating: Using AkzoNobel certified powder with 120 microns thickness, applied by 32 Swiss ITW GEMA spray guns for a uniform, durable finish.

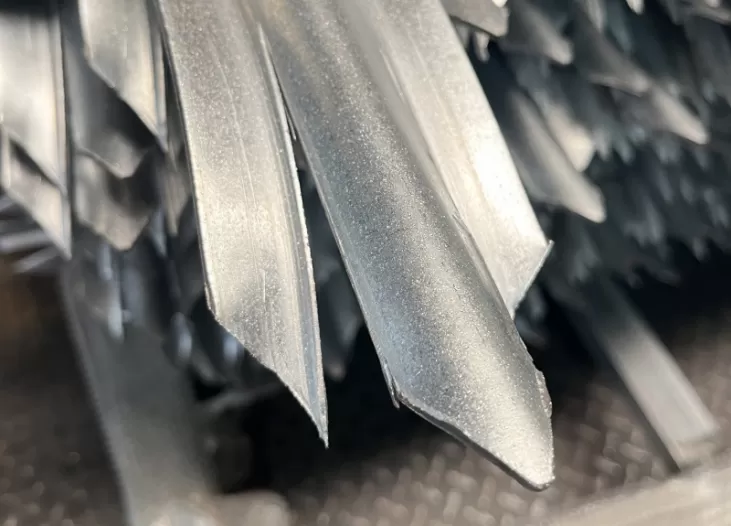

Edge Processing: All sharp edges polished to remove burrs for safety during installation and use.
| Specification of Galvanized Palisade Fence | ||||||
| W section Pale:70mm | ||||||
| Height | Width | Pale Thickness | Qty: Pale | Cross Rails | Square post | H Post |
| 1.8m | 2.75m | 2/2.5/3mm | 17pcS | 40×40×4mm 50×50×6mm | 60*60mm 80*80mm 100*100mm | 100×55mm |
| 2.1m | 2.75m | 2/2.5/3mm | 17pcs | |||
| 2.4m | 2.75m | 2/2.5/3mm | 17pcs | |||
| 3.0m | 2.75m | 2/2.5/3/3.5mm | 17pcS | |||
| W section Pale:62mm | ||||||
| 1.8m | 2.75m | 1.5/2/2.5mm | 17pcs | 40×40×4mm 50×50×6mm | 60*60mm 80*80mm 100*100mm | 100×55mm |
| 2.1m | 2.75m | 1.5/2/2.5mm | 17pcs | |||
| 2.4m | 2.75m | 1.5/2/2.5mm | 17pcs | |||
| 3.0m | 2.75m | 1.5/2/2.5mm | 17pcS | |||
| D section Panel:65mm | ||||||
| 1.8m | 2.75m | 1.5/2/2.5/3mm | 17pcs | 40×40×4mm 50×50×5mm | 60×60mm 80x80mm 100x100mm | 100×55mm |
| 2.1m | 2.75m | 1.5/2/2.5/3mm | 17pcs | |||
| 2.4m | 2.75m | 1.5/2/2.5/3mm | 17pcs | |||
| 3.0m | 2.75m | 1.5/2/2.5/3mm | 17pcs | |||

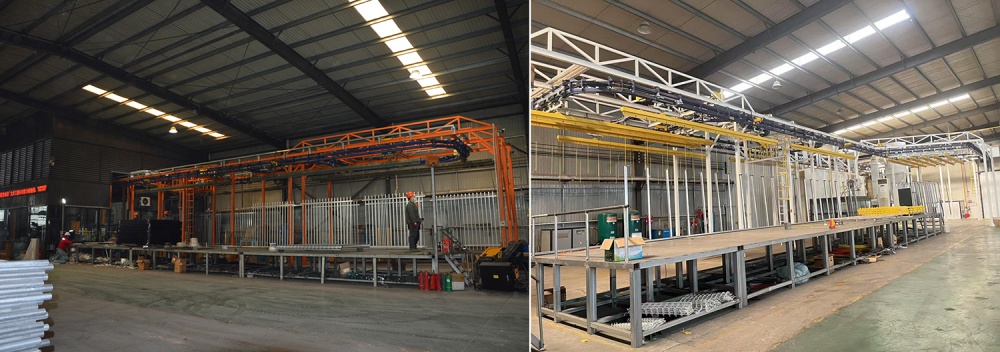

Our factory operates 2 advanced powder coating lines with an annual output capacity exceeding 80,000 meters of palisade fencing.

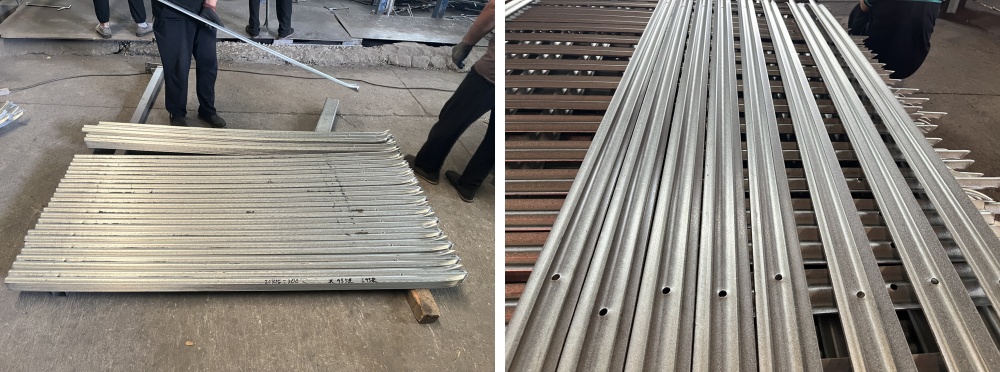

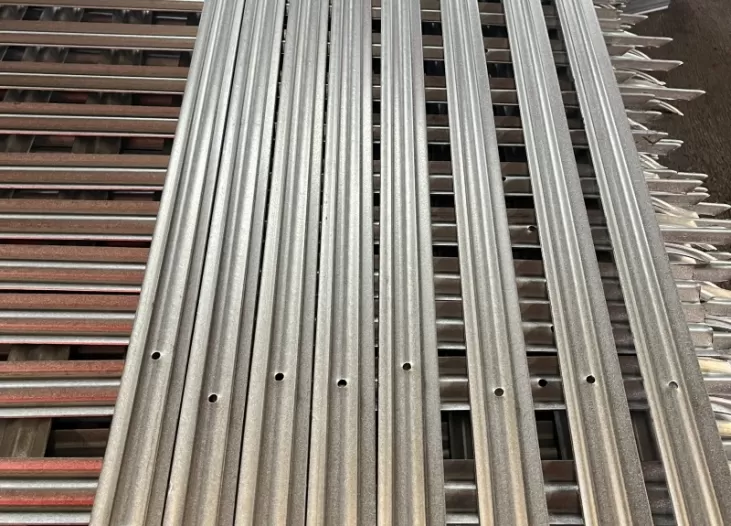

Pre-treatment: Sanding and nano-ceramic phosphating improve adhesion and corrosion resistance.

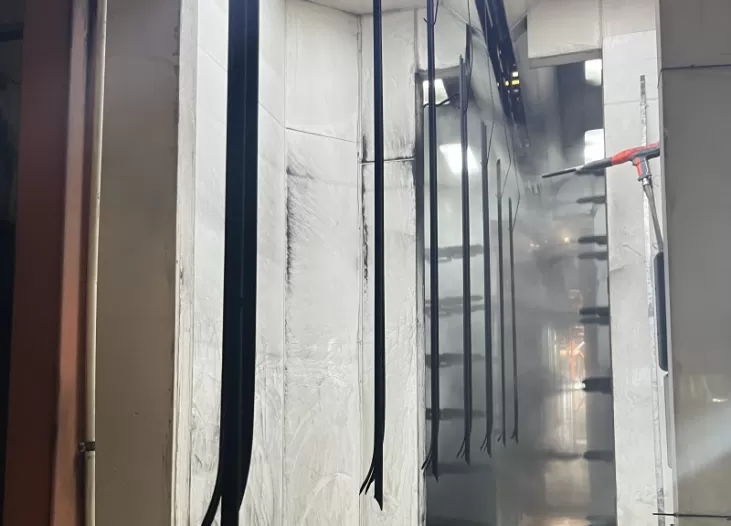

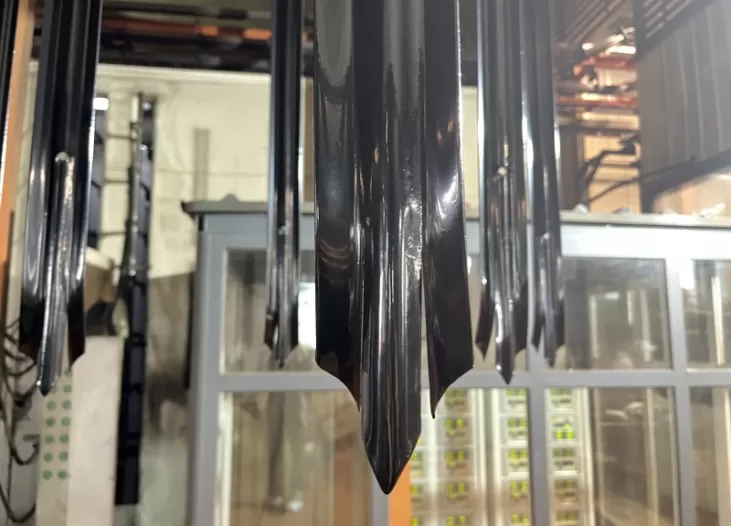

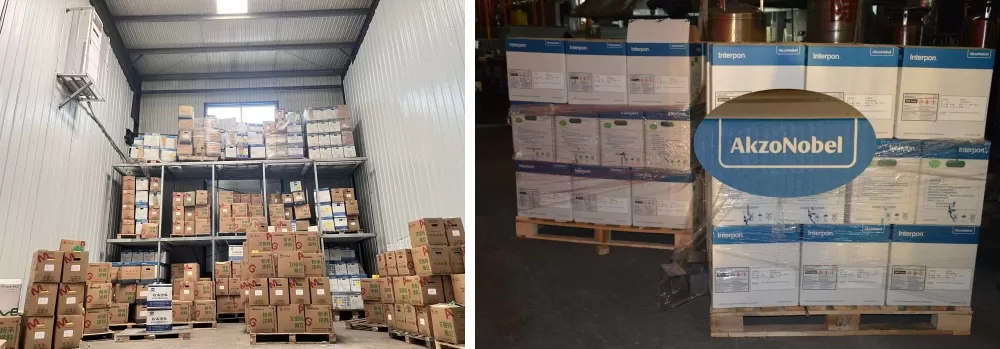

Spray Coating: High-quality AkzoNobel powder ensures excellent UV resistance, weatherability, and smooth finish.

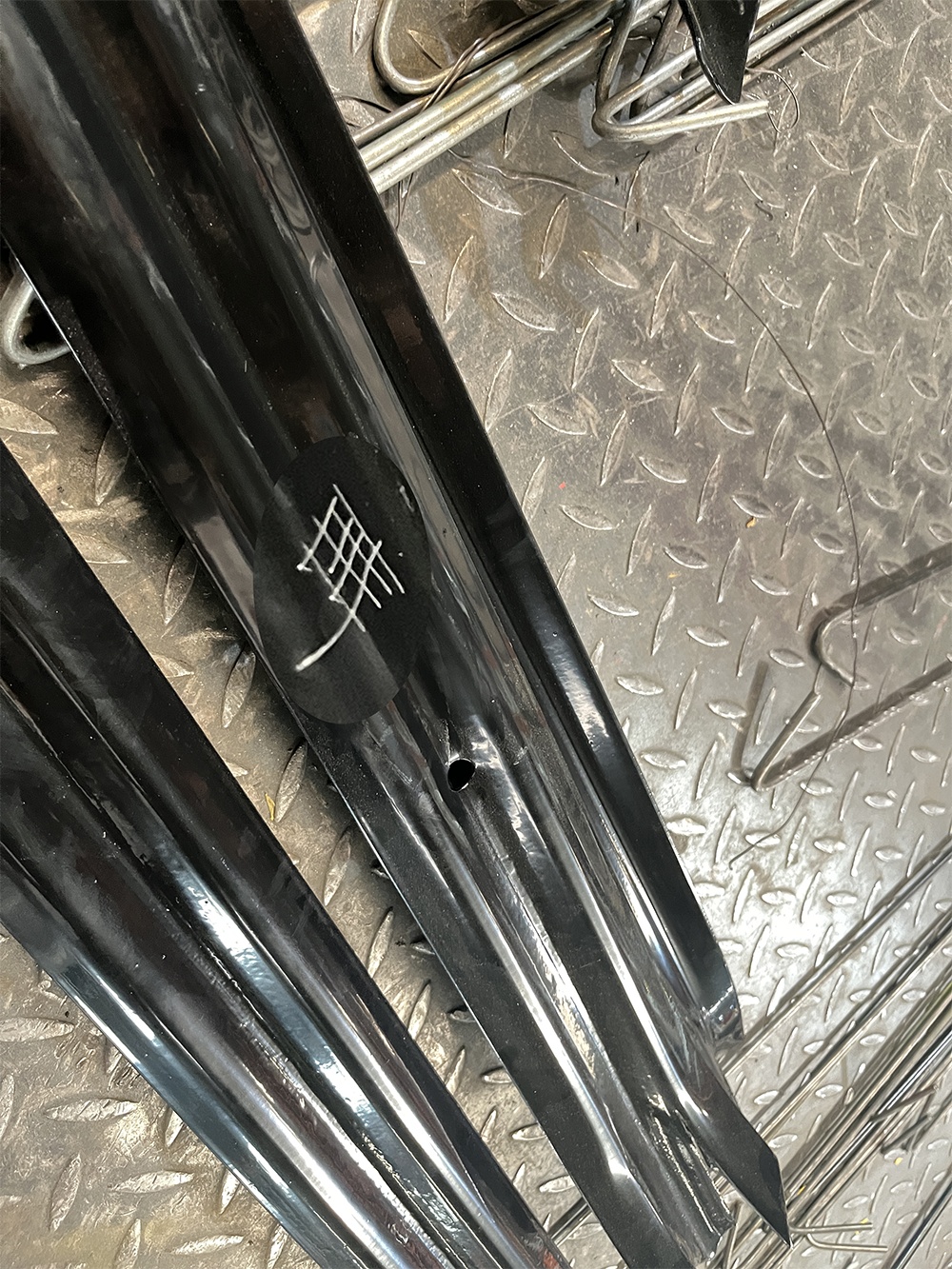

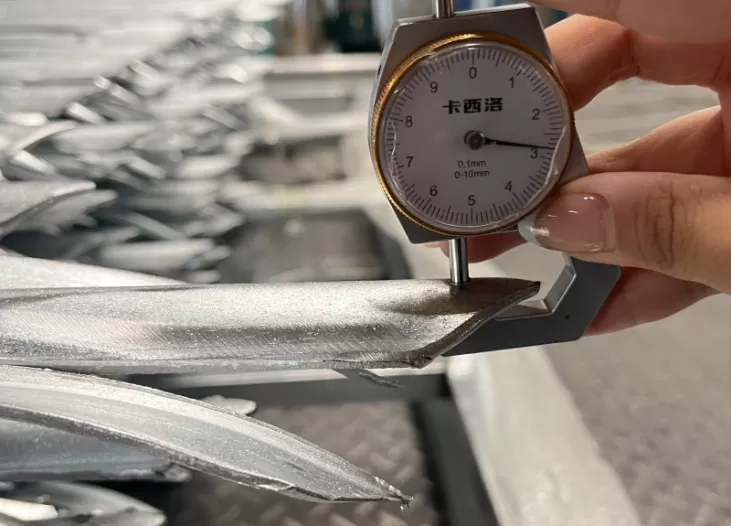

Coating Test: Each batch undergoes a cross-cut adhesion test, tape peel test, and thickness check (average 120 microns).
Inspection: Every fence panel is checked by our dedicated QC team before packaging.
This strict production control ensures every galvanized palisade fencing from BONKFC delivers consistent performance and appearance.

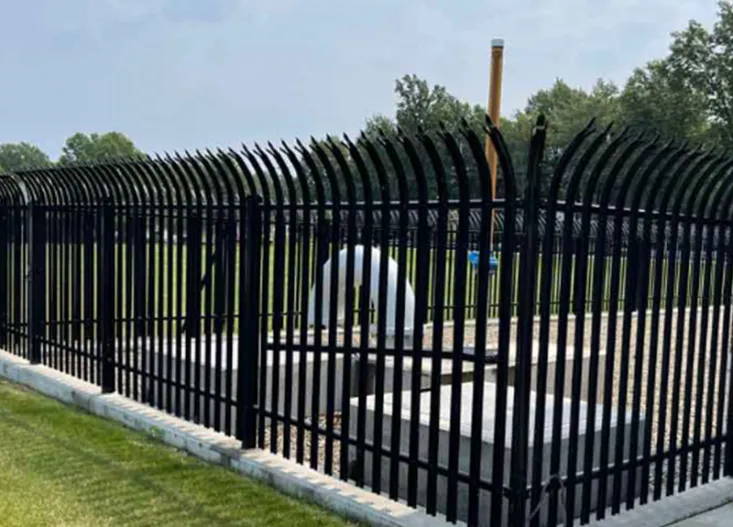

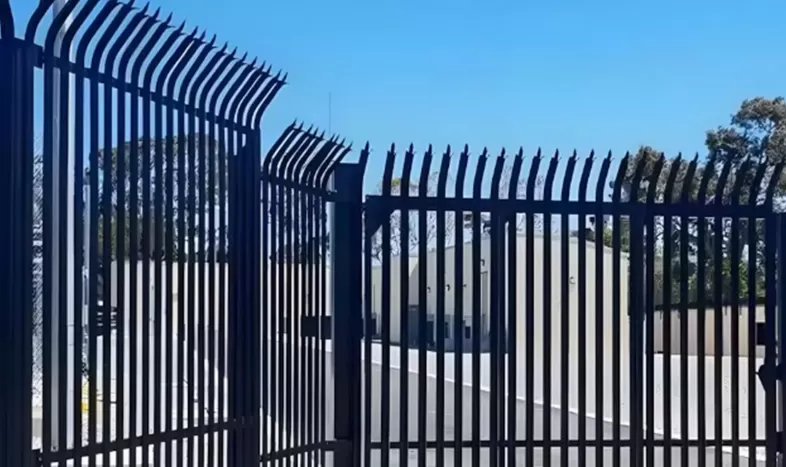

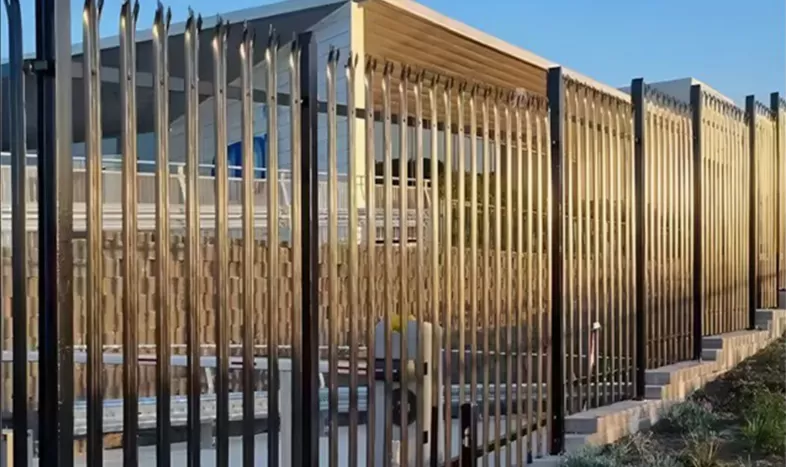

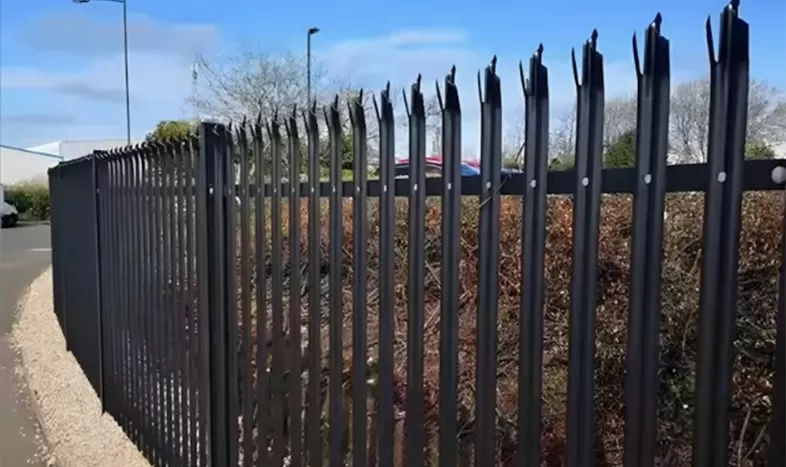

Widely used in projects requiring strong perimeter security:
Residential compounds & private properties
Industrial factories & warehouses
Public utilities & municipalities
Airports, railways & ports
Government and military facilities

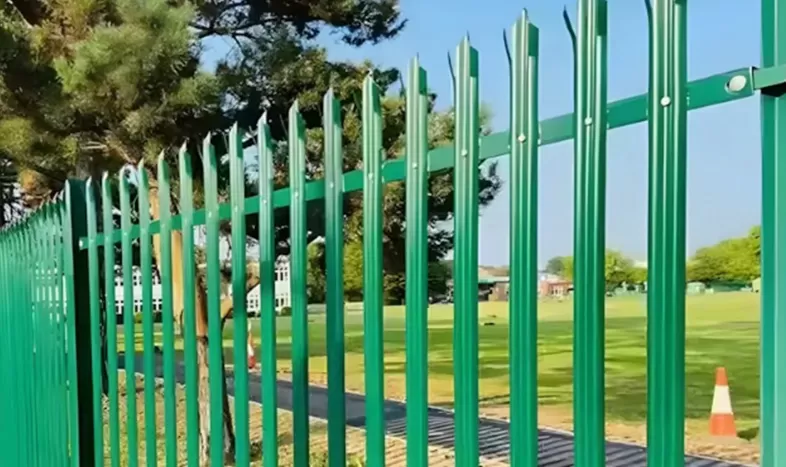

Parks and schools (with rounded pale tops for safety)

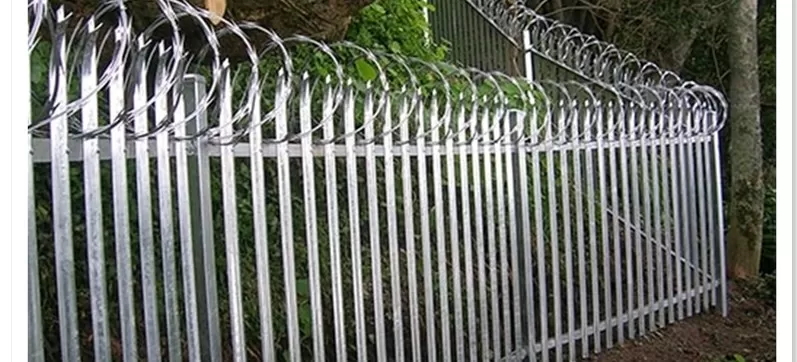

For higher security requirements, palisade fencing can be installed with barbed wire or razor wire extensions on top.
Hot-dip Galvanized Palisade Fence: Provides maximum corrosion resistance and is ideal for coastal or high-humidity environments.
Powder Coated Galvanized Fence: Combines galvanizing with AkzoNobel polyester coating, offering long-term protection and a modern appearance.
PVC Coated Fence: Adds an extra layer of protection and aesthetic appeal at a competitive price point.
