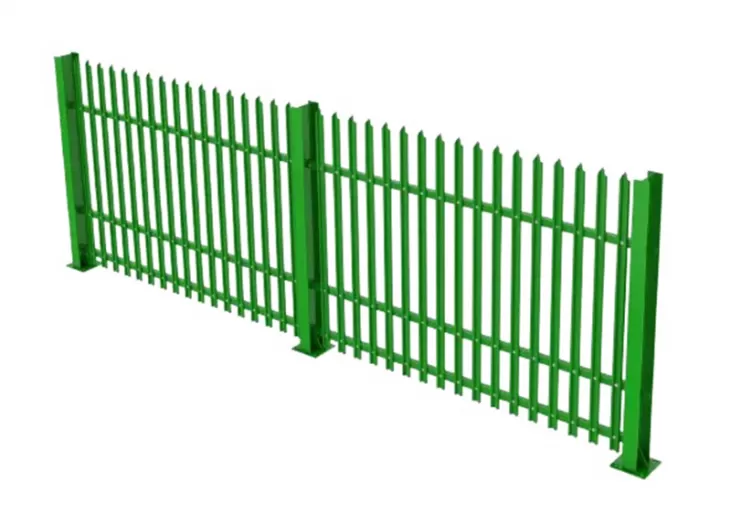

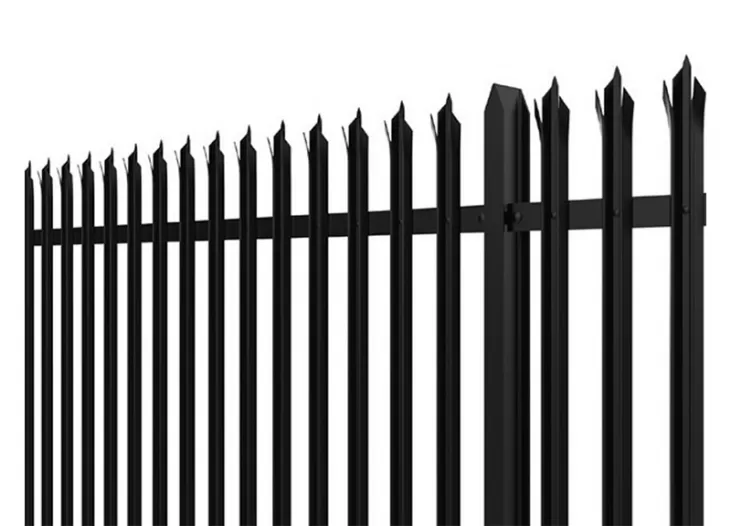

Palisade Fence
Name: Palisade Fence
Material: Q195/Q235 steel
Brand: BONKFC Fence
From: China (BONKFC Factory)
Color: Black RAL9005, Green RAL6005, Grey RAL7016, or customized RAL colors
Palisade fencing is a high-security steel fence system designed to provide long-lasting protection for industrial, commercial, and residential properties. It is manufactured from strong Q195/Q235 steel, hot-dip galvanized to BS EN ISO 1461:2009 standard, ensuring superior corrosion resistance and durability even in harsh outdoor conditions.
Compared with welded mesh fences, palisade fencing offers a more intimidating physical barrier, with sharp pale tops that effectively deter intruders and provide reliable perimeter security.

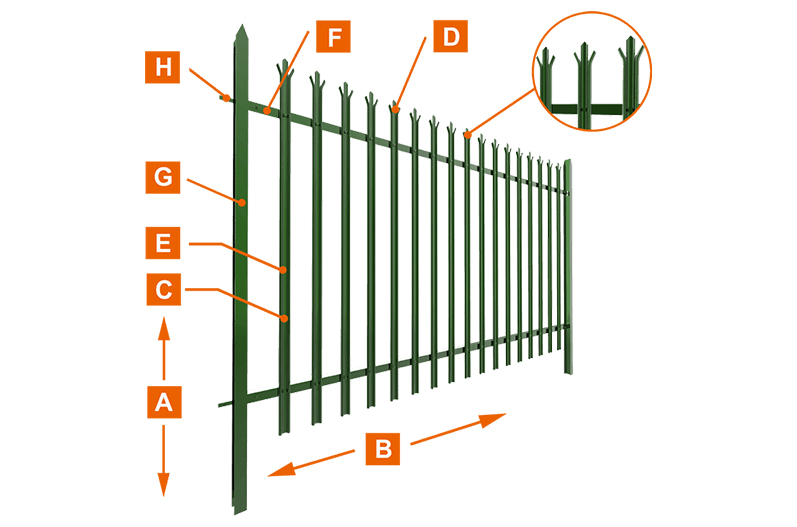

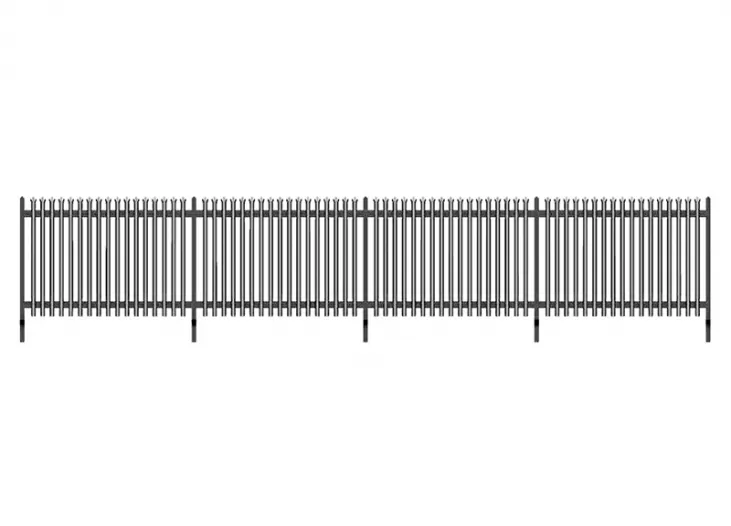

A:Height:1800 mm,2100 mm, 2400 mm, 3000 mm
B:Width: 2750 mm
C:Pale Type: W-profile, D-profile and angle steel
D:Pale Top: square top, triple pointed top, single pointed top, round top, round & notch top,etc.

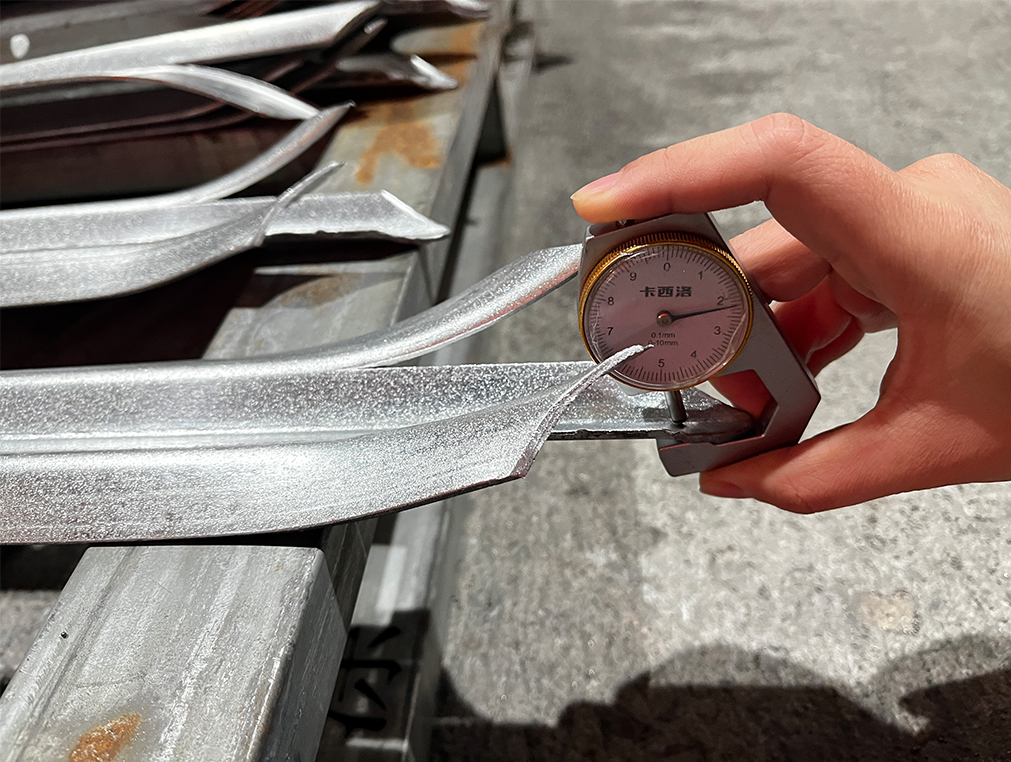

E:Pale Thickness:1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm
F:Horizontal Rail: angle steel (40 mm x 40 mm x 4 mm, 50 mm x 50 mm x 5 mm, 50 mm x50 mm x6 mm)
G:Post: square post (60 mm x 60 mm, 80 mm x 80 mm, 100 x 100 mm); l post (100 x 55mm)
H:Connection:fish plate (40 mm x8 mm x 150 mm)
Technical Details & Options

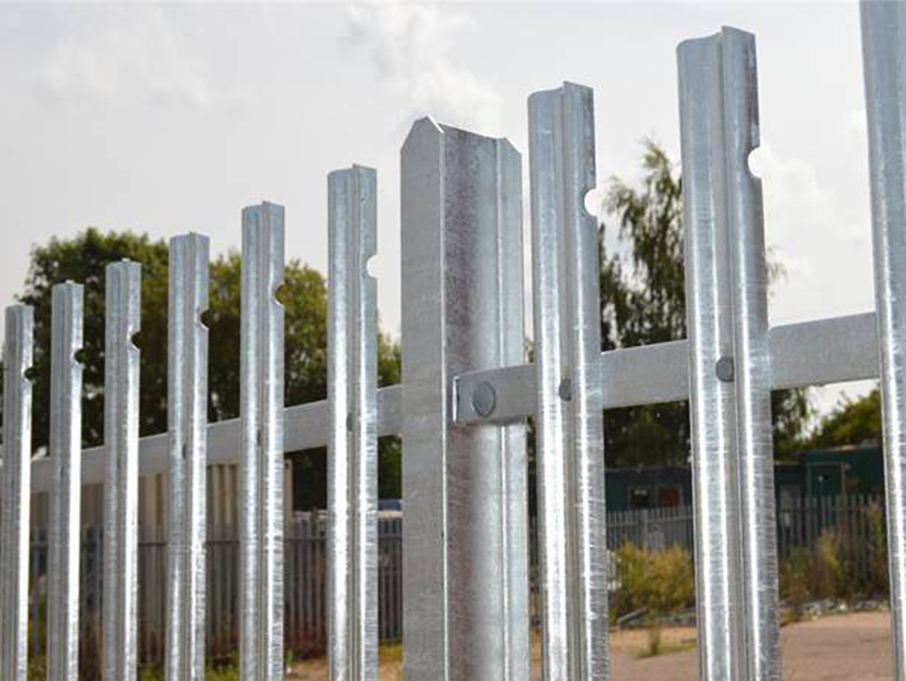

Pales: Available in both “D” section and “W” section, with options of single-pointed, rounded, or rounded & notched tops.
Heights: From 1.8m up to 3.6m or custom specifications.
Rails & Fixings: Pales fixed to horizontal rails using M8 bolts and cone nuts, with optional anti-vandal rivets and collars.
Surface Finish: Hot-dip galvanized, powder-coated, or PVC coated.
Powder Coating: Using AkzoNobel certified powder with 120 microns thickness, applied by 32 Swiss ITW GEMA spray guns for a uniform, durable finish.
Edge Processing: All sharp edges polished to remove burrs for safety during installation and use.
Our factory operates 2 advanced powder coating lines with an annual output capacity exceeding 80,000 meters of palisade fencing.
Pre-treatment: Sanding and nano-ceramic phosphating improve adhesion and corrosion resistance.
Spray Coating: High-quality AkzoNobel powder ensures excellent UV resistance, weatherability, and smooth finish.

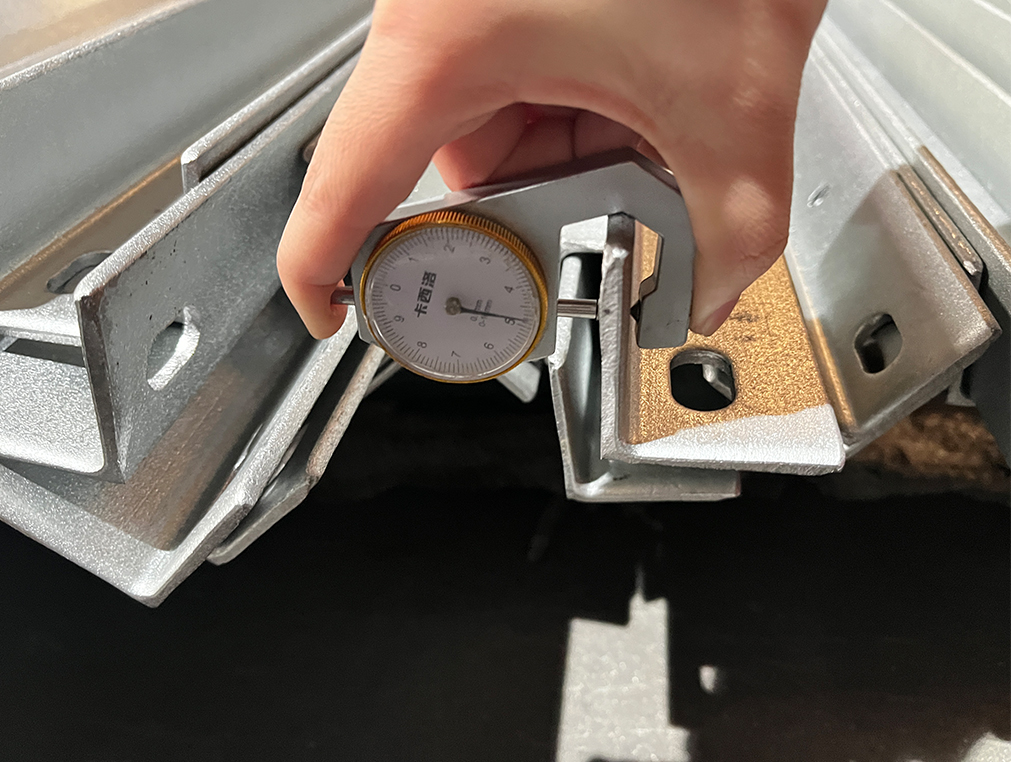

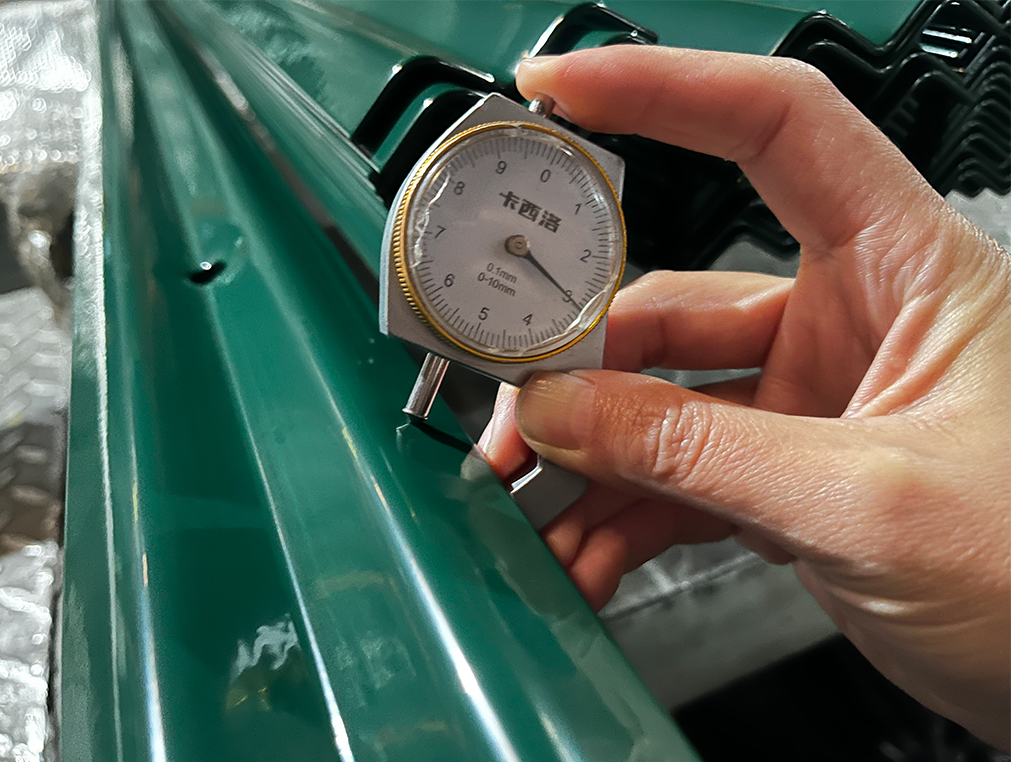

Coating Test: Each batch undergoes a cross-cut adhesion test, tape peel test, and thickness check (average 120 microns).

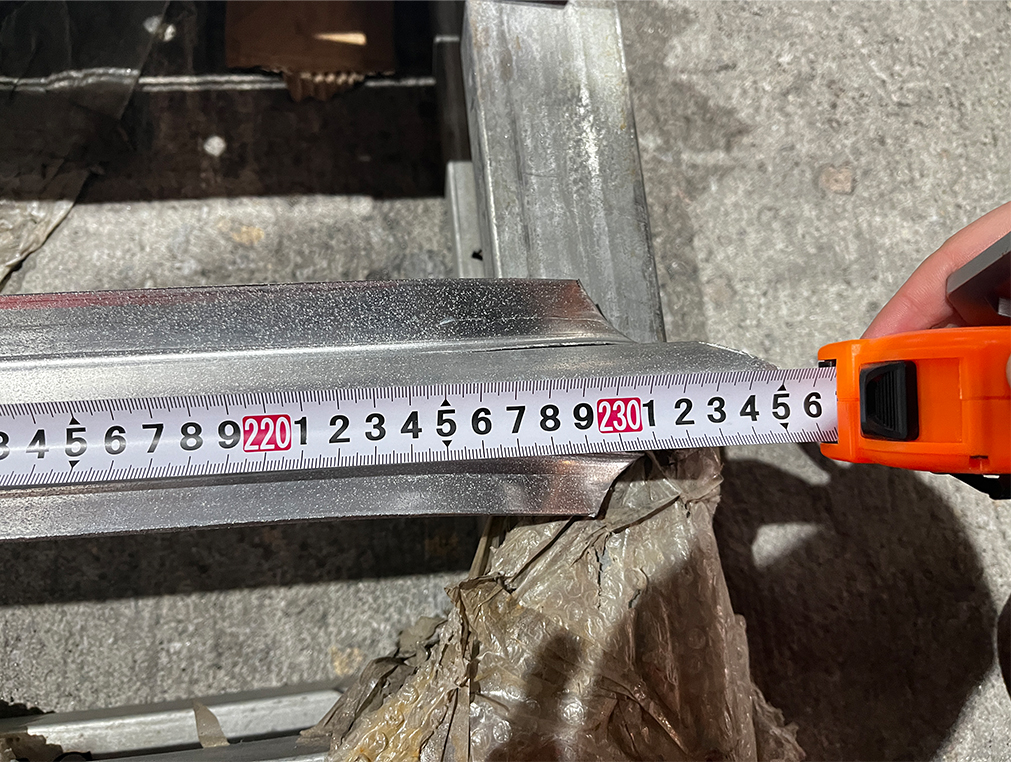

Inspection: Every fence panel is checked by our dedicated QC team before packaging.
This strict production control ensures every galvanized palisade fencing from BONKFC delivers consistent performance and appearance.
Project: Industrial Park Perimeter Fence, Spain (2023)
Client: International logistics operator
Scope: Provided 5 km of D‑profile galvanized palisade fence, hot‑dip galvanized to 200 g/m², powder‑coated RAL 7016. Panels prefabricated and delivered factory‑direct by our team.
Challenges: Large site area, tight schedule ahead of warehouse opening. Site terrain had slight undulation requiring stepped panel adaptation.
Solution: As the factory‑direct palisade fence supplier and manufacturer, BONKFC produced pre‑assembled panels with consistent finish, handled logistics and site coordination.
Outcome: Site perimeter secured for warehouse operations; client reported simplified installation, predictable logistics and reduced installation downtime.
Project: Water Treatment Facility Perimeter Upgrade, Middle East (2022)
Client: Public utility owner
Scope: Supply 2.3 km of galvanized palisade fence with tamper‑proof fixings, anti‑lift pale tops, posts bolt‑down compatible for minimal disruption in plant operations. Finish: HDG zinc 180 g/m², marine environment resistant.
Challenges: Coastal/humid environment requiring corrosion resistance; minimal on‑site welding to reduce downtime; strict safety and access constraints.
Solution: BONKFC as palisade fence manufacturer provided tailored post configurations, factory finish, pre‑cut panels, special packaging for export.
Outcome: Maintenance costs for perimeter fence reduced by 35% compared to previous system; client noted elevated durability and lower lifecycle cost.

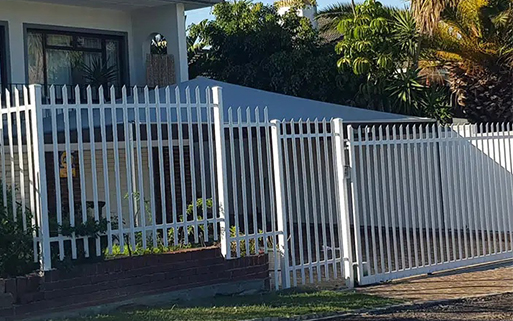

Project: Residential Estate Security Fencing, Australia (2023)
Client: High‑end residential developer
Scope: 2 km of decorative galvanized palisade fence with powder coat RAL 6005, matching pedestrian and vehicular gates, height 2.4 m.
Challenges: Design aesthetic important (residential environment), security nonetheless required, tight coordination with landscaping and architectural finishes.
Solution: BONKFC provided customized pale profile, colour matching, finished gate systems, and installation drawings. The palisade fence supplier model simplified procurement.
Outcome: Estate delivered with attractive yet high‑security perimeter; developer appreciated combined aesthetic & security solution; residents reported enhanced sense of estate boundary/security.
Project: Modular Metal Fence & Palisade Hybrid, UAE Construction Site (2021)
Client: International construction contractor
Scope: 1.5 km of modular metal + palisade fencing around large construction compound; included removable panels for access and reuse in future phases.
Challenges: Frequent re‑configuration of site boundaries, high traffic of materials and personnel, need for durable yet reusable fencing.
Solution: BONKFC’s metal fence manufacturing factory provided modular palisade panels with bolt‑on base plates for fast re‑deployment.
Outcome: Contractor achieved faster boundary changes, reduced material reuse cost, and the metal fencing solution proved robust for the harsh desert environment.
I post connection

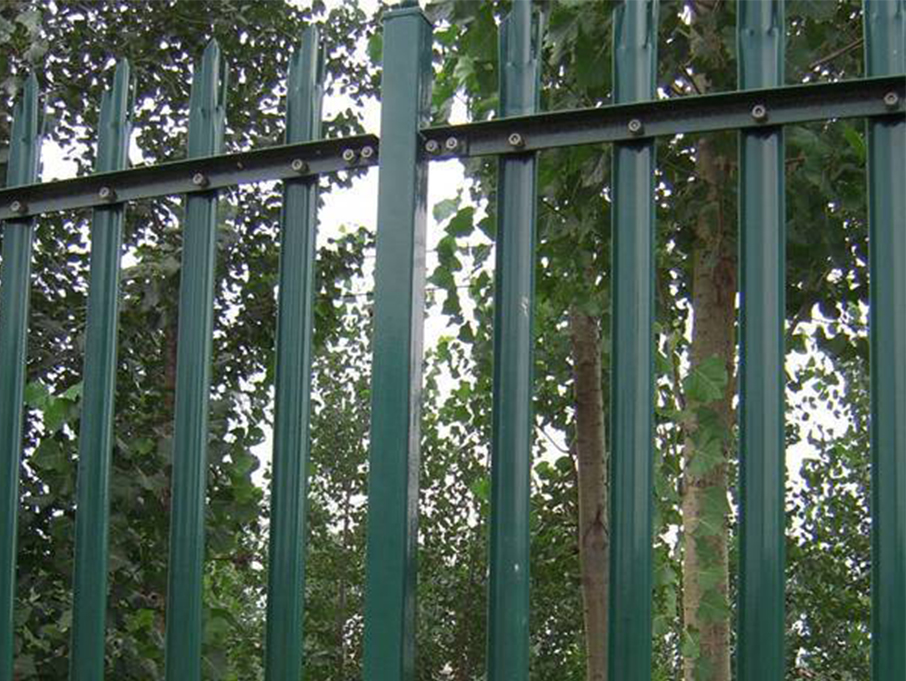

Square post connection
Hot-dip Galvanized Palisade Fence: Provides maximum corrosion resistance and is ideal for coastal or high-humidity environments. Powder Coated Galvanized Fence: Combines galvanizing with AkzoNobel polyester coating, offering long-term protection and a modern appearance. PVC Coated Fence: Adds an extra layer of protection and aesthetic appeal at a competitive price point.

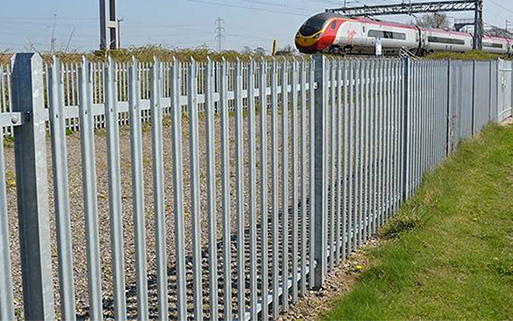

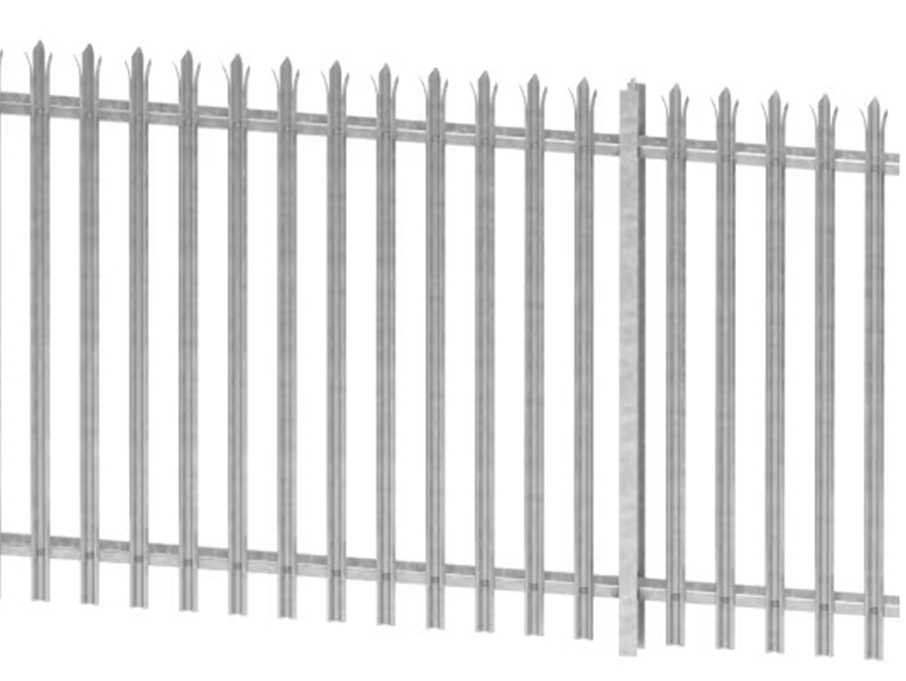

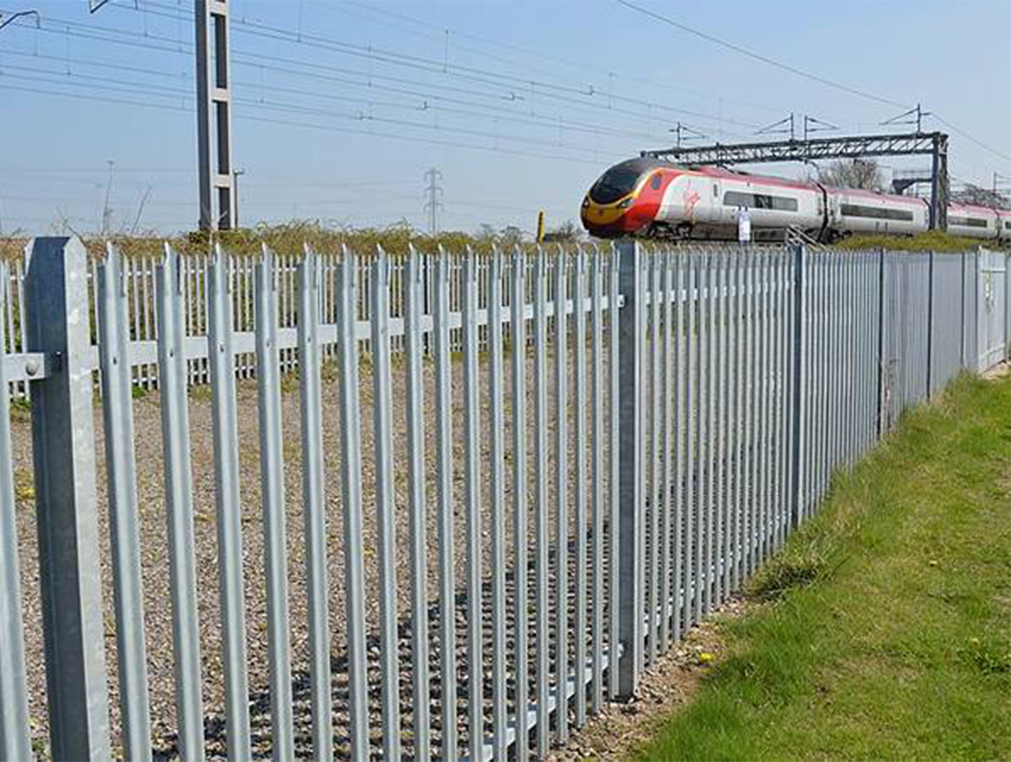

Galvanized Palisade Fence

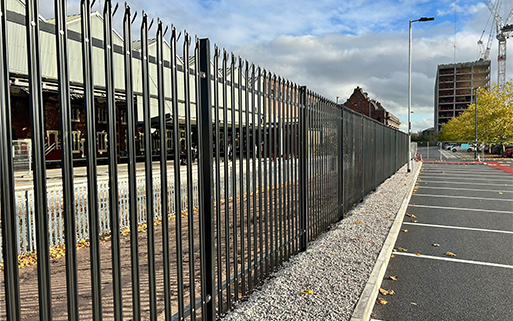

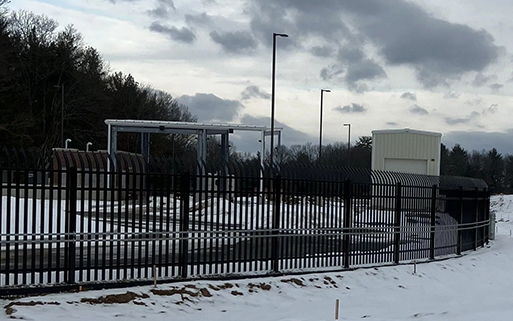

Powder Coated Galvanized Fence
Our palisade fencing can be divided into three types by pale profile, namely, D-section pales, W-section pales and angle steel pales as listed below.
a. square top; b. triple pointed top; c. single pointed top; d. round top; e. round & notch top

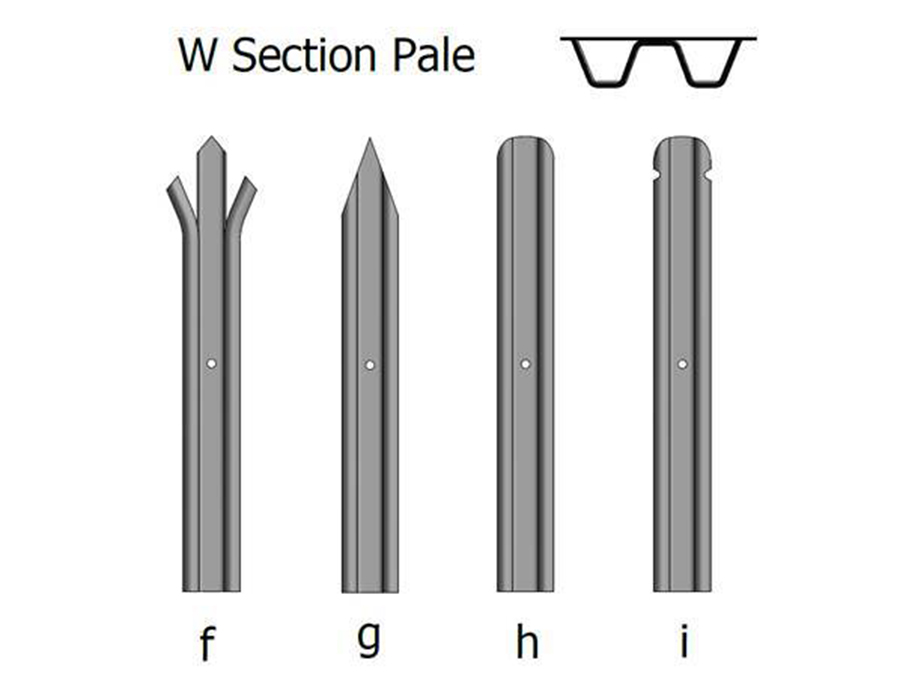

f. triple pointed top; g. single pointed top; h. round top; i. round & notch top

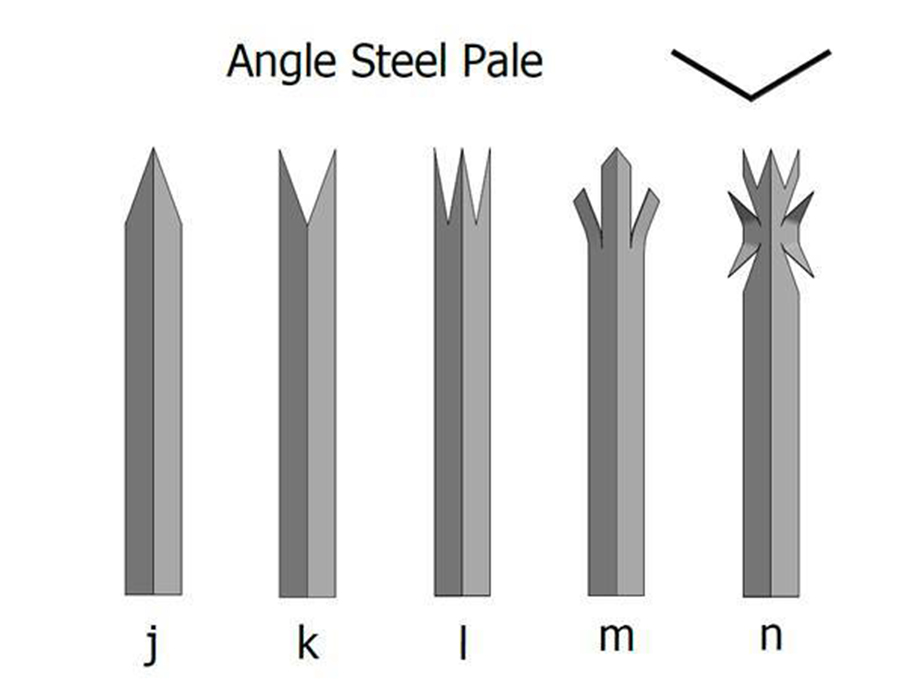

j. single pointed top; k. double pointed top; l. triple pointed top; m. triple pointed & splayed top; n. triple pointed & spikes top
Production is the top priority of BONKFC's development,and quality is the core criterion for BONKFC's progress.

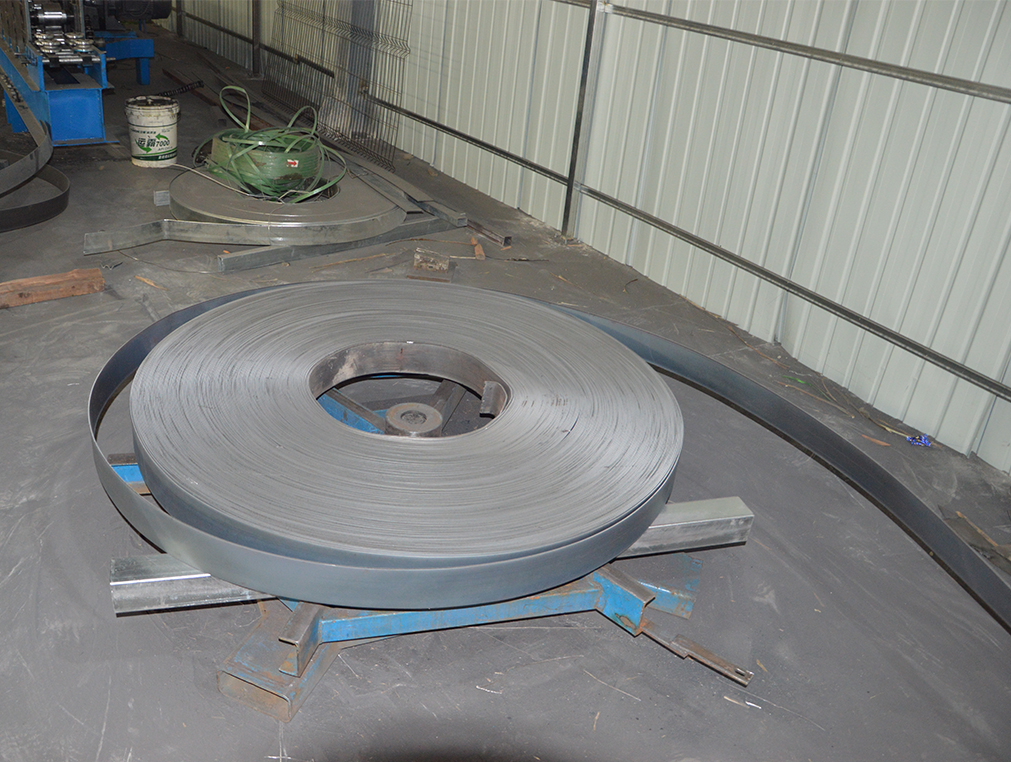

raw materials (galvanized steel coil)

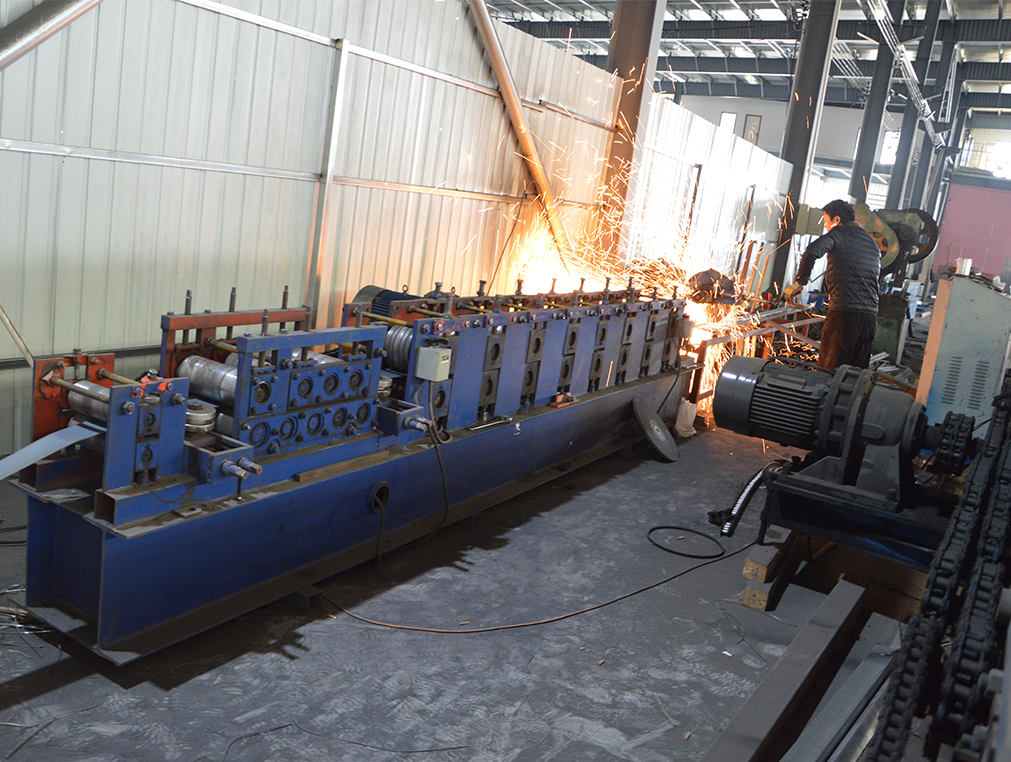

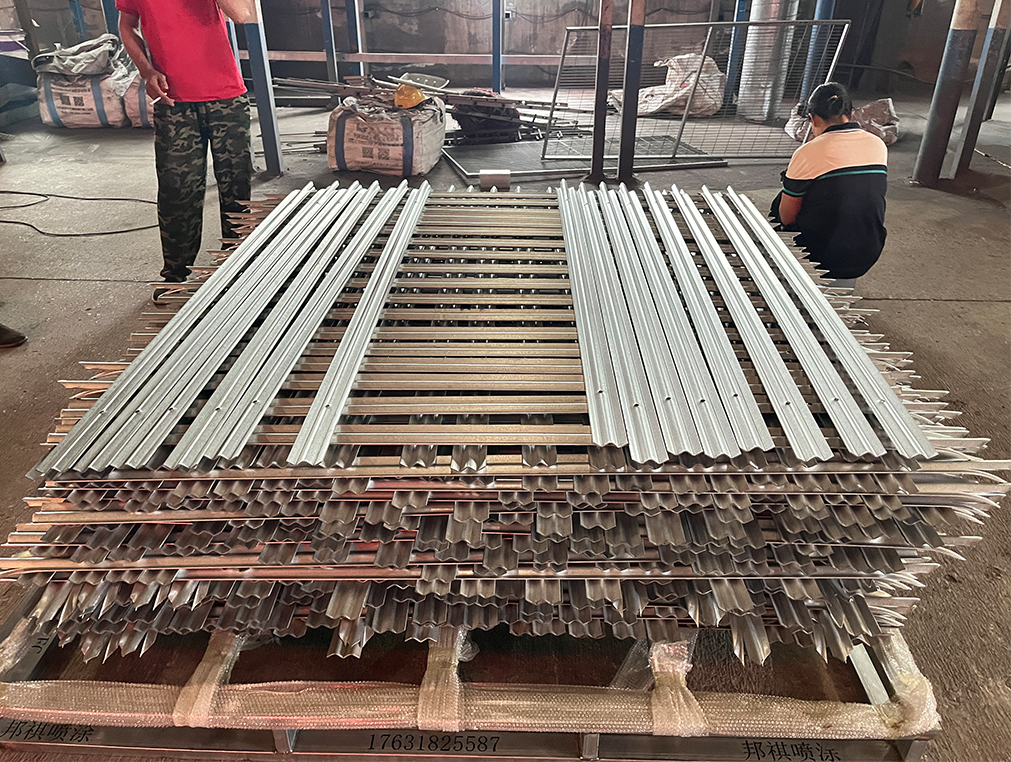

pale profile forming
pale cutting

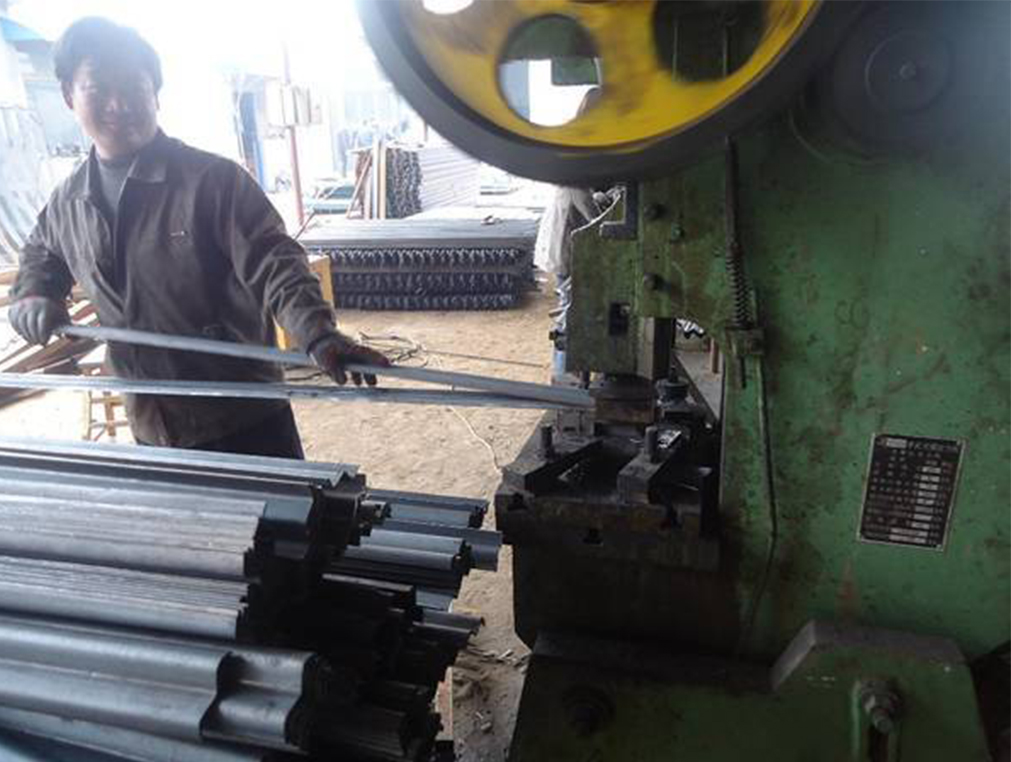

pale head forming
sandblasting

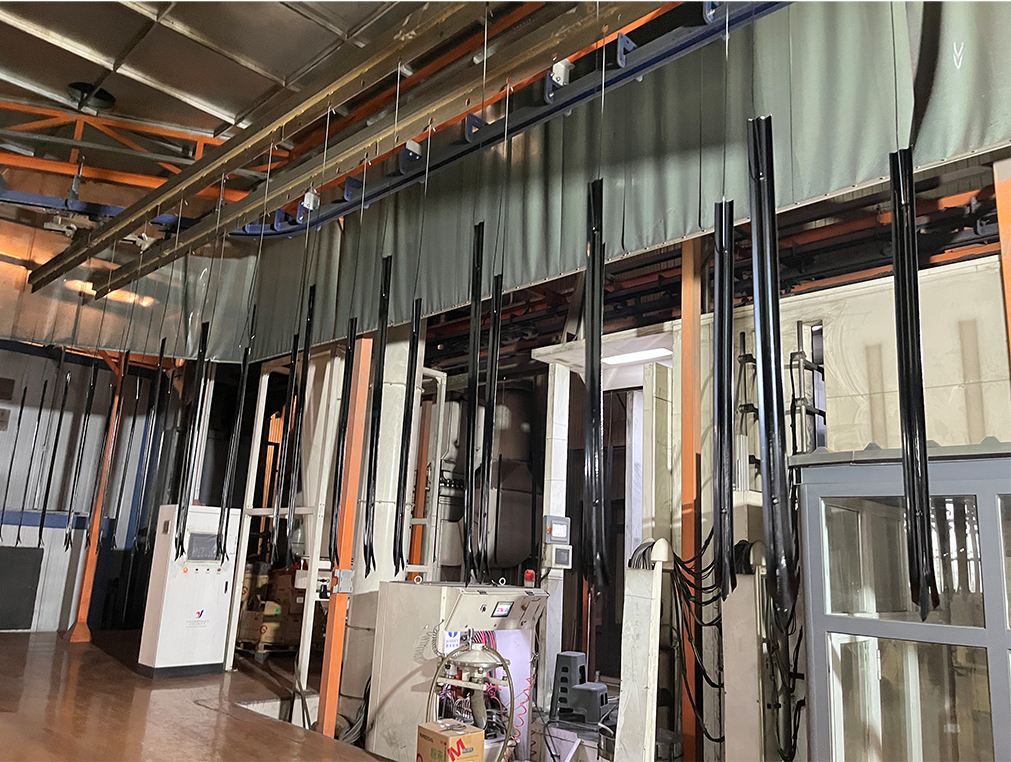

powder coating

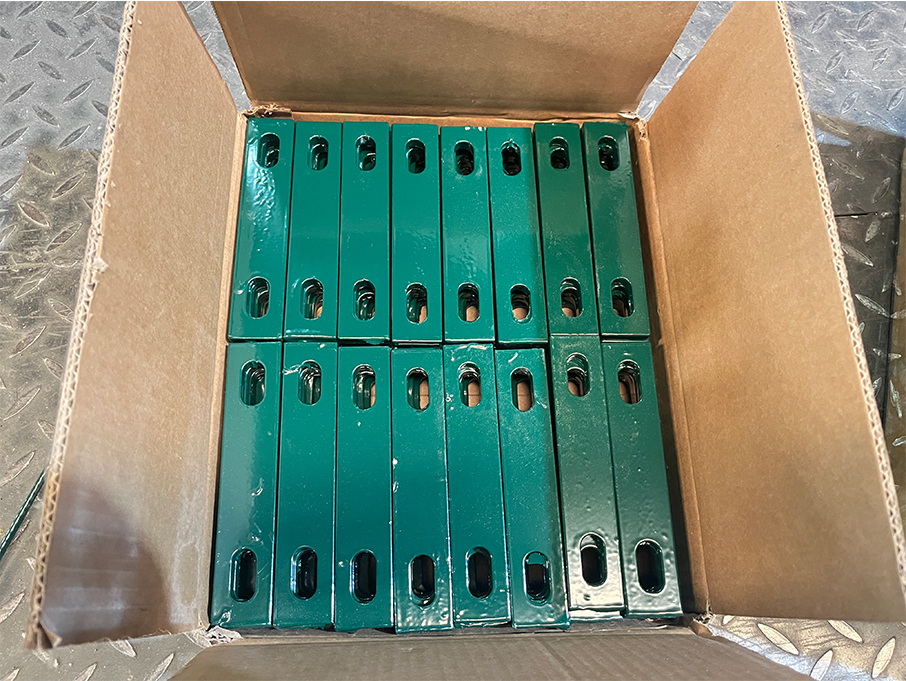

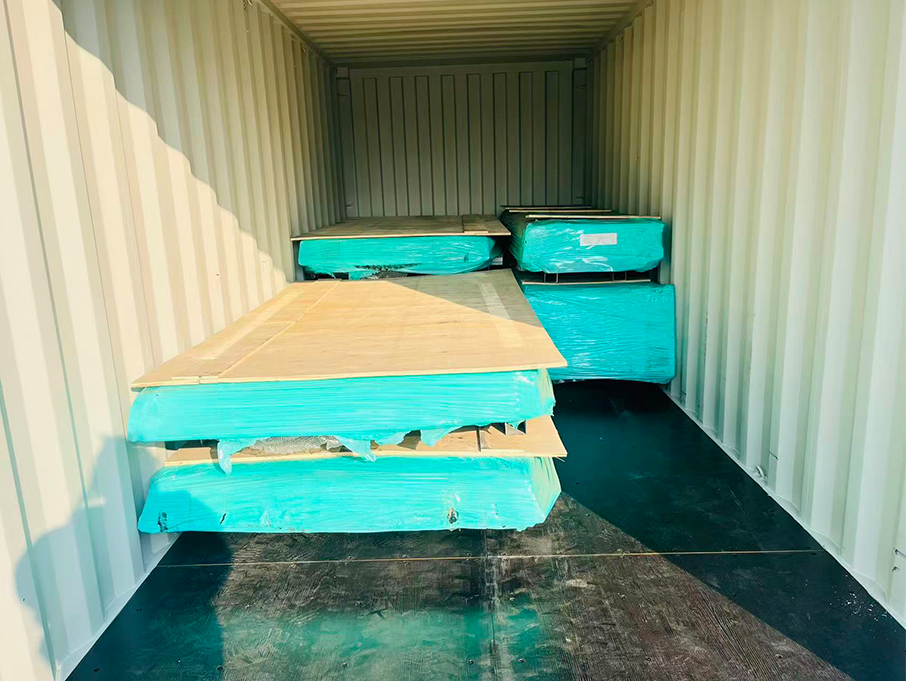

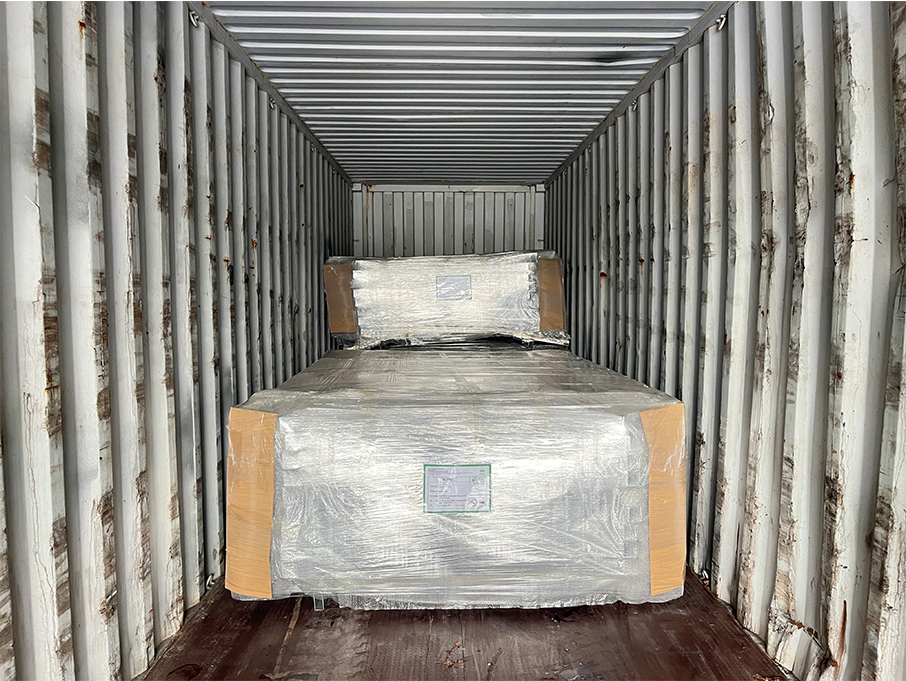

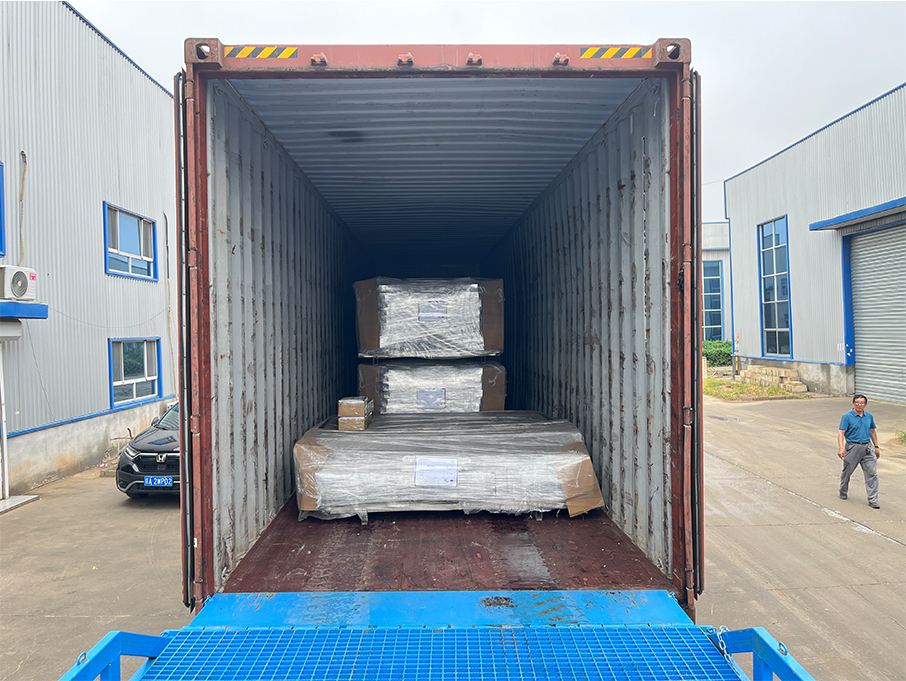

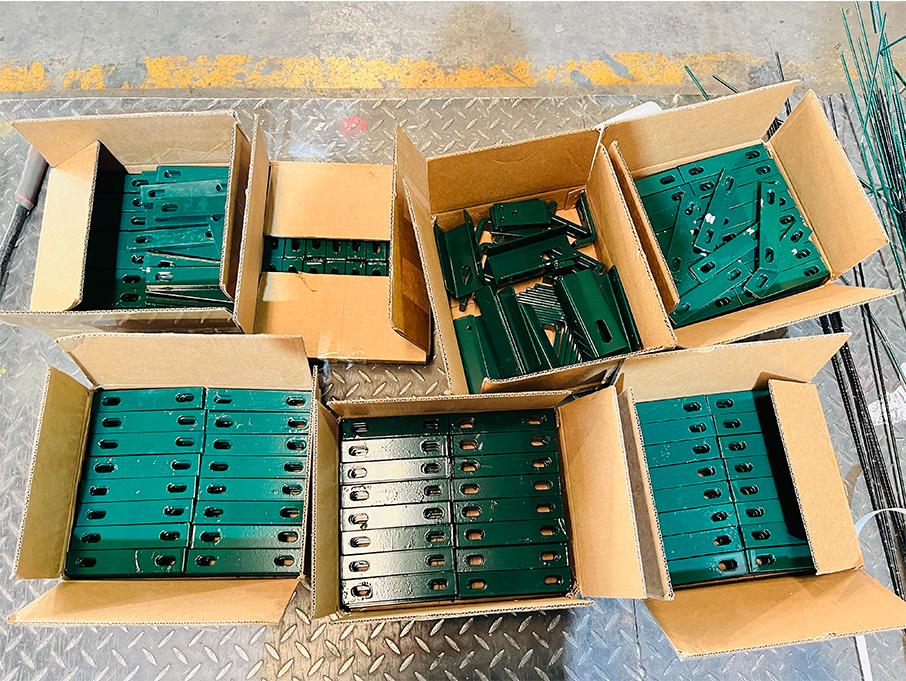

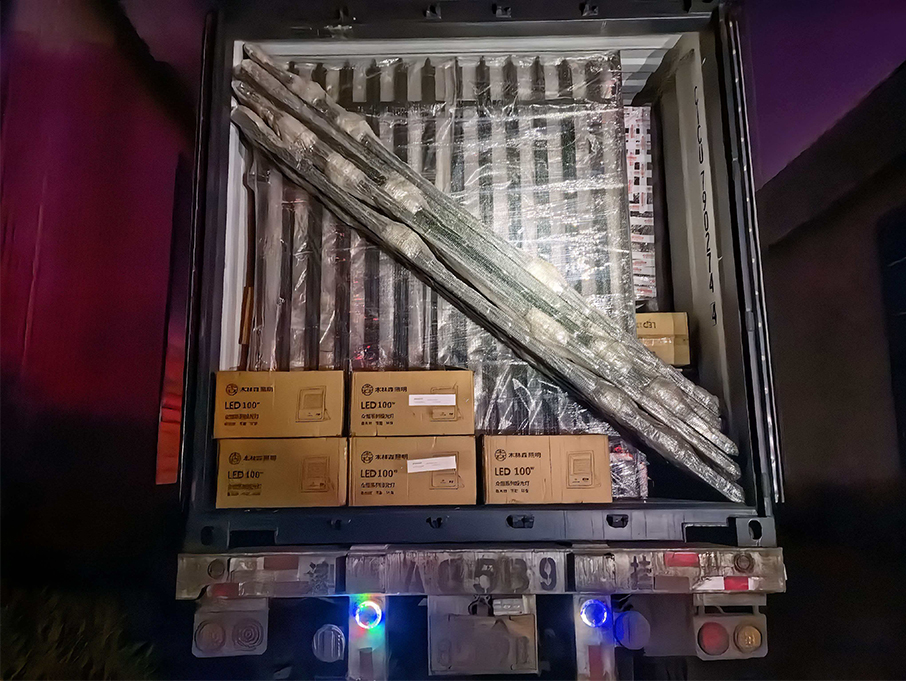

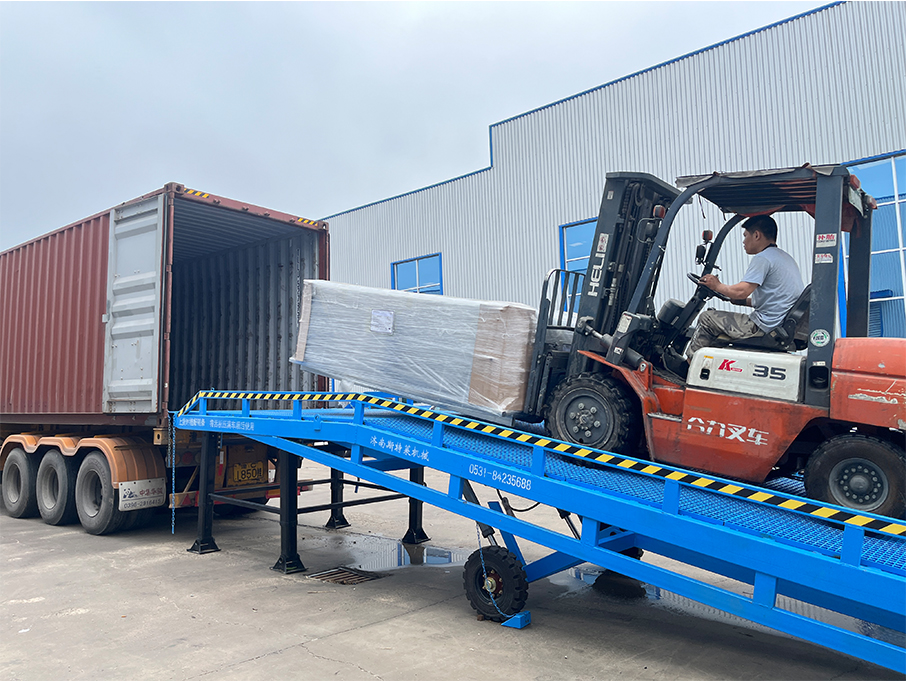

Each set is wrapped with protective plastic film to prevent scratches. Standard options include carton packing, pallet packing, or custom export packaging based on client requirements. BONKFC ensures fast delivery times with flexible shipping solutions for both bulk and project-based orders.
Providing a higher level of security and excellent protection against unauthorized access, vandalism and attack.
High tensile fixings and support base offer maximum resistance to deformation.
A wide range of designs and colors are available to perfectly match up with most surrounding.
Excellent corrosion & rust resistance and weather resistance performance.
Fast and easy installation and less maintenance.
Widely used in projects requiring strong perimeter security: Residential compounds & private properties Industrial factories & warehouses Public utilities & municipalities Airports, railways & ports Government and military facilities Parks and schools (with rounded pale tops for safety) For higher security requirements, palisade fencing can be installed with barbed wire or razor wire extensions on top.
