Supplying 220 sets of High-Security Clear-View Fences to Johannesburg Airport

Supplying 220 sets of High-Security Clear-View Fences to Johannesburg Airport

Location: Johannesburg, South Africa

Date: December 11th

Product: Clear-View (358) high-security fences Application: Aviation security in airport cargo area

一、Project Overview

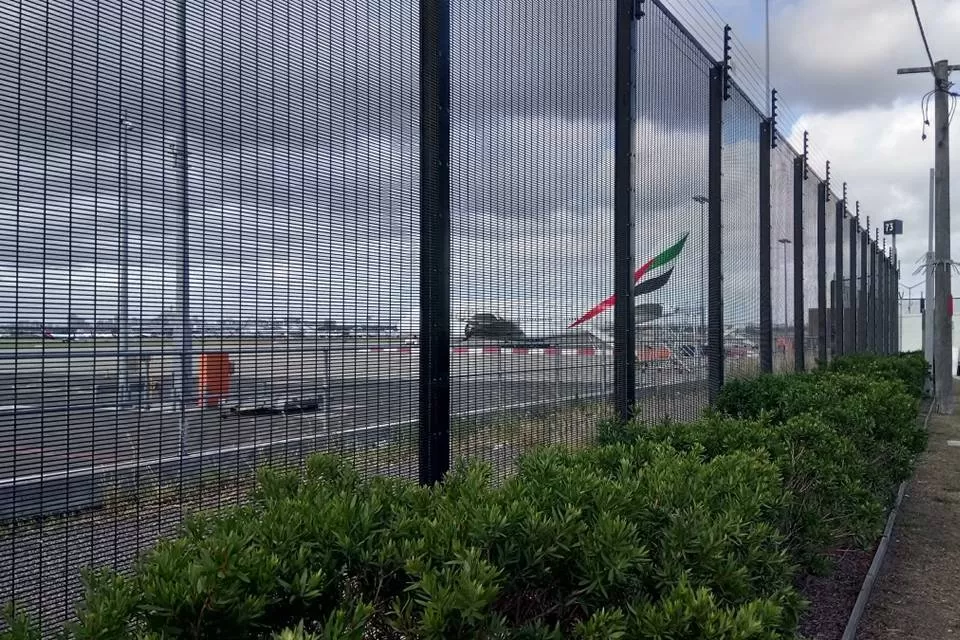

O.R. Tambo International Airport is Africa's leading aviation hub for passenger and cargo traffic. Its cargo area handles over 300,000 tons of international air cargo annually, including high-value electronic products, precision instruments, and cold chain fresh produce. It requires security fences with "unobstructed monitoring visibility, anti-climbing and anti-cutting capabilities, and weather and corrosion resistance," complying with South Africa's "SANS 10262-1:2020 Security Fencing Standard." The previous traditional diamond mesh fences exposed problems such as oversized meshes prone to climbing, 30% corrosion rate with single-layer galvanizing, and loose structure easy to collapse after 5 years of use. After multiple technical evaluations, the customer finally selected our customized Clear-View (358) fence solution.

二、Our Solution

Product Specifications Size: 2.90m×2m

Material: Q235 low-carbon steel base material, treated with 480℃ hot-dip galvanizing (zinc layer thickness up to 120μm) + outer RAL 9005 black polyester powder coating (passing 2000-hour UV aging test)

Structural details: 78mm×13mm ultra-dense mesh, 3.9mm wire diameter, each welding point bearing 500N load;

columns are 60mm×60mm×2.5mm

square posts Installation: Columns fixed by 1.2-meter deep concrete embedding, fence modules connected by splicing

三、Quality Assurance

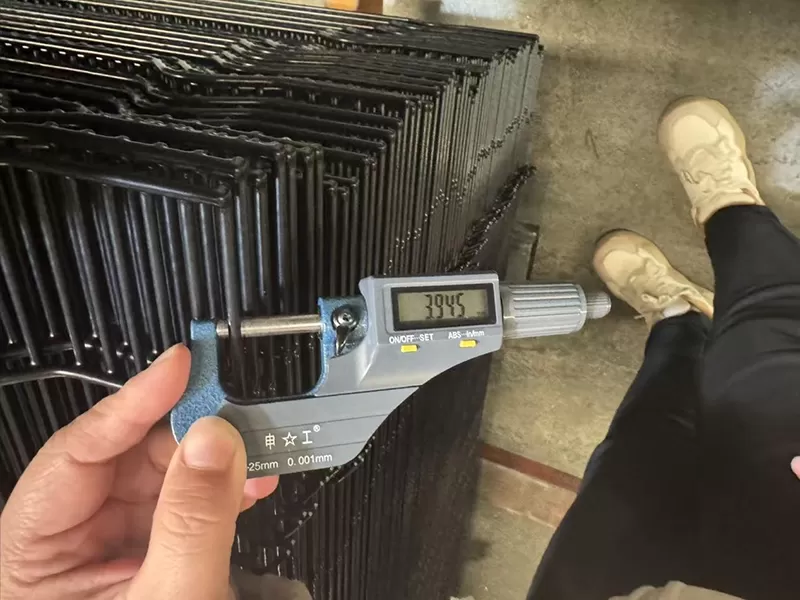

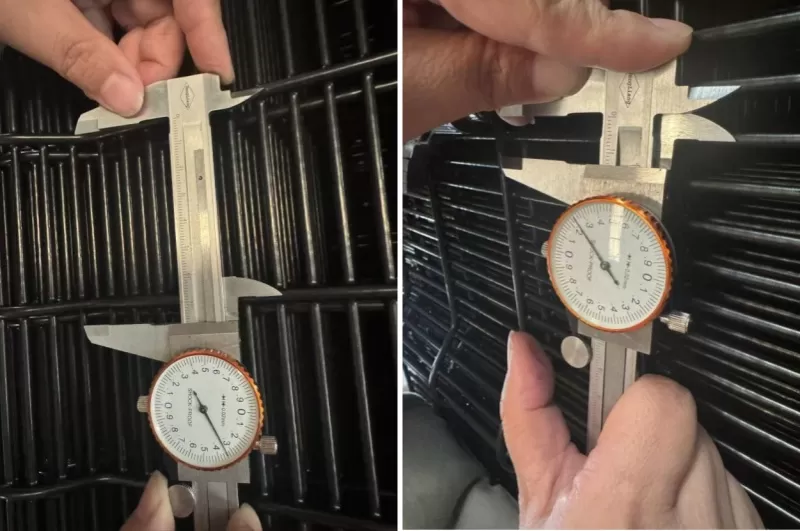

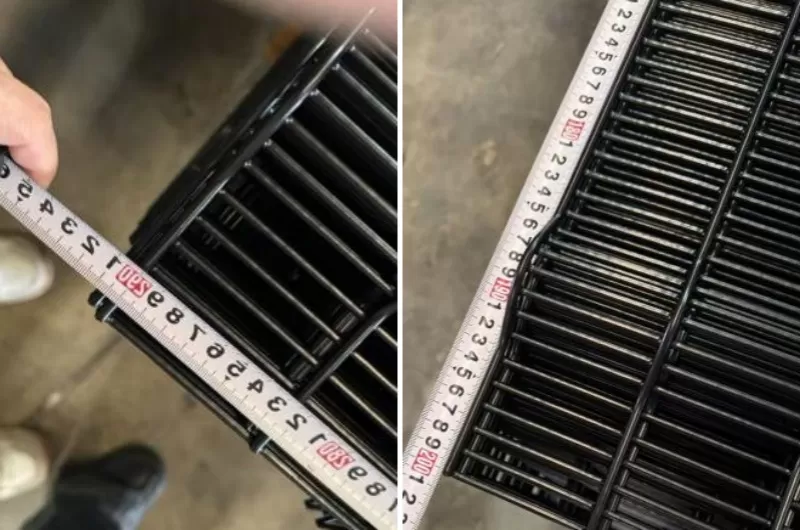

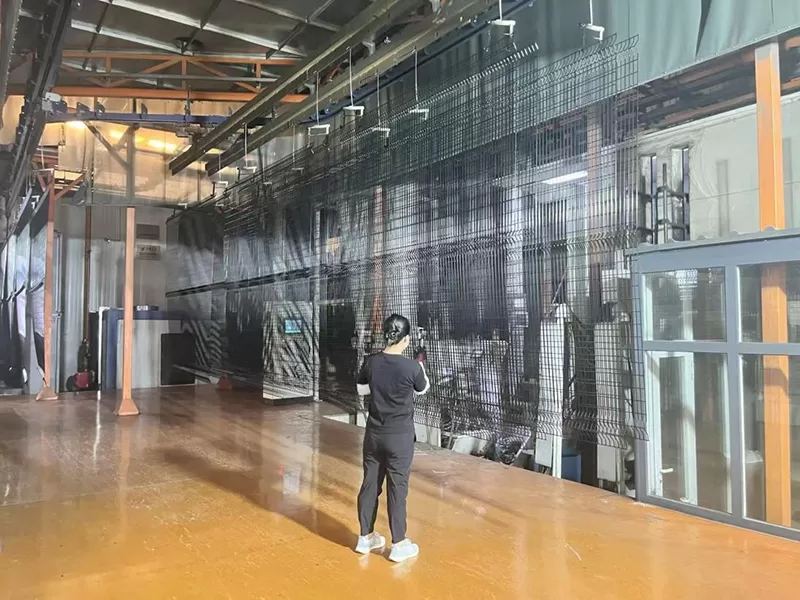

To ensure the products meet the airport's high security requirements, we conduct comprehensive quality checks:Check the quality of Q235 low-carbon steel base material;Check the thickness and uniformity of hot-dip galvanizing layer (required to reach 120μm);Check the adhesion and thickness of the powder coating; Check the mesh size accuracy (78mm×13mm) and weld firmness (load-bearing ≥500N); Check the column impact resistance (required to reach 22kN). (Factory inspector checking fence, Fence panel protection treatment, Custom pallet loading, Crane lifting container, Container internal fixation)

四、Execution Highlights

Weather and corrosion resistance: Double protection of hot-dip galvanizing + powder coating, adapting to strong ultraviolet radiation and humid rainy season in South African plateau, service life exceeding 15 years;

Strong anti-intrusion capability: Ultra-dense mesh prevents climbing, thickened wire diameter and firm welds resist cutting, meeting high security levels;

High stability: Deep concrete embedded columns, resisting collision from 10-ton cargo vehicles without deformation; Efficient delivery: Completing customized production, cross-border transportation (from Tianjin Port, China to Durban Port, South Africa) and installation in 35 days.

五、Results & Customer Feedback

"This batch of high-security Clear-View fences perfectly meets the dual needs of 'security upgrade + efficient operation and maintenance' in the airport's cargo area. The ultra-dense mesh and impact-resistant structure completely eliminate intrusion risks, and the double anti-corrosion design significantly reduces maintenance costs. The efficient delivery in 35 days ensures the security upgrade is completed before the rainy season, laying a solid foundation for in-depth cooperation between both parties in the future."
