Supplying 700 sets of decorative fence to a US company

Supplying 700 sets of decorative fence to a US company

Location: United States  Date: December 6, 2024  Product: Decorative railings  Application: Residential community protection

一．Project Overview

American companies have been seeking high-quality, durable, and aesthetically pleasing metal railings for residential protection. These railings are needed to prevent unauthorized entry, protect yard privacy, and ensure property security. After extensive comparisons, an American company ultimately purchased 700 sets of decorative metal railings from our company.

二．Our Solution

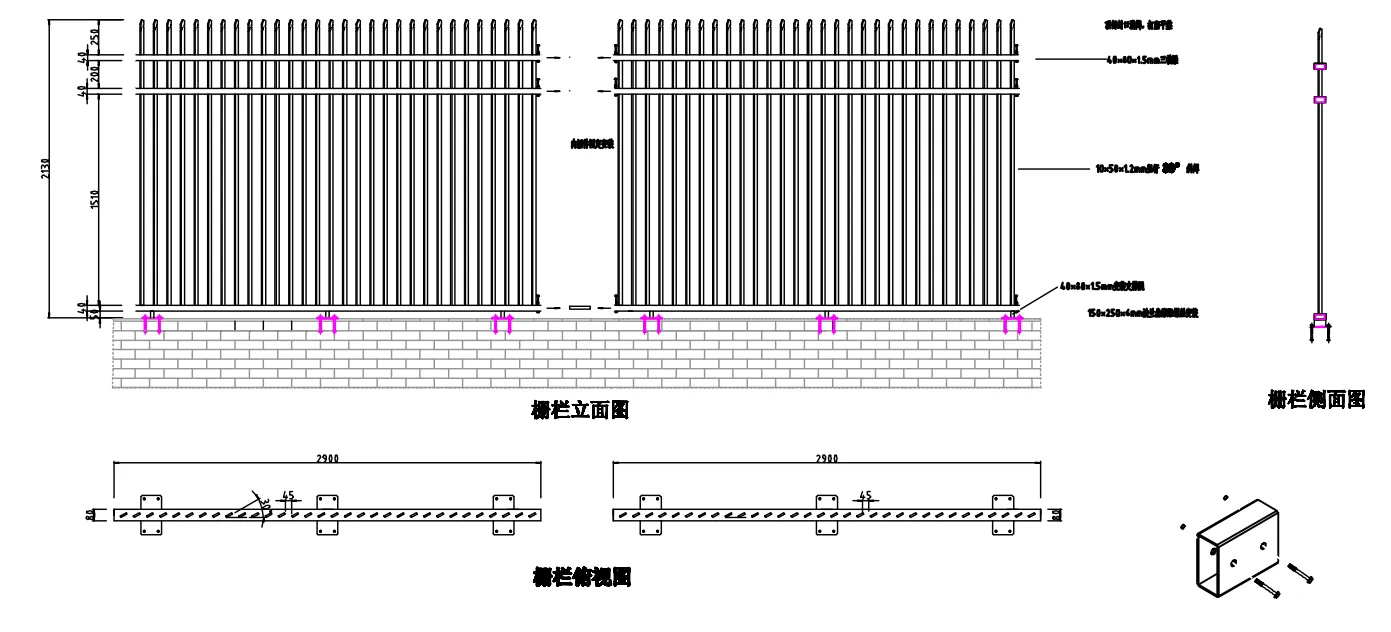

Product Specifications

Size:width 2130mm x height 2900mm

Material: High-quality galvanized steel, treated with nano-ceramic phosphating and powder coated

Horizontal tubes size: 40mm x 80mm x 1.5mm square tube

Vertical tubes size: 10mm x 50mm x 1.2mm square tube, spaced 45mm apart

Surface treatment: Black powder coated

Installation: Secured to the ground via three support legs welded to flanges(base plate) on the bottom of the horizontal tubes; railings panels are connected and fastened together using internal connectors and screws.

三．Quality Assurance

To ensure our products deliver the best performance, we conduct comprehensive quality checks:

Check the qualification of raw material pipes

Check that laser cutting meets the requirement of zero error with no burrs

Check the appearance and firmness of the welds.

Check for welding slag and impurities on the surface.

Check whether the spray coating thickness is more than 150 microns.

 laster cutting                                        no cracking at the tips                        smooth welding at the base                           pre-treatment

powder coating thickness                                  Packaging                                             Transportation

四．Execution Highlights

Corrosion-resistant technology: Utilizing nano-ceramic phosphating and electrostatic powder coated technologies, it effectively prevents corrosion and oxidation.

Easy installation: The horizontal and vertical tubes are very easy to install, reducing installation time.

High stability: The flange(base plate) at the bottom of the fence is fixed to the ground using internal connectors and screws, ensuring high stability and efficiency.

五.Results & Customer Feedback

"This batch of decorative fences perfectly meets the weather resistance and aesthetic requirements of our high-end residential development. The efficient service with early delivery and comprehensive after-sales support have laid a solid foundation for future cooperation between both parties."
