Middle East desert areas 20,000 meters of high-zinc galvanized chain link fence for desert area enclosure protection
Location: Middle East desert areas Date: June 15 , 2026 Product: Chain link fence Application: Middle East desert areas
一、Project overview
To meet strict material standards for harsh desert environments and fulfill the client’s requirement of a 10-year warranty service, we adopted our 17 years of manufacturing experience in fencing solutions. We recommended hot-dip galvanized chain link fence with outer PVC coating featured outstanding anti-corrosion performance.
Owing to its superior rust resistance and long-term durability under high temperature, sandstorm and arid desert conditions, the client finally selected this high-performance chain link fencing for site enclosure protection.
二.Our SolutionPrior to contract signing, our drafting team produced detailed drawings in accordance with the client’s requirements and sent them to the customer for final confirmation.
Chain Link Fence Product specifications
Wire diameter 3.50/4.5mm Gal 40GSM zinc coating on wire + 1.0mm thickness pvc coated
Tensile Strength 350-550 Mpa
MESH SIZE40X40MM, FABRIC HEIGHT 2800mm, TOP KNUCKLED AND BOTTOM KNUCKLED
10 Meter Length of Each Roll
40 GSM Zinc Coating on Wire
Fence Selvedge Knuckled & Knuckled
三、Quality Assurance

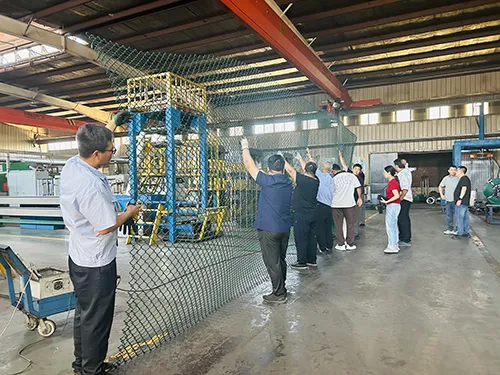

For every batch of products manufactured, we conduct comprehensive quality checks.

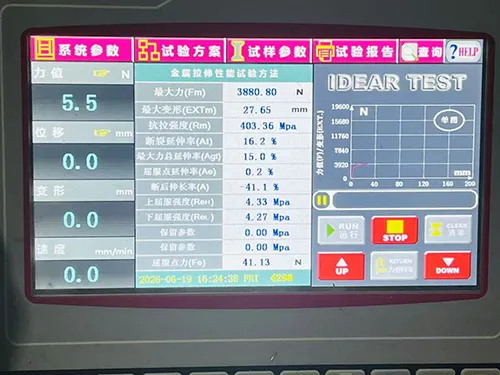

1.Test the tensile strength of wire to verify it meets 350–550 MPa 2. Inspect the actual length of each roll in meters

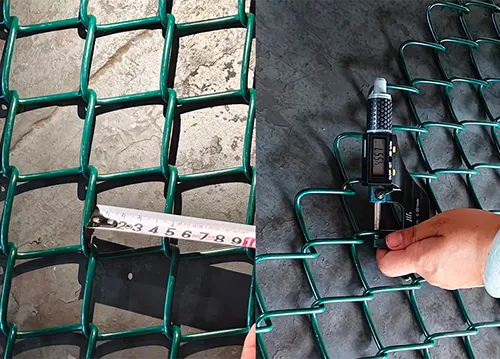

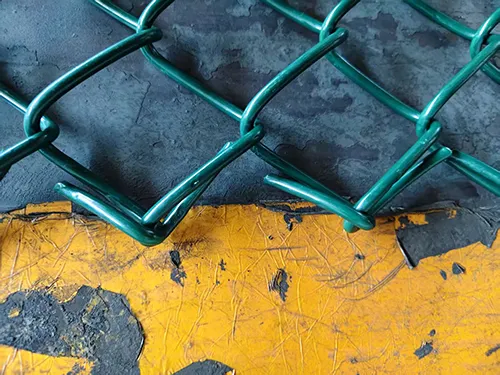

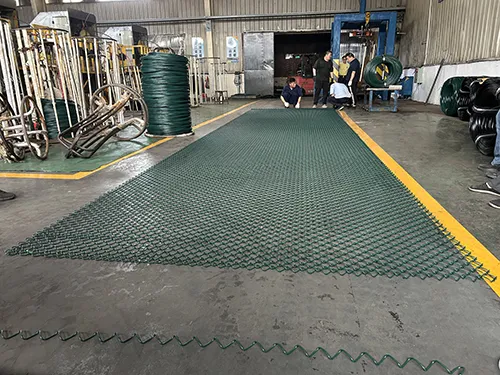

3. Check chain link fence edges for cracks 4. Measure the overall height of the chain link mesh

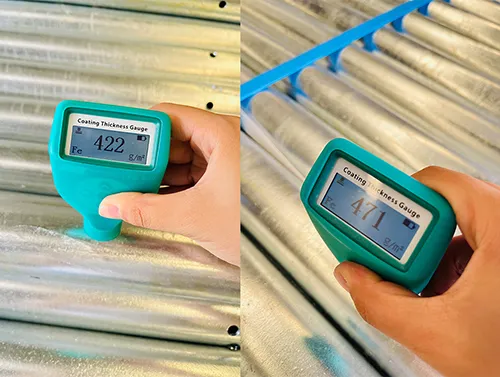

5. Verify wire diameter and mesh opening size 6. Test double-side zinc coating weight to ensure it reaches 550 GSM
四.Execution Highlights
High Corrosion Resistance: Hot-dip galvanized coating + PVC coated.
Long Service Life: Under normal outdoor conditions, it can achieve a service life of 15-20 years
Wire dimensions and tolerances in accordance with BS EN10218-2.
All wires are galanised in accordance with BS EN 10244-2 Class A.

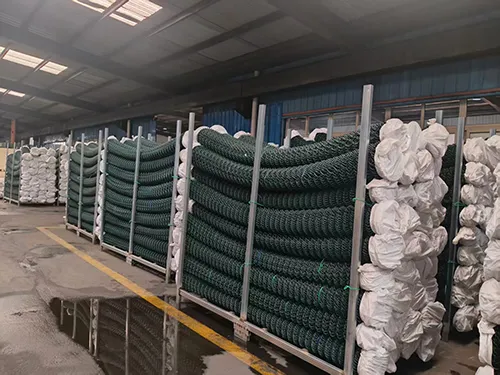

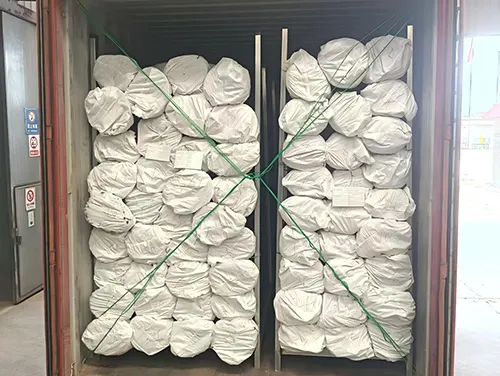

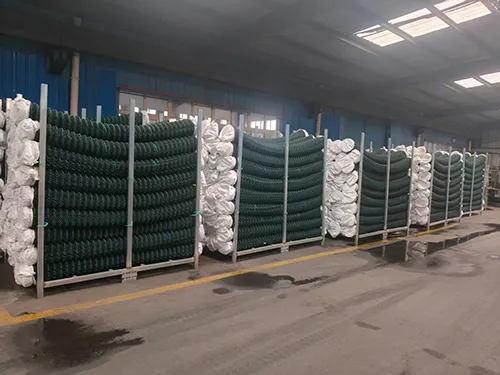

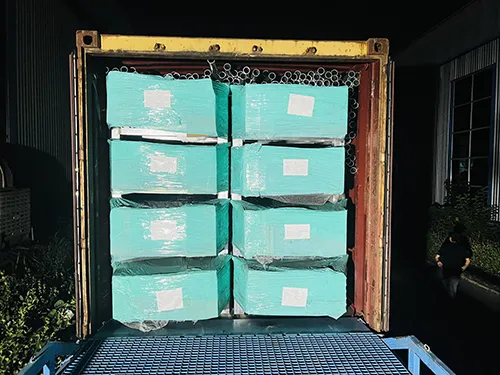

五、Loading and shipping
