358 Fence

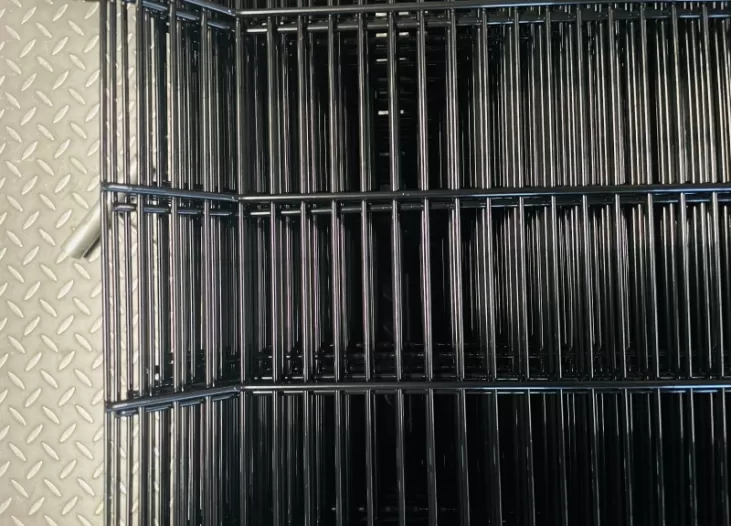

Name: 358 Fence
Material: Q195/Q235 wire and pipe
Brand : BONKFC Fence
From: China BONKFC
Color: Black9005, Black Green 6005, Grey7016

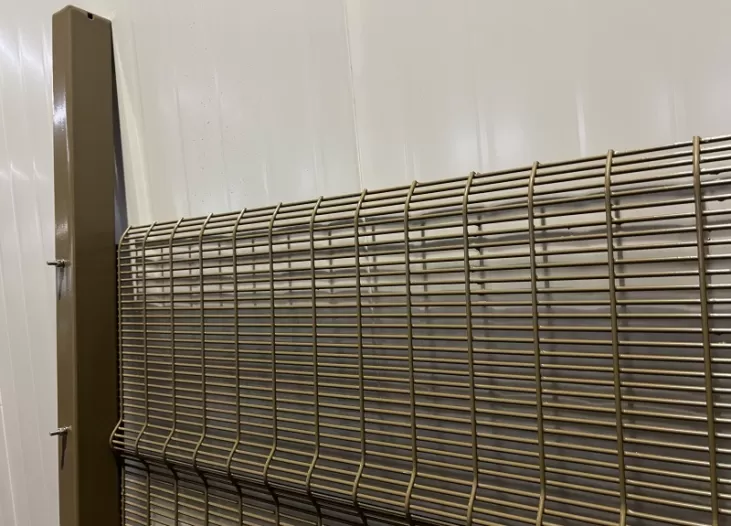

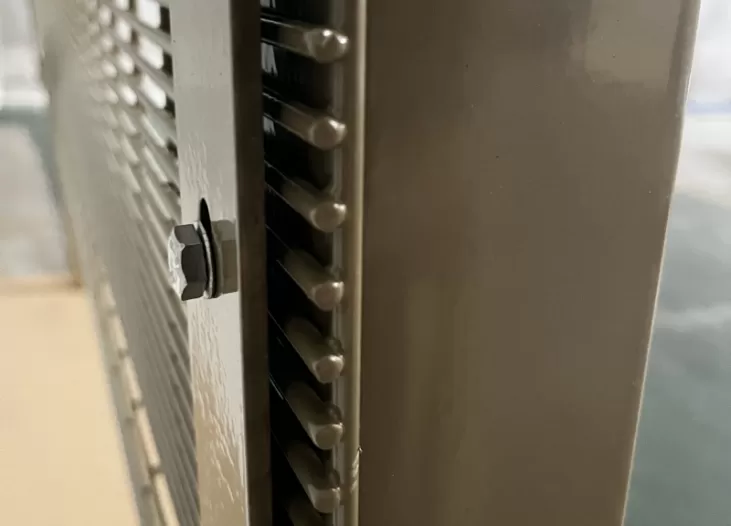

Anti-climbing fence is a simple but strong enough and high safety panel fence, which mainly consists of anti-climbing mesh panel and steel post. 358 Safety fence standard mesh size is 76.2*12.7mm, horizontal wire spacing 12.7mm vertical wire spacing 76.2mm. 358 The safety fence mesh is welded with galvanized wire according to EN10244, the post is formed with galvanized coil according to EN10346, the bolts and nuts are 304 stainless steel, the panel and post are sprayed with AKZO Nobel series powder by electrostatic powder, and are sprayed with 500H-1000H salt spray. It is then tested by ISO09227, so our fence systems can stay strong and beautiful for longer, with a longer service life.

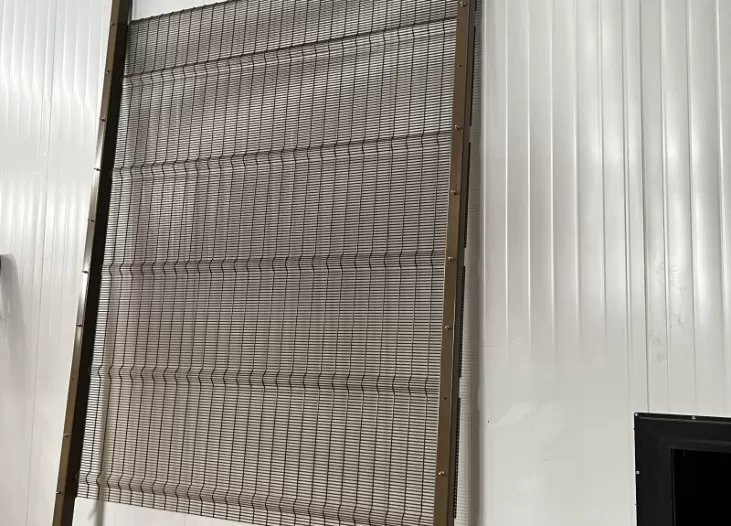

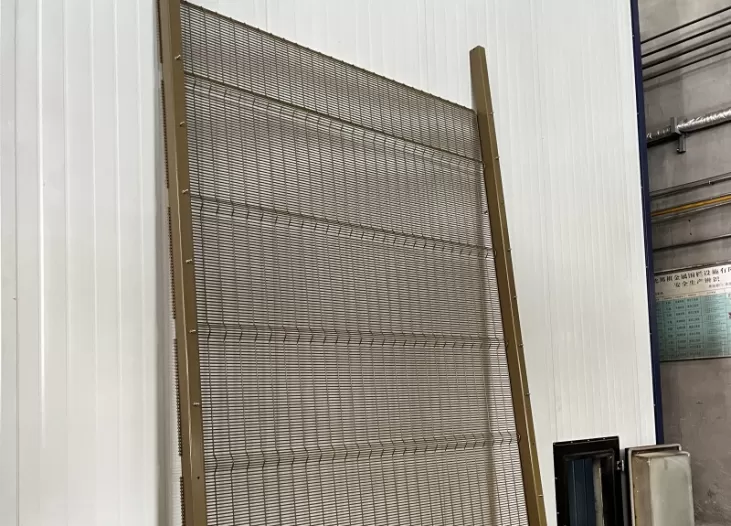

358 Anti-climbing fence Details:

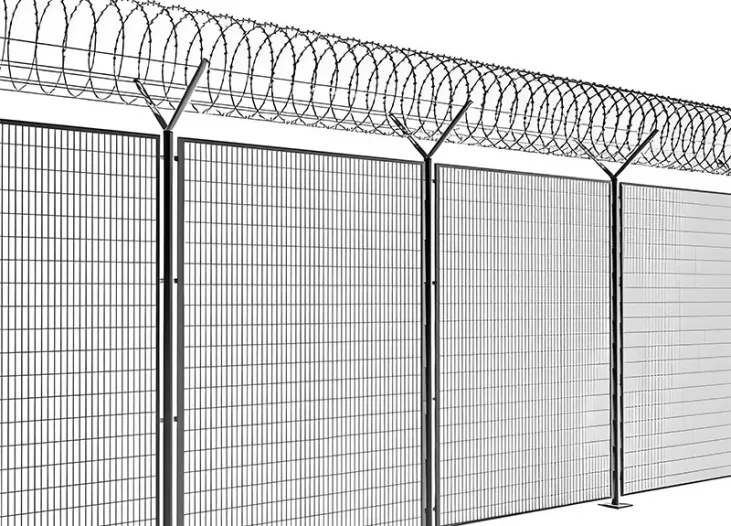

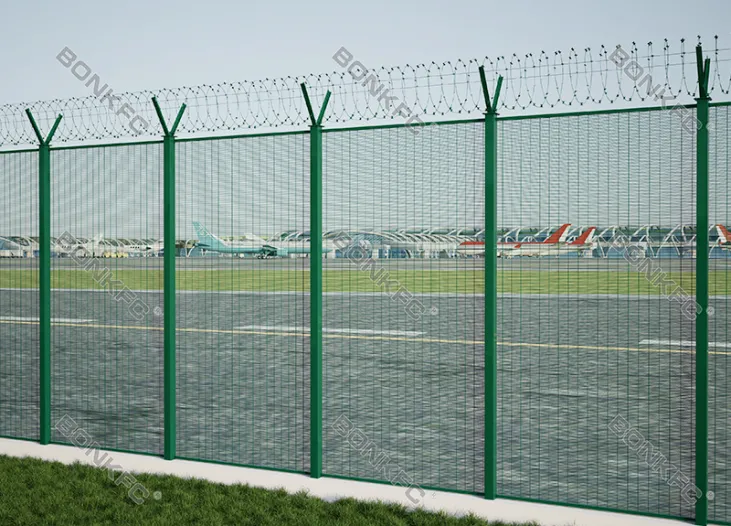

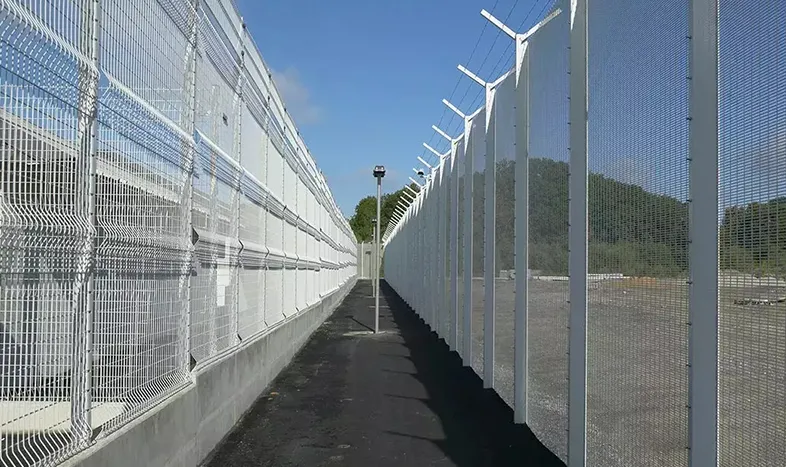

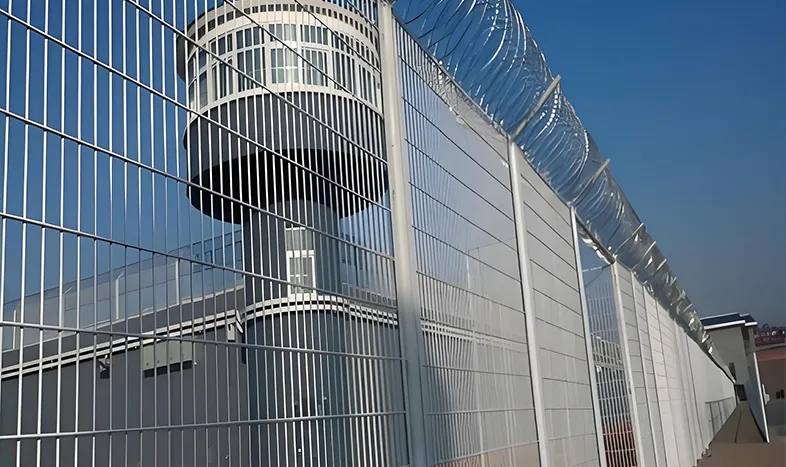

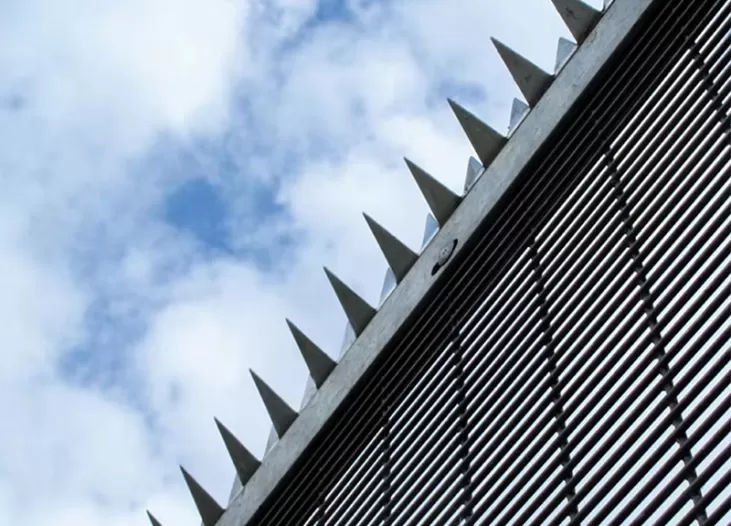

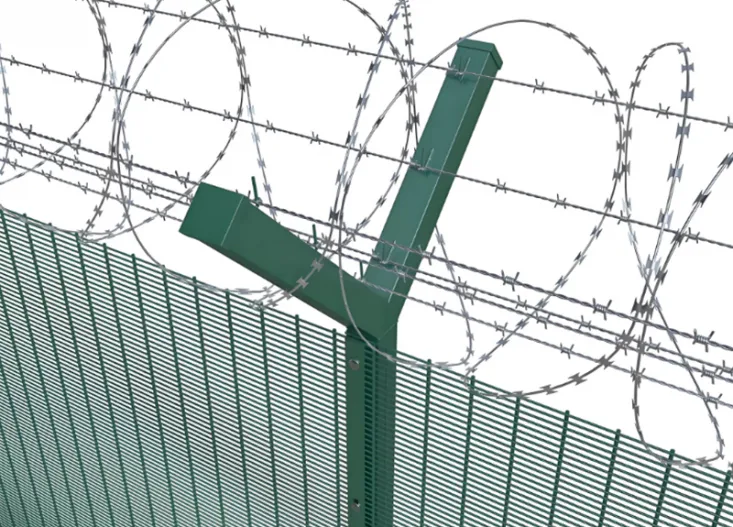

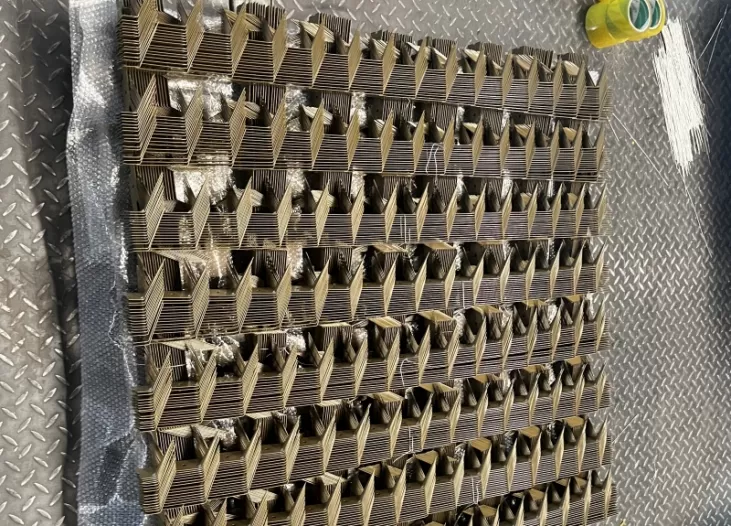

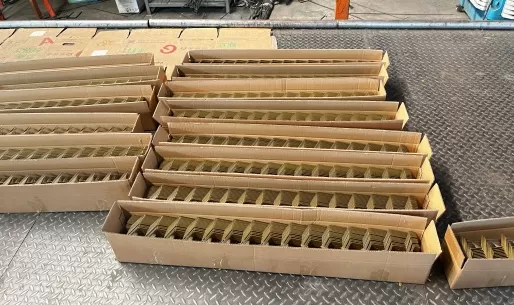

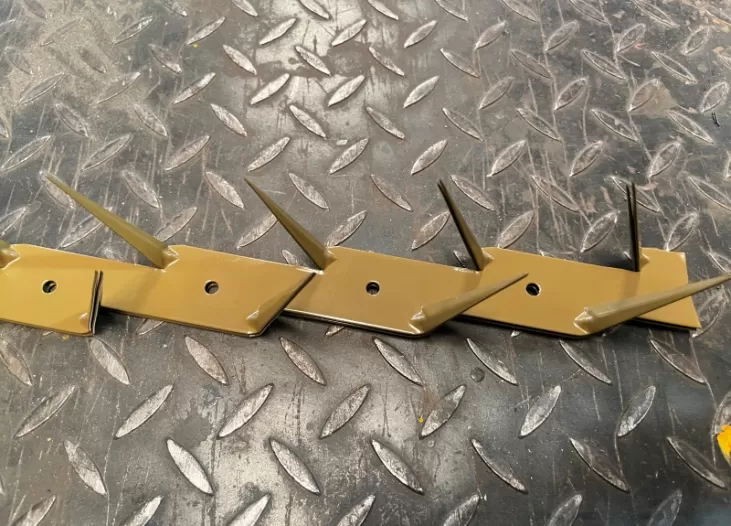

The top of the 358 anti-climbing fence can be equipped with razor wire, barbed wire, wall nails, the post is usually equipped with double extension arm or single extension arm, 358 anti-climbing fence is mainly used in troops, prisons, airports, light rail, intercity trains and other important isolation places.

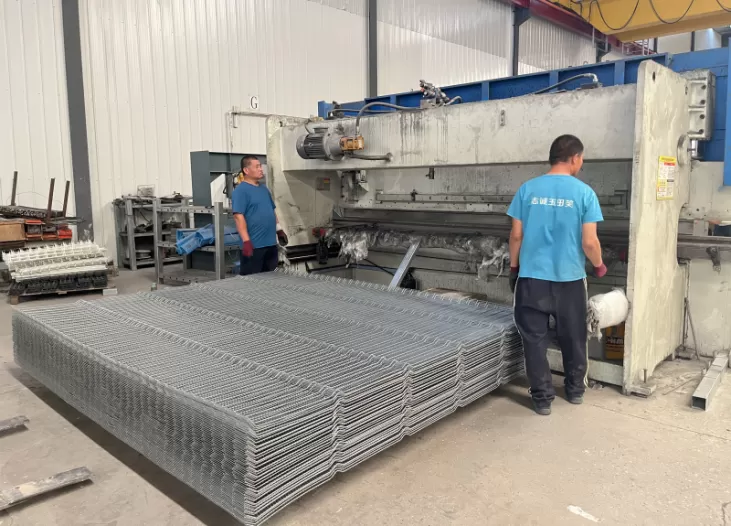

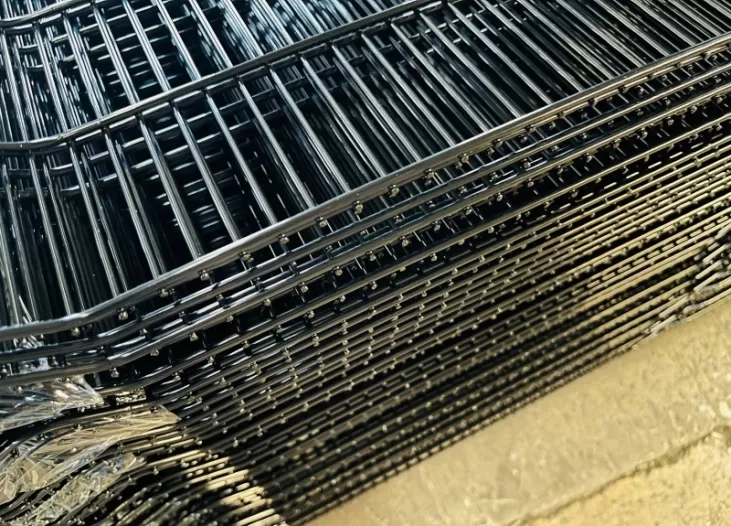

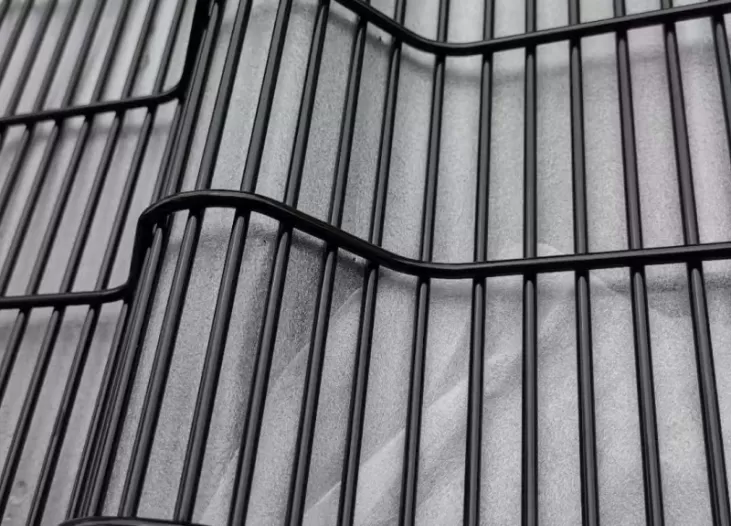

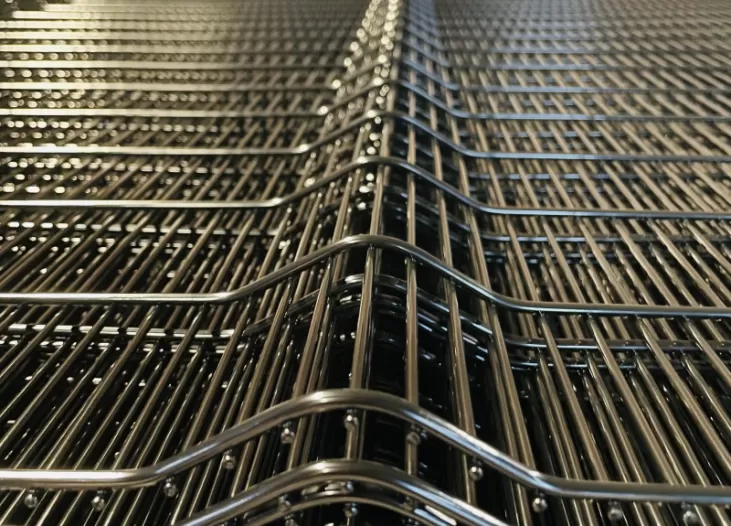

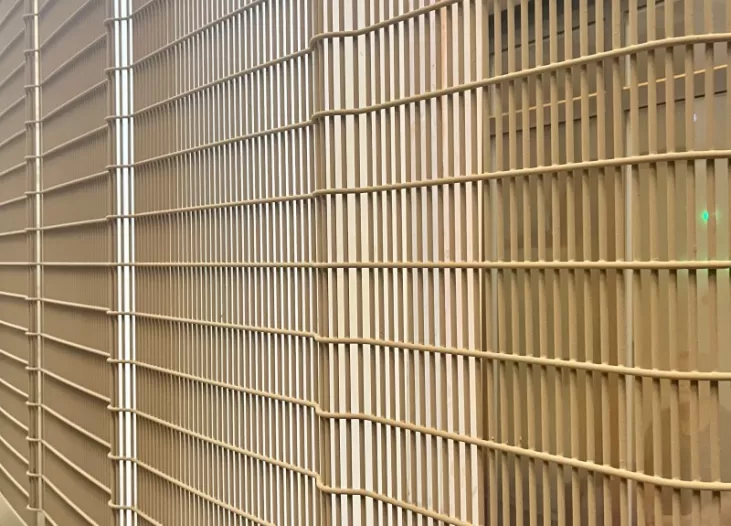

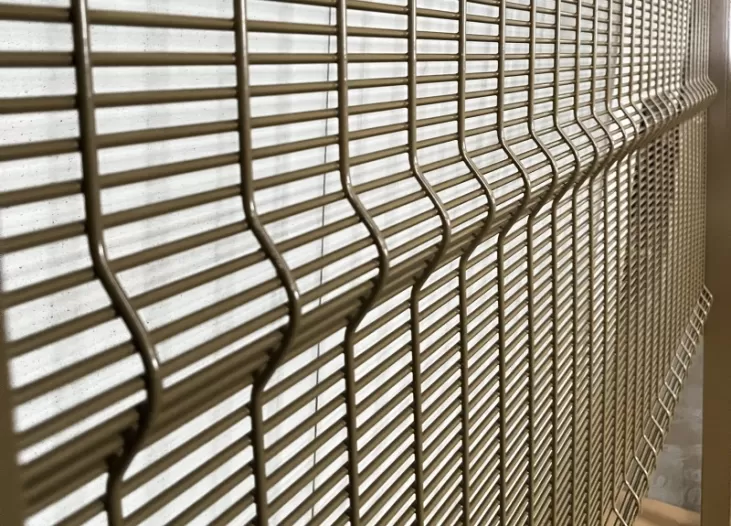

358 Fence mesh panels are welded with high quality pre-galvanized wire (Q195-Q235) and then coated with polyester powder, or welded with high-quality black wire (Q195-Q235) and then hot-dip galvanizing in a zinc pool ,with multiple "V" curves on the mesh panel to increase the level of rigidity.

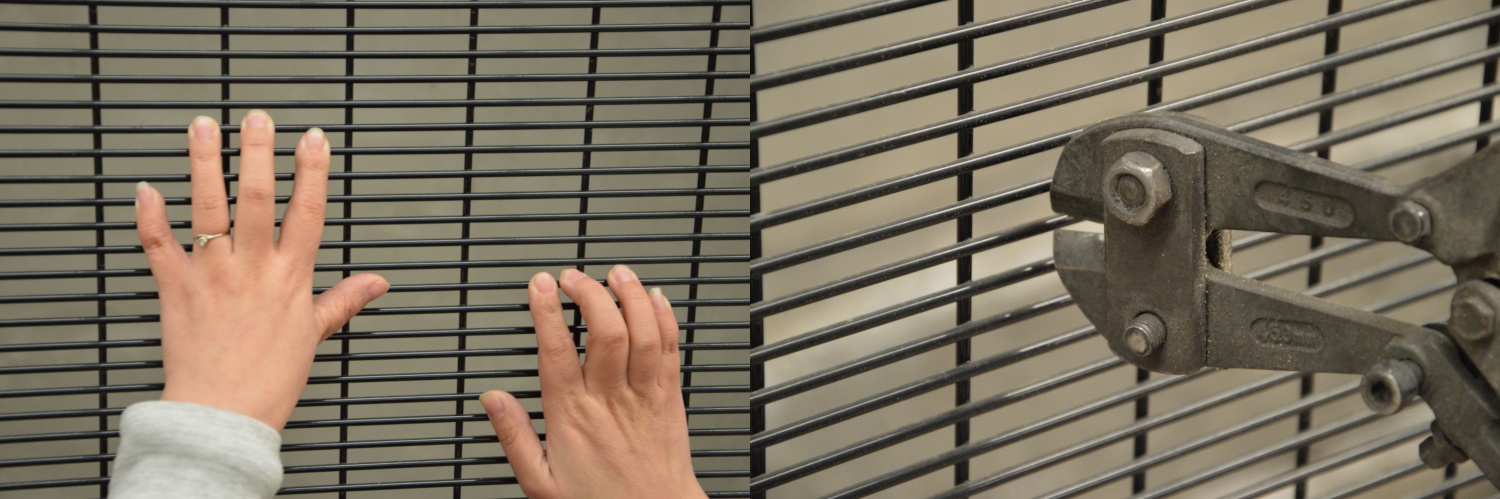

BONKFC Fence Produced according to the EN10244 standard, the mesh panel is in its large wire diameter, small mesh openings, hands and feet can not be grasped, to a large extent to prevent human climbing and cutting with tools, so as to better protect your surroundings.

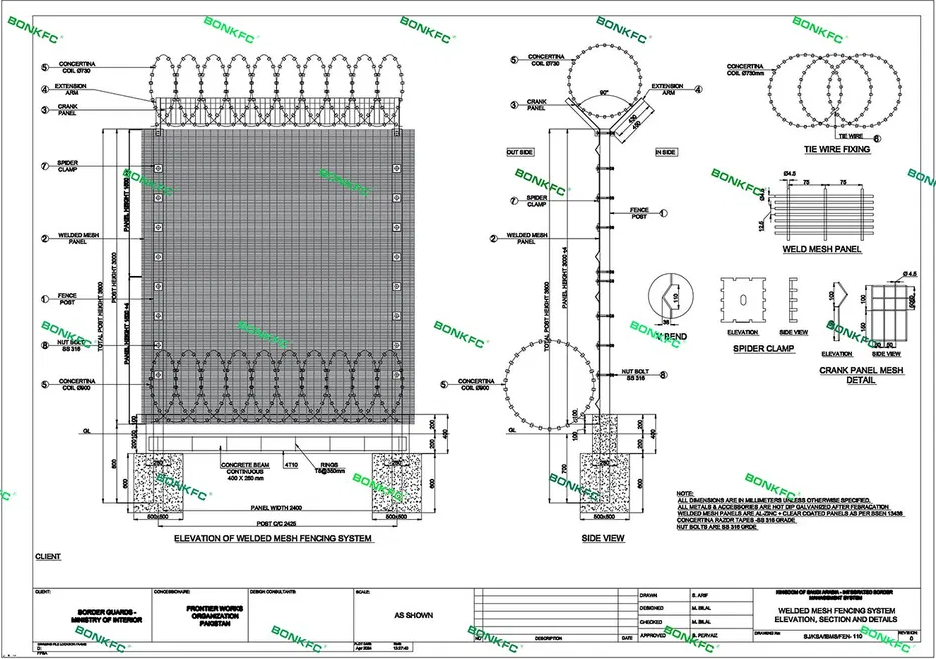

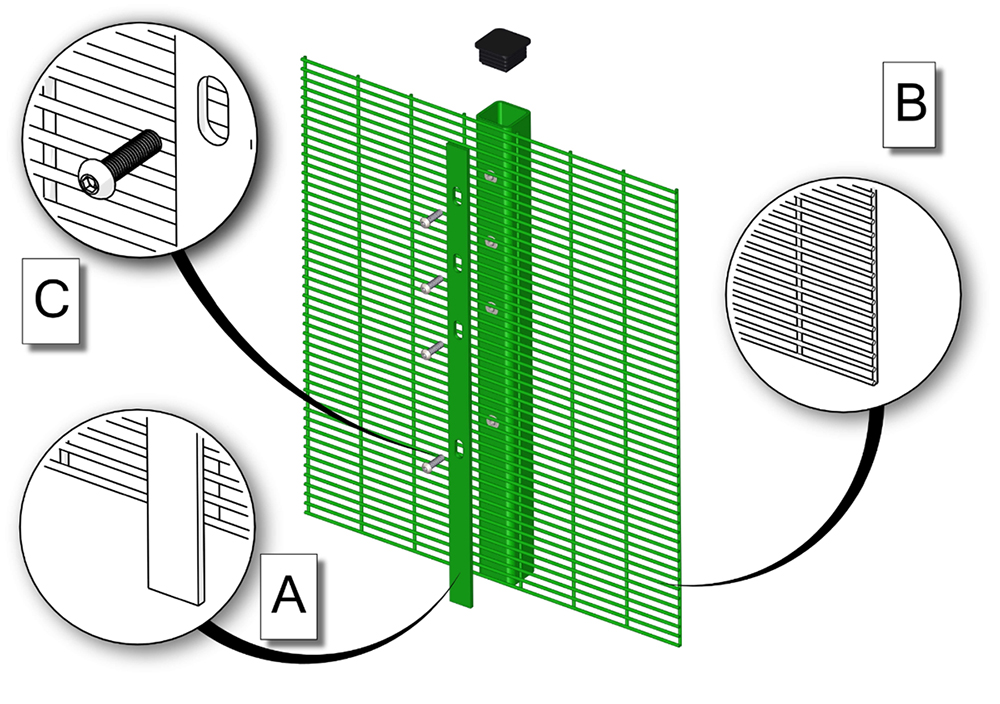

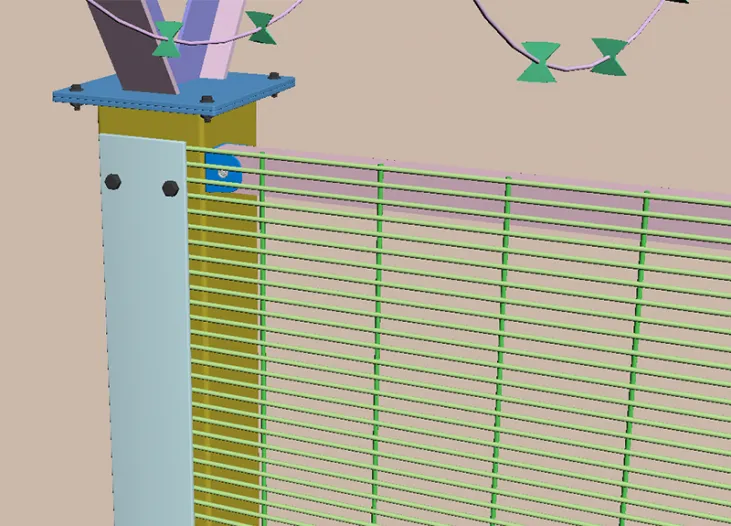

Product Drawings

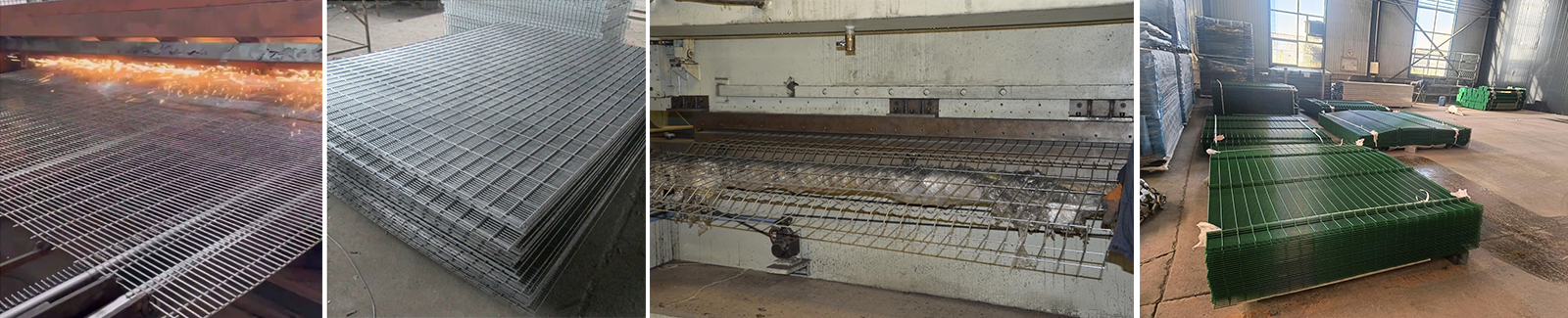

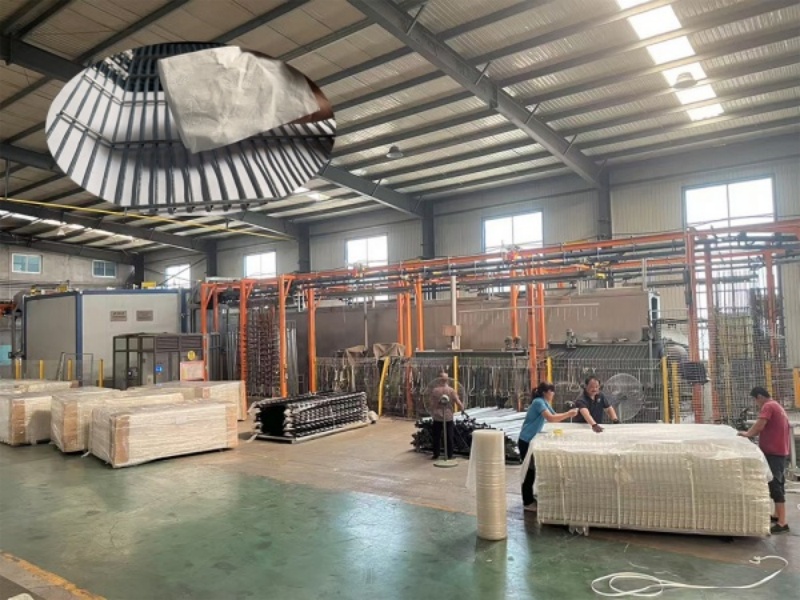

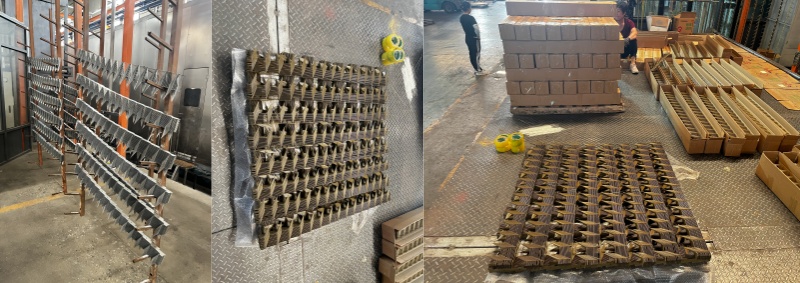

Production Process of 358 Anti Climb Fence

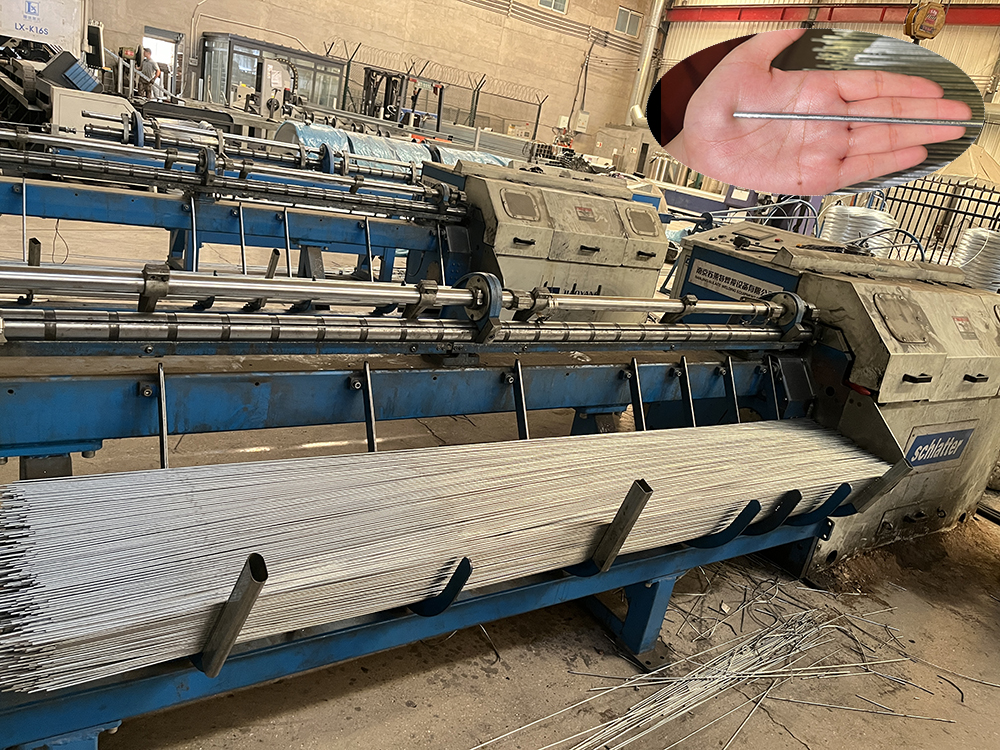

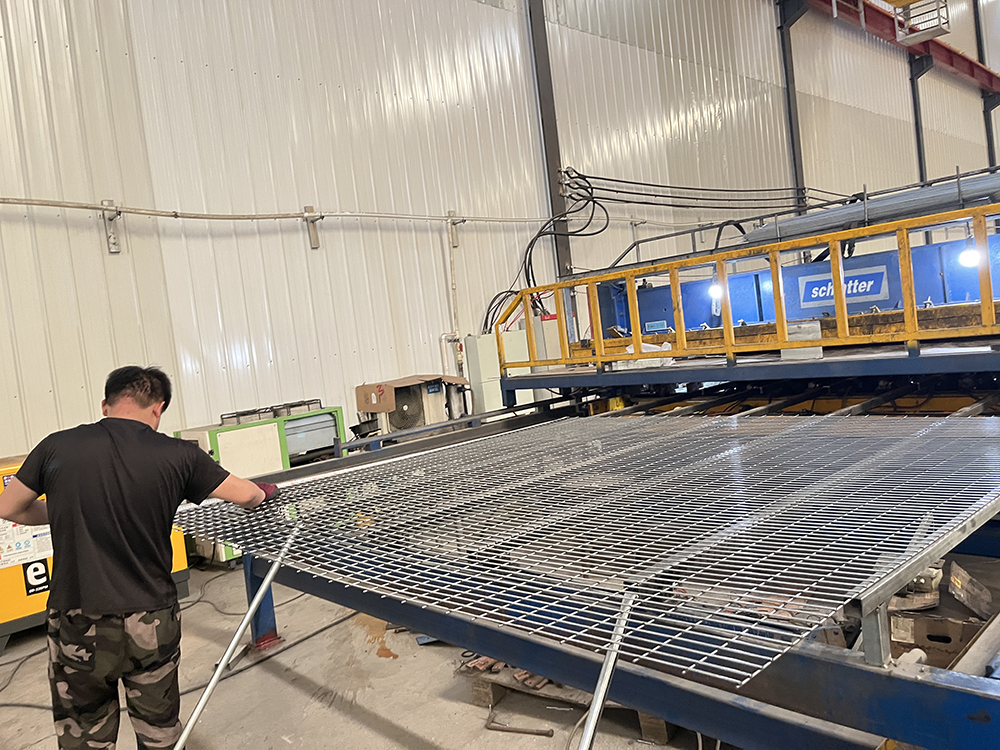

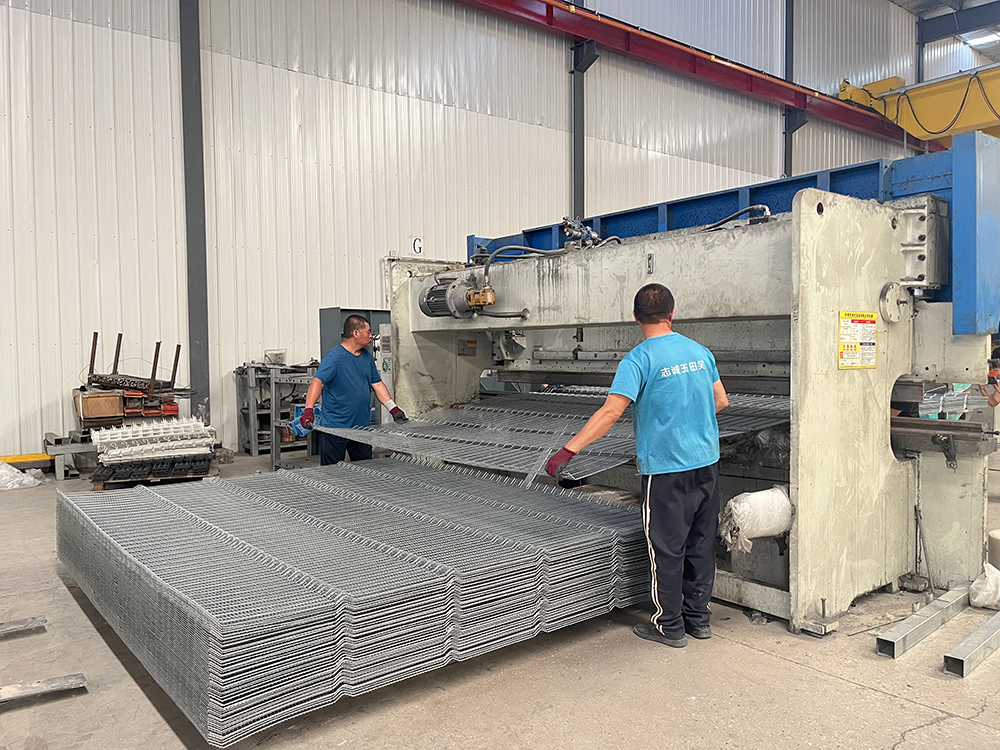

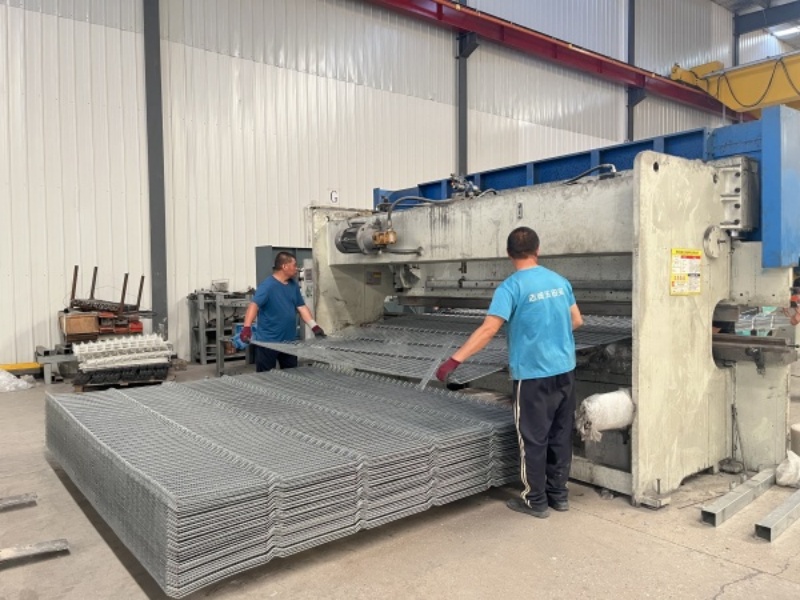

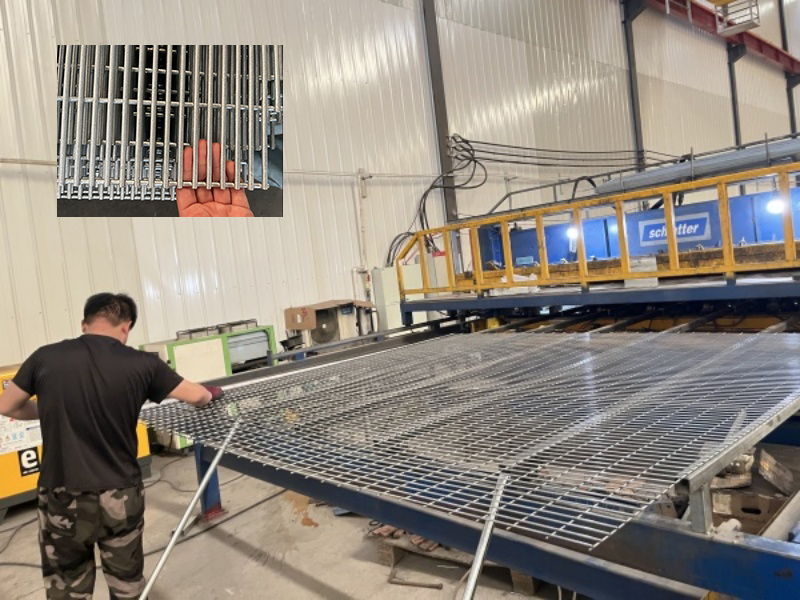

1. We use the most advanced full-automatic welding machine, after welding, the panel surface wil be flat and high tensile strength

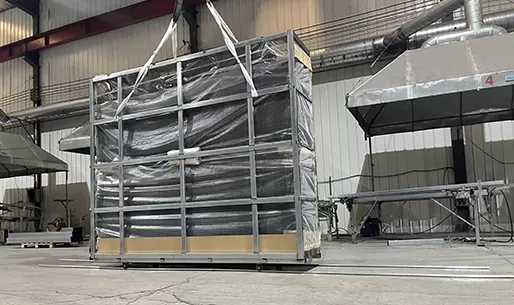

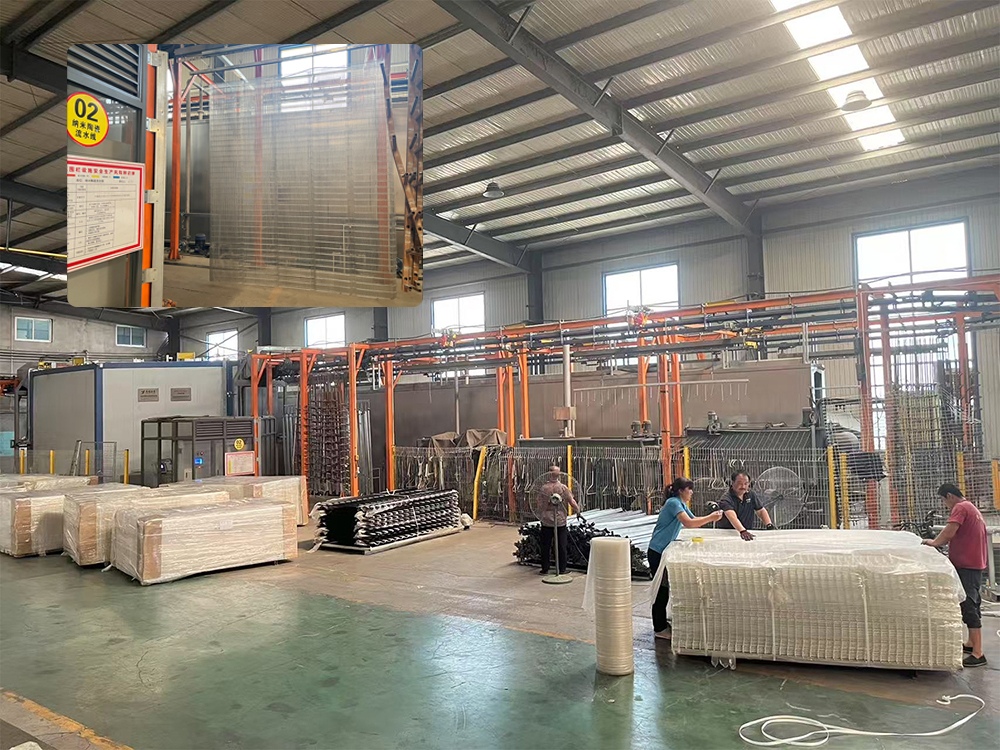

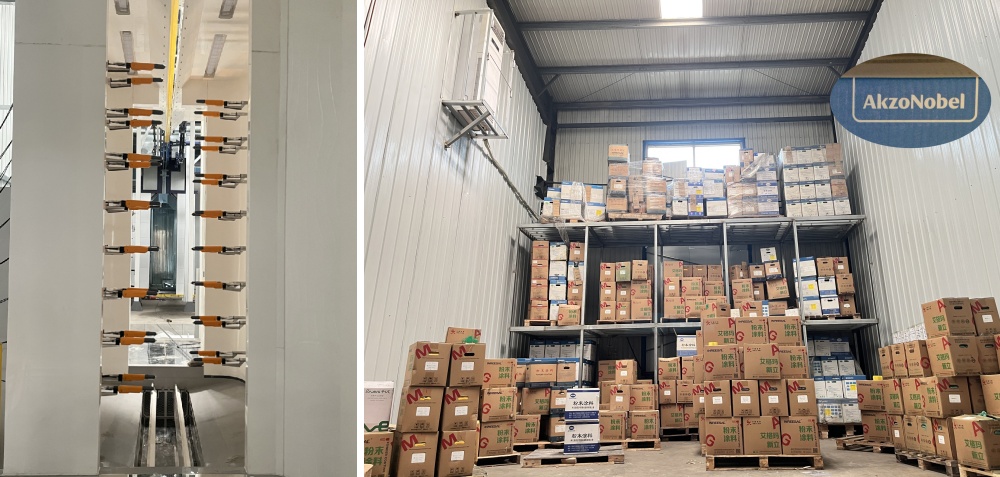

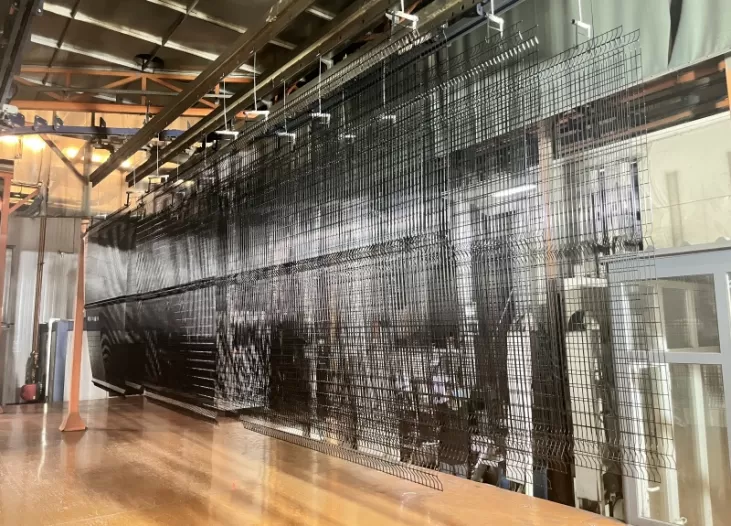

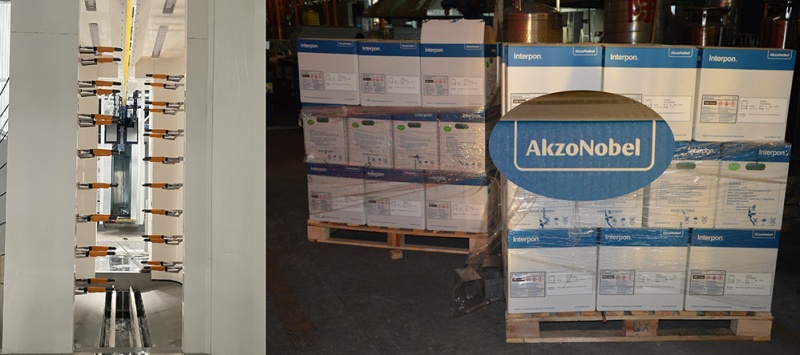

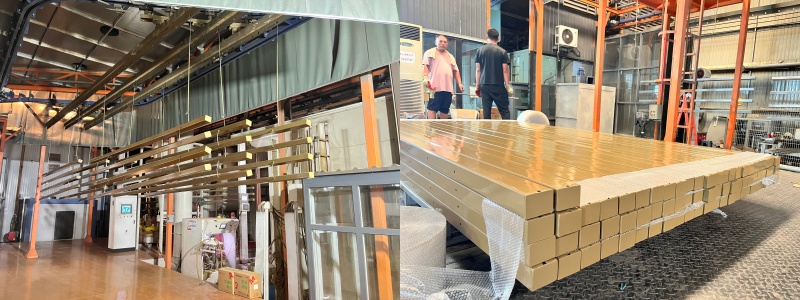

2. The famous Akzo Noble powder makes the surace more beautiful and prolong the outdoor service life at least 15 years
| 358 Fence | |||||
| Panel Style | Panel Size (H*W) | Wire（mm） | Mesh（mm） | Post Size（mm） | C Type Post |
| 3D | 1830*2740 | 3.0 4.0 5.0 | 12.7*76.2 12.5*75 76.2*12.7 | Square Post：100*100 80*80 60*80 60*60 | Can be customized according to mesh height and customer special requirement |
| 3D | 2130*2740 | ||||
| 3D | 2440*2130 | ||||
| 3D | 2740*2130 | C type post：60*80 | |||
| 2D | 1830*2440 | ||||

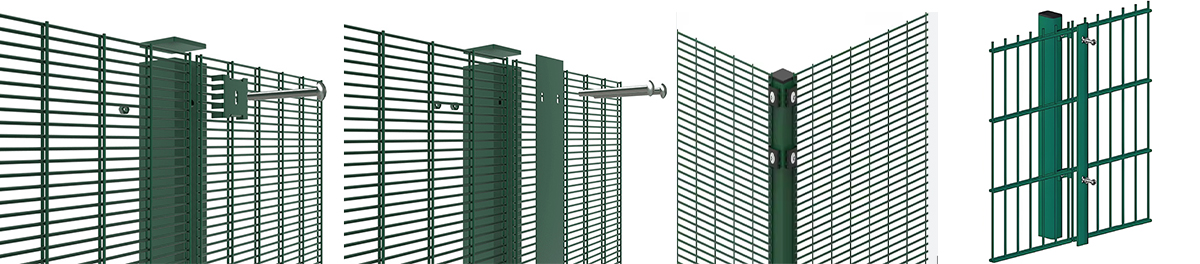

| 2D | 2130*2440 | H post:55*100 Peach Post：70*100 I Type Al-Post ：55*100 75*100 | |||
| 2D | 2440*2130 | ||||
| 2D | 2740*2130 | ||||
| Surface treatment：1. black wire+hot dip galvanized 2.Pre-galvanized Wire+Electrostatic powder coating3.Electro-galv +Electrostatic powder coating 4.Galvnaized Wire +PVC Coating Wire 5.black wire+hot dip galvnaized + Electrostatic Powder Coating | |||||

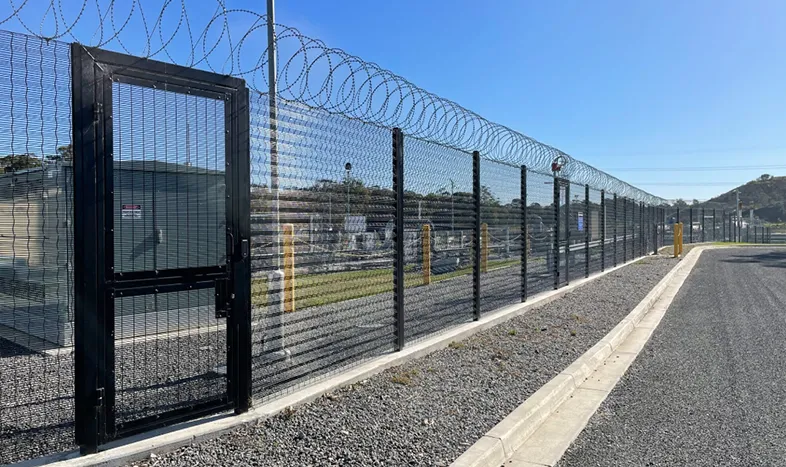

| Application： Apartment buildings protection; ~Industrial facilities protection; ~The Airport protection; ~The Port protection; ~The Power station protection; ~Roads and railways protection solutions; ~The border protection solutions; ~The prison protection solutions; ~Solar Farm/Construction/Warehouse Site Protection; ~ Telecom & Mobile tower base station protection solutions; etc | |||||
1. Hot-dip galvanized fence:
Through the black wire welding into the mesh of the whole hot dip galvanizing process, the post and the mesh welding molding, the surface of the formation of a protective layer, this coating can effectively prevent oxidative corrosion, extend the service life of the fence.

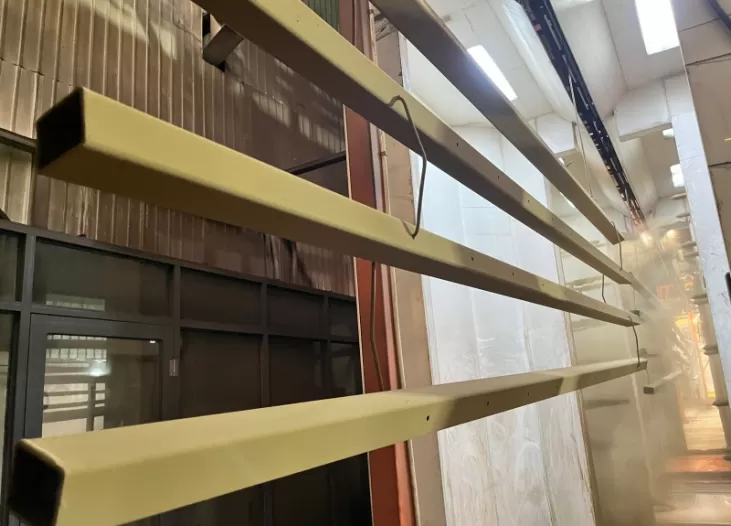

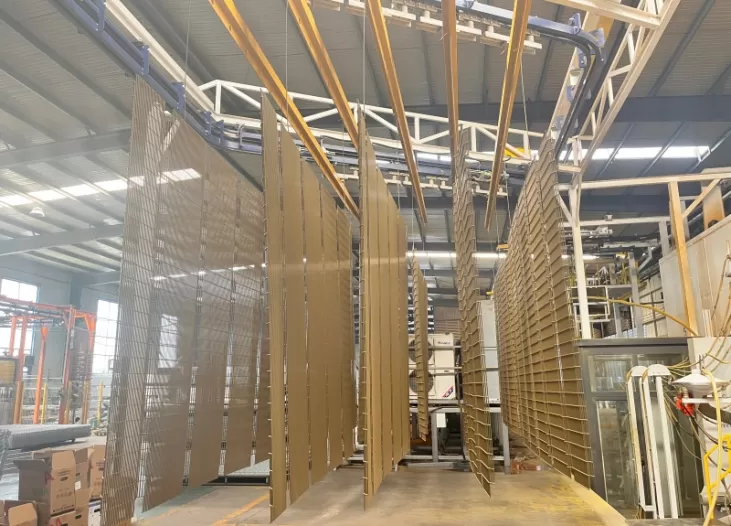

2. Electrostatic powder coating (after galvanized) or PVC coating (after galvanized)

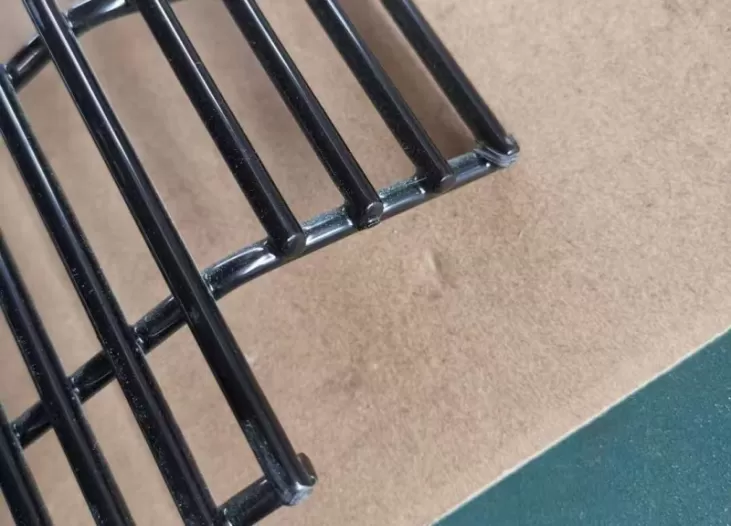

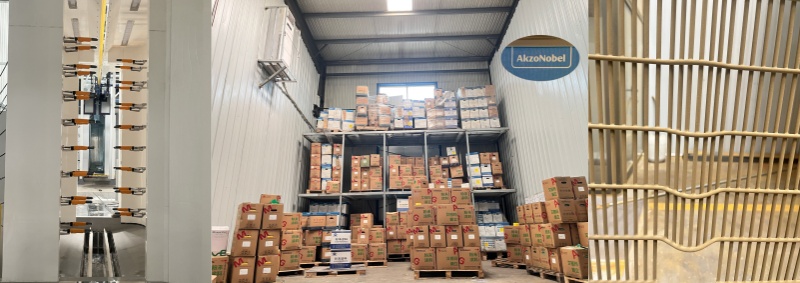

We choose high quality Akzo nobel powder for spraying, which is perfectly combined with the galvanized layer on the fence surface to form a more effective protective layer, which can better prevent corrosion and oxidation of the fence, so our fence products can stay strong and beautiful for longer. This treatment solution will make the fence last longer and the appearance of beautiful color.

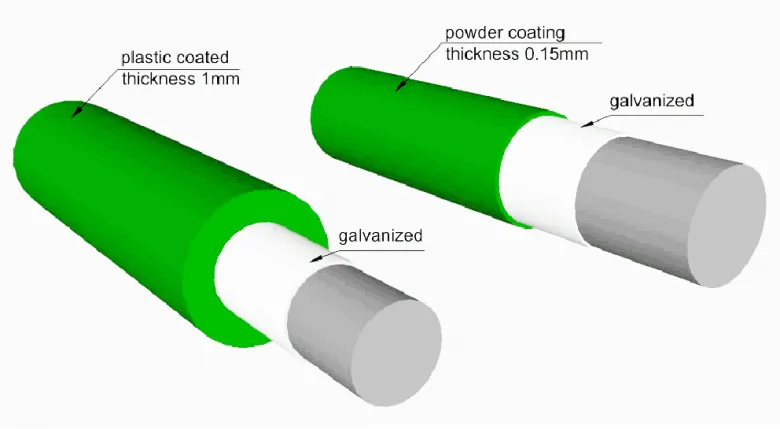

** Electrostatic powder coating (galvanized) and PVC coated plastic (galvanized) difference **

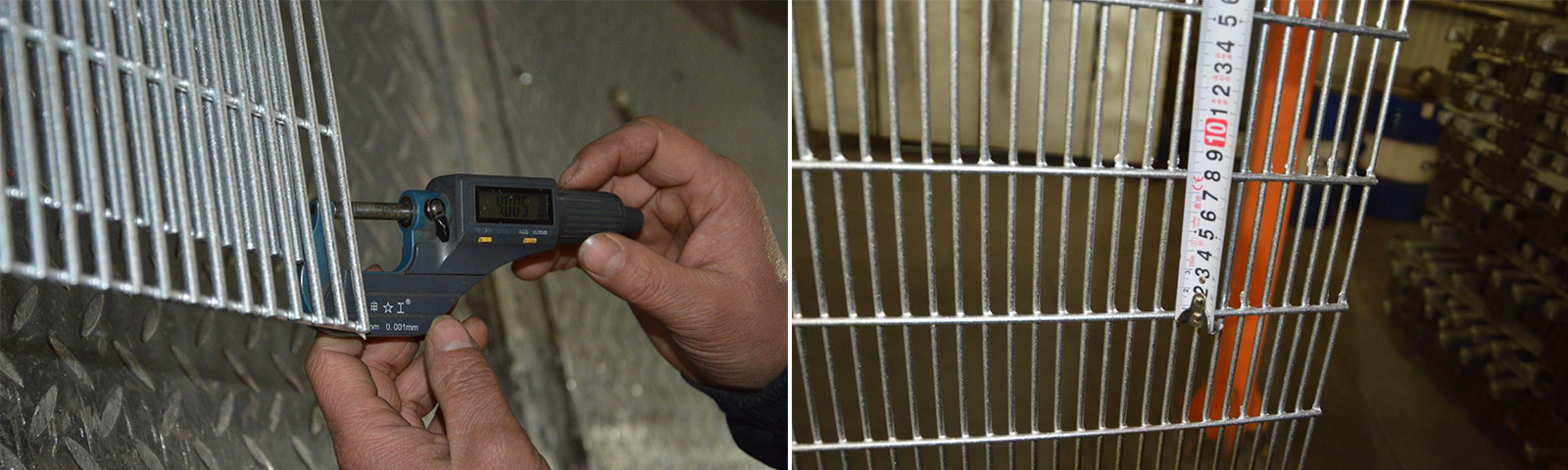

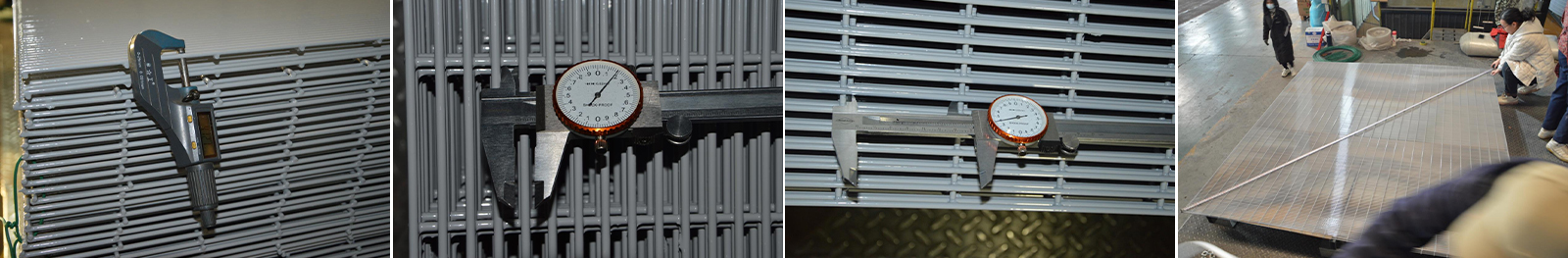

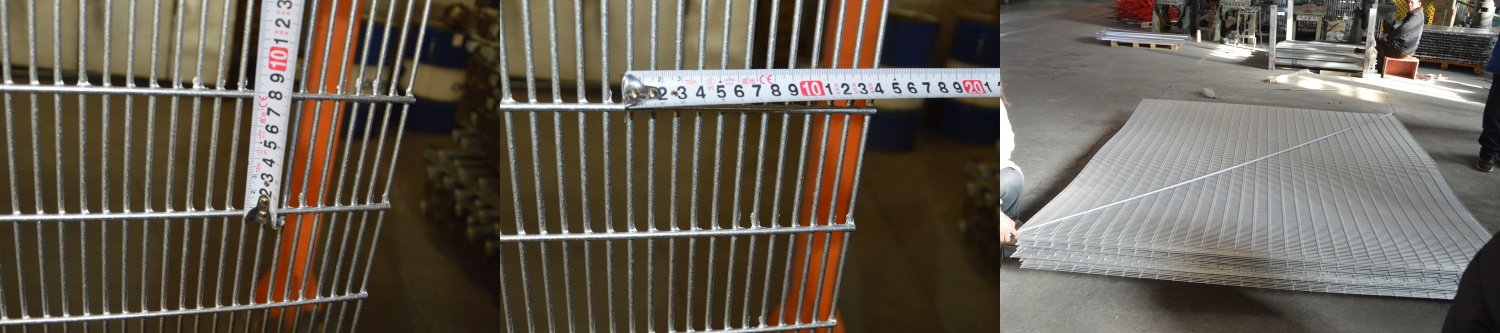

Quality Control of 358 Anti Climb Fence

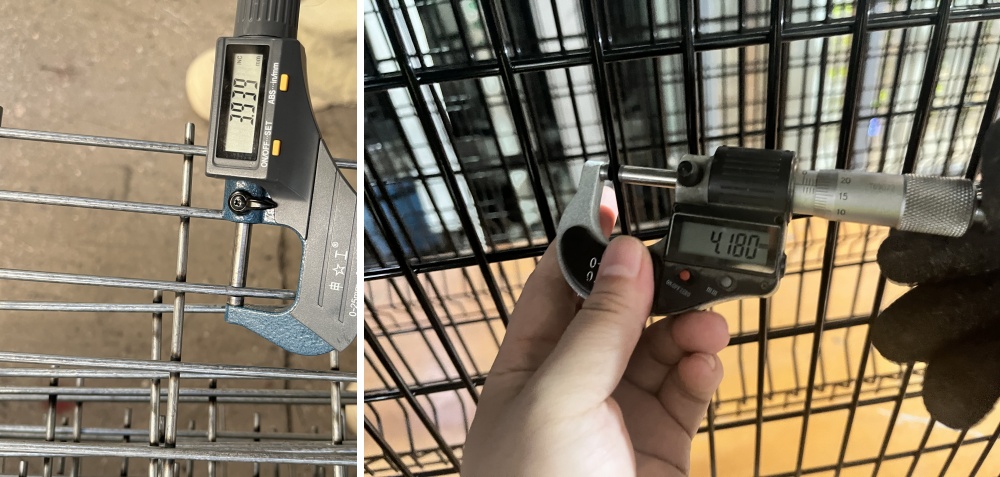

We have 3 times strict quality control from material to finished product to ensure high quality in every step of your order.

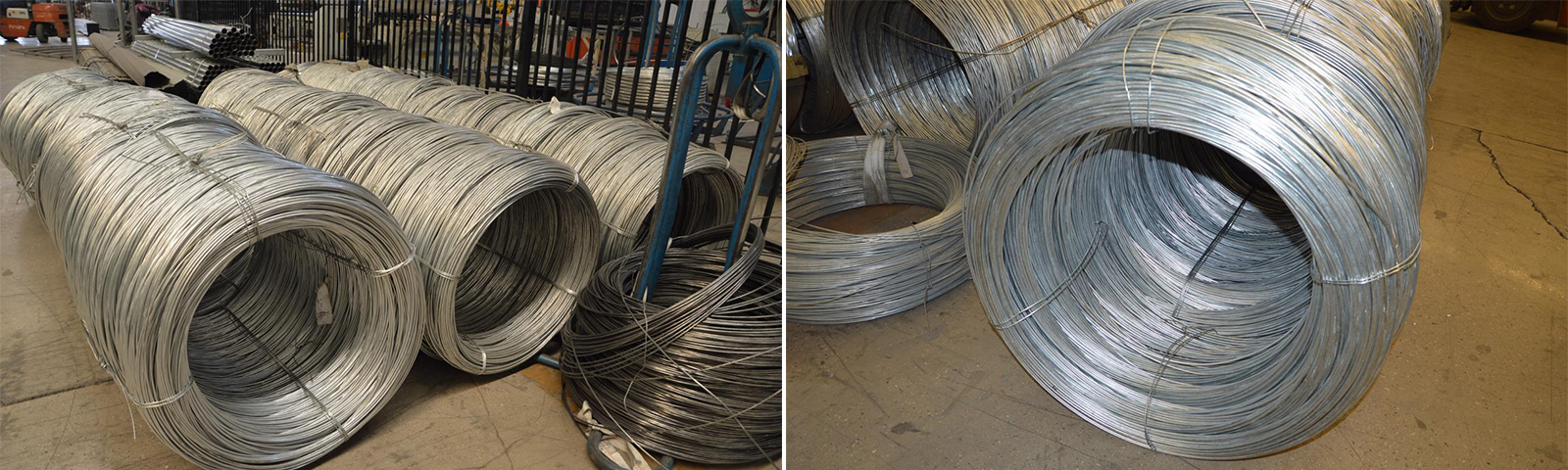

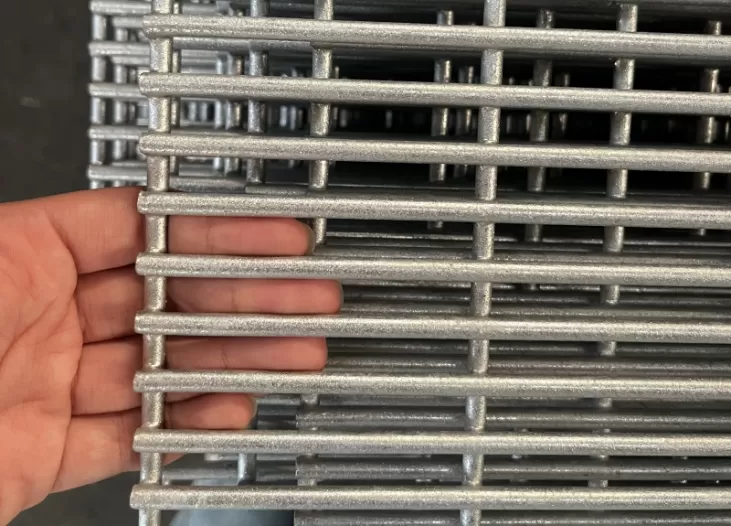

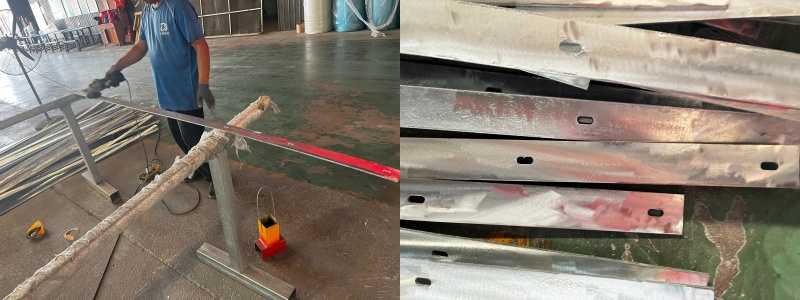

Raw Material

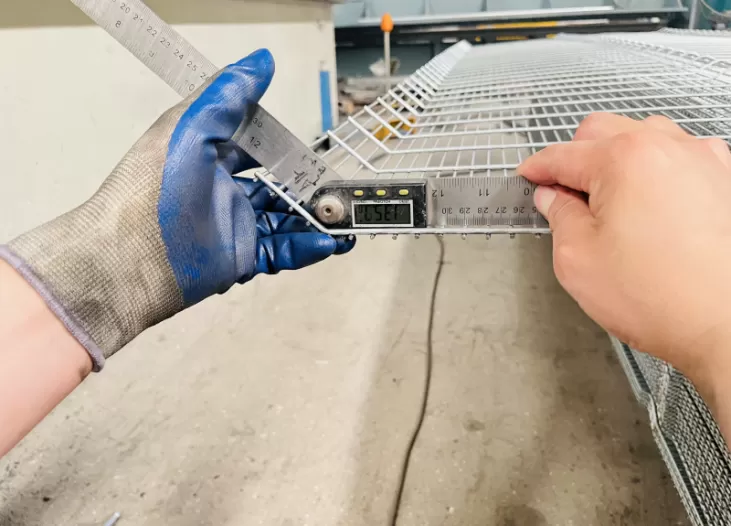

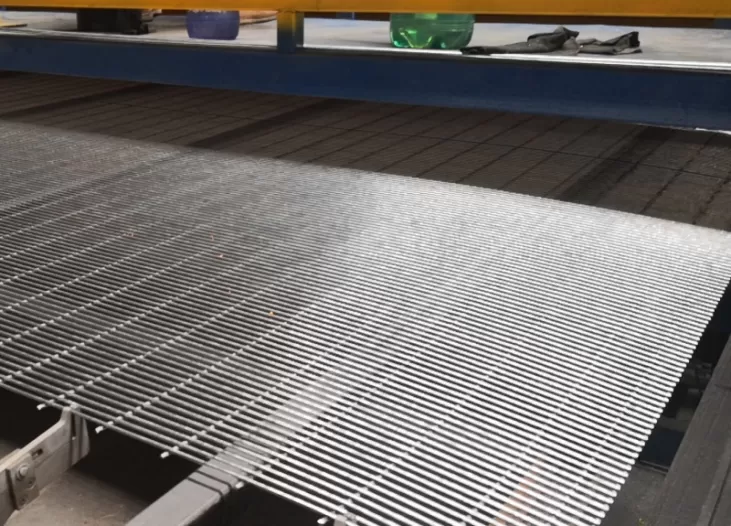

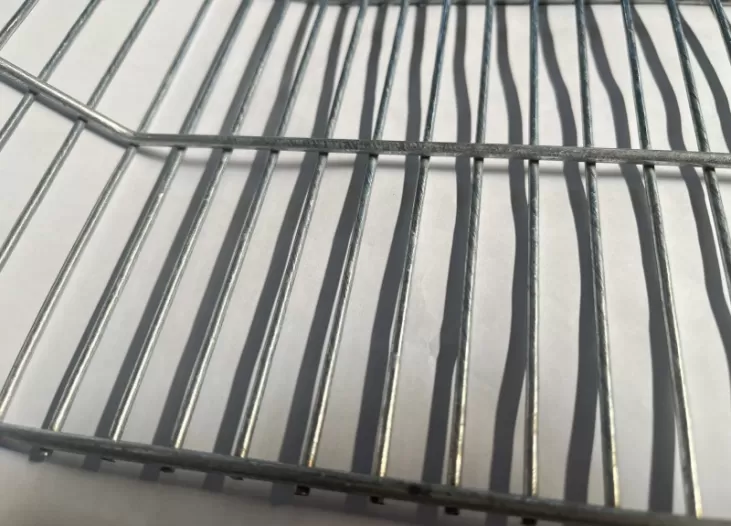

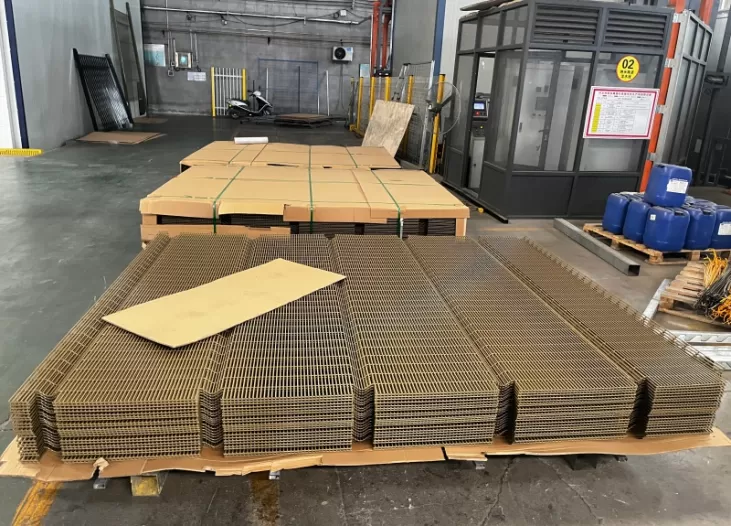

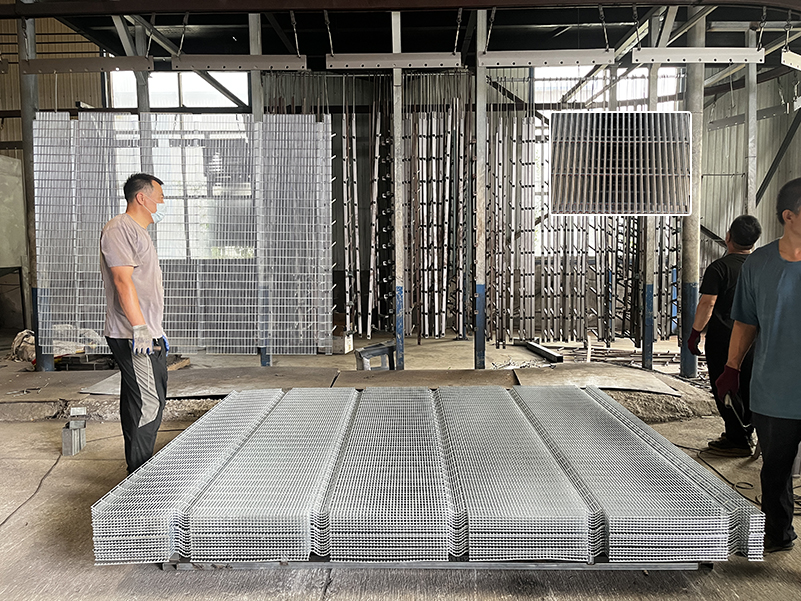

After Welding

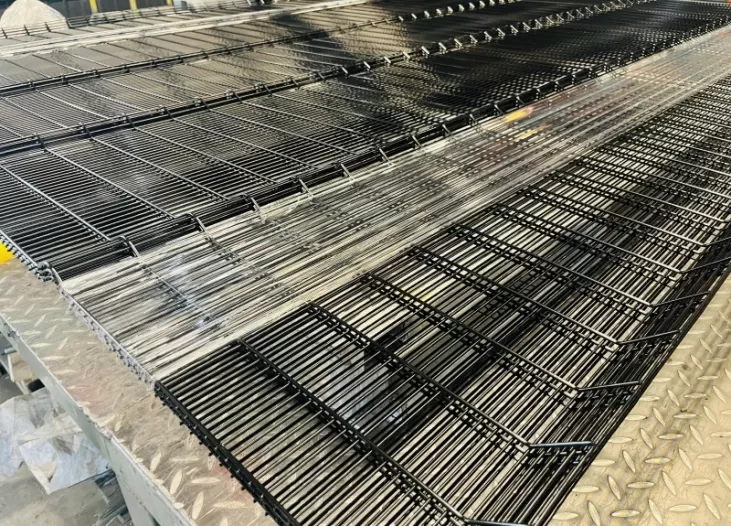

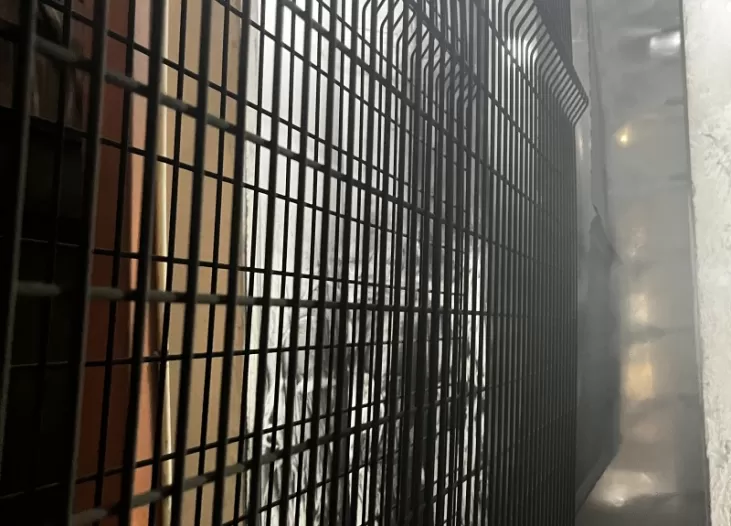

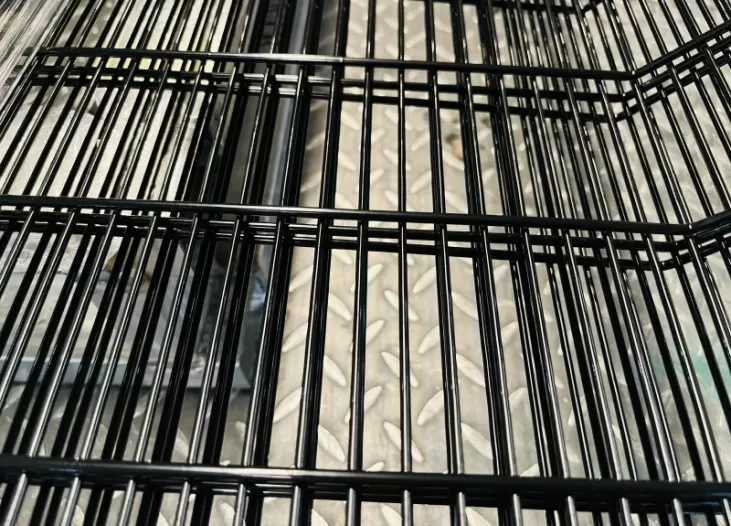

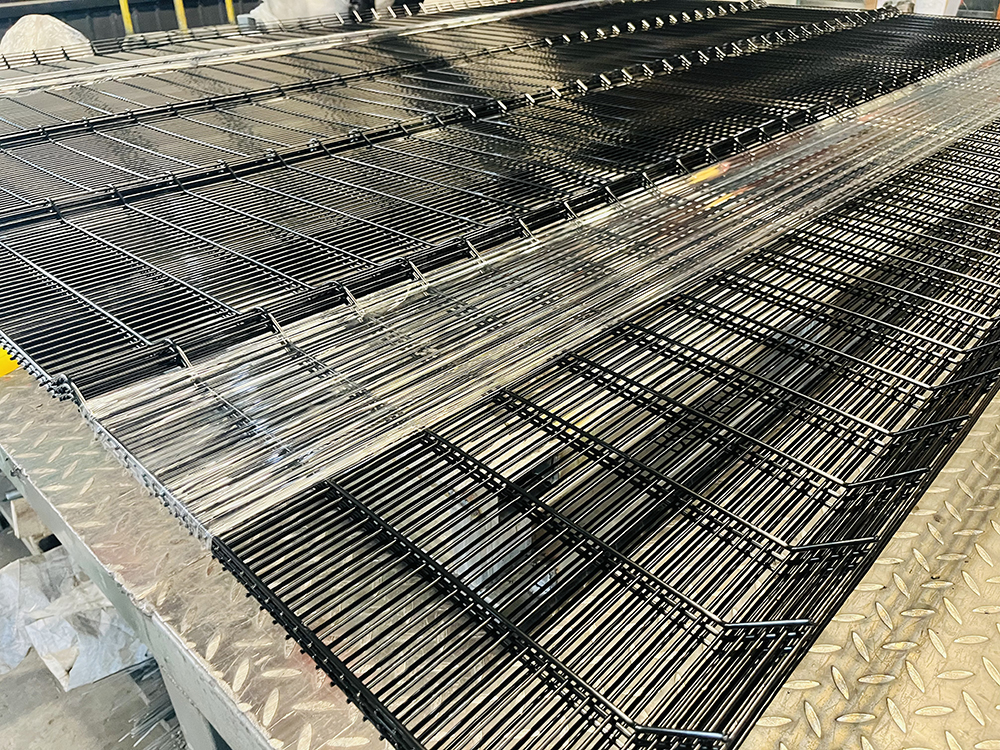

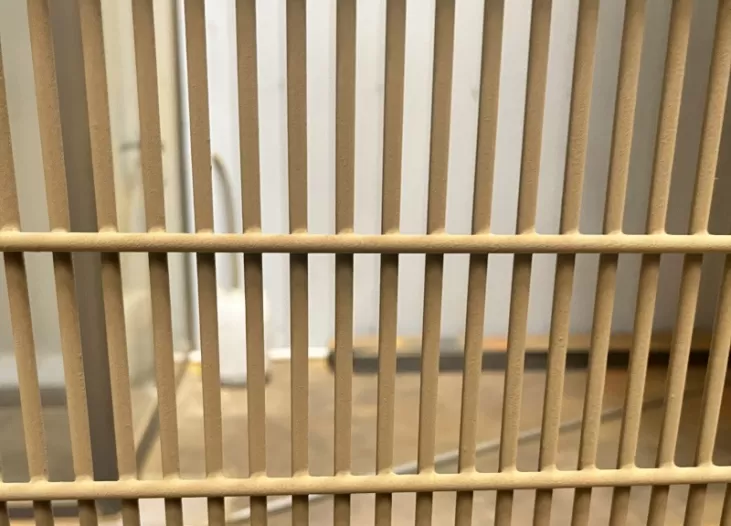

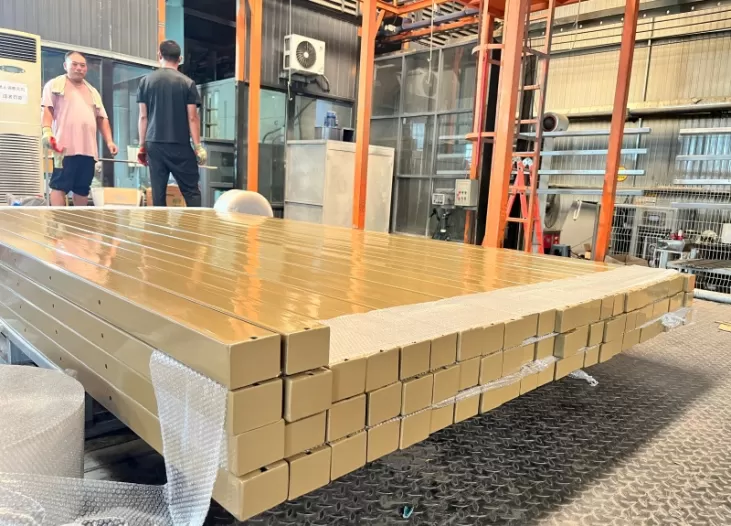

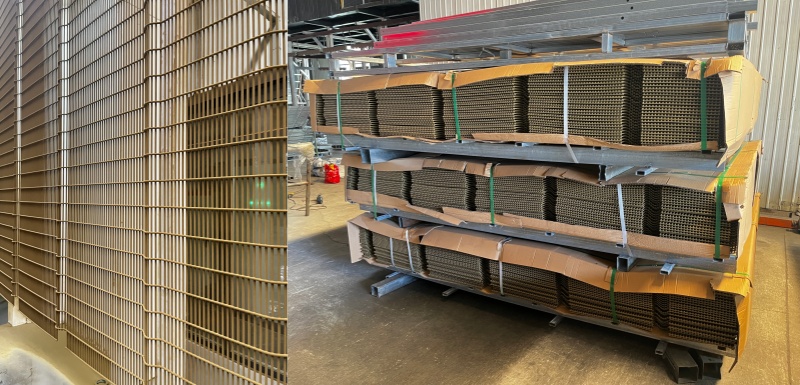

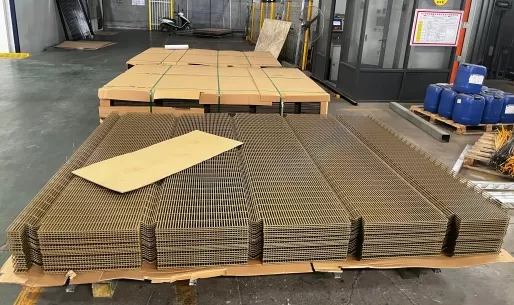

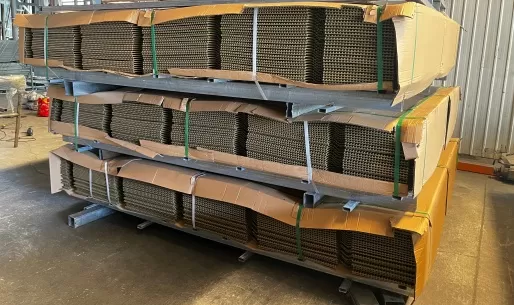

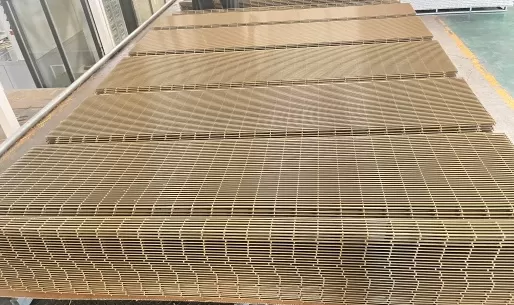

After Powder Painted

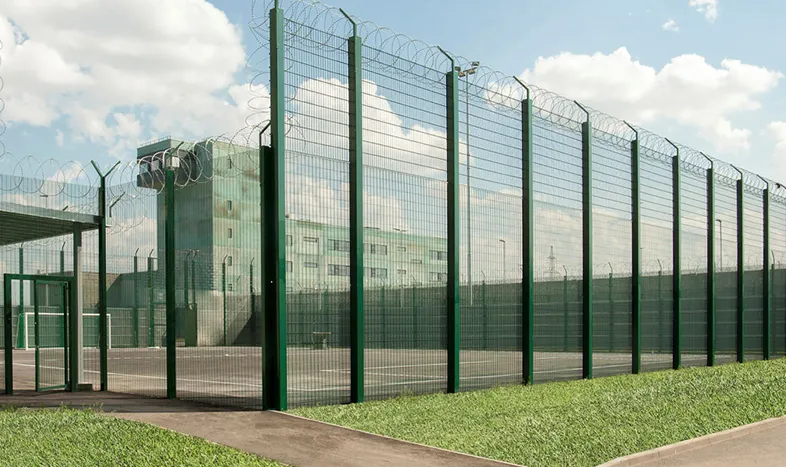

High Security Fence
