358 Fence

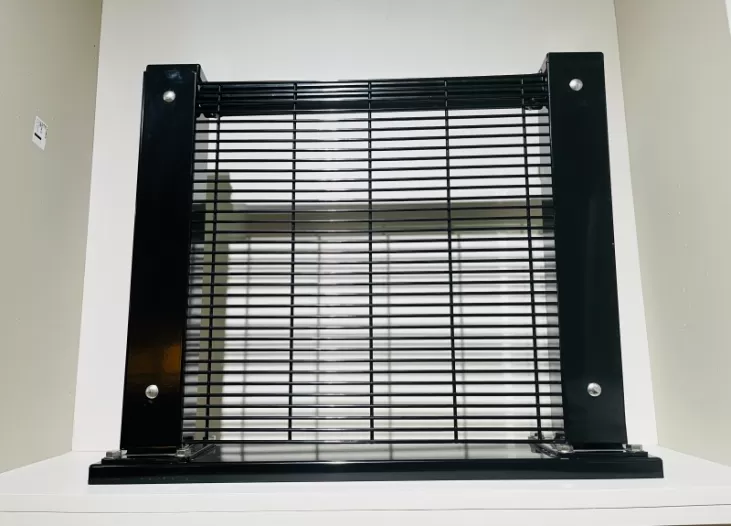

Name: 358 Mesh Fence
Material: Q195/Q235 wire and pipe
Brand: BONKFC Fence
From: China BONKFC

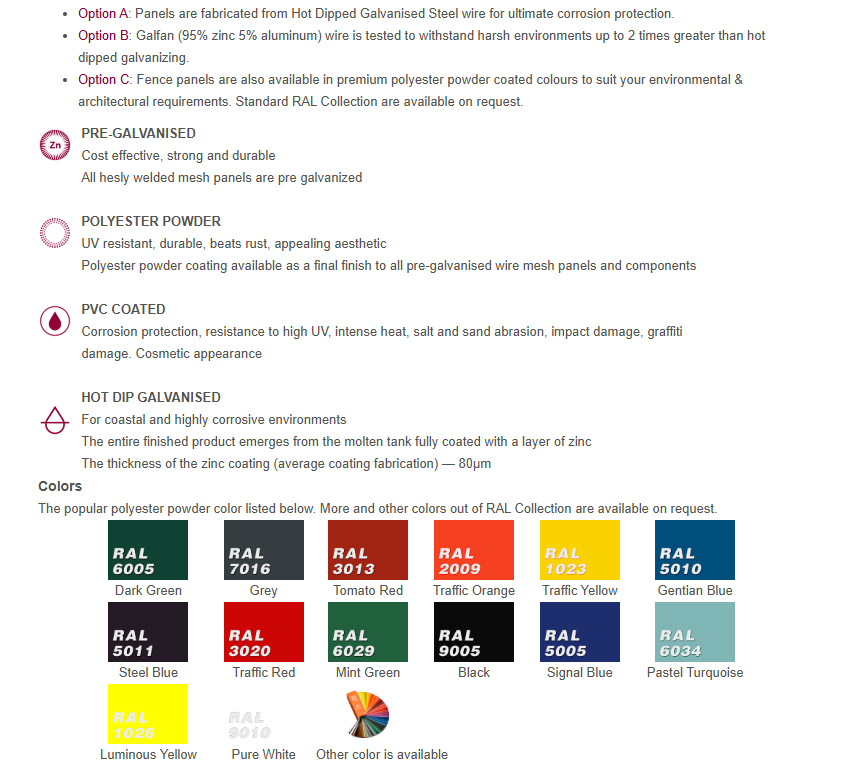

Color: Black9005, Black Green 6005, Grey7016 or as customized
AkzoNobel Polyester Finish Powder Coating realize exceptional weather resistance and surface self-cleaning performance(rain wash or spray-wash can resume bright and clean surface).

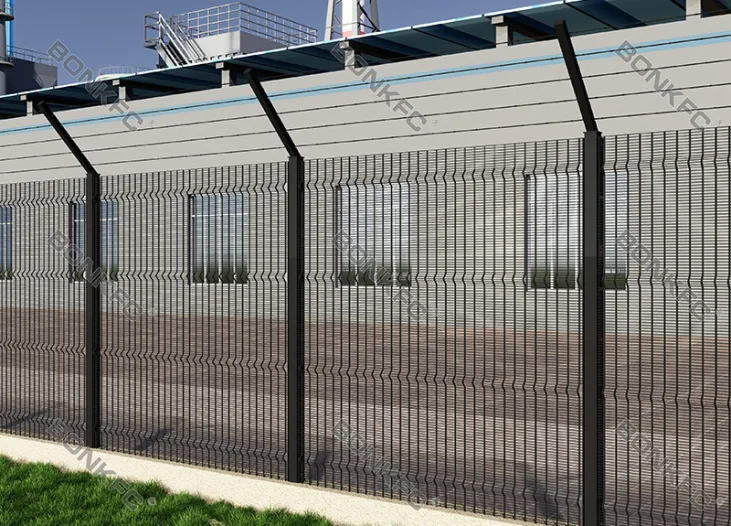

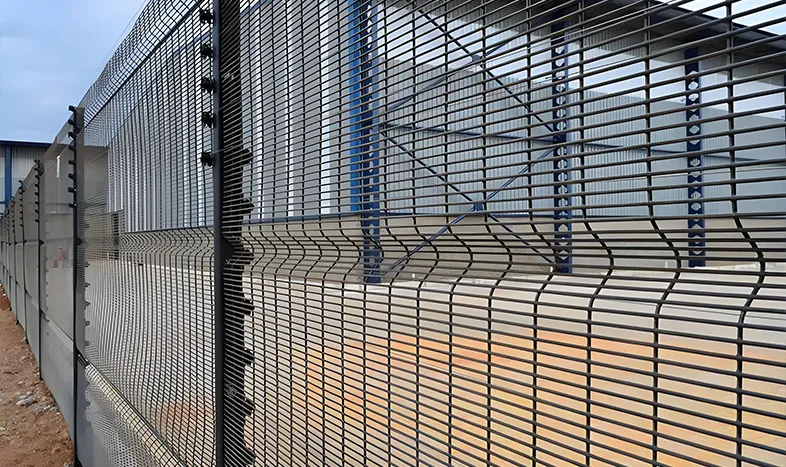

BONKFC 358 High Security fence - anti-climbing and anti-cutting steel fence

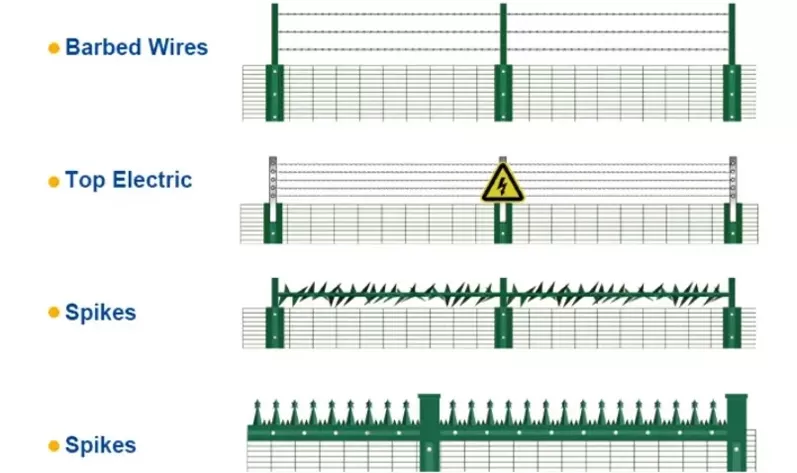

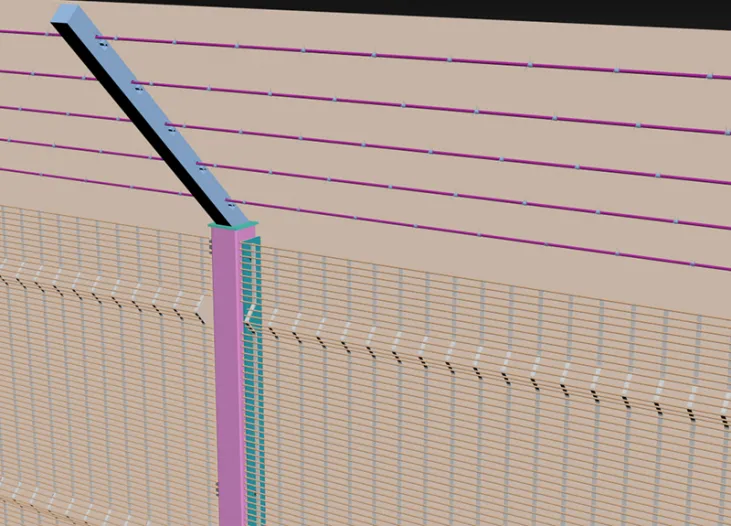

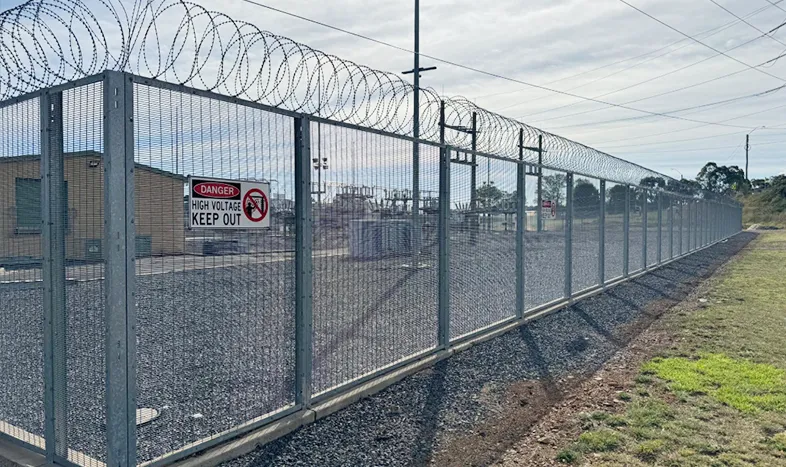

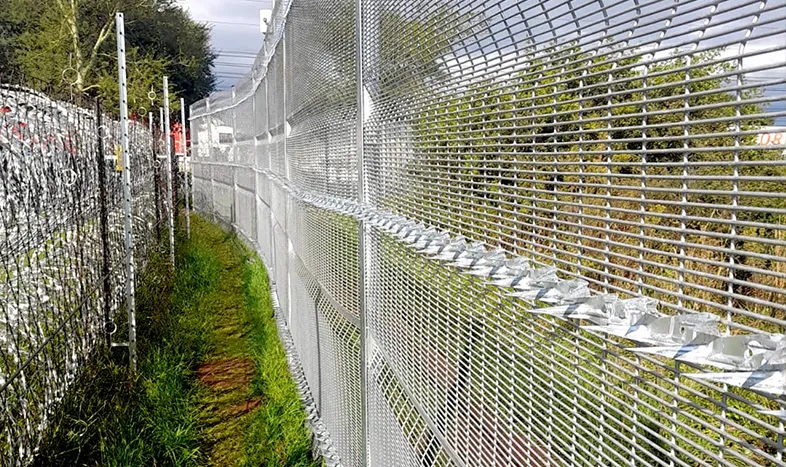

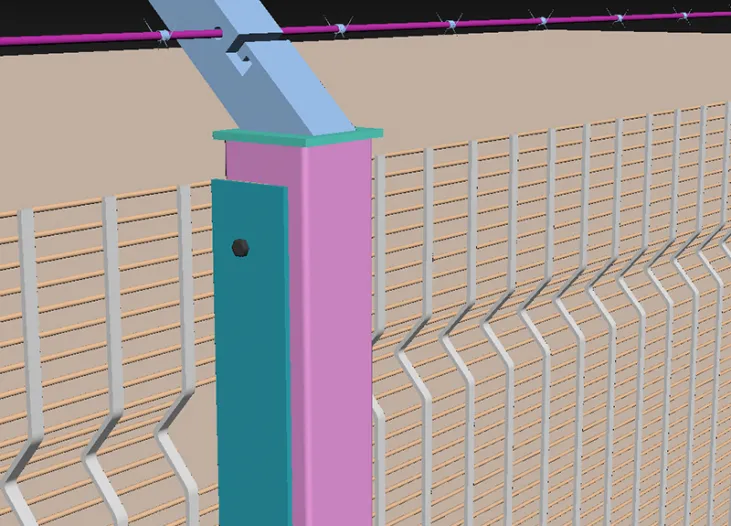

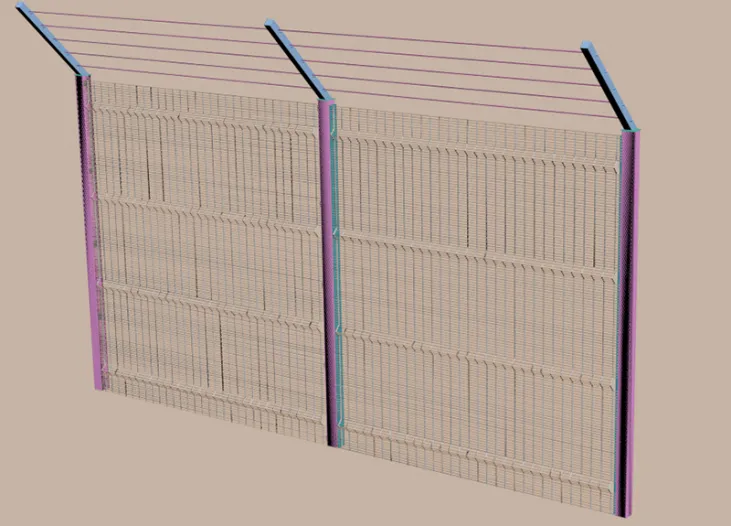

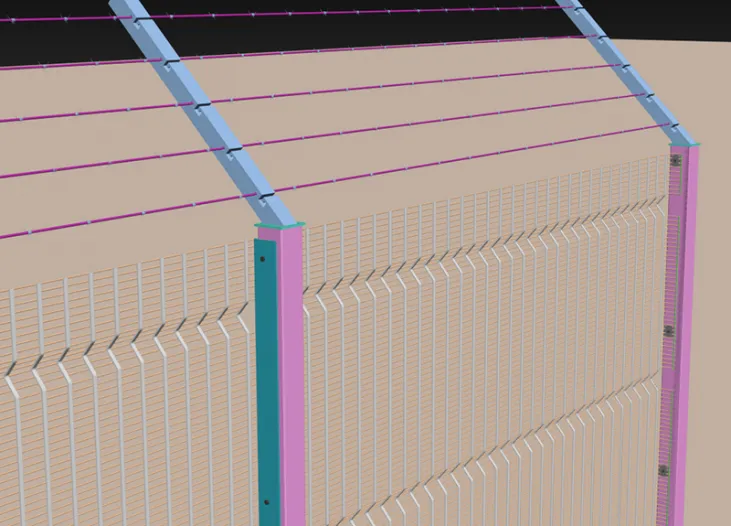

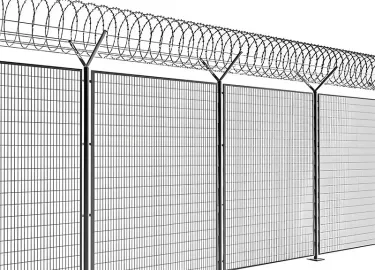

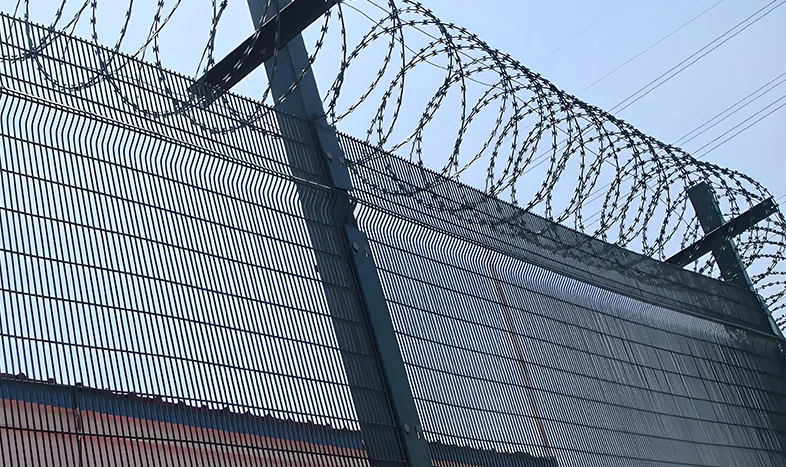

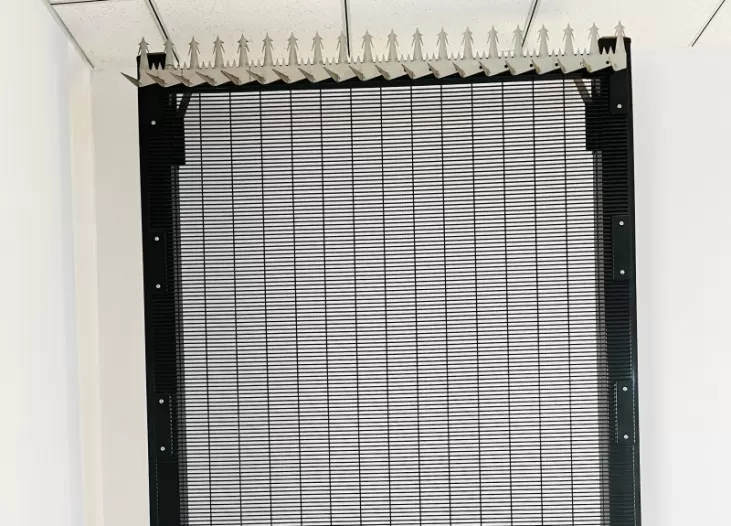

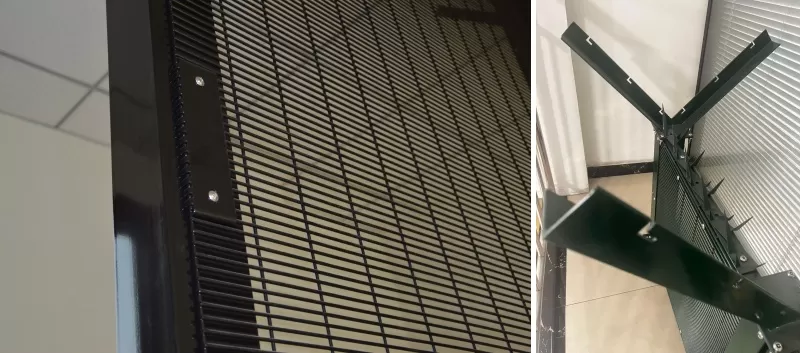

BONKFC 358 Security mesh fence, also known as Anti-climbing fence, is a combination of high-strength, high-safety welded wire and flat steel welded fence with anti-climbing, anti-cutting rectangular mesh, the fence system is designed to protect sensitive areas such as: Designed for power plants, prisons, research institutions, military bases, borders, oil and gas facilities, embassies, etc., depending on customer project requirements, the posts are designed with L or Y straight arms to integrate traditional blade mesh panel which can be more effective against intruders.
Anti-climbing mesh fence:
1. The panel surface is made of heavy duty, high safety wire and flat steel welding mesh, which can connect multiple panels one by one, and can also provide integrated panels up to 6 meters.
2. In order to achieve maximum safety, the mesh size is 12.5mm *75mm, the mesh diameter is 4.0mm, and the flat steel is 15mm*4.0mm thick
3. 358 Fence system mesh is anti -finger , combining anti-climbing and anti-cutting features, as well as excellent damage resistance and visibility, can be used in conjunction with CCTV, electronic alarm devices.
4. Additional lengths of panels or floors can be provided for underground installation to prevent digging.
5. Surface treatment can be PVC hot dip plastic or Akzo nobel polyester powder spray
6. Can be customized production

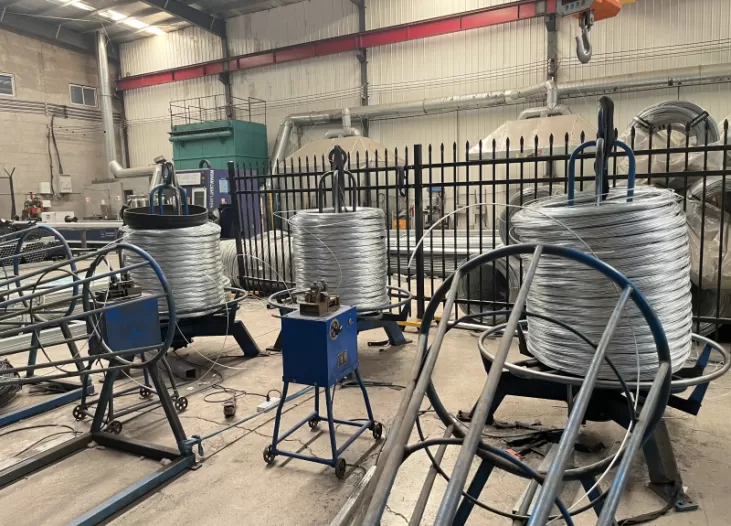

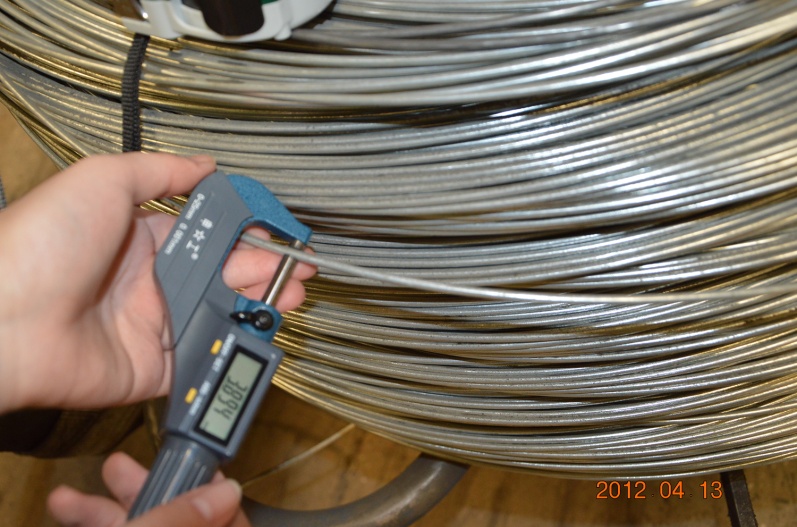

1.Raw material wire quality inspection
After the wire arrives at the factory, it is immediately inspected to check the wire thickness and the tolerance.（Conventional tolerance normal error is within ±0.5mm）

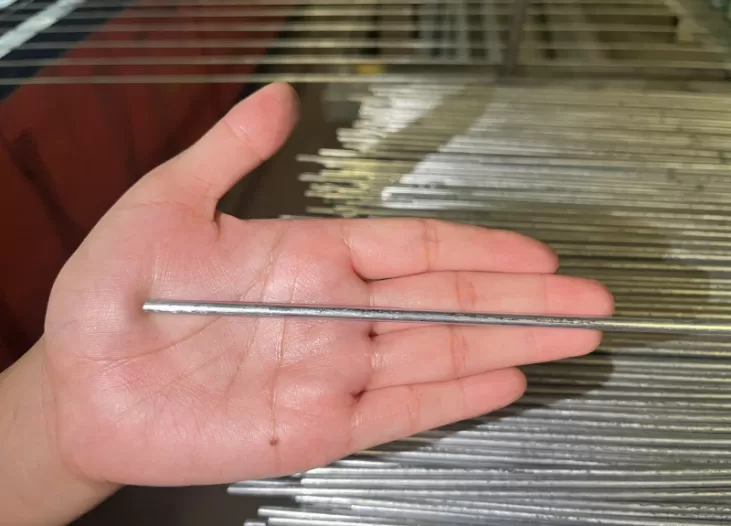

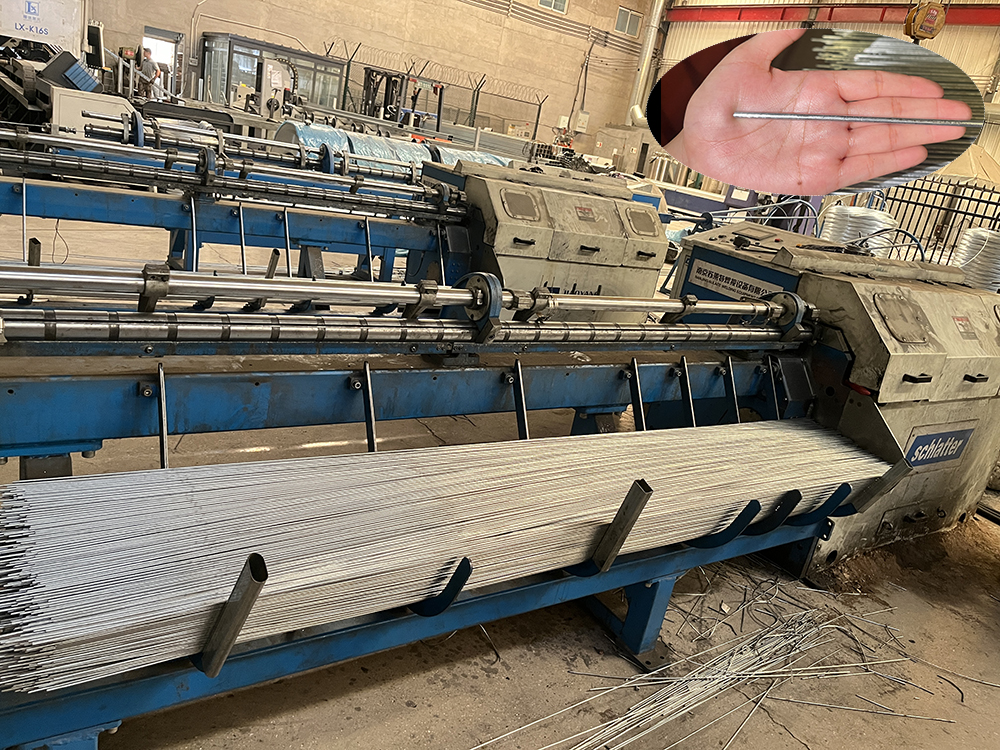

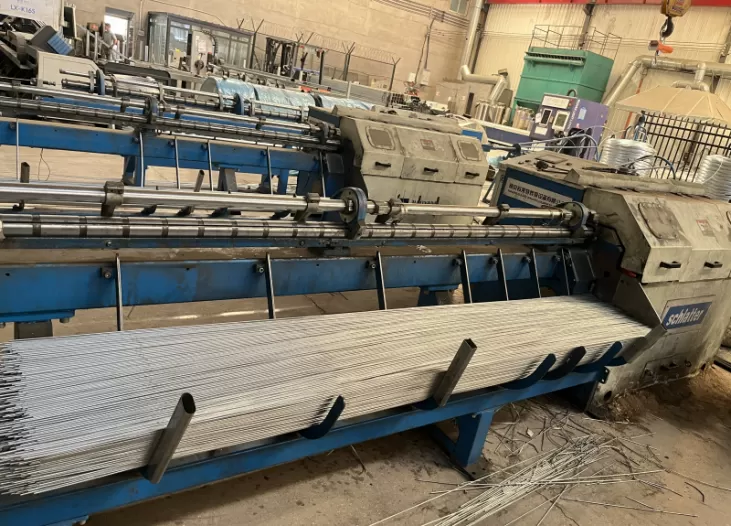

2.Wire stranding (using Swiss-imported Schlatter equipment)
The surface of the wire is smooth No scratches.

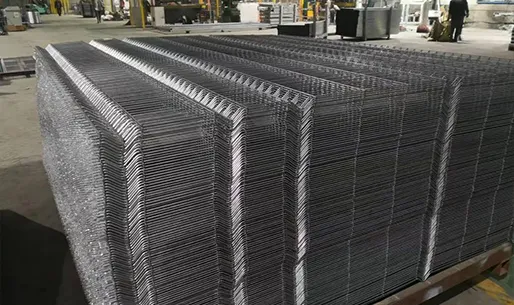

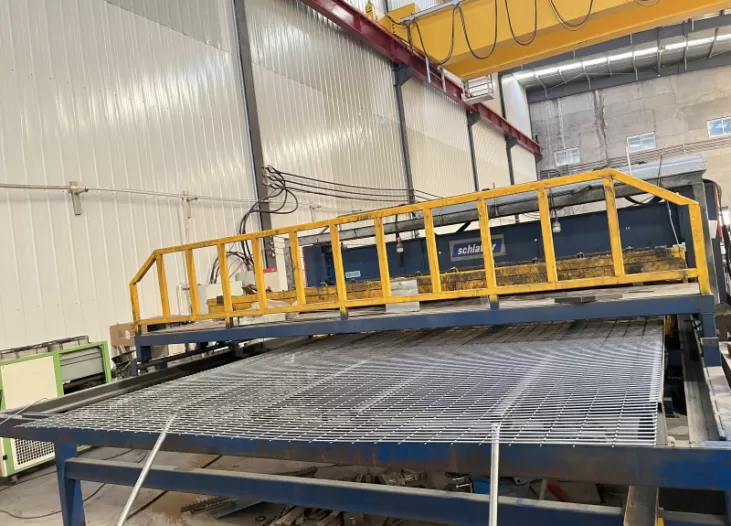

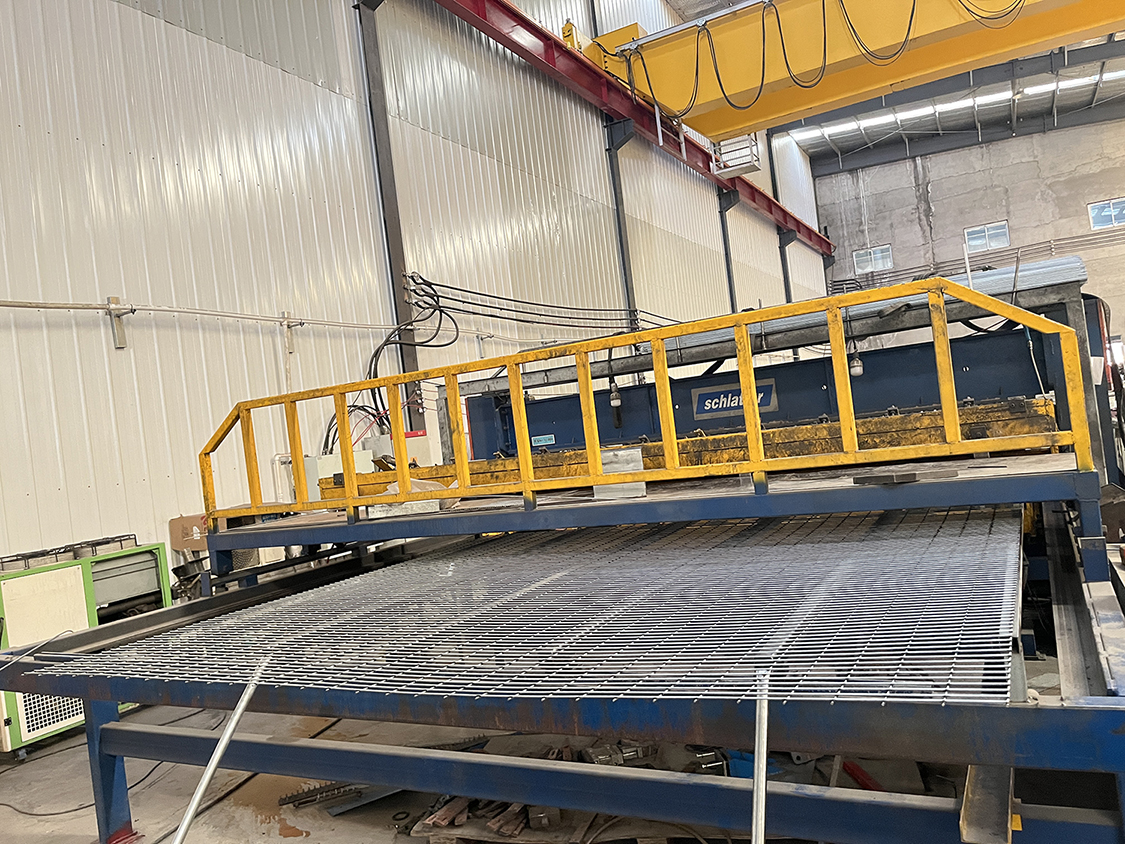

3.Welded mesh production
*using Swiss-imported Schlatter equipment
*Ensure solder joint strength
*Ensure the flatness of the mesh
*Small mesh size tolerance

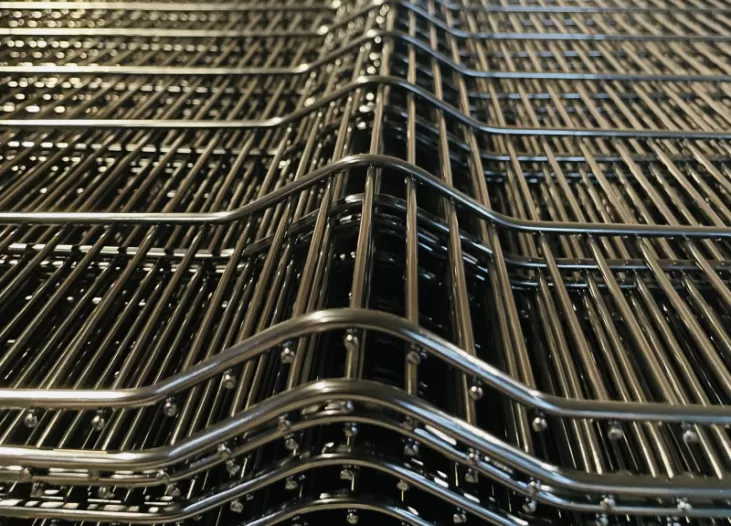

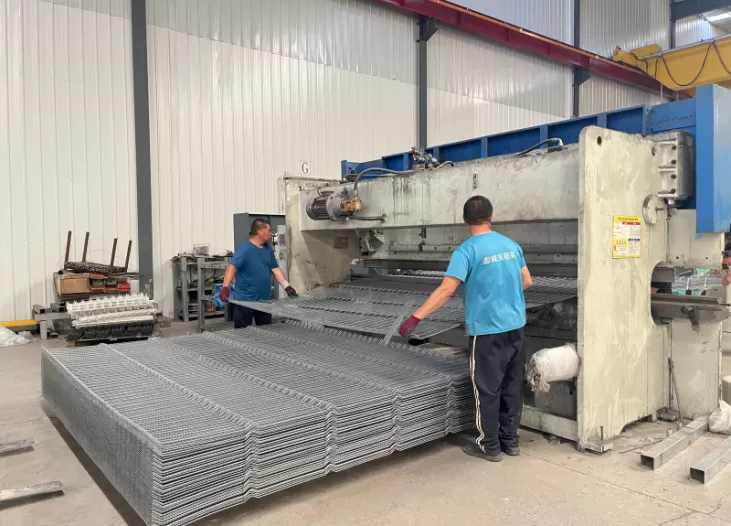

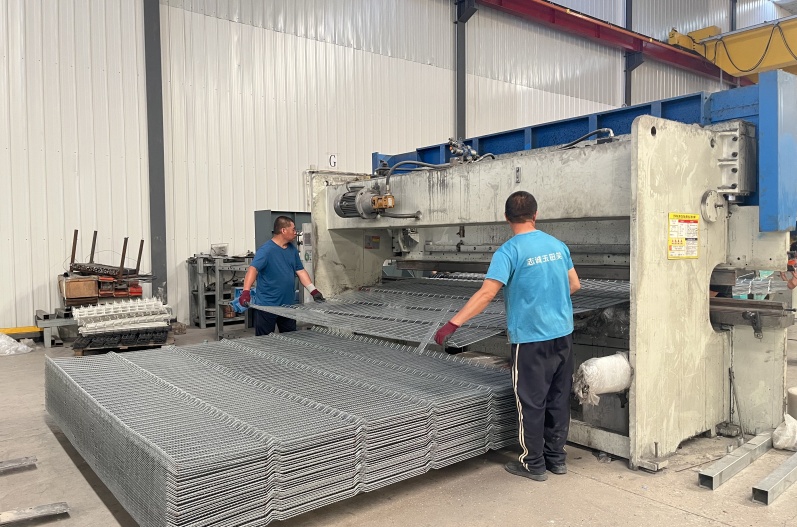

4. Bending

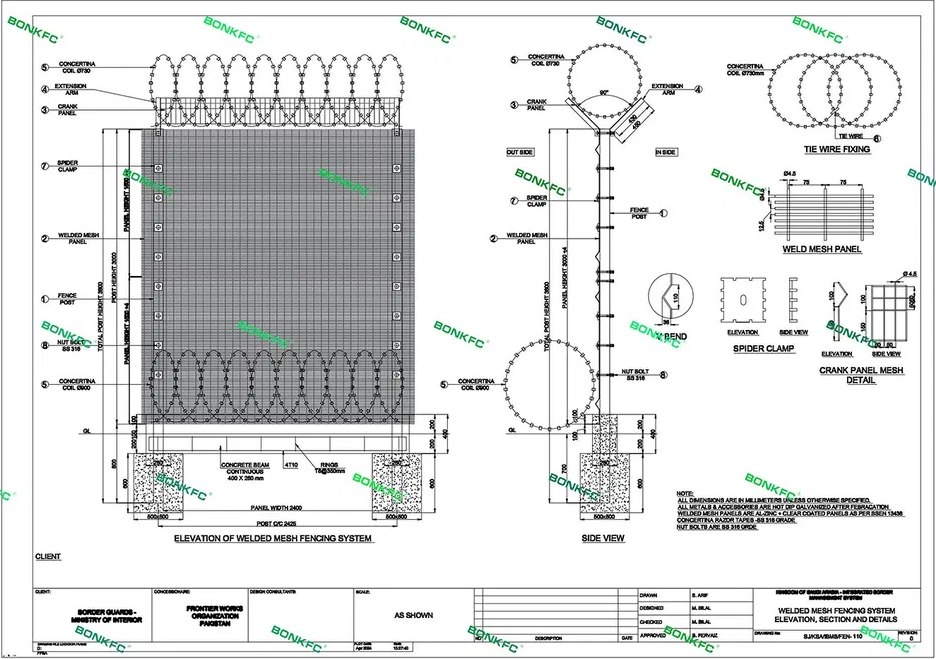

After placing an order, we will draw a drawing to confirm and ensure the precision of the bending.
5. Nano-ceramic phosphating
To get a longer life for your product, followinga number of pre-treatment processes toremove grease and impurities

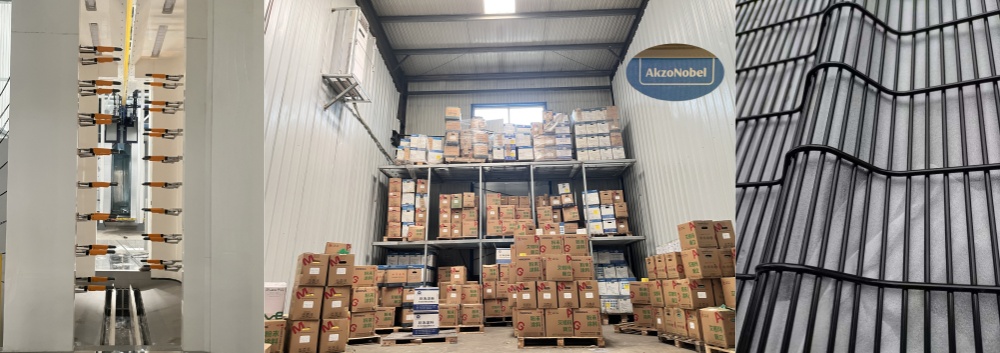

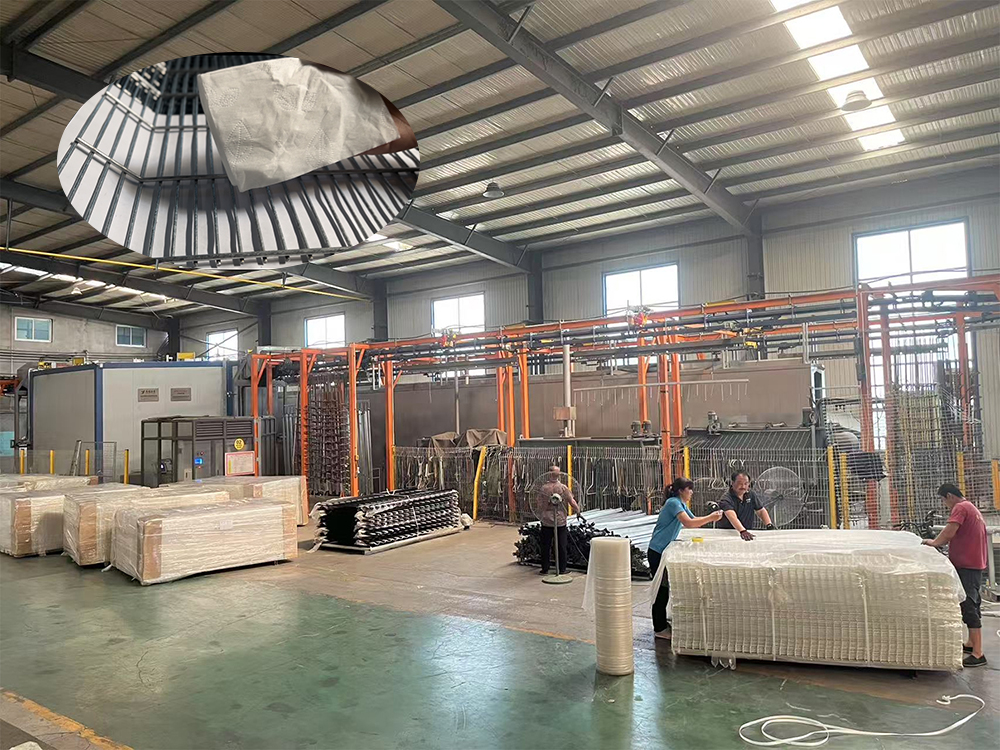

6.Powder Coated
*We use 32 imported ITW GEMA guns from Switzerland to guarantee surface quality, achieving a powder coating thickness of 120 microns.
* using ISO-certified AkzoNobel powder.
| 358 Fence | |||||||
| Panel Style | Panel Size (H*W) | Wire（mm） | Flat steel （mm） | Mesh（mm） | Post Size（mm） | C Type Post | |
| 3D | 1830*2740 | 3.0 4.0 5.0 | 15*4.0thick | 12.7*76.2 12.5*75 76.2*12.7 | Square Post：100*100 80*80 60*80 60*60 | Customized as required | |
| 3D | 2130*2740 | ||||||
| 3D | 2440*2130 | ||||||
| 3D | 2740*2130 | C type post：60*80 | |||||
| 2D | 1830*2440 | ||||||
| 2D | 2130*2440 | H Post:55*100 Peach Post：70*100 I type Al Post：55*100 75*100 | |||||
| 2D | 2440*2130 | ||||||
| 2D | 2740*2130 | ||||||
| Application： Apartment buildings protection; ~Industrial facilities protection; ~The Airport protection; ~The Port protection; ~The Power station protection; ~Roads and railways protection solutions; ~The border protection solutions; ~The prison protection solutions; ~Solar Farm/Construction/Warehouse Site Protection; ~ Telecom & Mobile tower base station protection solutions; etc | |||||||

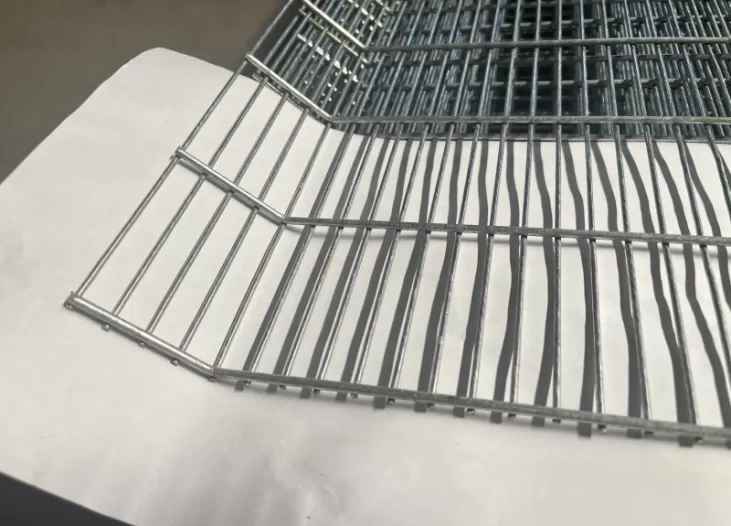

Here are some common 358 bending types:
1. Simple 90 - degree bending
This type involves bending the material (usually a wire mesh or metal sheet in the context of 358 specifications) at a 90 - degree angle. It is often used to create structural corners or to change the direction of the material by a right angle.
2. Arc - shaped bending
The material is bent into an arc shape. The radius of the arc can vary according to specific design requirements. This type of bending is useful for creating aesthetically pleasing curves or for applications where a smooth transition in direction is needed, such as in some decorative or architectural elements.
3. Zig - zag bending
It features a series of alternating bends in a zig - zag pattern. This can enhance the mechanical strength and flexibility of the material, and is sometimes used in applications where resistance to deformation and impact is required, like in certain types of fencing or protective barriers.
4. Multiple - angle bending
Involves bending the material at multiple different angles in sequence. This complex bending type is usually designed for more customized and specific structural or functional needs, such as in the manufacturing of complex - shaped metal components within the 358 - specification products.

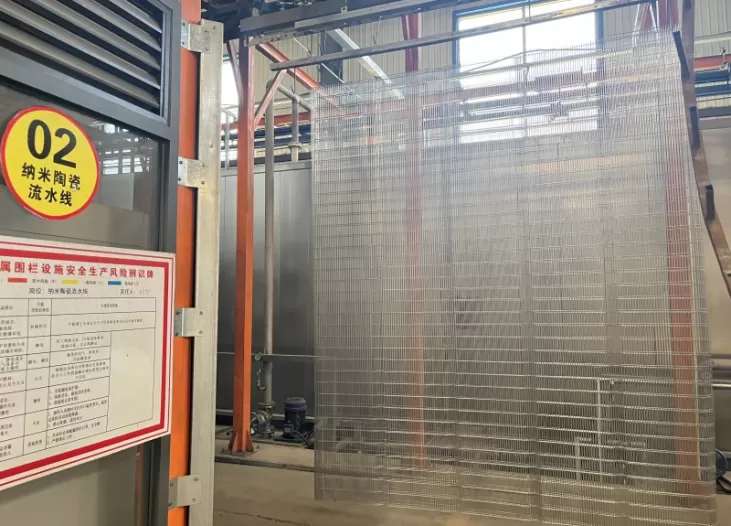

Prior to painting, we perform nano-ceramic phosphating. This step removes surface impurities and forms a protective film, ensuring better adhesion and quality for the subsequent painting process. The following video will demonstrate this process more clearly for you.
