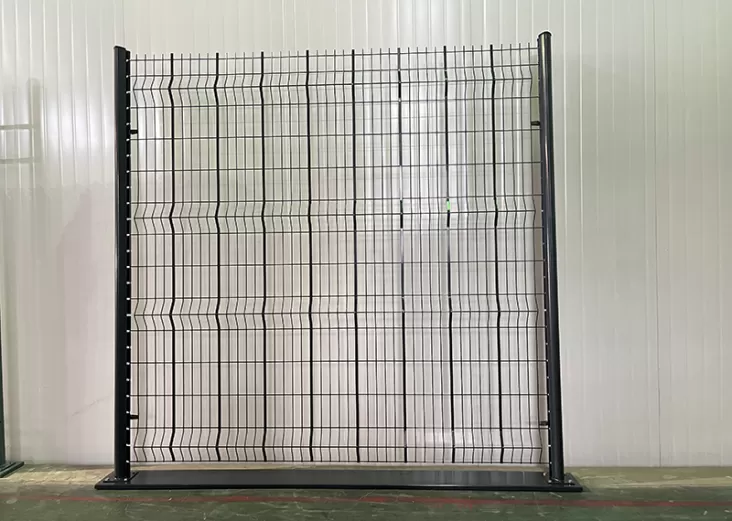

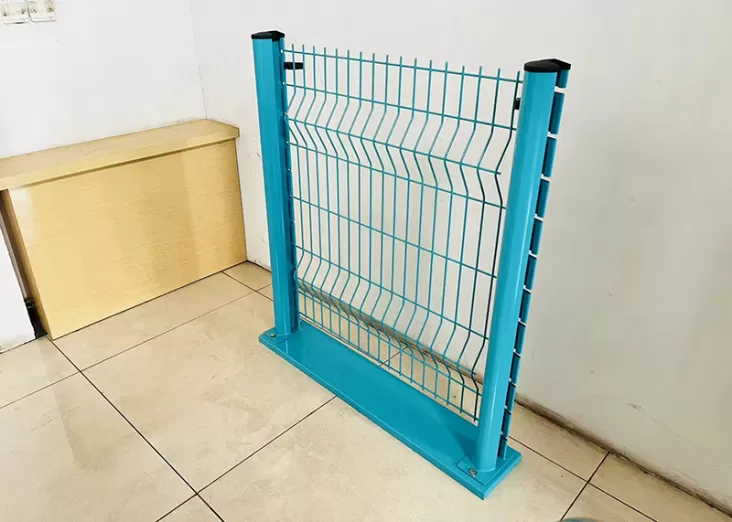

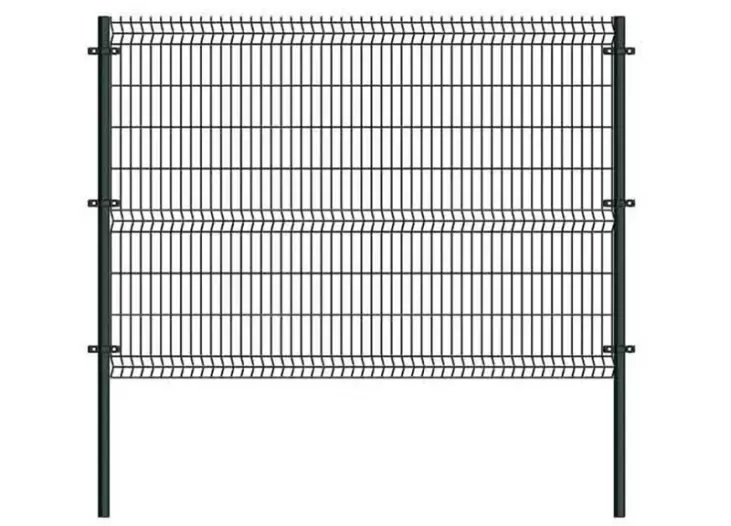

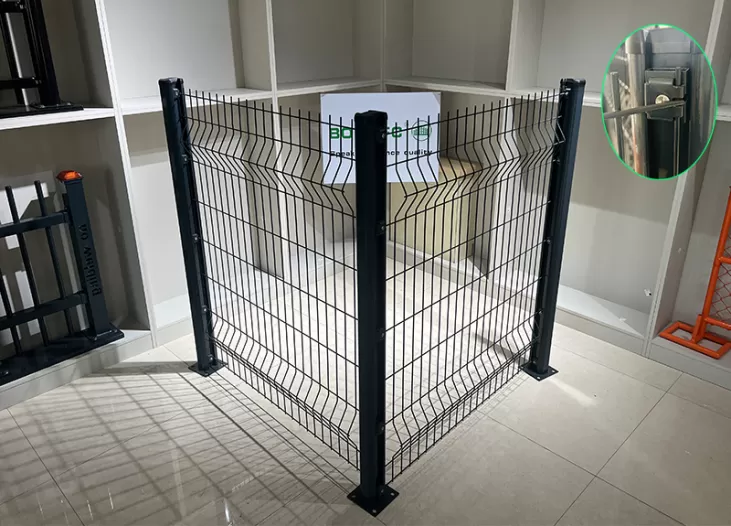

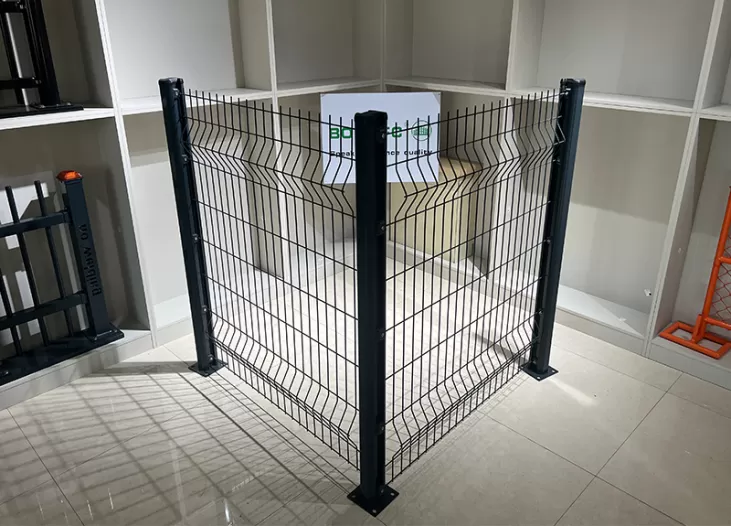

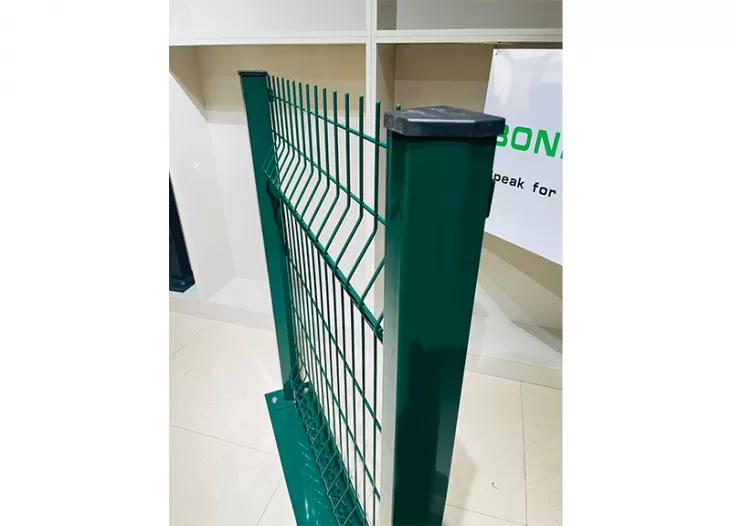

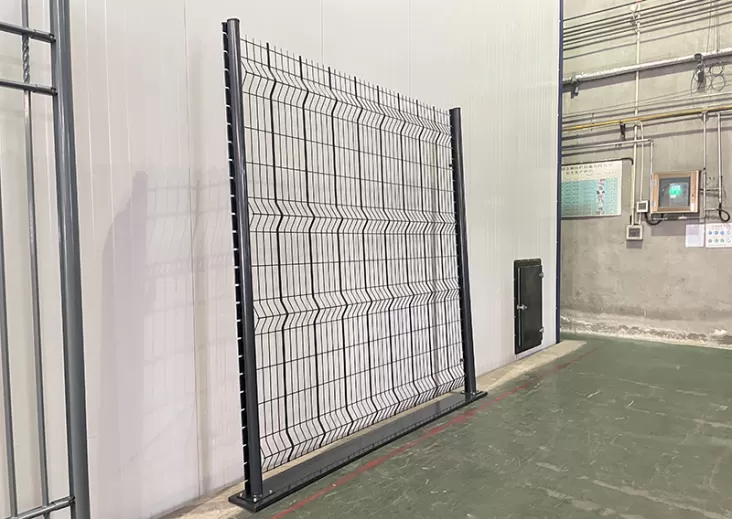

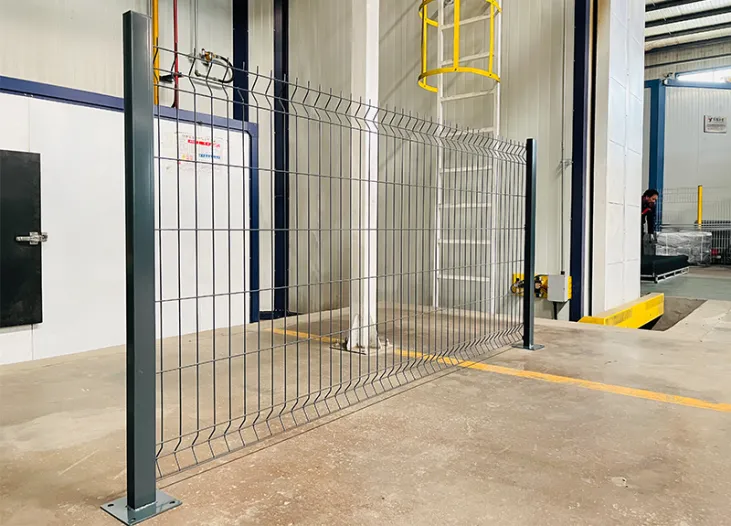

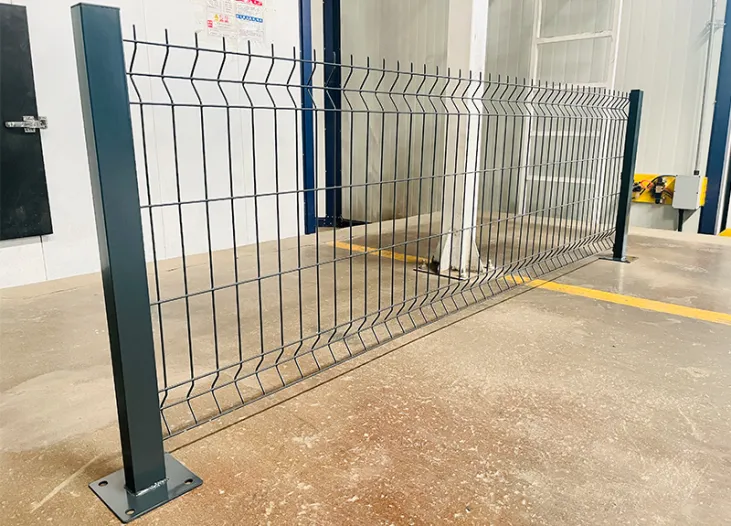

3D mesh fence
Material: Q195/Q235 wire and pipe
Brand : BONKFC Fence
From: China BONKFC
Color: Black 9005, Black Green 6005, Grey7016 or as customized

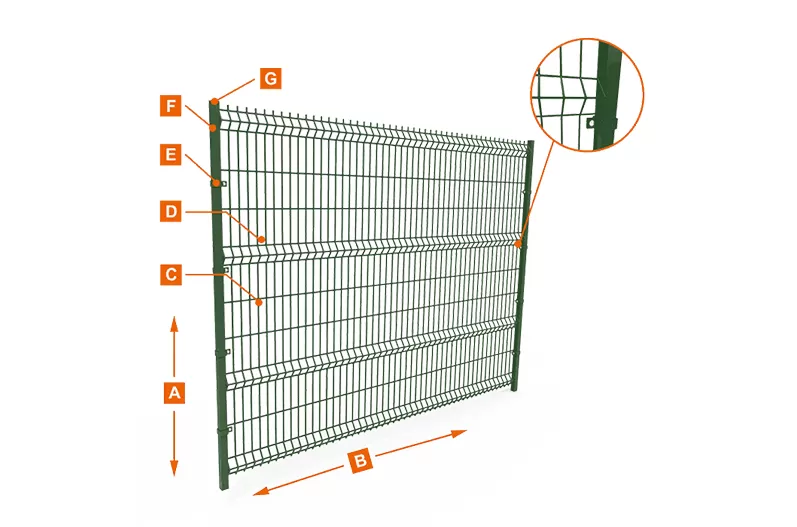

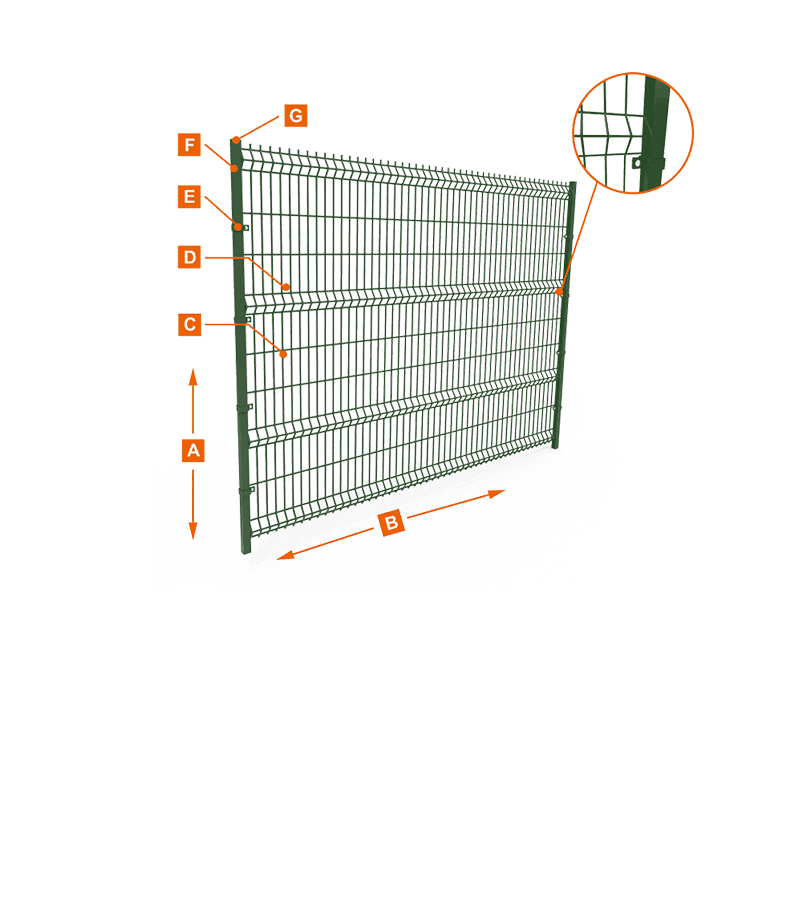

A:Height:630 mm,830 mm,1030 mm,1230 mm,1430mm,1630 mm,1730 mm,1830 mm,2030 mm,2230 mm, 2430 mm
B:Width: 2000 mm,2200mm, 2500 mm, 2900 mm
C:Wire Diameter: 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0
mm
D:Mesh Opening:50 x100 mm, 50 x150 mm, 50 x200mm,55x200mm,75 x100 mm,75x150mm etc.
E:Clamp:metal clamp/anti-UV plastic clamp/no clamp(for peach post)
F:
Post: Round post (48 0D x1.5/2.0 mm, 60 0D x1.5/2.0
mm);
Square post(50x50 x1.5/2.0 mm, 60 x60 x1.5/2.0 mm, 80 x80 x1.5/2.0 mm);
Rectangular post(40x60x1.5/2.0 mm,40x80 x1.5/2.0 mm,60x80x1.5/2.0 mm,80x100 x1.5/2.0 mm)
Peach post::70x100mm

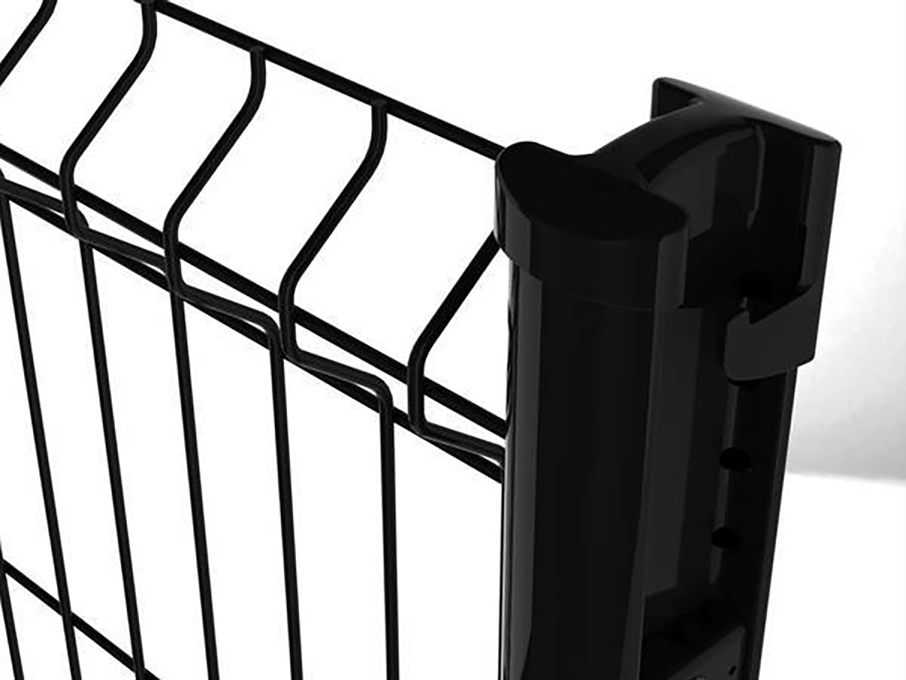

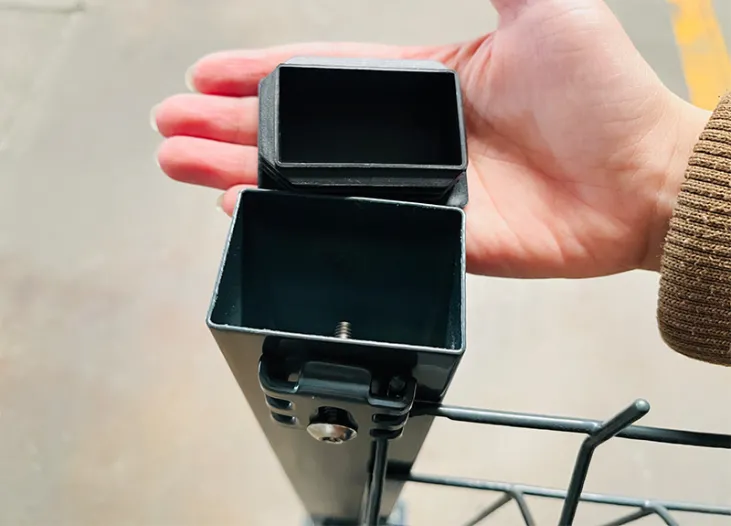

Post Cap: metal cap/anti-UV plastic cap

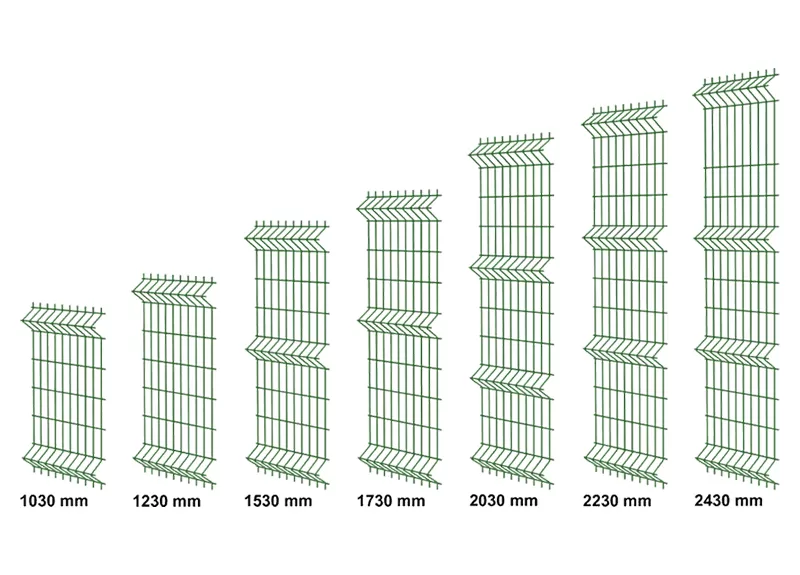

If the fence height falls between 630 mm and 1430 mm, it will have 2 folds; if the fence height falls between 1530 mm and 1930 mm, it will have 3 folds; if the fence height falls between 2030 and 2430, it will have 4 folds as shown below.

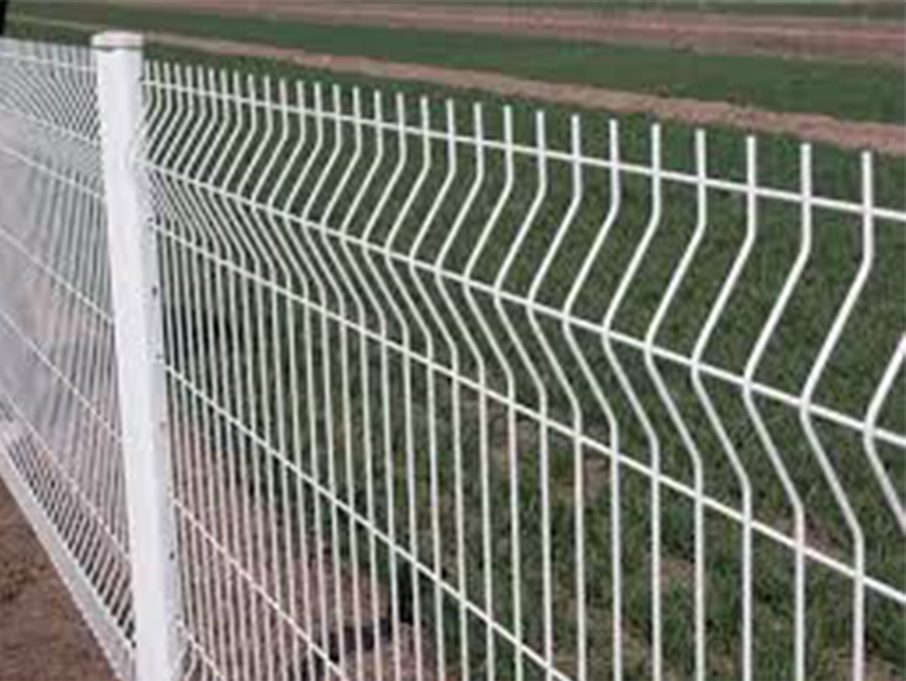

3D curved fence
reinforced curved fence
Hot-Dip Galvanized 3D Mesh Fence Provides a continuous zinc coating layer that effectively prevents rust and corrosion, extending service life even in coastal or humid conditions. Powder Coated or PVC Coated 3D Mesh Fence Combines galvanized protection with a smooth, colorful exterior finish. The AkzoNobel powder coating enhances UV resistance and prevents color fading, ensuring long-term aesthetic performance.

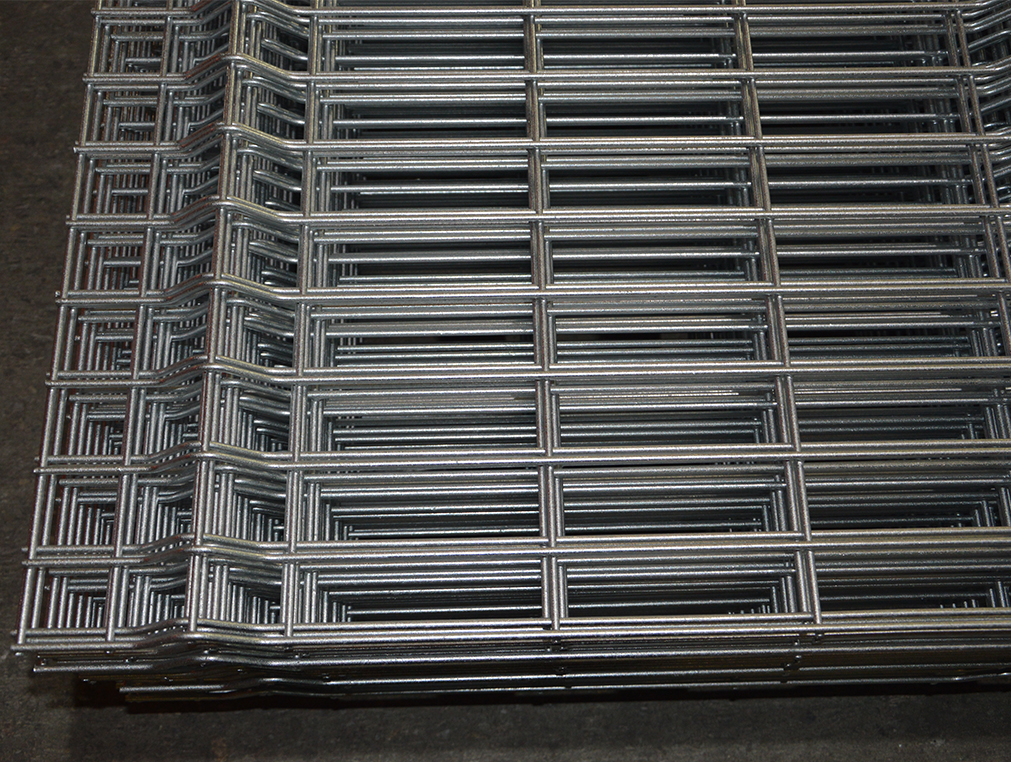

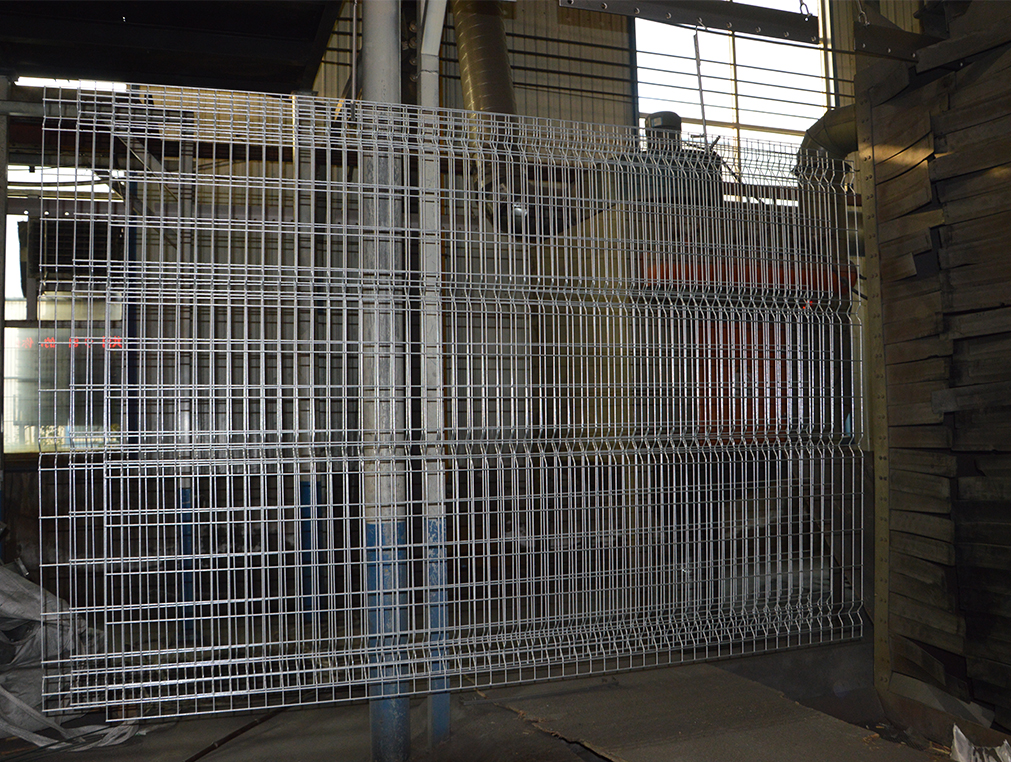

galvanized 3D FENCE

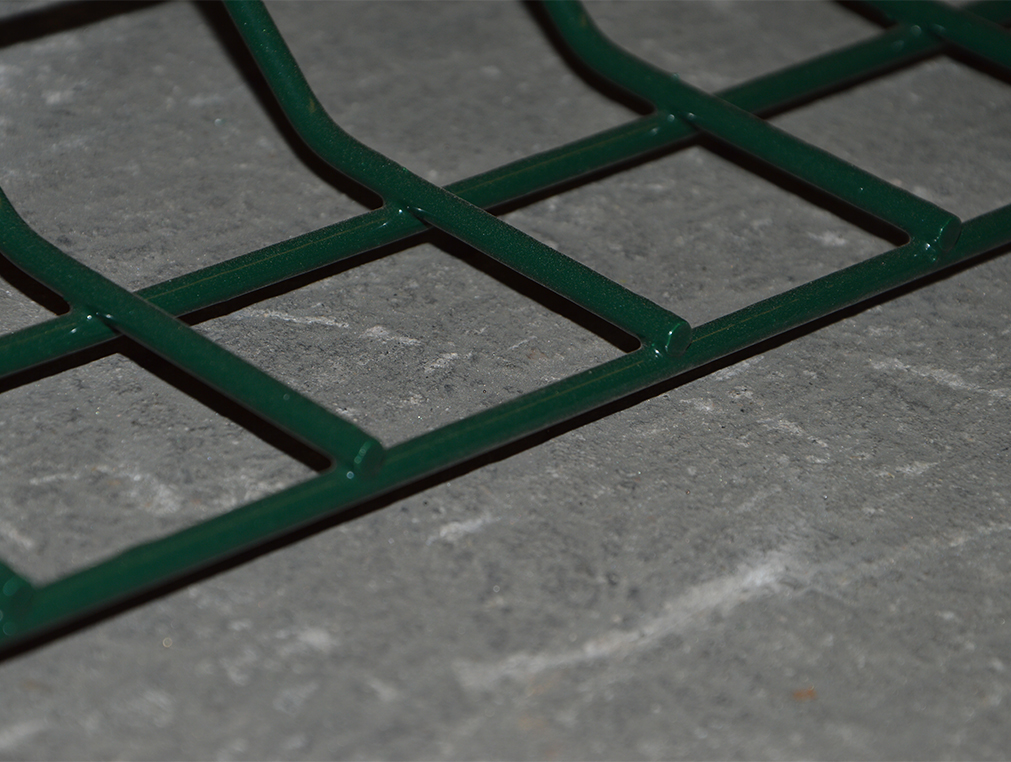

powder coating 3d fence
PVC 3d fence
Electroplating and spraying

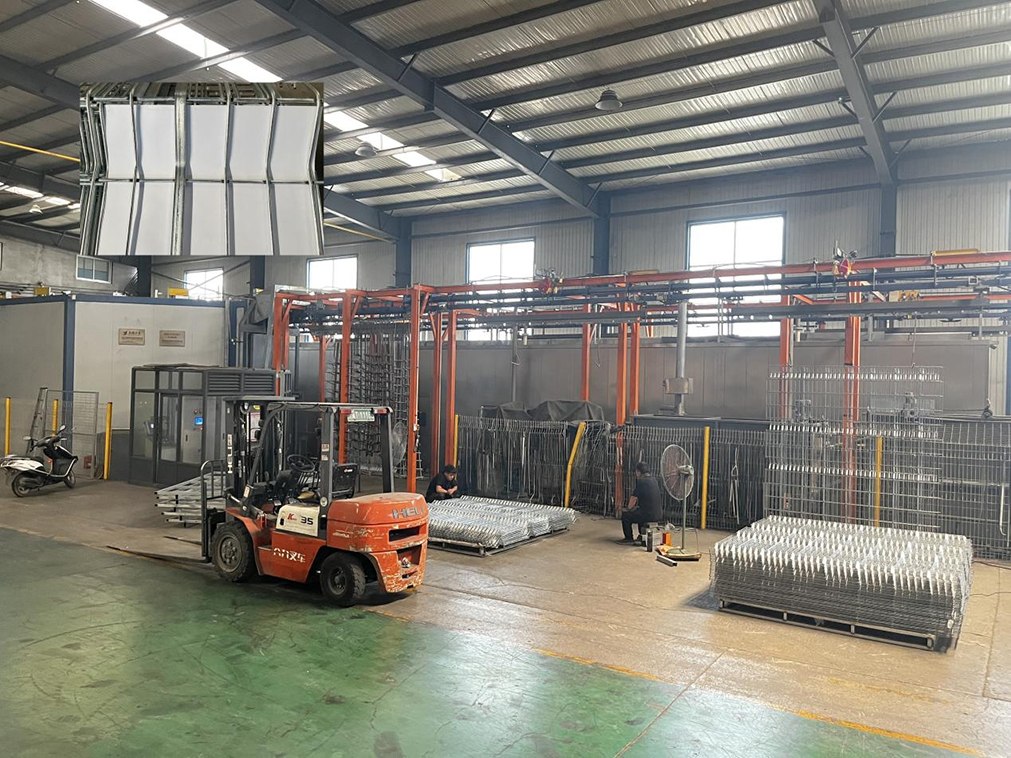

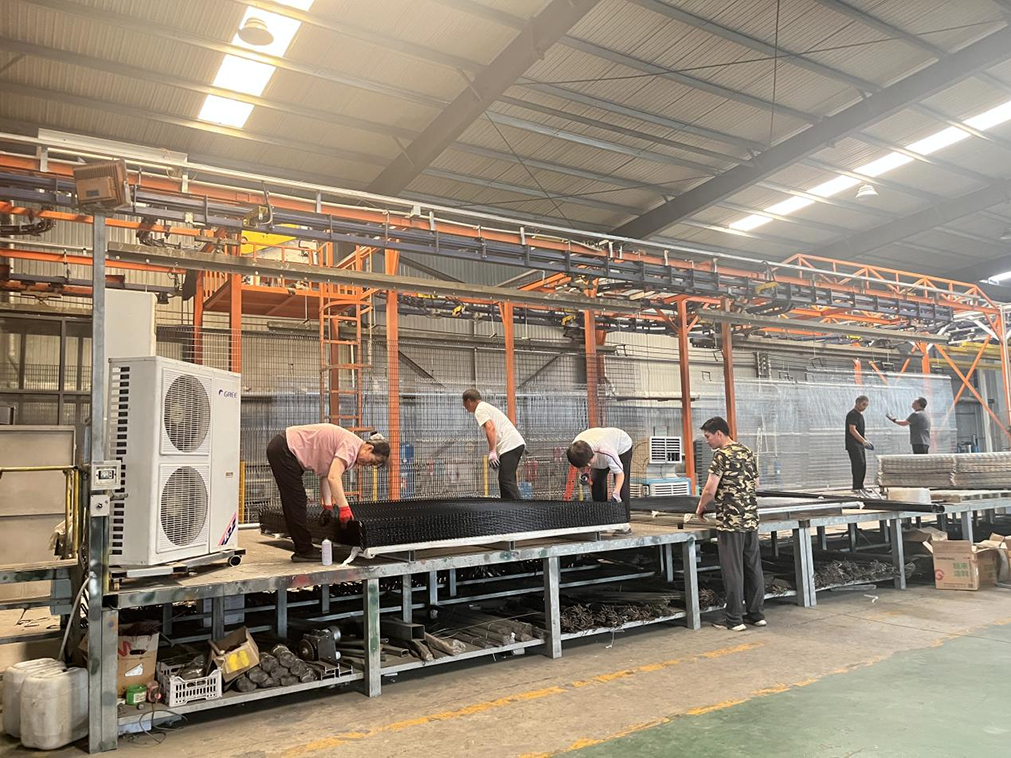

Production is the top priority of BONKFC's development,and quality is the core criterion for BONKFC's progress. Production Process (Strict Quality Control) Our BONKFC Fence factory is equipped with Swiss Schlatter welding machines and 32 ITW GEMA automatic powder coating guns to guarantee precision and durability. Each step is monitored by professional quality inspectors:

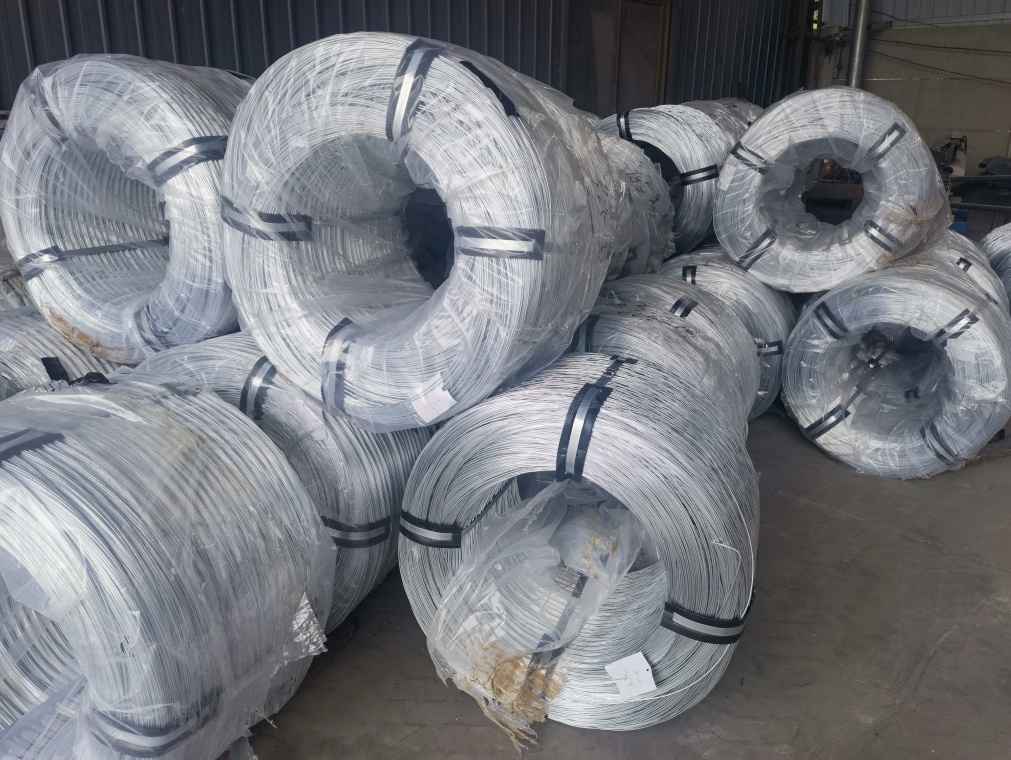

Raw material

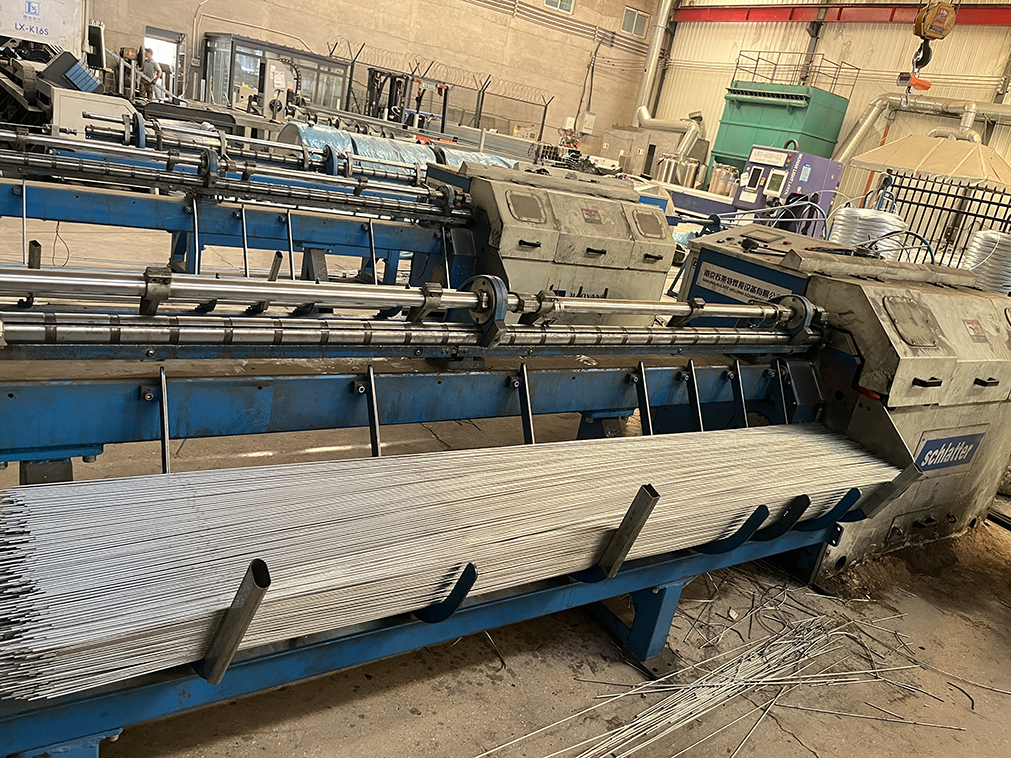

Cut into scratch-free wires

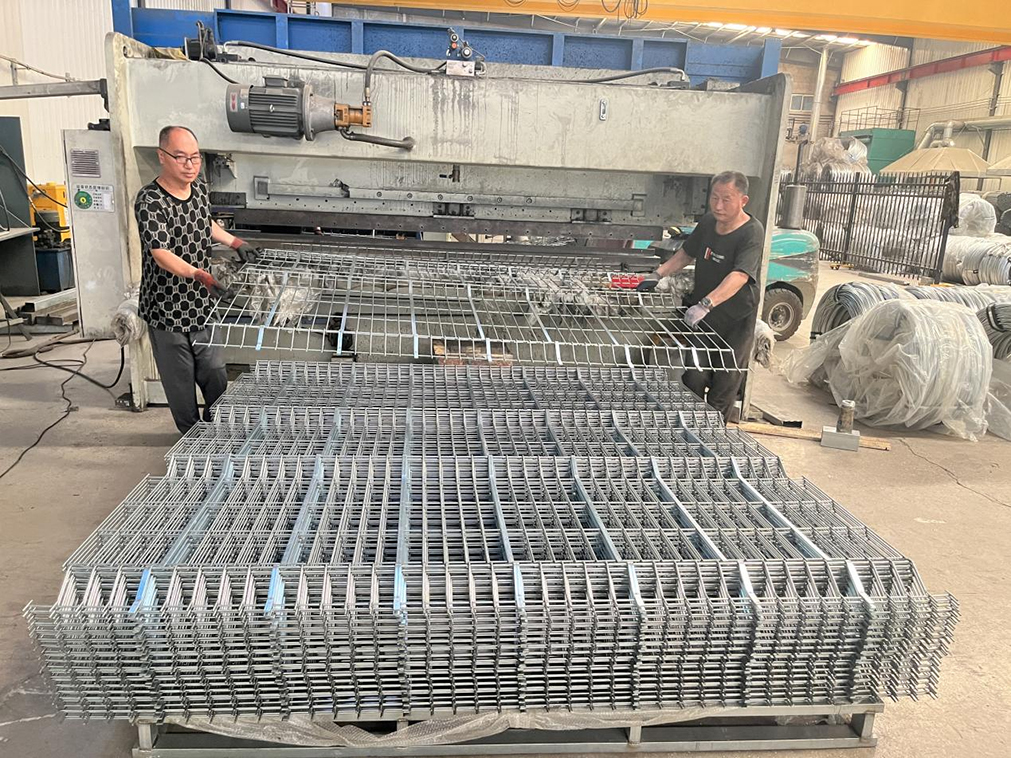

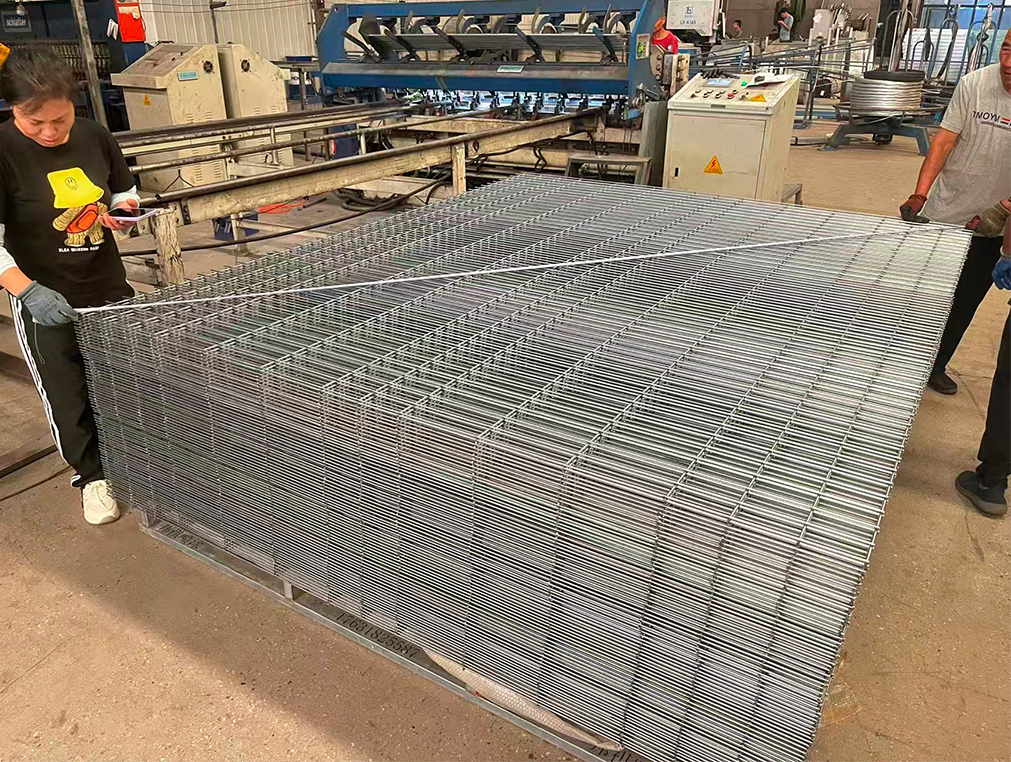

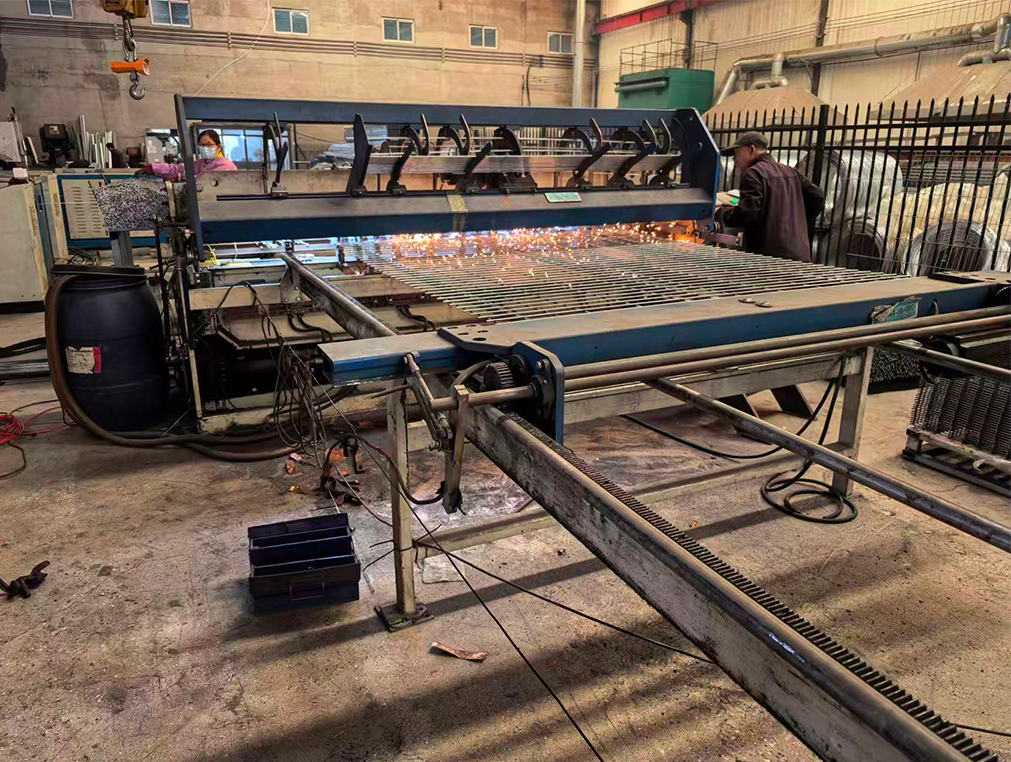

Automatic welded mesh machine

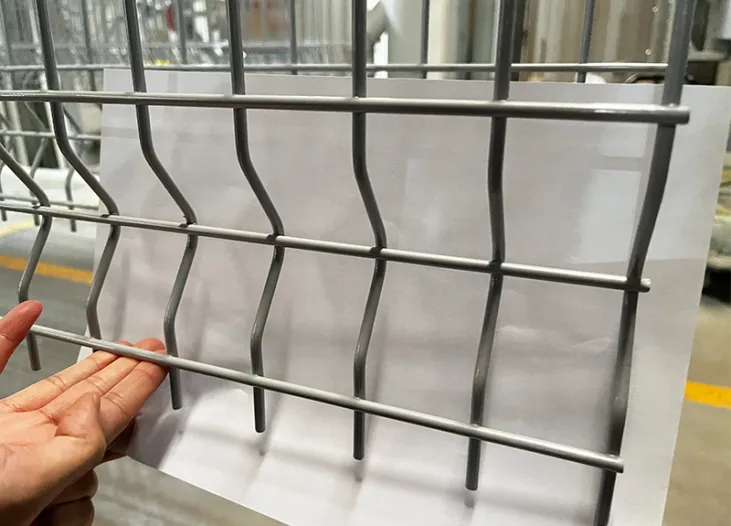

Bending with V-curves for extra rigidity
Sand blasting
Nanoceramic technology:removing grease
Powder coating application

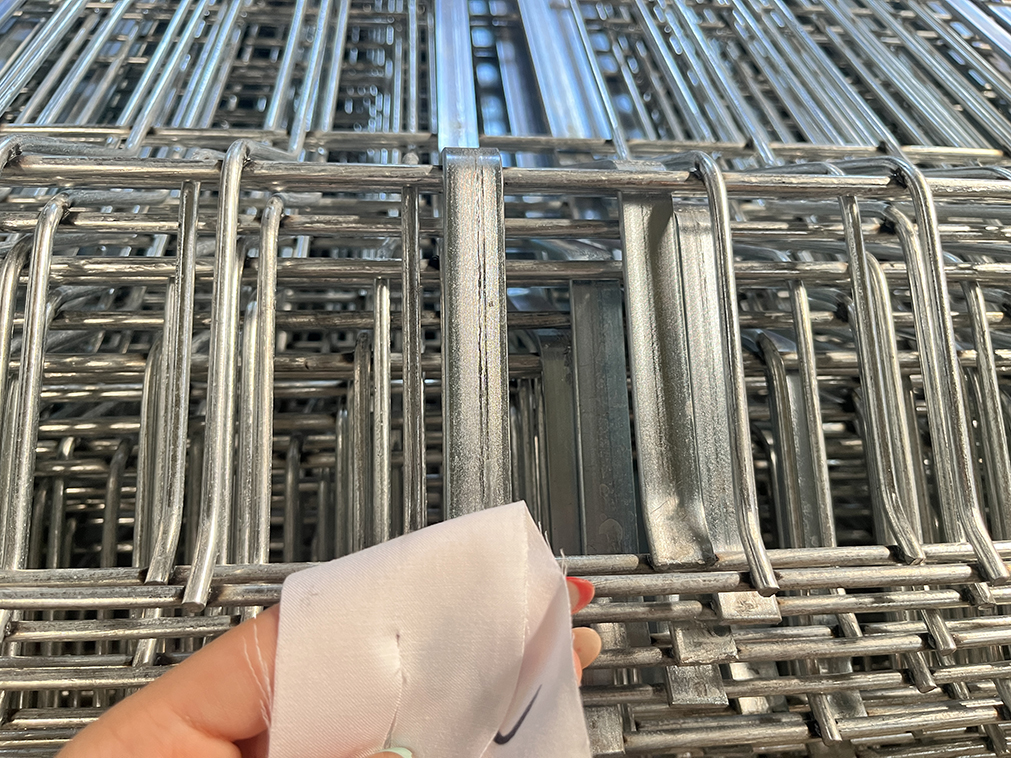

Every 3D Mesh Fence panel undergoes strict quality control at each stage: Raw Material Inspection: Wire diameter and coating quality are tested before welding. First Article Inspection: Panel dimensions, flatness, and bending angle verified against drawings. Process Inspection: Coating adhesion tested with a white-cloth wipe test after nano-ceramic pretreatment. Final Inspection: Coating thickness, color uniformity, and packing integrity checked before shipment. Third-party inspections (SGS, CCIC) are also accepted.

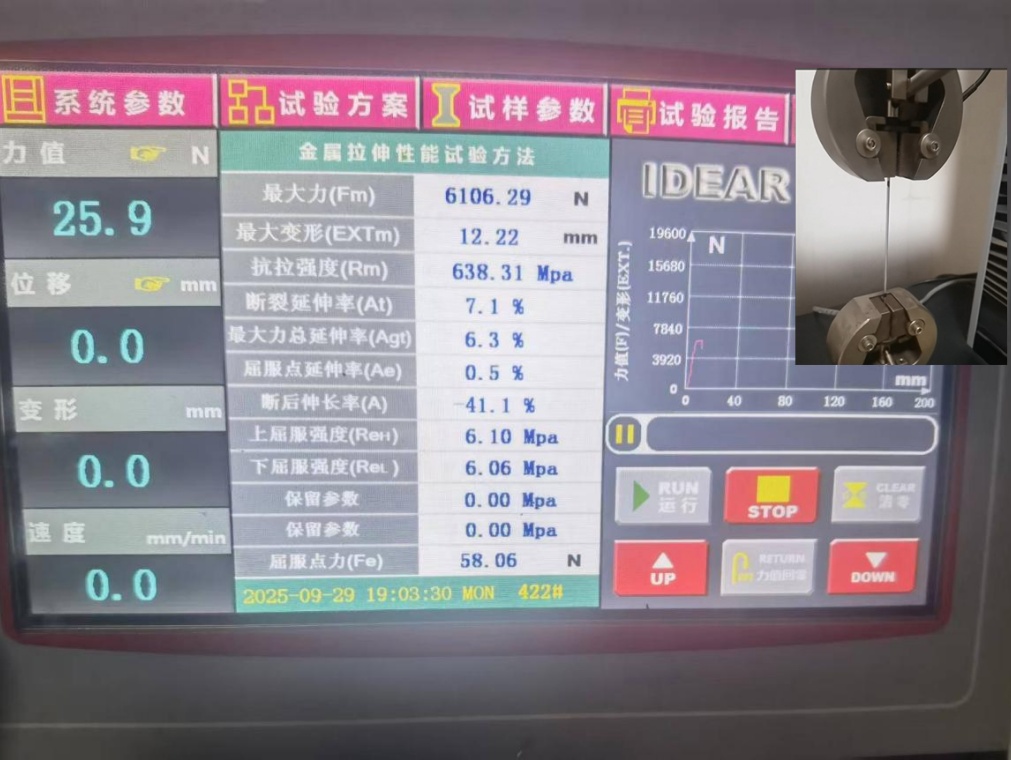

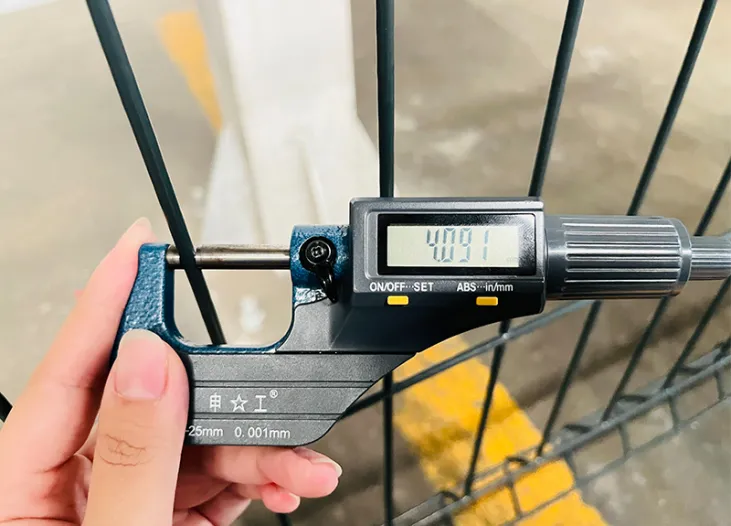

Test whether the tensile strength of the wire reaches 500-600Mpa.

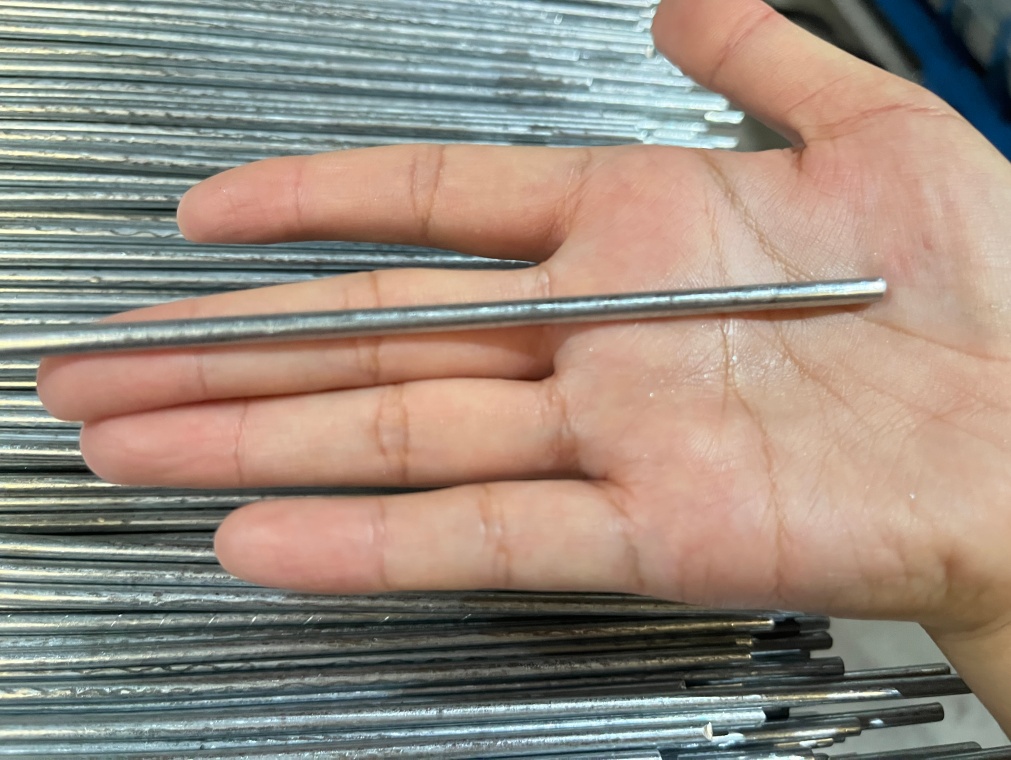

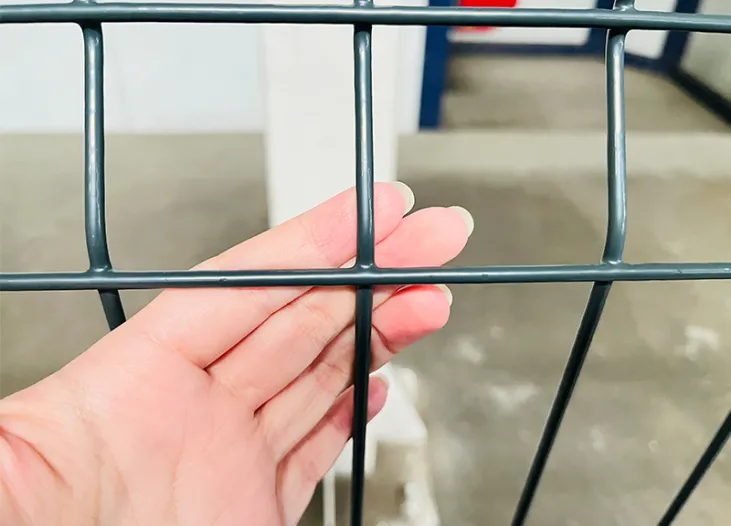

Check if the quality inspection wire has scratches
Inspect the weld joint firmness verify the solidity of weld seams
The diagonal measurement error shall not exceed 2mm.
Inspect the welds for spatter and foreign impurities.

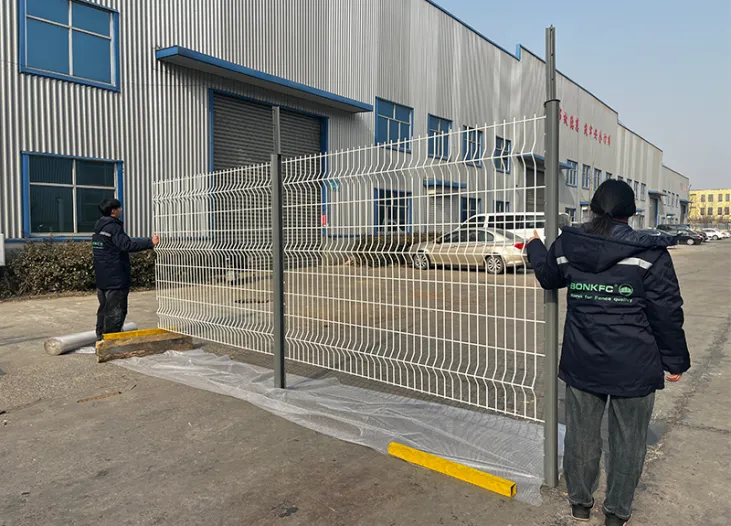

Check the neatness of the mesh sheets and verify if a protective film has adhered to the surface.

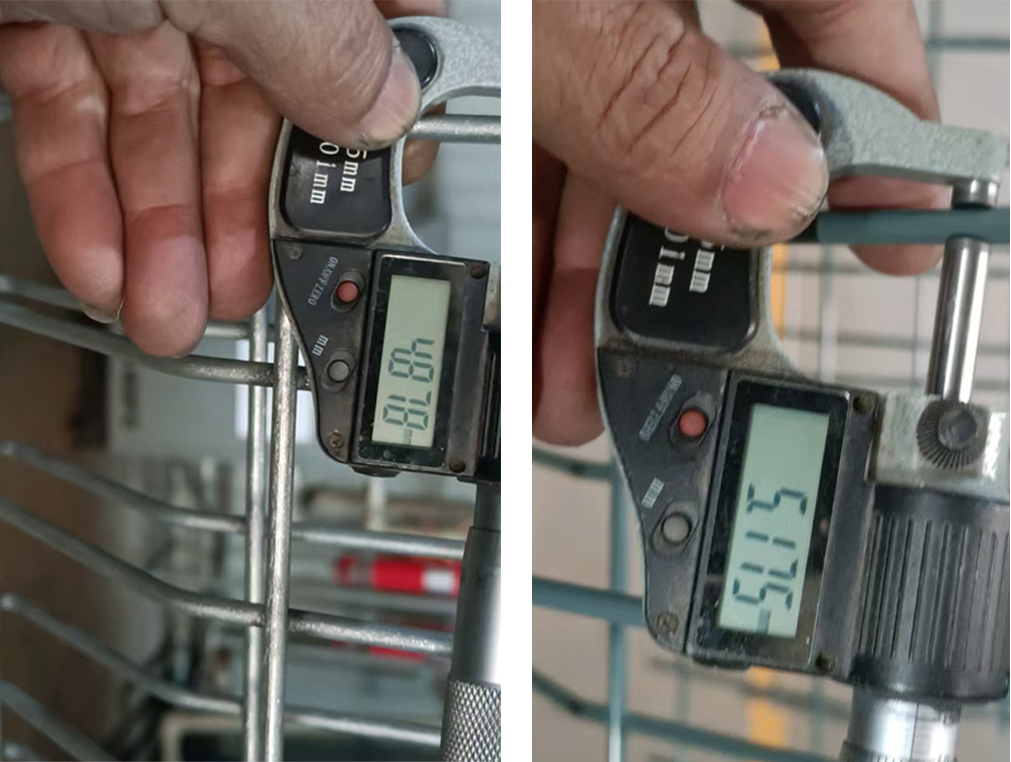

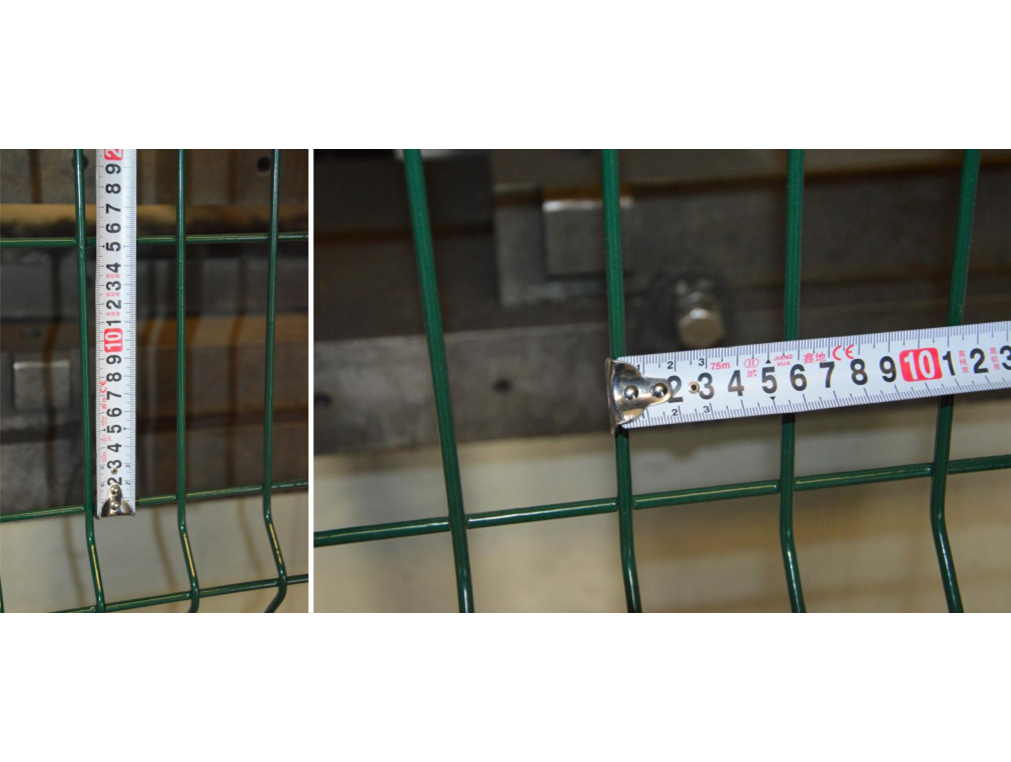

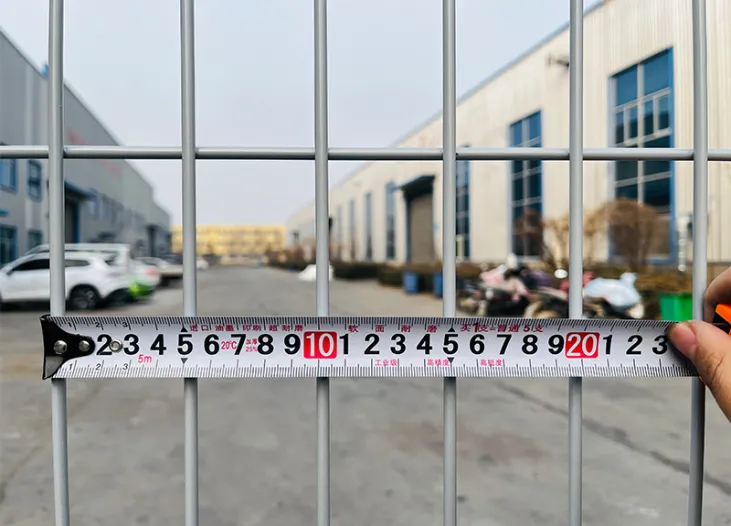

Measure the mesh size to check if it meets the standards.
Check whether the double-sided spray coating thickness is more than 120 microns.

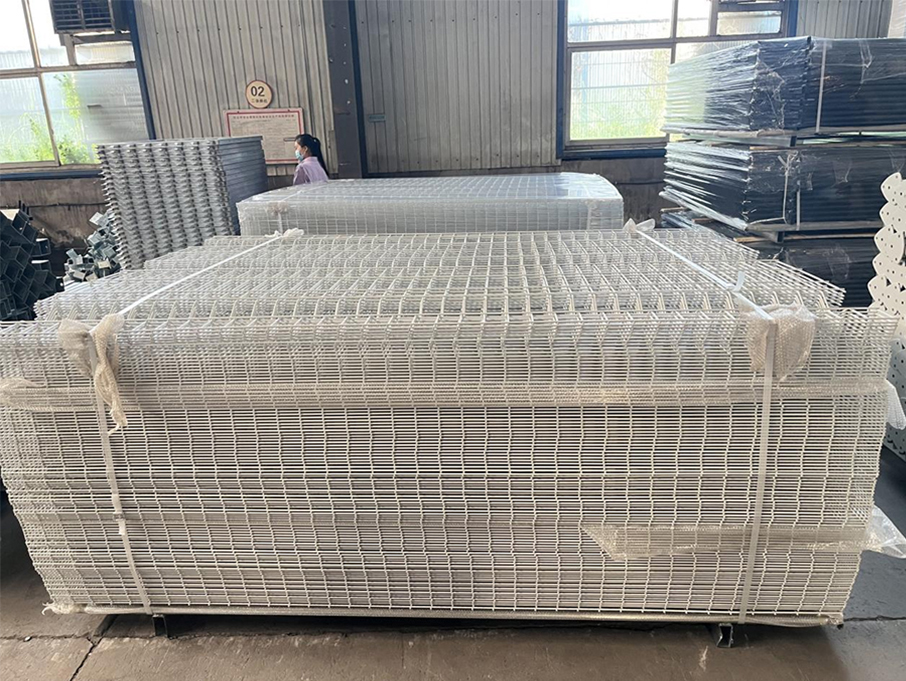

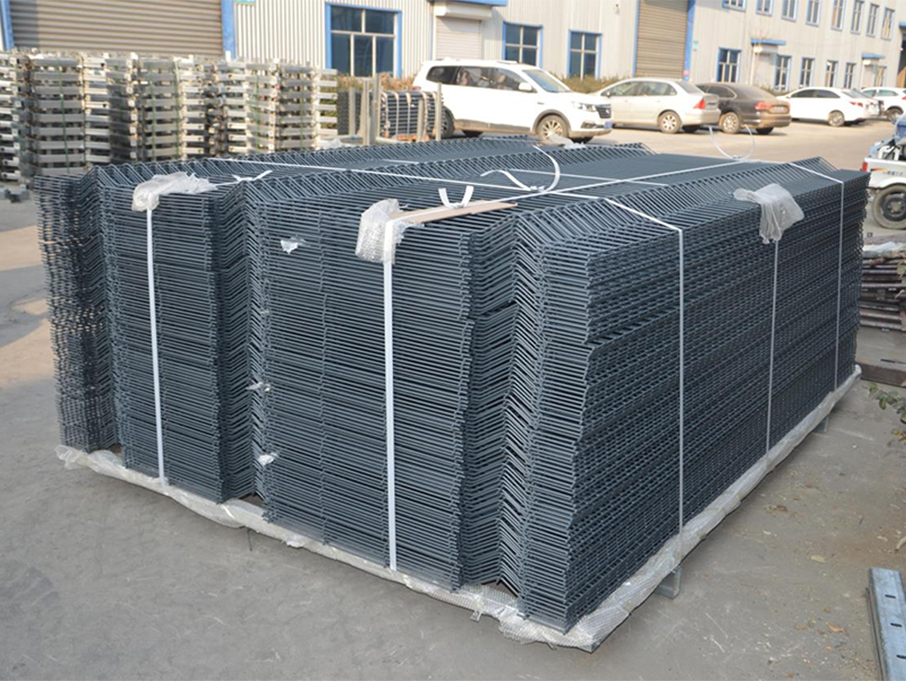

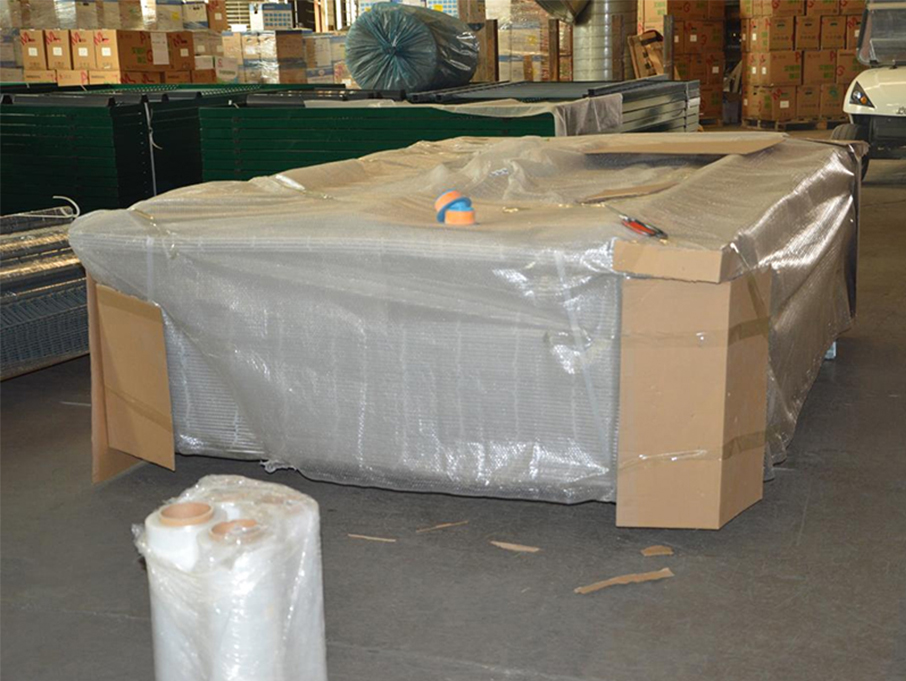

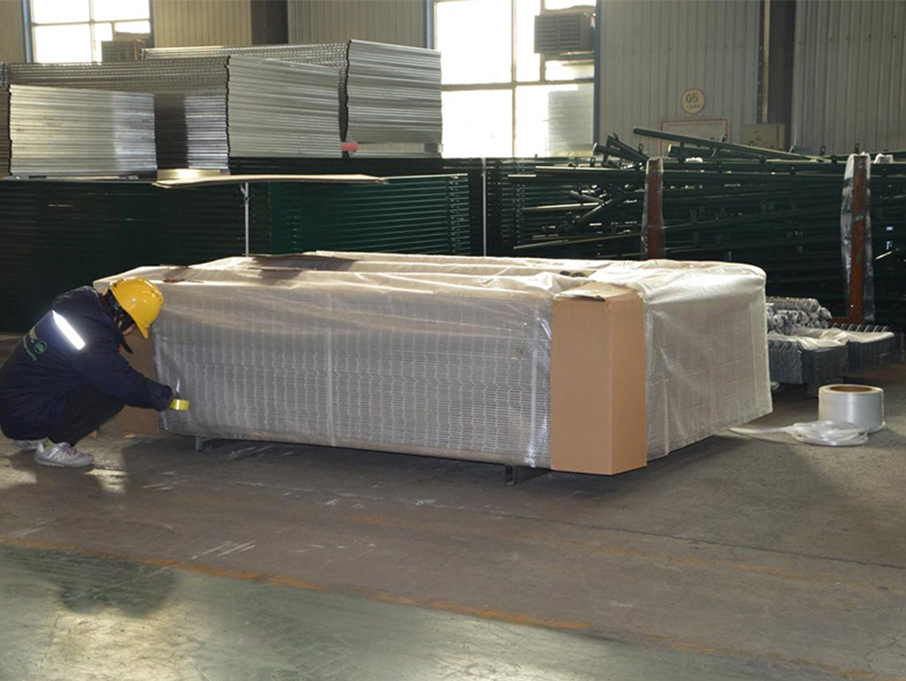

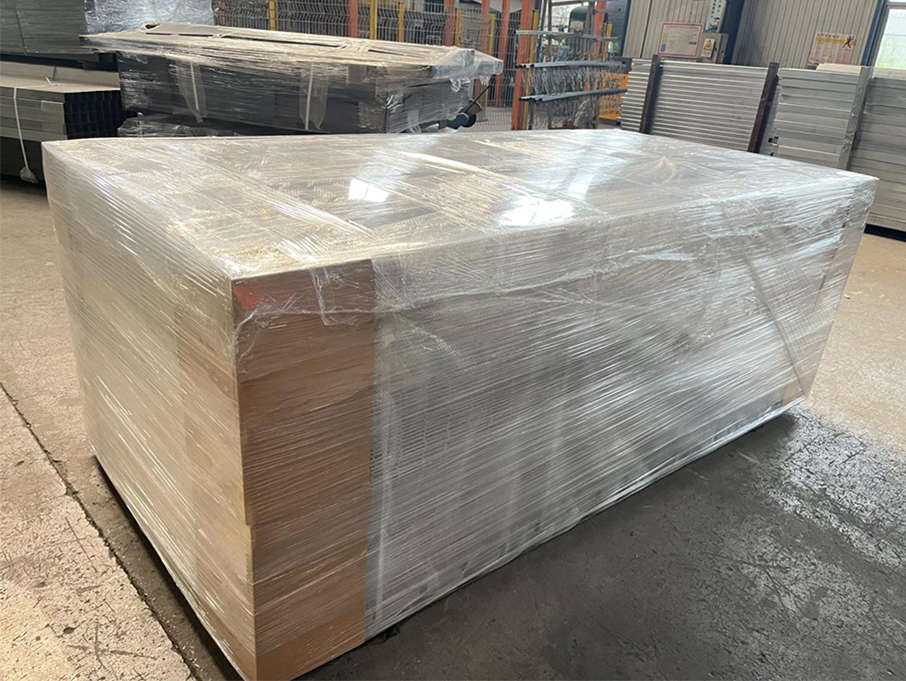

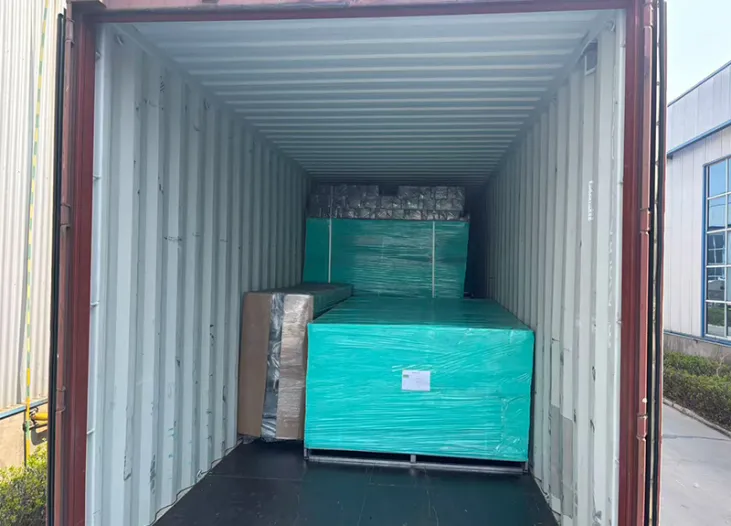

Customize exclusive container loading plans,maximize the use of container space,load more goods and save more money!
The main component of Australia temporary fence is 3d welded fence panels, panel clamps and plastic feet as shown below.
Clamp bar connection
I post connection

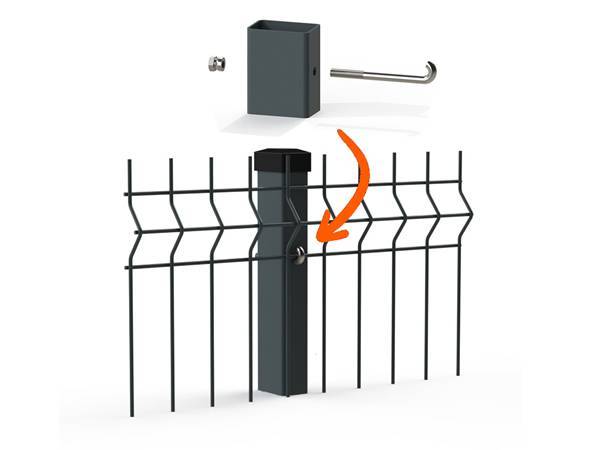

J bolt connection

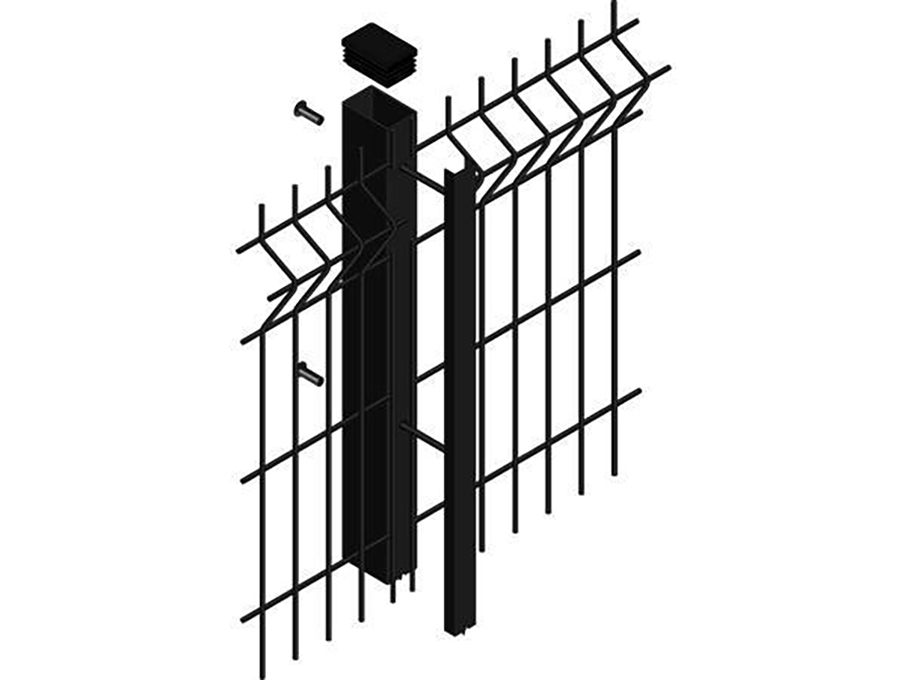

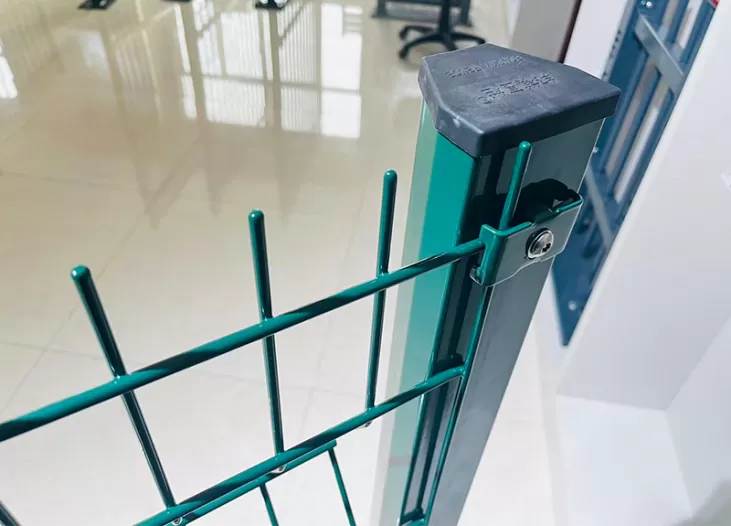

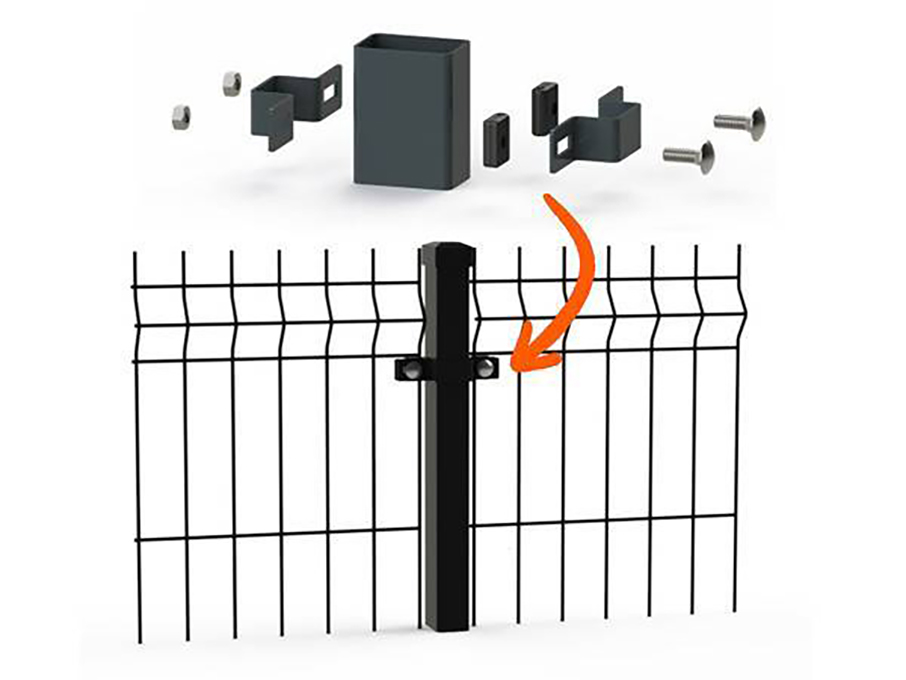

Metal clamp connection

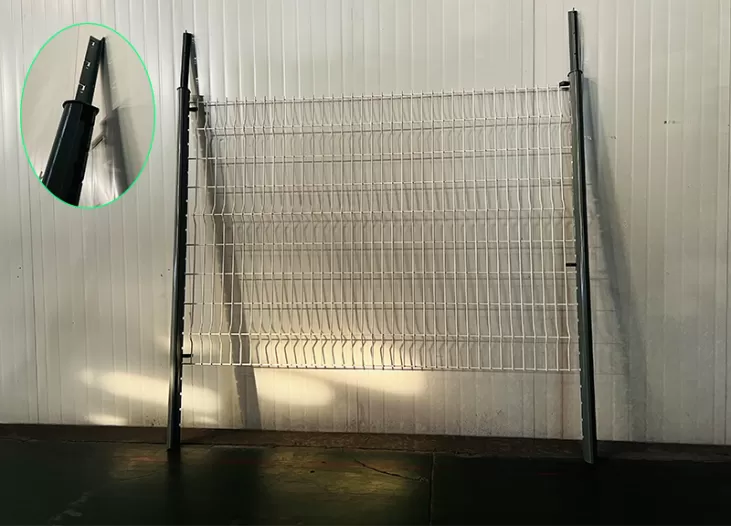

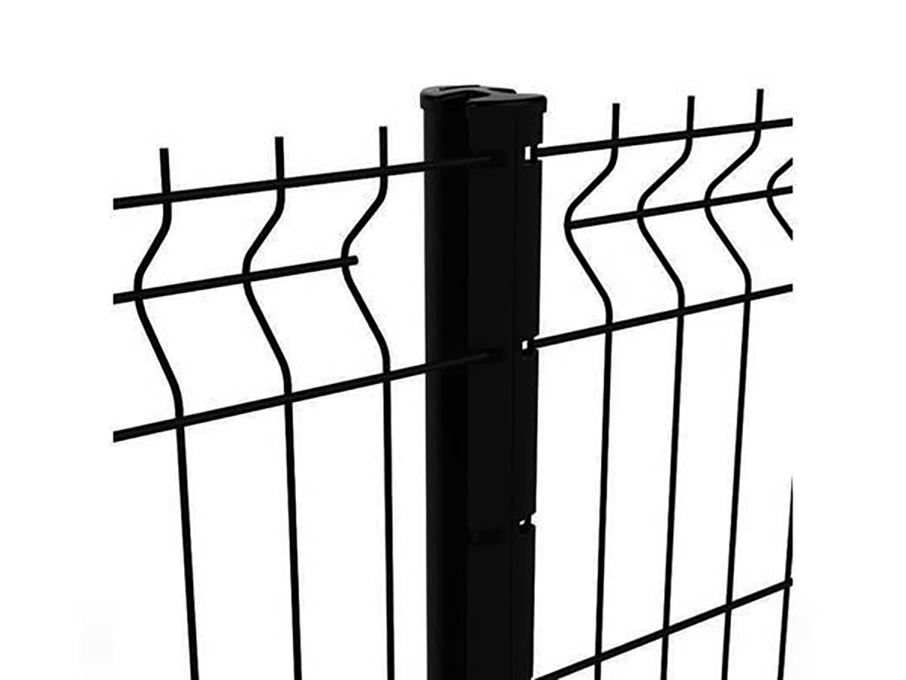

Peach post connection
Square clamp connection .

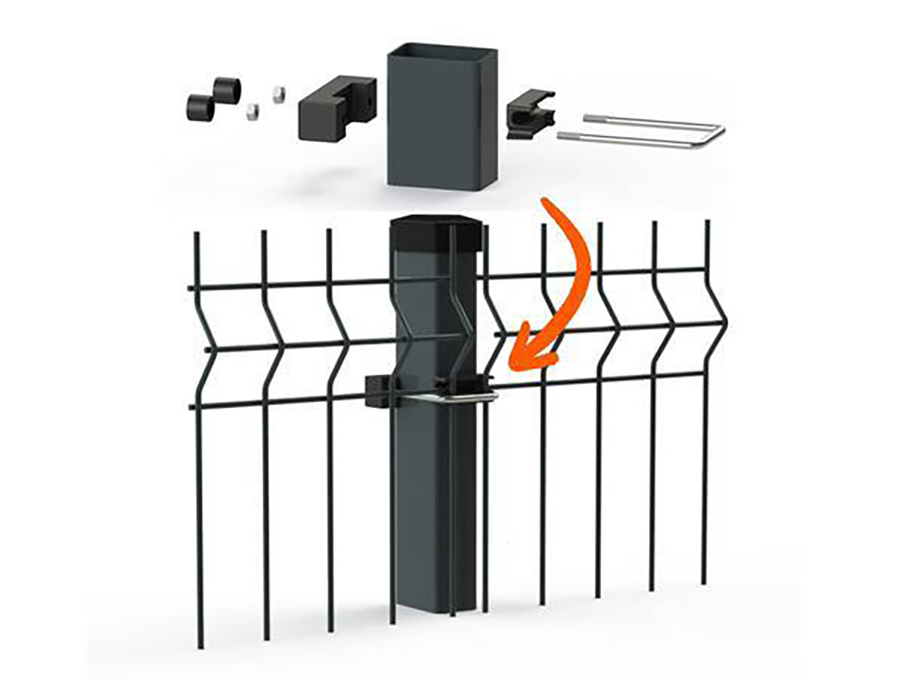

U bolt connection
Round post

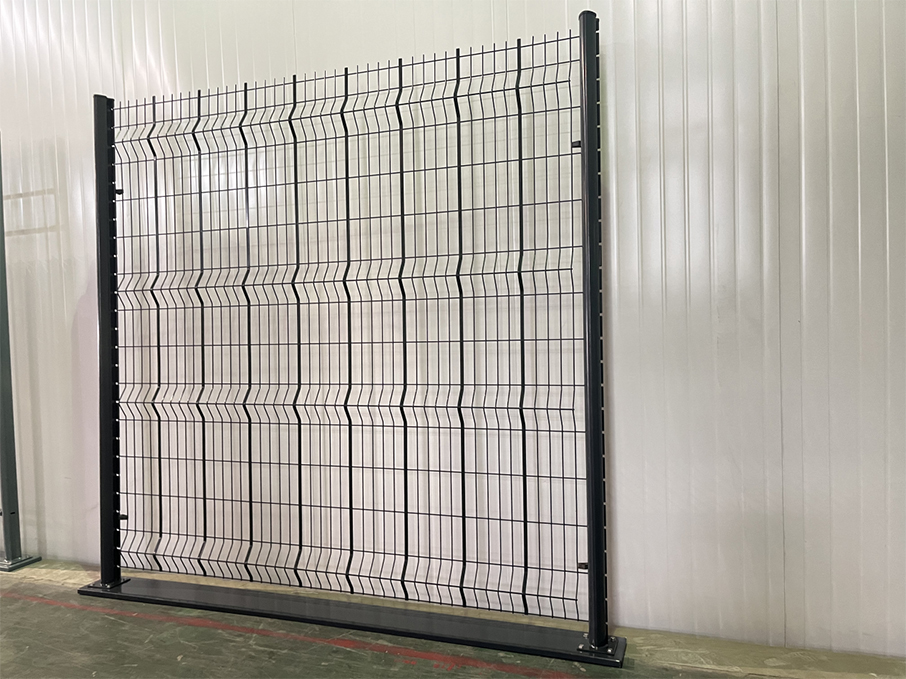

square post
Rectangular post
Peach post
I shape post
Barbed wire
Razor wire
Enhanced Strength and Stability – The V-shaped bends on each panel significantly increase the structural integrity of the fence, making it more impact-resistant.
Attractive Appearance – The 3D curved design offers a modern and elegant appearance suitable for both residential and commercial areas.
Anti-Corrosion Surface – Every panel is hot-dip galvanized and powder-coated with AkzoNobel certified powder for superior rust resistance and long service life.
Easy Installation – Compatible with multiple post types including square, round, rectangular, and peach-shaped posts; ideal for flat or sloped terrain.
Customizable Design – Height, mesh aperture, wire diameter, and coating color can all be customized based on project requirements.
BONKFC is a leading metal fence manufacturer in China, specializing in 3D Mesh Fence, 358 Fence, Double Wire Fence, and Palisade Fence systems.
We use advanced equipment and certified materials to ensure every fence meets international standards.
Advantages
Factory-direct supply, OEM/ODM service
Advanced automated welding and coating lines
Over 60 countries export experience
Strict QC & after-sales support

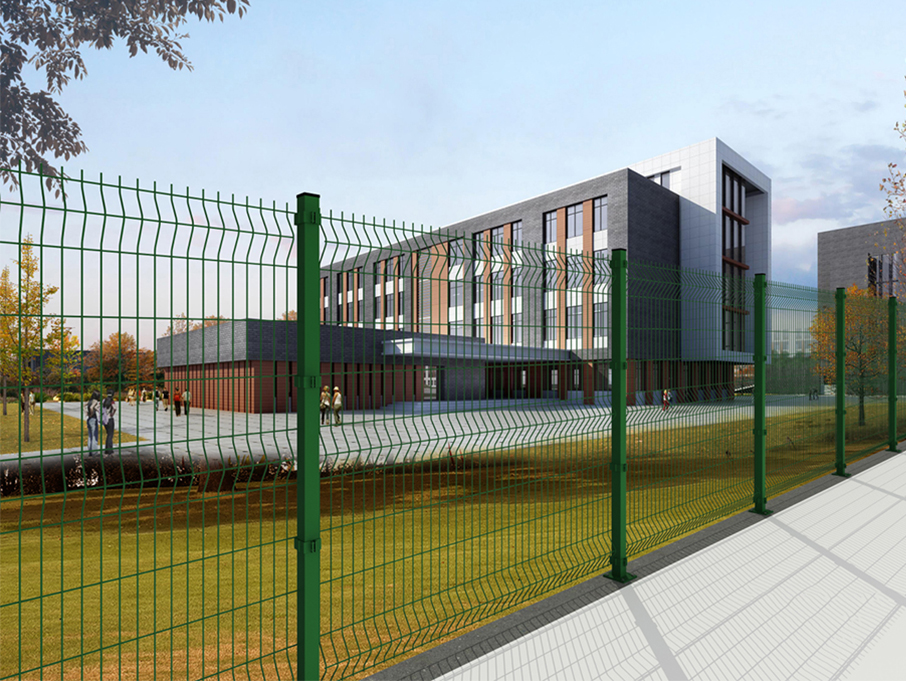

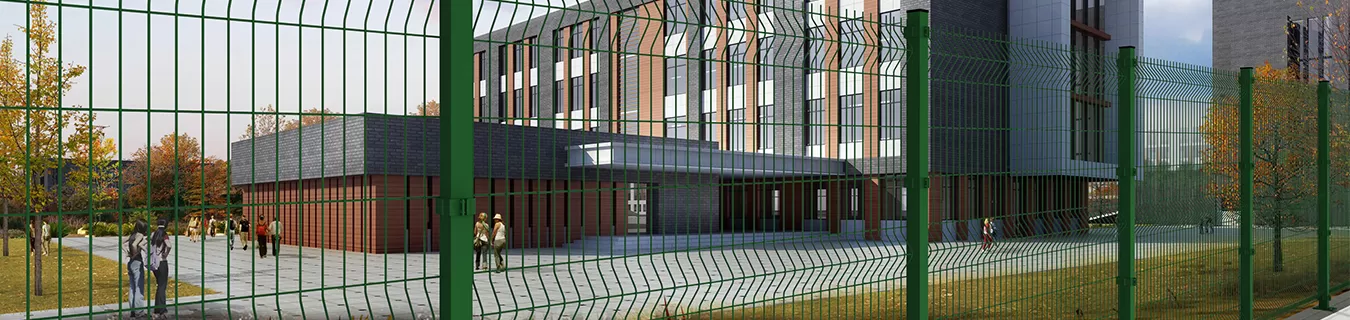

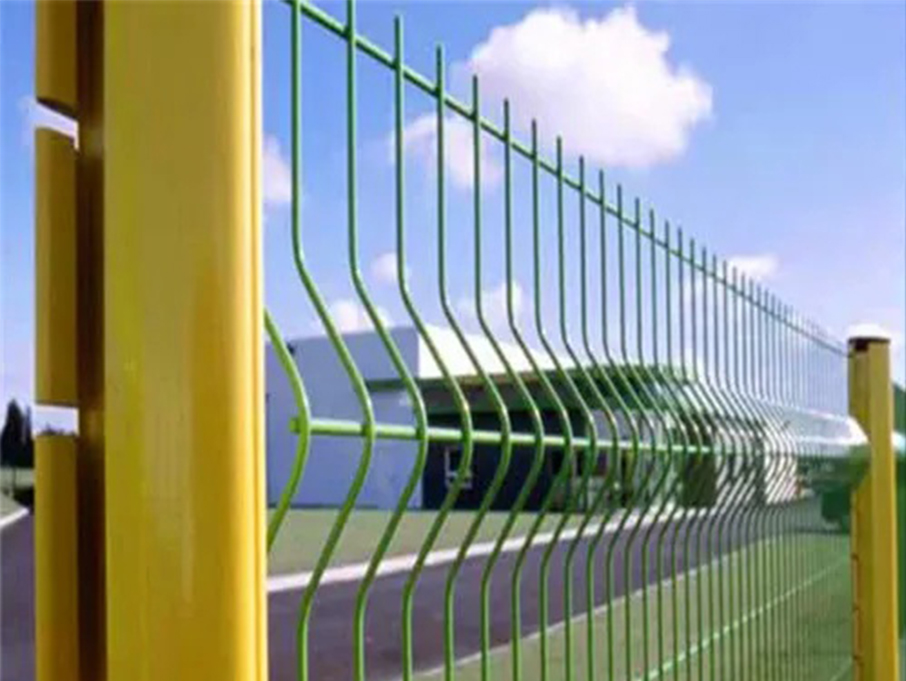

3d Fence Panel can form a securty fence with square posts, Rectangular posts, peach shaped posts or round posts, 3d securty fence is a kind of fence that iswidely used as residential fence, park fence, factory fence, road fence, etc.

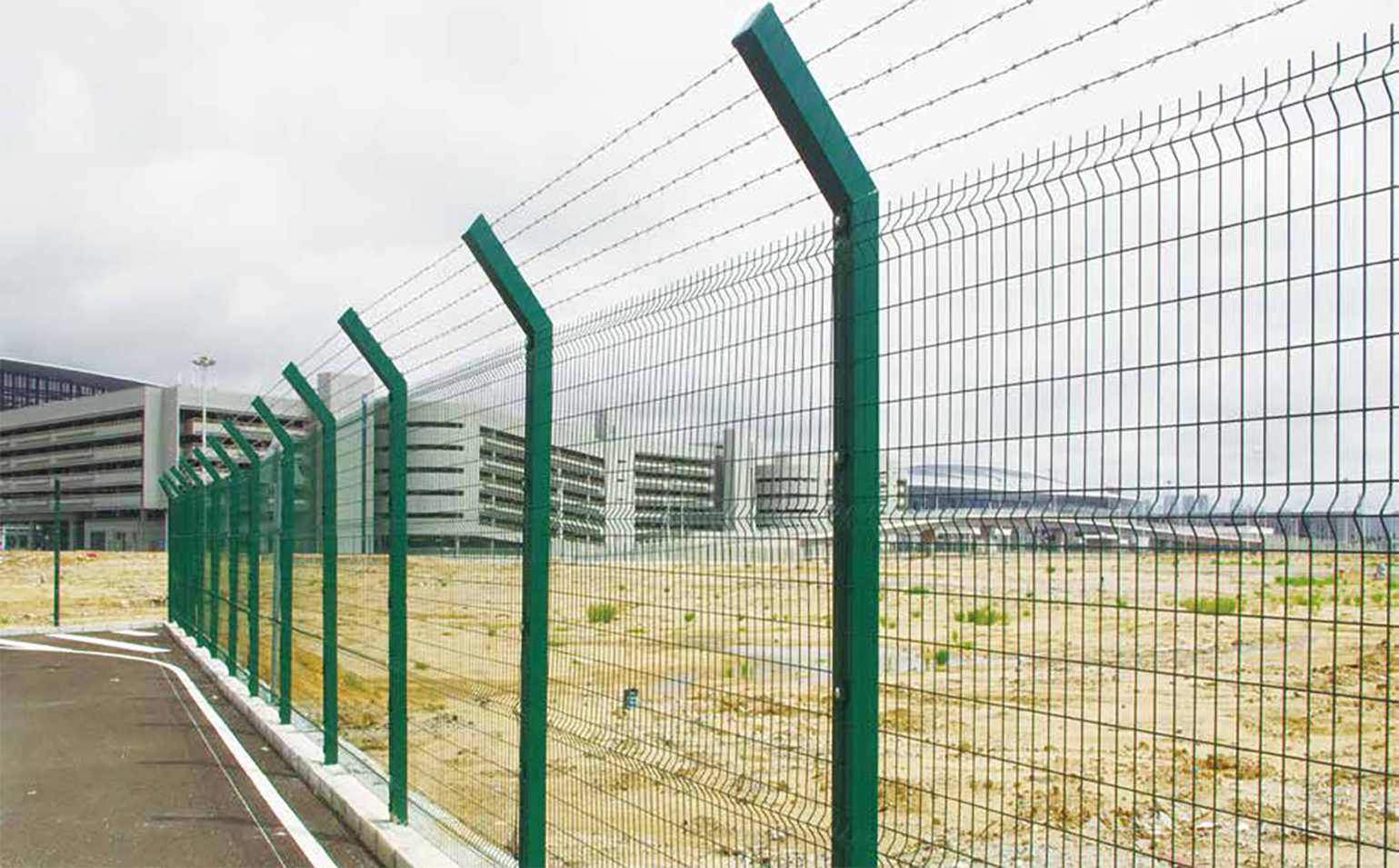

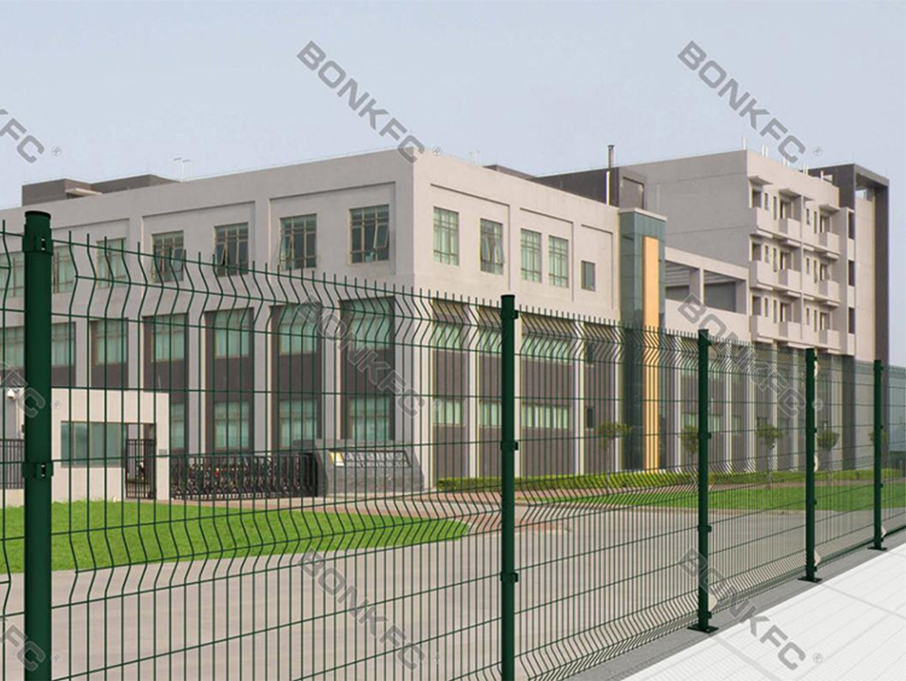

Industrial Parks and Warehouses

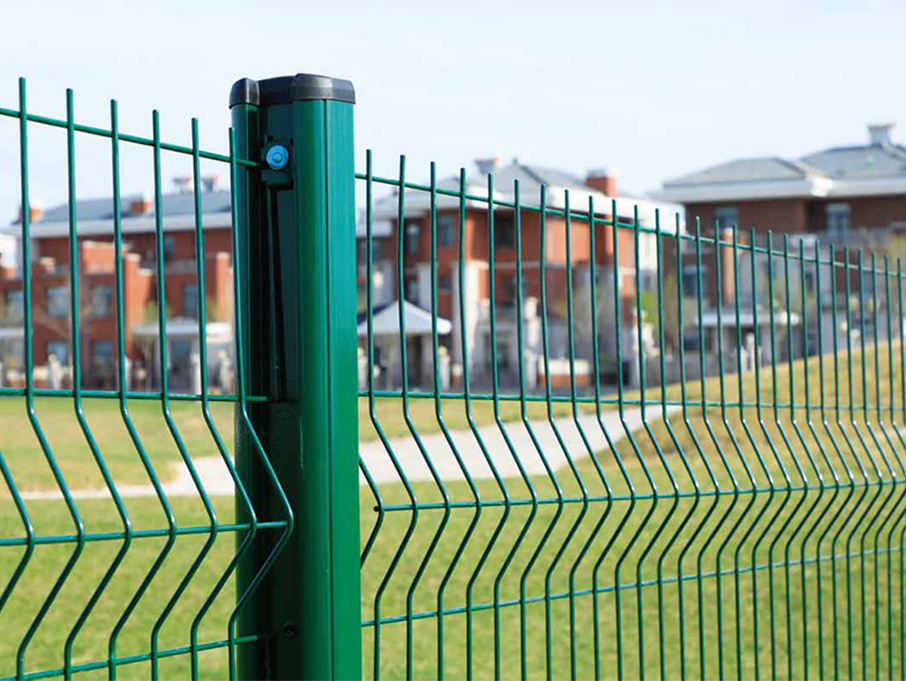

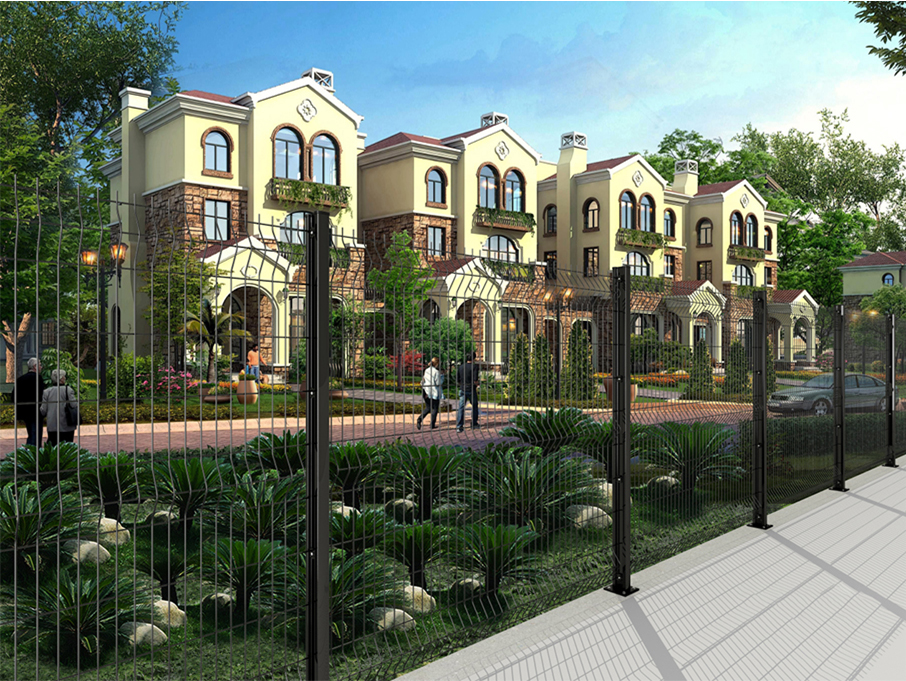

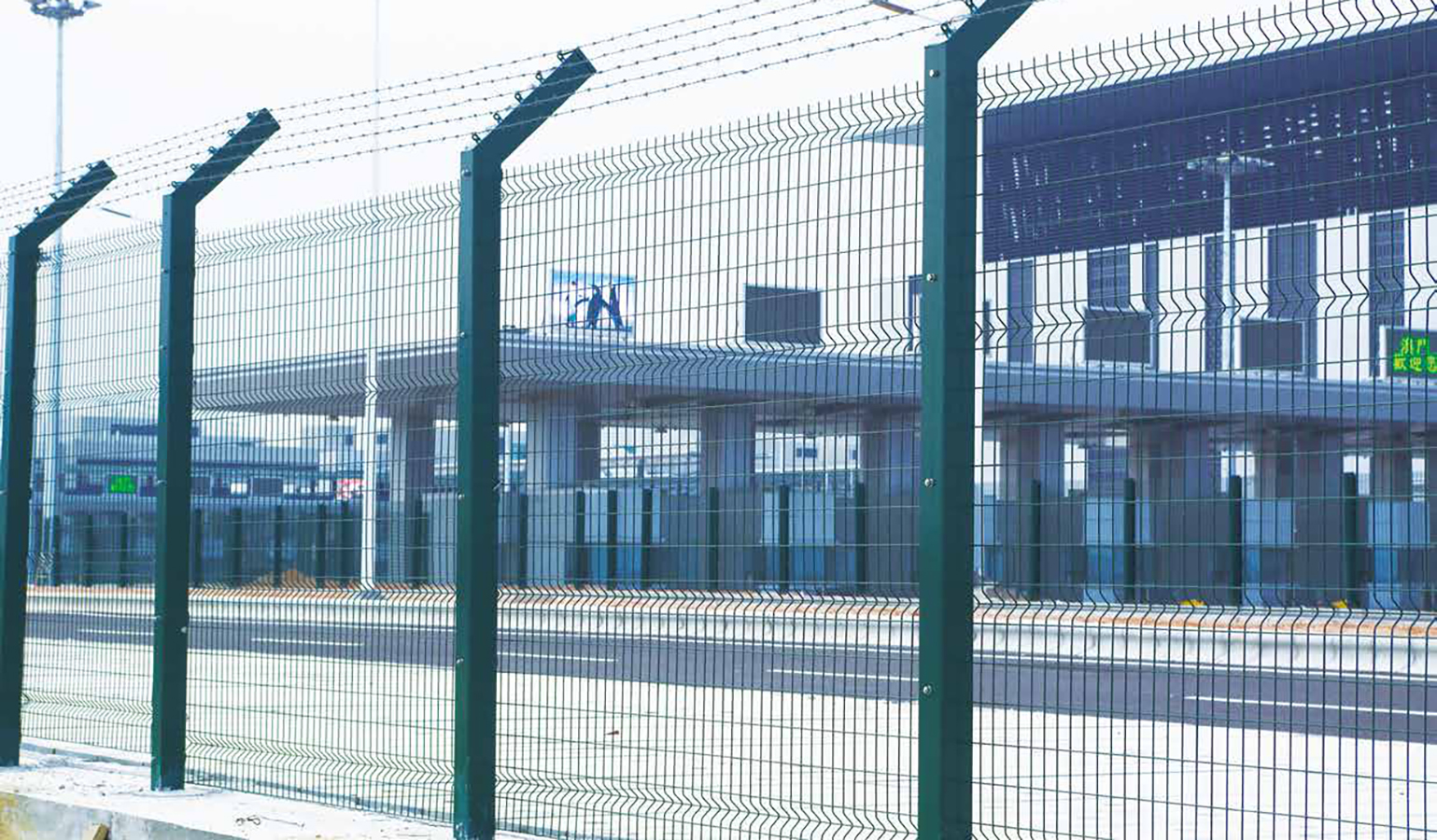

Residential Perimeter security

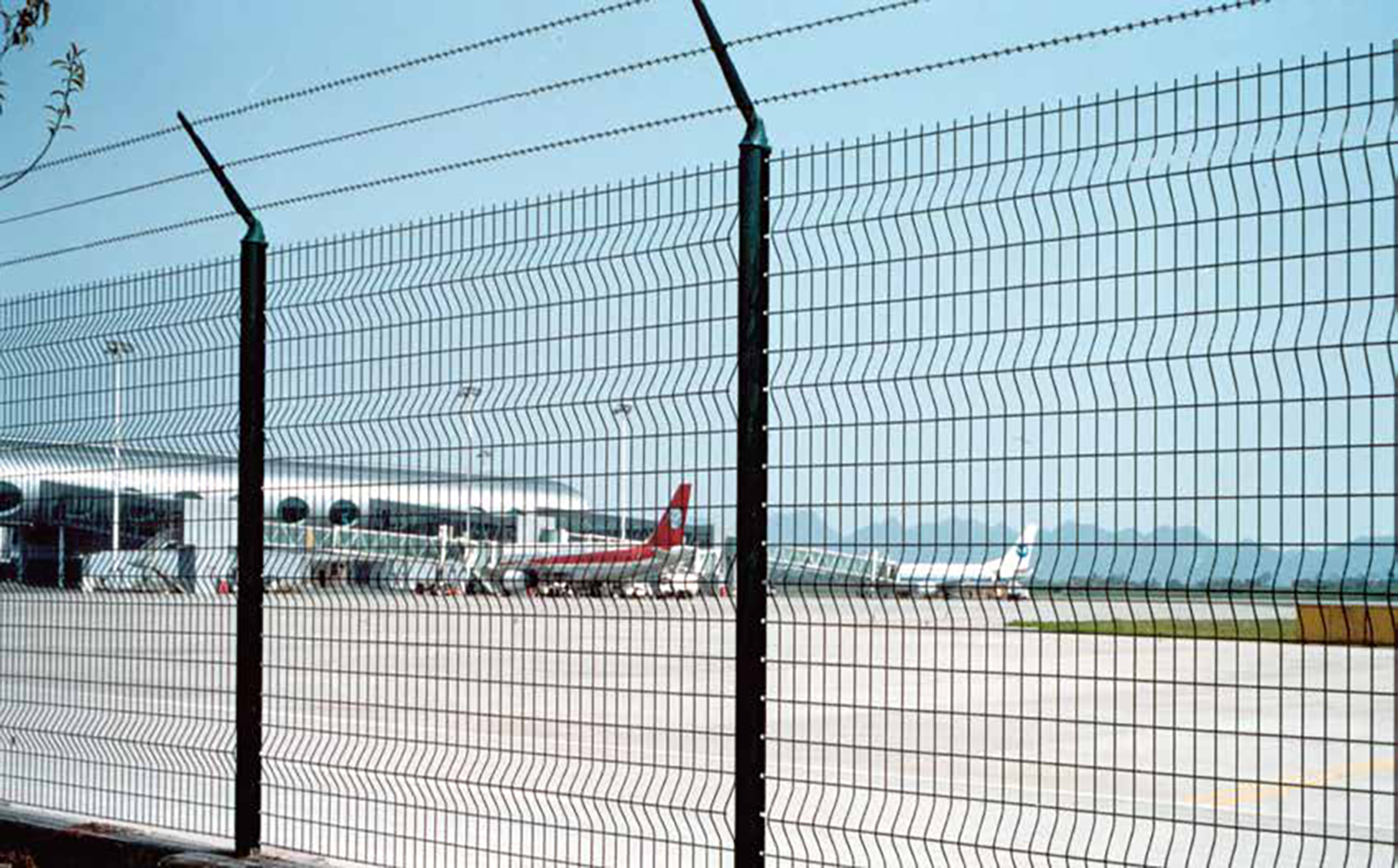

Airports,Stations, and Public Infrastructures
Residential Perimeter security

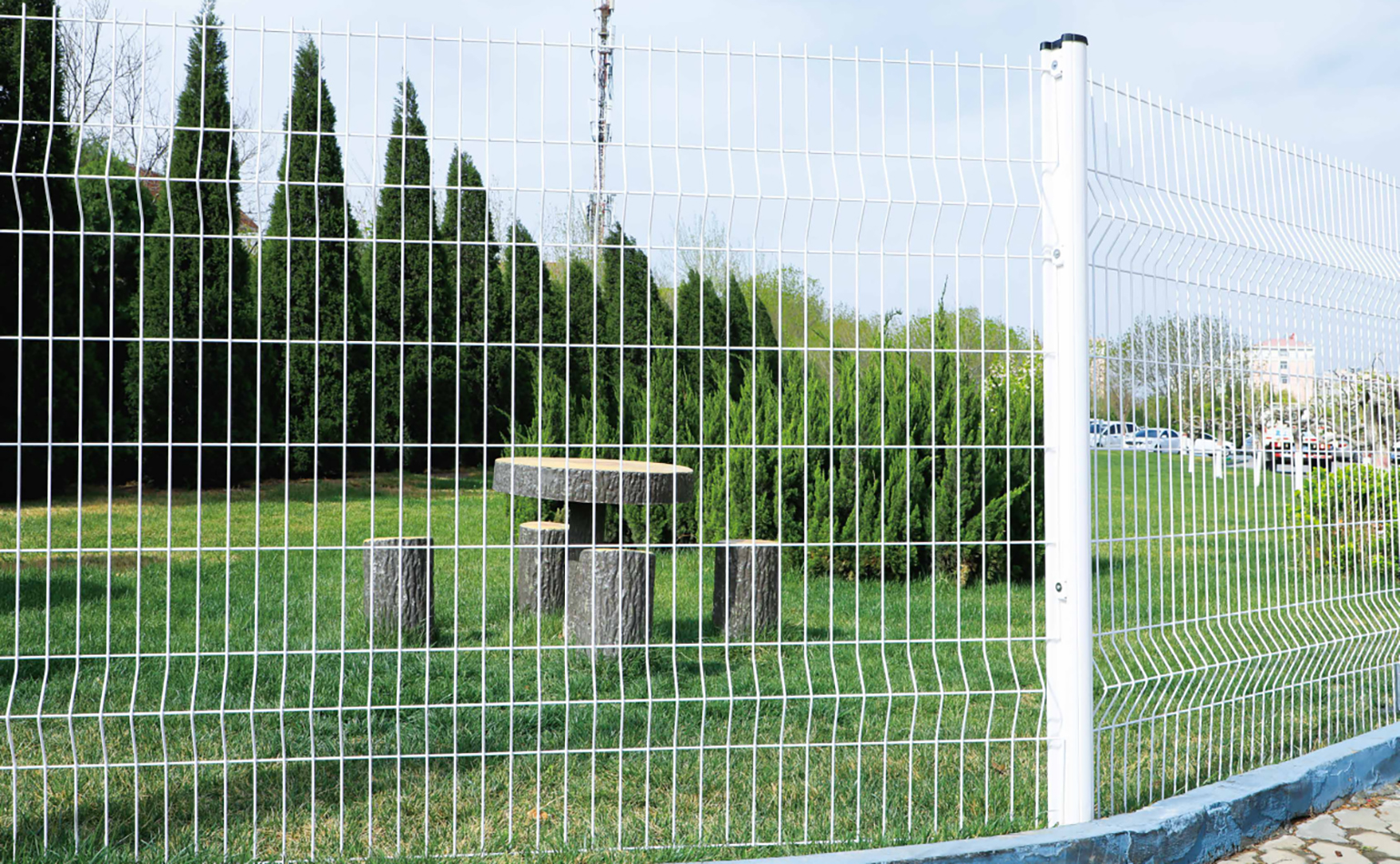

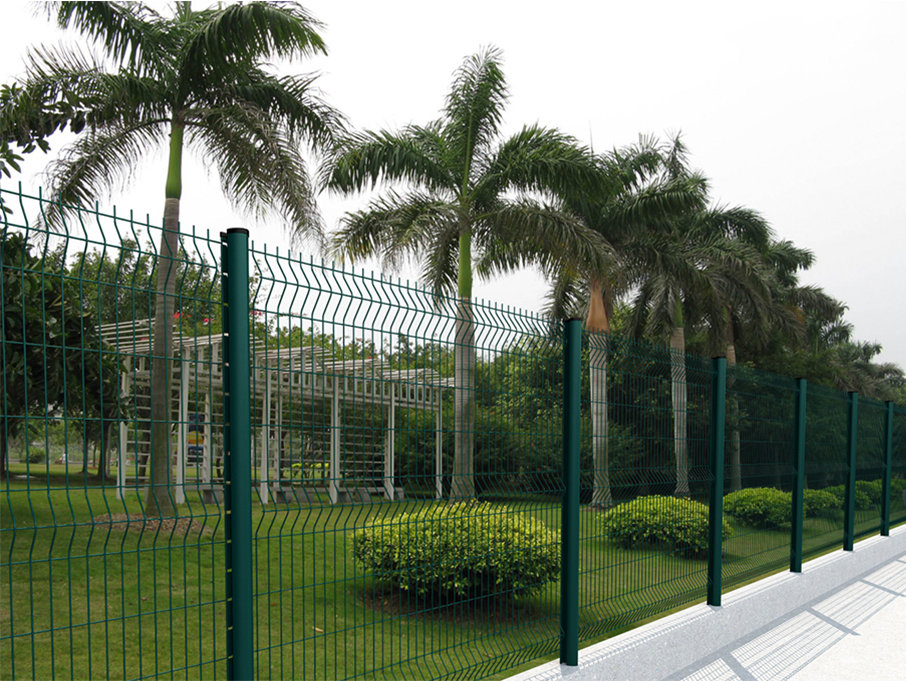

Urban Roads and Public Parks

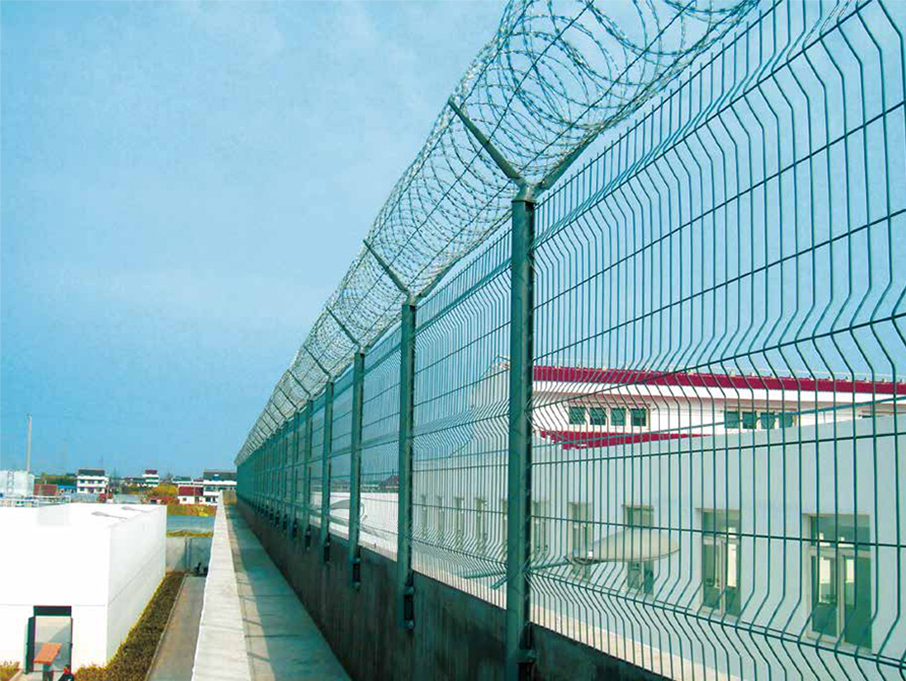

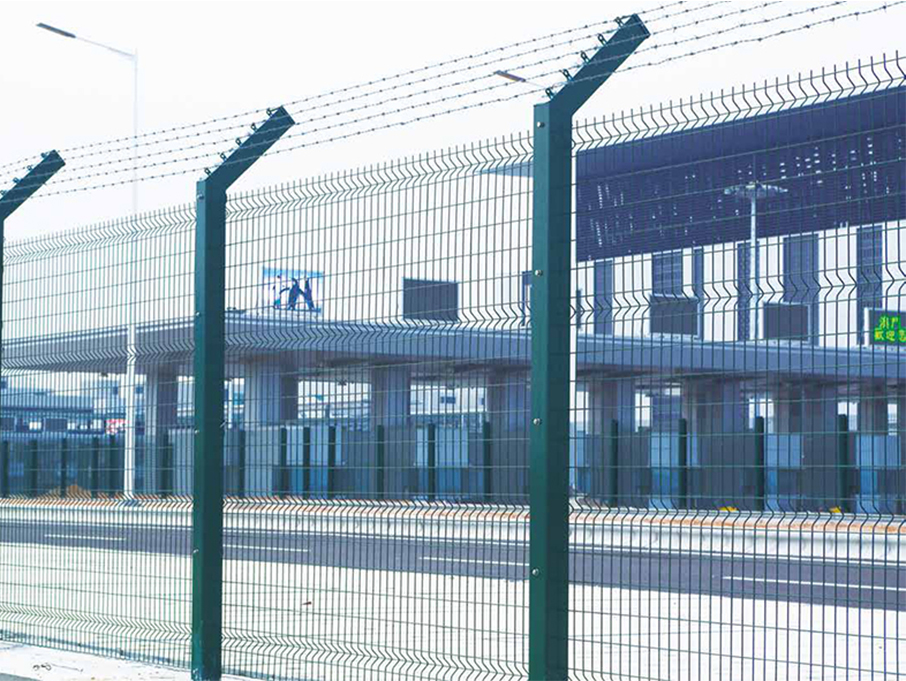

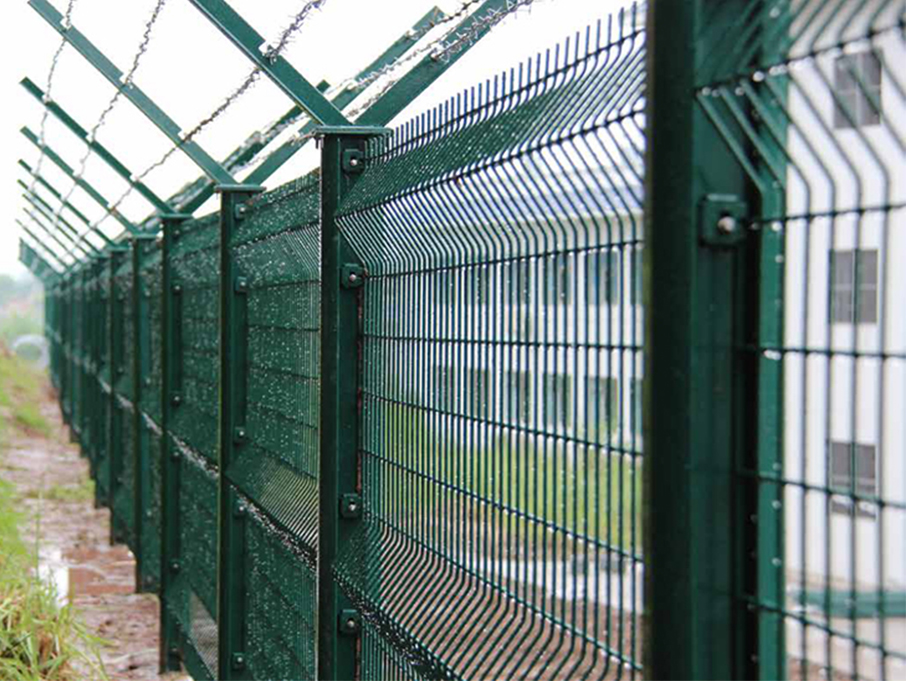

High Security Fence
Hong Kong-Zhuhai-Macao Bridge Macao Port Project | BONKFC Fencing Solutions
