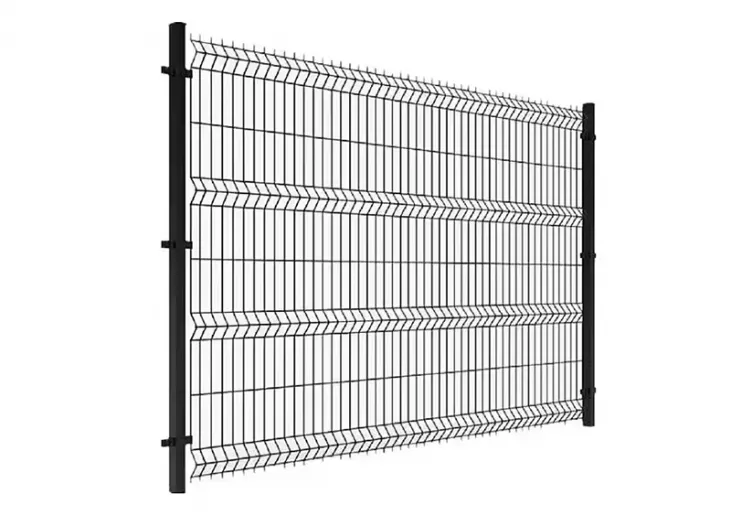

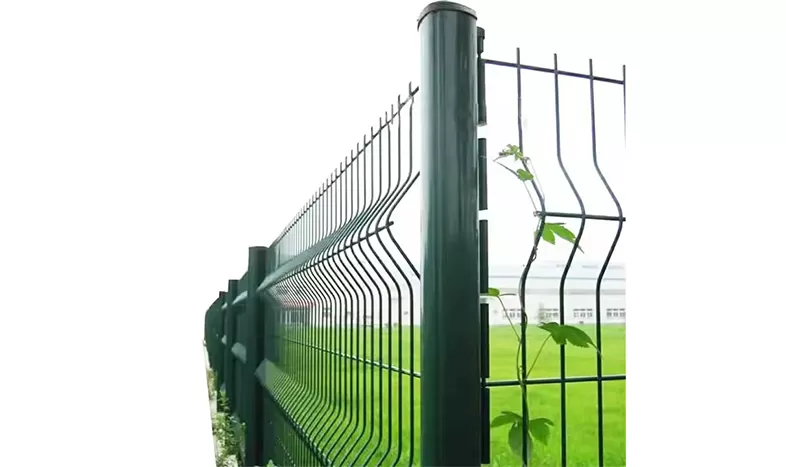

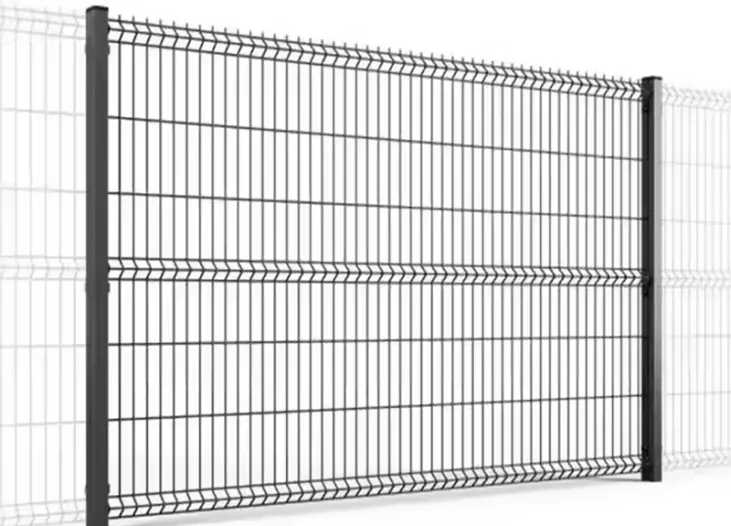

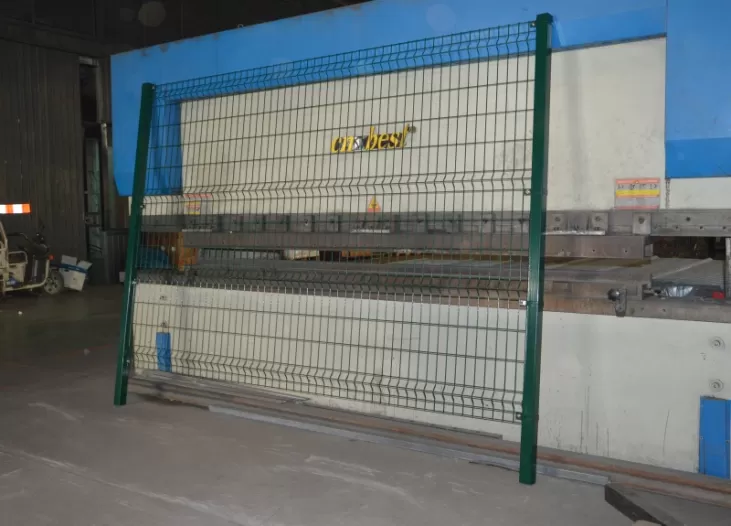

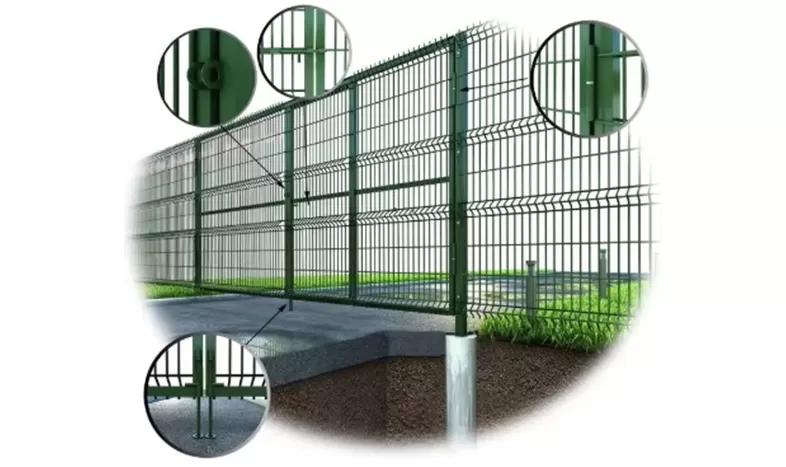

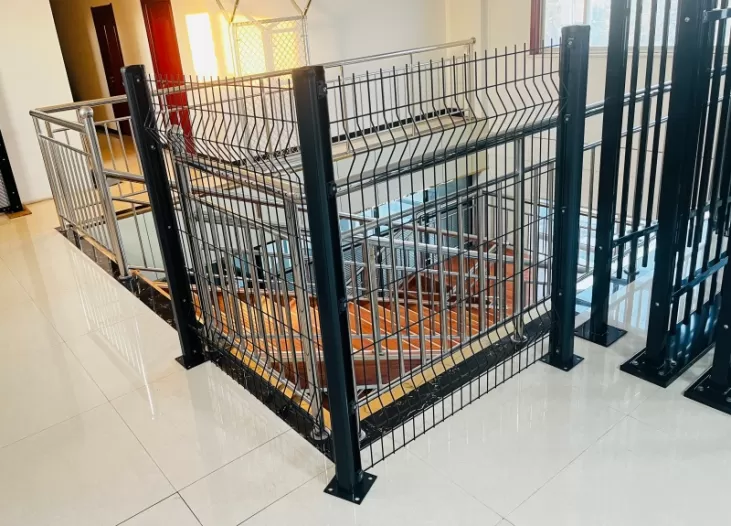

3D mesh fence
Material: Q195/Q235 wire and pipe
Brand : BONKFC Fence
From: China BONKFC
Color: Black 9005, Black Green 6005, Grey7016 or as customized
A:Height:630 mm,830 mm,1030 mm,1230 mm,1430mm,1630 mm,1730 mm,1830 mm,2030 mm,2230 mm, 2430 mm
B:Width: 2000 mm,2200mm, 2500 mm, 2900 mm
C:Wire Diameter: 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0
mm
D:Mesh Opening:50 x100 mm, 50 x150 mm, 50 x200mm,55x200mm,75 x100 mm,75x150mm etc.
E:Clamp:metal clamp/anti-UV plastic clamp/no clamp(for peach post)
F:
Post: Round post (48 0D x1.5/2.0 mm, 60 0D x1.5/2.0
mm);
Square post(50x50 x1.5/2.0 mm, 60 x60 x1.5/2.0 mm, 80 x80 x1.5/2.0 mm);
Rectangular post(40x60x1.5/2.0 mm,40x80 x1.5/2.0 mm,60x80x1.5/2.0 mm,80x100 x1.5/2.0 mm)
Peach post::70x100mm
Post Cap: metal cap/anti-UV plastic cap
If the fence height falls between 630 mm and 1430 mm, it will have 2 folds; if the fence height falls between 1530 mm and 1930 mm, it will have 3 folds; if the fence height falls between 2030 and 2430, it will have 4 folds as shown below.
When you compare 3D mesh fence side-by-side with flat welded mesh or chain link, the difference is immediately obvious: the V-shaped horizontal bends running across each panel create a rigid, self-supporting structure that flat mesh simply cannot match. Those bends are not decorative — they are a structural engineering choice that increases panel stiffness by up to 40%, allows wider bay spacing without sag, and eliminates the panel flex that makes flat mesh vulnerable to climbing and cutting.
BONKFC manufactures 3D mesh fence panels at our Hengshui factory using Swiss-imported Schlatter resistance welding lines and AkzoNobel-certified powder-coating systems. Every order is produced to the dimensions and specifications you confirm — height, wire diameter, mesh aperture, post type, coating colour — and backed by a full set of quality inspection documents. We supply direct to distributors, developers, and contractors in over 60 countries.

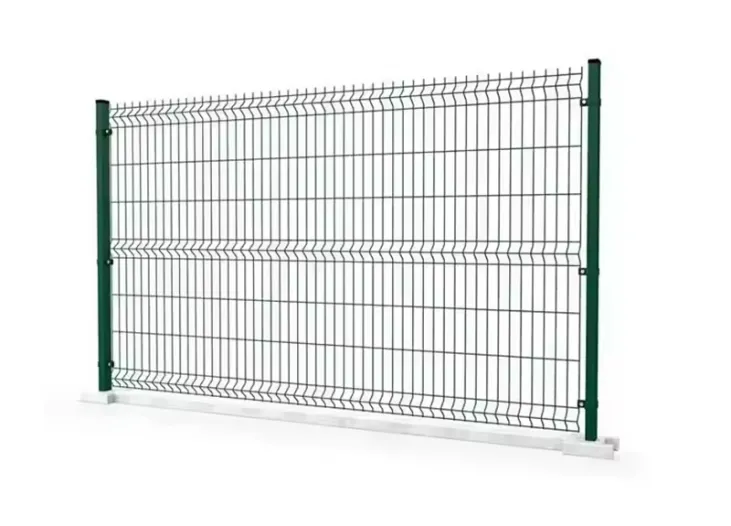

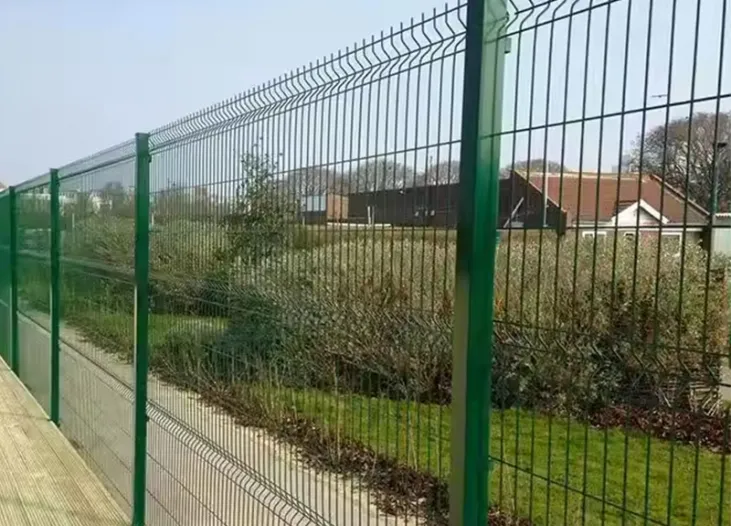

A 3D mesh fence (also called curved mesh fence, V-fold fence, or Euro fence panel) is a rigid welded wire mesh panel that has been cold-bent at regular intervals to form V-shaped or W-shaped channels running horizontally across the panel face. The bending is applied after welding on a dedicated press-brake or roll-forming machine; the welds are not disturbed by the forming process.
The structural benefit works by the same principle as a corrugated cardboard sheet: a flat sheet deflects easily under lateral load, but a corrugated sheet of the same material and weight resists deflection dramatically better. For a fence panel, this means:
• Greater rigidity at the same wire diameter — a 3D panel in 4 mm wire matches the stiffness of a flat panel in 5 mm wire, at lower material cost per linear metre
• Wider post spacing without panel sag — standard bay spacing of 2.5 m to 3.0 m is achievable with 3D panels; flat mesh typically requires 2.0 m centres for comparable stiffness
• Improved impact resistance — the bend geometry absorbs lateral impact (footballs, vehicle brush contact, wind gusts) and recovers, rather than permanently deforming
• Anti-climb advantage — the V-fold profile breaks up flat footholds and makes the panel surface less predictable to climb than a flat mesh of the same aperture

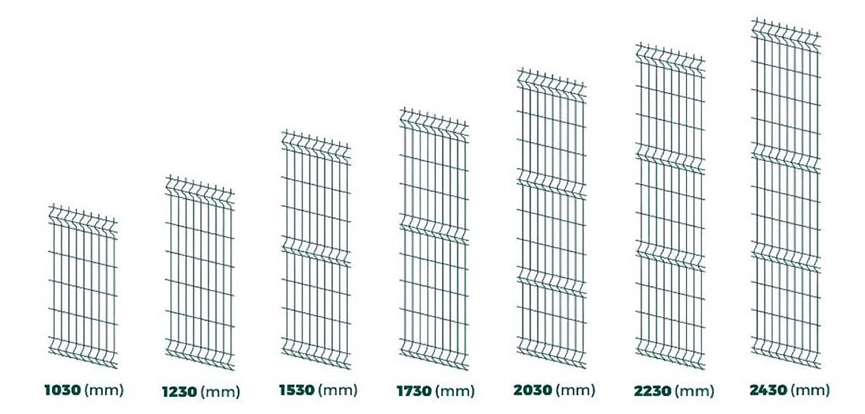

The number of V-folds on a panel is determined by panel height: shorter panels have 2 folds; taller panels have 3 or 4 folds. This is detailed in the specification section below.

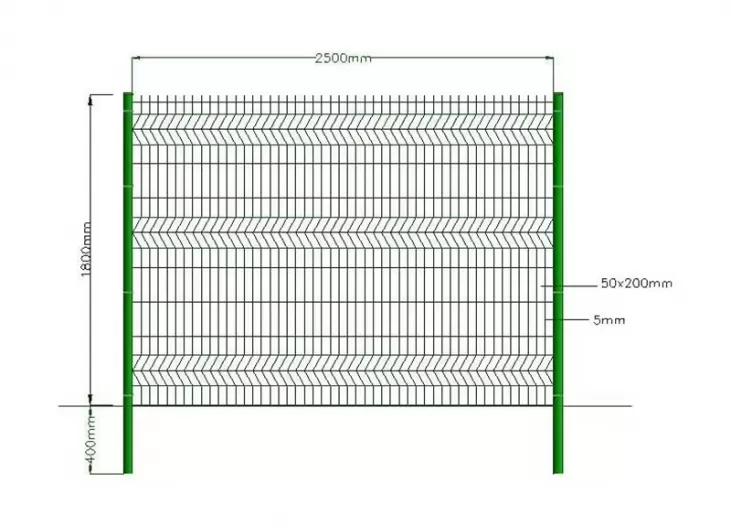

Standard panel heights and widths. Custom dimensions are available; minimum custom run is 200 panels per size.
Dimension | Available Sizes |
Height (mm) | 630 / 830 / 1030 / 1230 / 1430 / 1530 / 1630 / 1730 / 1830 / 2030 / 2230 / 2430 |
Width (mm) | 2000 / 2200 / 2500 / 2900 (custom widths on request) |
Number of V-folds | 630–1430 mm height → 2 folds | 1530–1930 mm height → 3 folds | 2030–2430 mm height → 4 folds |
Wire Diameter | Tensile Strength | Recommended Use | Relative Cost |
3.0 mm | 500–600 MPa | Garden / light residential | Economy |
3.5 mm | 500–600 MPa | Residential / school | Standard |
4.0 mm | 500–600 MPa | Commercial / park / road | Mid-range |
4.5 mm | 500–600 MPa | Industrial / warehouse | Mid-range+ |
5.0 mm | 500–600 MPa | High-security / heavy industrial | Premium |
Aperture (H × V mm) | Security Level | Typical Application |
50 × 100 mm | High — prevents foot and handholds | Schools, prisons, sensitive facilities |
50 × 150 mm | Medium-high | Housing estates, commercial premises |
50 × 200 mm | Medium — standard residential | Gardens, parks, sport courts |
55 × 200 mm | Medium | Residential with decorative requirement |
75 × 100 mm | Medium | Farms, rural property |
75 × 150 mm | Economy / visibility | Road boundaries, solar farms |
All posts are Q235 steel, manufactured in-house. Post wall thickness and section size are selected based on panel height, wind zone, and post spacing. Our engineering team provides post foundation depth recommendations as part of the order documentation.
Post Type | Sizes Available | Wall Thickness | Connection Method |
Round | OD 48 mm / OD 60 mm | 1.5 mm / 2.0 mm | Clamp bar or U-bolt |
Square SHS | 50×50 / 60×60 / 80×80 mm | 1.5 mm / 2.0 mm | Clamp bar or J-bolt |
Rectangular RHS | 40×60 / 40×80 / 60×80 / 80×100 mm | 1.5 mm / 2.0 mm | Clamp bar or metal clamp |
Peach post | 70×100 mm (Y-profile) | Standard section | Direct (no separate clamp) |
I-shape post | Standard I-section | Standard section | I-post connection bracket |
Post caps: metal galvanized cap or anti-UV plastic cap — both supplied as standard. Standard post centre spacing: 2.5 m or 3.0 m (confirm with order).

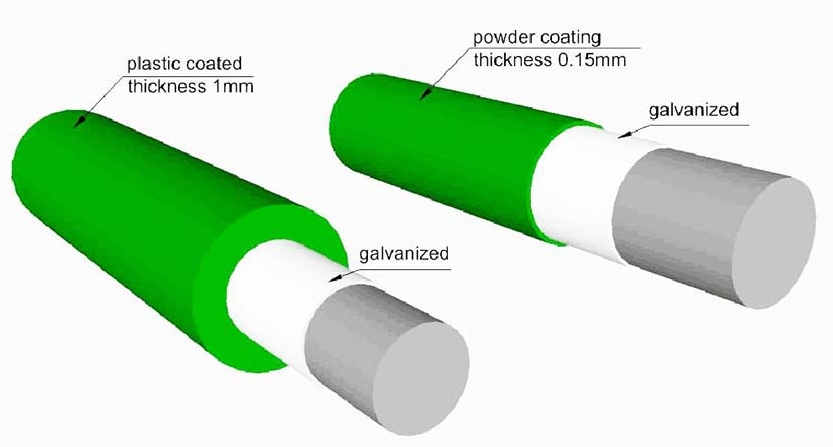

All BONKFC 3D mesh fence panels undergo a multi-stage surface treatment process. The sequence — sandblasting → nanoceramic degreasing → HDG or powder coat application — ensures maximum adhesion and corrosion resistance. Three finishes are available:
• Process: panels are immersed in a molten zinc bath at 450°C; zinc bonds metallurgically to the steel surface
• Zinc deposition: ≥ 200 g/m² (compliant with BS EN ISO 1461:2009 for fabricated steel articles)
• Corrosion resistance: ≥ 1,000 hours salt-spray without red rust (ISO 9227 baseline)
• Colour: natural galvanized silver-grey (non-standard colours not available with HDG only)
• Recommended for: rural agricultural projects, temporary perimeters, cost-sensitive infrastructure
• Base coat: HDG as above (≥ 200 g/m² zinc)
• Pre-treatment before powder coat: nanoceramic degreasing (replaces traditional phosphating — better adhesion, lower environmental impact)

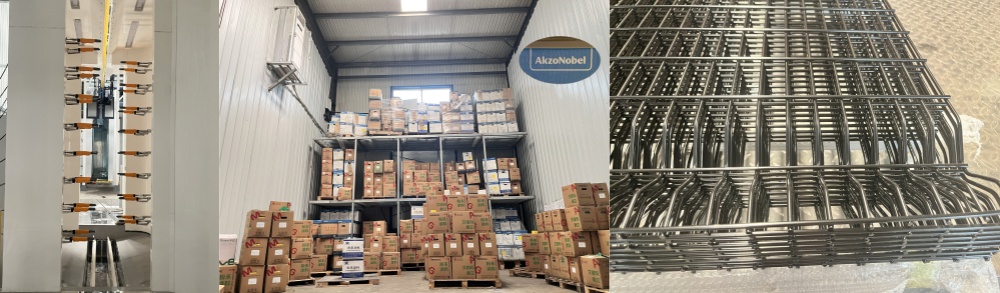

• Powder: AkzoNobel Interpon D1010 polyester; applied by 32 ITW GEMA automatic electrostatic guns
• Coating thickness: ≥ 120 microns (double-sided); verified by magnetic thickness gauge on each production batch
• Curing: 200°C oven cure for 20 minutes; cross-cut adhesion test (ISO 2409) on every production run
• Corrosion resistance: ≥ 3,000 hours salt-spray without red rust or coating delamination (ISO 9227)
• UV resistance: QUV accelerated weathering tested; no colour fade or chalking within 10-year outdoor service period
• Standard colours: RAL 9005 Jet Black / RAL 6005 Moss Green / RAL 7016 Anthracite Grey / custom RAL on request (MOQ applies)
• Recommended for: residential housing estates, schools, parks, commercial developments, export markets
• Base: hot-dip galvanized wire; PVC coating applied before or after welding (specify at order stage)
• PVC thickness: 0.5 mm – 1.0 mm total layer thickness
• Colours: Green / Black / Brown (standard stock); other colours available at additional lead time
• Flexibility: PVC coating absorbs minor impacts without cracking; preferred for playground and residential garden applications
• Recommended for: garden fencing, playground perimeters, decorative residential applications
If you are comparing 3D mesh fence against other welded or woven fence products, the table below covers the key decision factors. The right choice depends on your security requirement, budget, and installation context.
| Factor | 3D Mesh Fence | BRC Fence | Double Wire Fence | Chain Link |
| Panel rigidity | ★★★★★ (V-fold structure) | ★★★★ (flat rigid) | ★★★★ (twin wire stiffened) | ★★ (flexible mesh) |
| Anti-climb performance | ★★★★ (fold disrupts footholds) | ★★★ (flat surface) | ★★★★ (no grip rail) | ★★ (easy to climb) |
| Visual appearance | ★★★★★ (modern aesthetic) | ★★★ (functional) | ★★★★ (clean profile) | ★★ (industrial look) |
| Material cost / LM | Mid (3D shaping adds value) | Economy-mid | Mid | Economy |
| Installation speed | Fast (wider bay spacing) | Fast | Moderate | Slow (on-site tensioning) |
| Colour options | Full RAL range | Full RAL range | Full RAL range | Limited (galv / PVC) |
| Best for | Housing estates, schools, parks, roads, solar farms | Temporary works, site hoarding, light perimeters | Highway barriers, high-security perimeters | Tennis courts, sport cages, rural boundaries |
Not sure which product fits your project? Send us your application details and we will recommend the optimal specification with a comparative quotation.
The table below provides BONKFC's recommended starting specification for the most common project types. All recommendations can be adjusted; they are starting points based on our experience with similar projects.
| Application | Recommended Height | Wire Diameter | Mesh Aperture | Notes |
| Residential garden / villa boundary | 1230–1530 mm | 3.5–4.0 mm | 50×150 or 50×200 mm | RAL 6005 or 7016 for discrete appearance |

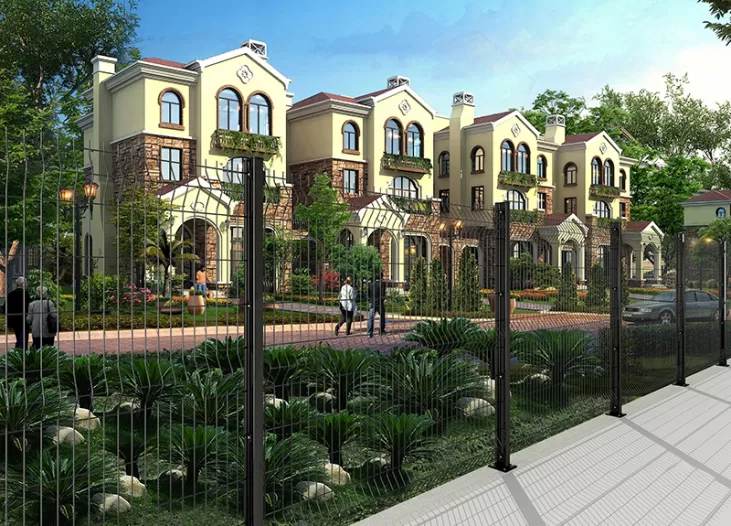

| Housing estate / gated community | 1530–1830 mm | 4.0–4.5 mm | 50×150 mm | Peach or square post; matching swing gate |

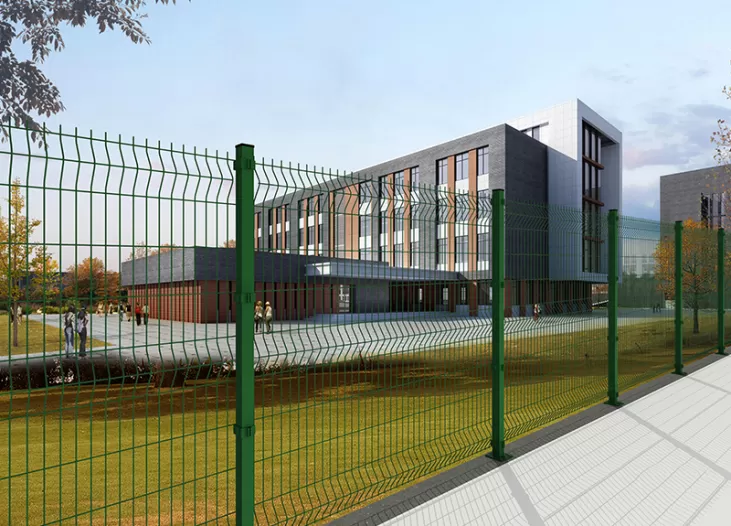

| School / university perimeter | 1830–2030 mm | 4.0 mm | 50×100 mm | Smaller aperture prevents finger grip; no razor wire |
| Sports field / football pitch | 3000–4000 mm (rebound zone) | 4.0–5.0 mm | 50×100 or 50×150 mm | Higher tensile wire for ball impact resistance |
| Industrial park / warehouse boundary | 2030–2430 mm | 4.5–5.0 mm | 50×150 mm | Add razor wire topper on security zone sections |
| Public park / urban green space | 1030–1430 mm | 3.5 mm | 50×200 or 75×150 mm | RAL 6005 moss green most common for parks |

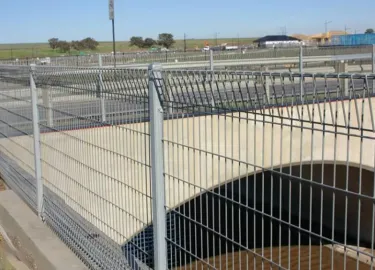

| Road / highway boundary fence | 1530–1830 mm | 4.0 mm | 50×200 or 75×150 mm | Galvanized only acceptable; green preferred in EU |
| Solar farm perimeter | 2030 mm | 4.0 mm | 50×200 mm | Economy spec suits low-visibility farm boundary |
Every production run is subject to eight inspection checkpoints. BONKFC maintains inspection records for all export orders; documentation is available for customer review on request. Third-party inspection by SGS or CCIC is accepted and can be arranged by the customer.
BRC fence (also called square mesh fence or Bekaert-style fence) is a flat welded mesh panel — it has no bends. It is a reliable, lower-cost option for light perimeter work. A 3D mesh fence has V-shaped bends pressed into the panel after welding; this makes it significantly stiffer, more impact-resistant, and better-looking than flat BRC mesh of the same wire diameter. 3D mesh also allows wider post spacing (up to 3.0 m) compared to BRC (typically 2.0 m), which can offset some of the higher panel cost. If appearance and rigidity matter for your project, 3D mesh is the better choice; if you are on a tight budget and purely need a functional boundary, BRC is a reasonable alternative.
The number of V-folds is determined by panel height: 2 folds for heights from 630 mm to 1430 mm; 3 folds for 1530 mm to 1930 mm; 4 folds for 2030 mm to 2430 mm. The fold count is fixed per height range and cannot be customised independently. The folds are evenly spaced across the panel height. If you need a specific fold depth or geometry for a design reason, contact us to discuss; we occasionally accommodate custom fold profiles for large orders.
Yes. We supply sample panels in any specification — standard size is 1000 mm × 1000 mm (cut from production panels), or we can produce a full-size sample panel on request. Sample cost is USD 60–120 per panel depending on specification. This cost is credited against your first bulk order of 500 LM or above. Sample lead time is 7–10 working days. For projects above USD 30,000 in estimated value we will arrange samples at no charge.
BONKFC provides a 5-year warranty on coating adhesion and corrosion resistance under normal outdoor exposure conditions, measured from the date of shipment. The warranty covers: red rust breakthrough on coating surface; coating delamination greater than 5 mm from any point; zinc depletion below 100 g/m² on HDG sections. The warranty does not cover damage from chemical exposure, accidental impact, unauthorized modification, or installation in environments outside the specification (e.g., applying an inland-rated panel in a direct coastal salt environment without upgrading the coating). All warranty claims require submission of installation records and photographic evidence.
Yes. We regularly work with SGS, Bureau Veritas (BV), CCIC, and TUV. You can arrange your own inspector or we can refer you to a local inspection agent. We request 48 hours advance notice before the inspection visit to prepare documentation and make panels accessible in the warehouse. Inspection costs are paid by the customer unless agreed otherwise. Our QC team will be available on-site throughout the inspection to answer technical questions.
Q6. Can you supply the complete fencing system — panels, posts, clamps, gates — in one order?
Yes. BONKFC manufactures or sources all components of a complete 3D mesh fence system: panels, posts (all types), clamps and fixings, post caps, concrete anchor baseplates, pedestrian swing gates, double vehicle gates, sliding gates, and barbed wire or razor wire toppers. We prepare a complete bill of materials (BOM) for your confirmed fence layout and pack all items for the same shipment. This avoids the common problem of missing or mismatched accessories on site. Please provide your fence layout drawing or linear metre quantities per section when requesting a full-system quotation.
To receive an accurate quotation, please provide the following information in your enquiry:
• Total fence length required (linear metres, broken down by height if mixed)
• Fence height(s) required
• Wire diameter preference (or application type so we can recommend)
• Mesh aperture required (or application so we can advise)
• Preferred coating (HDG only / HDG + powder coat / PVC)
• Colour (RAL number if known; otherwise application description)
• Post type preference (or we will recommend based on your spec)
• Destination country and target delivery date
• Whether you require a full system quote (panels + posts + clamps + gates)
3D curved fence
reinforced curved fence
Hot-Dip Galvanized 3D Mesh Fence Provides a continuous zinc coating layer that effectively prevents rust and corrosion, extending service life even in coastal or humid conditions. Powder Coated or PVC Coated 3D Mesh Fence Combines galvanized protection with a smooth, colorful exterior finish. The AkzoNobel powder coating enhances UV resistance and prevents color fading, ensuring long-term aesthetic performance.
galvanized 3D FENCE
powder coating 3d fence
PVC 3d fence
Electroplating and spraying
Production is the top priority of BONKFC's development,and quality is the core criterion for BONKFC's progress. Production Process (Strict Quality Control) Our BONKFC Fence factory is equipped with Swiss Schlatter welding machines and 32 ITW GEMA automatic powder coating guns to guarantee precision and durability. Each step is monitored by professional quality inspectors:

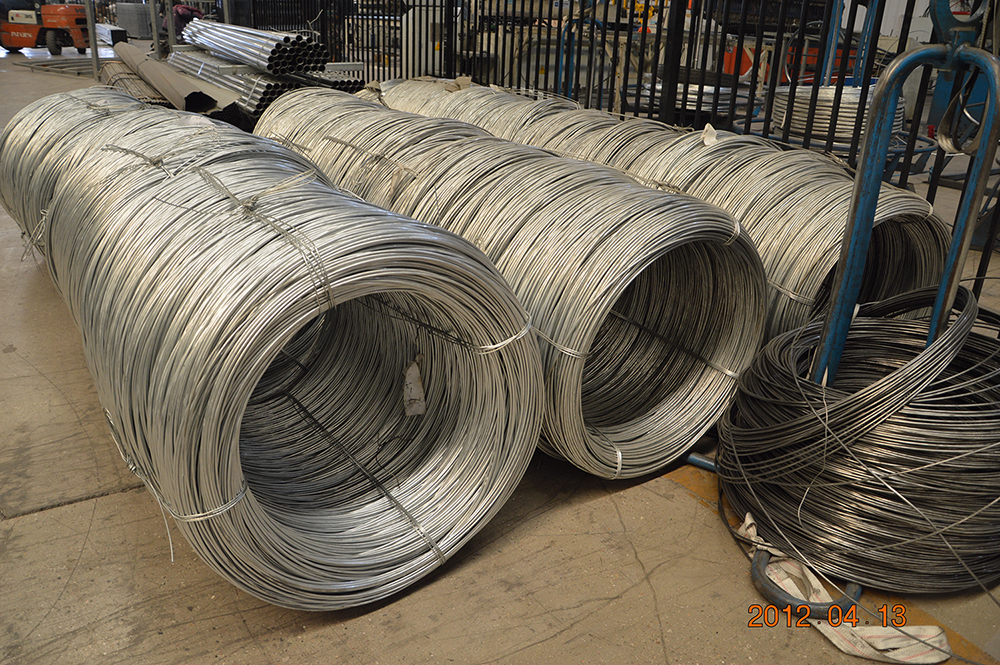

Raw material

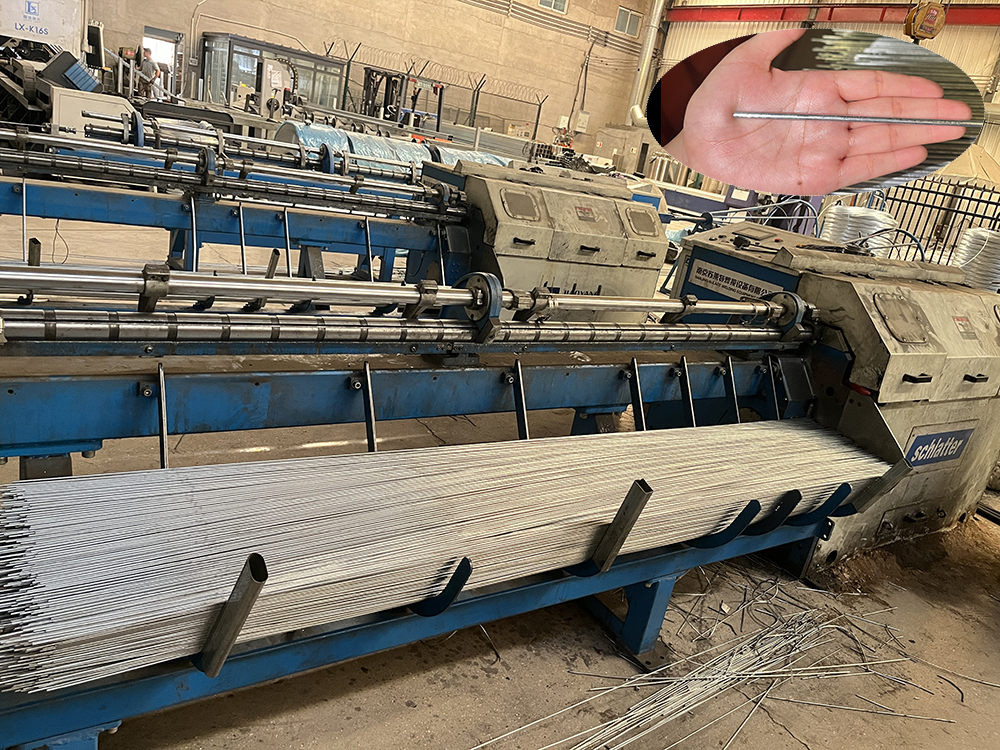

Cut into scratch-free wires

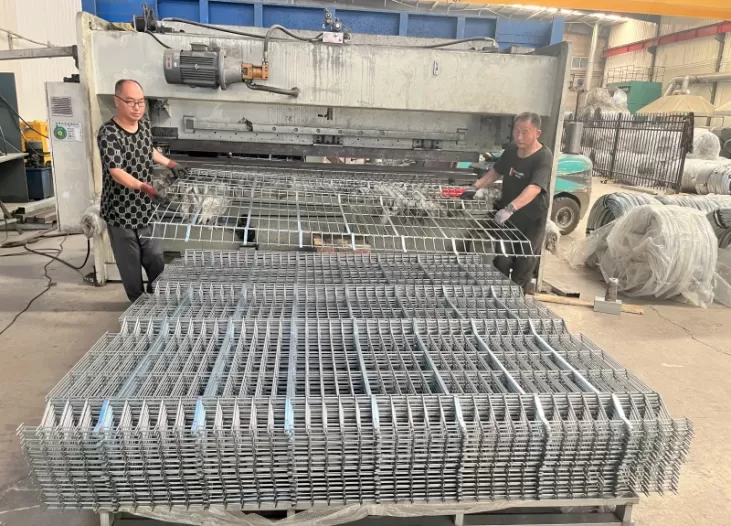

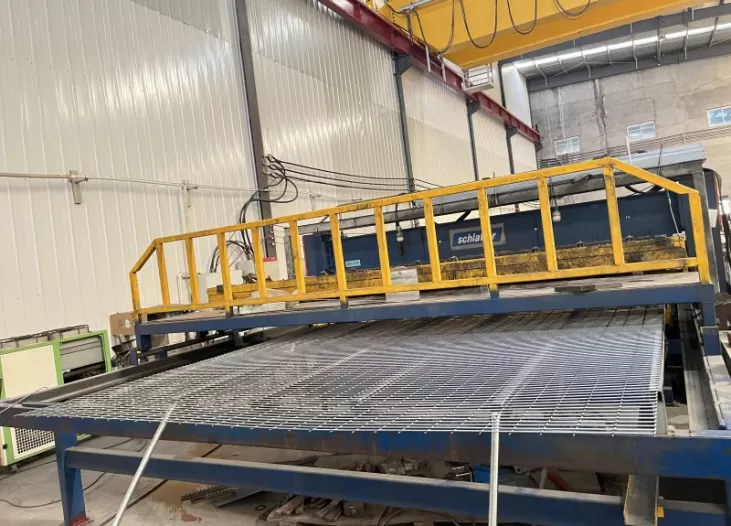

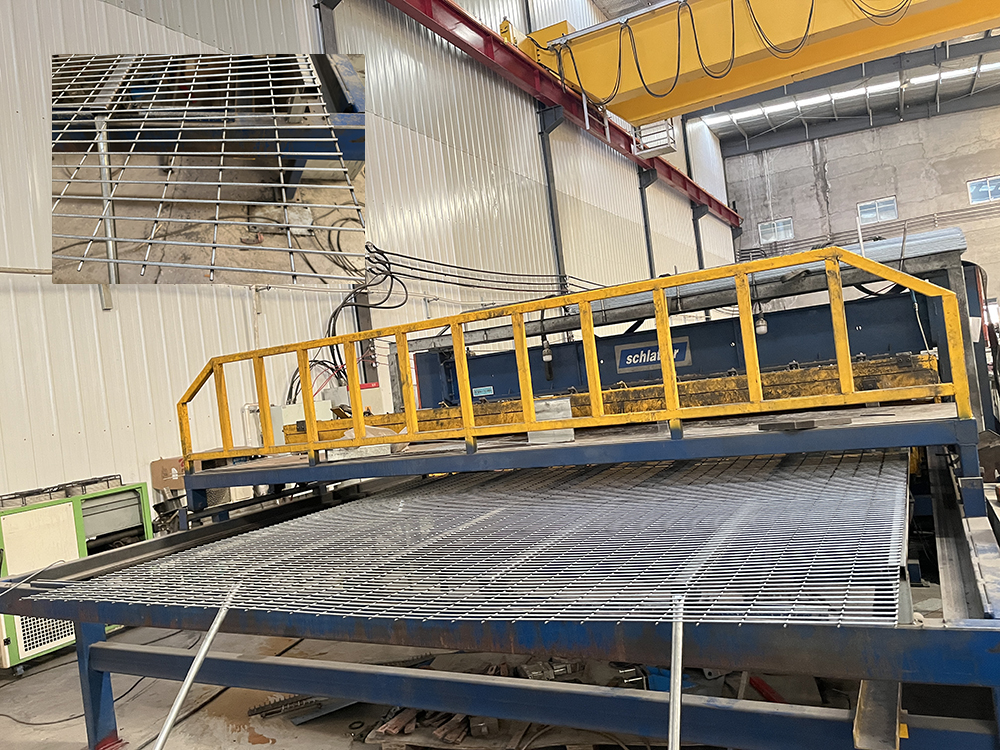

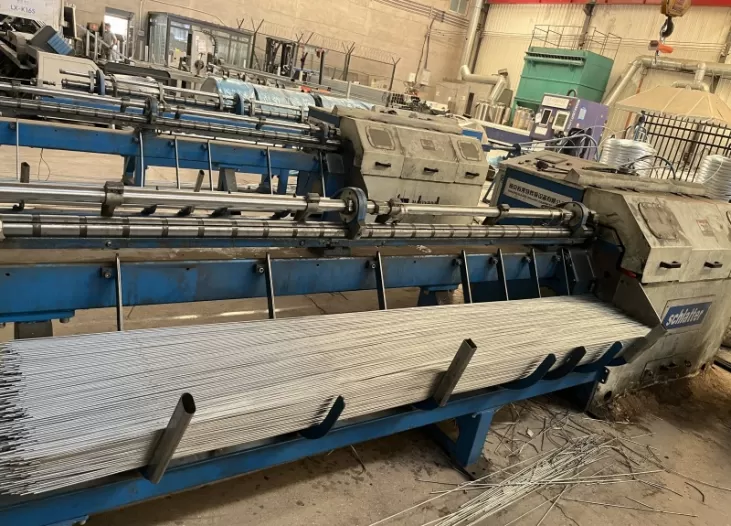

Automatic welded mesh machine

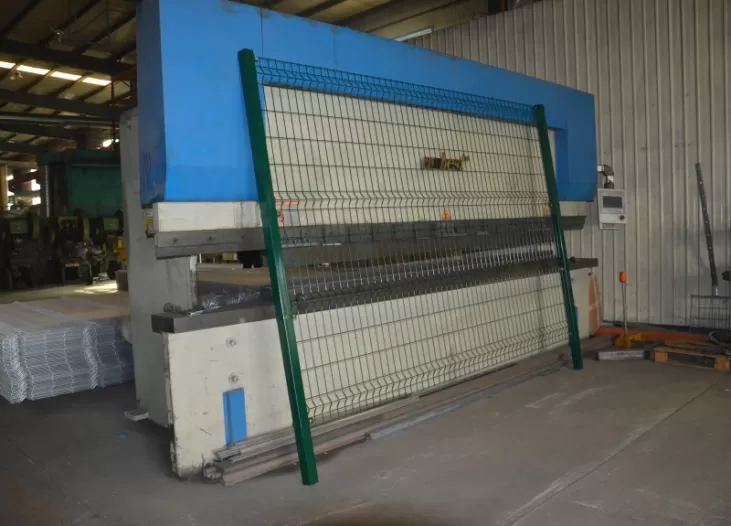

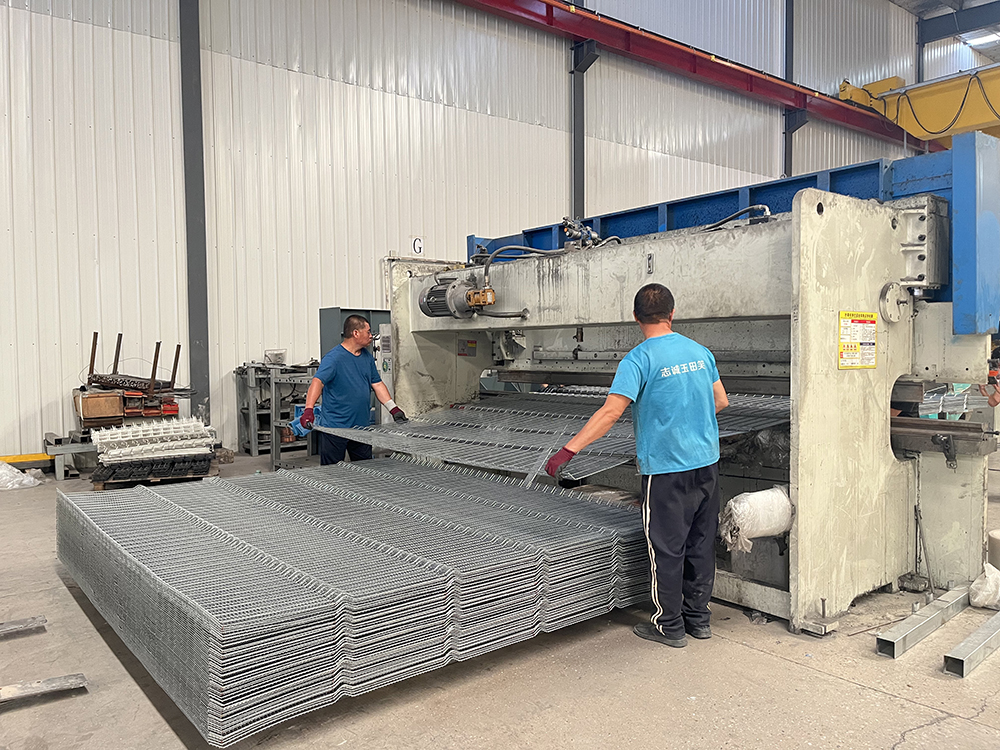

Bending with V-curves for extra rigidity
Sand blasting
Nanoceramic technology:removing grease

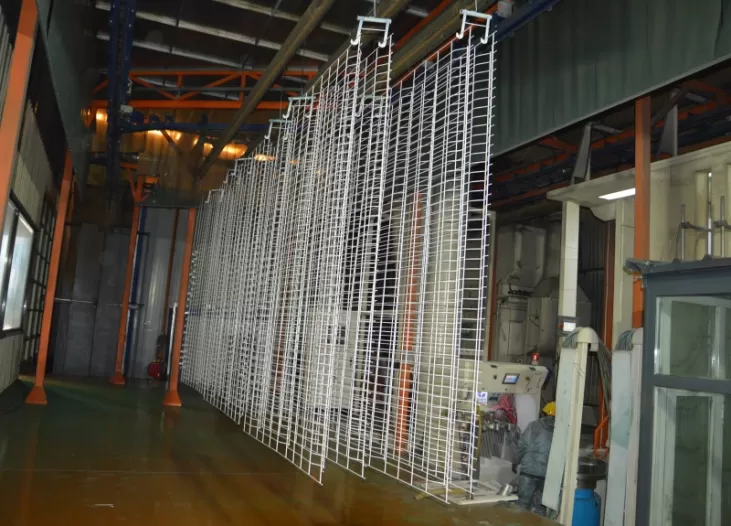

Powder coating application

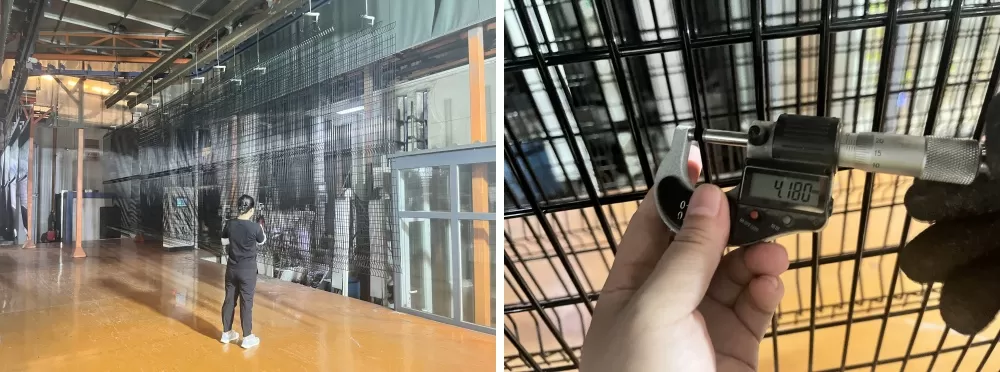

Every 3D Mesh Fence panel undergoes strict quality control at each stage: Raw Material Inspection: Wire diameter and coating quality are tested before welding. First Article Inspection: Panel dimensions, flatness, and bending angle verified against drawings. Process Inspection: Coating adhesion tested with a white-cloth wipe test after nano-ceramic pretreatment. Final Inspection: Coating thickness, color uniformity, and packing integrity checked before shipment. Third-party inspections (SGS, CCIC) are also accepted.

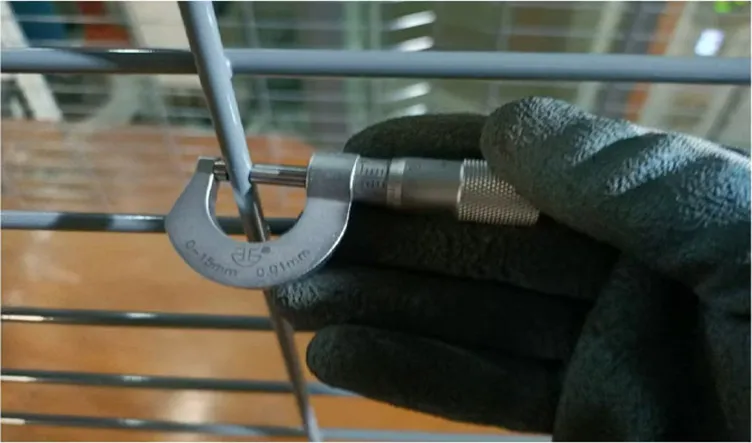

Test whether the tensile strength of the wire reaches 500-600Mpa.

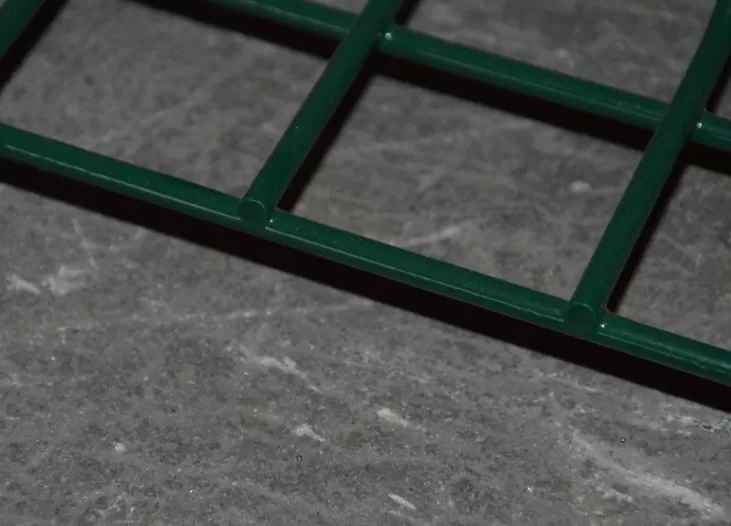

Check if the quality inspection wire has scratches
Inspect the weld joint firmness verify the solidity of weld seams

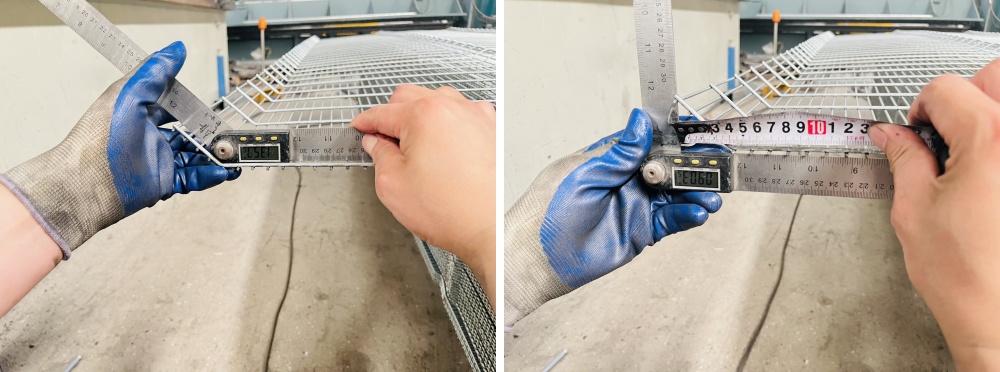

The diagonal measurement error shall not exceed 2mm.
Inspect the welds for spatter and foreign impurities.

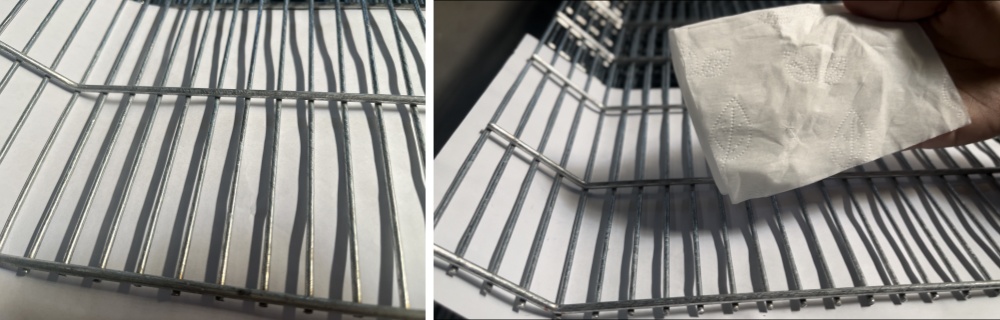

Check the neatness of the mesh sheets and verify if a protective film has adhered to the surface.

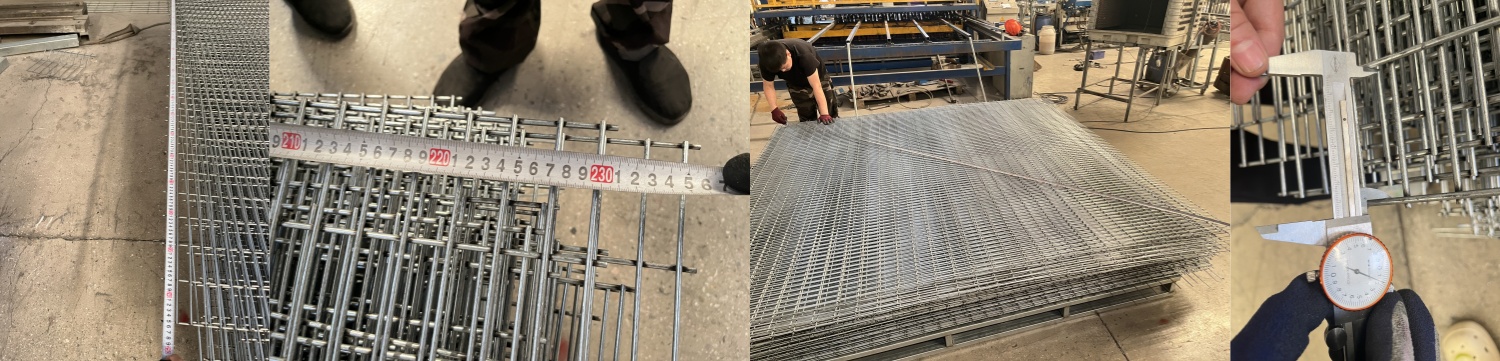

Measure the mesh size to check if it meets the standards.

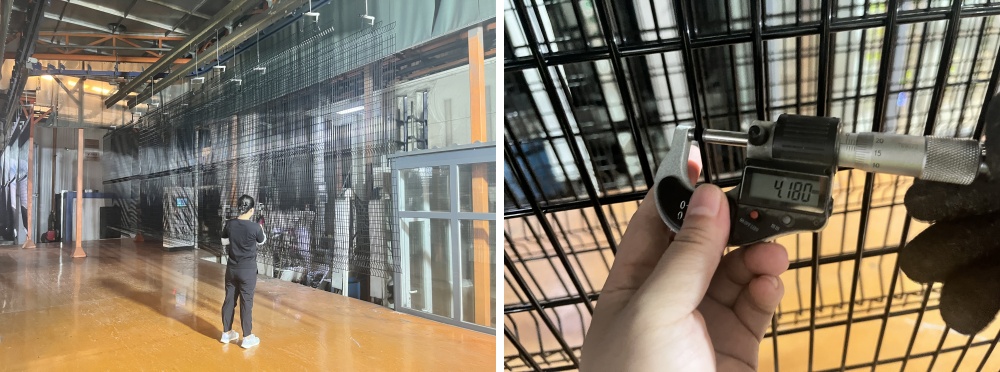

Check whether the double-sided spray coating thickness is more than 120 microns.

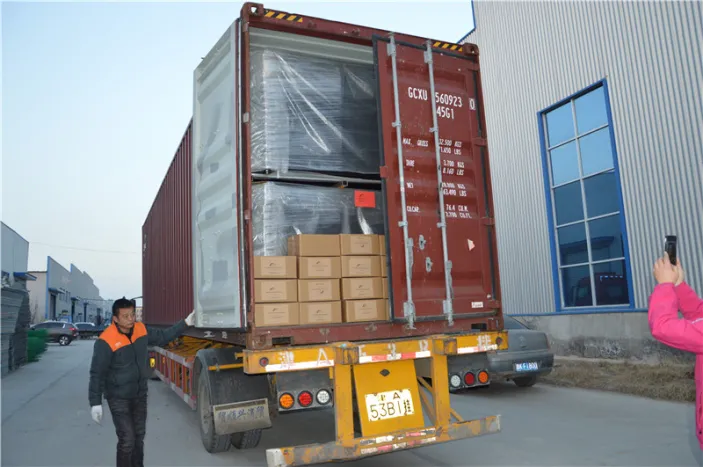

Customize exclusive container loading plans,maximize the use of container space,load more goods and save more money!

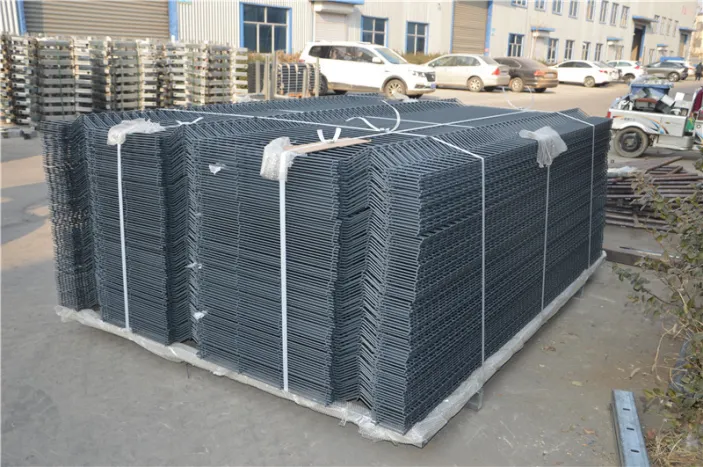

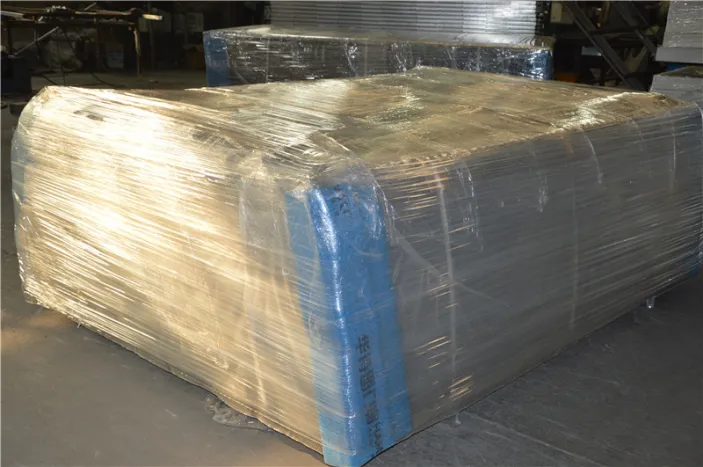

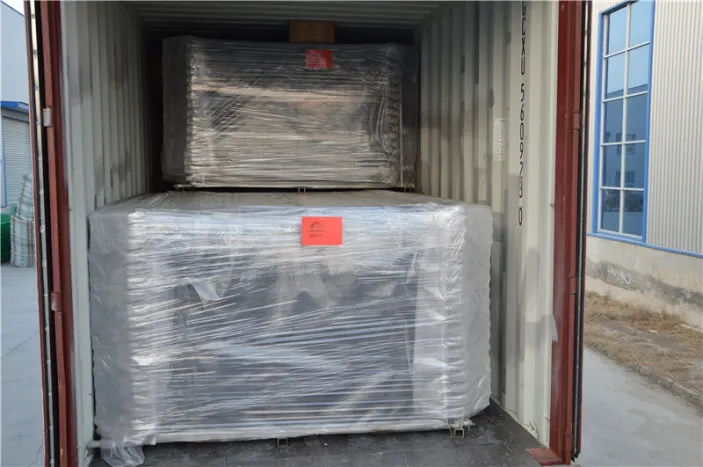

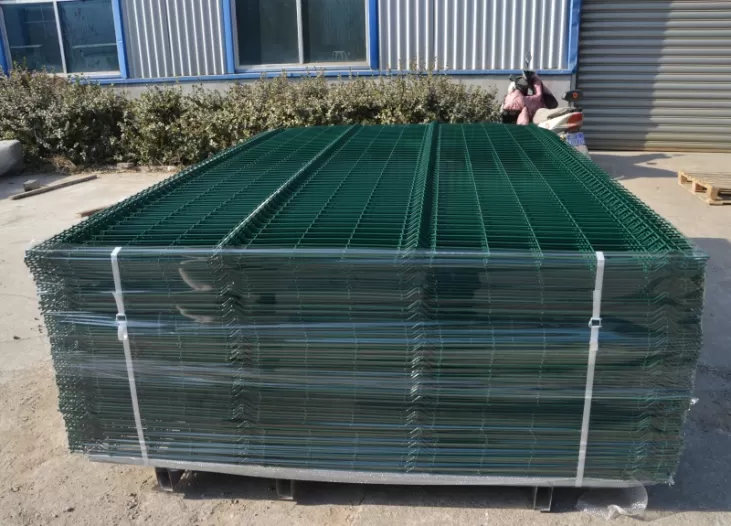

Package of 3D Mesh Fence
Package of 3D Mesh Fence
Package of 3D Mesh Fence
Package of 3D Mesh Fence
Package of 3D Mesh Fence

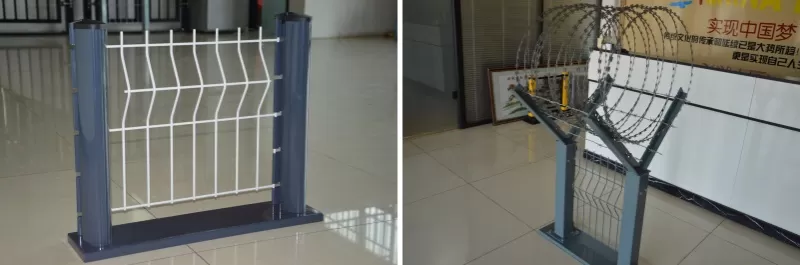

3d welded fence panels, panel clamps and plastic feet as shown below.

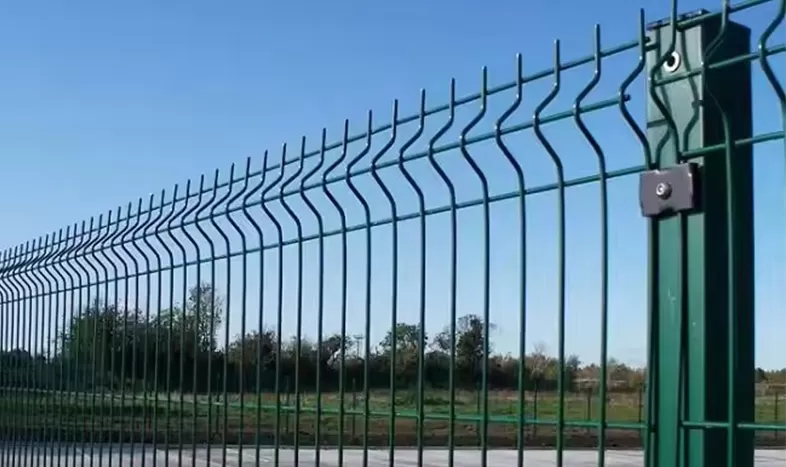

Clamp bar connection
I post connection
J bolt connection
Metal clamp connection
Peach post connection
Square clamp connection .
U bolt connection
Round post

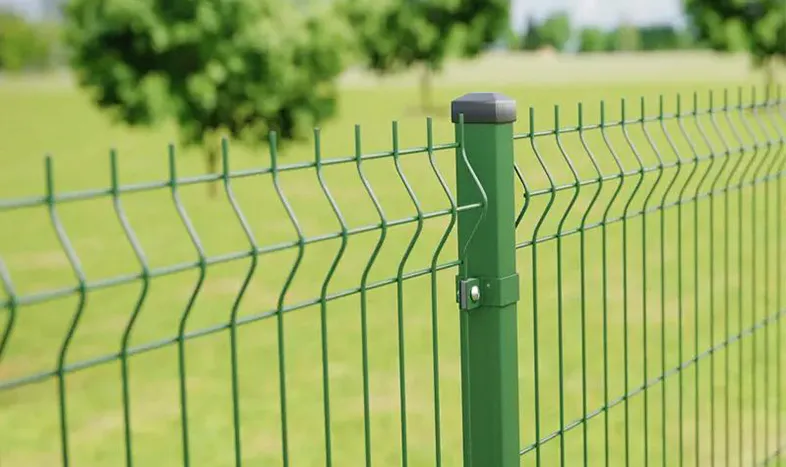

square post
Rectangular post
Peach post
I shape post
Barbed wire
Razor wire
Enhanced Strength and Stability – The V-shaped bends on each panel significantly increase the structural integrity of the fence, making it more impact-resistant.
Attractive Appearance – The 3D curved design offers a modern and elegant appearance suitable for both residential and commercial areas.
Anti-Corrosion Surface – Every panel is hot-dip galvanized and powder-coated with AkzoNobel certified powder for superior rust resistance and long service life.
Easy Installation – Compatible with multiple post types including square, round, rectangular, and peach-shaped posts; ideal for flat or sloped terrain.
Customizable Design – Height, mesh aperture, wire diameter, and coating color can all be customized based on project requirements.
BONKFC is a leading metal fence manufacturer in China, specializing in 3D Mesh Fence, 358 Fence, Double Wire Fence, and Palisade Fence systems.
We use advanced equipment and certified materials to ensure every fence meets international standards.
Advantages
Factory-direct supply, OEM/ODM service
Advanced automated welding and coating lines
Over 60 countries export experience
Strict QC & after-sales support
3d Fence Panel can form a securty fence with square posts, Rectangular posts, peach shaped posts or round posts, 3d securty fence is a kind of fence that iswidely used as residential fence, park fence, factory fence, road fence, etc. Our 3D mesh fence system is widely applied in: 1. Residential Perimeter Security Housing estates Apartment complexes Private villas Gated communities 3D mesh fence for residential perimeter offers security while maintaining visibility and aesthetics. 2. Industrial & Warehouse Protection Factories Logistics centers Storage facilities Industrial parks 3D welded mesh fence for industrial sites provides controlled access and perimeter boundary definition. 3. School & Campus Fencing Primary and secondary schools Universities Training centers 3D mesh fence for school perimeter ensures safety without creating a closed visual barrier. 4. Sports Field & Playground Fencing Football fields Basketball courts Public parks Curved mesh structure improves impact resistance for sports applications. 5. Infrastructure & Public Facilities Road boundaries Railway protection Substations Solar farms 3D security fence offers reliable perimeter protection at optimized cost.

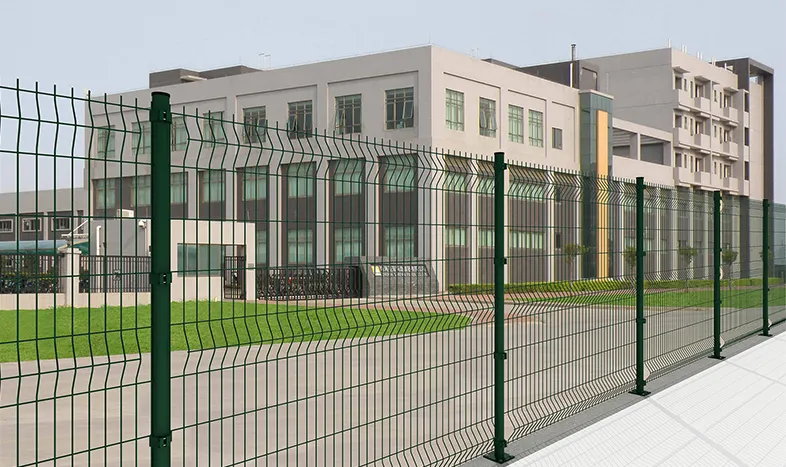

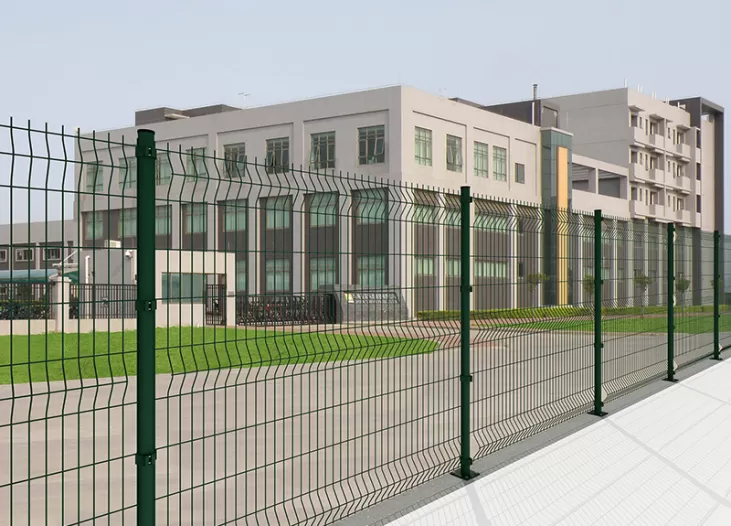

Industrial Parks and Warehouses

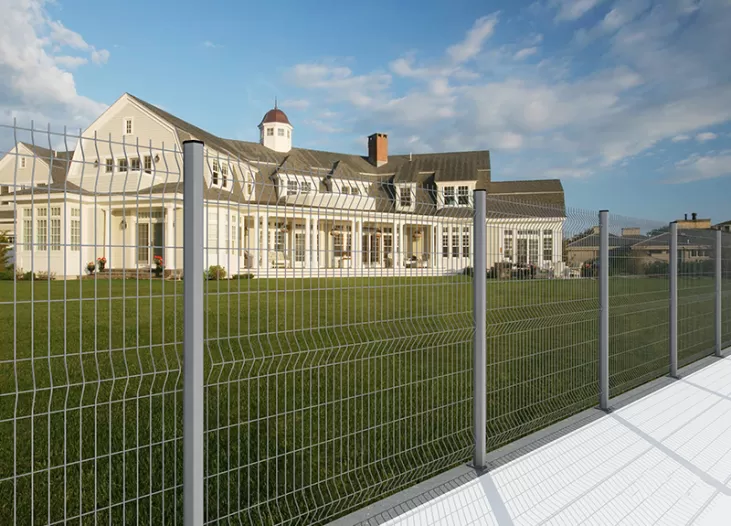

Residential Perimeter security
Airports,Stations, and Public Infrastructures
Residential Perimeter security

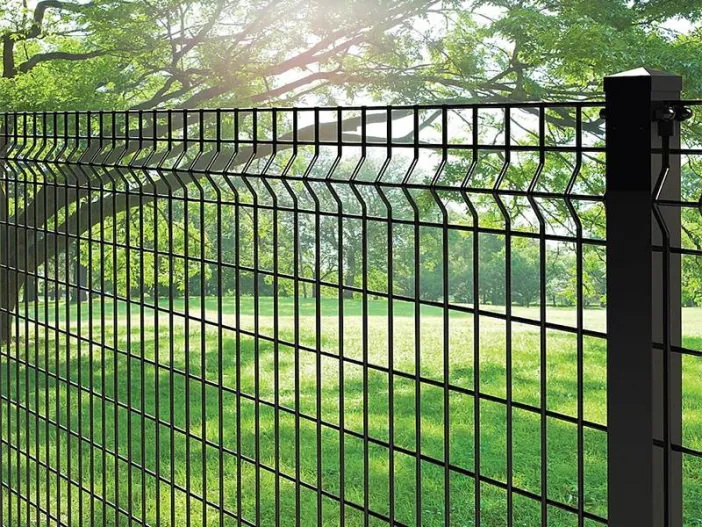

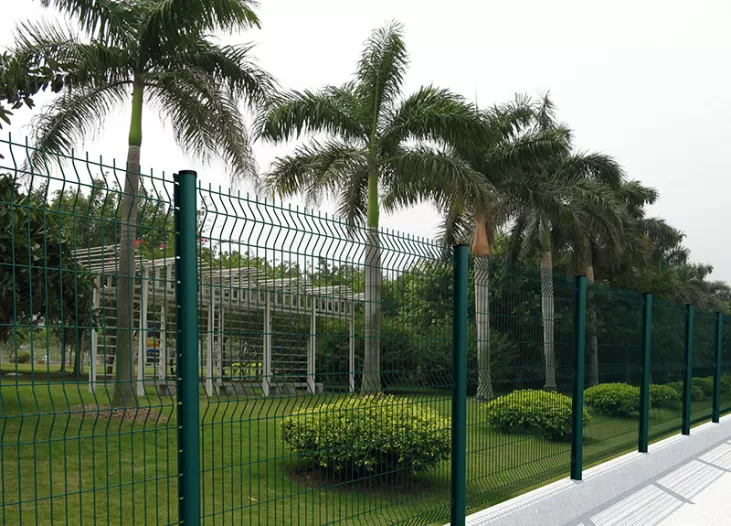

Urban Roads and Public Parks
