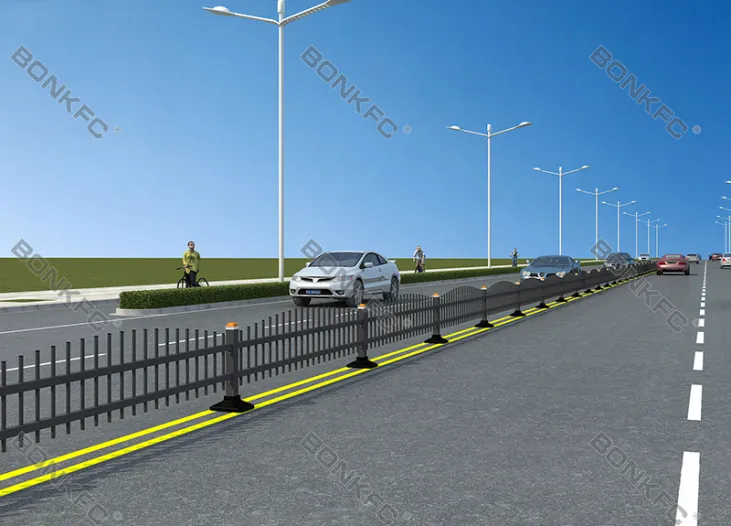

Road Fence
Name: Road Fence
Material: Q195/Q235 wire and pipe
Brand : BONKFC Fence
From: China BONKFC
Color: Black9005, Black Green 6005, Grey7016

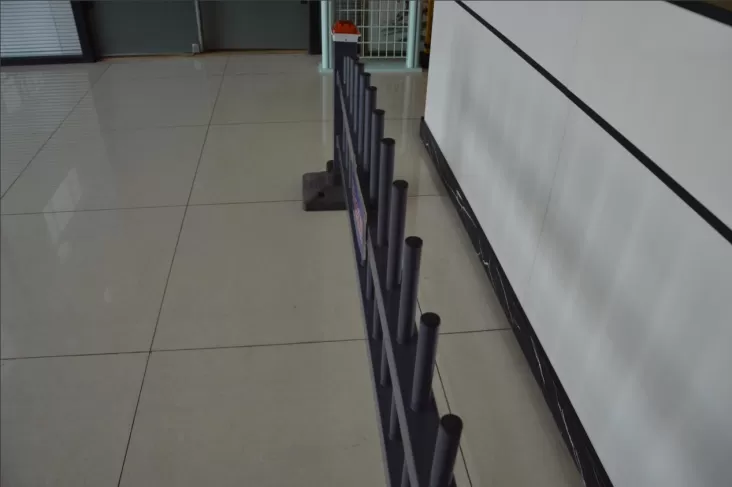

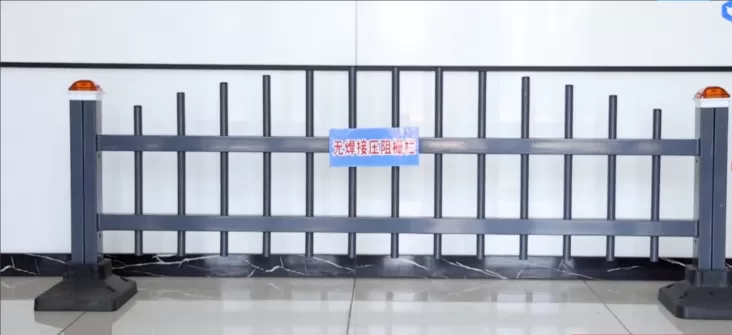

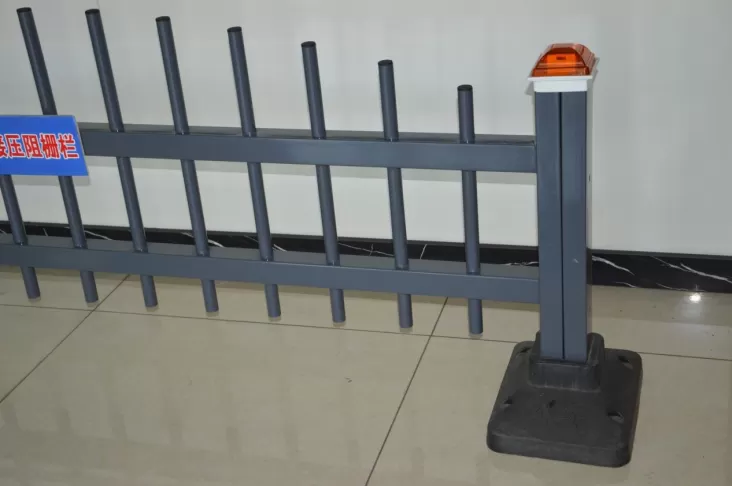

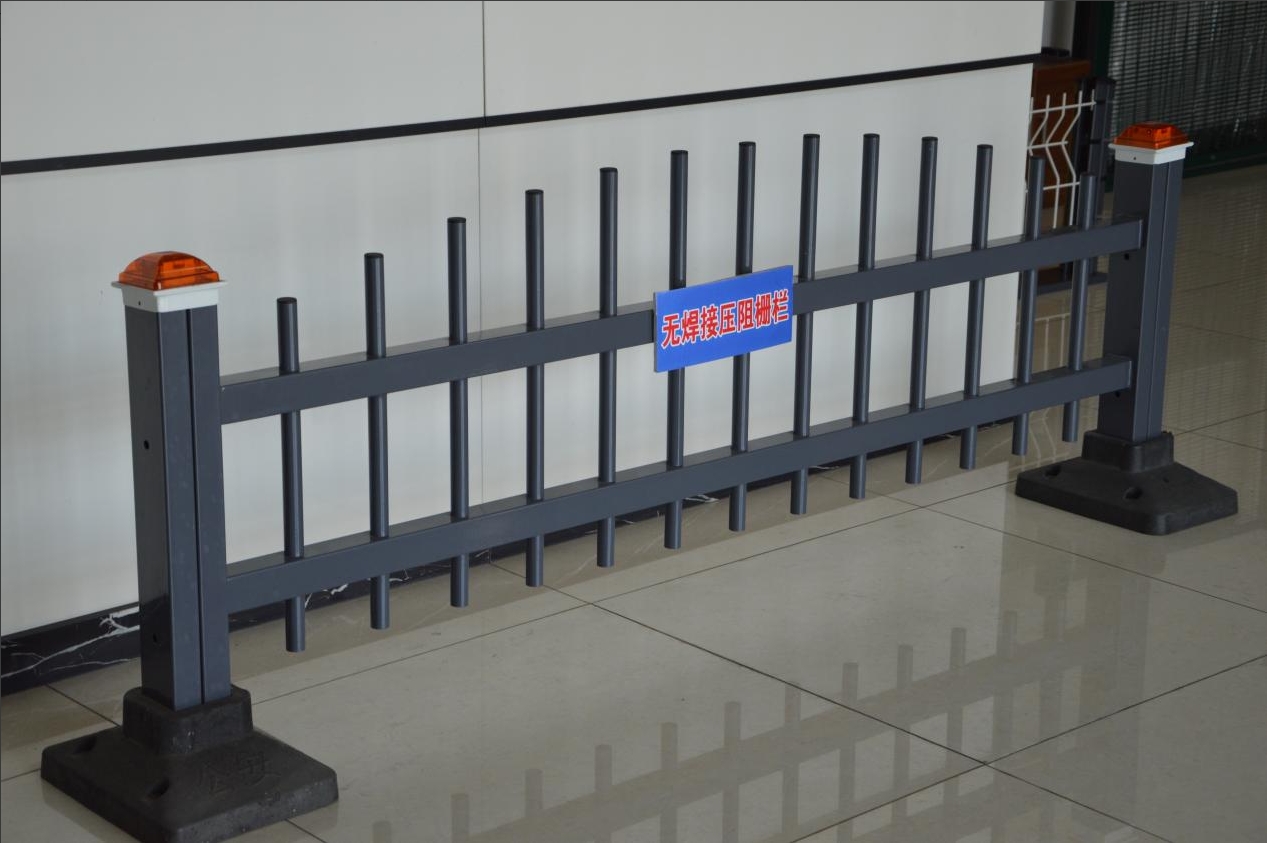

The Road Fence is made of the round Pipe withnot any welding. This Road fence is our BONKFC's design,The technology we used is stamping tech to corss ,the fencedesign is beautiful for garden,to show the place beautyscene.
Product features:

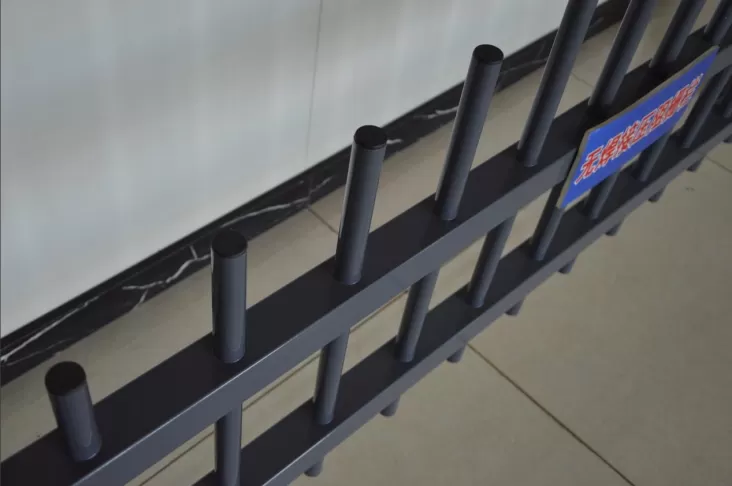

1.There is no need to do any welding for the link between thefull circular filling rod and the transverse rod, The new specialprocess of piezoresistive is used to make the transverse rodand the fllllng rod closely combined to achleve zero gap, soas to achieve zero risk of corrosion prevention;

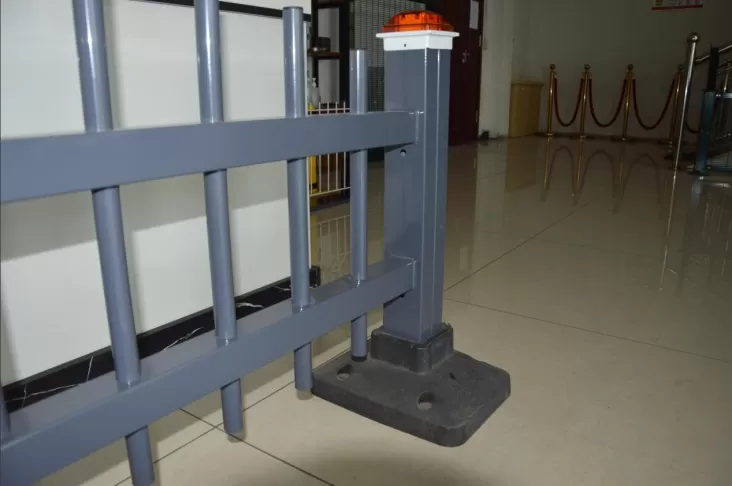

2.Posts and bars are uniquely linked without any linking parts.
3.The industry's leading anti-corrosion technology and layer technology, using the internationaladvanced nano ceramics and electrostatic powder spraying technology;
4.To provide customers with 10 years of anti-corrosion coating warranty.
The producing access:
Pre-degreasing,degreasing,washing1,washing2,nano-ceramics,washing3,washing4,drying,electrostaticspraying,curing
Polyester powder electrostatic spraying, using "akzo-nobel/AKZo-Nobel powder" plastic powder; Spray layerthickness 120-150um;
And We have the 10-year guarantee for the anti-corrosionquality.
| Panel size | 1.8x2.4m(6x8ft),.1x2.4m(7x8ft),ect |
| Rall size | 40x40*1.8mm,50x50mm x1.8mm |
| Vertical pipe | Round pipe |
| Picket size | round tube Dia.19/20/25*1.5mm as required The dlstance between pickets can not be more than 4 inches.(USA) |
| Post size | 50x50x1.5mm/60x60x1 5mm/80x80x1.5mm (65/75mm square tube needs to be customlzed) |
| Flange plate | 150x150x5mm |
The top and bottom of the steel fence exceed rall 150/200mm | |
| Accessories | Bolts&nuts, screws |
| Surface treatment | Pre-galvanized + Powder coating black |
1. Hot dipped galvanized steel picket fence
After welding, a protective layer is formed on the surface of the steel through the hot dip galvanising process. This coating can effectively preventoxidative corrosion and prolong the service life of road fence.
2. Plastic Coating (PVC Coating) or Powder Coating after galvanized road fence.
We use high qualty powder for spraving, which combines with the galvanised laver on the steel surace to form a more effective protecive laver tprovides beter protection against oxidisation and corrosion of the steel and this treatment willmake the road fence more aesthetically pleasing.

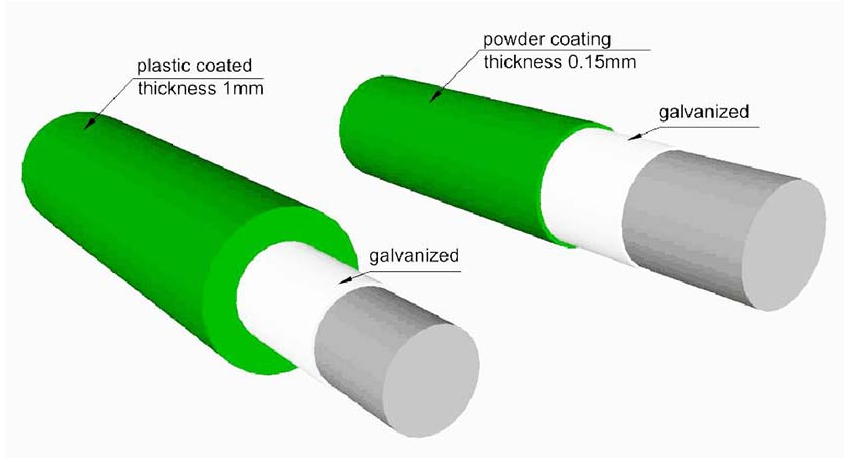

The difference between Plastic Coating and Powder Coating after galvanized road fence.
