Nov. 06, 2025 Airports are among the most security-critical infrastructure in the world. A single breach in the perimeter can ground flights, trigger emergency responses, and expose operators to regulatory liability. BONKFC designs and manufactures airport security fencing systems engineered specifically to meet the demands of civil and military aviation environments — combining anti-climb mesh construction, corrosion-resistant coatings, and verified compliance with international aviation safety standards.
Whether you are upgrading an aging perimeter, specifying a new terminal extension, or procuring fencing for a full greenfield airport project, this page provides the technical details, product options, and project references you need to evaluate BONKFC as your supplier.
Standard industrial security fencing is designed to deter intruders. Airport perimeter fencing must do significantly more — it must meet the frangibility and load requirements defined in ICAO Annex 14 and Doc 9137, withstand jet-blast forces near runway thresholds, prevent wildlife ingress that could cause bird strikes, and integrate cleanly with Perimeter Intrusion Detection Systems (PIDS), CCTV mounts, and access control gates.
Key functional requirements unique to aviation environments:
• Frangibility: Fences near Obstacle-Free Zones (OFZ) and Runway Strip areas must be frangible — designed to break away on aircraft impact without causing structural damage to the aircraft, as required by ICAO Annex 14, Section 9.9.
• Anti-climb & anti-cut performance: Mesh aperture must prevent footholds (typically ≤ 50 × 50 mm in high-security zones) and resist cutting tools per ASTM F2781 (Standard Practice for Testing Forced Entry Resistance of Security Fencing).
• Jet-blast resistance: Panels within 200 m of runway thresholds must withstand wind loads of up to 0.6 kPa and jet-blast velocities; structural calculations must be submitted for approval.
• Wildlife exclusion: Ground clearance below 100 mm and base plate or foundation skirt to prevent burrowing animals from accessing airside areas.
• Corrosion resistance: Salt-spray endurance of ≥ 3,000 hours for inland airports; ≥ 5,000 hours for coastal and island airports (ISO 9227).
• PIDS compatibility: Posts must accept mounting brackets for sensor cables, fiber-optic detection systems, and microwave barriers without requiring structural modification.
Our airport security fence solutions combine mechanical strength, modular design, and aesthetic appeal.

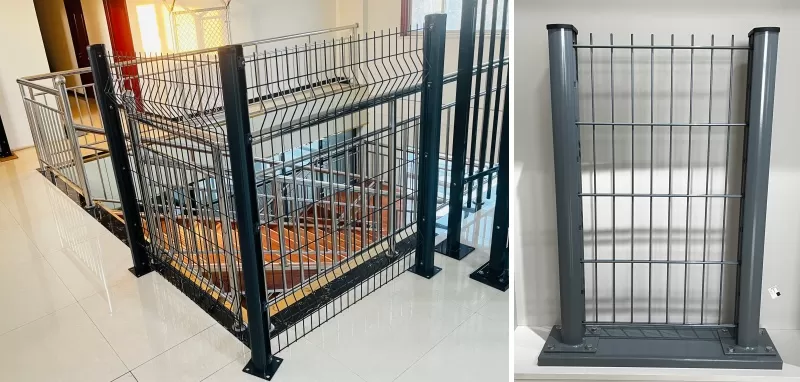

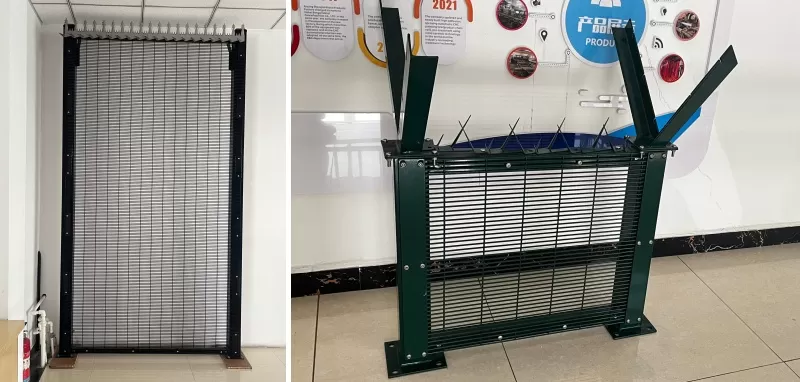

Depending on your project requirements, BONKFC offers several airport-grade fencing types:
Mesh aperture: 12.7 × 76.2 mm for anti-climbing performance
Wire diameter: 4.0 mm – 4.5 mm Q195/Q235 steel
Surface: Hot-dip galvanized + AkzoNobel powder coating (120 microns)
Tested wind resistance: > 53 m/s (Category 16 typhoon)
Ideal for: Airport perimeter protection, control zones, hangars

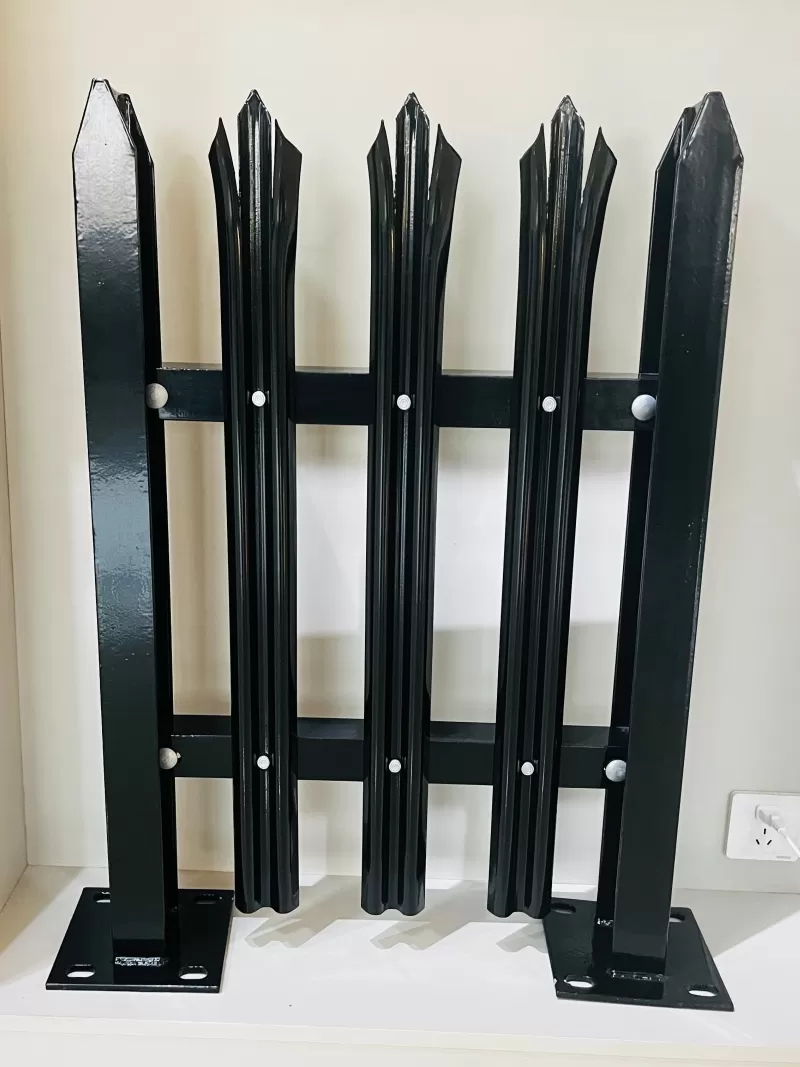

“W” section or “D” section pale design
Hot-dip galvanized and polyester coated to EN ISO 1461:2009
Anti-tamper fasteners and optional razor-wire extensions
Ideal for: Runway perimeters, parking areas, power substations
868/656 welded mesh for medium-security zones
Durable Q235 steel with AkzoNobel coating
Suitable for airfield service roads and administrative perimeters
For complete specification sheets including structural calculations, test certificates, and CAD drawing files, please download the Technical Datasheet or contact our engineering team.
Parameter | Type A — Standard Perimeter | Type B — High-Security AOA | Type C — Frangible FRP |
Material | Q235 welded wire mesh | Q235 358 welded mesh | Pultruded FRP |
Mesh aperture | 12.7×76.2 mm or 50×200 mm | 76.2×12.7 mm ("358") | Custom / open mesh |
Wire / profile diameter | 3.0 – 5.0 mm | 4.0 mm (H) × 3.0 mm (V) | N/A (FRP profile) |
Standard heights | 2.4 / 3.0 / 3.6 m | 2.4 / 3.0 / 3.6 / 4.0 m | 1.2 / 1.5 / 1.8 m |
Surface finish | HDG ≥ 200 g/m² + powder coat | HDG ≥ 200 g/m² + powder coat | UV-stable gel coat |
Salt-spray resistance | ≥ 3,000 hr (ISO 9227) | ≥ 5,000 hr (ISO 9227) | N/A — FRP non-corrosive |
ICAO applicability | Outside OFZ / runway strip | AOA / terminal / cargo zones | Within OLS / ILS critical areas |
PIDS-ready | Optional | Standard | Optional |
Service life | ≥ 20 years | ≥ 20 years | ≥ 25 years |
MOQ | 500 linear meters | 300 linear meters | 200 linear meters |
Lead time (ex-factory) | 15 – 25 days | 20 – 30 days | 30 – 45 days |
All BONKFC Fence airport fencing products are produced using Swiss-imported Schlatter welding equipment, ensuring consistent weld strength and mesh flatness.
We conduct:
Raw material inspection (tolerance ± 0.5 mm)
Cross-cut adhesion tests after powder coating
Salt-spray corrosion test exceeding 5,000 hours (ISO 9227)
Our two automated powder-coating lines ensure fast delivery for large-scale airport projects.
All BONKFC airport fencing products are produced at our 35,000 m² manufacturing facility in China, using equipment and processes certified to ISO 9001:2015. Our quality assurance chain covers raw material incoming inspection through to finished product testing and pre-shipment audit.
• Welding equipment: Swiss-imported Schlatter automated resistance welding lines — consistent weld shear strength ≥ 350 N per intersection on 3.0 mm wire
• Galvanizing: In-house hot-dip galvanizing bath, zinc deposition controlled to ≥ 200 g/m² (verified by magnetic thickness gauge on every batch)
• Powder coating: Two automated electrostatic powder-coating lines with AkzoNobel Interpon D1010 polyester powder; curing temperature 200°C / 20 min; cross-cut adhesion test every production run
• Salt-spray test chamber: 3 × Ascott cabinet (capacity 1,000 litre); all export batches receive 240-hour salt-spray spot-check; Type B airport mesh receives full 5,000-hour certification test
• Pre-shipment inspection: Third-party QC (SGS or Bureau Veritas) available on request; BONKFC QC team conducts 100% dimensional check and 5% weld pull-test on every airport order
The following projects represent a selection of completed airport perimeter fencing installations. References and project documentation are available to verified procurement contacts upon request.
• Scope: 4.2 km of Type B high-security 358 mesh fencing for new Terminal 3 AOA boundary
• Specification: 3.0 m height, RAL 6005 moss-green powder coat, Y-posts at 3.0 m centres, concertina razor wire top, PIDS sensor cable conduit
• Challenge: Project required full installation within a 45-day window during terminal commissioning; phased delivery to match civil contractor schedule
• Solution: BONKFC pre-fabricated all panels and pre-assembled post anchor cages at factory; site team received kitted deliveries by bay section, reducing on-site assembly time by 60%
• Outcome: All 4.2 km installed and signed off by airport authority within 40 days; no defects raised at final inspection
• Scope: 1.8 km of Type B 358 high-security fence for international air cargo facility
• Specification: 3.6 m height, anti-tamper fixings, integrated vehicle-rated steel crash barrier at vehicle gate approaches, CCTV pole mounts on every 4th post
• Challenge: Cargo operator required compliance with TAPA FSR (Transported Asset Protection Association Facility Security Requirements) — a privately audited standard with specific fence specification requirements
• Solution: BONKFC engineering team reviewed TAPA FSR specification and confirmed Type B 358 mesh with 3.6 m height and anti-tamper fixings meets FSR A-grade fence requirements; supplied compliance letter signed by BONKFC chief engineer
• Outcome: TAPA FSR A-grade certification obtained by cargo facility; BONKFC listed as approved fencing supplier for operator's Asia Pacific procurement framework
We provide full project support:
Site measurement and customized design
Technical drawings and installation guidance
Logistics coordination and just-in-time delivery
After-sales inspection and maintenance service
Airport perimeter and runway fencing
Control tower & restricted-access areas
Cargo terminals & logistics bases
Fuel storage zones & power substations
Security zones for aviation maintenance facilities
Compliant with international standards (EN 10244, EN 10346)
Decades of manufacturing experience in high-security fencing
Custom-engineered solutions for different security levels
Trusted by large-scale infrastructure clients worldwide
Looking to upgrade or install a new airport perimeter fencing system? Contact BONKFC Fence for a free technical consultation and customized design proposal.
